Elevate | Series 600 | Wide Offset 150mm Framing
by Architectural Window Systems
City of Liverpool, Australia
- 393.6K profile views
- 36 saves

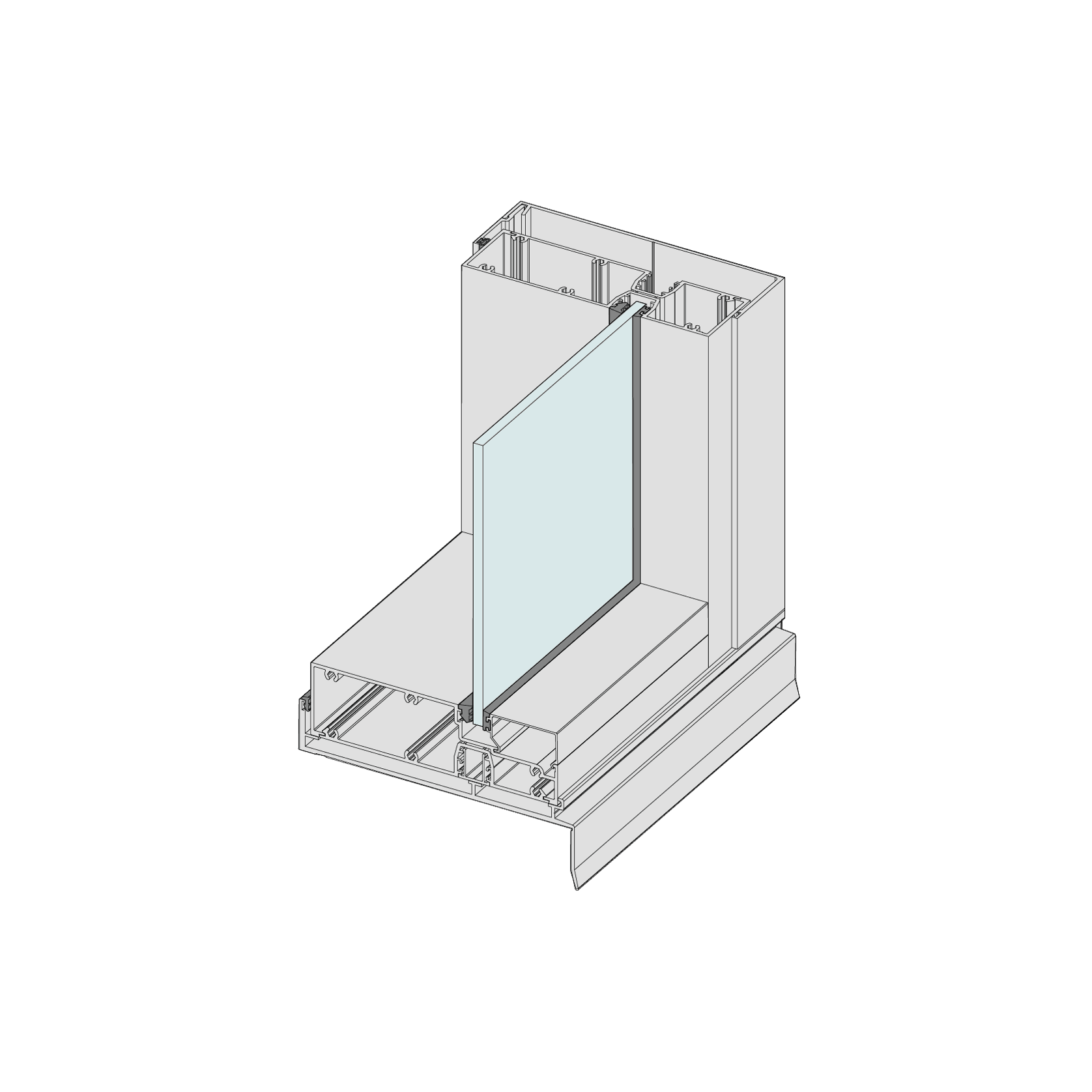

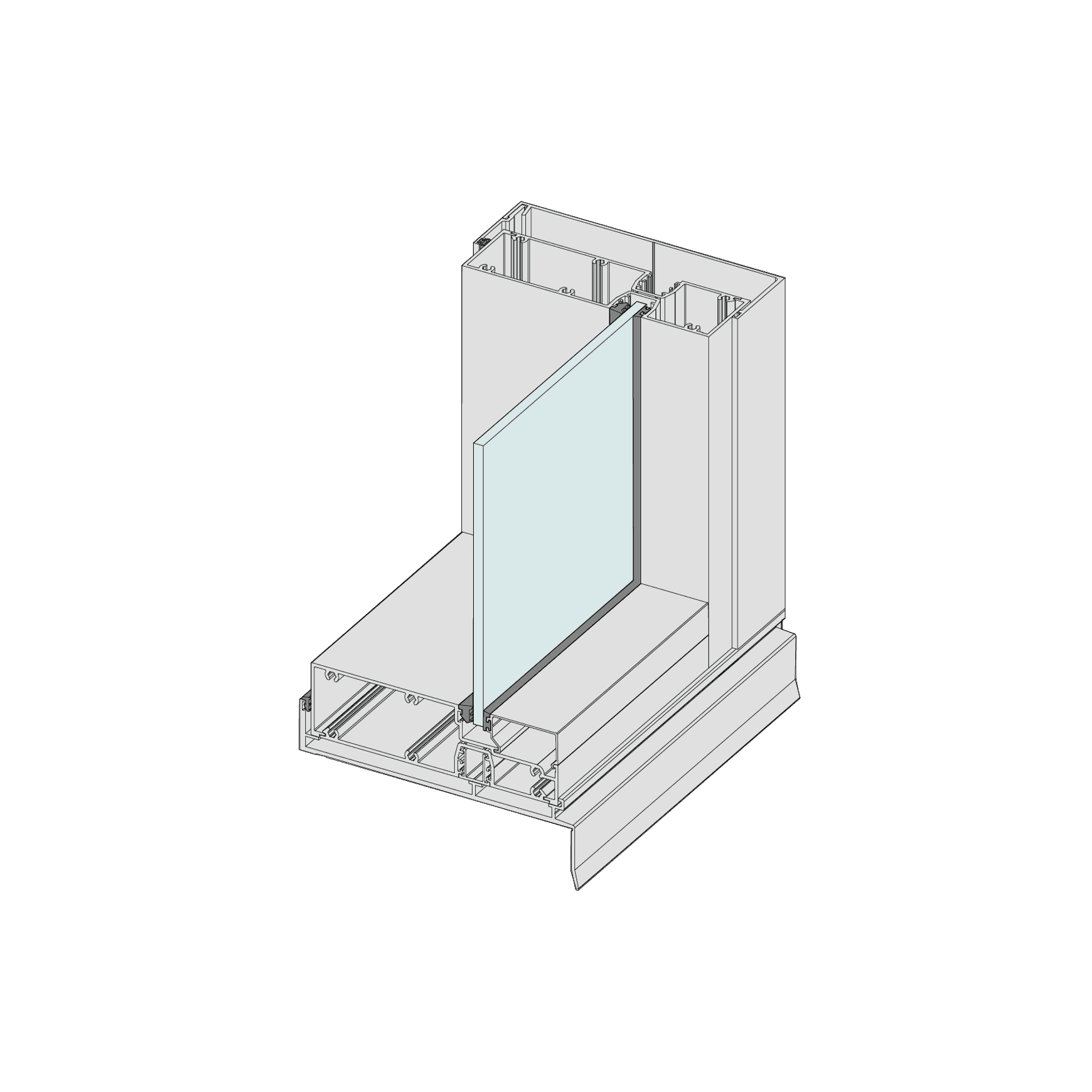

Offset 150 x 44mm pocket glazed shopfront framing system designed to complement Series 400 CentreGLAZE™, Series 80 Offset narrow framing and a variety of door systems
Product Details
- Product
- Elevate | Series 600 | Wide Offset 150mm Framing
- Category
- Wall Framing
- Sold by
- Architectural Window Systems
Architectural Window Systems is specified by
Freckle ArchitectureArchitects
J Mammone ArchitectureArchitects
Chan ArchitectureArchitects
RobertsonCollectifArchitects
Hindley & CoArchitects
Woods BagotArchitects
DX ArchitectsArchitects
Robert Harwood ArchitectsArchitects
Taylor KnightsArchitects
Brcar Morony ArchitectureArchitects
Studio SnellArchitects
Create ArchitectureArchitects
Shane Marsh ArchitectArchitects
Kister ArchitectsArchitects
AO Design StudioArchitects
BANHAM ArchitectsArchitects
ArdelArchitects
Habitat Studio ArchitectsArchitects
Design by JonesInterior Designers
KarmatectureBuilding Designers
Alberse HomesBuilders
APC BuildBuilders
Studio UrboBuilding Designers
Gold Leaf ConstructionsBuilders
Cunningham Custom HomesDesign & Build
Alex Urena Design StudioBuilding Designers
Seidler GroupDesign & Build
Distinct InnovationsDesign & Build
Walters MacriPhotographers
Venn ConstructionsBuilders
Nadine K DesignBuilding Designers
Design by ADBuilding Designers
Reitsma & AssociatesBuilding Designers
Glow DesignBuilding Designers
Offset 150 x 44mm pocket glazed shopfront framing system designed to complement Series 400 CentreGLAZE™, Series 80 Offset narrow framing and a variety of door systems
- Specs
- Glazing pocket designed to be compatible with industry standard but with the added features of a truly captive glazing wedge option and the ability to screw fix door midrails to framing without having to go through the back of the pocket.
- The offset matches 400 CentreGLAZE™ allowing us to use CentreGLAZE™ glazing beads, door stops and awning sash inlay adapters.
- Three 50mm wide door options including fully beaded.
- Three midrail sizes to choose from (50, 115 and 125mm deep).
- Two door thresholds cover both internal and external swing hinged doors.
- Sub-head, sub-sills and two piece sub-jamb to assist with installation.
- Maximum Panel Height *Various
- Maximum Panel Width *Various
- Maximum Glass Thickness ≤ 10.38mm
- SHGC Range 0.25 - 0.75
- Uw Range 4.6 - 6.4
