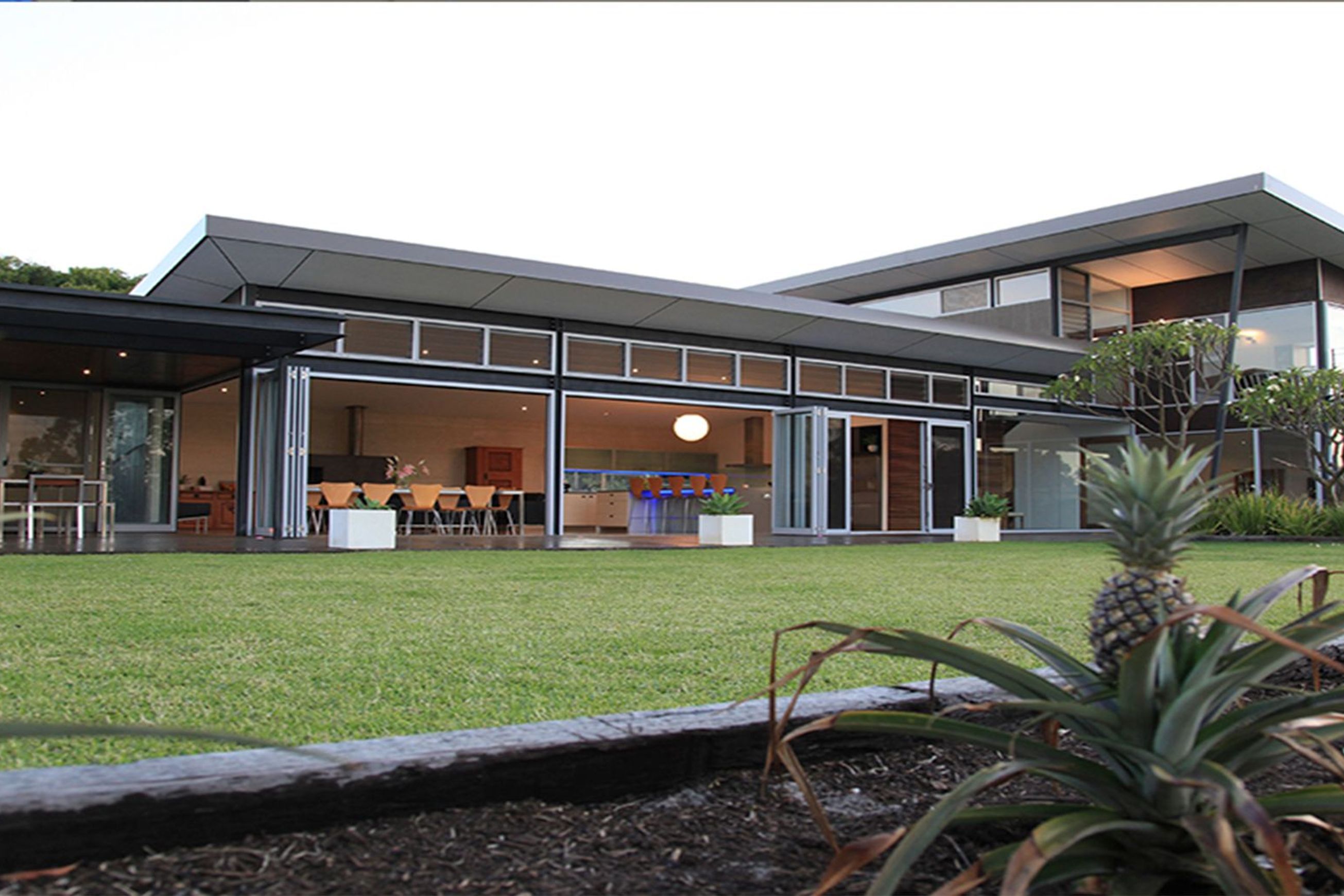

Elevate | Series 407 | 102mm Framing
by Architectural Window Systems
City of Liverpool, Australia
- 393.6K profile views
- 36 saves

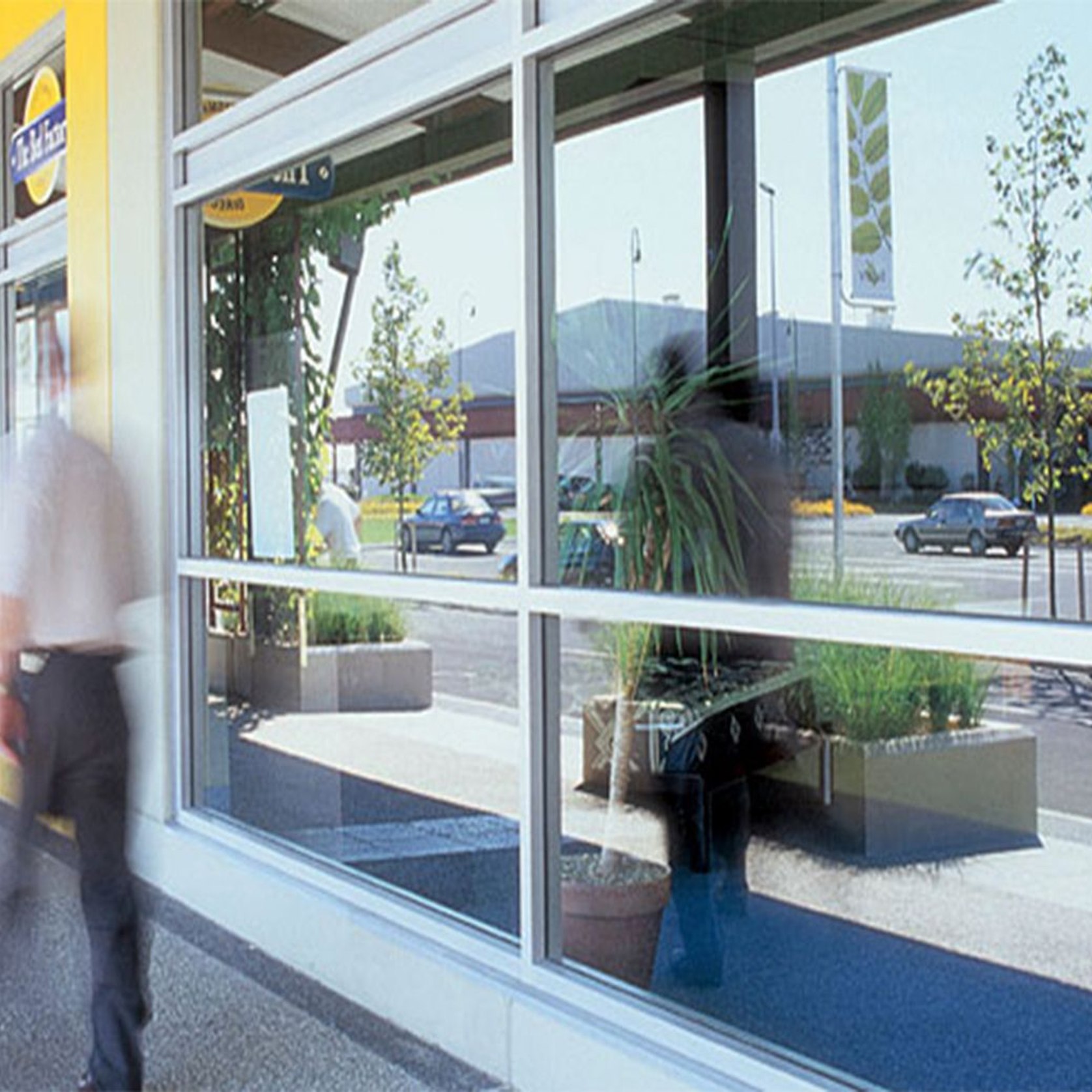

Series 407 FaceLINE™ shopfront framing system has been designed to complement Series 406 FrontGLAZE™ and 702 & 704 SlideMASTER™ sliding doors.
Product Details
- Product
- Elevate | Series 407 | 102mm Framing
- Category
- Wall Framing
- Sold by
- Architectural Window Systems
Architectural Window Systems is specified by
Freckle ArchitectureArchitects
J Mammone ArchitectureArchitects
Chan ArchitectureArchitects
RobertsonCollectifArchitects
Hindley & CoArchitects
Woods BagotArchitects
DX ArchitectsArchitects
Robert Harwood ArchitectsArchitects
Taylor KnightsArchitects
Brcar Morony ArchitectureArchitects
Studio SnellArchitects
Create ArchitectureArchitects
Shane Marsh ArchitectArchitects
Kister ArchitectsArchitects
AO Design StudioArchitects
BANHAM ArchitectsArchitects
ArdelArchitects
Habitat Studio ArchitectsArchitects
Design by JonesInterior Designers
KarmatectureBuilding Designers
Alberse HomesBuilders
APC BuildBuilders
Studio UrboBuilding Designers
Gold Leaf ConstructionsBuilders
Cunningham Custom HomesDesign & Build
Alex Urena Design StudioBuilding Designers
Seidler GroupDesign & Build
Distinct InnovationsDesign & Build
Walters MacriPhotographers
Venn ConstructionsBuilders
Nadine K DesignBuilding Designers
Design by ADBuilding Designers
Reitsma & AssociatesBuilding Designers
Glow DesignBuilding Designers
Series 407 FaceLINE™ shopfront framing system has been designed to complement Series 406 FrontGLAZE™ and 702 & 704 SlideMASTER™ sliding doors.
- Specs
- Glass close to the external face reduces the potential of dust build-up on transom ledges.
- Interlocking split mullions to accommodate expansion and contraction.
- The 102 x 50mm framing system has a variety of transom and mullion alternatives.
- Will accept glass from 6 to 10.38mm thickness.
- Full perimeter frame allows this system to be fitted into sub-head, sub-sill and sub-jambs if required.
- Four snap-on cover options.
- Designed for one- or two-storey shopfronts, vertical should not exceed the stock length. This is not a curtain wall system.
- Maximum Panel Height* Various
- Maximum Panel Width* Various
- Maximum Glass Thickness ≤ 10.38mm
- SHGC Range 0.33 - 0.73
- Uw Range 4.3 - 6.1
