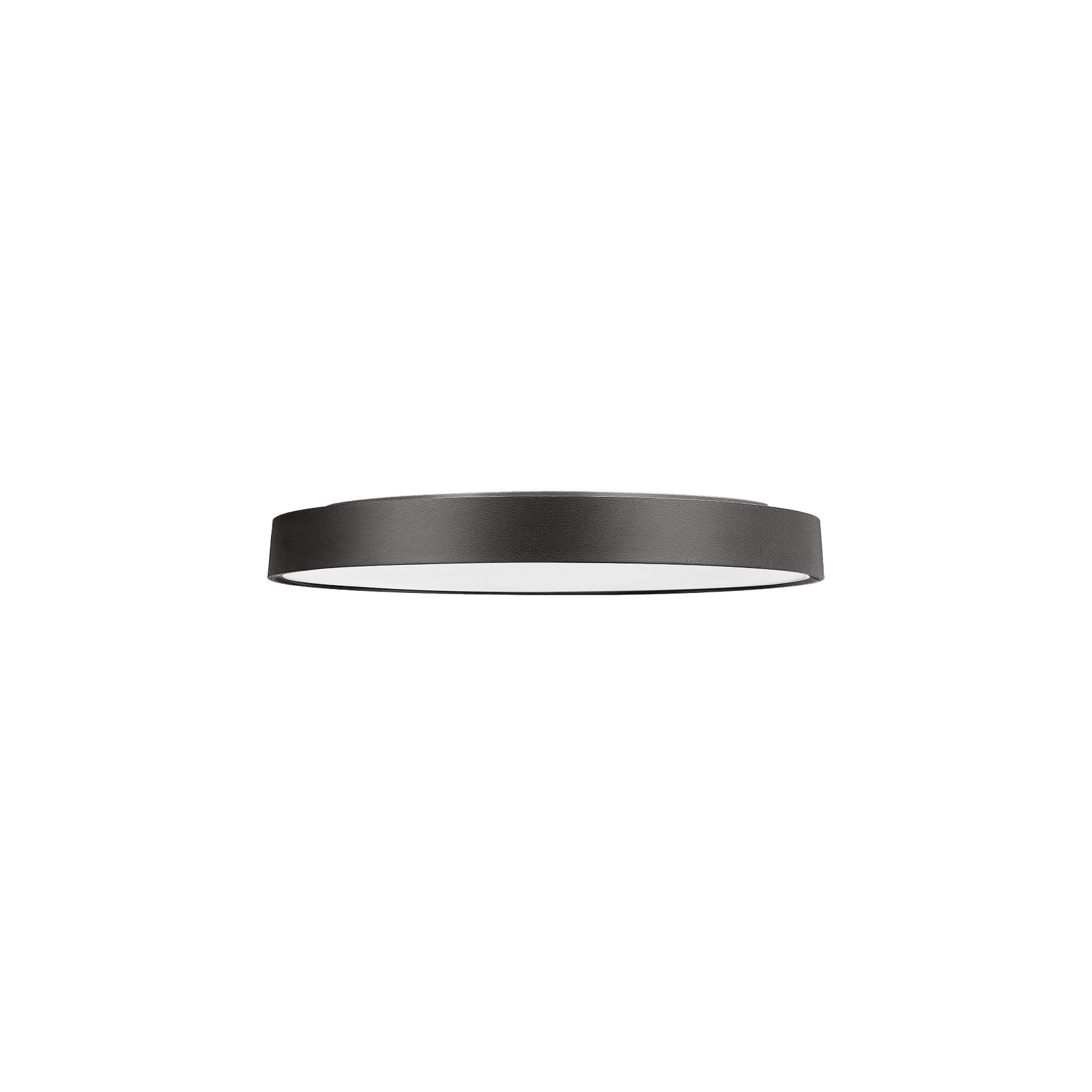

Modudisc 900mm Light

Halcyon Lighting

LED348
Modudisc 900mm 3K/4K Light
Direct/Indirect Surface Mount or Suspended

Black
Details
Attributes
  • Orientation
    Horizontal
  • Light bulb type
    LED
  • Type
    Ceiling lights
Specifications

LED348

Dimensions D900 x H79mm
Watts Selectable 55W, 75W or 90W
Lumens <10450lm (See Spec Sheet)
Input 240V AC
Beam 90°
Colour Temp Selectable 3000K or 4000K
CRI >90 (R9>75)
Lifespan 72,000hrs (L80 B50)
UGR Suitable for installations requiring UGR of less than 19
Binning 3-step SDCM
Material Aluminium + PMMA (Microprismatic diffuser)
IP Rating IP20
Driver Incorporated, non-dimmable or Dali
TLAs "Flicker Free", PstLM ≤1.0; SVM ≤0.4
Electrical Class Class I luminaire, requires earth
Application Interior, surface mount
Inrush 11.2A @ 696μs
Drivers per MCB B16=12 / C16=21
Warranty 5 Year Warranty

Scope of use
  • Surface Mount or Suspended
    • Interior
Features
  • Uplight (can be manually switched off during installation if not needed)
    • CRI90
    • Selectable 3000K or 4000K
    • Suitable for installations requiring UGR of less than 19
    • Flicker Free (PstLM ≤1.0; SVM ≤0.4)
    • 5 Year Warranty
