How much does the EVO Linear Series cost?

Halcyon Lighting does not publish a price for the EVO Linear Series on ArchiPro. Send them an enquiry for pricing, or visit their website.

EVO Linear Series

by Halcyon Lighting

1.0M profile views
115 saves

Visit Website

One system. Every application.
A modular system allowing for tailored layouts, from simple lengths to complex geometric installations.

A single product covering:

Surface mount or suspend
DALI, SwitchDIM or non-dim
3000K or 4000K
Direct or Direct/Indirect

Tags

joinable linkable led geometric trunking

Product Details

Product: EVO Linear Series
Category: Flush Mount Lights
Sold by: Halcyon Lighting
Light bulb type: LED
Warranty: 5 years

Product Variants

Colors

Halcyon Lighting is specified by

(46) Professionals

Visit site

One system.

Every application.
A modular system allowing for tailored layouts, from simple lengths to complex geometric installations.

A single product covering:

Surface mount or suspend
DALI, SwitchDIM or non-dim
3000K or 4000K
Direct or Direct/Indirect

Specs

EVO

Input 240V AC
Dimensions W58mm x H82mm
Colour Temp Selectable 3000K or 4000K
CRI 90
Lifespan 102,000hrs (L80 B10)
UGR Suitable for installations requiring UGR of less than 19 (Micro-prismatic only)
Beam Angle 80° Direct (Down), 100° Indirect (Up)
Binning SDCM 3

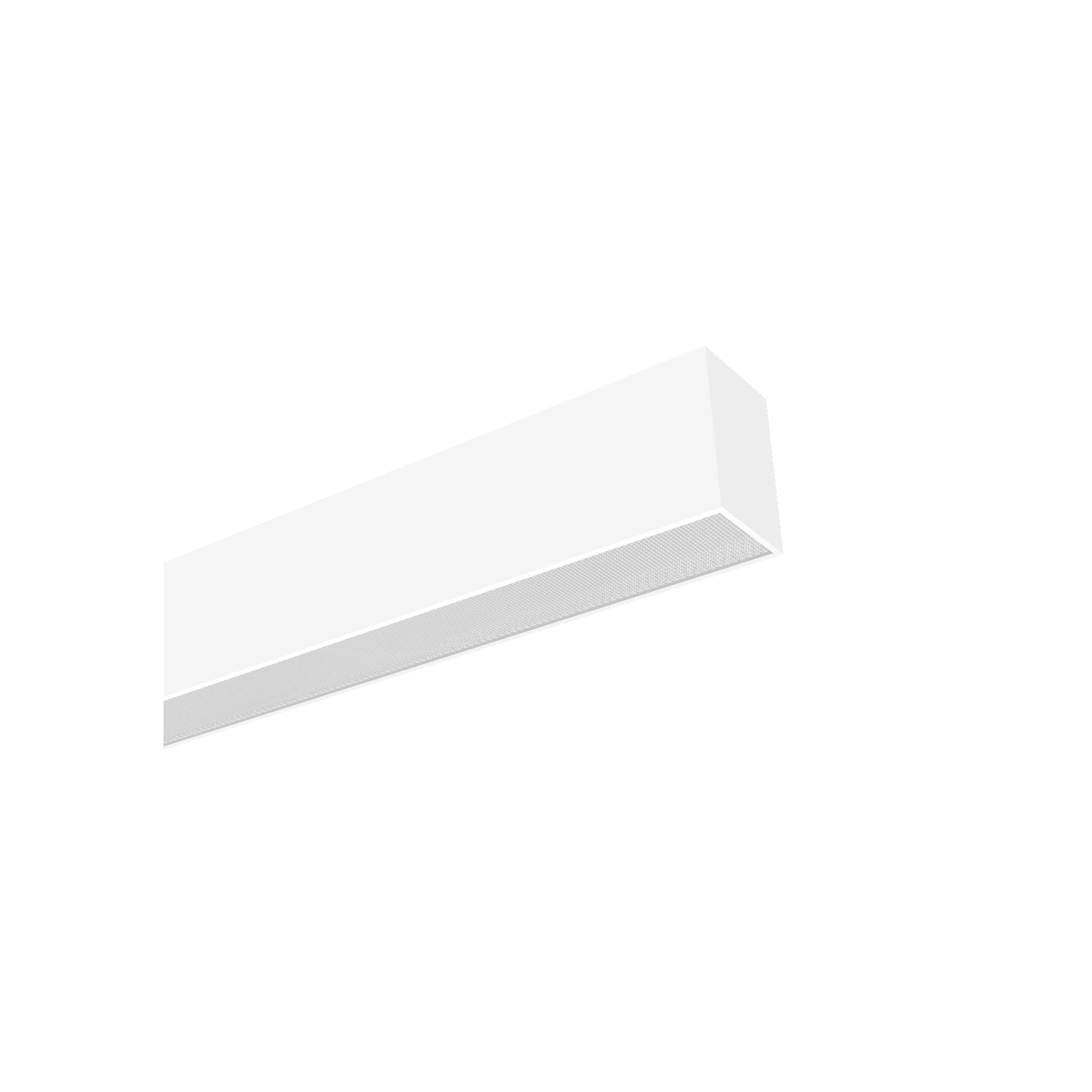

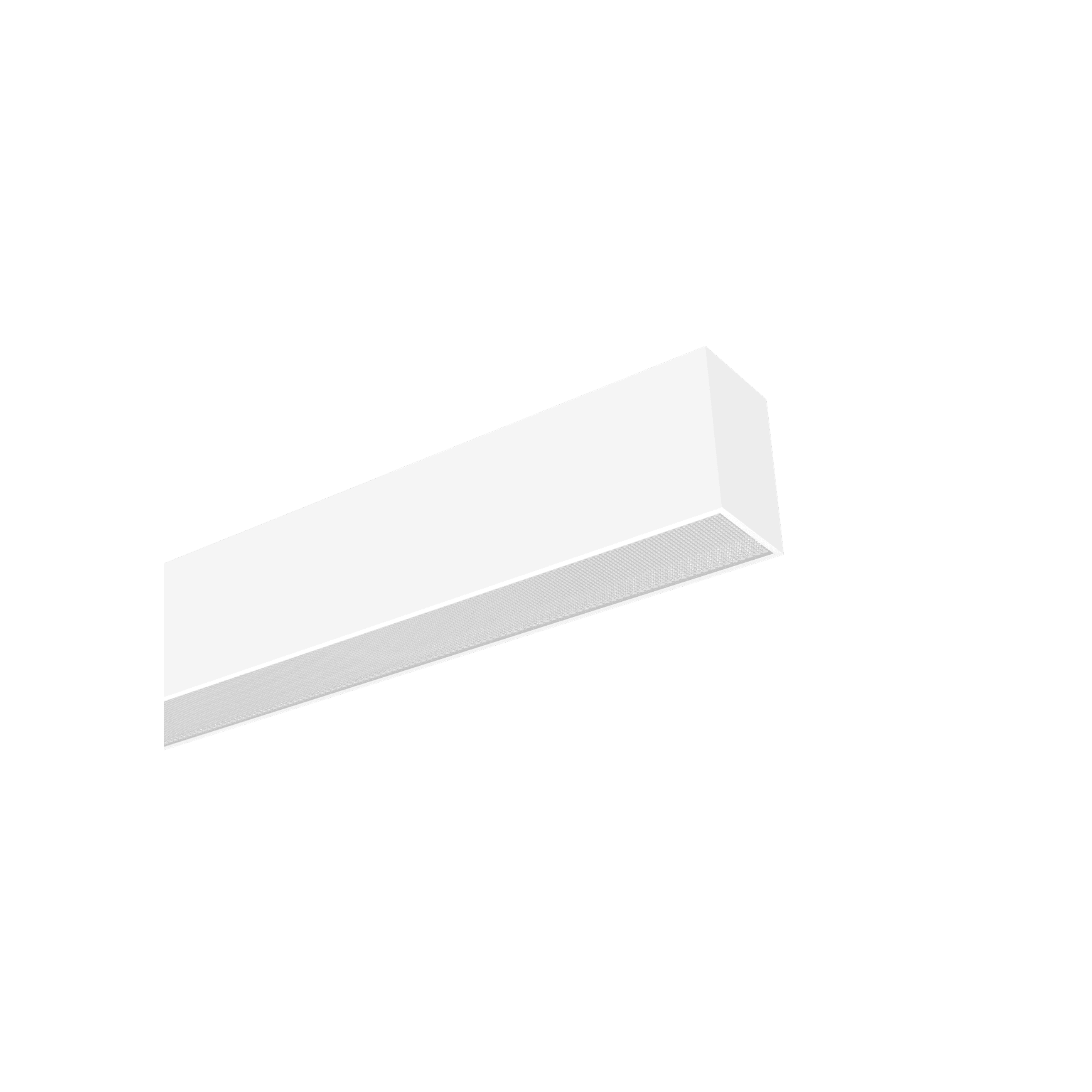

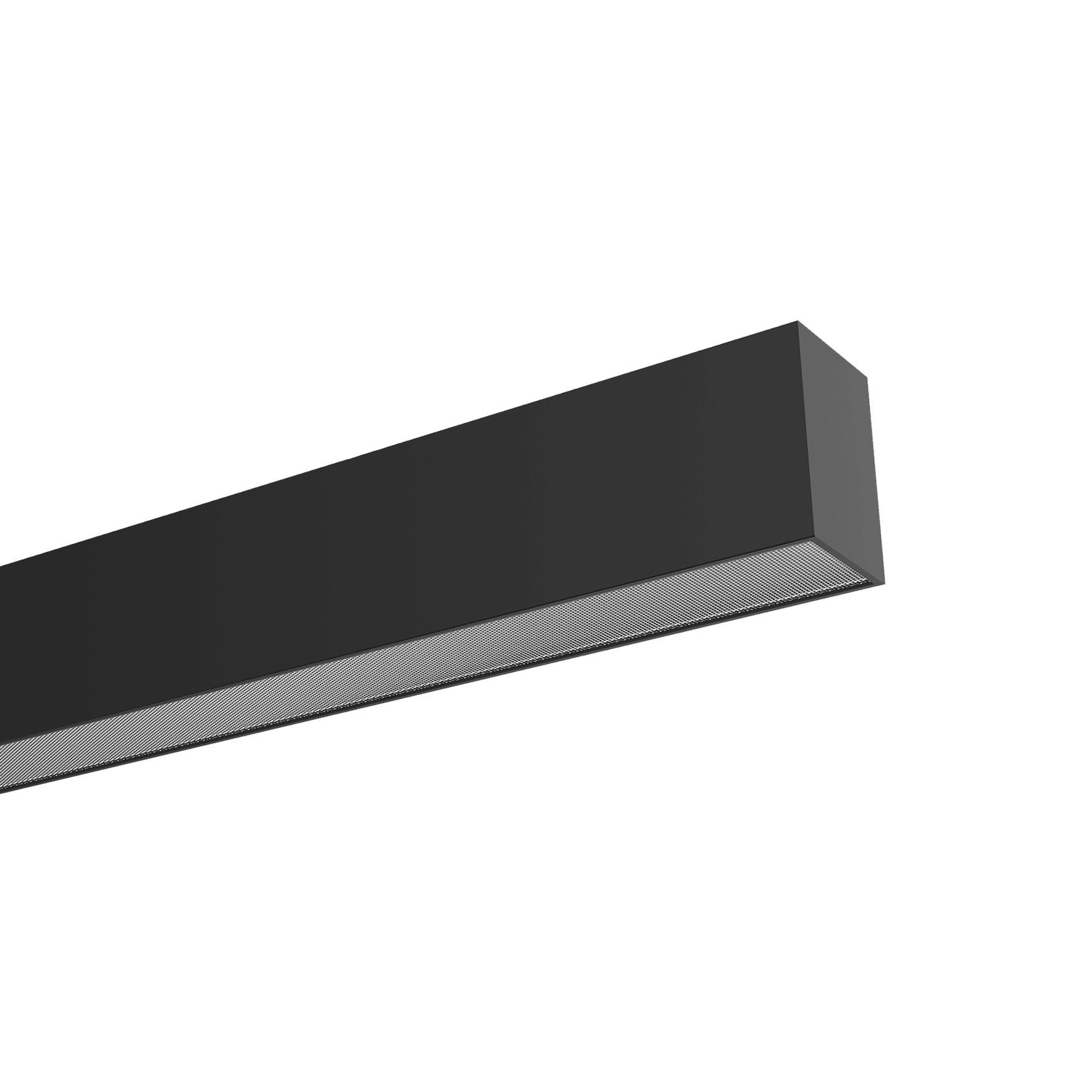

Finish Black or White (Powder Coated)
Material Aluminium and Micro-prismatic diffuser (Opal diffuser also available)
IP Rating IP20
IK Rating IK08
Application Interior
Driver Incorporated
Dimming/Control 3 in 1: Non-dimmable, Dali or SwitchDIM
TLAs Flicker-free (PstLM ≤1.0; SVM ≤0.4)
Electrical Class Class I luminaire, requires earth
Warranty 5 Year warranty

Available in 705mm, 1265mm, 1545mm and 2385mm lengths
See specification sheet for more details.

Options/Accessories Joins, ceiling roses, continuous diffusers and mounting kits available. See specification sheet for details.

Features

Joinable to create continuous runs with zero light leak

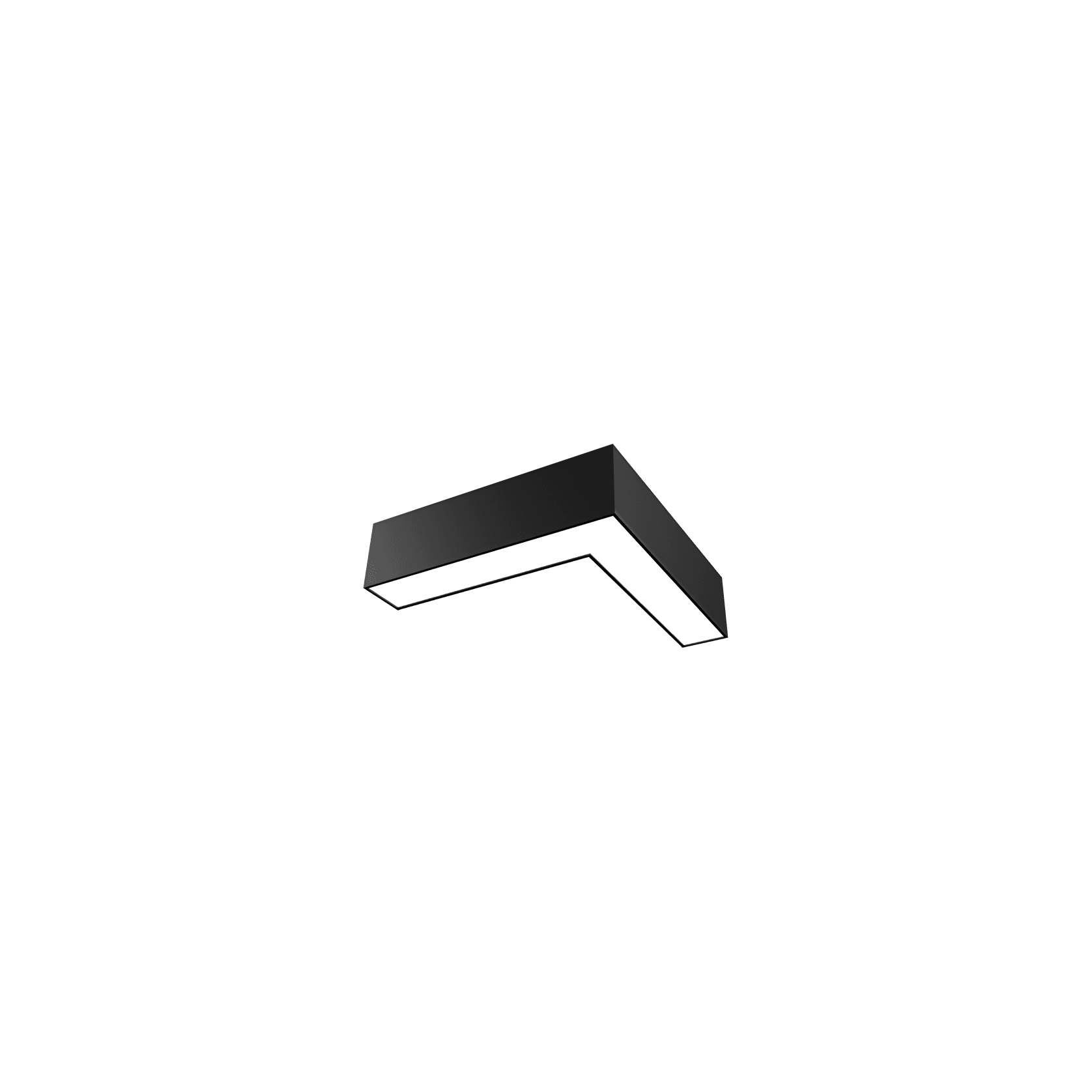

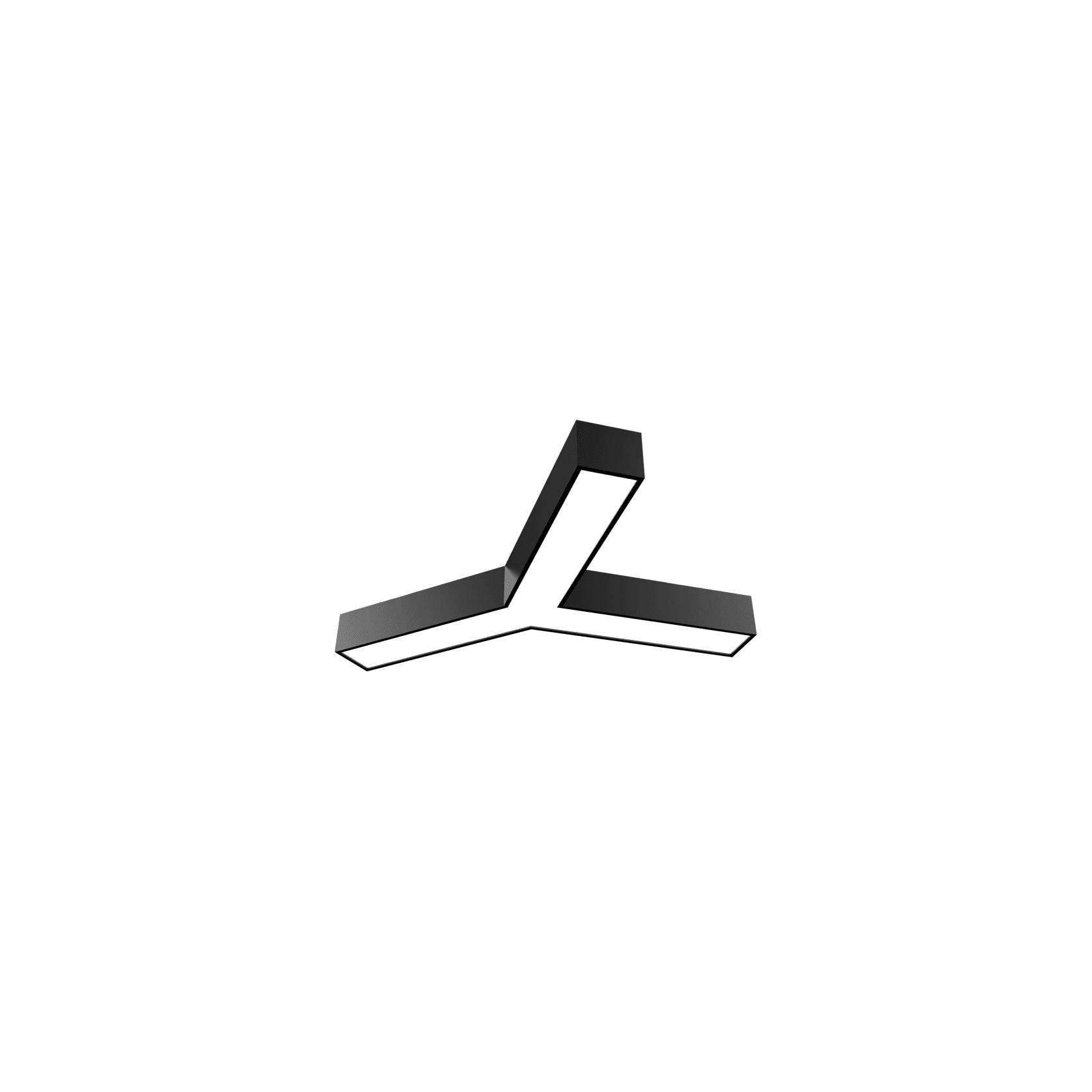

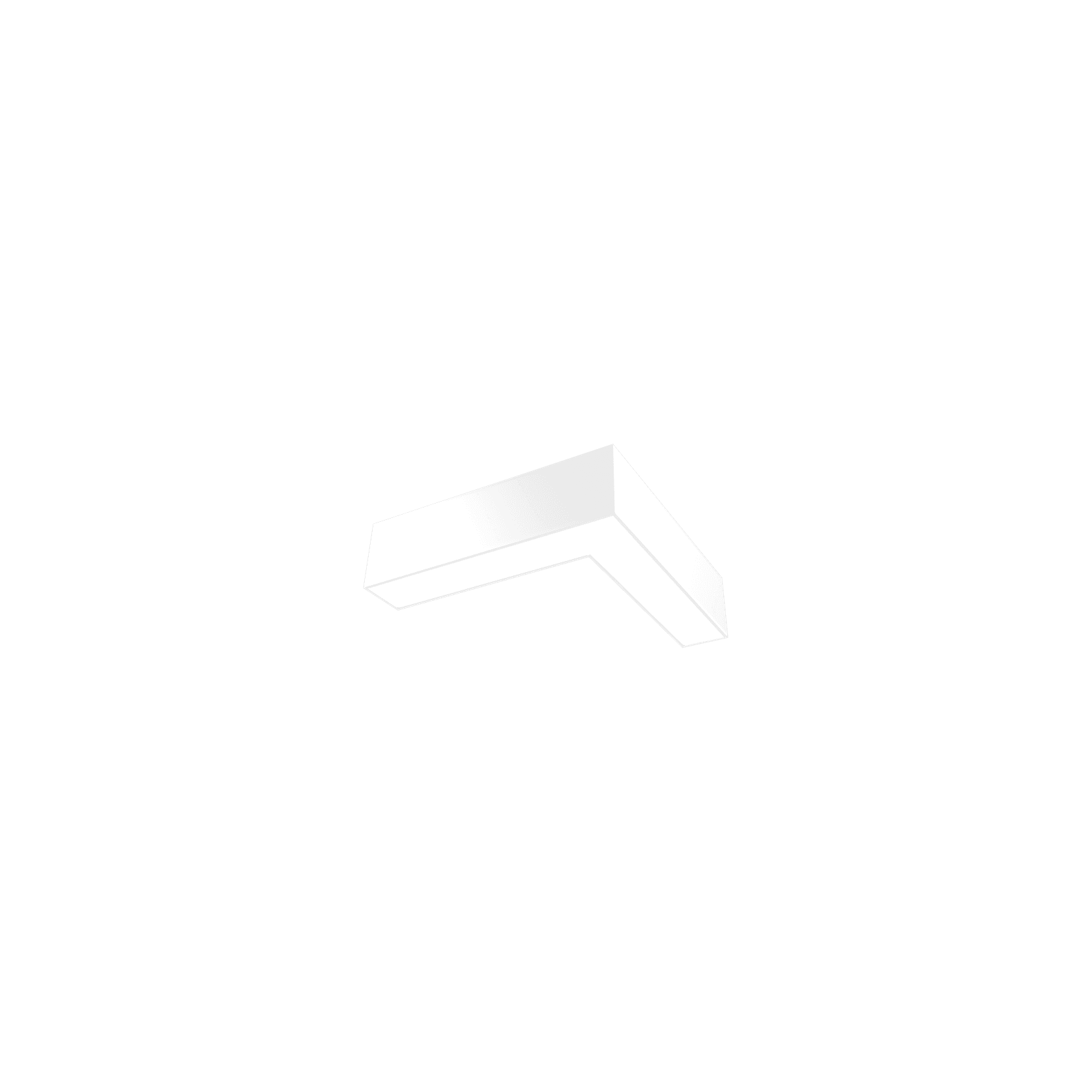

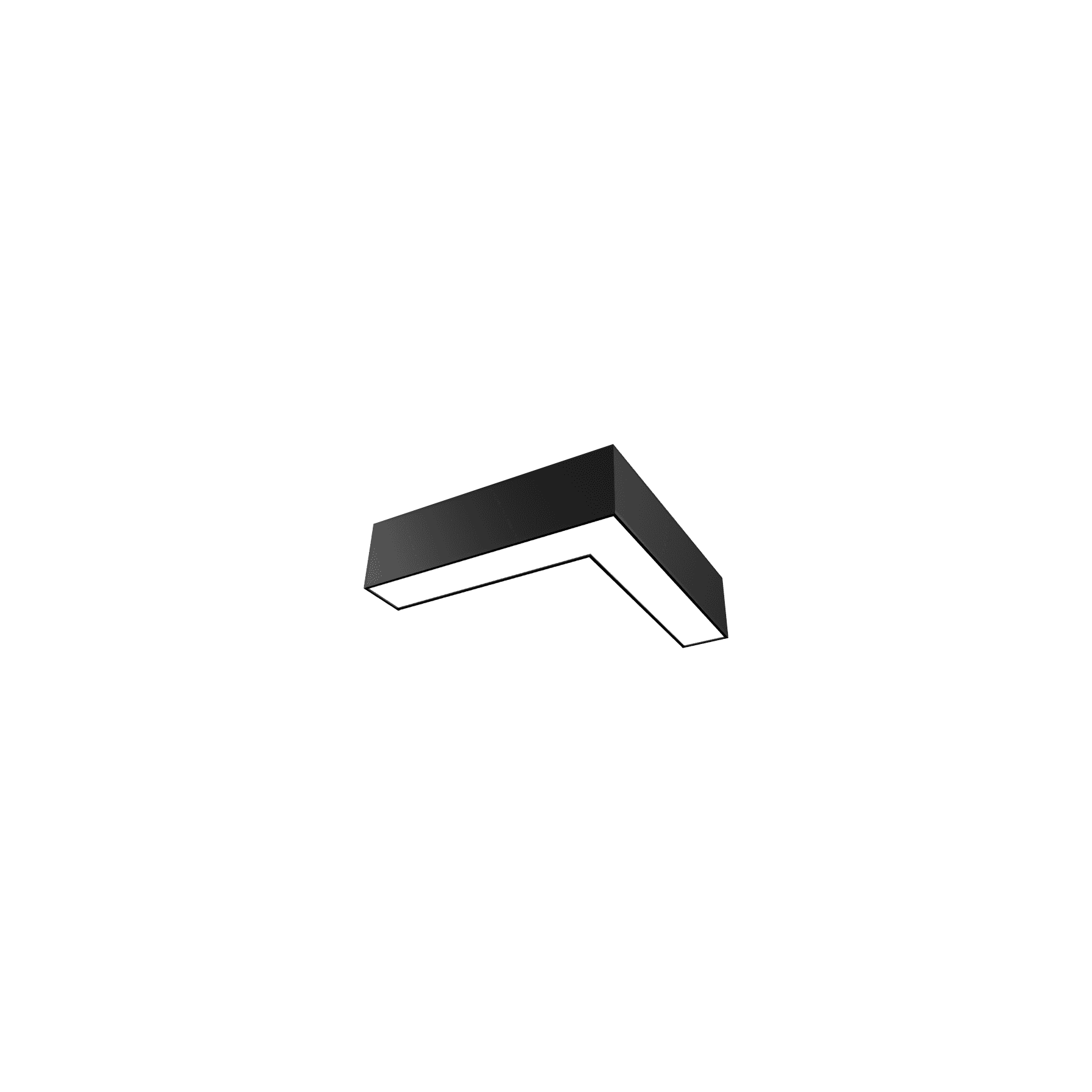

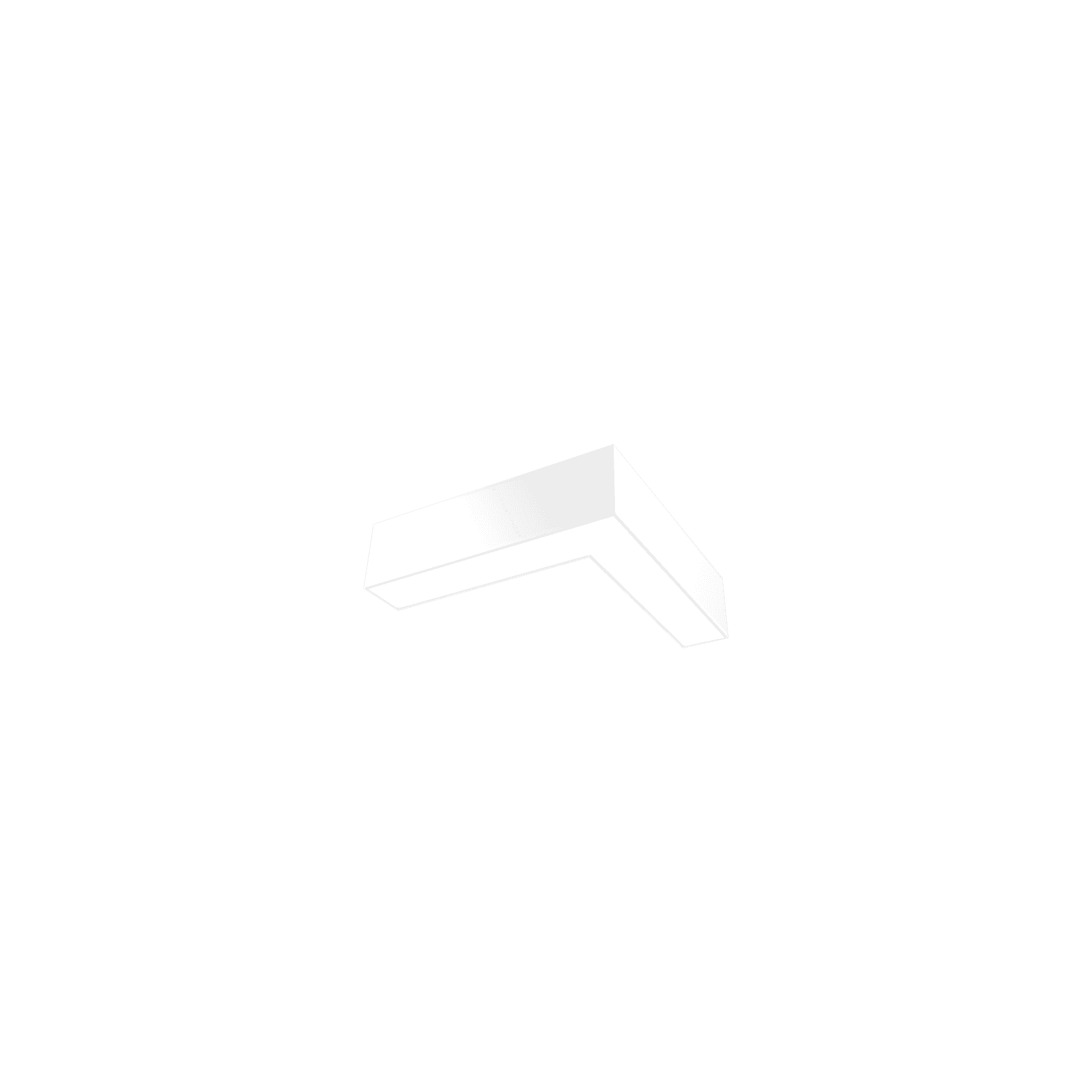

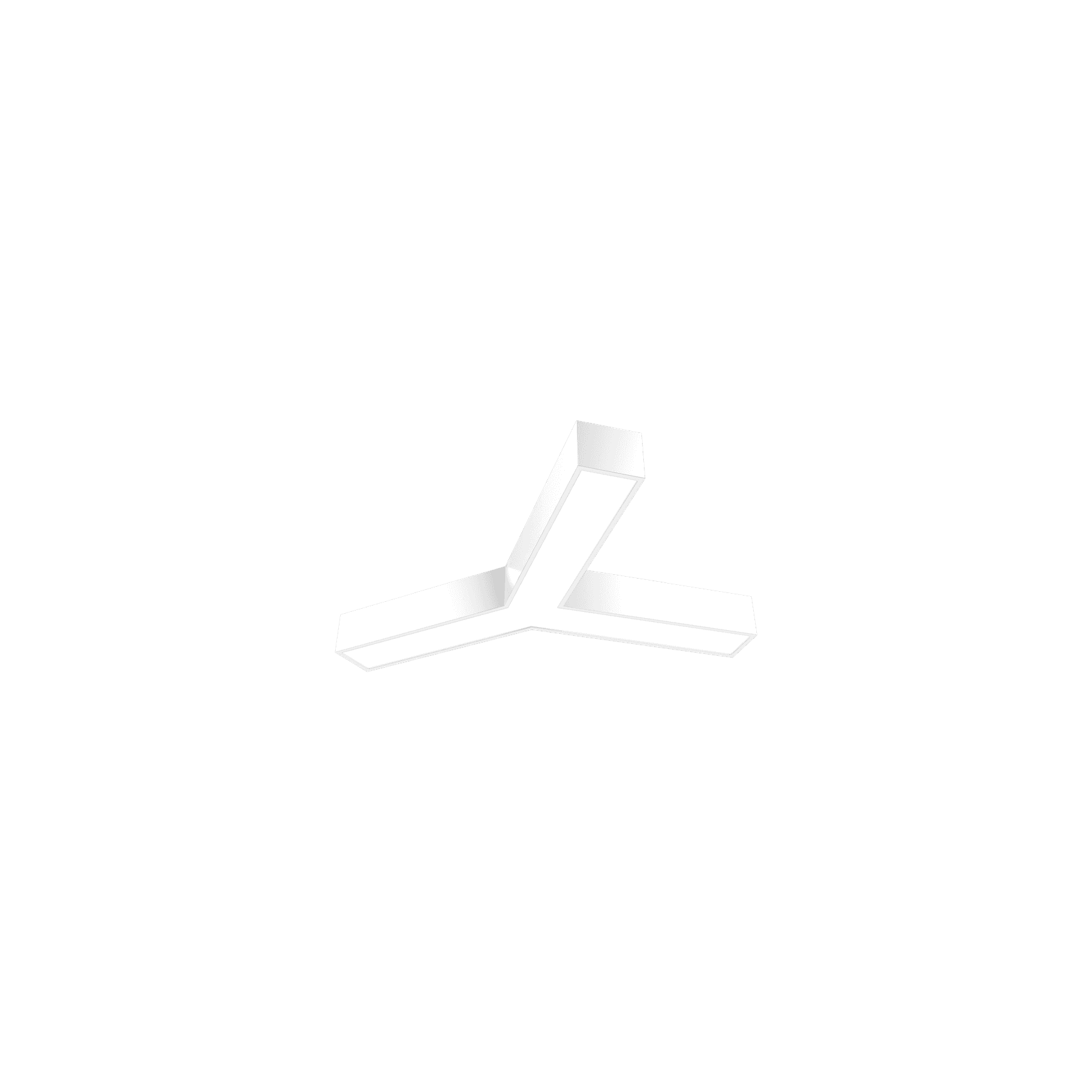

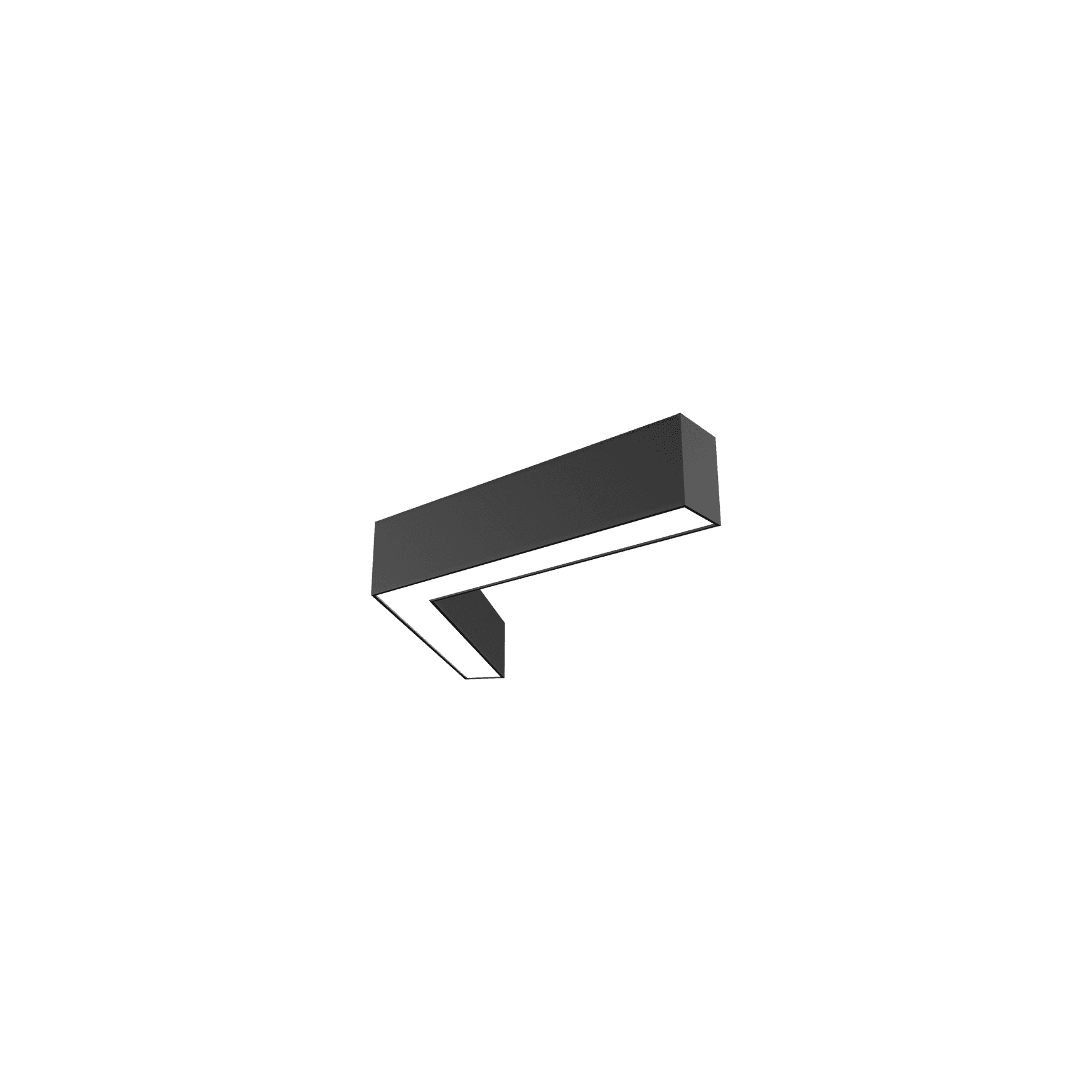

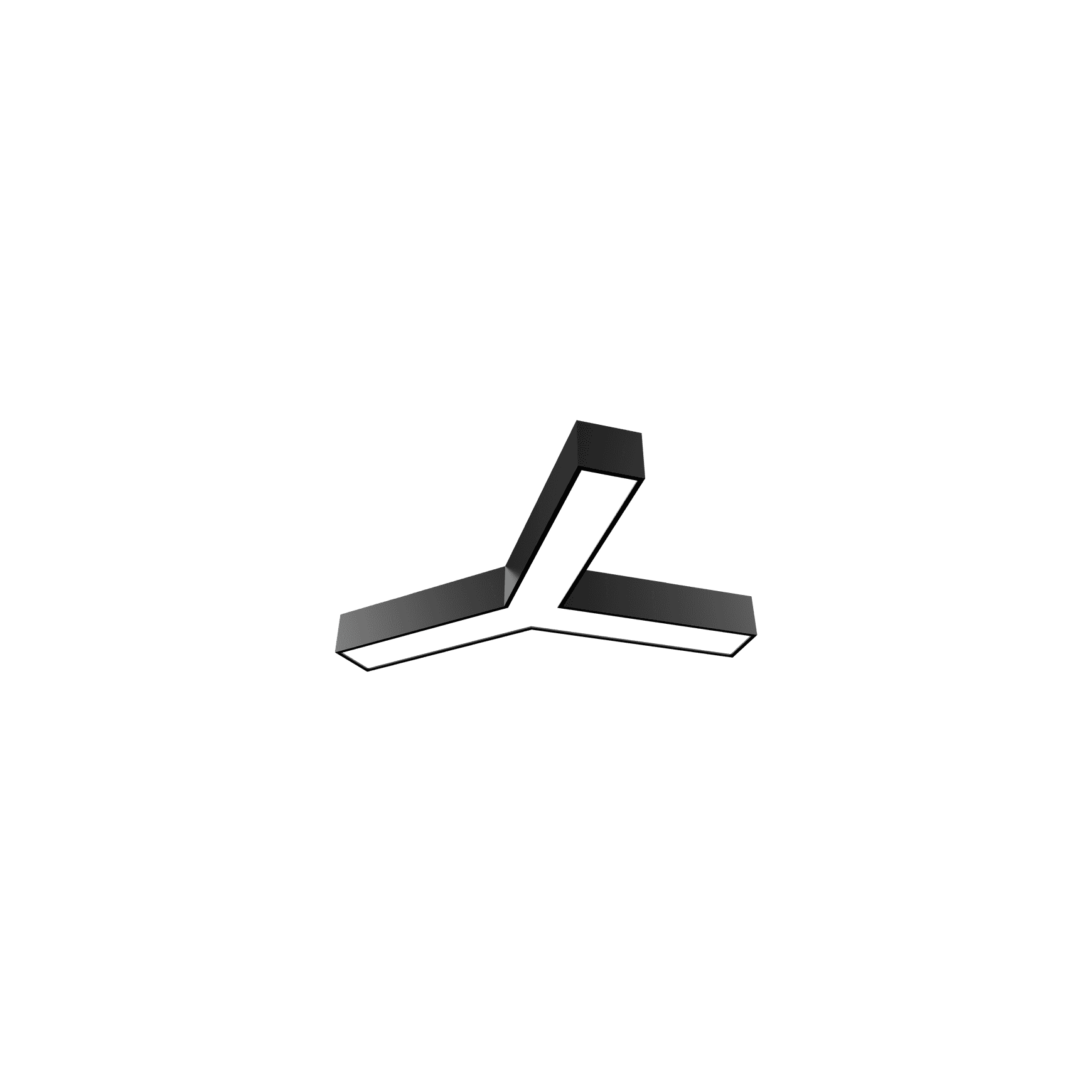

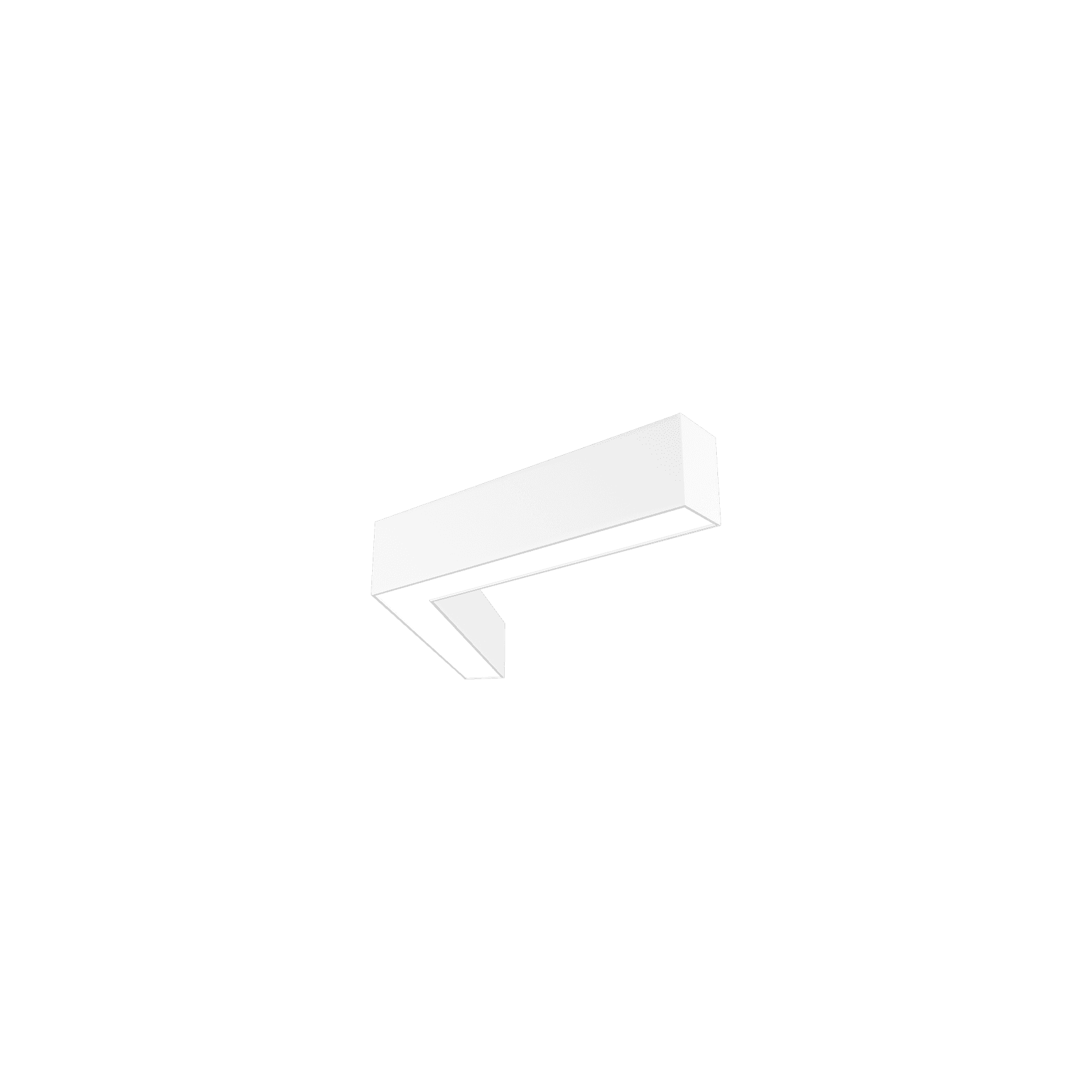

Create complex geometric installations using L90°, L120° or Y120° corners
Selectable 3000K/4000K
Direct or Direct/Indirect light (Uplight component can be manually switched on during installation if required)
Dali, SwitchDIM or non-dimmable
Surface mount or suspend
CRI90
120,000hr lifespan
IK08
Flicker-free
5 year warranty

Scope of use

Interior residential or commercial use
