How much does the 5ft LED Joinable Multi-Function Batten cost?

Halcyon Lighting does not publish a price for the 5ft LED Joinable Multi-Function Batten on ArchiPro. Send them an enquiry for pricing, or visit their website.

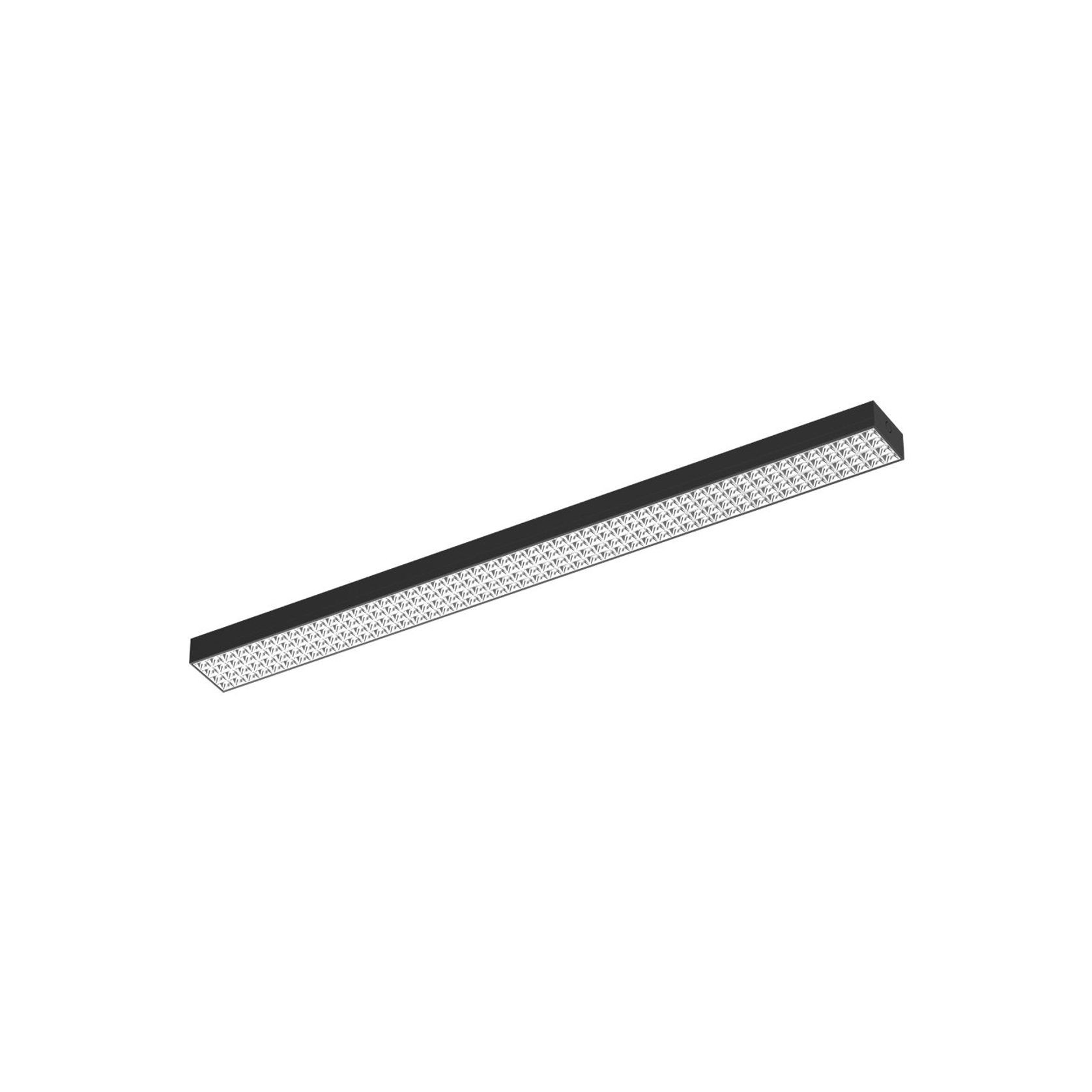

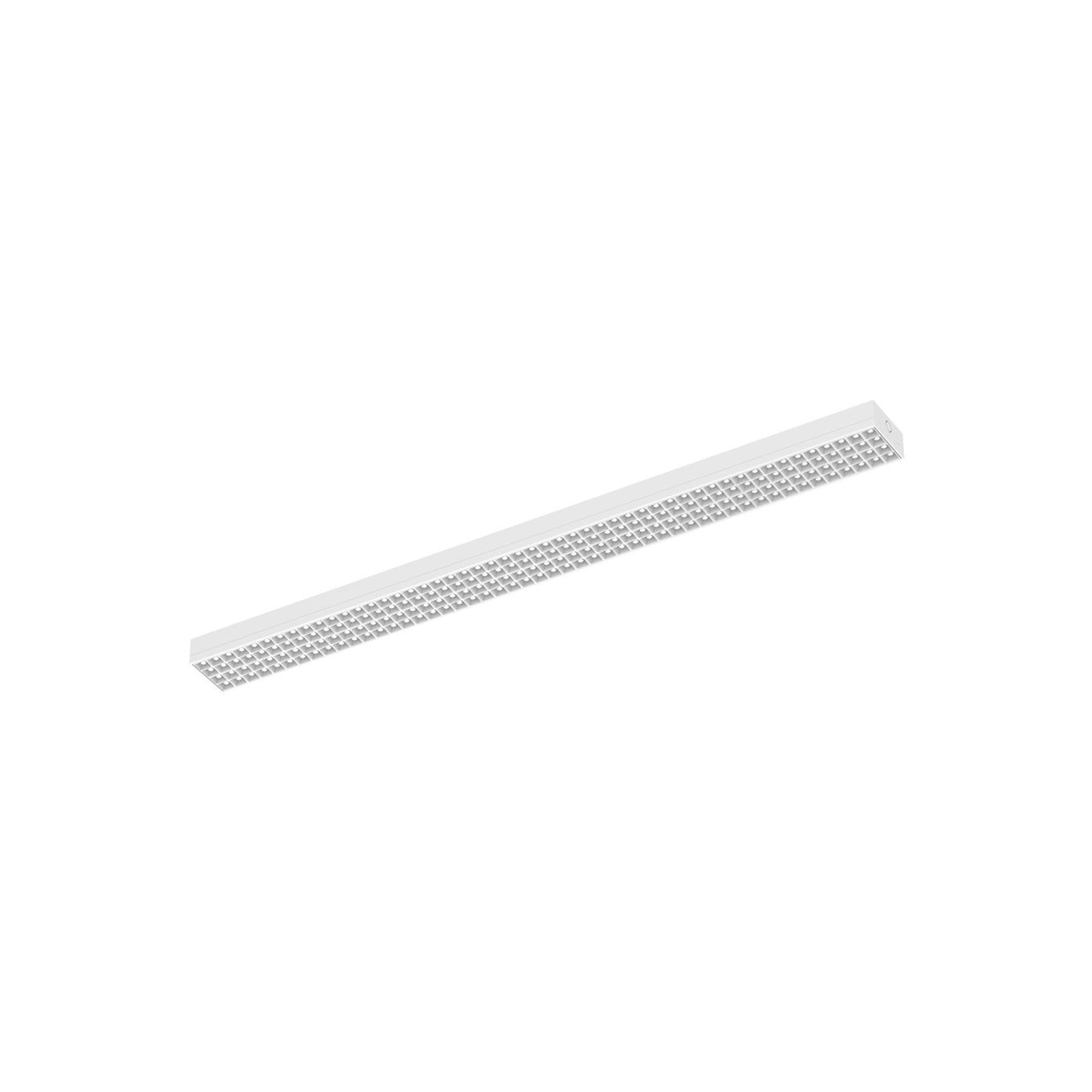

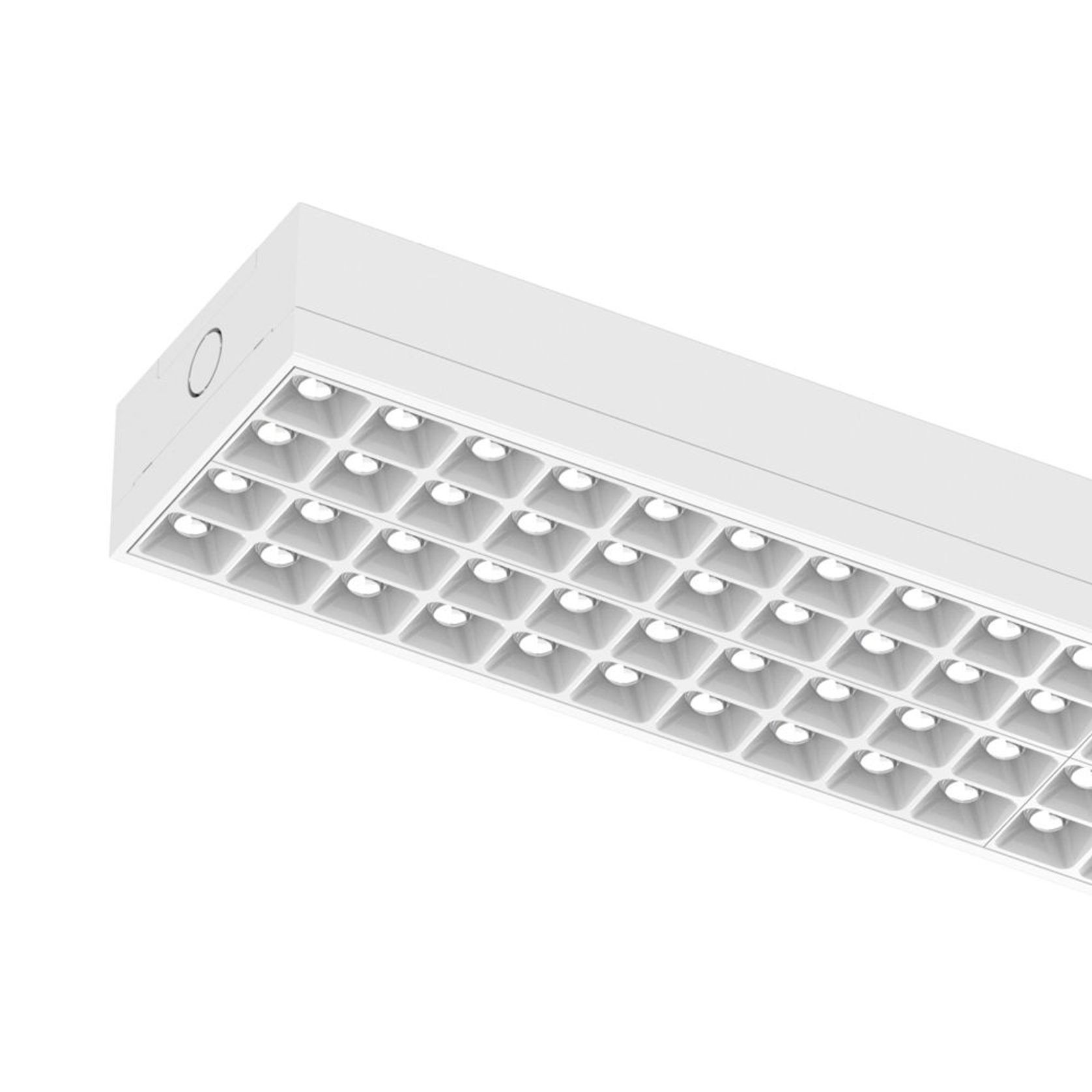

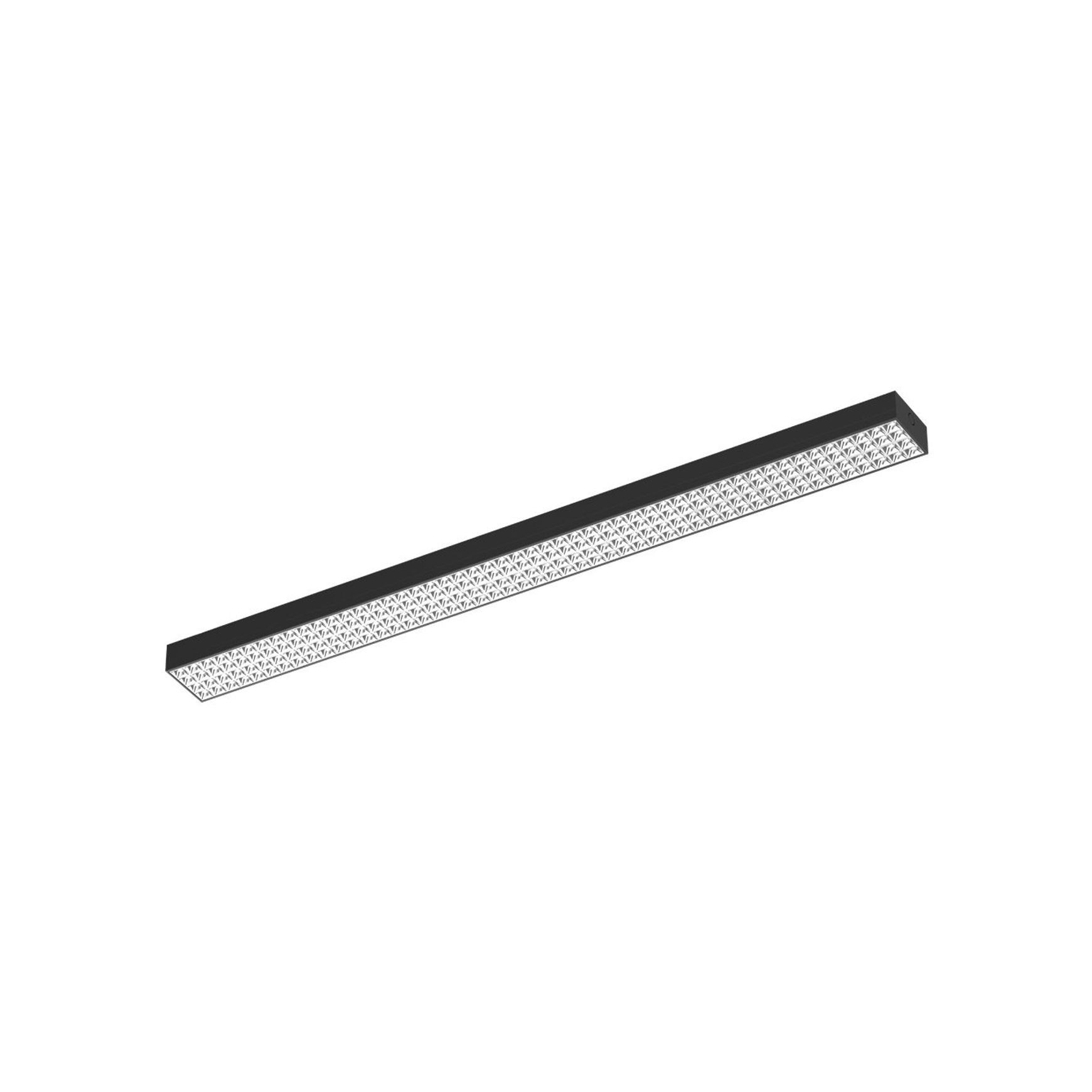

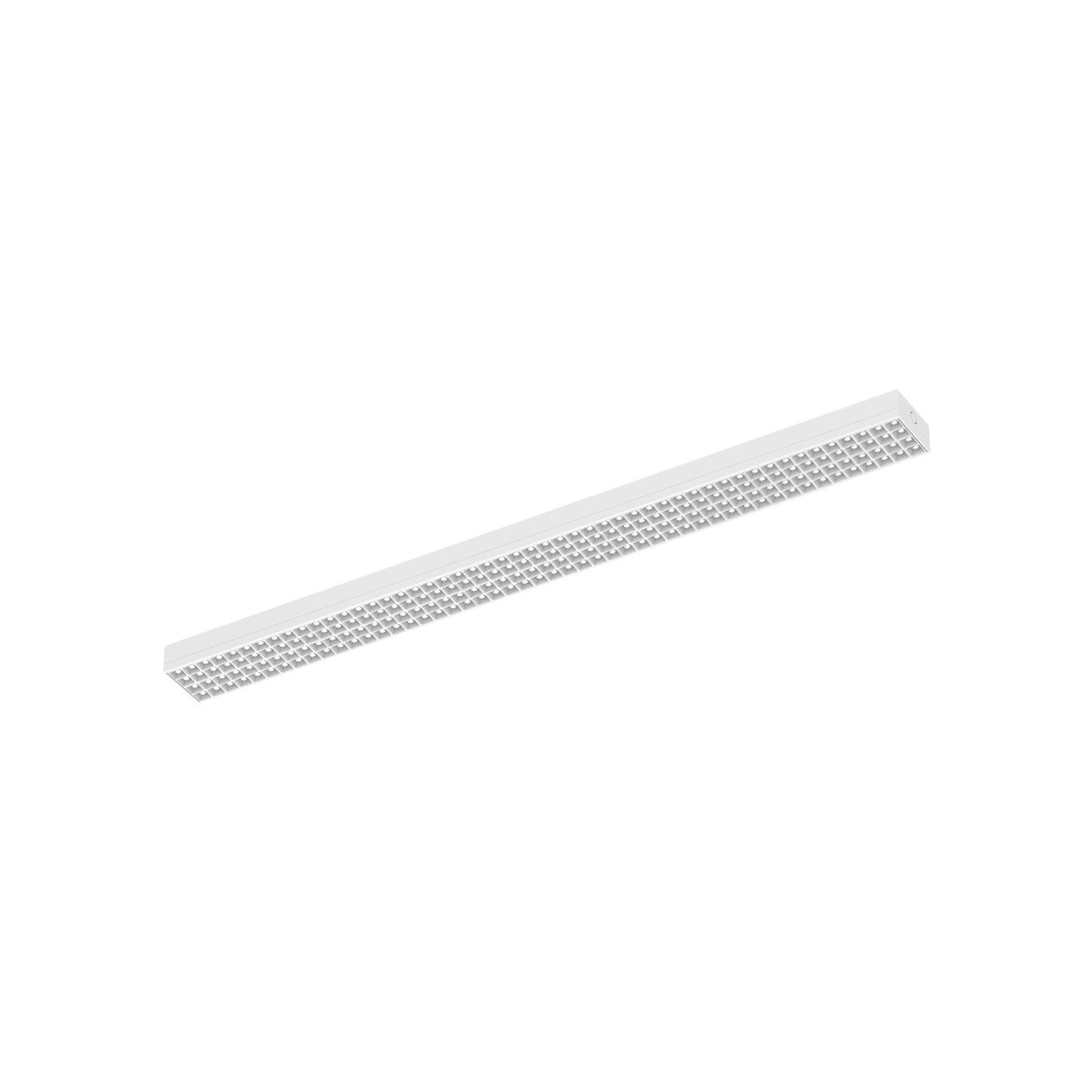

5ft LED Joinable Multi-Function Batten

by Halcyon Lighting

1.0M profile views
115 saves

Visit Website

LED542
5ft Joinable Multi-Function Batten
Pro Spec UGR <19
Selectable 3000K or 3000K Quad Wattage

Tags

led linear light joinable linkable

Product Details

Product: 5ft LED Joinable Multi-Function Batten
Category: Flush Mount Lights
Sold by: Halcyon Lighting
Range: Joinable Batten
Light bulb type: LED
Fitting type: Surface-mounted
Warranty: 5 years

Halcyon Lighting is specified by

(46) Professionals

Visit site

LED542
5ft Joinable Multi-Function Batten
Pro Spec UGR <19
Selectable 3000K or 3000K Quad Wattage

Specs

Dimensions L1500 × W120 × H59mm
Wattage Selectable 35W, 40W, 45W, 50W (default factory setting)
Colour Temp Selectable 3000K or 4000K
CRI 95 (R9 <98)
Lifespan 54,000 hours (L70 B50)
UGR Halcyon Pro Spec battens are suitable for installations requiring UGR of less than 19.
Beam Angle 80°
Binning 3-Step SDCM
Finish White RAL9016 / Black RAL9005
Material Aluminium + PC
IP Rating IP20
IK Rating IK08
Termination Multiple rear termination points, knockouts at both ends for alternative installation methods
Driver Incorporated, adjustable output non-dimmable flicker free driver
Power Factor 0.9
Operating Temp -20° - 45°
Weight 3.63kg
Warranty 5 Year Warranty

Lumens White with white reflector:
3000K: 35W-50W/4115lm-5740lm
4000K: 35W-50W/4225lm-5850lm

Black with silver reflector:
3000K: 35W-50W/4035lm-5675lm
4000K: 35W-50W/4160lm-5875lm

Scope of use

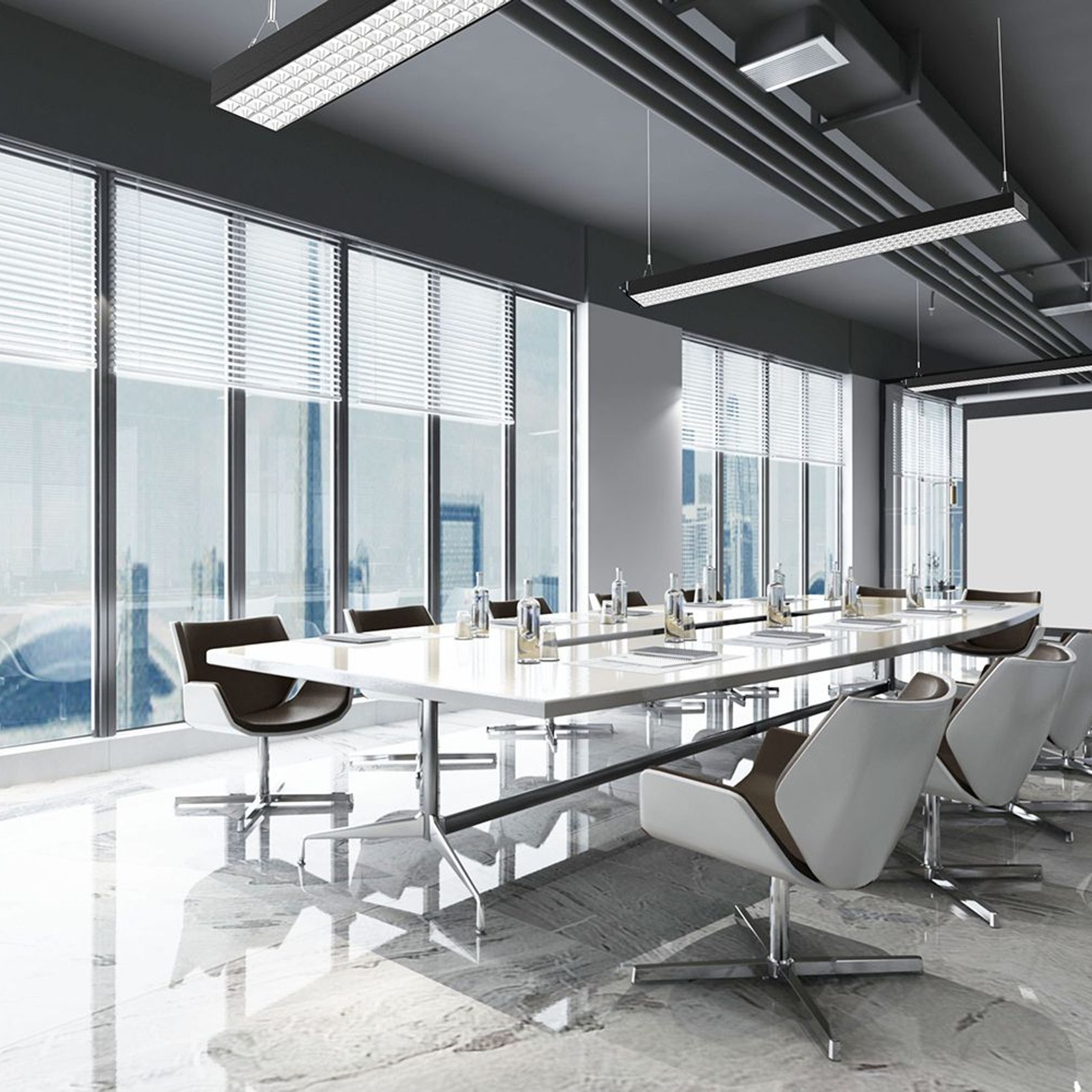

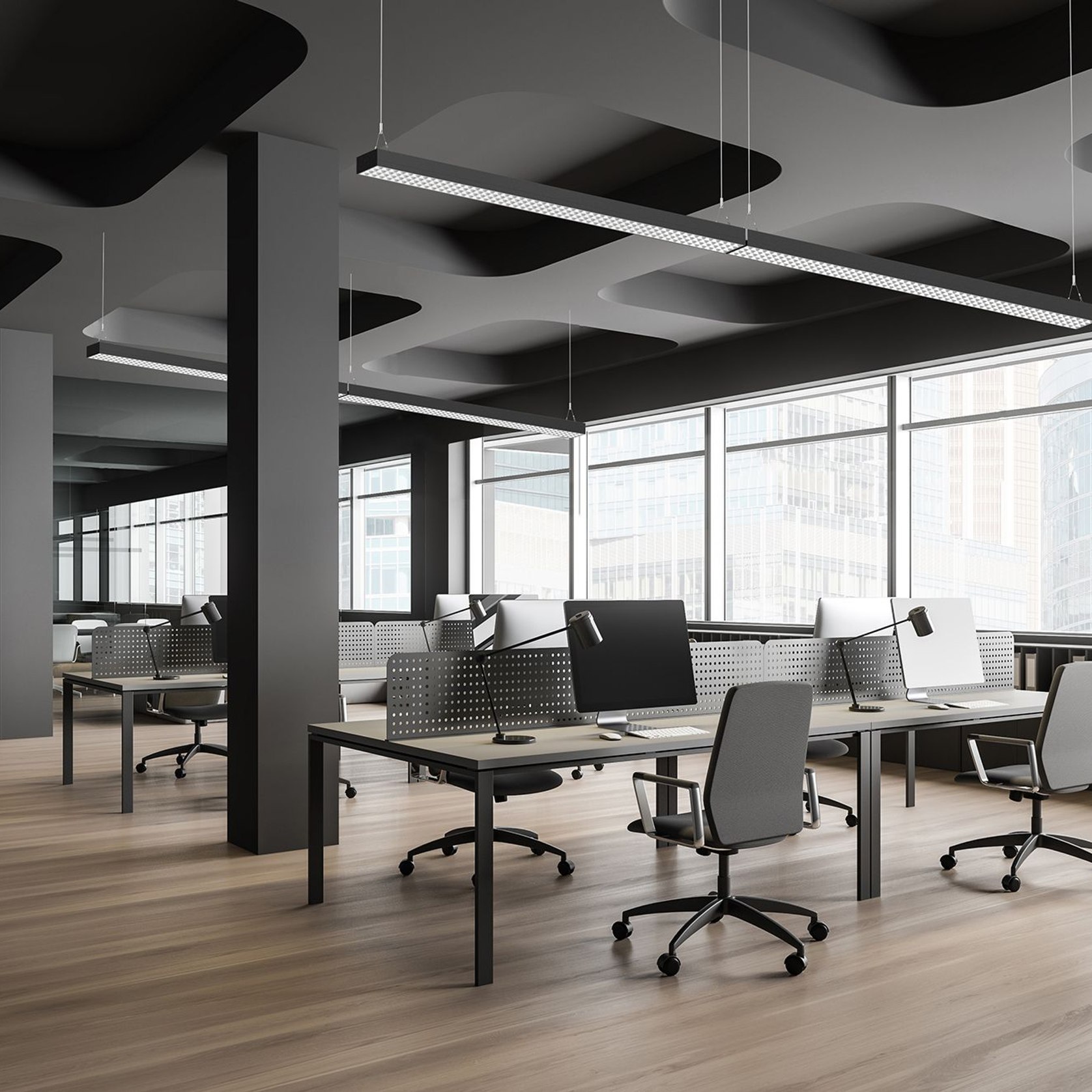

Interior education, commercial, office lighting

Performance

CRI95 (R9 <98)
54,000 lifespan
IK08
Joinable
Selectable colour temperature - 3000K or 4000K
Selectable wattage - 35W, 40W, 45W, 50W
5 Year warranty
