Highlights: Our demonstration Cinema has now been updated to Atmos 9.4.4 with recently launched speakers from M&K sound, including the THX Dominus IW500s for LCR, 2 x THX Ultra X12+ and 2 x C15S 15” Subwoofers, the top end AVM90 Processor from Anthem and a new JVC DLA NZ 7 4K laser projector. Of course, the theatre retains all the previous room treatment, including bass traps, absorbers and diffusers all adjusted to accommodate the speaker changes, as well as the unique D-BOX motion seating, and the 155” Acoustically Transparent Anamorphic Screen from Image, Germany.

Pictorial History of the Theatre Build – Part 1: 2012 It all started August 2012. We used M&K speakers including the legendary S150 re-incarnation, S150Mk2’s for LCR, surround sides and rears and 3 x M&K MX-350 dual 12” subs. These were initially powered by an Audio Control Maestro M5 Processor and TGA-7400 power amplifier with a JVC DLA 1080p projector and an Oppo BDP-83 Special Edition Blu Ray player.

Very rigid, cantilevered shelving for the front LCR's and sub-woofers allowing the entire space below for a 4 meter wide equipment and media cabinet

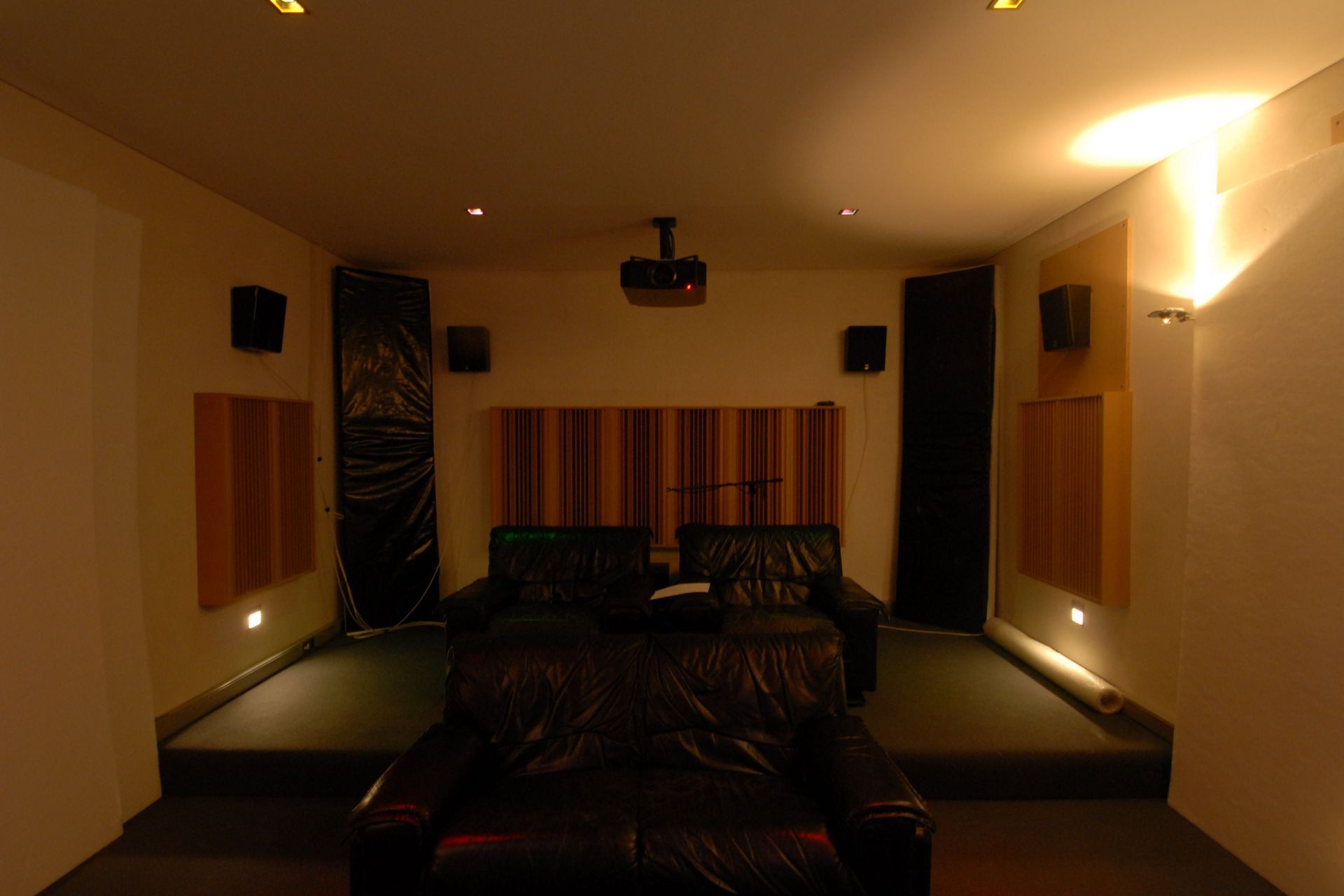

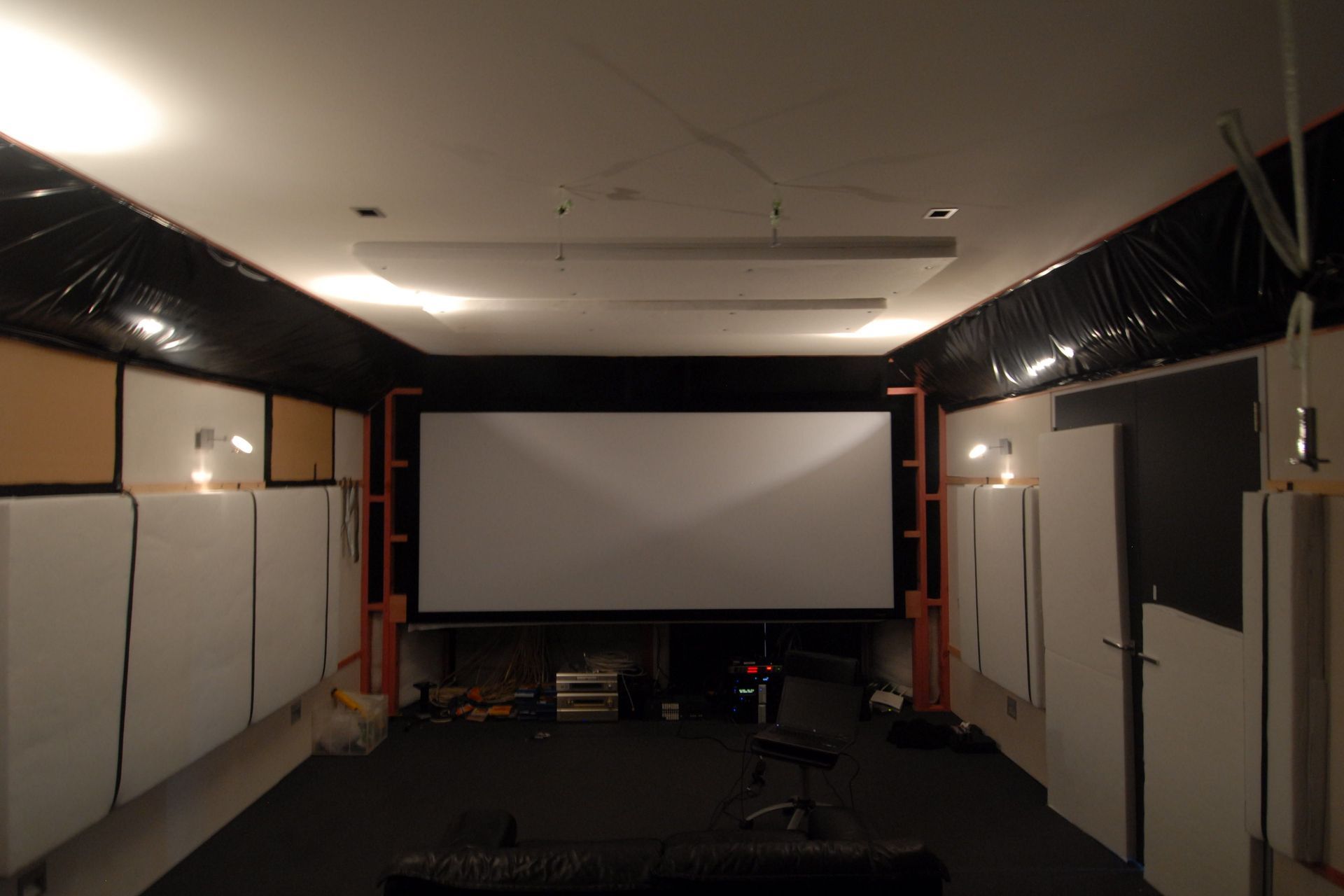

After months of testing a range of materials to use for absorbers and bass traps and spending time in designing and constructing quadratic diffusers, we started installing these into the space.

We used REW software and calibrated microphones to measure the performance of the treatment as we progressed.

The processor and speakers were set up for Dolby and DTS HD 7.3. Aside from the DSP on the processor, we also worked on integrating the 3 sub-woofers using a Behringer Processor as well as a Mini-DSP and their calibrated micophones. This was done "live" using REW while adjusting the room treatment .

Then we added over 50 circuits of DALI Lighting, including designing a centre dome of RGBW.

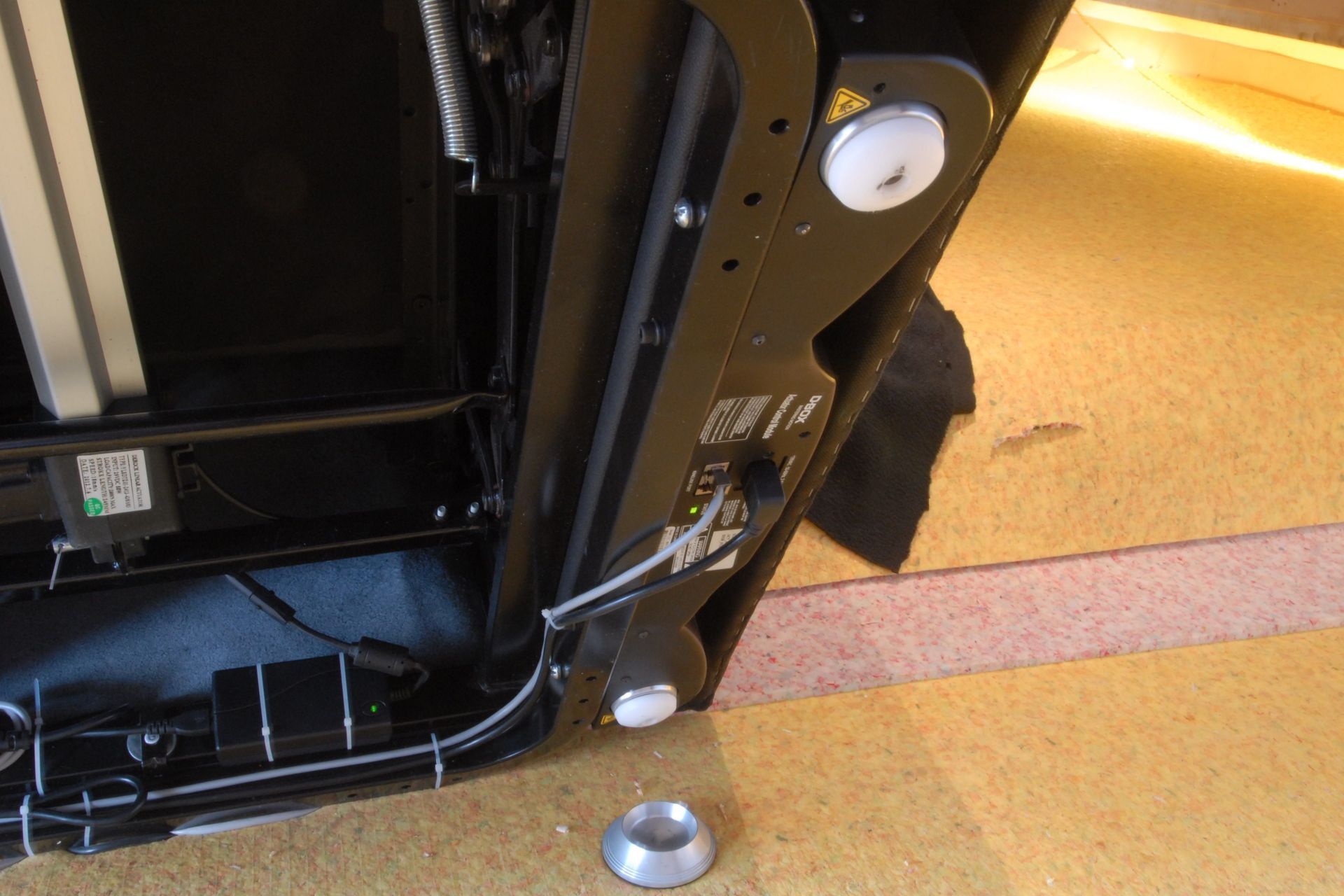

We also fitted off all seating with D-BOX motion Actuators. This is the SUPREME add-on to any serious cinema. FEEL THE ACTION!

The room was then prepared and made ready wrapping the entire room with stretched Acoustic Fabric.

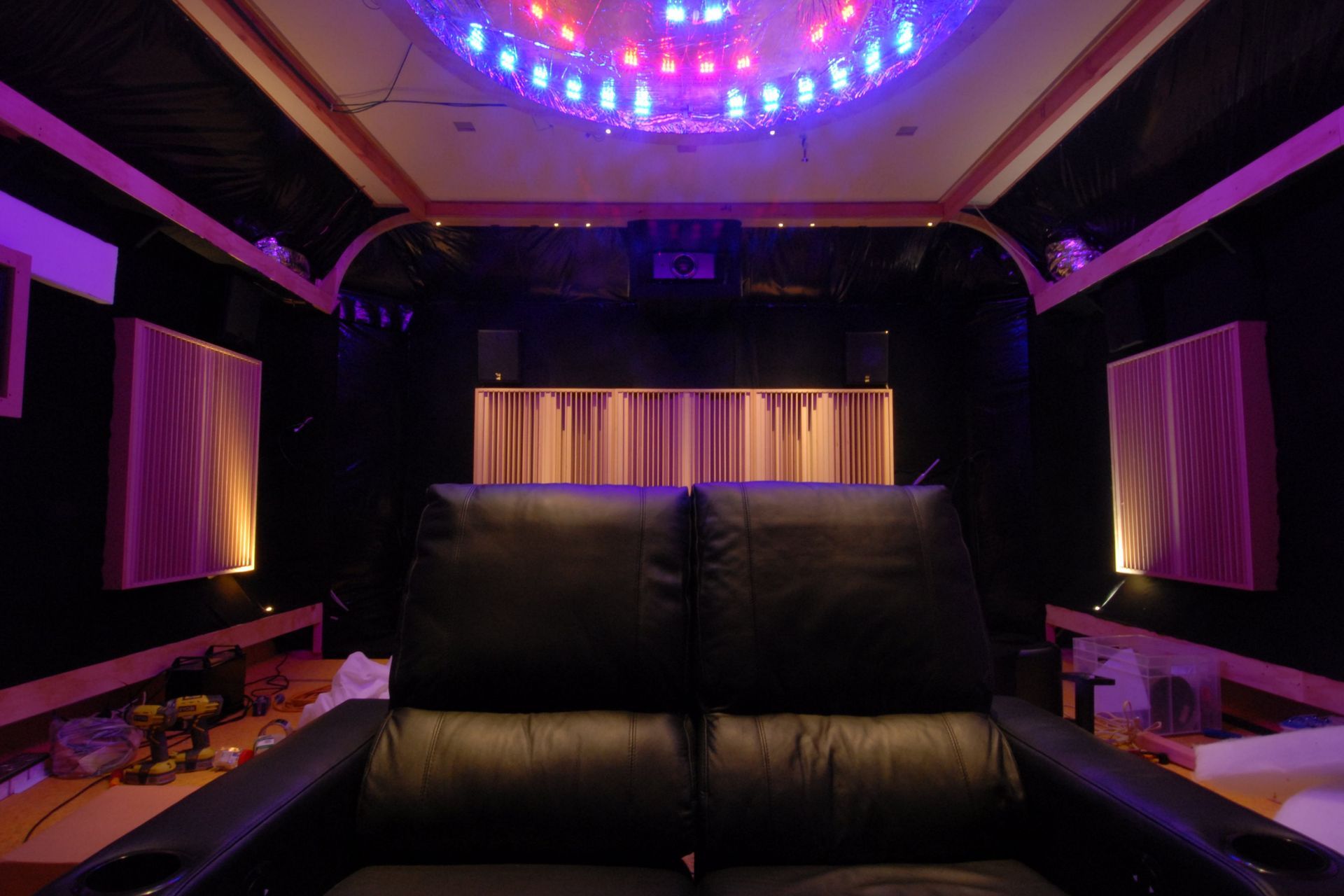

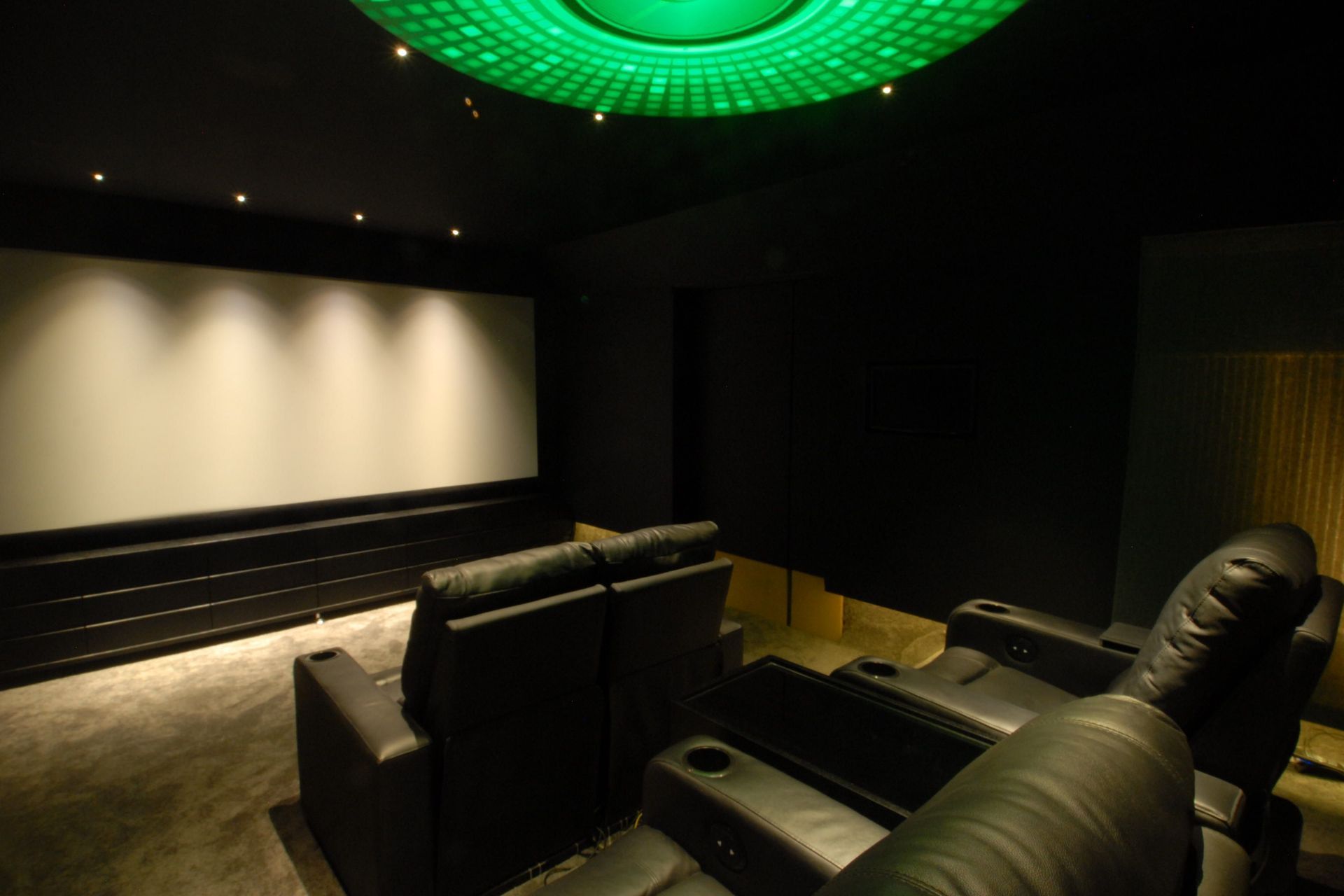

All stretched fabric work completed, including a custom designed central dome with 45 channels of RGB lighting that can spiral in and out. The diffusers are behind the fabric but can be backlit as an effect. All the equipment and media were housed in a custom cabinet below the screen.

------------------------------------------------------------------------------------------------------------------Pictorial History of the Theatre Build – Part 2: 2021

We had a bit of time up our sleeves during Covid so we decided to upgrade the theatre to Atmos 9.3.7. The cinema walls and ceilings were stripped, and the redesign was done to accommodate flexibility in mounting the 4 height speakers and the future addition of more speakers (!)

All the existing stretched fabric, other than the central dome, was removed and discarded. New framing for fully adjustable Atmos Height speakers created along the 2 two lengths of the cinema.

New cabling for the added speakers brought from the ceiling void above the cinema

We added a 16ch Acurus Muse processor and a second Sunfire TGA7400 power amplifier, 3 x M&K S300’s for LCR, 2 x M&K X12’s Subs, 1 x M&K X10 sub. The extra speakers were all M&K MP950’s for the Front Wides and the 4 height Channels.

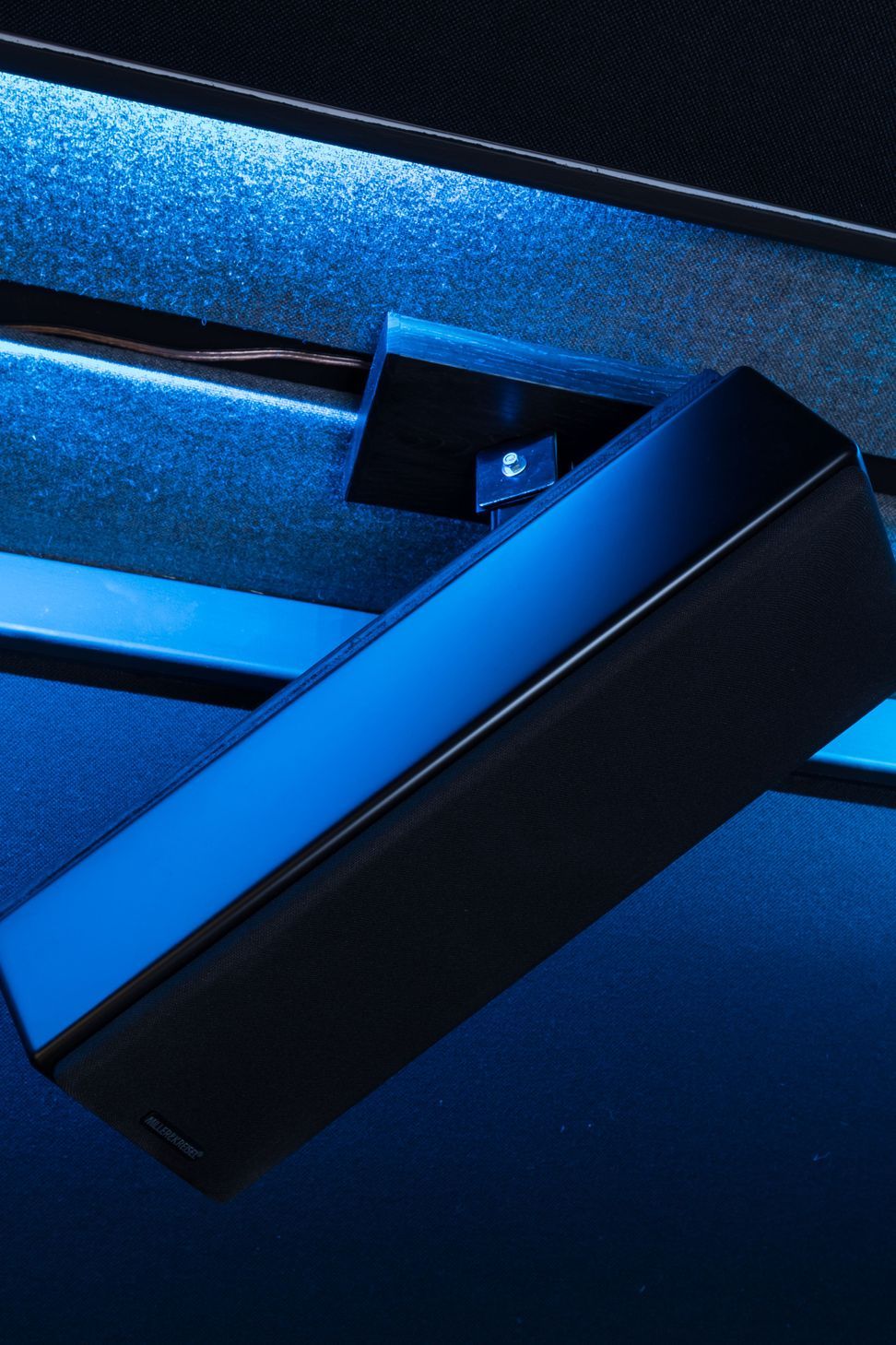

Atmos height speakers that can be fully adjusted on custom made gimbals

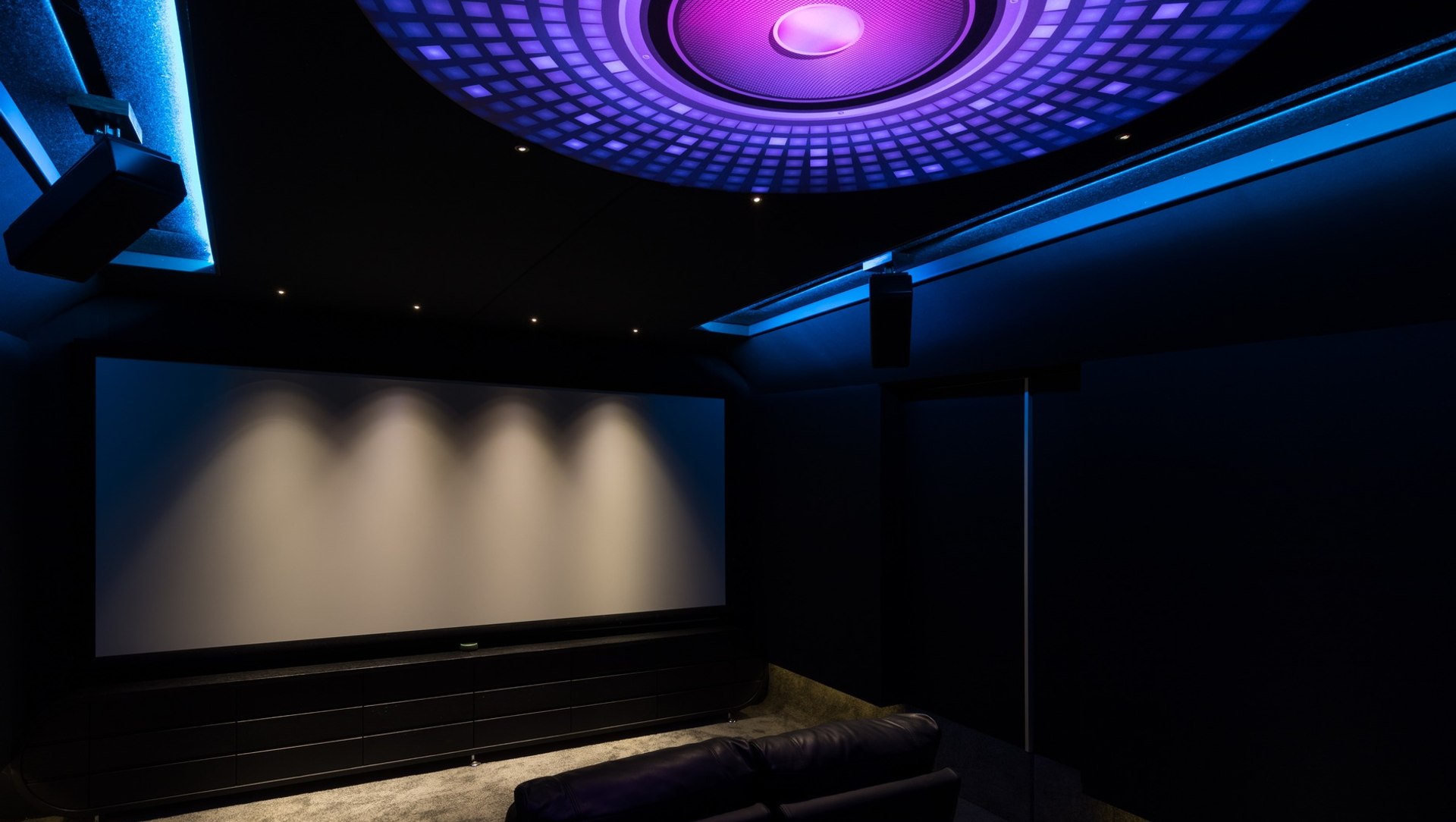

155” anamorphic, acoustically transparent, wide screen from Image, Germany

M&K S300 Speakers and X12 Sub-woofers at ear level behind the projection screen

Pictorial History of the Theatre Build – Part 3: July 2025 The Introduction of new processing from Anthem, THX Dominus LCR’s and new bone rattling Subs from M&K beckoned and we succumbed. The Intellisys Theatre now features the very best that Miller & Kreisel produce in terms of speakers and subs for serious home cinemas that can accommodate 20-40 seats.

Full Equipment Summary: • 3 x M&K IW500 THX Dominus LCR • 2 x M&K MP150 THX Ultra Side Surrounds • 2 x M&K MP150 THX Ultra Rear Surrounds • 2 x M&K MP950 Front Wides • 2 x M&K MP950 Front Atmos Heights • 2 x M&K MP950 Rear Atmos Heights • 2 x M&K X12+ THX Ultra 2 Sub-Woofers • 2 x M&K CI15s 15” Sub-Woofers with VA500 Blue Amps • Anthem AV90 Processor • 2 x Sunfire TGA7400, 7 Ch, 800wrms per ch (4Ω) Power Amps • Oppo UDP-230 4K Blu Ray Player • JVC DLA NZ7 4K laser projector • 155” Acoustic Anamorphic Wide Screen from Image, Germany • 4 x sets of D-BOX motion actuators for all seating

The Audio is stunning. It is hi-fidelity at it highest! The sound is gentle and clear when that is needed but we can easily surpass THX SPL's and still sound crystal clear at Rock Concert levels!!
