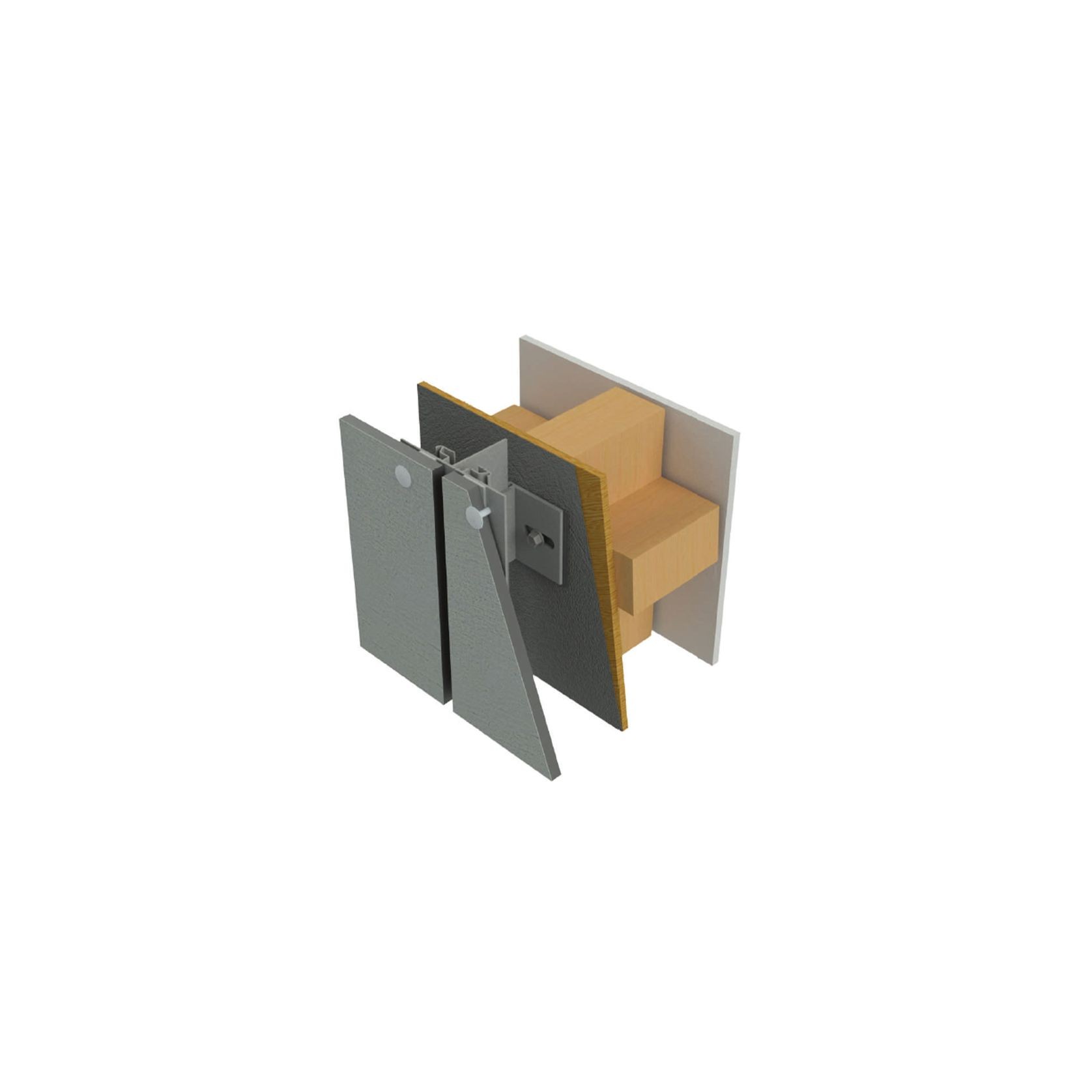

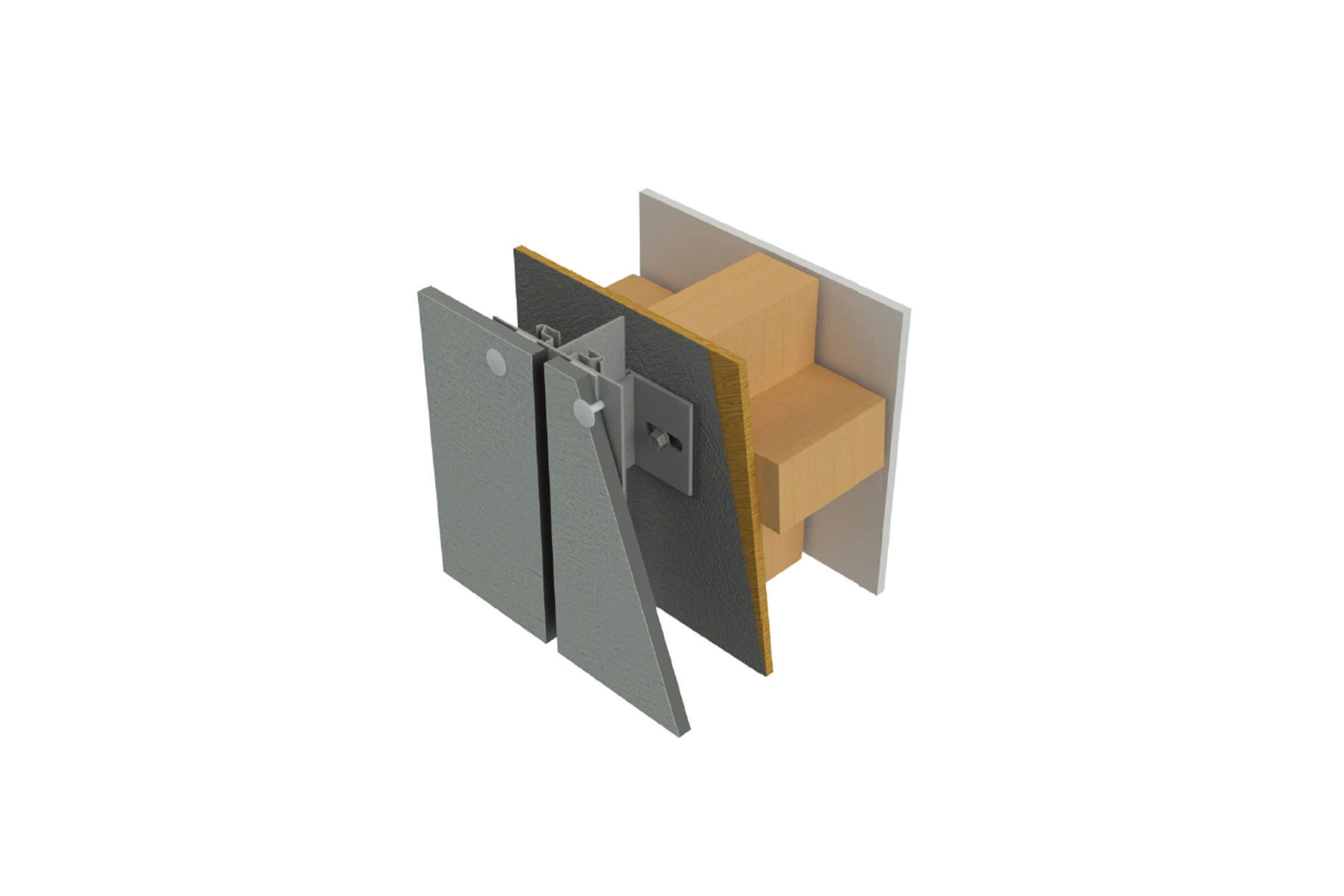

T50 System Cladding Support

The T50 Cladding Support System is a drained & ventilated cavity system based on the concept of vertical only aluminium rails and variable support brackets. The T50 System excels due to its simplicity, and provides enhanced safety against weathering, and building performance, while maintaining unparalleled versatility and flexibility when creating cavities between 65 and 600mm wide. These larger cavities enable the opportunity to adopt and deliver the European standards of externally insulated building envelopes The system is designed to deliver a high performance and aesthetic cladding application while still remaining economical & competitive price.

T50 is highly suitable for multi-level developments, providing options for both simple and complex façade lay-outs, and is engineered to fit over standard NZS3604 timber framing without the need for doubling up of timber studs. The system can carry cladding sheets such Equitone Fibre Cement, HPL panel, Natural Stone Panels, Architectural Glass, Aluminium Composite, Terracotta Tiles and More. It is possible to specify either visible or concealed fixing systems for almost all applicable cladding types.
