How much does the Shut it® Aluminium Half Bolt-on Badass cost?

ASSA ABLOY does not publish a price for the Shut it® Aluminium Half Bolt-on Badass on ArchiPro. Send them an enquiry for pricing, or visit their website.

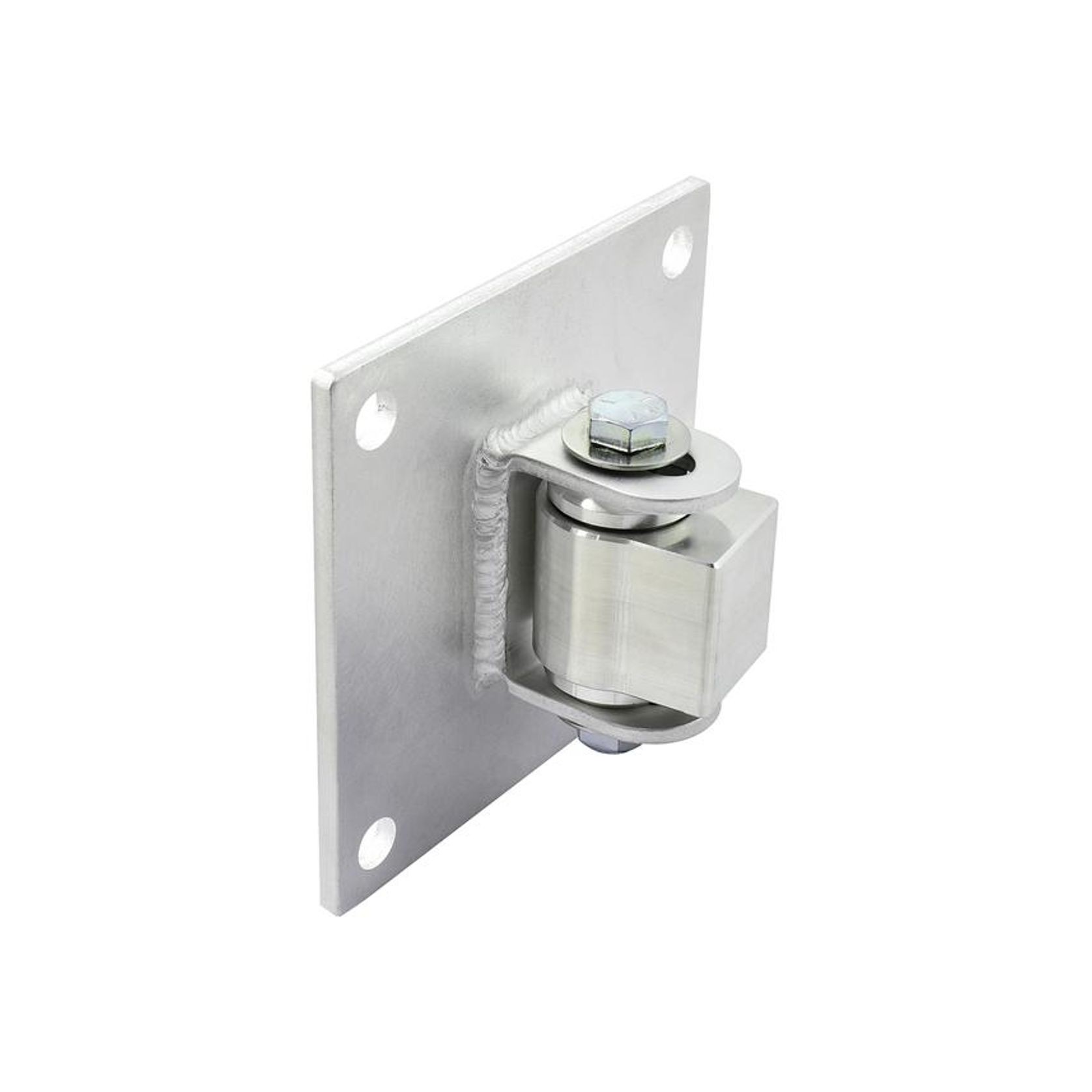

Shut it® Aluminium Half Bolt-on Badass

Name: Shut it® Aluminium Half Bolt-on Badass
Brand: D&D Technologies

by ASSA ABLOY

Auckland, New Zealand

655.5K profile views
60 saves

Visit Website

With a wide mounting plates and four anchor points, the 4" and 6" Half Bolt-on BadAss hinges reduce fence post flexing, preventing fatigue in the fence post. Four anchor points position bolts at the sides, rather than the center of the fence post for a solid, stronger connection. Shut It gate hinges are assembled in the U.S.A. with the industrys first maintenance-free high-temperature sealed bearings, which are safe to powder coat with the hinges installed on the gate.

Tags

shut it d&d technologies hardware latches hinges

Product Details

Product: Shut it® Aluminium Half Bolt-on Badass
Category: Gate Accessories
Sold by: ASSA ABLOY
Range: Shut it®
Designer: D&D Technologies
Brand: D&D Technologies
Country of origin: United States
Warranty: Lifetime

ASSA ABLOY is specified by

(56) Professionals

Shut it® Aluminium Half Bolt-on Badass dimensions

Visit site

With a wide mounting plates and four anchor points, the 4" and 6" Half Bolt-on BadAss hinges reduce fence post flexing, preventing fatigue in the fence post.

Four anchor points position bolts at the sides, rather than the center of the fence post for a solid, stronger connection. Shut It gate hinges are assembled in the U.S.A. with the industrys first maintenance-free high-temperature sealed bearings, which are safe to powder coat with the hinges installed on the gate.

Specs

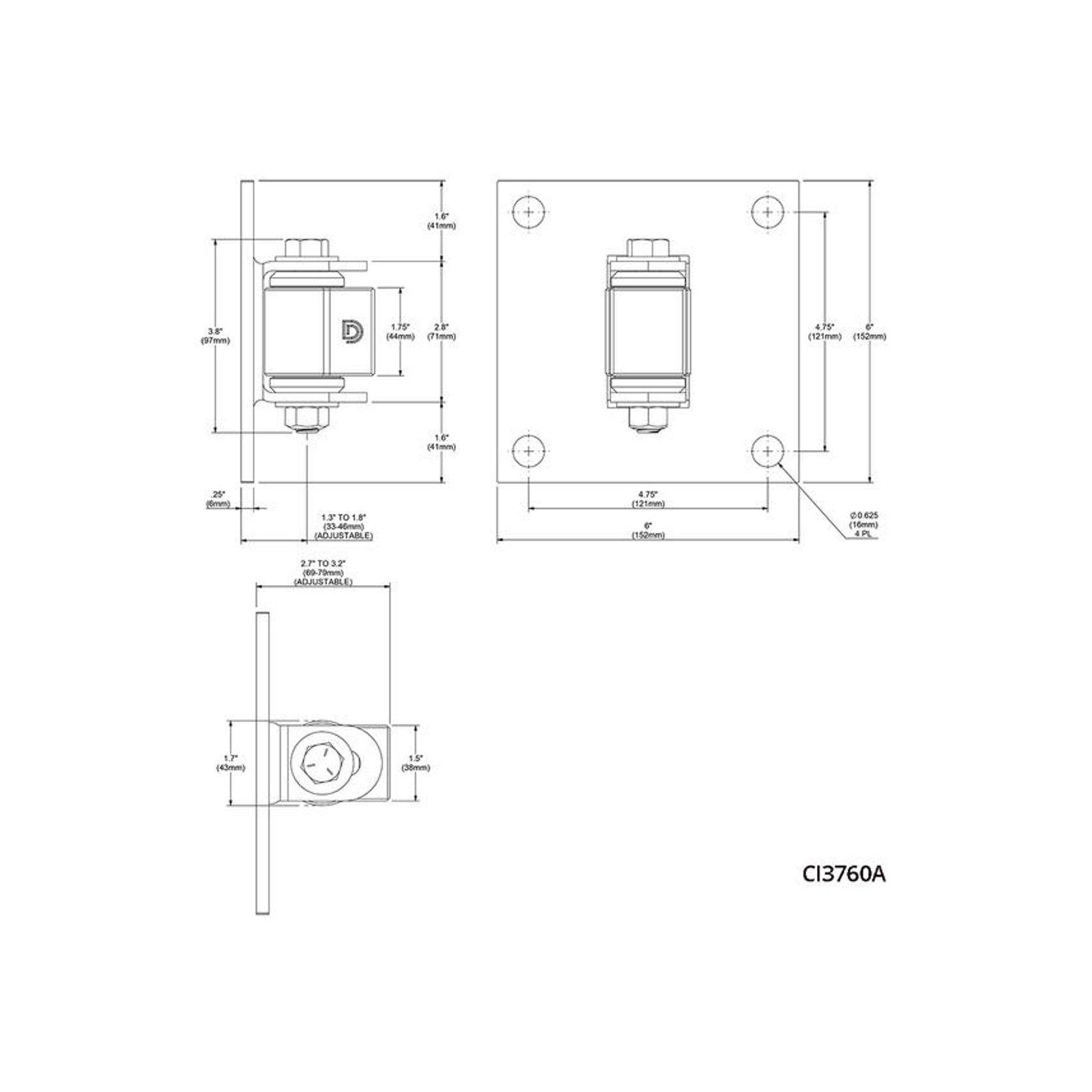

Shut it® 152mm Aluminium Half Bolt-On Badass

Product Code - C13760A
Gate Type - Non-Self Closing
Gate Material - Aluminum
Approx Gate Size - 1.5m x 2m
Gate Frame/Post Shape - Square to Square
Min Post Size (mm) - 38
Ideal Gate Gap - 73-86 mm
Fixing Method - Bolt-On, Weld-On
Colour/ Finish - Unfinished

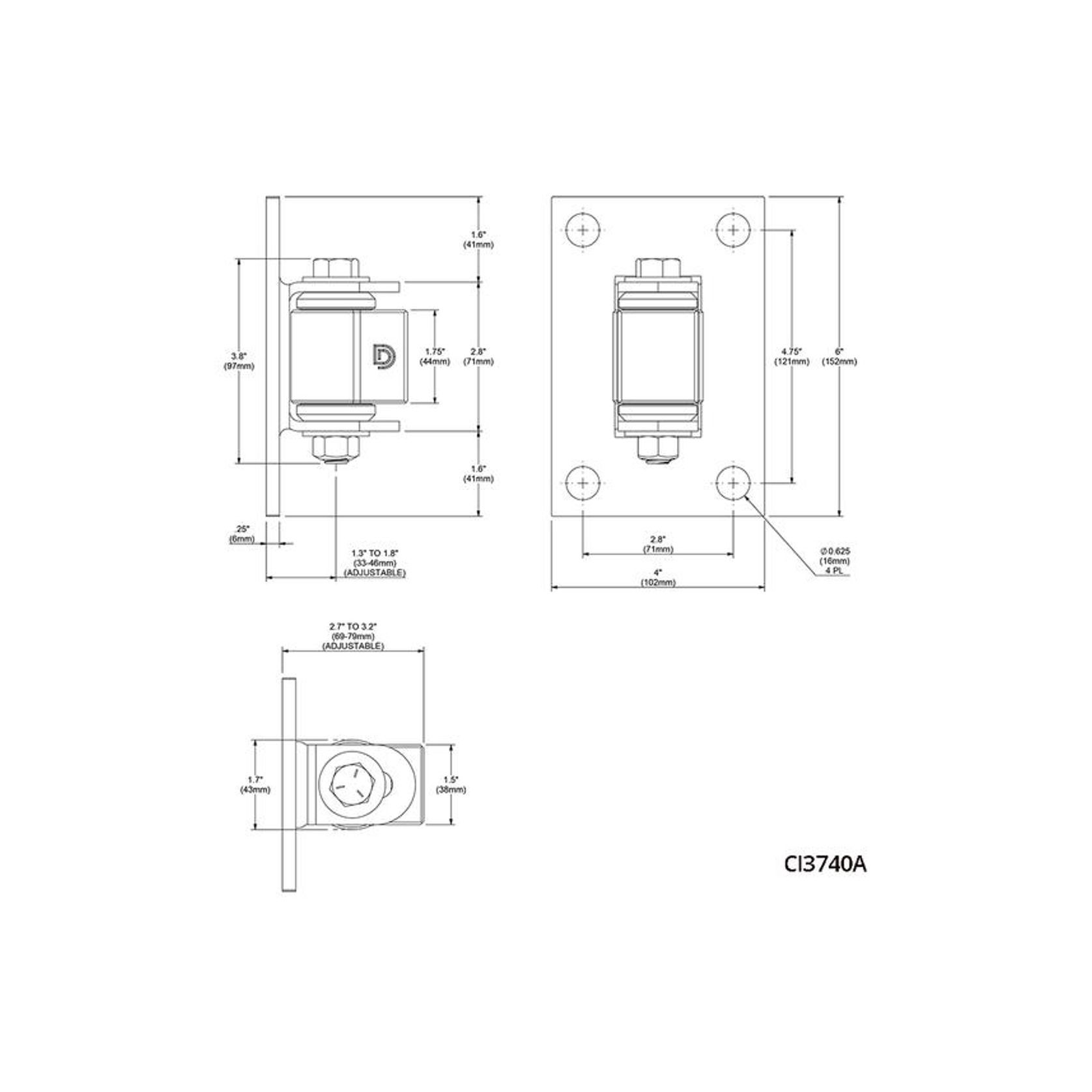

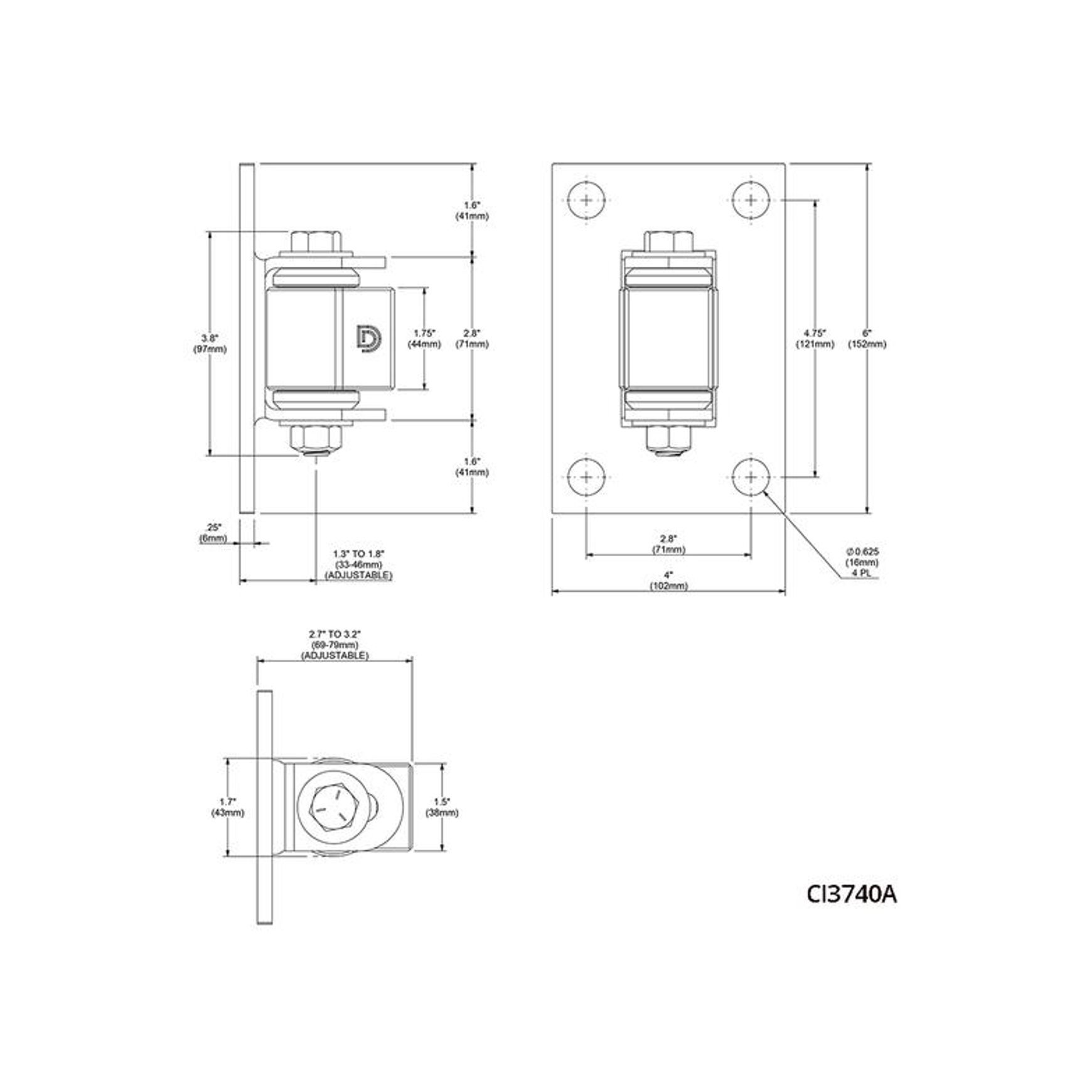

Shut it® 102mm Aluminium Half Bolt-On Badass

Product Code - C13740A
Gate Type - Non-Self - Closing
Gate Material - Aluminium
Approx Gate Size - 1.5m x 2m (6ft W x 8ft H)
Gate Frame/Post Shape - Square to Square
Min Post Size (mm) - 38
Ideal Gate Gap - 73-86 mm
Fixing Method - Bolt-On, Weld On
Colour/Finish - Unfinished

Features

Shut it® 152mm Aluminium Half Bolt-On Badass

Made to bolt or weld to 152mm (6”) or larger fence posts
Wider brackets enable anchor points to be positioned at the sides, rather than the centre of a fence post - reducing flexing, preventing fatigue in fence post
High-temperature sealed bearings - safe to powder coat with hinges installed on the gate
No greasing, no maintenance. EVER!
Precision bushing - distributes gate load for optimal performance and longer life
CNC machined to perfection and near-frictionless movement
Max Gate Load: 450kg (1,000 lb)
Max Gate Weight: 270kg (600 lb)
Limited Lifetime Warranty

Shut it® 102mm Aluminium Half Bolt-On Badass

Made to bolt or weld to 102mm - 127mm (4” or 5”) fence posts
Wider brackets enable anchor points to be positioned at the sides, rather than the centre of a fence post - reducing flexing, and preventing fatigue in fence post
High-temperature sealed bearings - safe to powder coat with hinges installed on the gate
No greasing, no maintenance, EVER!
Precision bushing - distributes gate load for optimal performance and longer life
CNC machined to perfection and near-frictionless movement
Max Gate Load: 450kg (1,000 lb)
Max Gate Weight: 270kg (600 lb)
Limited Lifetime Warranty
