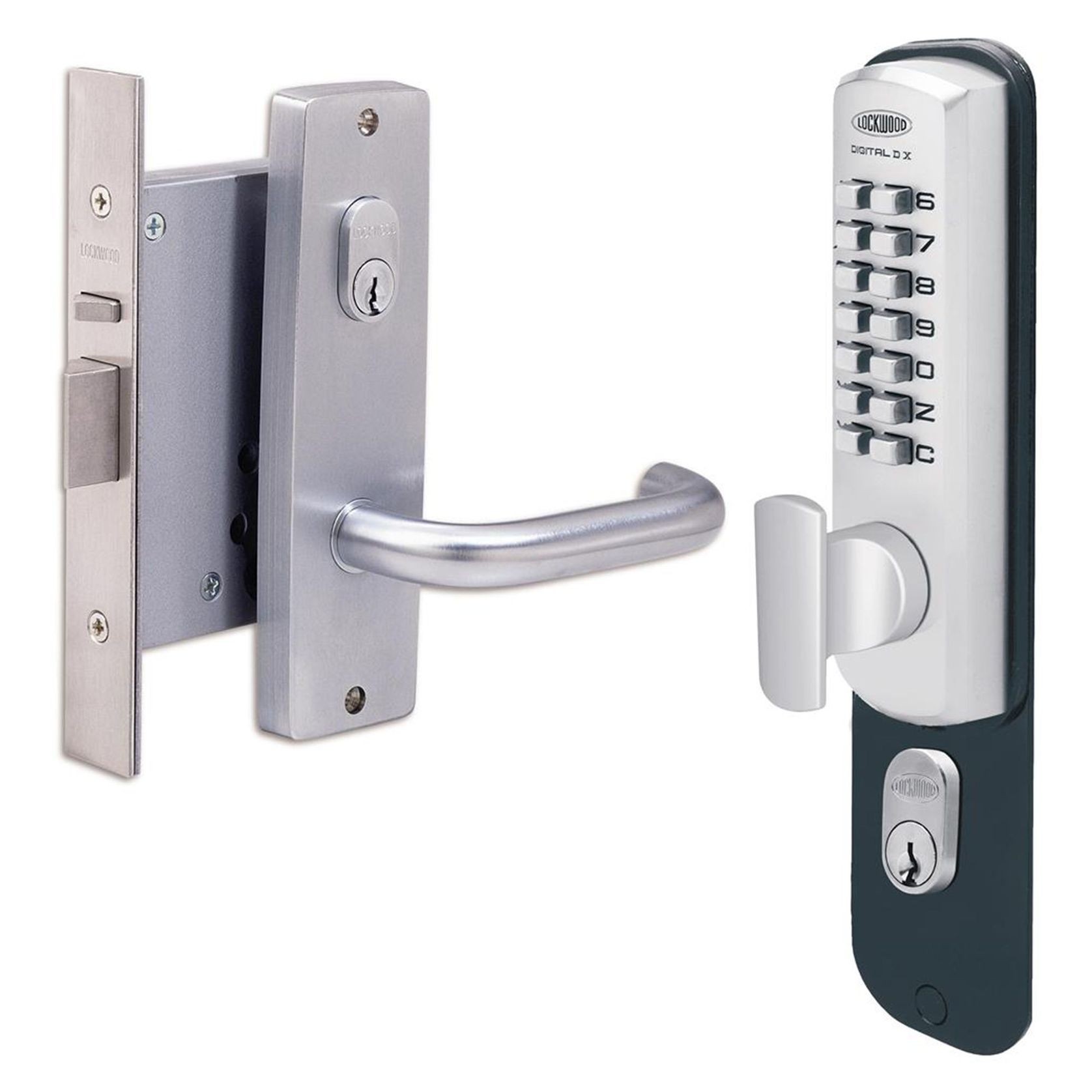

Lockwood 3572 Key Override and Code Lockout Digital DX

The Lockwood Digital DX Locksets provide a mechanical method of keyless entry.

Specs

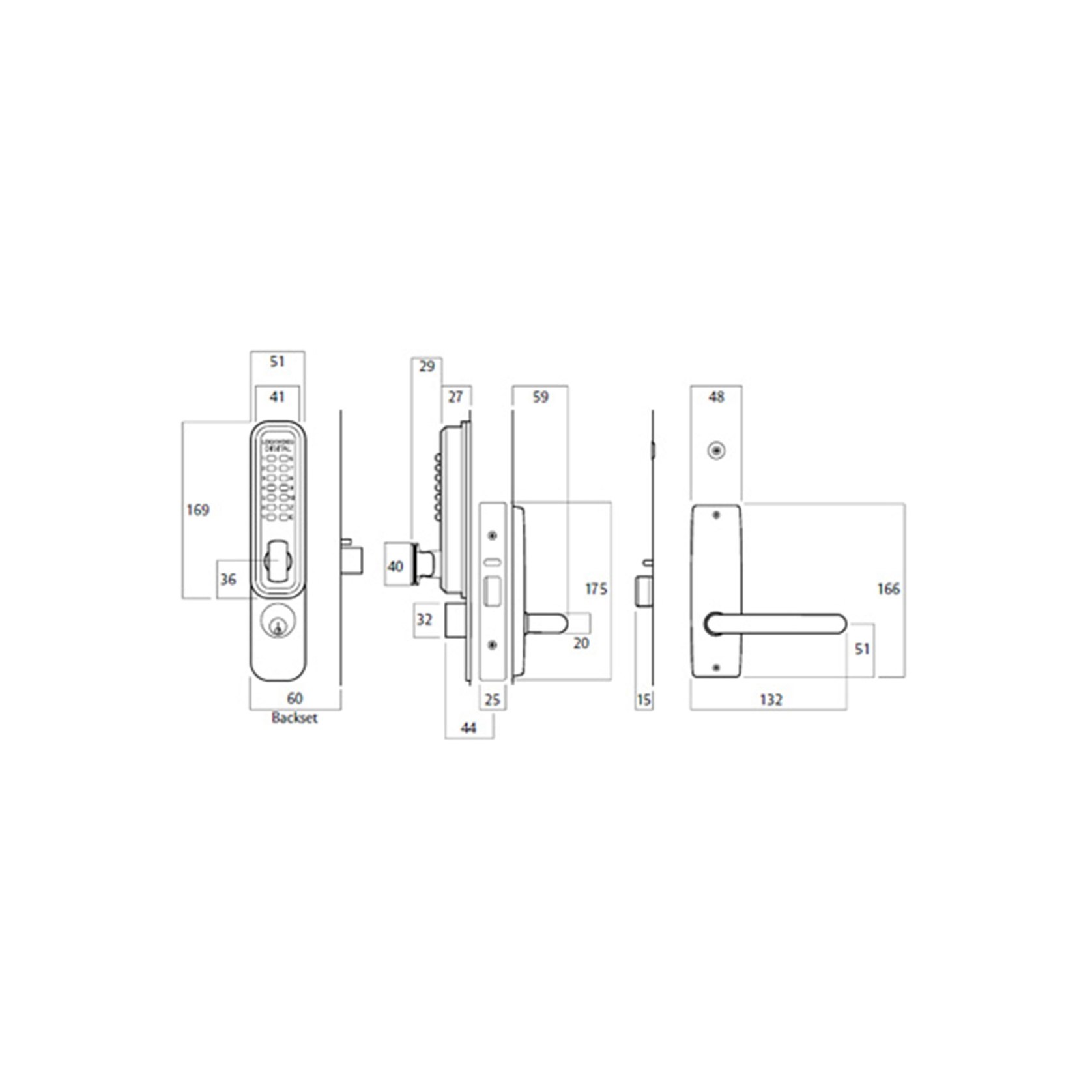

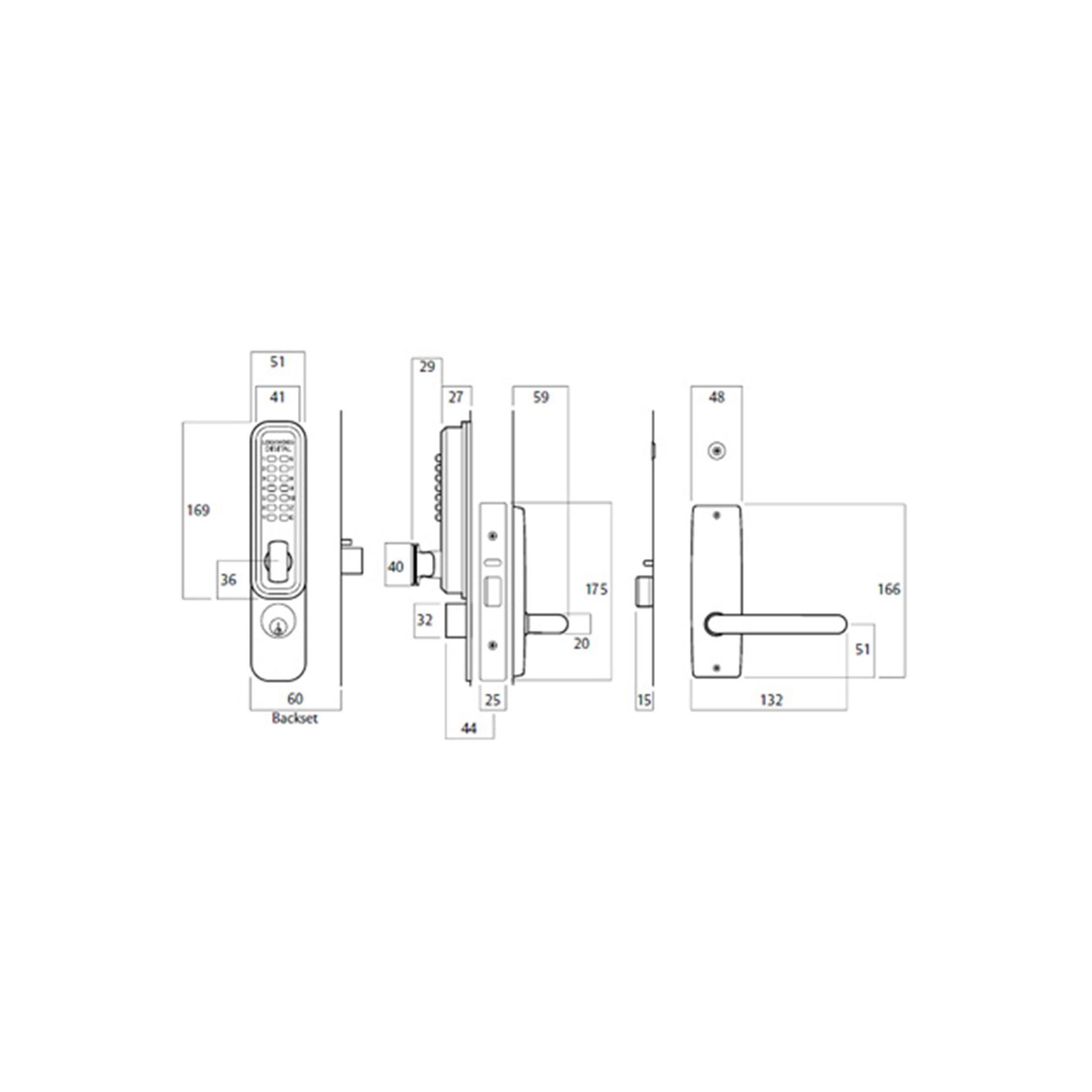

Backset

• 60mm standard
• Extended backsets 89 and 127mm on application.

Keying

Standard Keying

• Supplied individually keyed with two keys per lock
• 78,000 key combinations
• Key blank KB2015P

Restricted Special Keying

Lockwood locks can be keyed to a number of controlled and/or specially keyed systems. These range from legally protected keys to protect against unauthorised duplication, which can also include specially designed key systems such as master key systems, which allow for different levels of mechanical access control.

Lockwood Keying Platforms - more information

Cylinder
Pin tumbler mechanism with round brass cylinder outside, oval cylinder inside.

Door Furniture
Order furniture separately. For furniture to suit 3572 Series Locksets select from Lockwood 1800 and 2800 Series.

Fire Rating
Lockwood 3572 Key Override and Code Lockout Digital DX Lockset (excluding rubber gasket) has been successfully tested to 4 hours on fire door assemblies in accordance with Australian Standard AS 1905.1: 1997, Fire Resistant Doorsets.

Standard Finishes

• Satin Chrome SC
• Polished Brass PB

* Outside code pad is Satin Chrome Pearl. Inside furniture and face plate is Satin Chrome Brushed.

Features

• Suits door thickness of 35 to 50mm
  • Utilises Lockwood Synergy 3572 Series Cylinder Mortice Deadlatch
  • 60mm standard backset
  • Pin tumbler mechanism with round brass cylinder
  • Operated by keypad outside
  • Operated by lever inside
  • Left handed

Scope of use

Outside
Press the C button, enter the correct code, then turn the knob to unlock the door. Upon releasing the turn knob the code is automatically cancelled. The key override pin tumbler cylinder enables quick access by key for authorities such as the fire brigade or those who need to carry a master key to access all rooms of a building. In addition, an interior pin tumbler lockout cylinder is fitted.

Inside
By lever handle or knob at all times. The lockout cylinder enables the digital function to be made inoperative, allowing for key entry only during certain times of the day or after hours.
