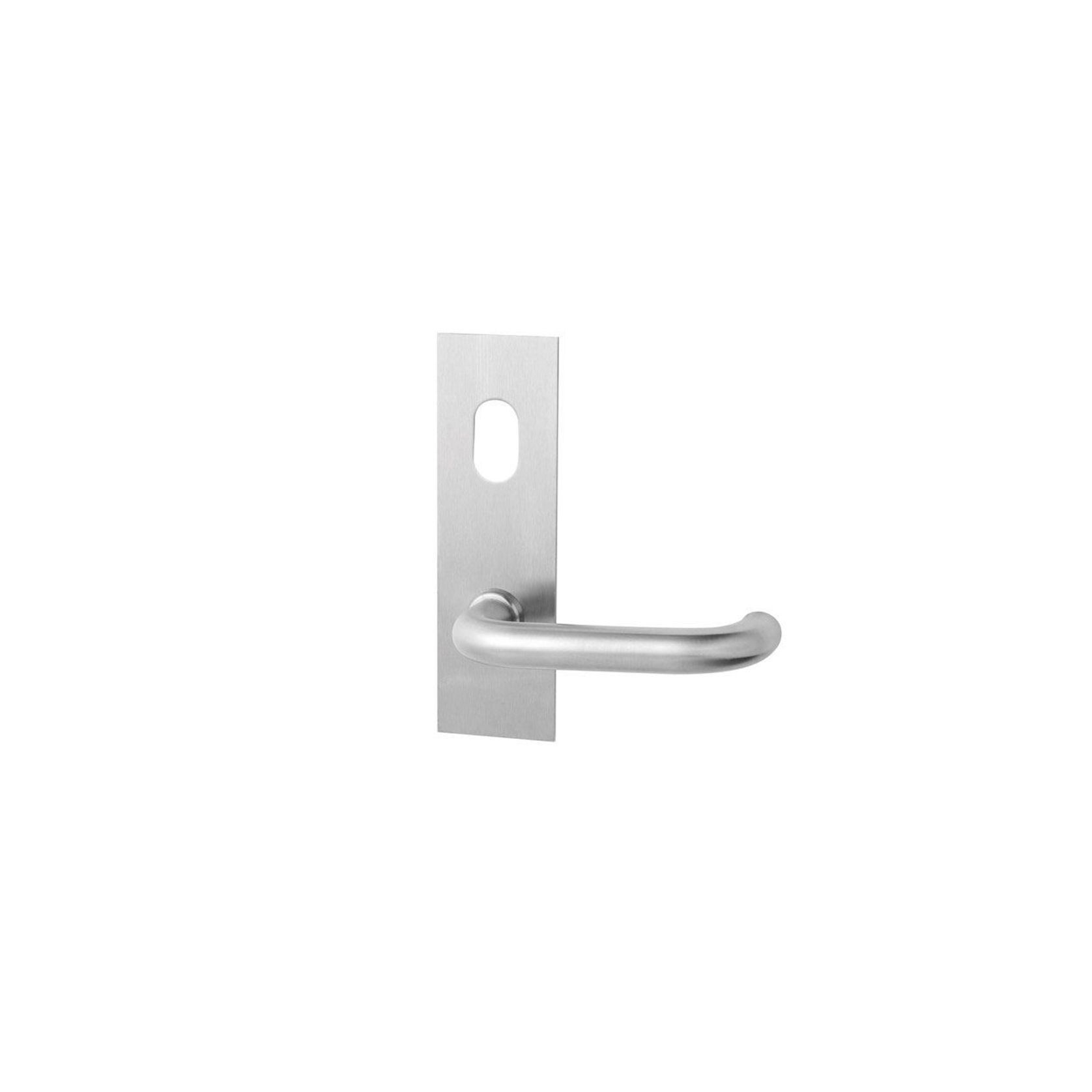

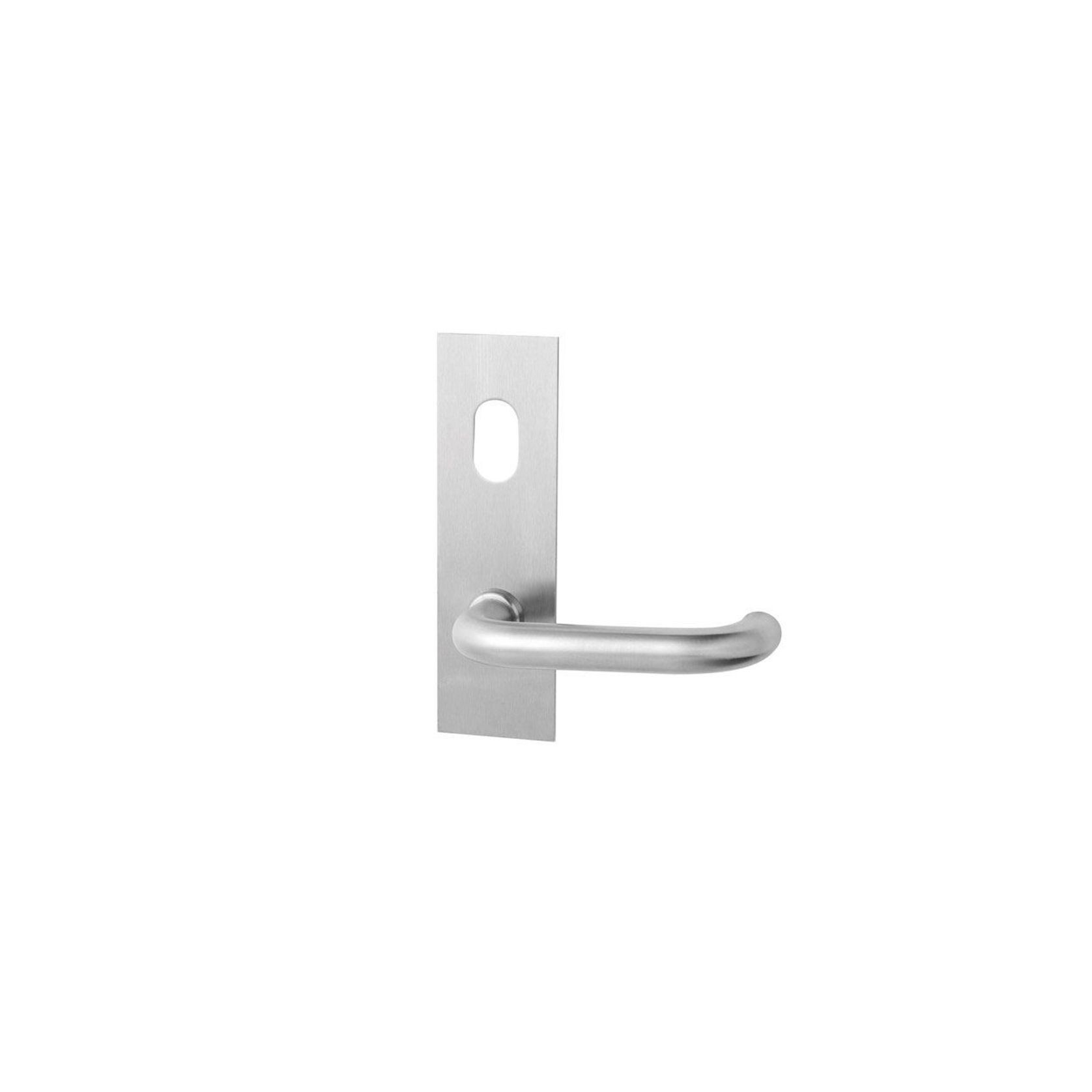

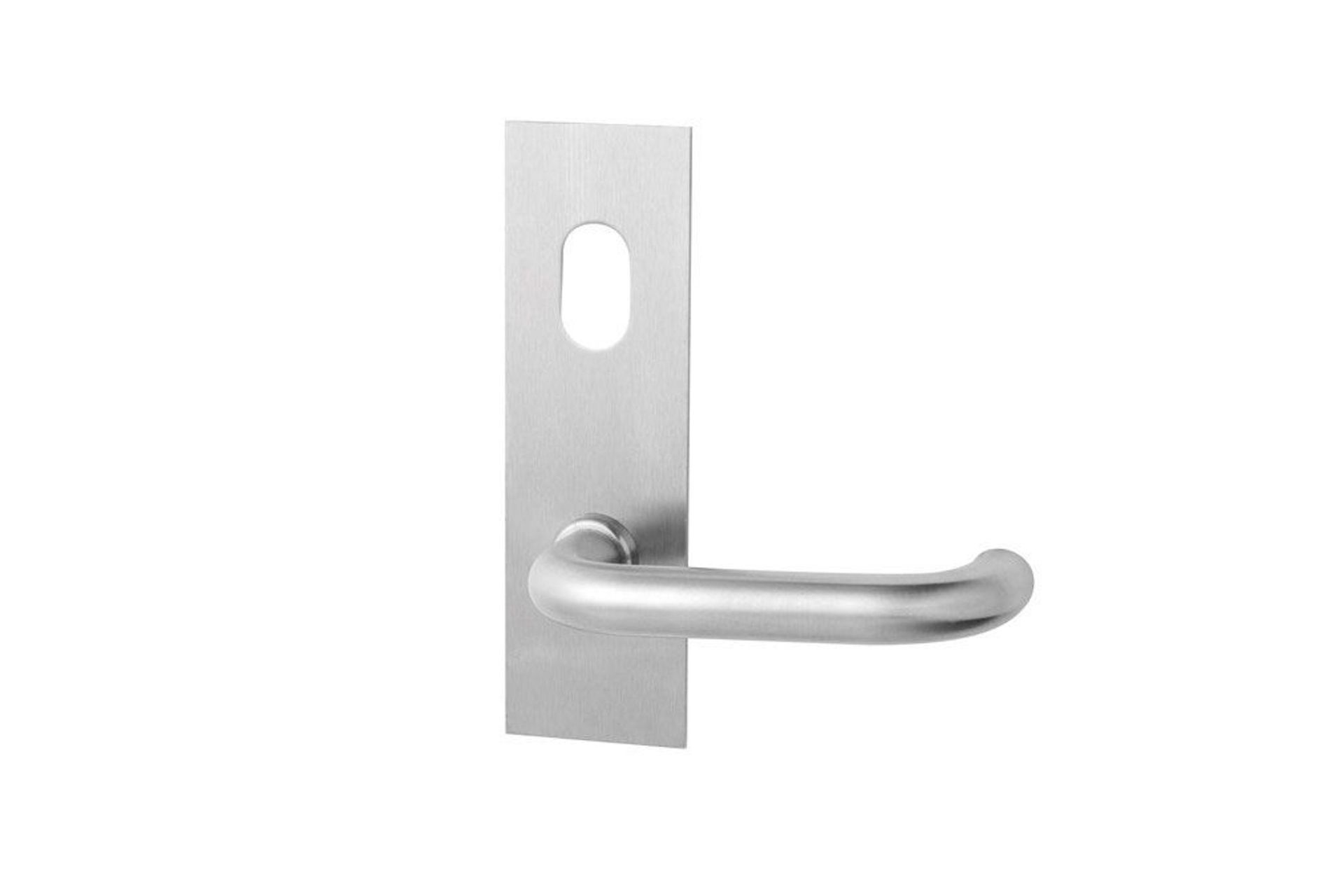

The 224 Series Door Furniture is 162mm long x 50mm wide with square ends. Concealed fixed plates have studs with internal threads located top and bottom, visible fixed plates have corresponding countersunk holes and are fixed back to back through the door.

Tags

assa abloy door handles door hardware lockwood door plates

Product Details

Product: Lockwood 224 Series Artefact Rectangular Plates
Category: Lever Handles
Sold by: ASSA ABLOY
Range: Lockwood - Commercial
Designer: ASSA ABLOY
Brand: ASSA ABLOY

Product Variants

Colors

ASSA ABLOY is specified by

(56) Professionals

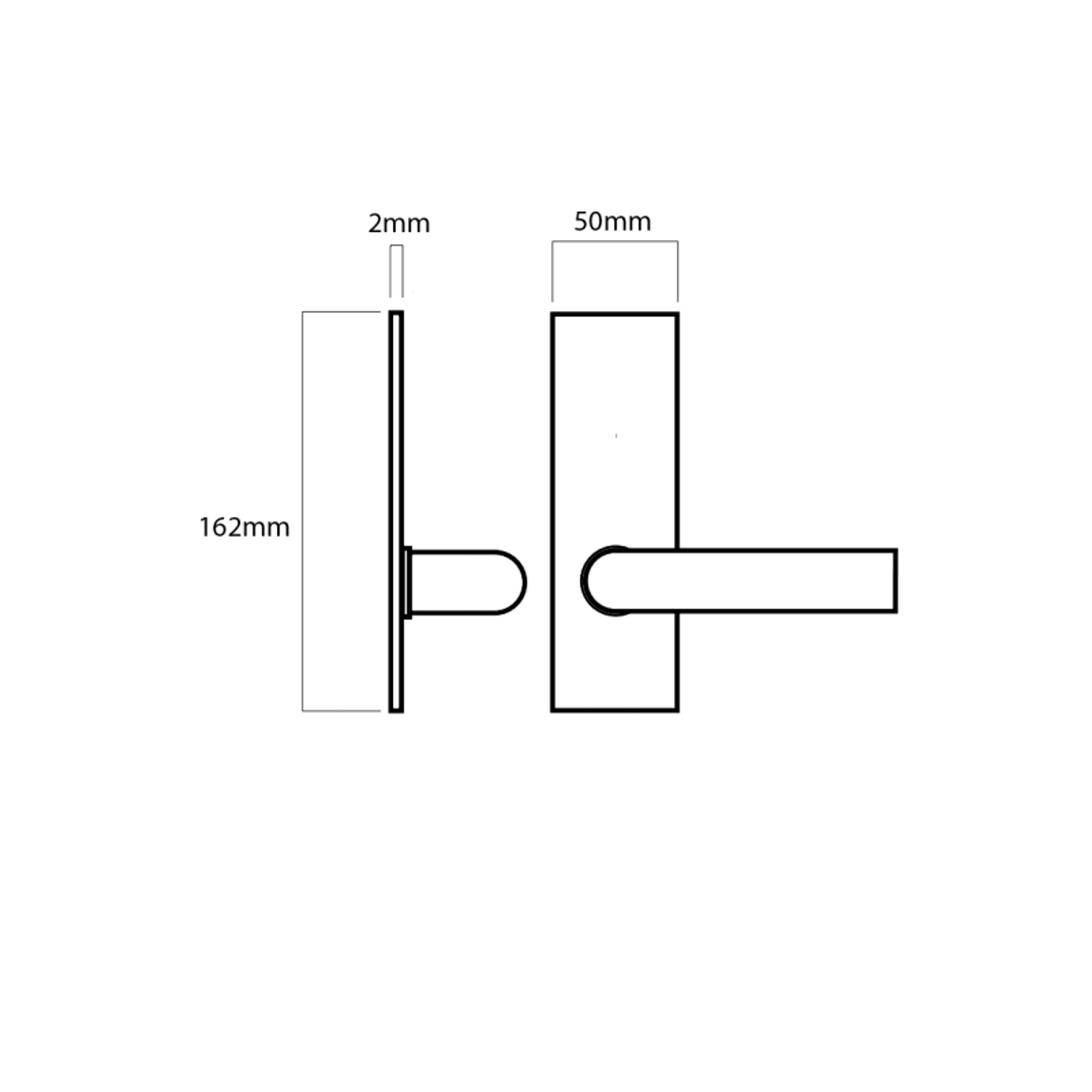

Lockwood 224 Series Artefact Rectangular Plates dimensions

Visit site

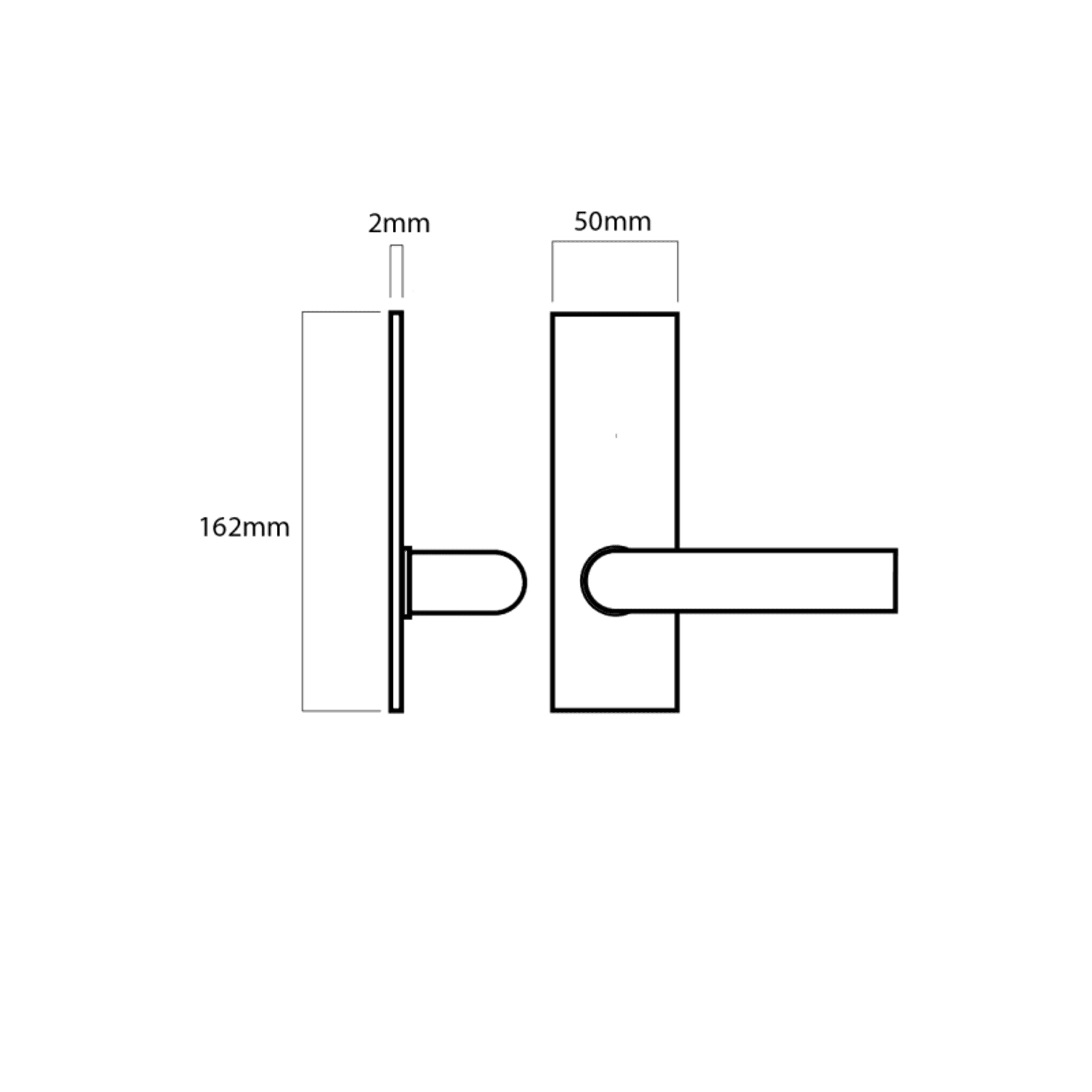

The 224 Series Door Furniture is 162mm long x 50mm wide with square ends.

Concealed fixed plates have studs with internal threads located top and bottom, visible fixed plates have corresponding countersunk holes and are fixed back to back through the door.

Specs

Materials
Stainless Steel only.

Door Thickness
35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208.

Standard Finish
Stainless Steel SS

Scope of use

The Lockwood Detention Series door furniture range was developed after extensive research with government representatives, architects, nurses and locksmiths experienced in correctional, juvenile justice and health departments.

Application
Designed for use with Lockwood 3770/3570 Series Mortice Locks.

Performance

Lockwood lever 70
External plate
Lever only
Cylinder pitch 64mm
Fixing centres 148mm
Concealed fixings
Non-handed
Manufactured from stainless steel
Suits door thickness from35mm to 45mm as standard.
For doors 45 to 55mm thick, specify long fixing screws SP2000-208
Supplied in trade pack
