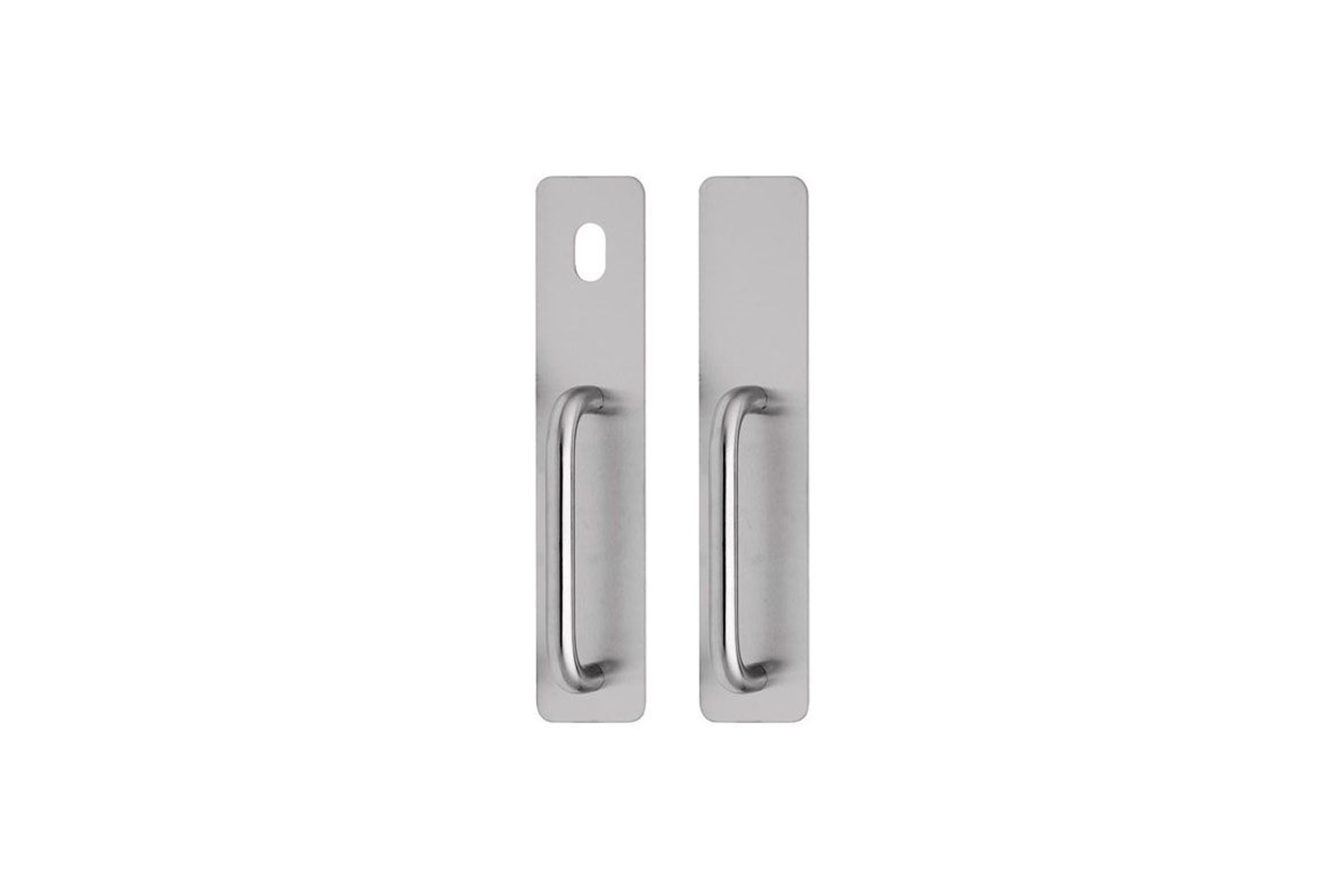

Lockwood 216/217 Series 10mm Radius Corner Push

Name: Lockwood 216/217 Series 10mm Radius Corner Push
Brand: ASSA ABLOY

Auckland, New Zealand

655.5K profile views
60 saves

The 216 Series Door Furniture is 300 x 65 x 2mm thick stainless steel or brass plate with 10mm radius corners. Concealed fixed plates have studs with internal threads located in each corner, visible plates have corresponding countersunk holes and are fixed back to back through the door.

Application
Designed for use with 3570 Series Mortice Locks and on Push and Pull doors.

Tags

door hardware lockwood push plate pull handle push and pull

Product Details

Product: Lockwood 216/217 Series 10mm Radius Corner Push
Category: Pull Handles
Sold by: ASSA ABLOY
Range: Lockwood - Commercial
Designer: ASSA ABLOY
Brand: ASSA ABLOY

Product Variants

Colors

ASSA ABLOY is specified by

(56) Professionals

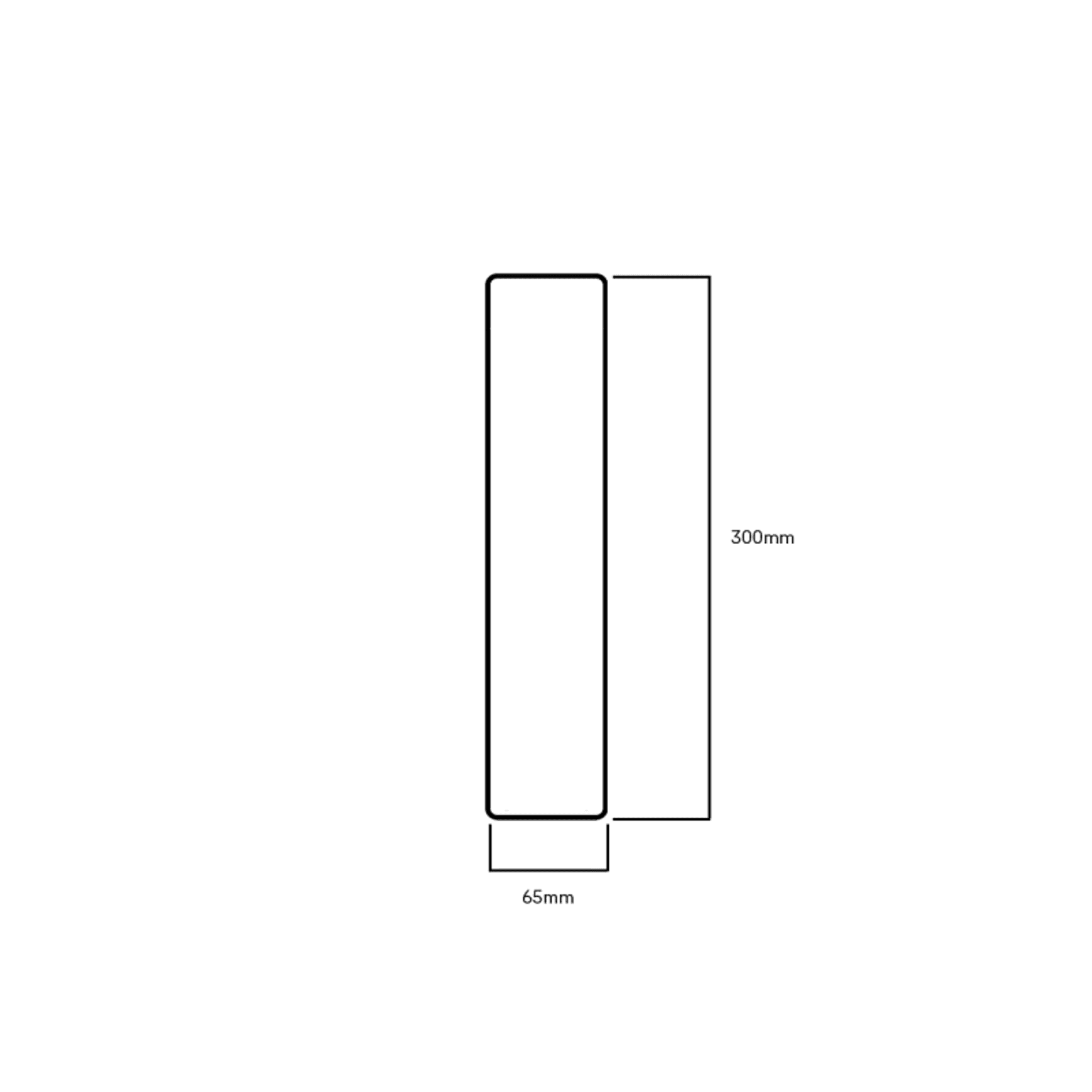

Lockwood 216/217 Series 10mm Radius Corner Push dimensions

Visit site

The 216 Series Door Furniture is 300 x 65 x 2mm thick stainless steel or brass plate with 10mm radius corners.

Concealed fixed plates have studs with internal threads located in each corner, visible plates have corresponding countersunk holes and are fixed back to back through the door.

Application
Designed for use with 3570 Series Mortice Locks and on Push and Pull doors.

Scope of use

Suitable for use in public, commercial, industrial and institutional buildings, where there is a need for high grade and durable fittings.

Specs / Details

Materials
Stainless steel or brass.

Door Thickness
35 to 45mm standard. For doors 45 to 55mm thick, specify long fixing screws SP2000-208.

Finishes

Standard

Satin Stainless Steel SS

Non Standard

Polished Stainless Steel PS
Powdercoat PC
Polished Brass PB

Dimensions
300 x 65 x 2mm.

Performance

External plate
Plain plate only
Concealed fixing
Engraved Push outline
Non-handed
10mm radius corners
Manufactured from Stainless Steel and Brass
Fire rated up to 2 hours
Supplied in trade pack
