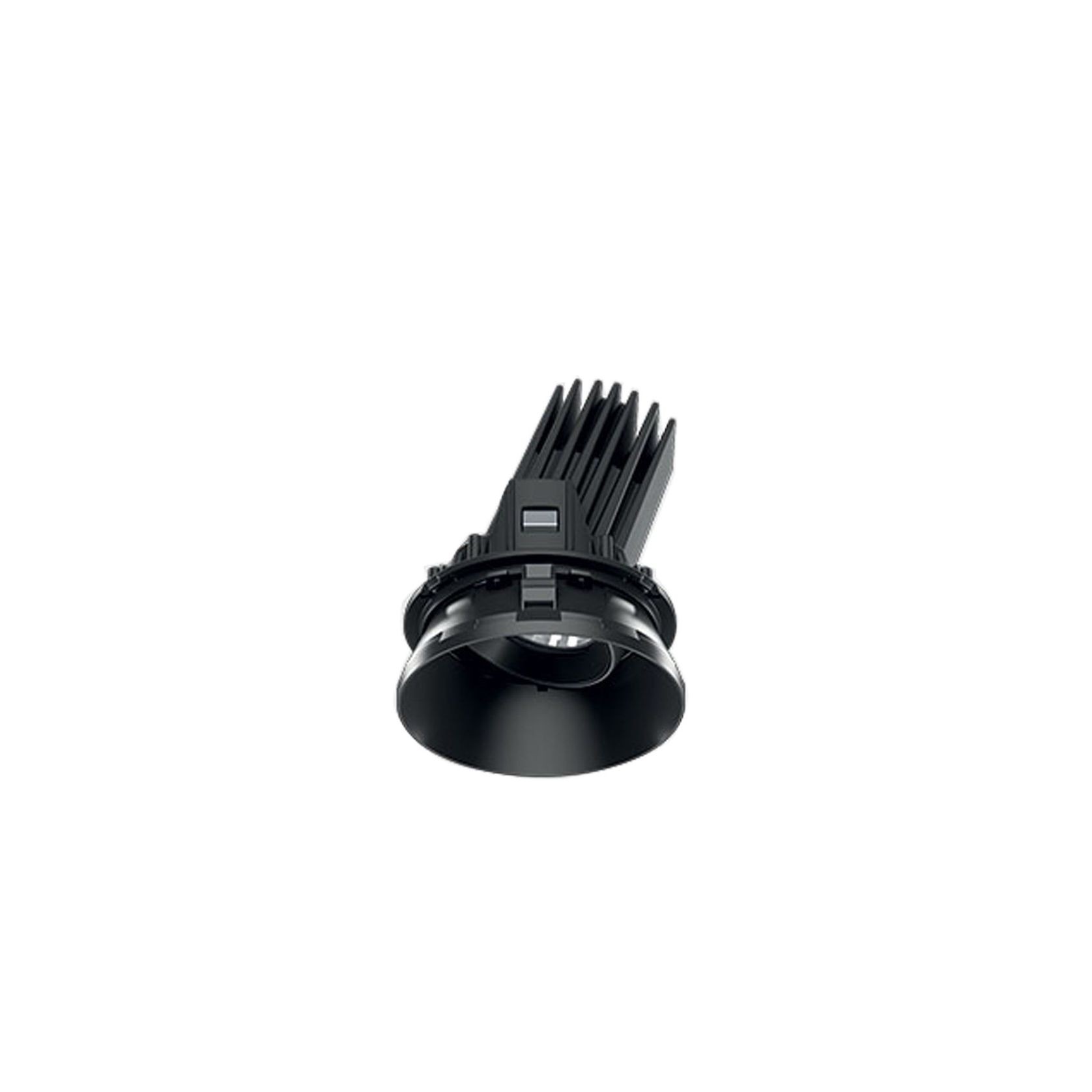

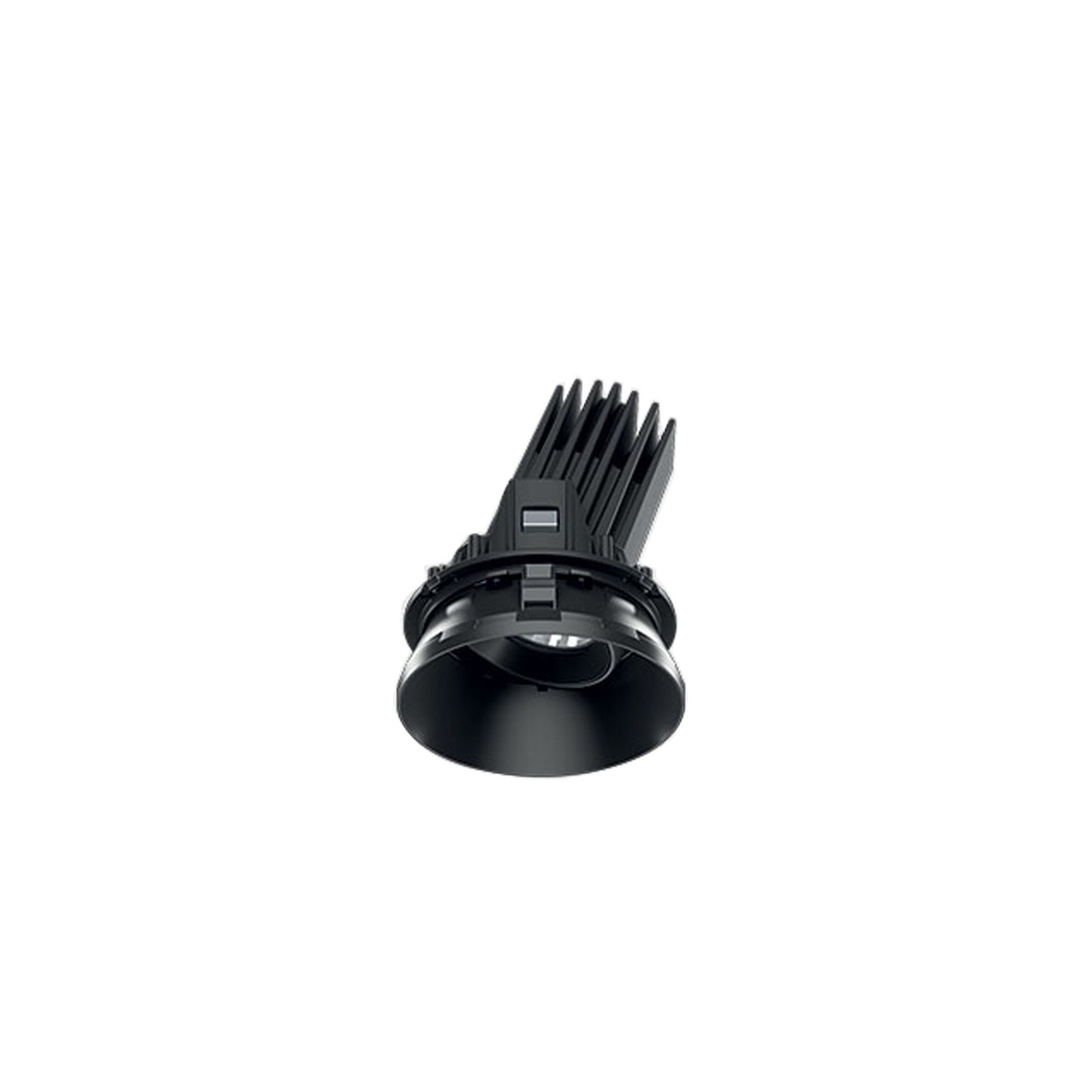

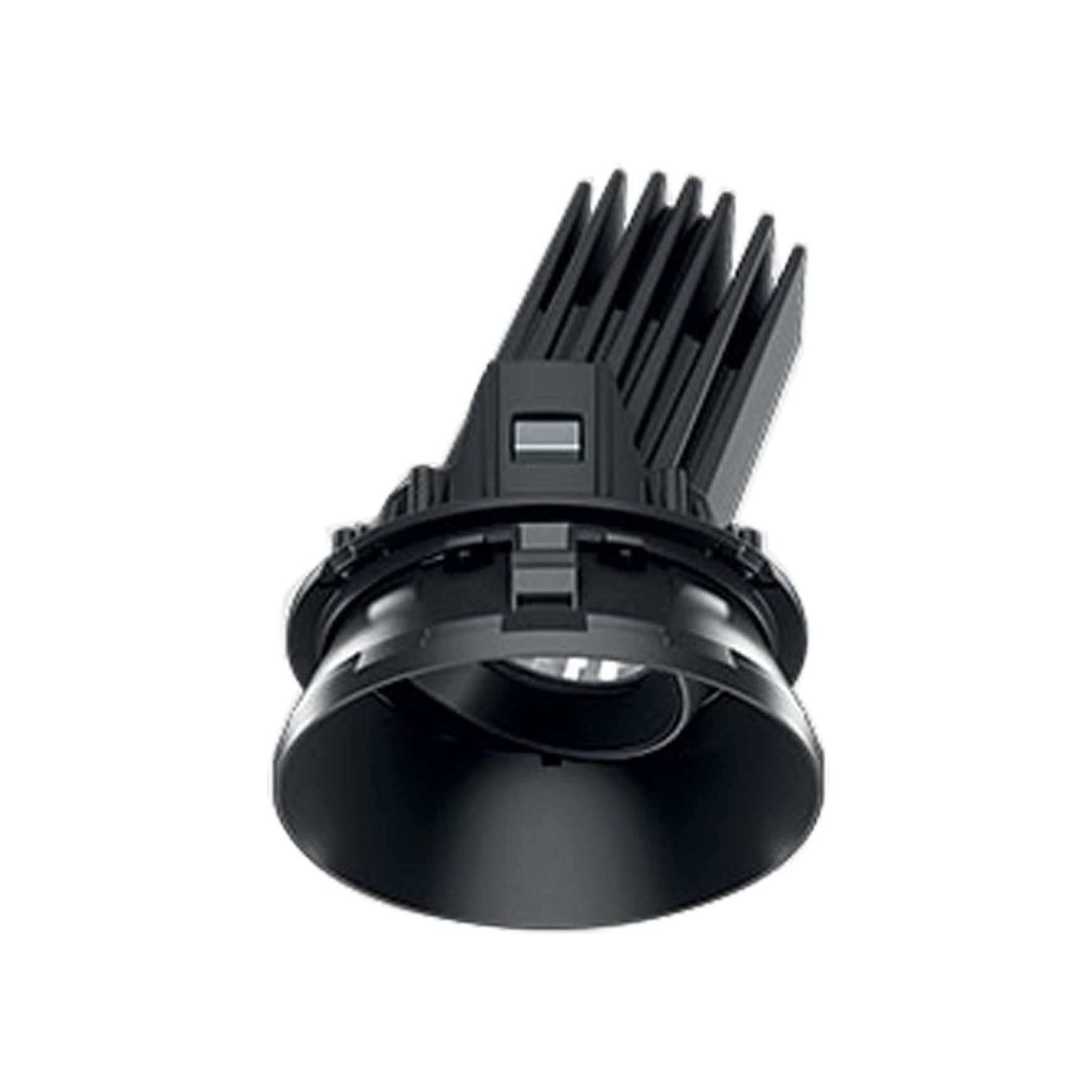

Laser Adjustable Round Trimless

by ECC

Auckland

ECC logo
  • 5.8M profile views
  • 616 saves
Visit Website

• Flush mount installation on false ceilings of thickness 12.5 to 25 mm for Minimal versions (without perimeter fl ap) or 1 to 25 mm for Frame versions (with fl ap) using steel wire springs.• Frame and heat sink in die-cast aluminium.• Reflector in metallic-fi nish thermoplastic material with scratch protection for excellent lighting effi ciency and visual comfort.• Controlled luminance emissions, UGR <13 comfort and UGR<10 super comfort versions.•Tiltin versions adjustable by +/- 30° on the horizontal plane and versions with dual orientation(+/- 30° horizontal plane and 358°around the vertical axis).• Available with on-off wiring and dimmable versions.• The minimum installation space dimensions are listed in the onlineinstruction catalogue.• IP20• IP23 on the visible body of the mount after installation.

Tags

lightinghome lightinglampspendantdownlight

Product Details

Product
Laser Adjustable Round Trimless
Category
Downlights
Sold by
ECC
Range
Laser
Designer
iGuzzini
Brand
iGuzzini

Product Variants

Title

ECC is specified by

(56) Professionals
Laser Adjustable Round Trimless
Visit site

• Flush mount installation on false ceilings of thickness 12.5 to 25 mm for Minimal versions (without perimeter fl ap) or 1 to 25 mm for Frame versions (with fl ap) using steel wire springs.• Frame and heat sink in die-cast aluminium.• Reflector in metallic-fi nish thermoplastic material with scratch protection for excellent lighting effi ciency and visual comfort.• Controlled luminance emissions, UGR <13 comfort and UGR<10 super comfort versions.•Tiltin versions adjustable by +/- 30° on the horizontal plane and versions with dual orientation(+/- 30° horizontal plane and 358°around the vertical axis).• Available with on-off wiring and dimmable versions.• The minimum installation space dimensions are listed in the onlineinstruction catalogue.• IP20• IP23 on the visible body of the mount after installation.

Pricing
From $301 *Price indication
Specs

Colours : White, black, black/black, white/black, white/gold- satin or gold
Dimensions : 38, 59 or 75mm
Lamptype : LED 2700K, 3000K or 4000K, CRI 90
Warranty : 5 years
Application : Downlight
Original ID : 8686
Type : Adjustable / Trimless / Round

Downloads

Downloads (2)2 Direct downloads • 6 Available on request

Get more Specific.

ECC

checkout.ecc.co.nz

Visit the ECC website for the full range, specification detail and where to buy this product.

Visit Website

Frequently asked questions about
Laser Adjustable Round Trimless

The Laser Adjustable Round Trimless is supplied by ECC. It is also on their website, and you can browse every product ECC lists on ArchiPro.

ECC lists the Laser Adjustable Round Trimless from $301, as a price indication. For an exact price for your project, .

It is listed under Downlights on ArchiPro, where you can compare it with downlights from other suppliers.

Yes. It is part of the Laser range from ECC, where you can see every product in the range together.

from this page, see their contact details on ArchiPro, or visit their website. The ECC profile on ArchiPro has the rest of their products.
