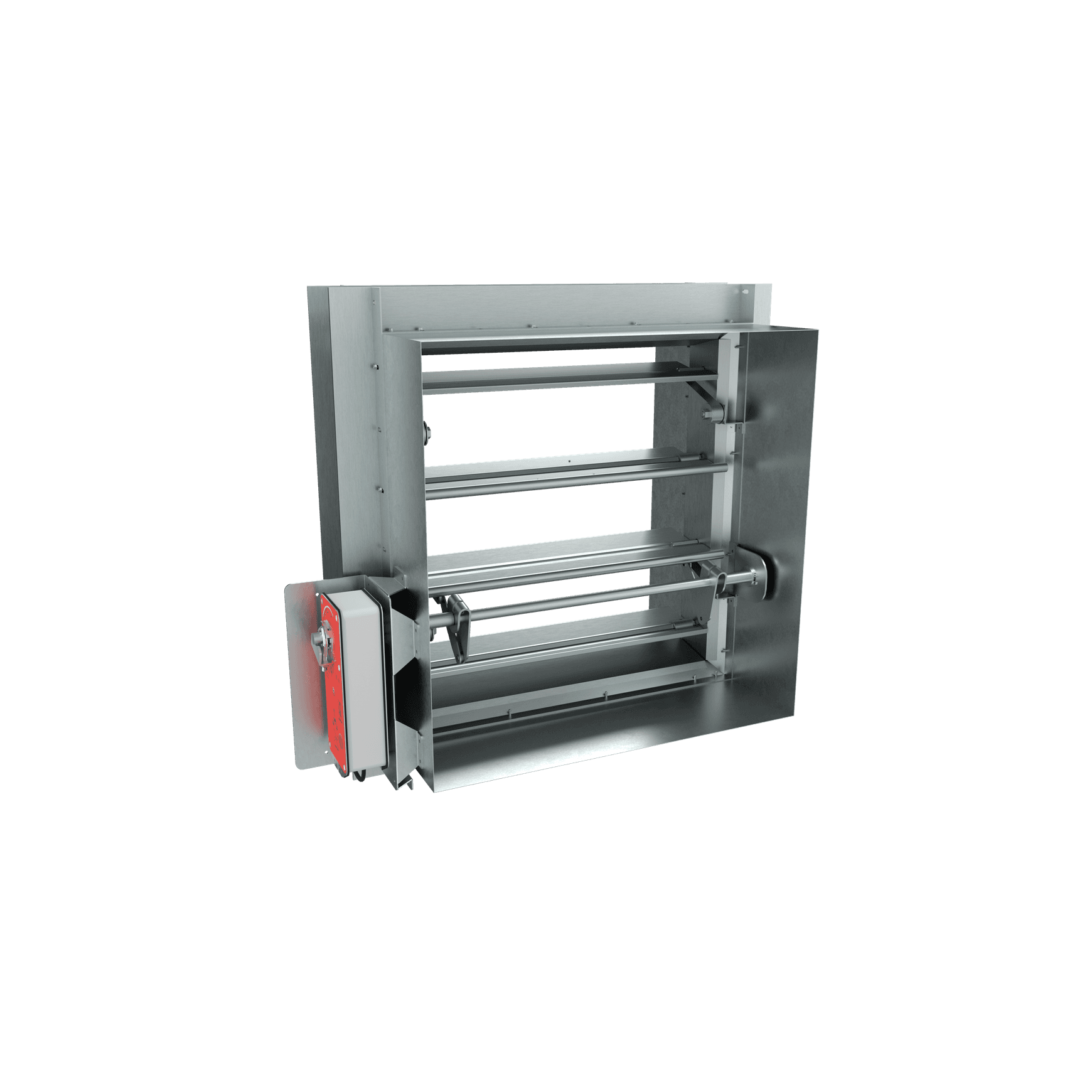

HFS Motorised Fire & Smoke Damper

Holyoake HFS motorised fire, smoke, and combination fire and smoke dampers, impede the spread of fire and smoke through ducted air systems whilst maintaining barrier integrity.

Specs

The HFS is fully customisable meaning we can manufacture the damper to any size between 200mm x 200mm upto 2400mm x 2400mm nto suit your application on the job.

Features

• Tested to AS 1530.4:2014 achieving a four hour fire rating.
• Tested to AS 1530.7:2007 with performance requirements from AS 1682.1:2015 for smoke and air dampers.
• Passed leakage integrity rates based on ISO 10294-1 ‘S’ Classification.
• Single sections available up to 1200mm (wide) x 1200mm (high).
• Multiple sections available up to 2400mm (wide) x 2400 (high) in a 2×2 configuration.
• Multiple ducted connections are available in a multiple section damper configuration.
• Installation permitted in both the horizontal and vertical plane (specify when ordering).
• Airflow and fire rated from either direction when installed in a wall.

Scope of use

HFS leakage-rated, fire and smoke dampers have undergone rigorous testing in accordance with AS 1530.4 – 2014 and AS 1530.7:2007, making them a trusted choice for fire and smoke safety in your projects.
