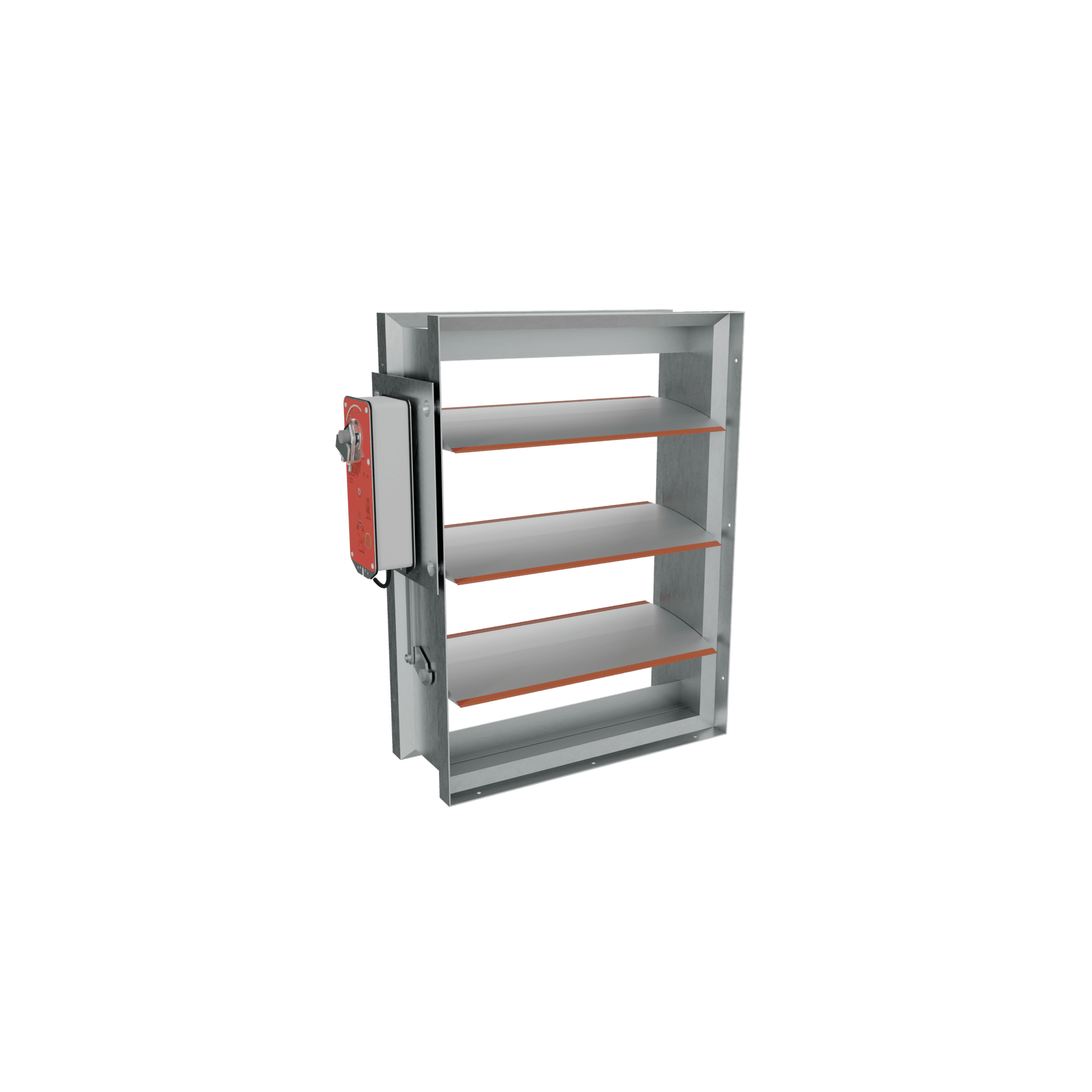

HCD-ET Motorised Smoke Damper
by Holyoake Air Management Solutions
Auckland
- 425.6K profile views
- 27 saves
Holyoake HCD-ET Smoke Dampers are elevated temperature versions of the HCD-150 or HCD-75 volume control dampers and are ideally suited for tight sealing smoke damper installations.
Product Details
- Product
- HCD-ET Motorised Smoke Damper
- Category
- Mechanical Ventilation Systems
- Range
- Smoke Control
- Brand
- Price Holyoake
- Country of origin
- New Zealand
- Type of use
- Commercial
- Installation
- Professional installation required
- Assembly
- No assembly required
- Warranty
- 12 months
Holyoake Air Management Solutions is specified by
Godward DesignspaceArchitects
ArchimediaArchitects
CCM ArchitectsArchitects
Edwards White ArchitectsArchitects
HB ArchitectureArchitects
Tennent Brown ArchitectsArchitects
CUSTANCEArchitects
Glamuzina ArchitectsArchitects
BuchanArchitects
Dalman ArchitectsArchitects
GHD DesignArchitects
ArchitectusArchitects
Pelorus ArchitectureArchitects
Sang ArchitectsArchitects
Crosson ArchitectsArchitects
Ignite ArchitectsArchitects
Wilson & Hill ArchitectsArchitects
South ArchitectsArchitects
Mason & Wales ArchitectsArchitects
Herriot Melhuish O'Neill Architects LtdArchitects
Gary Todd ArchitectureArchitects
ASC ArchitectsArchitects
McCoy Wixon ArchitectsArchitects
Daniel Marshall ArchitectsArchitects
Sheppard & Rout ArchitectsArchitects
Leuschke Group ArchitectsArchitects
Bossley ArchitectsArchitects
Studio Brick ArchitectsArchitects
Condon Scott ArchitectsArchitects
Johnston ArchitectsArchitects
Gibson O’Connor ConstructionBuilders
Parkhurst DesignInterior Designers
Studio H DesignArchitectural Designers
RCPProject Managers
Jessica Chloe PhotographyPhotographers
Guild and Spence ElectricalElectricians
Material CreativeInterior Designers
Walker ArchitectureArchitectural Designers
Henry Dunham BuildingBuilders
Urban Lounge InteriorsInterior Designers
Arcline ArchitectureArchitectural Designers
Tailor IncInterior Designers
Pearse ConstructionConstruction
Trinity Interior DesignInterior Designers
CDMCommercial Interior Fitouts
Lobell ConstructionBuilders
Weir ArchitectureArchitectural Designers
Keith Bennett PhotographyPhotographers
Natural Habitats LandscapesLandscape Architects
Apple AirHVAC Designers and Installers
Jason Mann PhotographyPhotographers
Amanda Aitken PhotographyPhotographers
Haydn & RollettCarpenters & Cabinetmakers
Intelligent DesignArchitectural Designers
Marina Mathews PhotographyPhotographers
Fitout SolutionsCommercial Interior Fitouts
eCubedEnvironmental Engineers
Air Mark HVAC SpecialistsHVAC Designers and Installers
DobsonsElectricians
Mark Scowen PhotographyPhotographers
Holyoake HCD-ET Smoke Dampers are elevated temperature versions of the HCD-150 or HCD-75 volume control dampers and are ideally suited for tight sealing smoke damper installations.
- Features
- Tested to AS 1530.7:2007 with performance requirements from AS 1682.1:2015 for smoke and air dampers.
- Exceptionally low resistance when open.
- Able to be installed up to 600mm from a smoke barrier.
- Scope of use
HCD-ET Smoke damper is suited for tight sealing smoke damper installations where it is designed to withstand upto 200 degrees celicius and achieve an air leakage of under 360m3 /hr/m2 at 300 Pa.
The smoke damper may be installed in either vertical or horizontal applications, but in all cases the blade axles must be horizontal. Fast running actuators with a travel time less than 30s in either direction must be fitted.
Downloads
Downloads (3)3 Direct downloads • 5 Available on request
Frequently asked questions about
HCD-ET Motorised Smoke Damper
The HCD-ET Motorised Smoke Damper is supplied by Holyoake Air Management Solutions. It is also on their website, and you can browse every product Holyoake Air Management Solutions lists on ArchiPro.
Holyoake Air Management Solutions does not publish a price for the HCD-ET Motorised Smoke Damper on ArchiPro. for pricing, or visit their website.
It is listed under Mechanical Ventilation Systems on ArchiPro, where you can compare it with mechanical ventilation systems from other suppliers.
Yes. It is part of the Smoke Control range from Holyoake Air Management Solutions, where you can see every product in the range together.
from this page, see their contact details on ArchiPro, or visit their website. The Holyoake Air Management Solutions profile on ArchiPro has the rest of their products.
