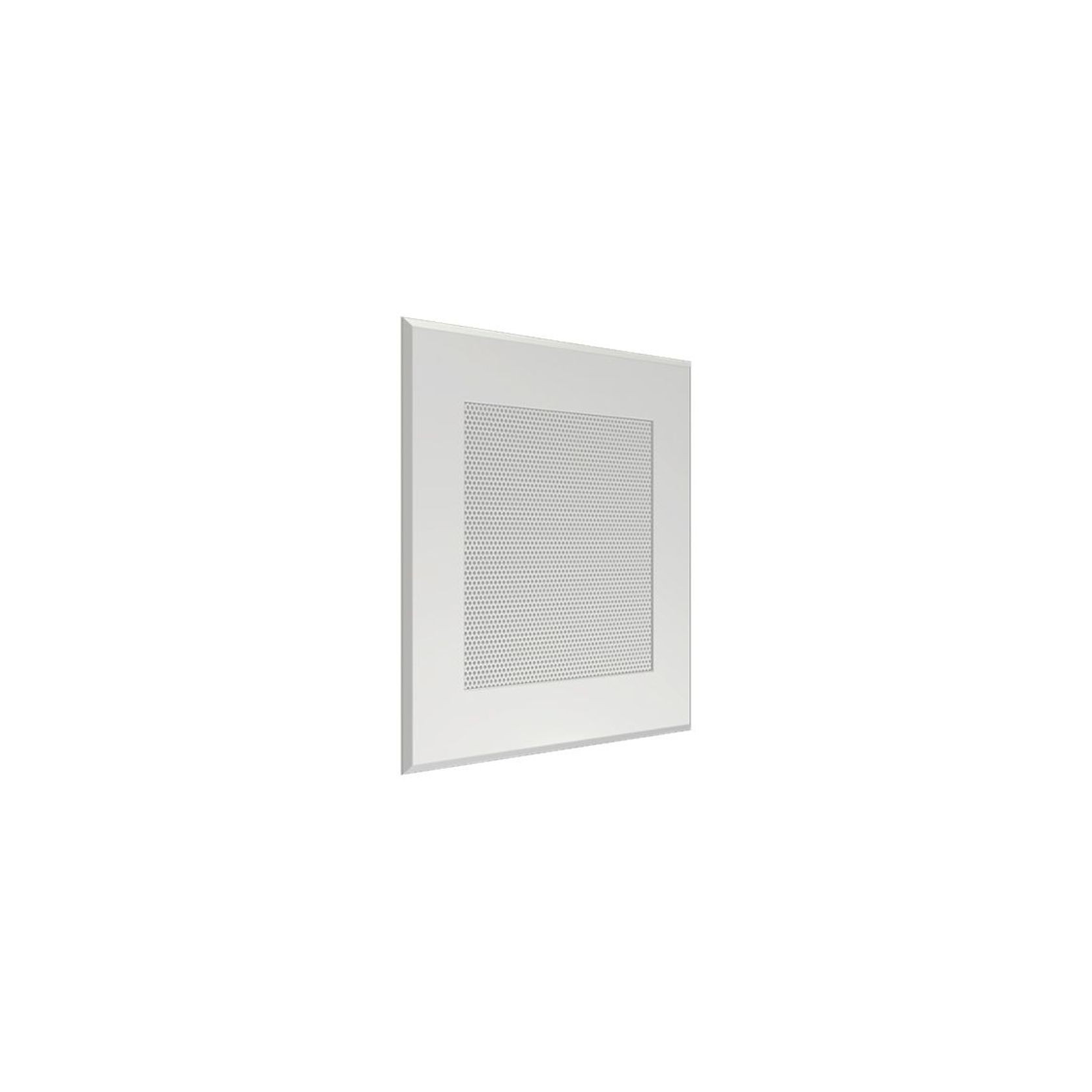

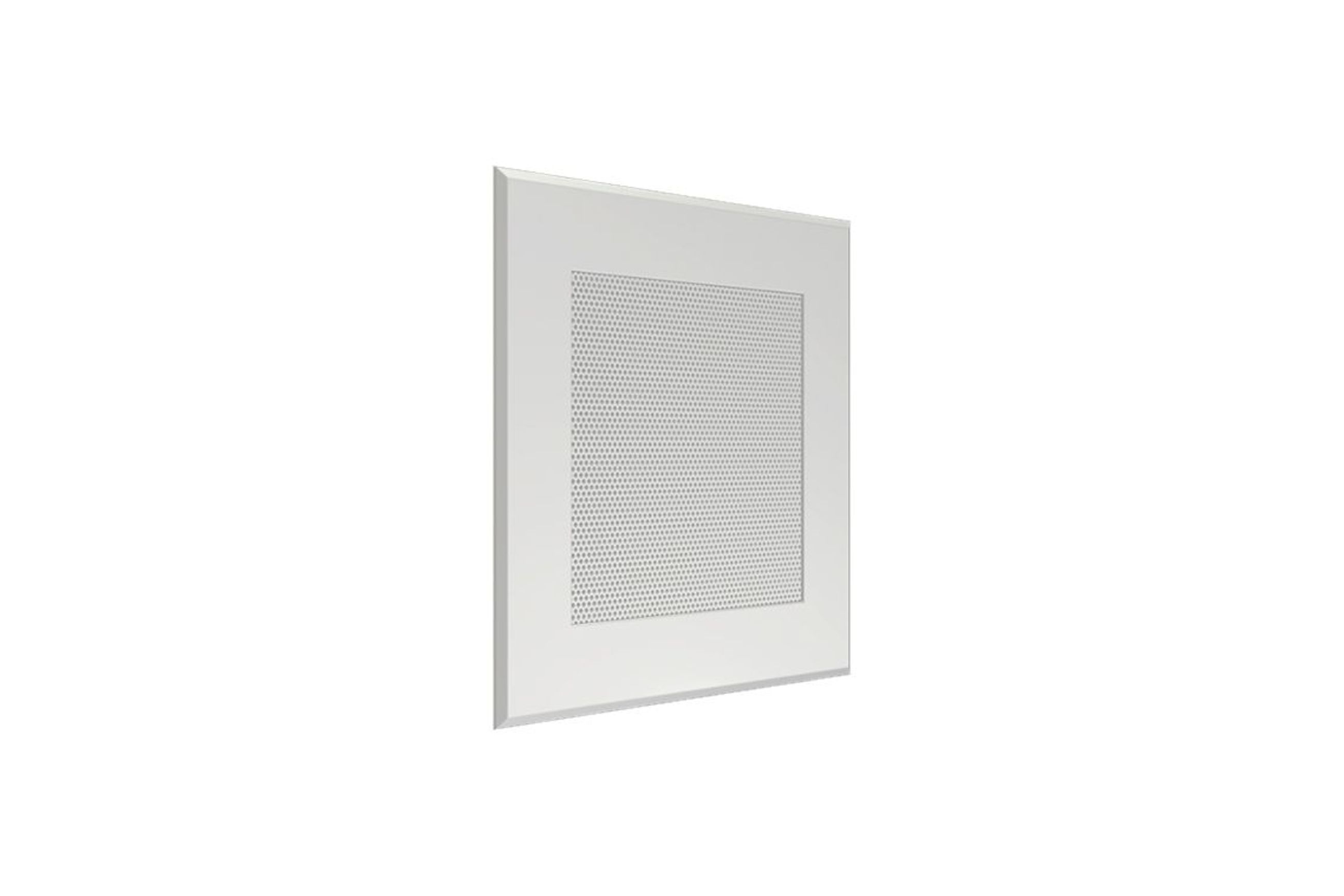

CPSS Perforated Security Grille
by Holyoake Air Management Solutions
Auckland
- 425.6K profile views
- 27 saves
The Holyoake CPSS range of Perforated Supply Security Diffusers has been designed to provide maximum security. The CPSS is constructed of a heavy gauge perforated plate framed by a heavy section aluminium surround. The perforated diffusion plate is locked in place by solid heavy aluminium spacers welded to the surround.
The CPSS can be used as a ceiling or wall-mounted diffuser or as a return if required.
The small perforation size and heavy gauge material make it ideal for use in locations where security and safety is a requirement.
Product Details
- Product
- CPSS Perforated Security Grille
- Category
- Ventilation Grills
- Range
- Registers & Grilles
Holyoake Air Management Solutions is specified by
Godward DesignspaceArchitects
ArchimediaArchitects
CCM ArchitectsArchitects
Edwards White ArchitectsArchitects
HB ArchitectureArchitects
Tennent Brown ArchitectsArchitects
CUSTANCEArchitects
Glamuzina ArchitectsArchitects
BuchanArchitects
Dalman ArchitectsArchitects
GHD DesignArchitects
ArchitectusArchitects
Pelorus ArchitectureArchitects
Sang ArchitectsArchitects
Crosson ArchitectsArchitects
Ignite ArchitectsArchitects
Wilson & Hill ArchitectsArchitects
South ArchitectsArchitects
Mason & Wales ArchitectsArchitects
Herriot Melhuish O'Neill Architects LtdArchitects
Gary Todd ArchitectureArchitects
ASC ArchitectsArchitects
McCoy Wixon ArchitectsArchitects
Daniel Marshall ArchitectsArchitects
Sheppard & Rout ArchitectsArchitects
Leuschke Group ArchitectsArchitects
Bossley ArchitectsArchitects
Studio Brick ArchitectsArchitects
Condon Scott ArchitectsArchitects
Johnston ArchitectsArchitects
Gibson O’Connor ConstructionBuilders
Parkhurst DesignInterior Designers
Studio H DesignArchitectural Designers
RCPProject Managers
Jessica Chloe PhotographyPhotographers
Guild and Spence ElectricalElectricians
Material CreativeInterior Designers
Walker ArchitectureArchitectural Designers
Henry Dunham BuildingBuilders
Urban Lounge InteriorsInterior Designers
Arcline ArchitectureArchitectural Designers
Tailor IncInterior Designers
Pearse ConstructionConstruction
Trinity Interior DesignInterior Designers
CDMCommercial Interior Fitouts
Lobell ConstructionBuilders
Weir ArchitectureArchitectural Designers
Keith Bennett PhotographyPhotographers
Natural Habitats LandscapesLandscape Architects
Apple AirHVAC Designers and Installers
Jason Mann PhotographyPhotographers
Amanda Aitken PhotographyPhotographers
Haydn & RollettCarpenters & Cabinetmakers
Intelligent DesignArchitectural Designers
Marina Mathews PhotographyPhotographers
Fitout SolutionsCommercial Interior Fitouts
eCubedEnvironmental Engineers
Air Mark HVAC SpecialistsHVAC Designers and Installers
DobsonsElectricians
Mark Scowen PhotographyPhotographers
The Holyoake CPSS range of Perforated Supply Security Diffusers has been designed to provide maximum security.
The CPSS is constructed of a heavy gauge perforated plate framed by a heavy section aluminium surround. The perforated diffusion plate is locked in place by solid heavy aluminium spacers welded to the surround.
The CPSS can be used as a ceiling or wall-mounted diffuser or as a return if required.
The small perforation size and heavy gauge material make it ideal for use in locations where security and safety is a requirement.
- Specs
Perforated Security Air Diffusers shall be Holyoake Model CPSS. Perforated Security Air Diffusers shall be specifically designed for high security applications. Perforated Security Air Diffusers shall be constructed with 4mm x 40mm extruded aluminium frame with perforated steel core locked in place by the welded aluminium surround. Perforated Security Grilles shall incorporate into the assembly 40mm x 6mm supports at not greater than 300mm centres. Diffusers shall be finished in powder coat and fitted with accessories and dampers where indicated as manufactured by Holyoake.
Downloads
Downloads (2)2 Direct downloads • 6 Available on request
Frequently asked questions about
CPSS Perforated Security Grille
The CPSS Perforated Security Grille is supplied by Holyoake Air Management Solutions. It is also on their website, and you can browse every product Holyoake Air Management Solutions lists on ArchiPro.
Holyoake Air Management Solutions does not publish a price for the CPSS Perforated Security Grille on ArchiPro. for pricing, or visit their website.
It is listed under Ventilation Grills on ArchiPro, where you can compare it with ventilation grills from other suppliers.
Yes. It is part of the Registers & Grilles range from Holyoake Air Management Solutions, where you can see every product in the range together.
from this page, see their contact details on ArchiPro, or visit their website. The Holyoake Air Management Solutions profile on ArchiPro has the rest of their products.
