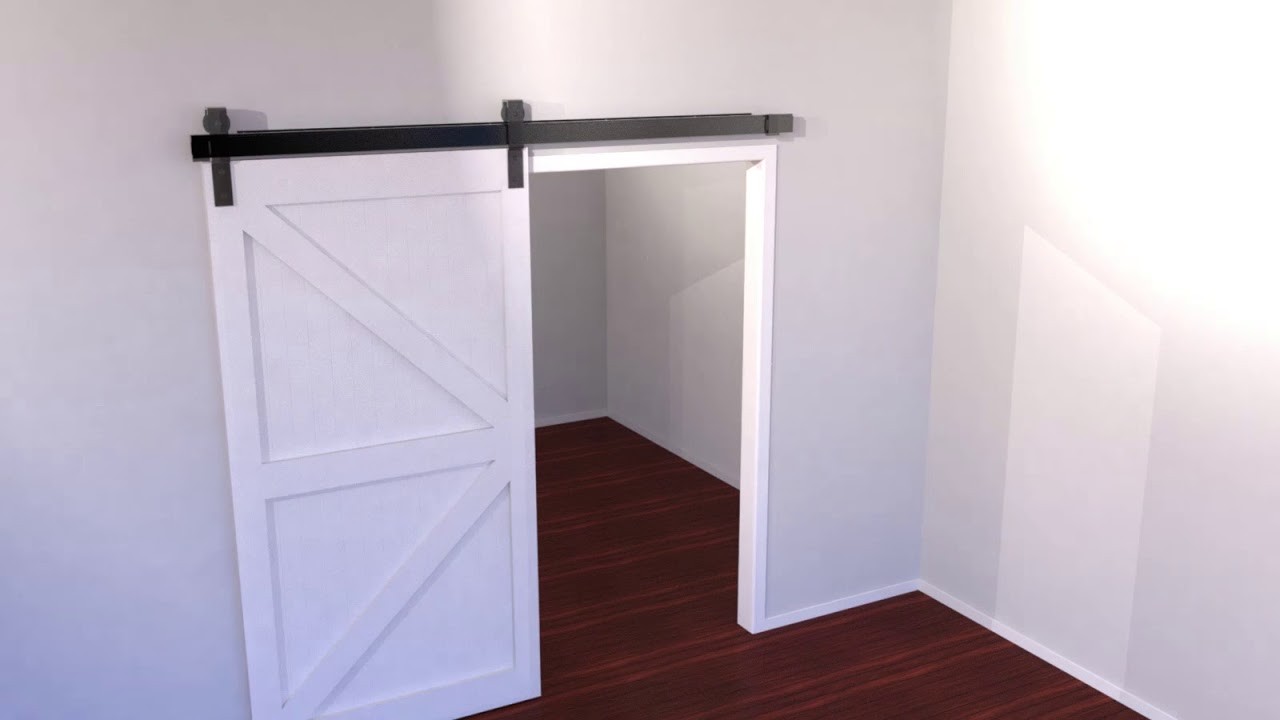

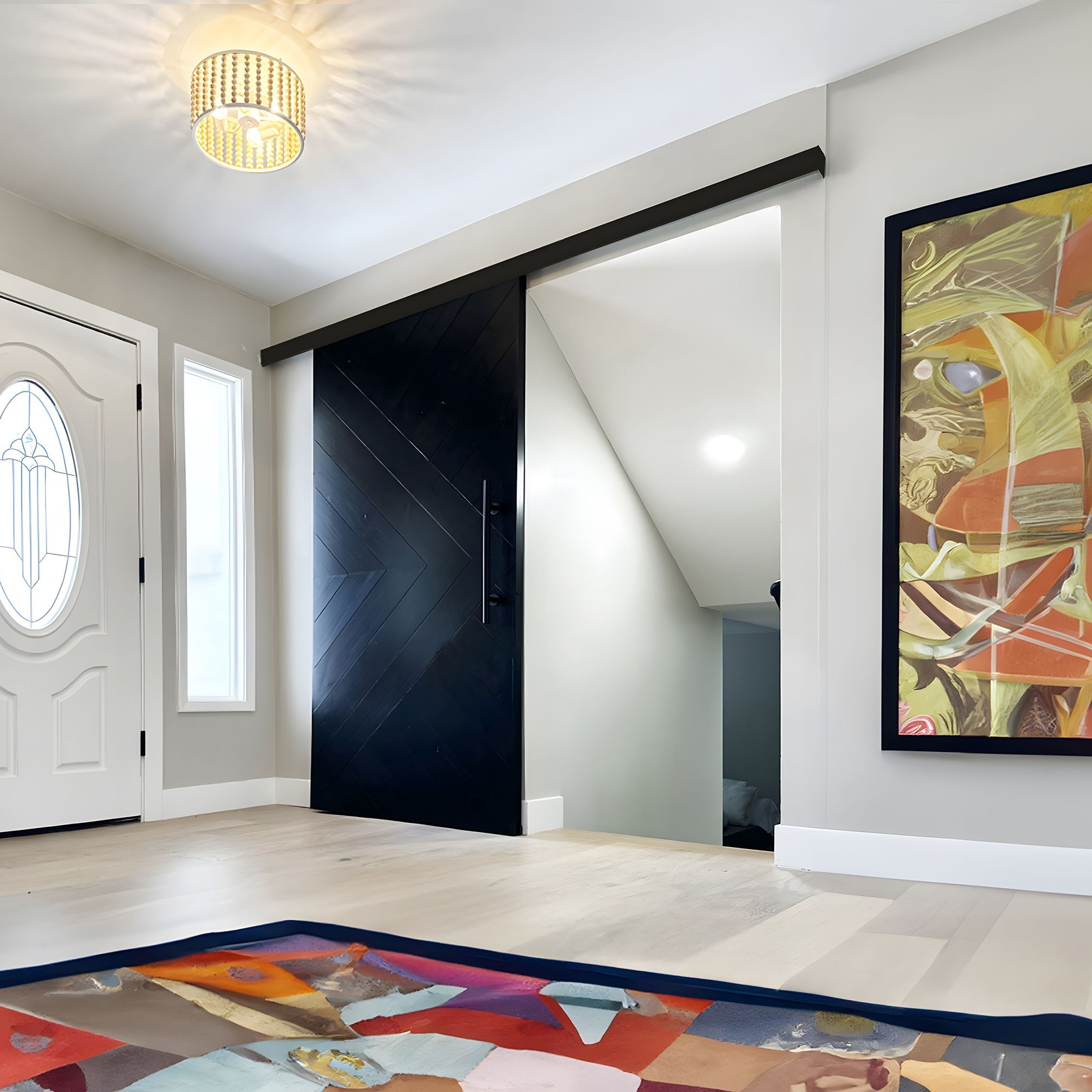

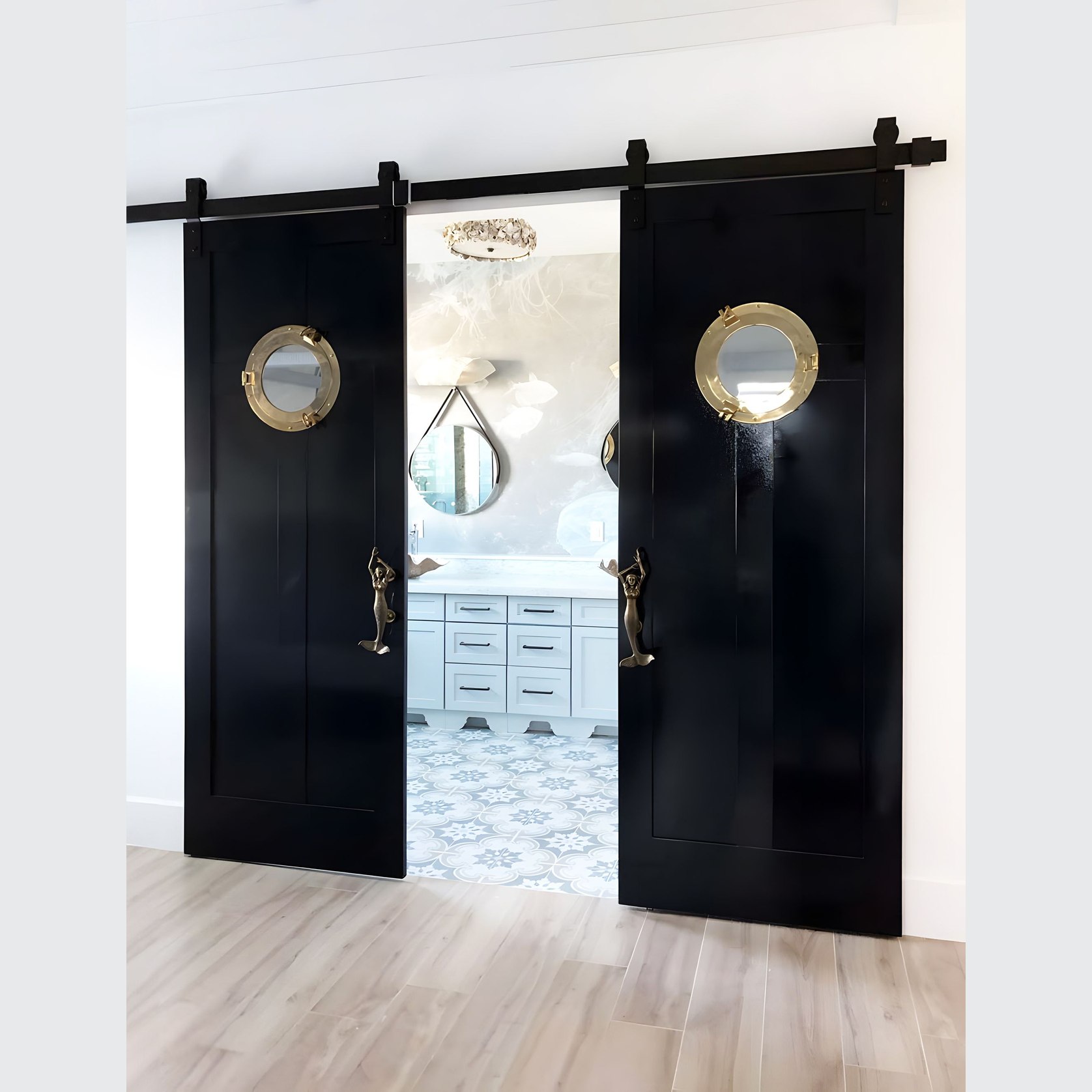

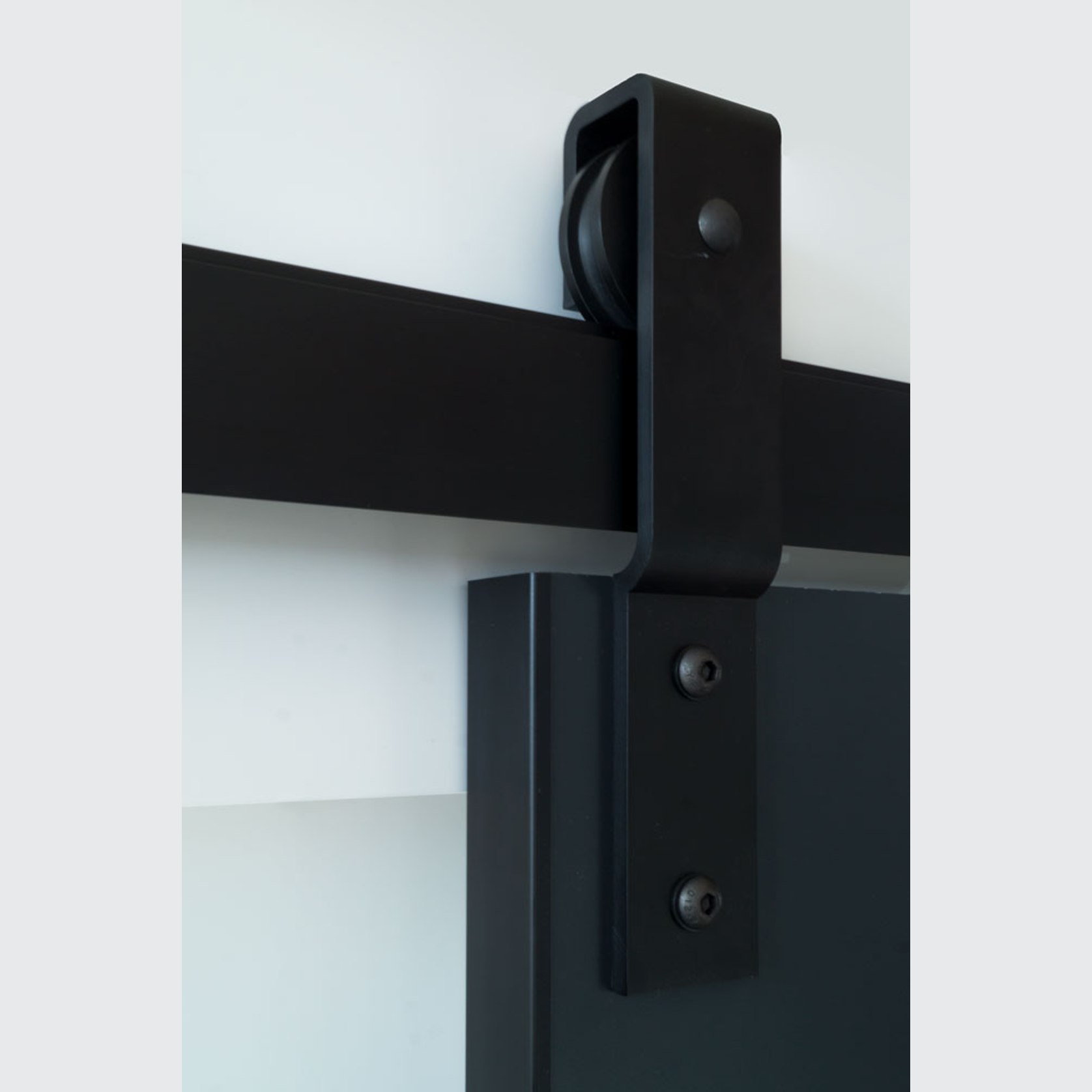

CS Barn Door Track Sliding Door System is a traditionally styled system suitable for internal applications where there is enough strength in the wall to side mount a track above an opening. The track is pre-finished black anodised and supplied with fixing bracket, stops, door hangers and T-Guide. This system has been engineered for quick, easy installation and smooth running for heavy doors.

Available with SofStop® Soft Close.

Details
General
  • Country of origin
    New Zealand
Specifications
  • Track bracket is adjustable in or out from the wall
  • Wide or narrow track bracket available to suit varying door/architrave/gap thicknesses
  • High-quality, heavy-duty extruded aluminium track
  • Pre-machined wall fixing holes. Additional holes can be drilled on site if required
  • Supplied in pre-cut lengths from 6ft to 19ft (1.8m to 5.8m)
  • Maximum weight (per door): 180kg. Doors over 180kg require extra hangers or a customised solution
  • Maximum weight (per track): 300kg
  • SofStop® kit available for doors up to 100kg (minimum recommended door width 810mm)
