OvertakingDoors Cavity Slider

CS Cavity Sliders

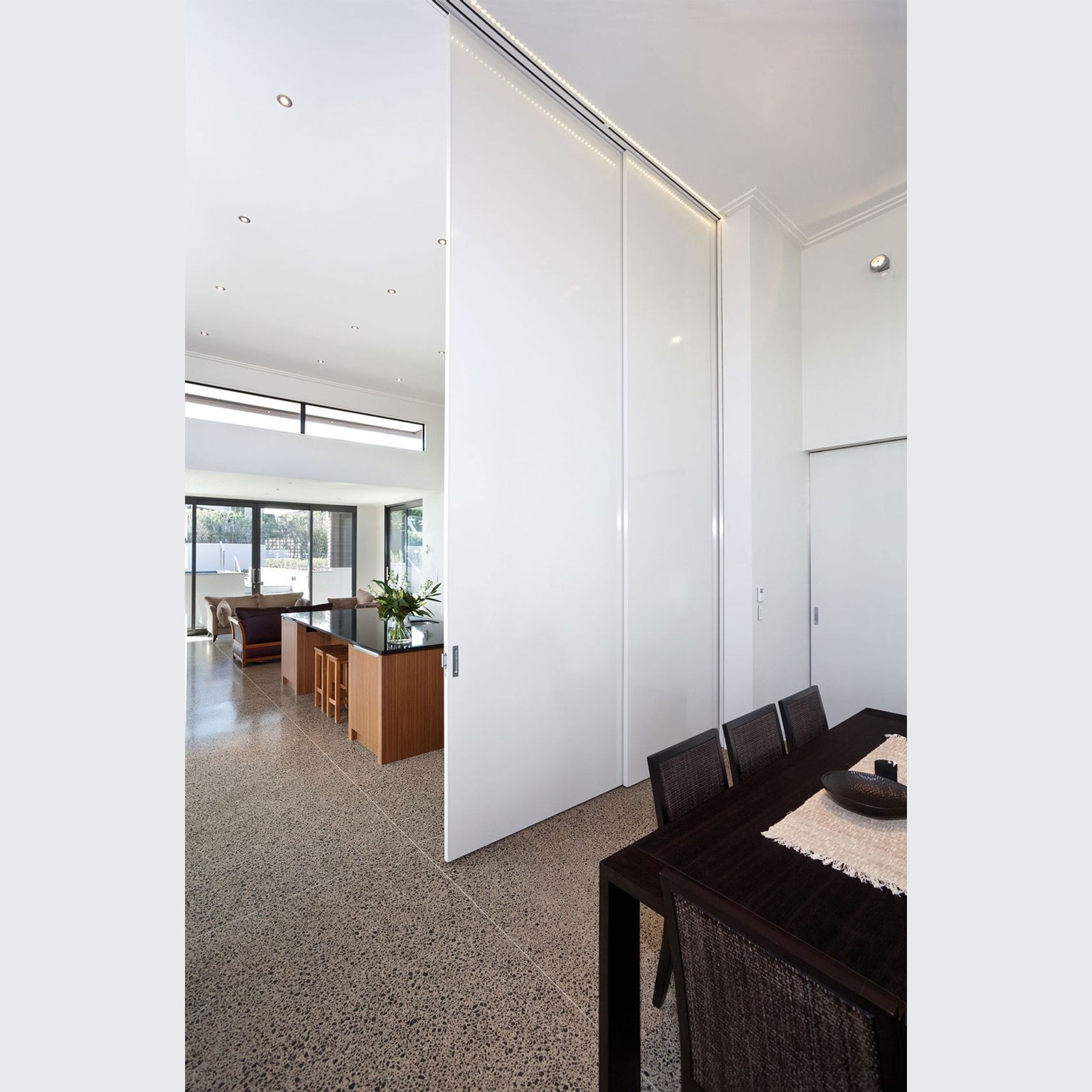

CS OvertakingDoors Cavity Sliders have an extra-thick cavity pocket, enabling a series of doors (up to five) to stack side-by-side inside the cavity pocket. These units make great room dividers, and because the width of the pocket can be minimised, the potential size of the door opening can be maximised.

Ideal spaces that benefit from this type of room divider are boardrooms, classrooms, living areas etc.

Details
General
  • Country of origin
    New Zealand
Specifications
  • Patented cavity frame is fully tested and guaranteed. It is engineered from high quality heavy duty extruded aluminium
  • Door and carriages can be removed without removing wall linings
  • Available as Single or Bi-Parting (double) units with up to 5 doors per pocket
  • Doors cannot jump off the track
  • 140mm framing required (2 doors). Wider framing (50mm per extra door) is required for units with more than 2 doors
  • Supplied fully assembled for on-site installation
  • No visible floor guides
  • Max. size: Custom sizes up to 3000h x 3500w per door
  • Max. Weight: 240kg per door
  • Wall Linings: 10 or 13mm
  • Door Thickness: 38mm
  • Available with SofStop® Soft Close
