Mecca, Sylvia Park.

Haynes Glass teamed up with Dimension Shopfitters to produce one of, if not, the standout store of the Sylvia Park Galleria.

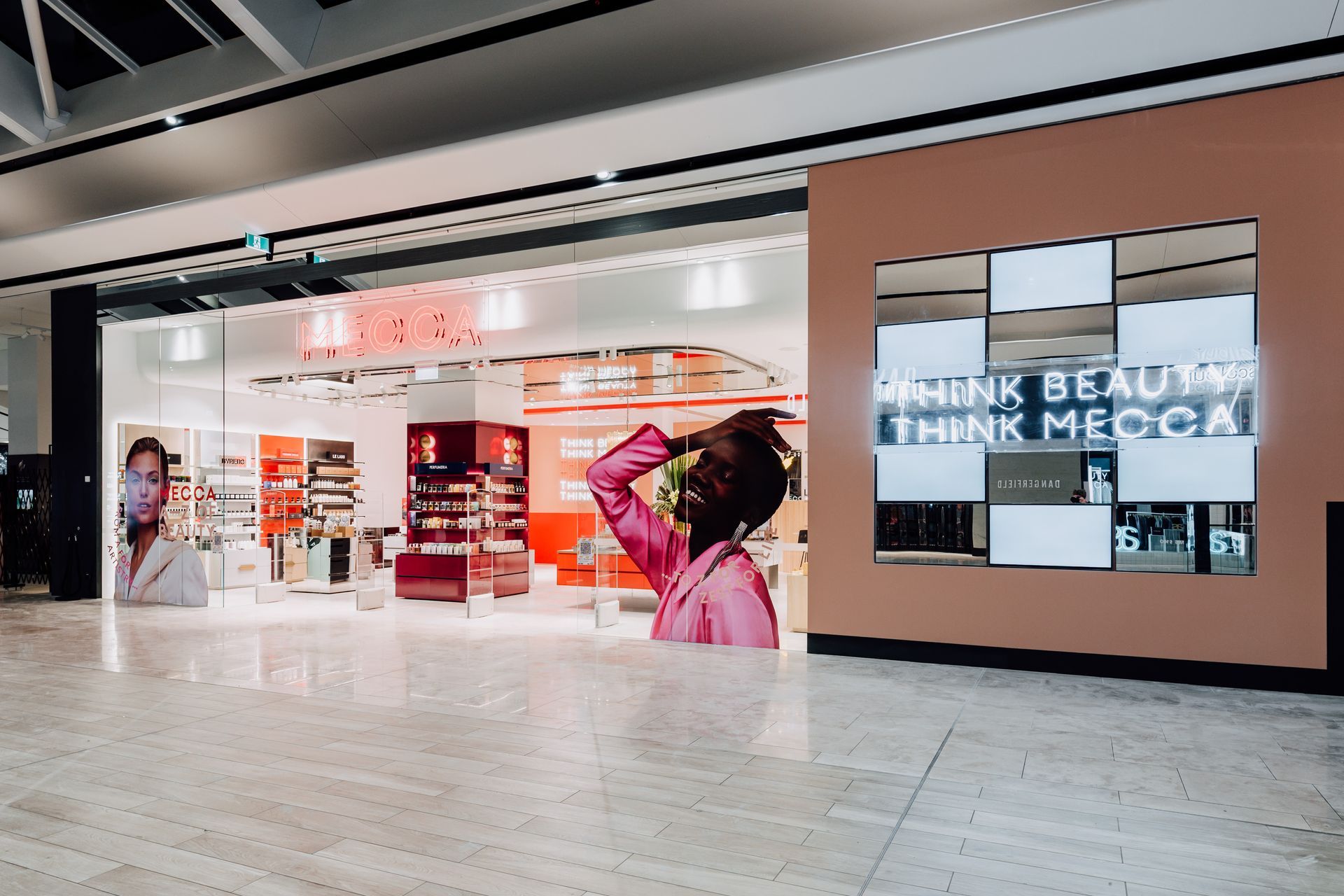

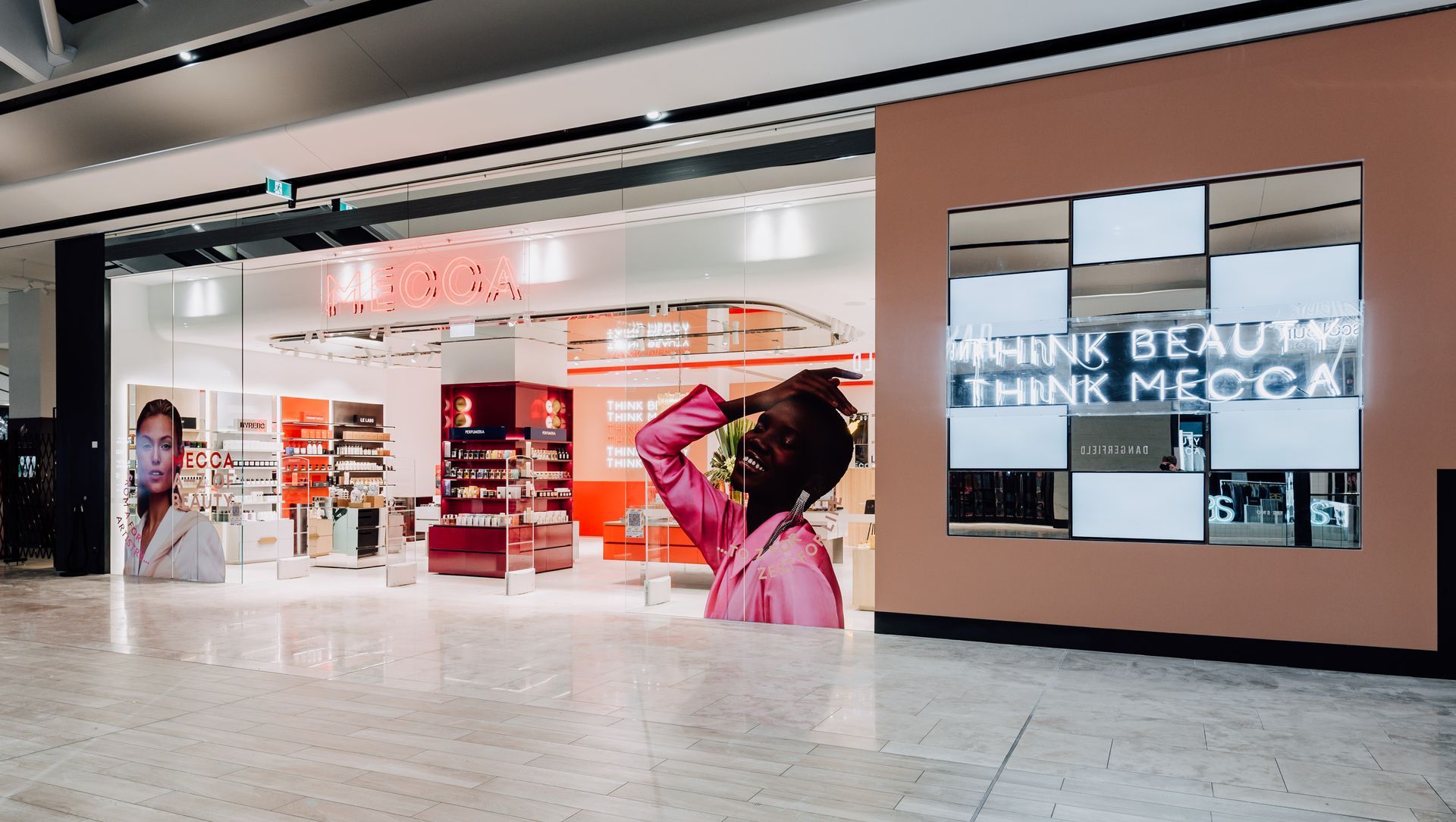

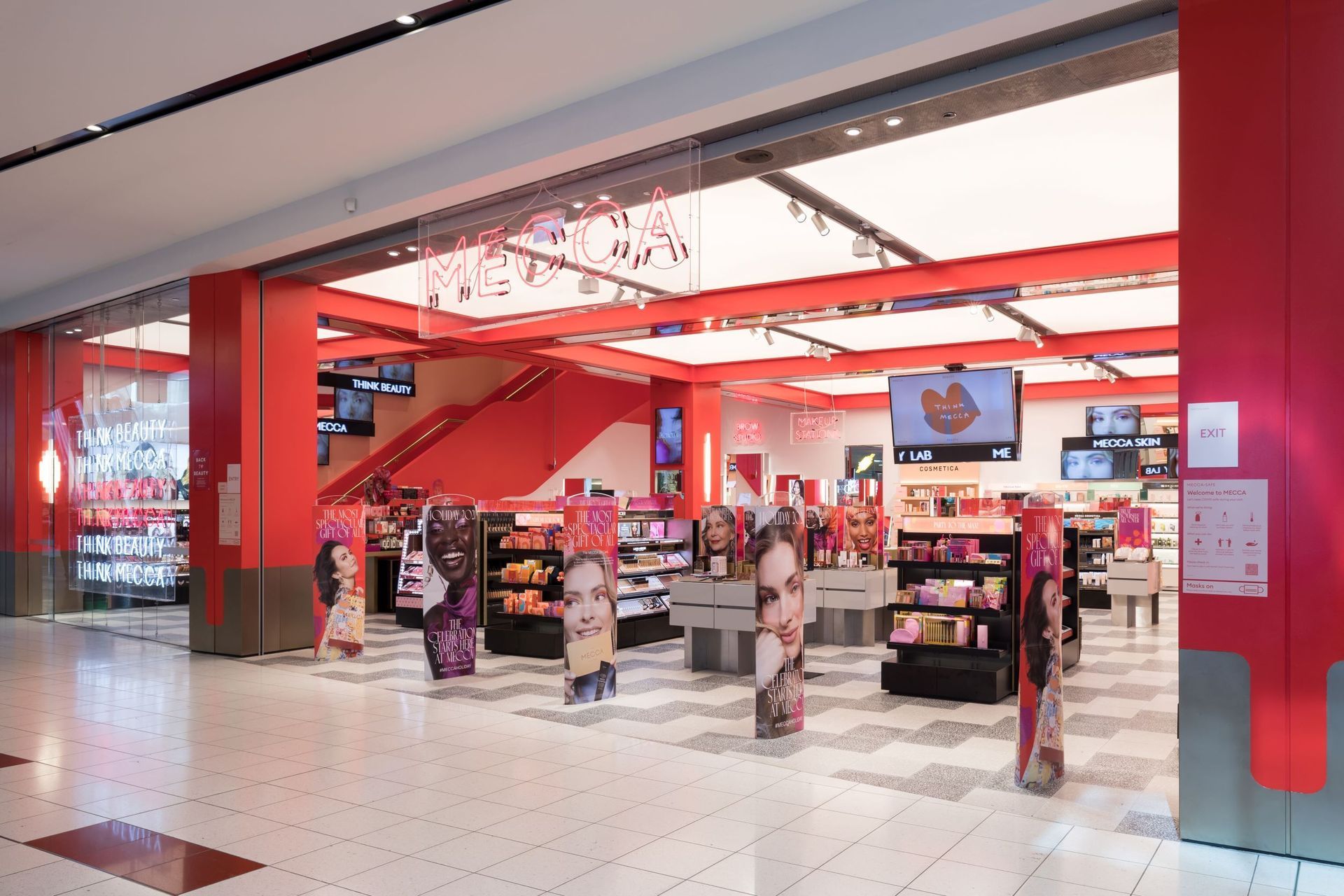

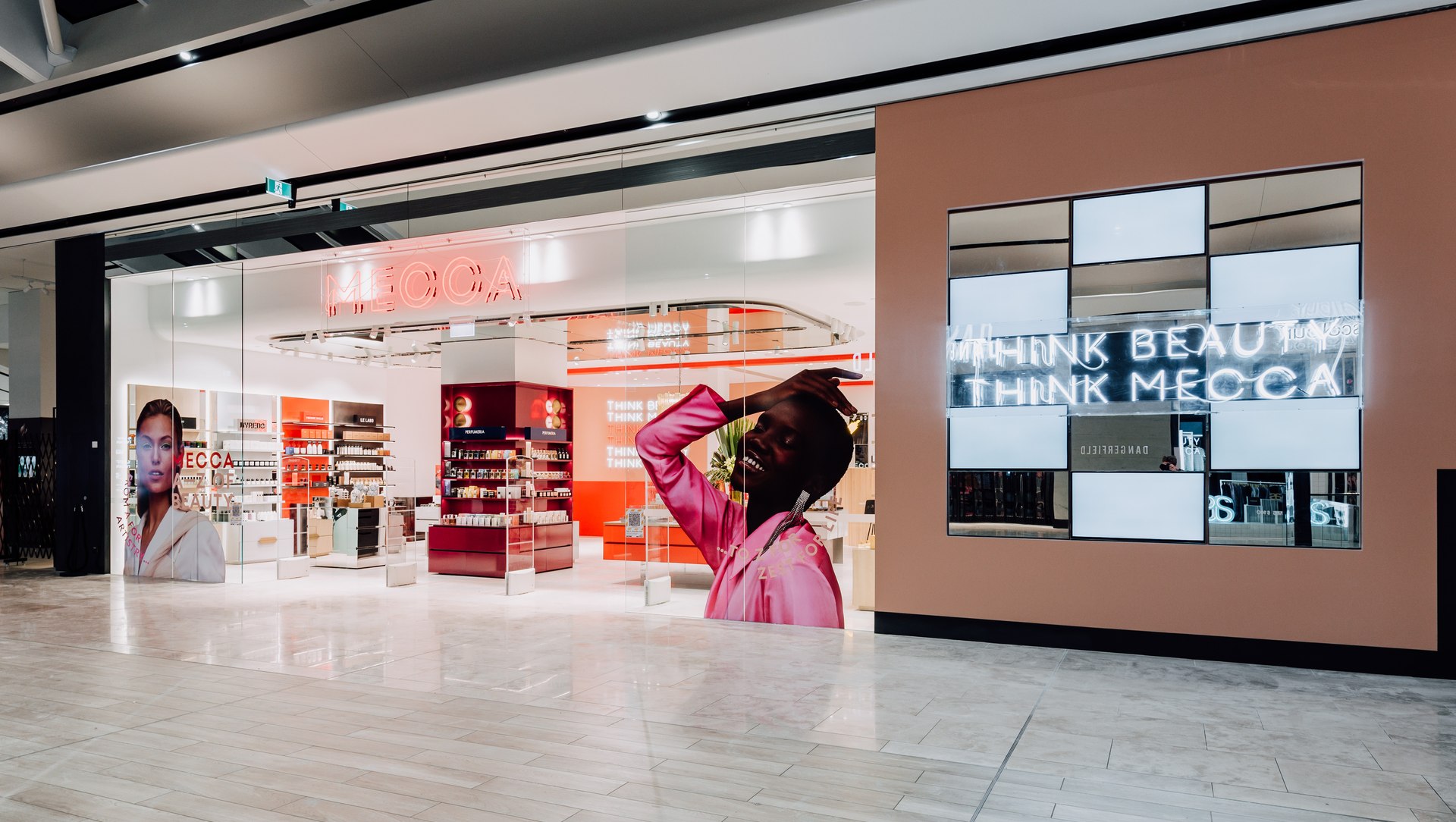

This Hi spec retail fitout is situated over 2 levels of the Sylvia Park shopping centre. To meet NZS 4223:3:2016 Glazing Standards, the shopfront consists of 4000mm high 15mm Toughened Glass Frameless shopfront glazing into recessed channel, with a 19mm Toughened Frameless Biparting Assa Abloy SL500 Automatic Sliding Door, totalling 60m2 of glass.

The installation process included the use of a spider crane along with a superb effort and skill from the experience Haynes Glass team. The clean seamless design really wows every Sylvia Park shopper in the area.

The 2nd floor boasts a huge 32m2 mirrored ceiling made up of 10mm heat soaked frameless toughened glass, silvered and mechanically fixed to the ceiling structure to create a dramatic effect. These were made up of a curved detailed design and really brings the entire level alive. Specific designs were used in creating this standout central feature of the entire Mecca store. Throughout the 2 levels included over 40m2 of frameless mirrors to create effects with hidden doors, tv displays and wall surrounds. The precision in measurements and installation is really showcased here. Also the inclusion of 2x 12mm Low Iron Glass UV glued cabinet display reaching 1500mm high x 1500mm wide really caps off a stunning project with a large focus on glass design.
