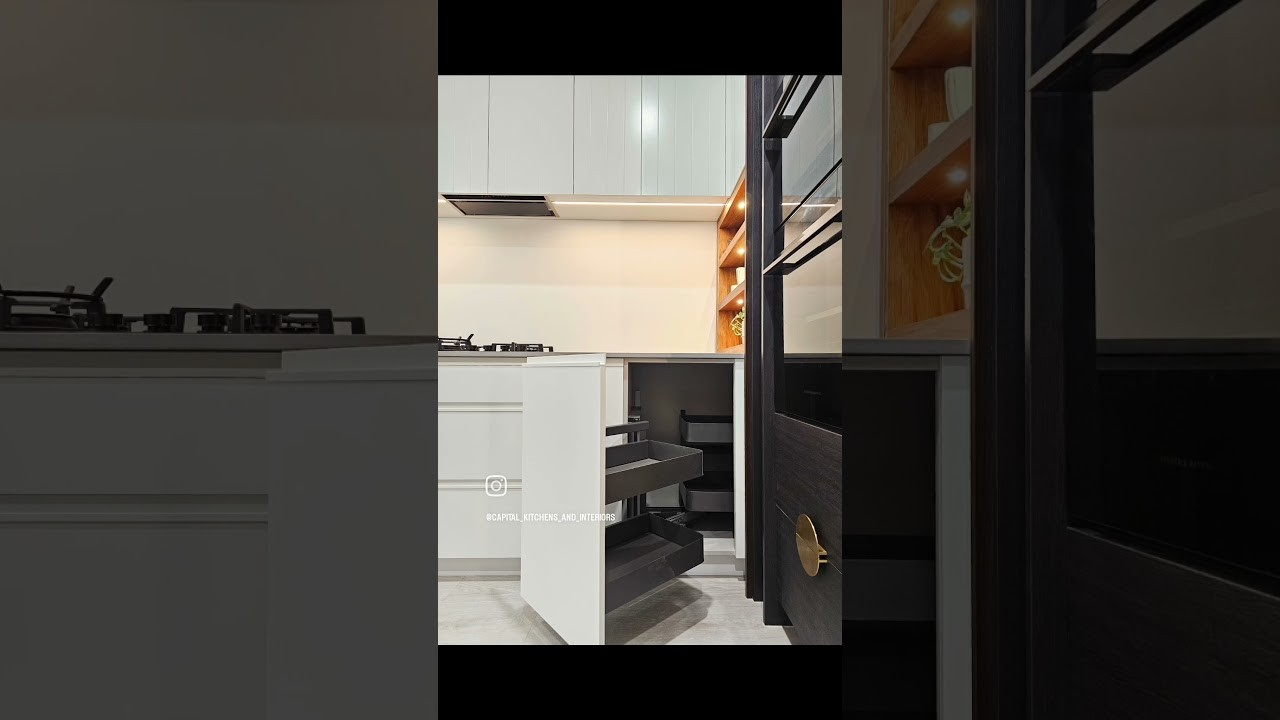

VS COR Fold Pull Out for Blind Corner Cabinets

Vauth-Sagel's PLANERO style brings together aesthetically pleasing design features, such as a contemporary lava grey colourway and minimally visible mechanisms, with the robust practicality of powder coated steel baskets for longevity.

Specs

VS TAL Larder in Planero - pull out pantry unit for optimal storage and simple installation.

• For cabinet widths of 300mm and 400mm
• 4 variable frame heights - 1200-1450mm, 1450-1700mm, 1700-1950mm, 1950-2140mm
• 3D front adjustment for a perfect fit
• Full extension pull out with soft close
• 16kg load capacity per basket, with a total sliding load capacity of 80kg (120kg including your cabinet front)

VS SUB Side in Planero - side mounted underbench pull out

• For cabinet widths of 200mm and 300mm
• Height variable installation
• Mount on left or right side
• Full extension pull out with soft close and damping for easy, quiet operation
• 20kg load capacity

VS SUB Slim in Planero - pull out for cabinets just 150mm wide

• Two fixed shelves
• 12kg load capacity
• With damping for quiet opening and closing
• Mounts on right - access from both sides

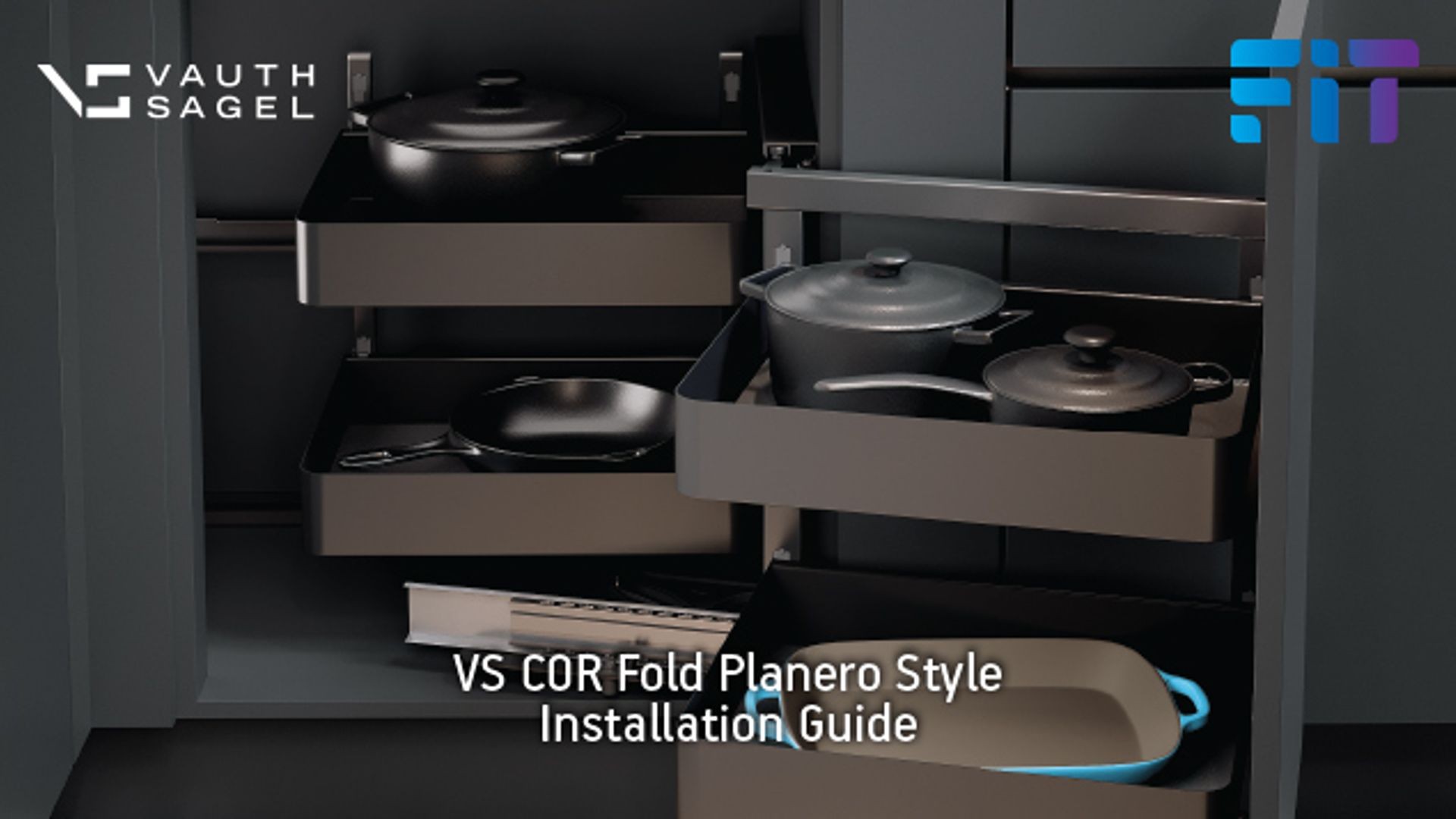

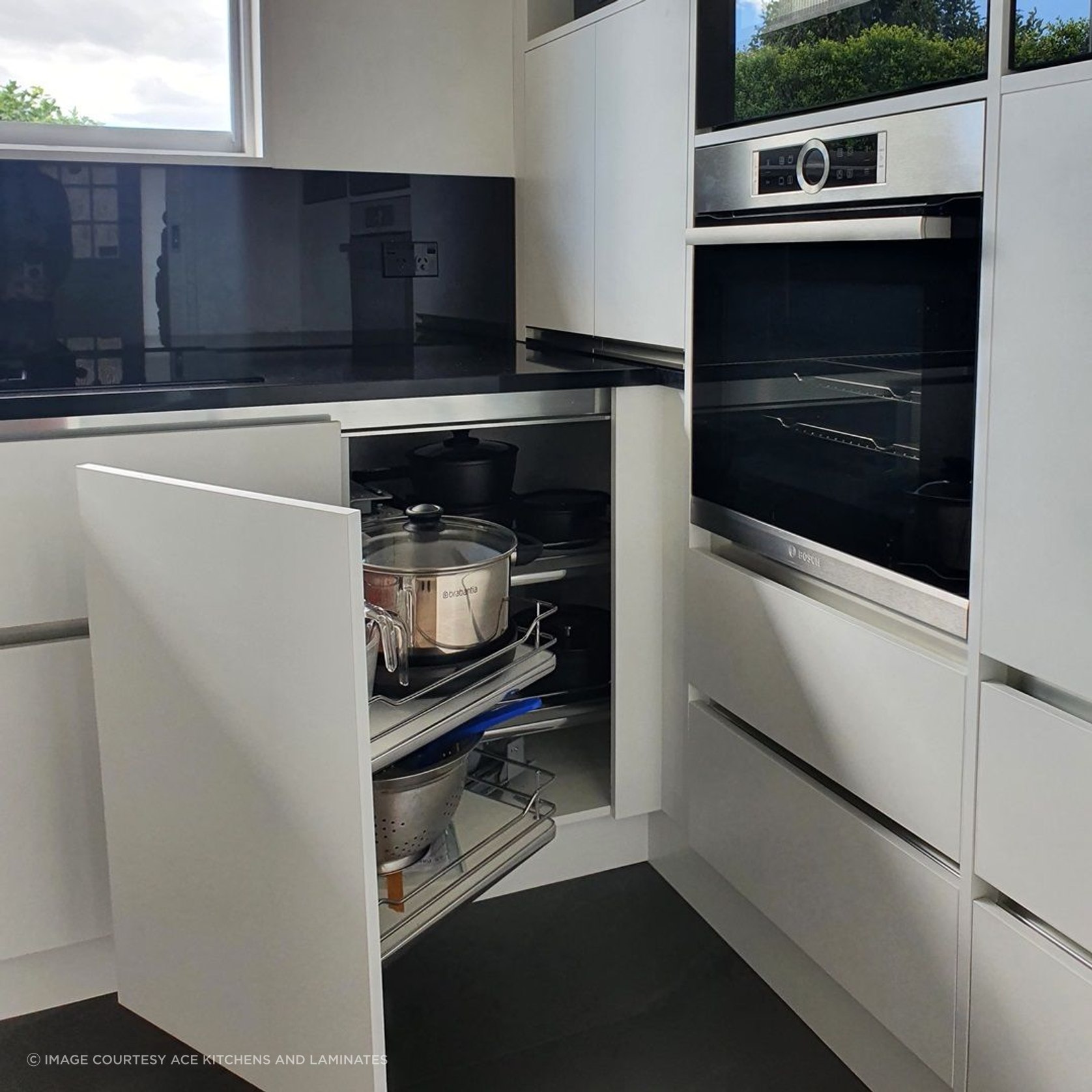

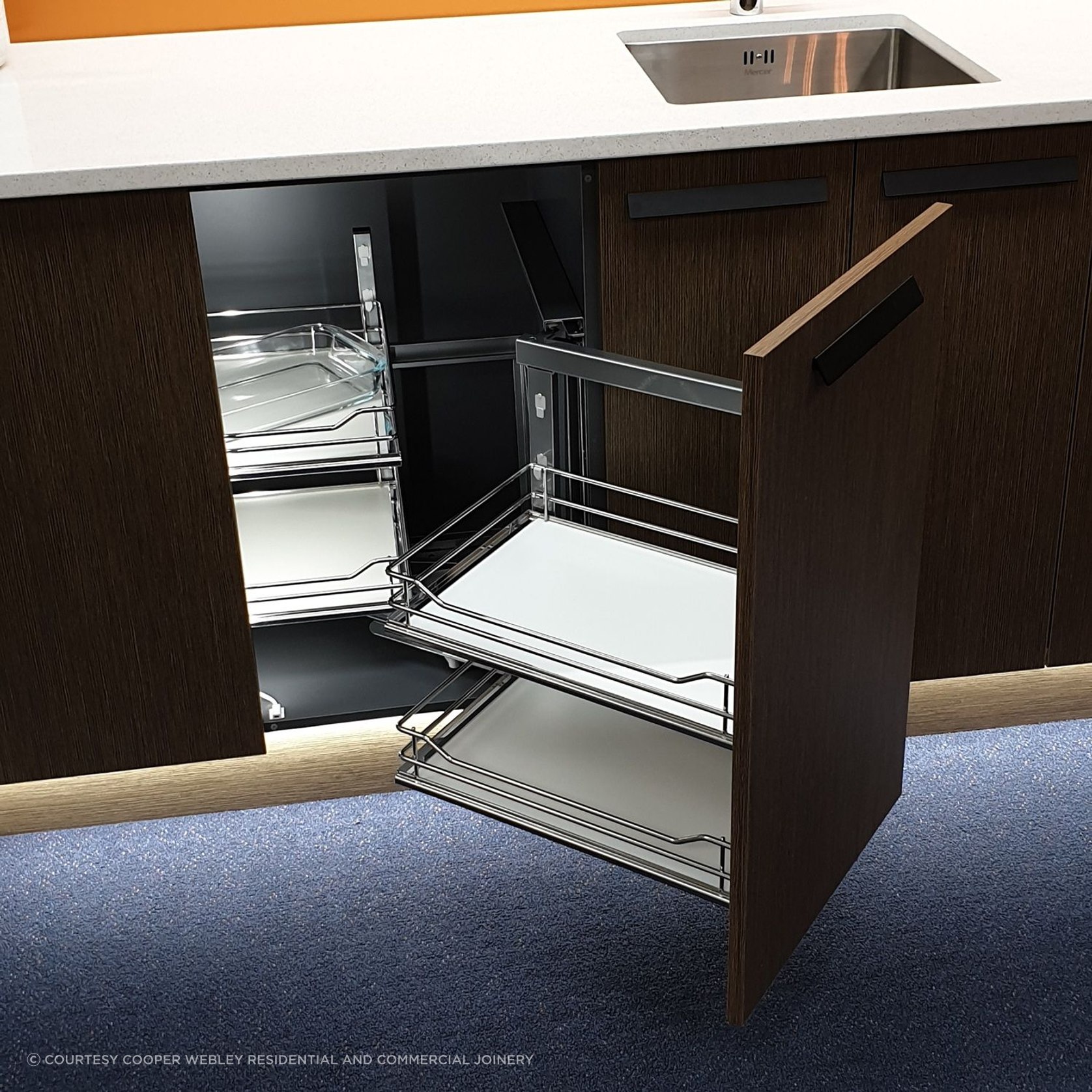

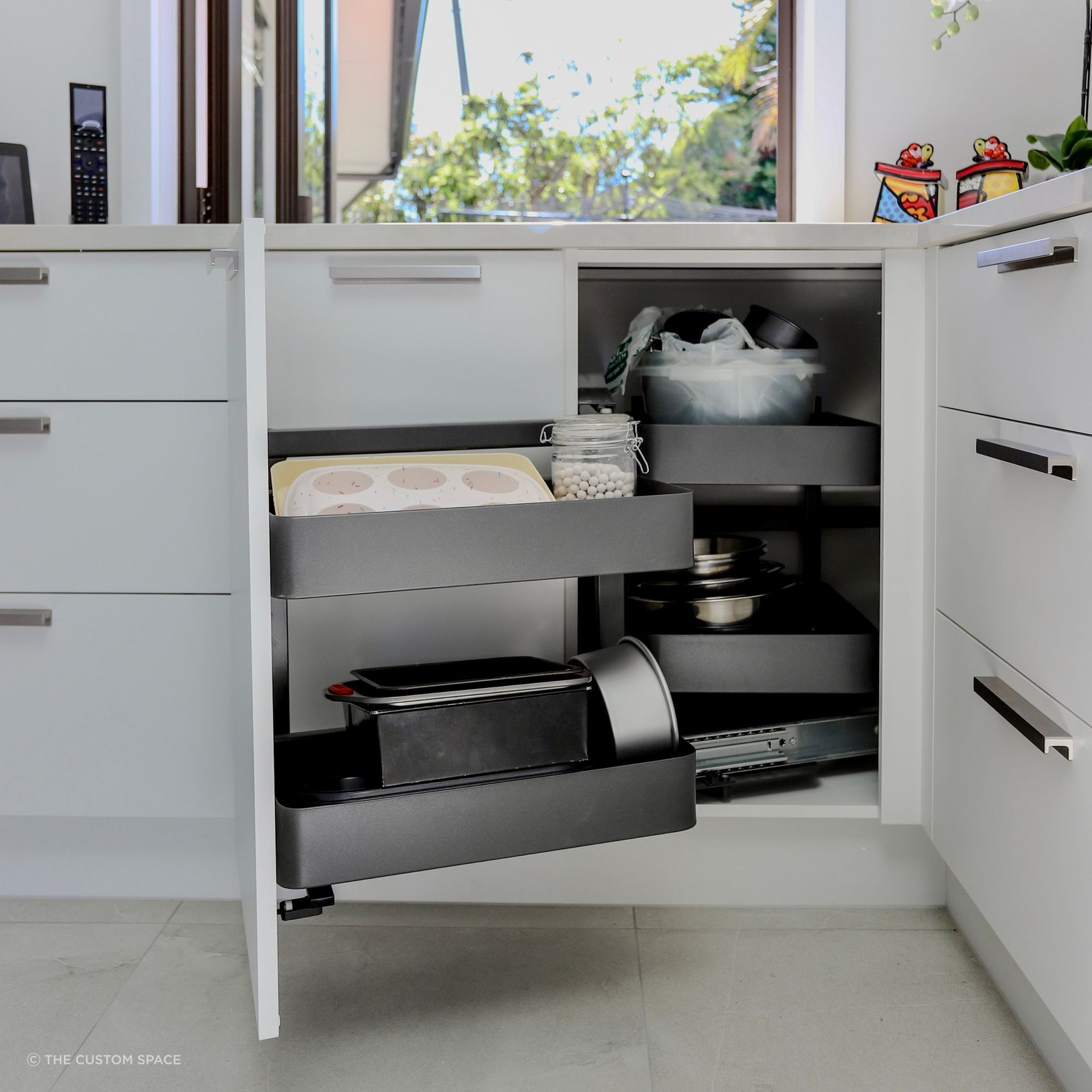

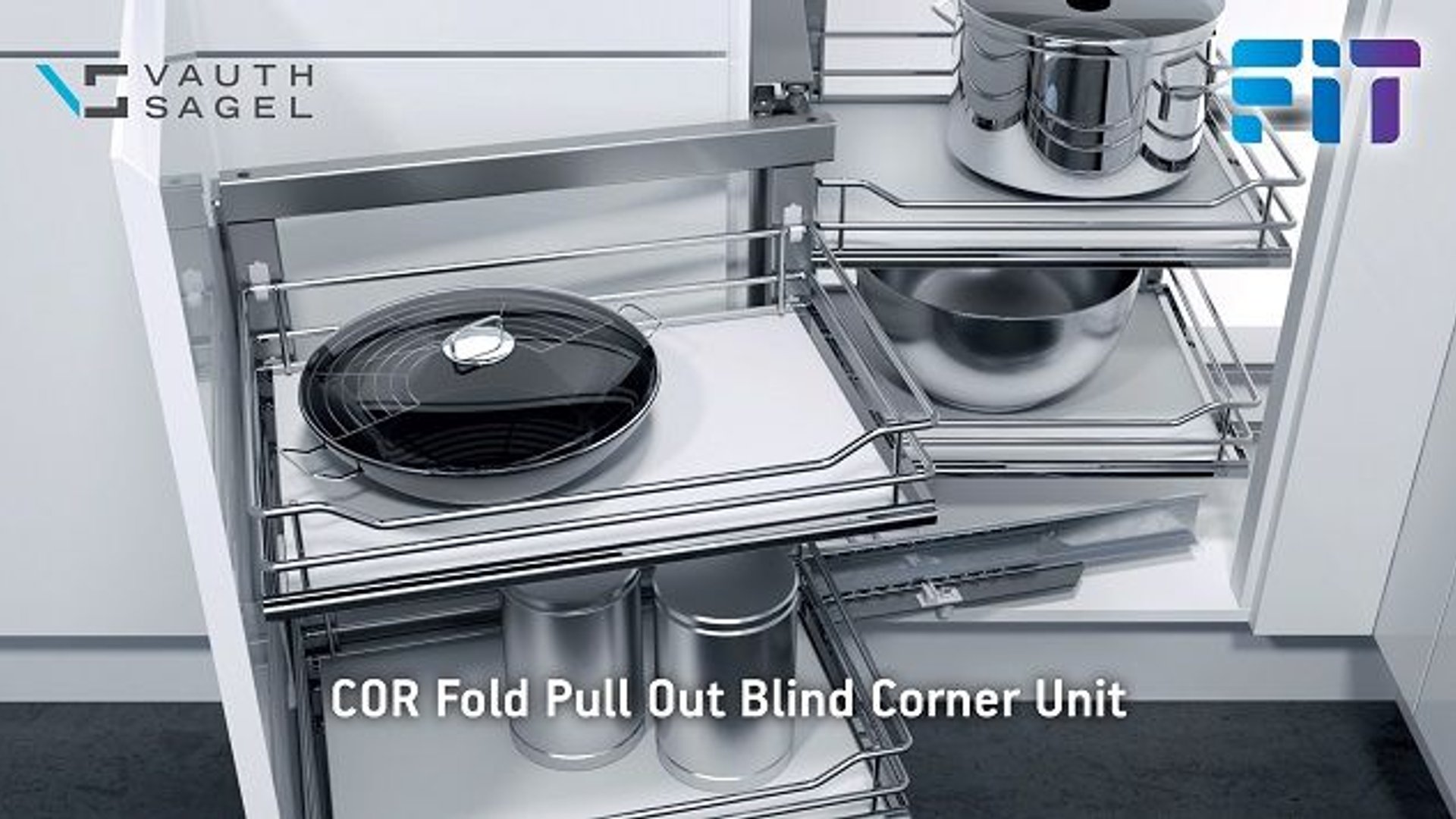

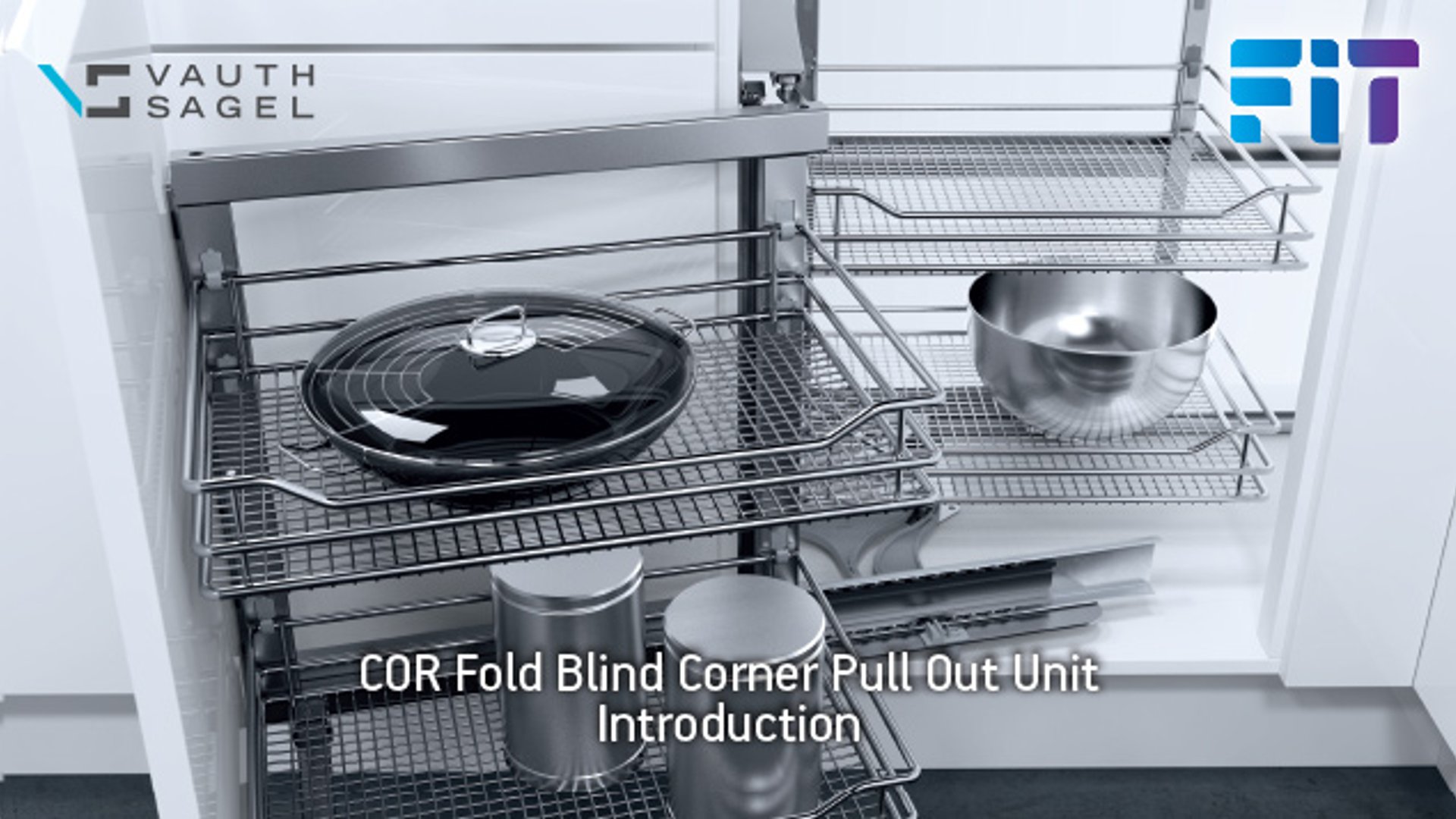

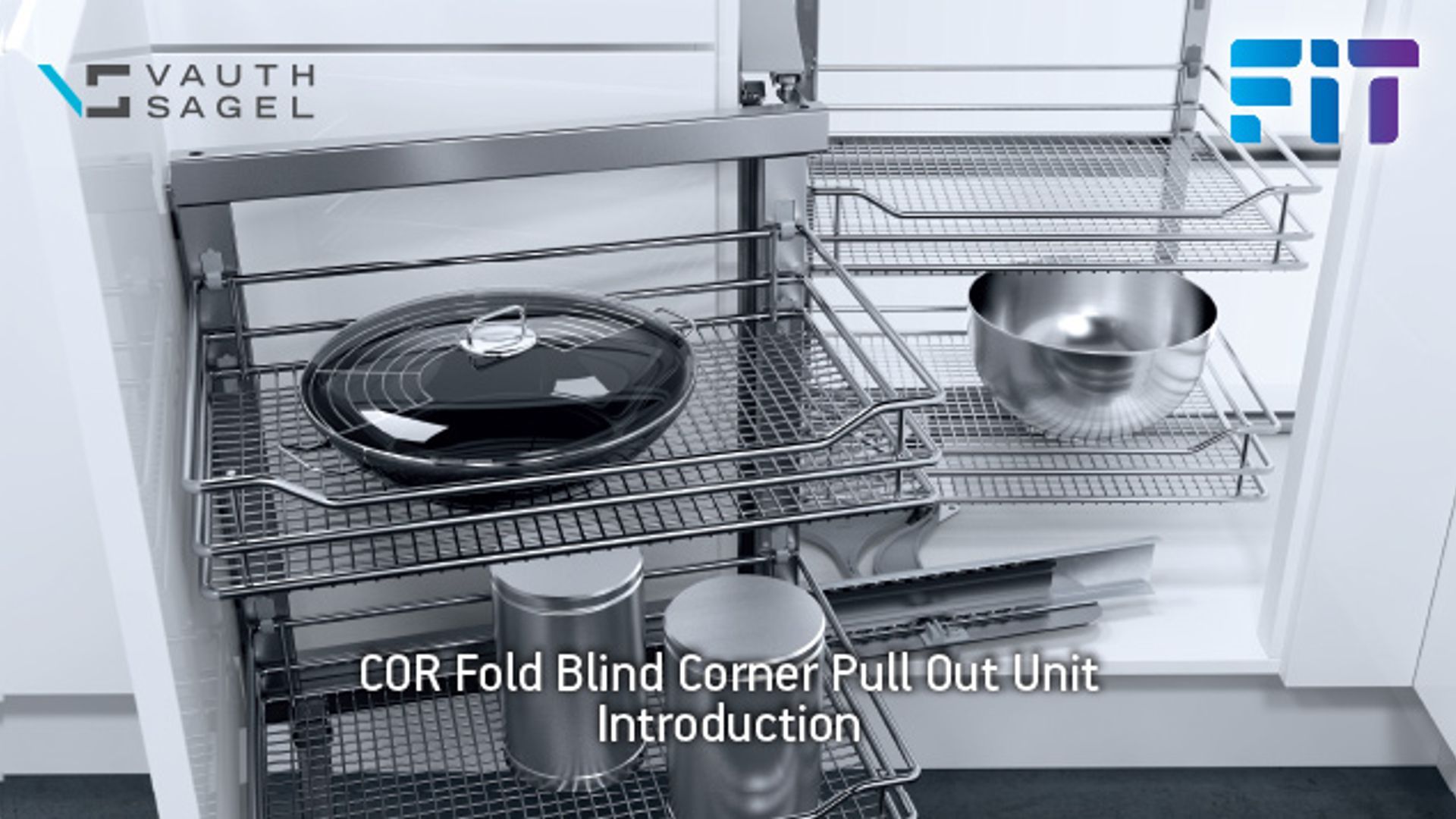

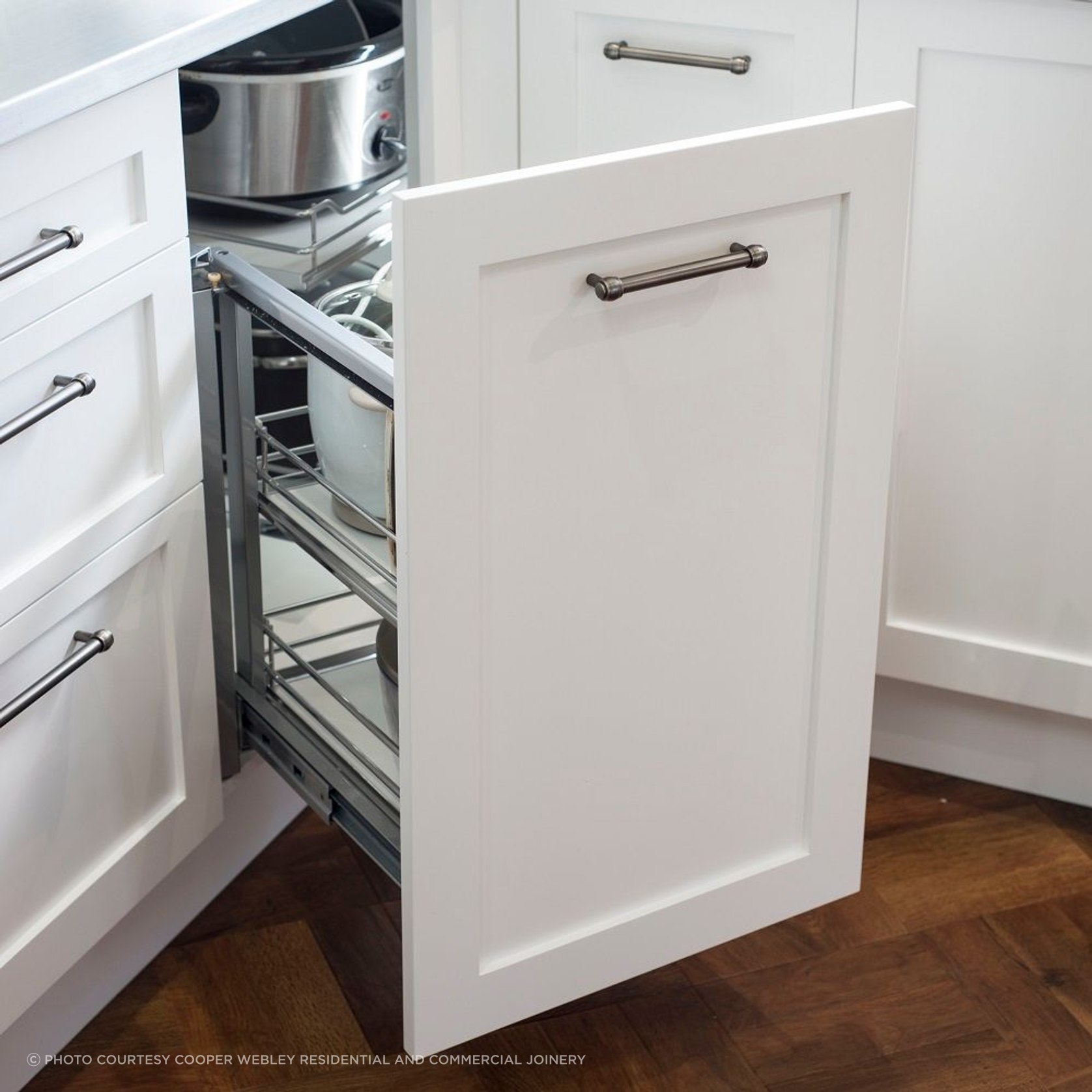

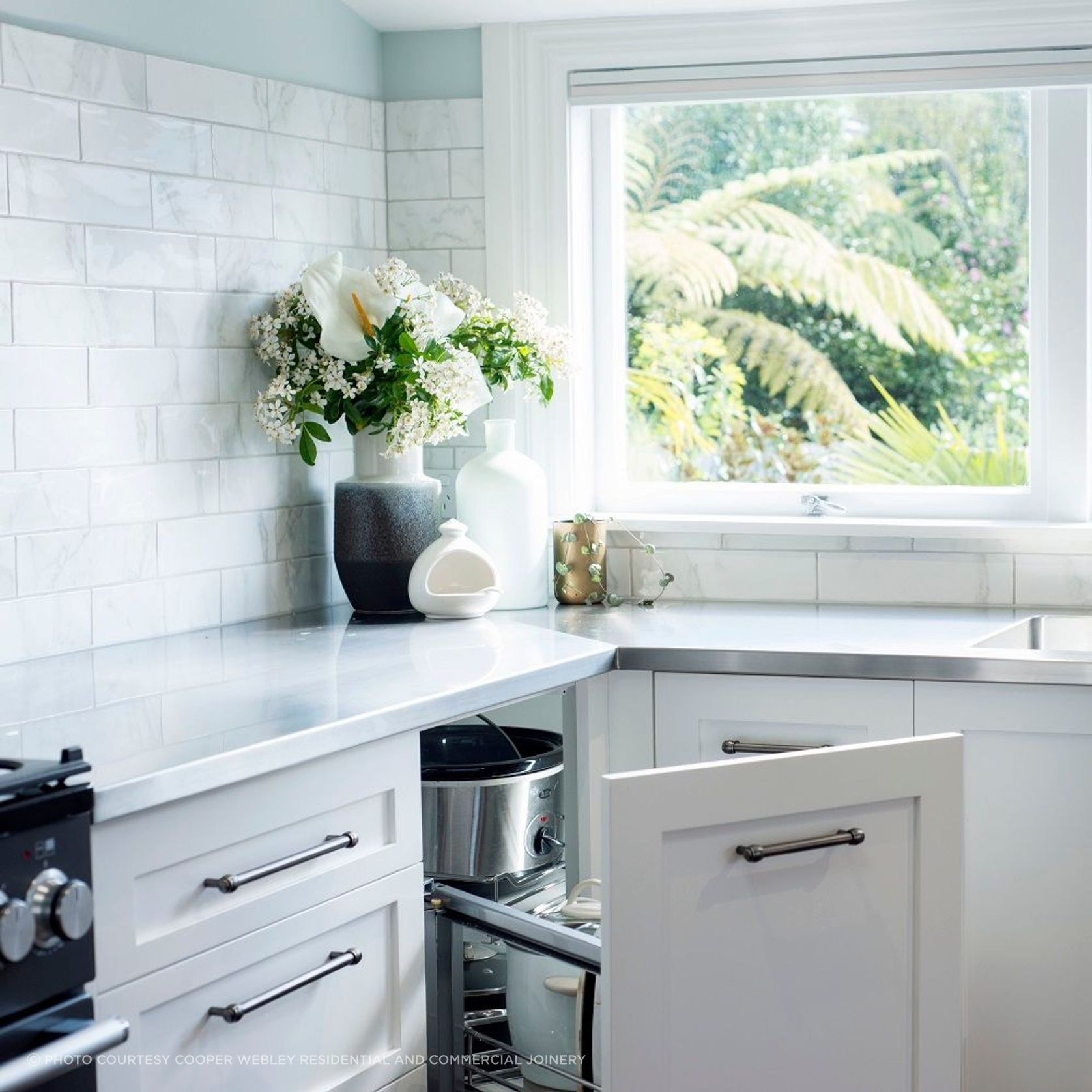

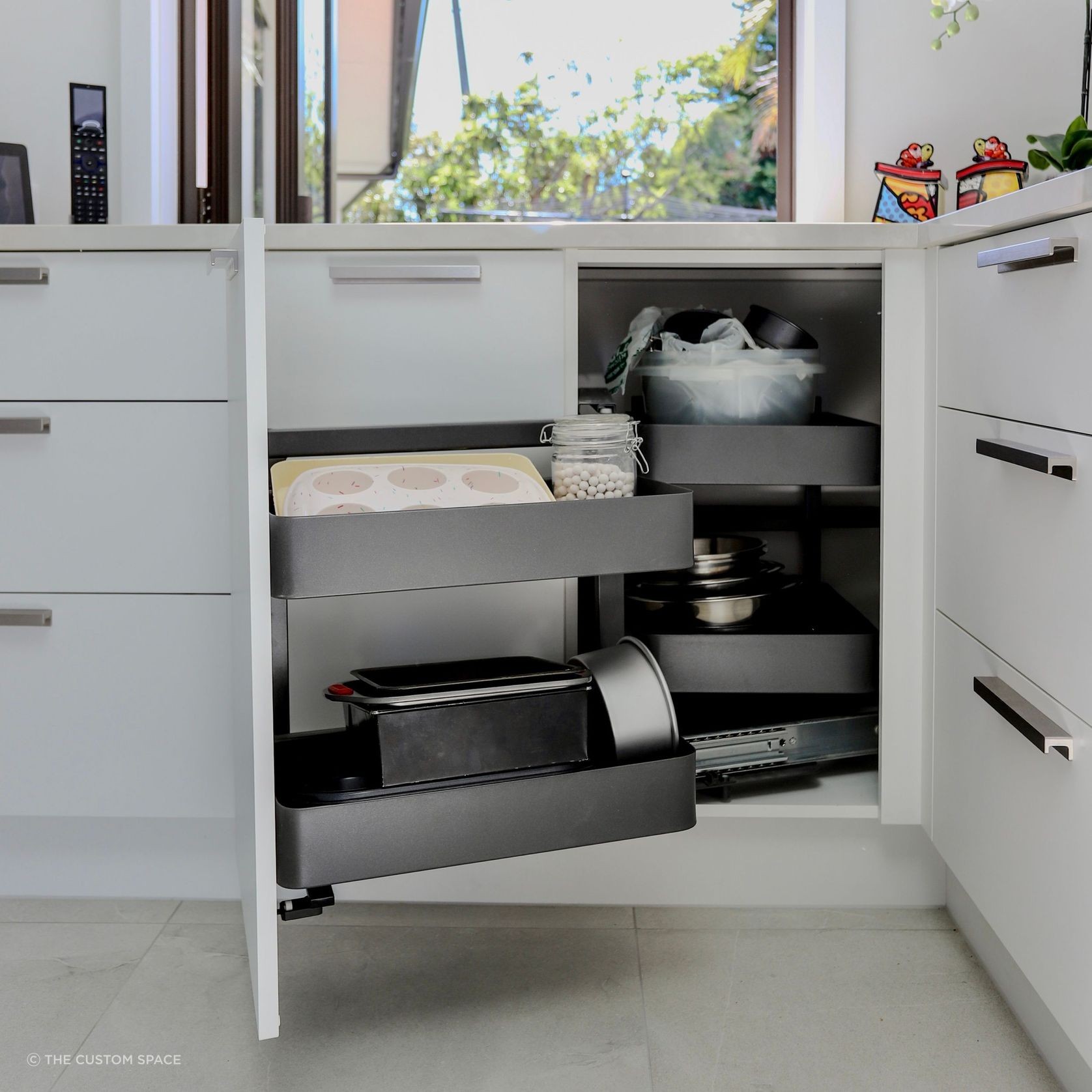

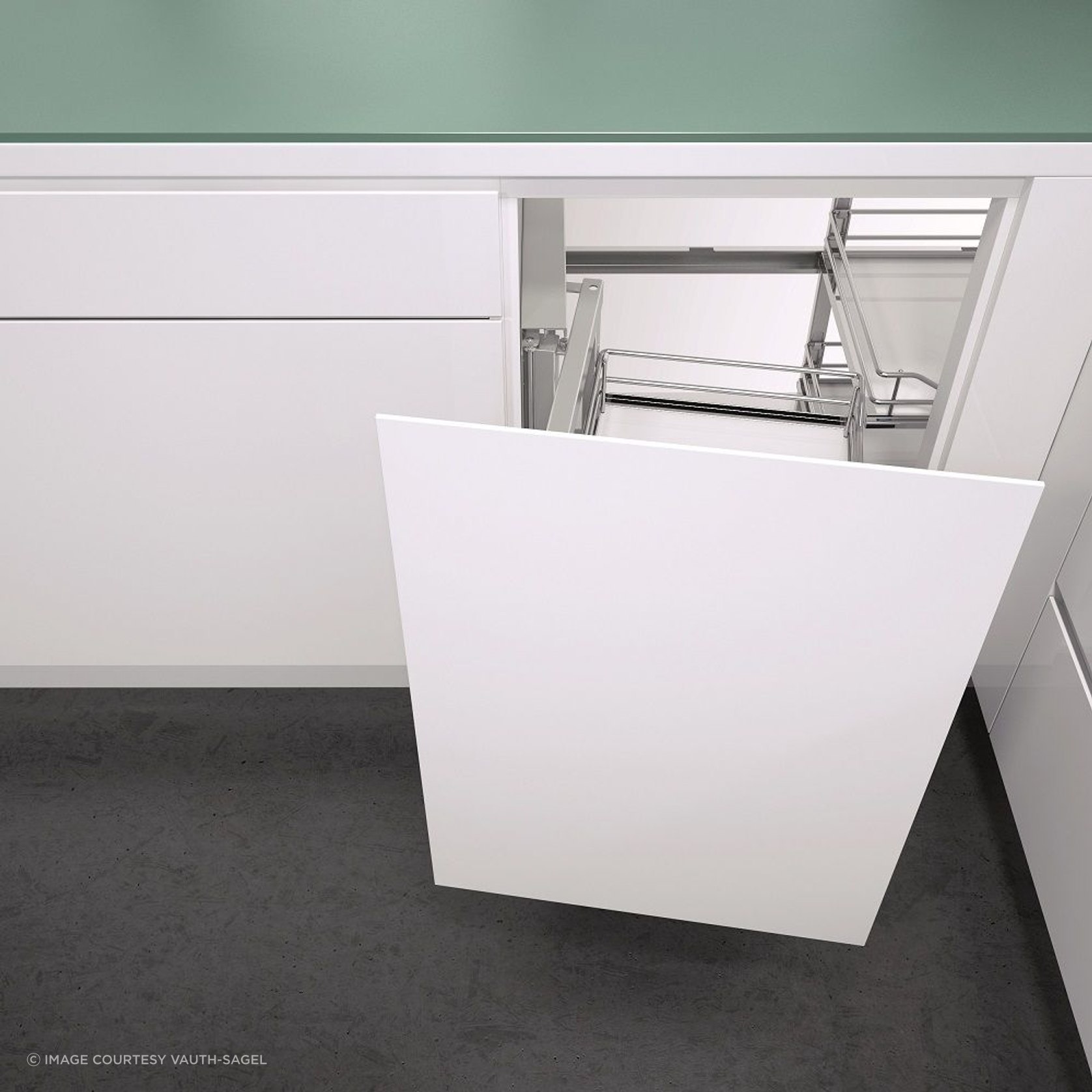

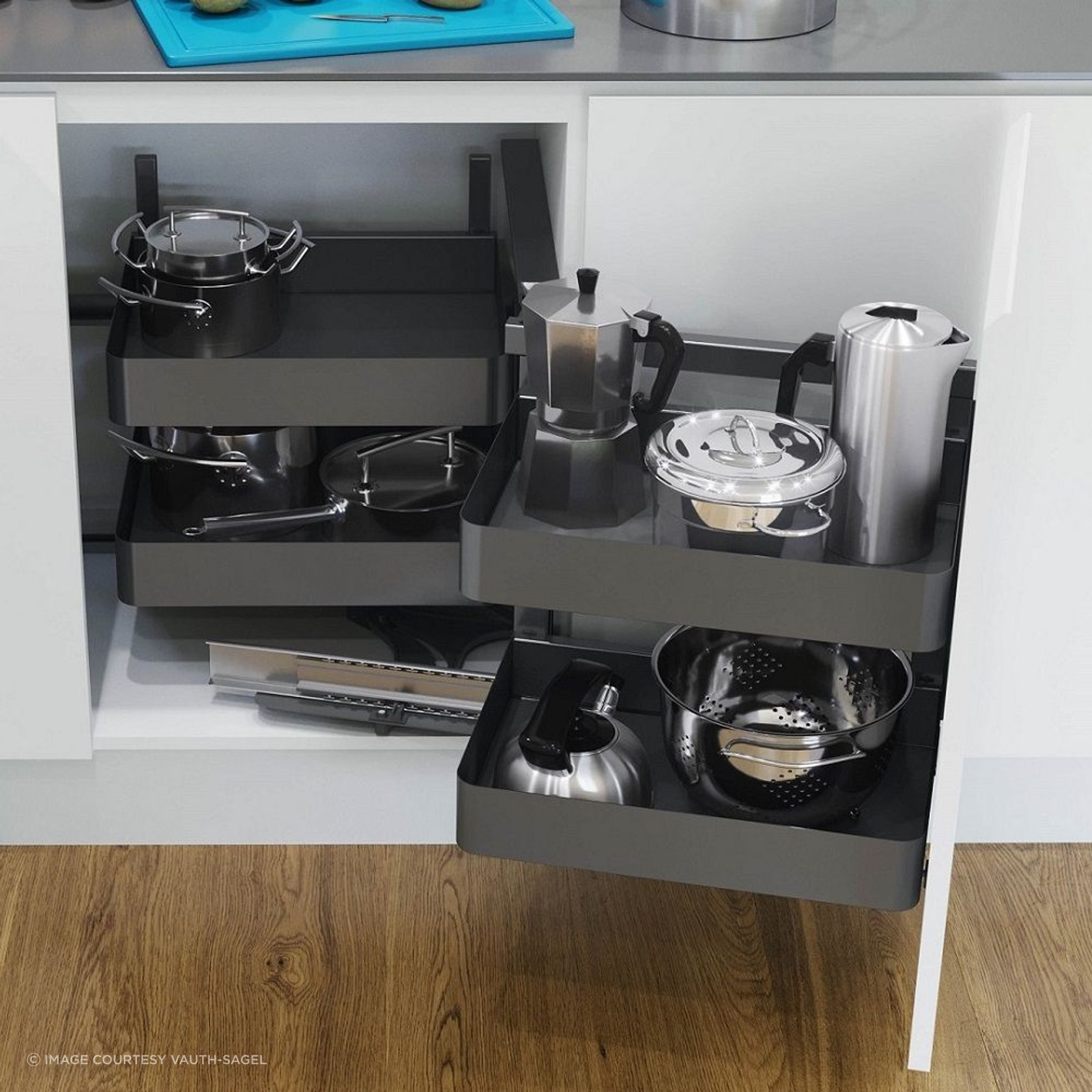

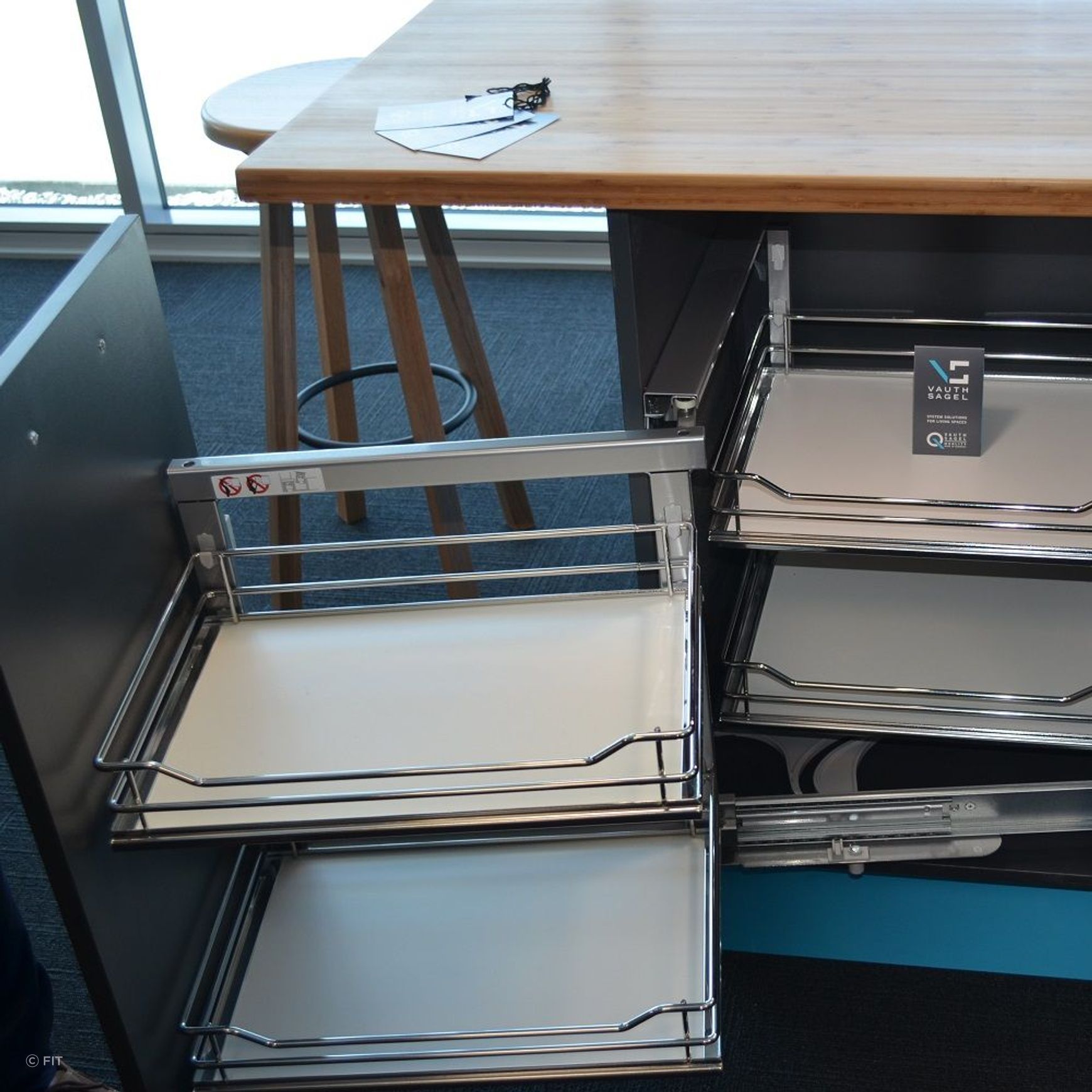

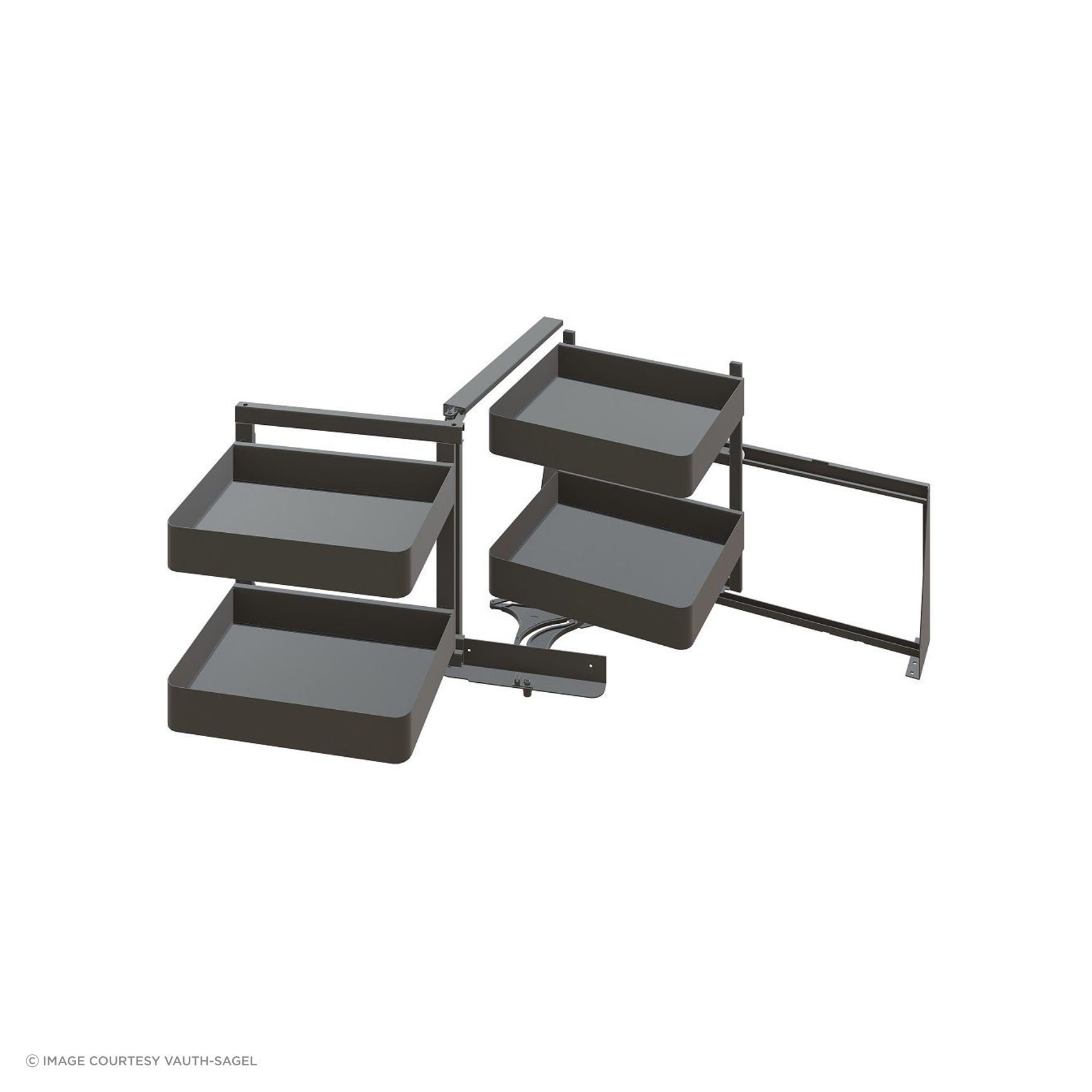

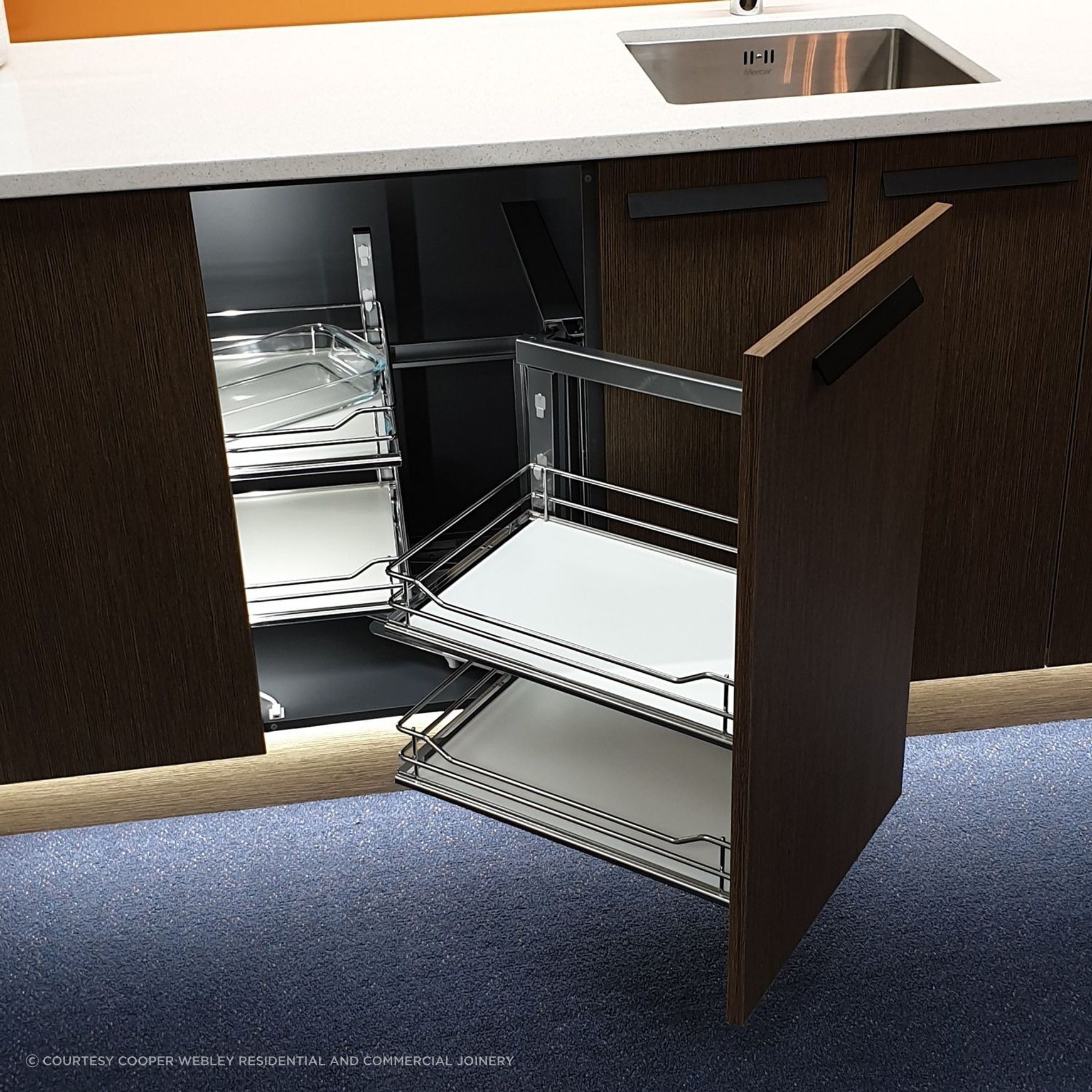

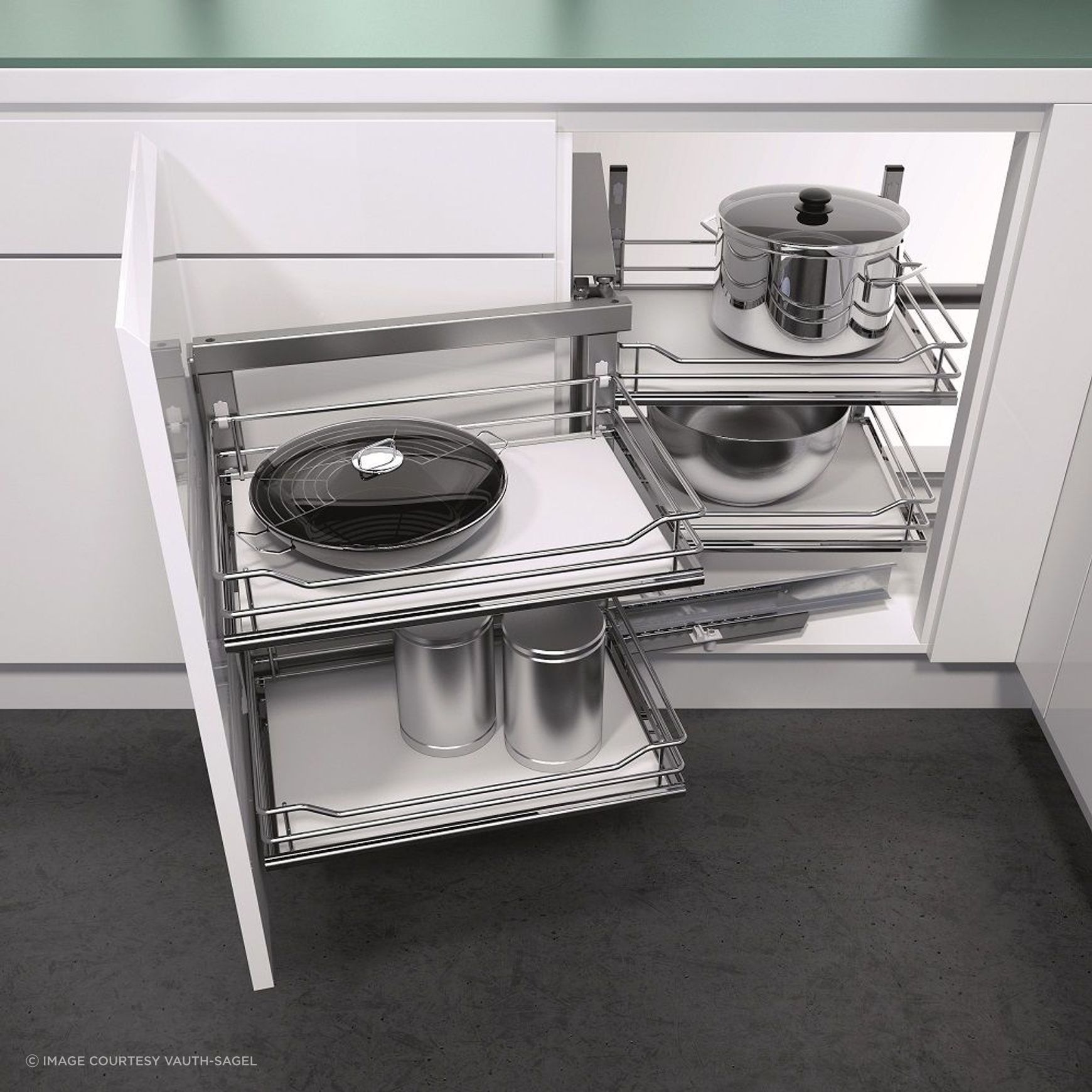

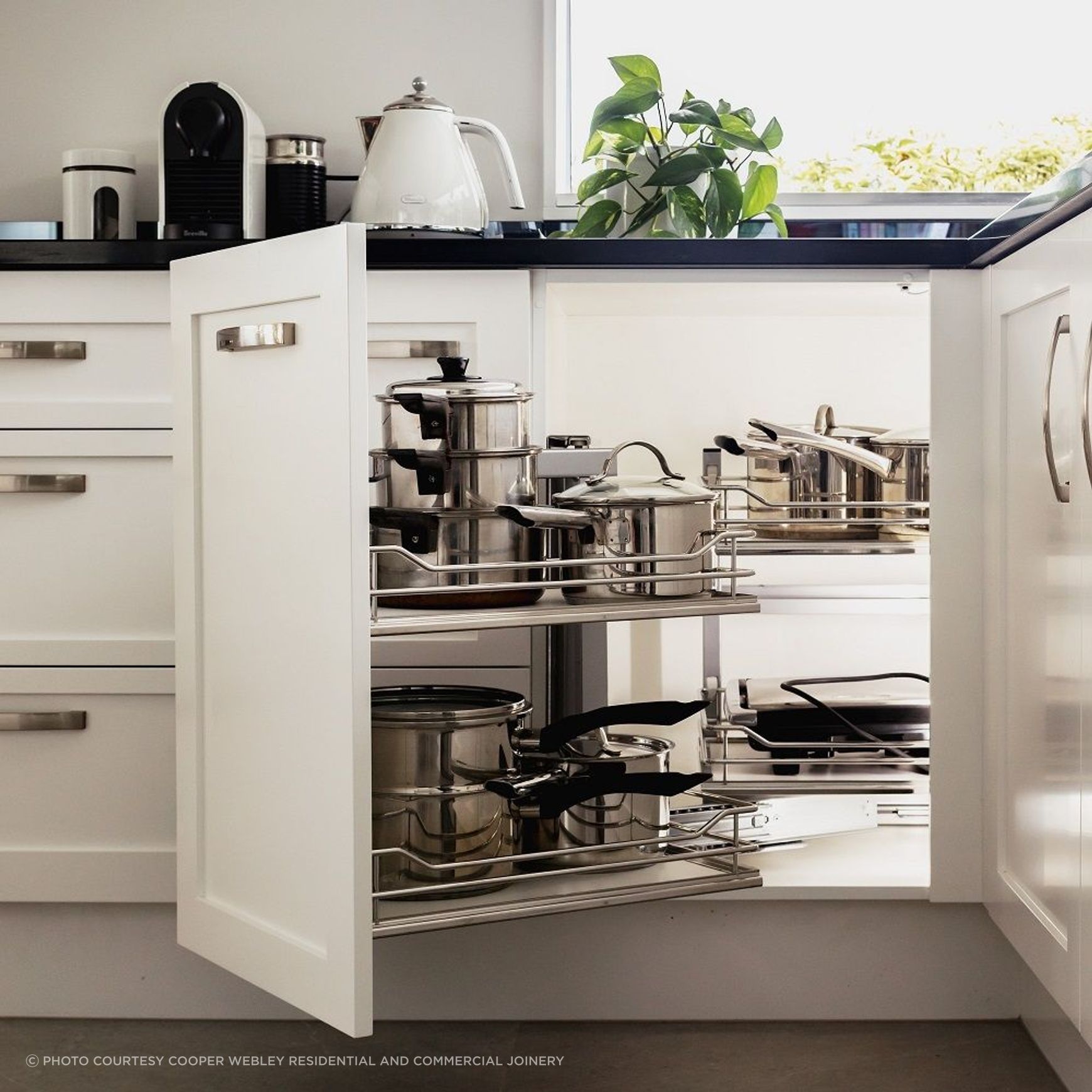

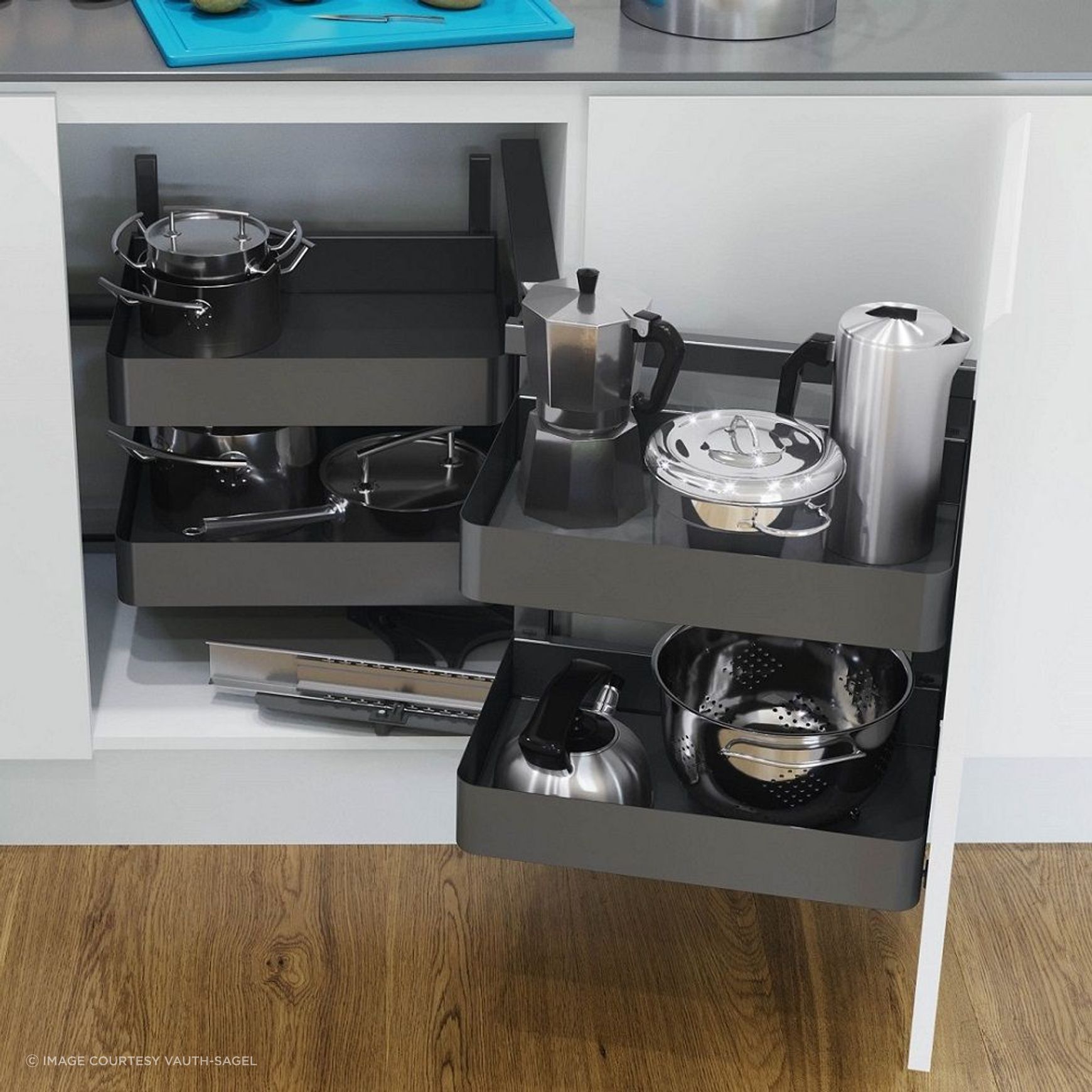

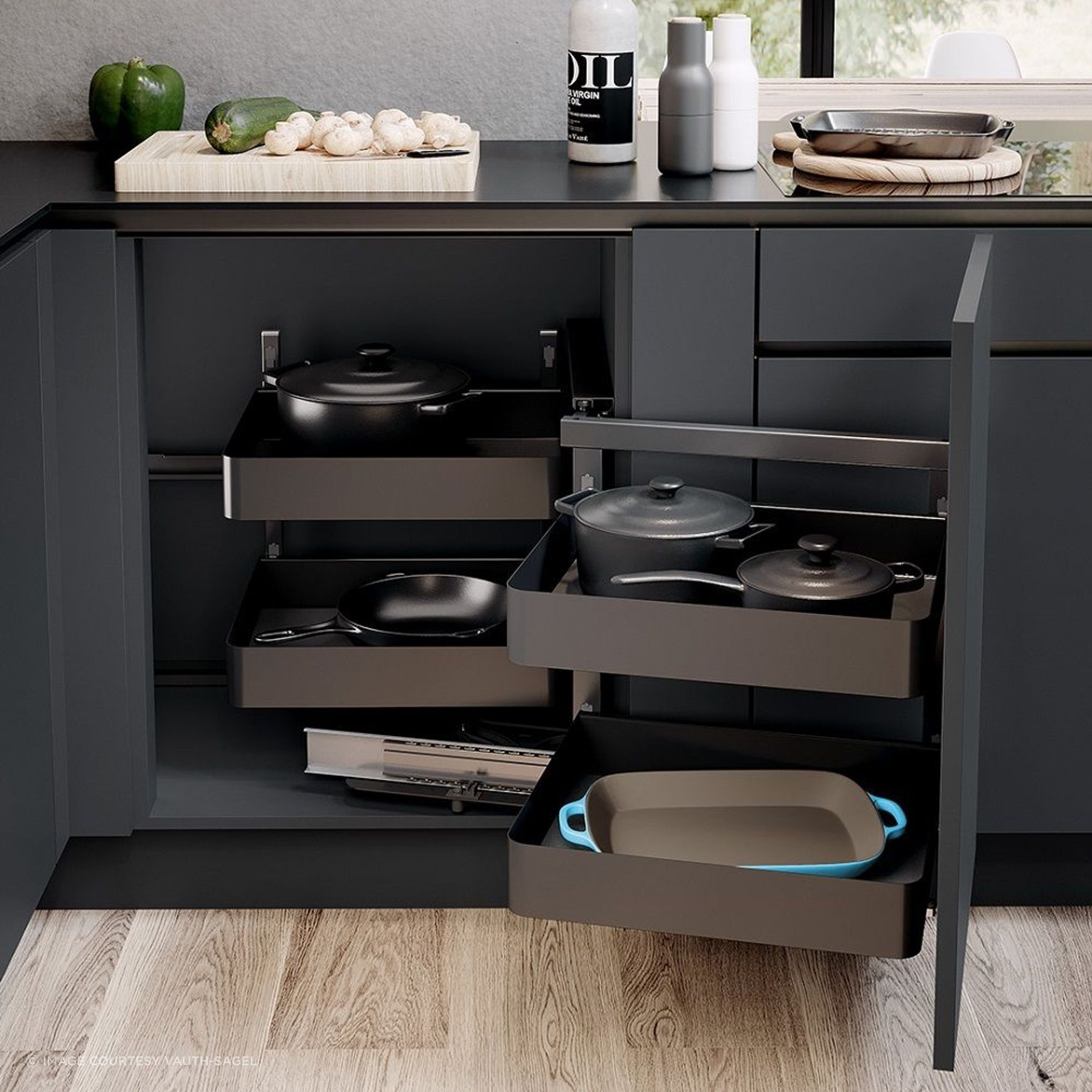

VS COR Fold in Planero - pull out for blind corner cabinet (ie single door access)

• User friendly movement makes contents very accessible; as door opens, front baskets swing sideways, providing easy access to rear baskets
• For cabinet widths of 800mm and 900mm and door widths of 400mm and 450mm
• Individually height adjustable baskets
• 8kg load capacity on front baskets, 9.5kg on rear baskets, for total load capacity of 35kg on unit

CORNERSTONE MAXX in Planero - pull out for blind corner cabinet

• Full access to cabinet without blocking off adjacent cabinets
• Left and right handed models available
• Simple height adjustment
• Hidden fastening for an aesthetically pleasing 'floating' shelf look
• PAM (power assisted movement) in pull out direction
• For cabinet widths of 800mm, 900mm and 1000mm and door widths of 400mm, 450mm and 500mm
• 25kg load capacity per shelf
• 2 shelf and 4 shelf models available

VS SUB Basket in Planero - a new take on the pull out basket

• Like a drawer, gives full access to contents stored at back of unit
• High quality full extension soft close and self close European runners
• Supplied ready to install behind hinged door
• Load capacity 20kg per basket
• Minimum internal cabinet depth 515mm
• Installation height per unit - 160mm with runner
• One unit = one basket and one set of runners (image shows 2 units)
• Available for cabinet widths 400mm, 450mm, 500mm, 600mm

VS COR Wheel Pro - 'lazy Susan' style unti for 2-doored corner cabinets

• Innovative design; no space-limiting central column, creating up to 20% more space on bottom shelf
• Diagonal strut supports shelves; ideal for under corner sink units
• Virtually invisible mechanics for enhanced aesthetic appeal when doors are open
• 28kg carrying capacity per shelf
• Height adjustment for shelves is flexible and independent from carcass height
• Shelf position can be changed after fitting
• Two shelves rotate independently of each other
• Suitable for retrofitting
• Options for 800mm (680mm diameter unit) and 900mm (760mm diameter unit) cabinets

Width = Cabinet Width (external with 16mm board)
