Profix TS35 Concealed fixed flat panel façade system is a unique aluminium multi rail system specifically designed for use with Trespa Meteon panels.

The TS35 multi rail system has been designed to allow for trans directional movement between the panel and the built substrate.

TS35 rails are fixed independently to a 35mm cavity system that enables the façade to be fixed without penetrating the air seal or farming. TS35 drains and ventilates at every horizontal joint whilst the TS35-11 Rails provide mechanical support to the Sika Tac adhesive system. Panels are ship-lapped at vertical joints to effectively weatherproof the joint whilst allowing for movement between panels. Panels can be oriented in different directions for distinctive visual effects across a facade face.

TS35 is further enhanced with full range of anodised flashing components for windows and internal and external corners.

TS35 is compliant and tested to meet the requirements of AS/NZS 4284, NZBC E2/AS1/VM1 and B2 respectively

Tags

exterior finishes interior finishes panel facade system concealed fixed flat panel facade system decortech

Product Details

Product: Trespa Profix TS35 Facade System - Big River Panels
Category: Cladding & Facades
Sold by: Big River Group
Range: Big River Panels

Product Variants

Material
Colors
Size

Big River Group is specified by

(56) Professionals

Trespa Profix TS35 Facade System - Big River Panels

Visit site

The TS35 multi rail system has been designed to allow for trans directional movement between the panel and the built substrate. TS35 rails are fixed independently to a 35mm cavity system that enables the façade to be fixed without penetrating the air seal or farming. TS35 drains and ventilates at every horizontal joint whilst the TS35-11 Rails provide mechanical support to the Sika Tac adhesive system. Panels are ship-lapped at vertical joints to effectively weatherproof the joint whilst allowing for movement between panels. Panels can be oriented in different directions for distinctive visual effects across a facade face. TS35 is further enhanced with full range of anodised flashing components for windows and internal and external corners. TS35 is compliant and tested to meet the requirements of AS/NZS 4284, NZBC E2/AS1/VM1 and B2 respectively

Profix TS35 Concealed fixed flat panel façade system is a unique aluminium multi rail system specifically designed for use with Trespa Meteon panels.

The TS35 multi rail system has been designed to allow for trans directional movement between the panel and the built substrate.

TS35 is further enhanced with full range of anodised flashing components for windows and internal and external corners.

TS35 is compliant and tested to meet the requirements of AS/NZS 4284, NZBC E2/AS1/VM1 and B2 respectively

Downloads

Downloads (3)3 Direct downloads • 6 Available on request

Get more Specific.

Big River Group

decortechexteriors.co.nz

Visit the Big River Group website for the full range, specification detail and where to buy this product.

Visit Website

Frequently asked questions about
Trespa Profix TS35 Facade System - Big River Panels

The Trespa Profix TS35 Facade System - Big River Panels is supplied by Big River Group. It is also on their website, and you can browse every product Big River Group lists on ArchiPro.

Big River Group does not publish a price for the Trespa Profix TS35 Facade System - Big River Panels on ArchiPro. for pricing, or visit their website.

It comes in 6 colour options (TS35 01/thumb, TS35 02/thumb, TS35 03/thumb, TS35 04/thumb, TS35 05/thumb, TS35 06/thumb). Pick one in the row under the description to see it.

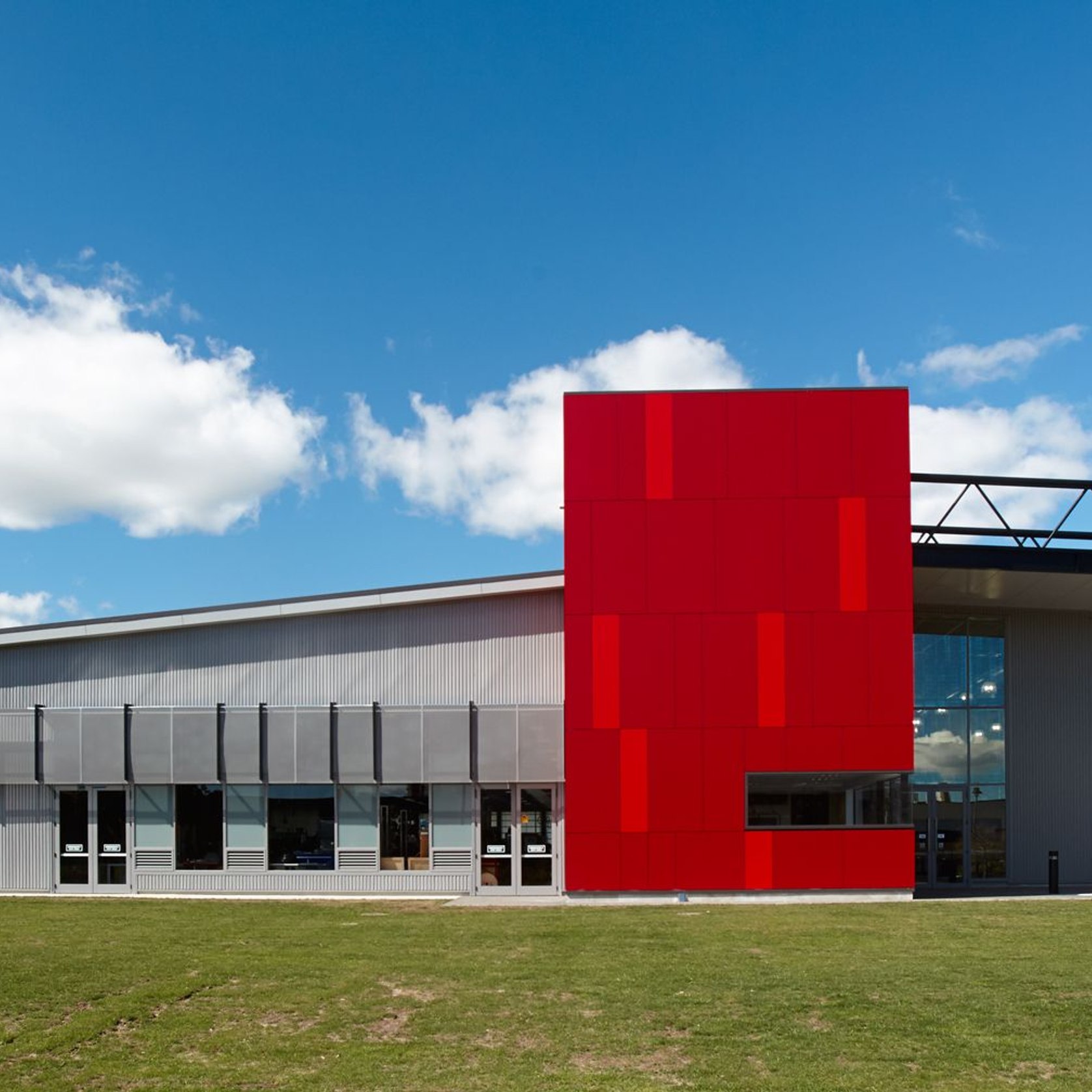

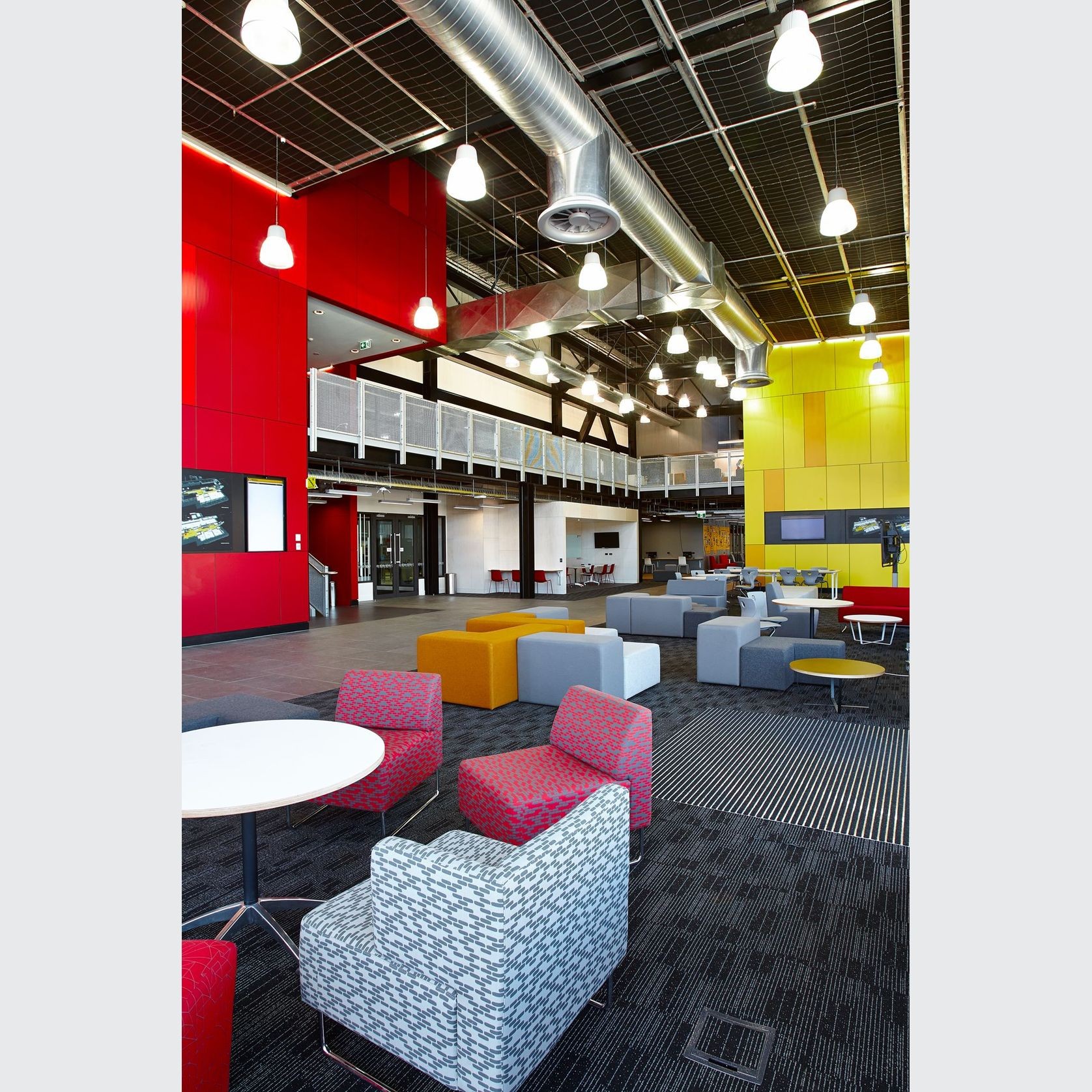

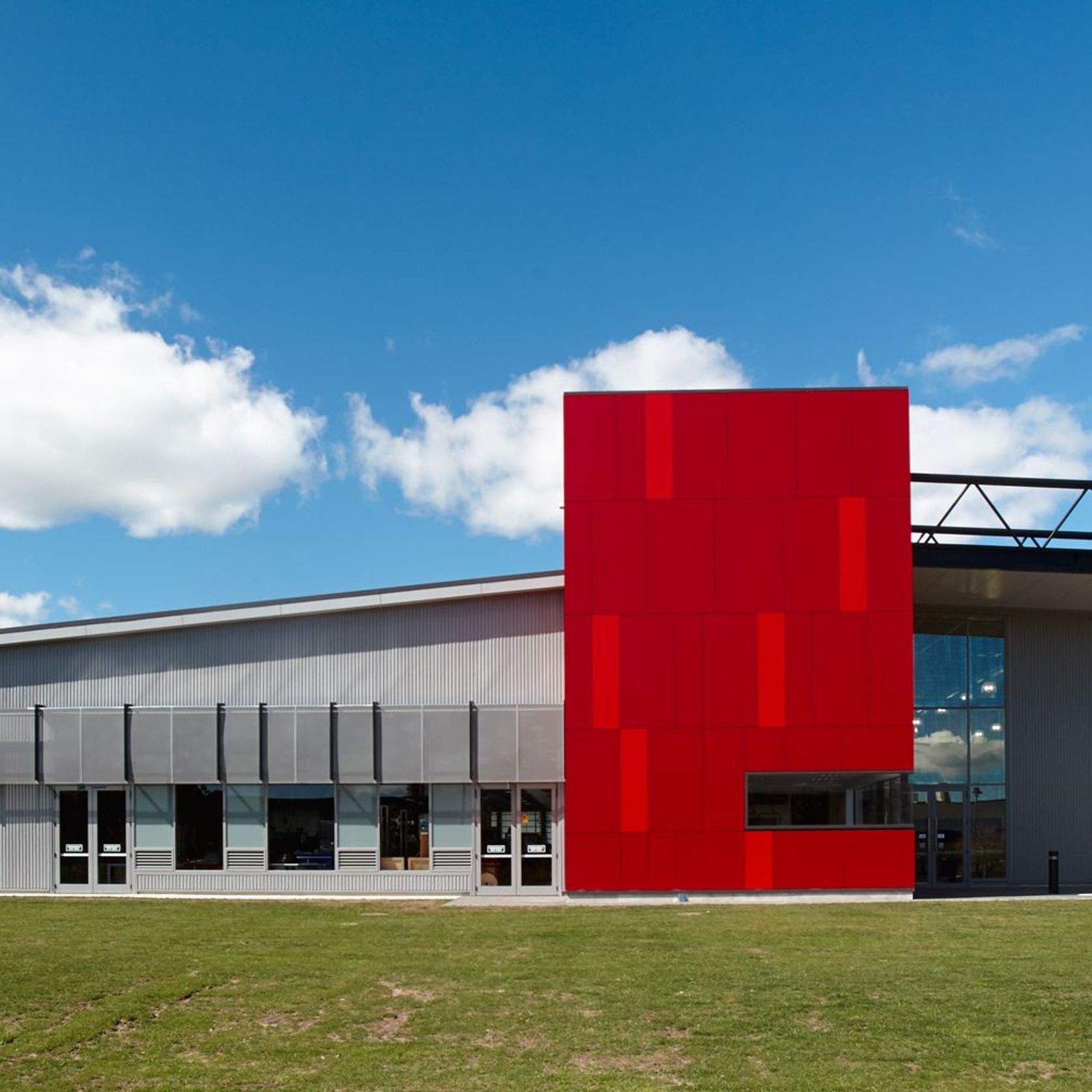

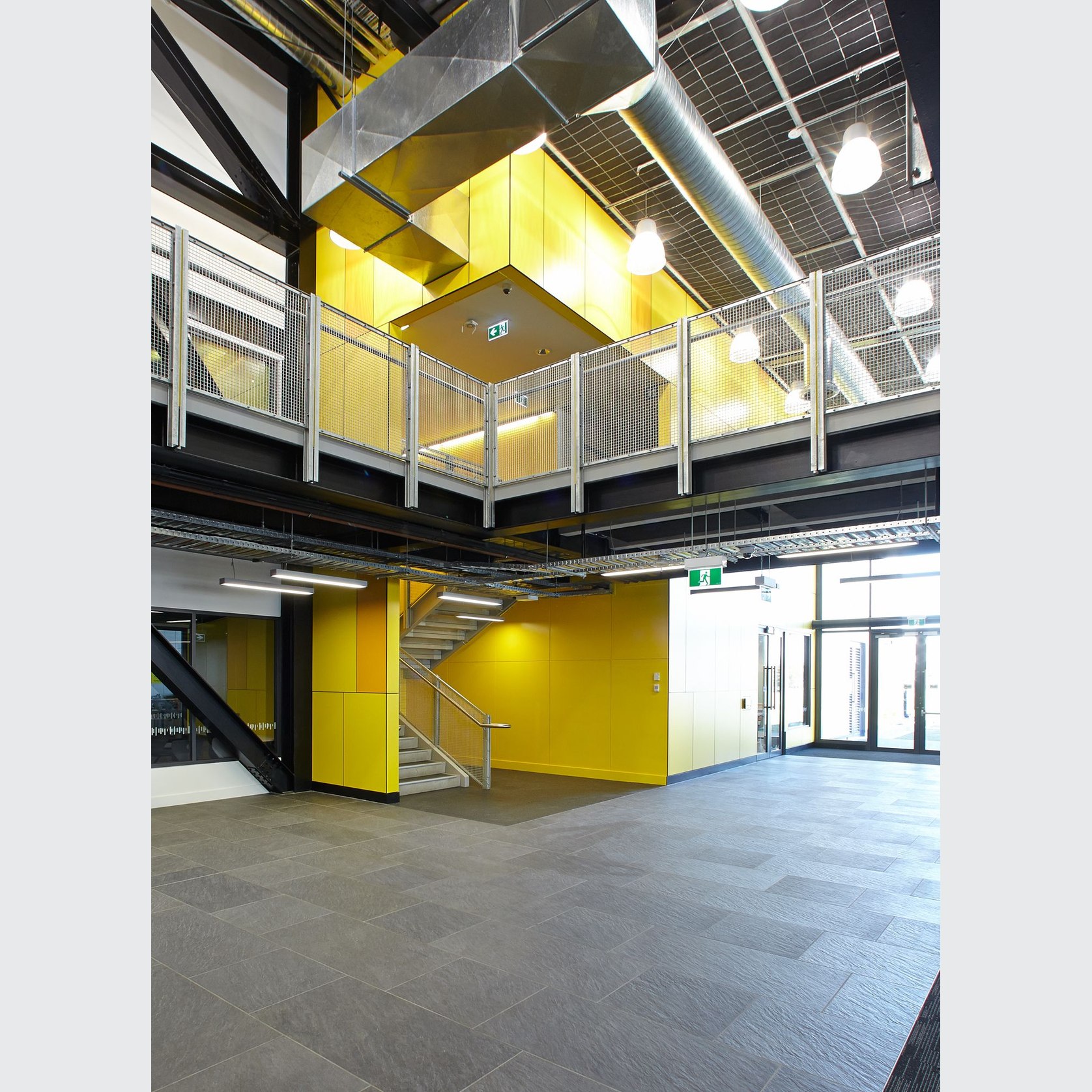

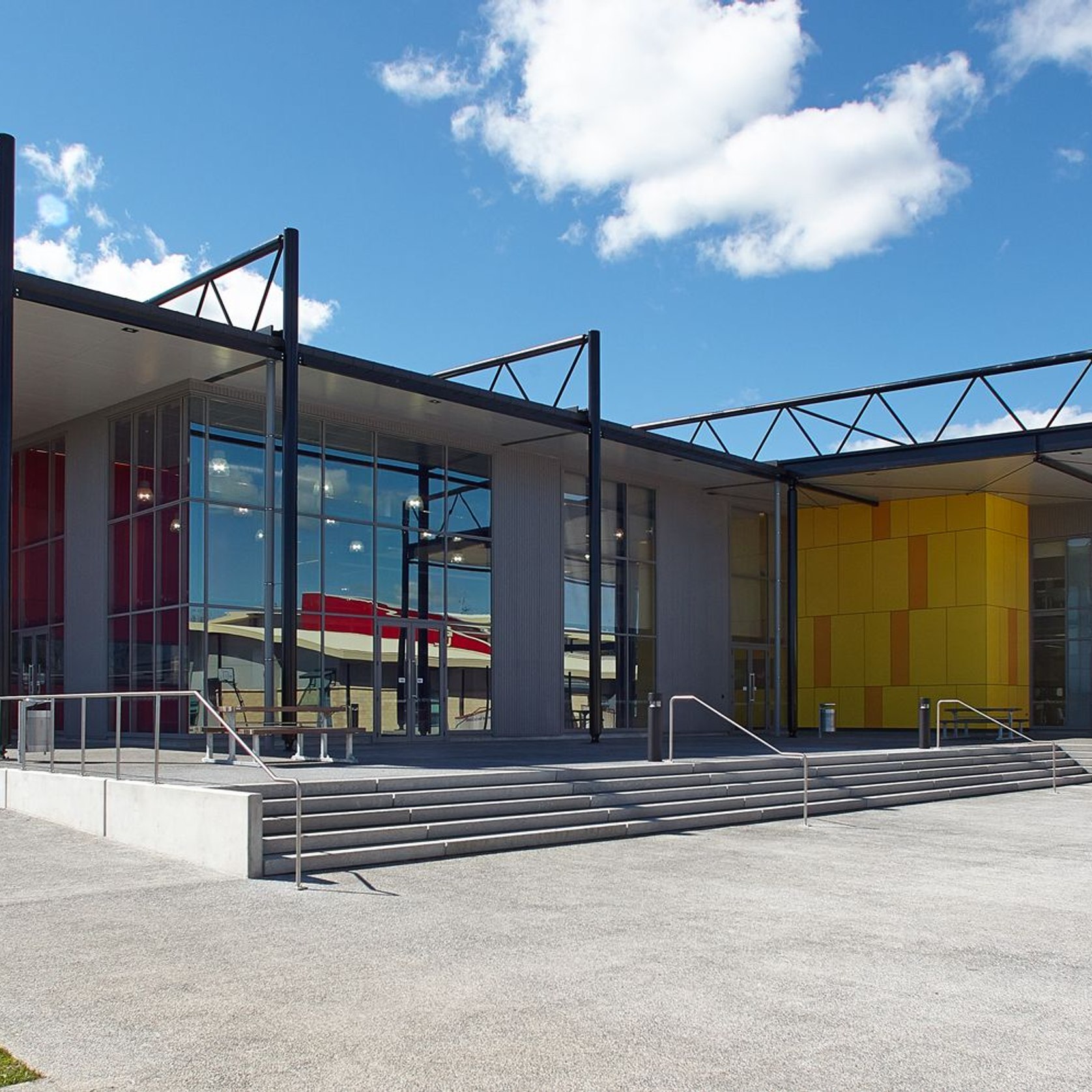

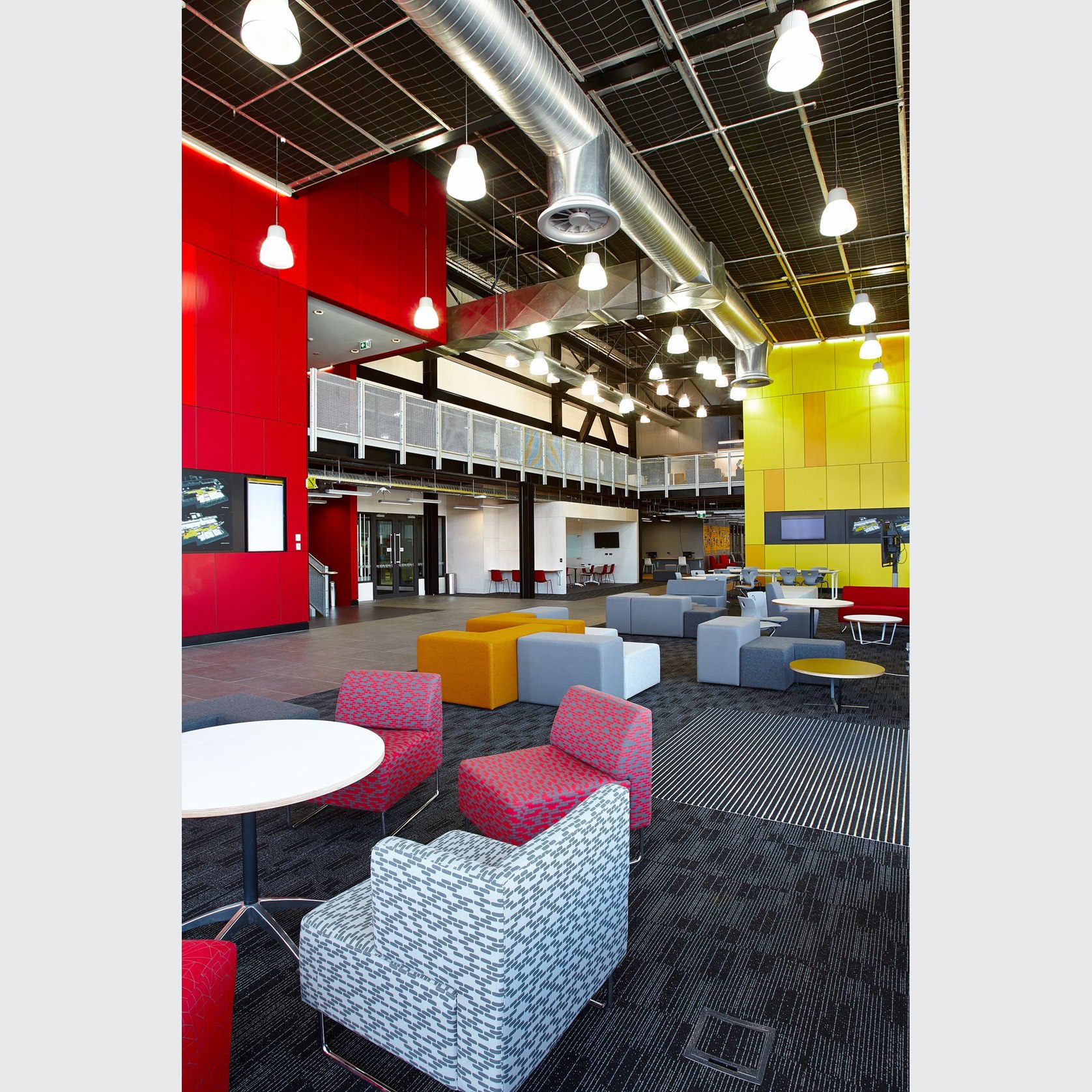

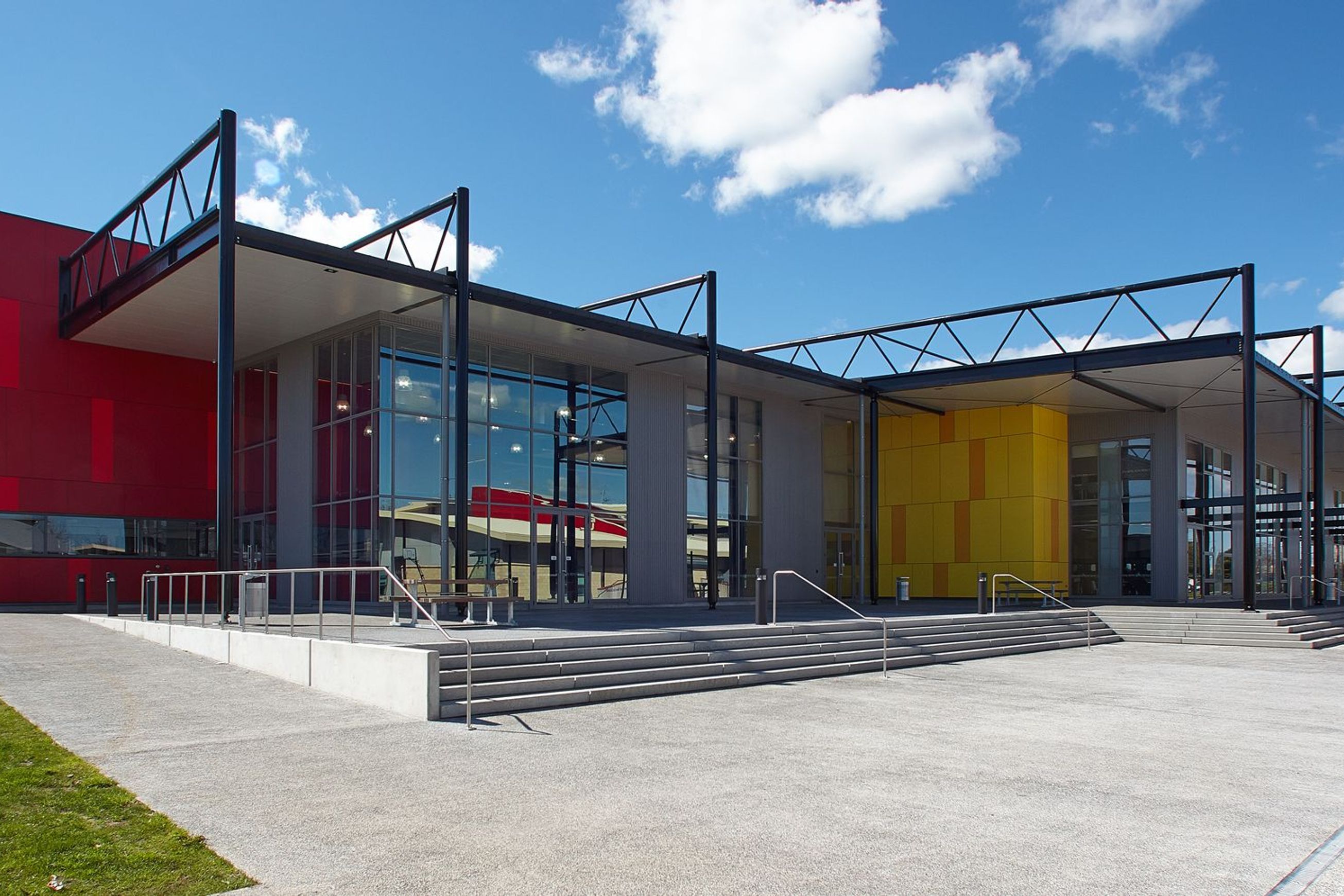

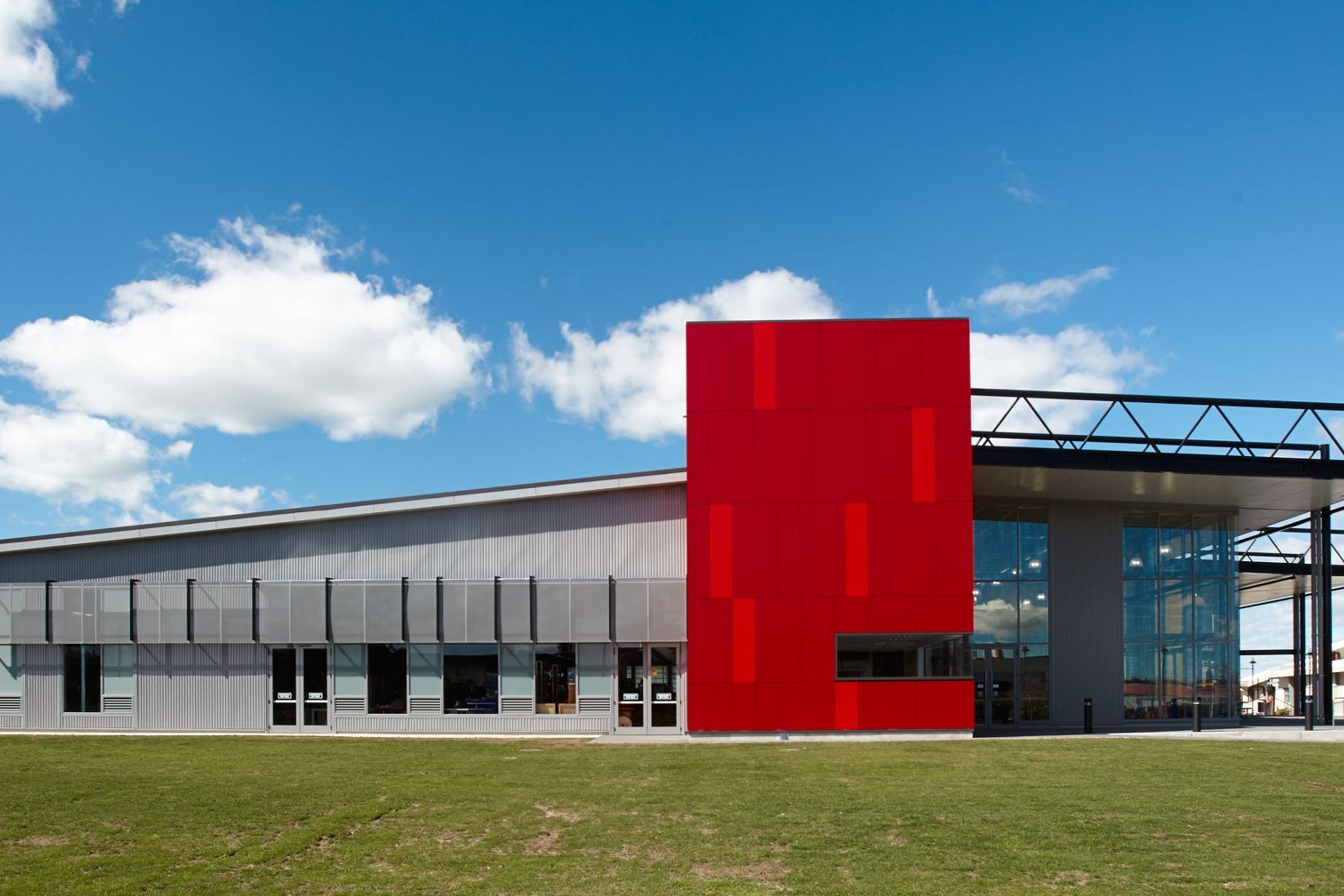

Yes. It has been specified in projects on ArchiPro, including WINTEC - Optimising a learning environment by Clipsal by Schneider Electric and Wintec Trades & Engineering Facility by Big River Group. See how it was used in a finished space.

from this page, see their contact details on ArchiPro, or visit their website. The Big River Group profile on ArchiPro has the rest of their products.
