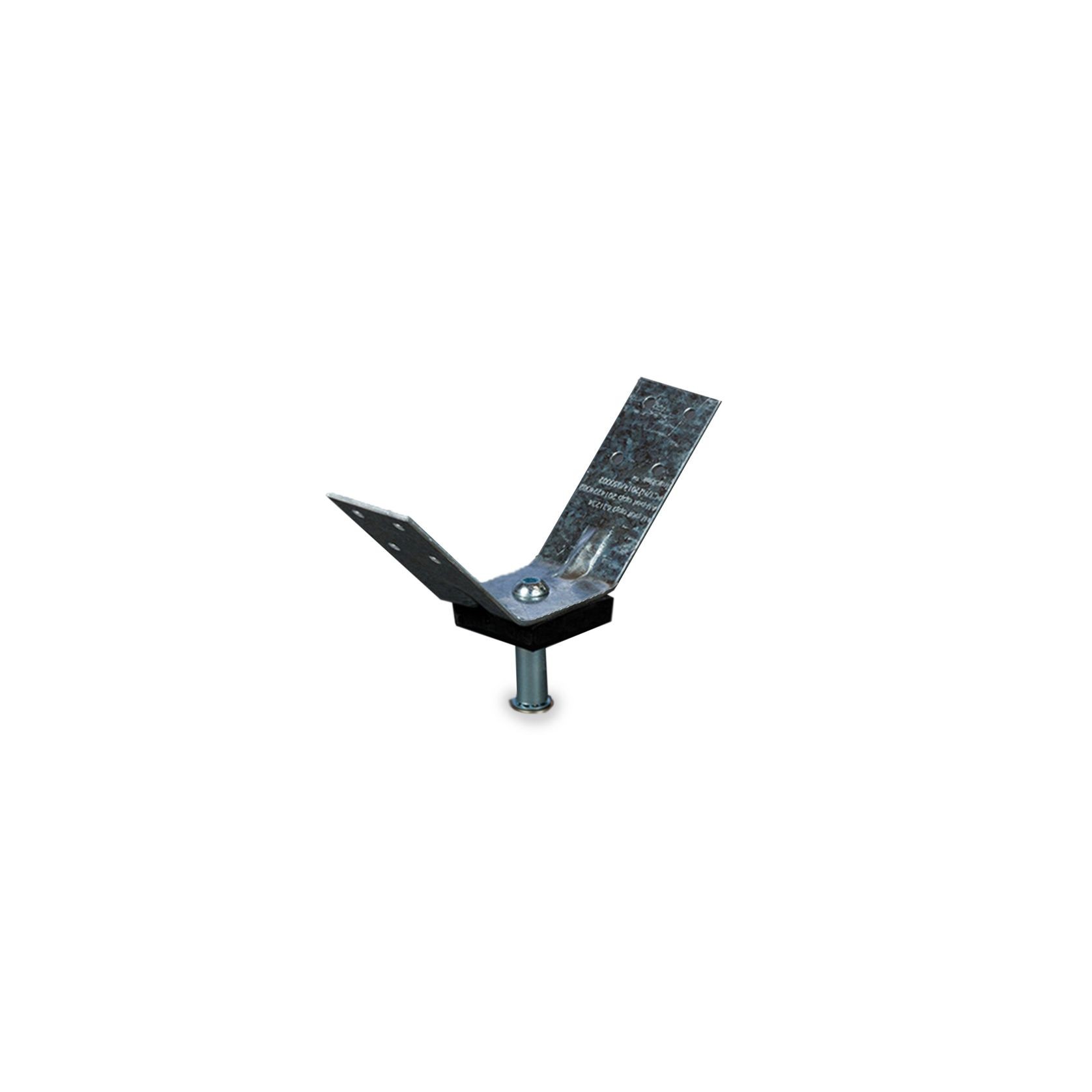

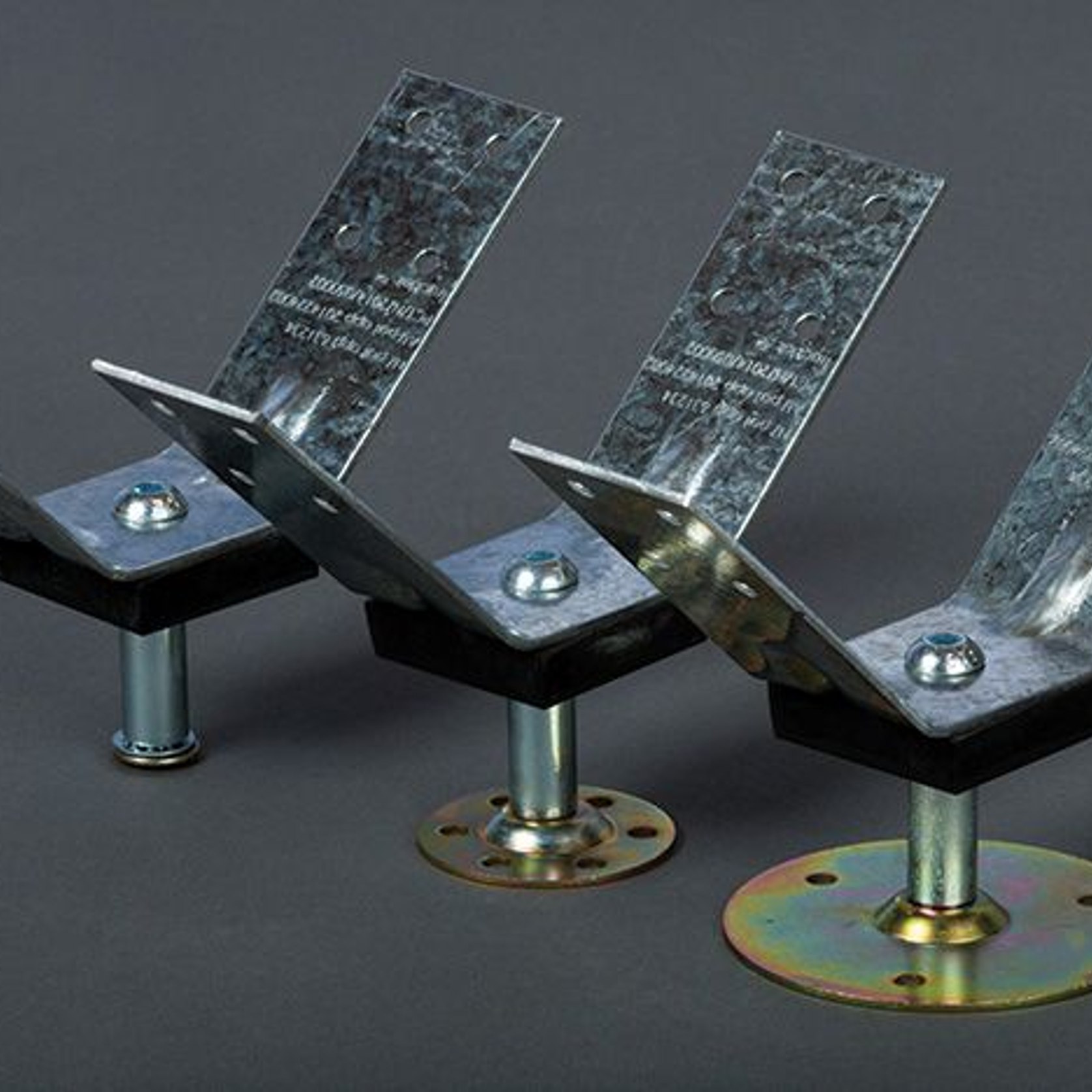

Tracklok Seismic Bracing
by CSR Potter Interior Systems
Auckland
- 402.9K profile views
- 52 saves

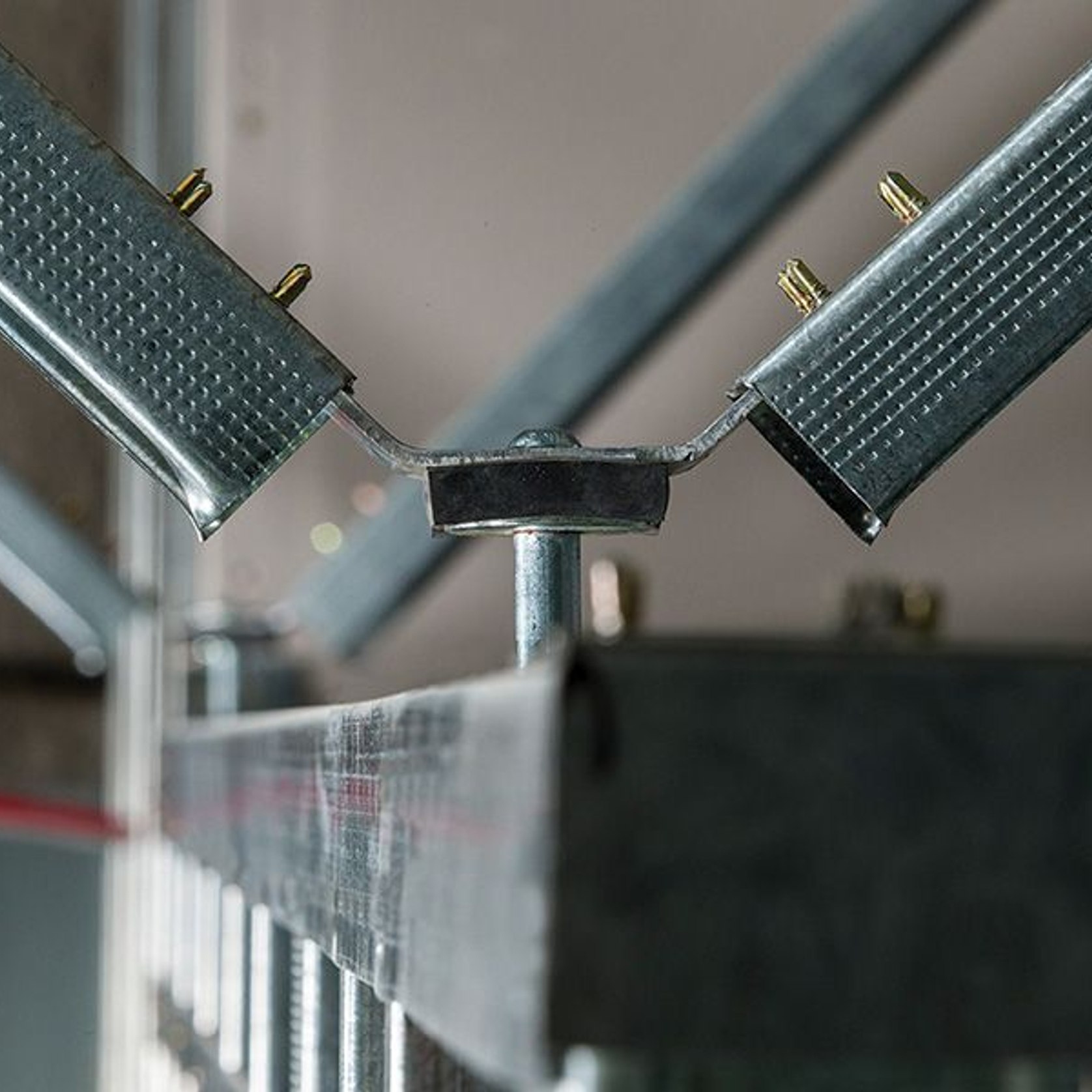

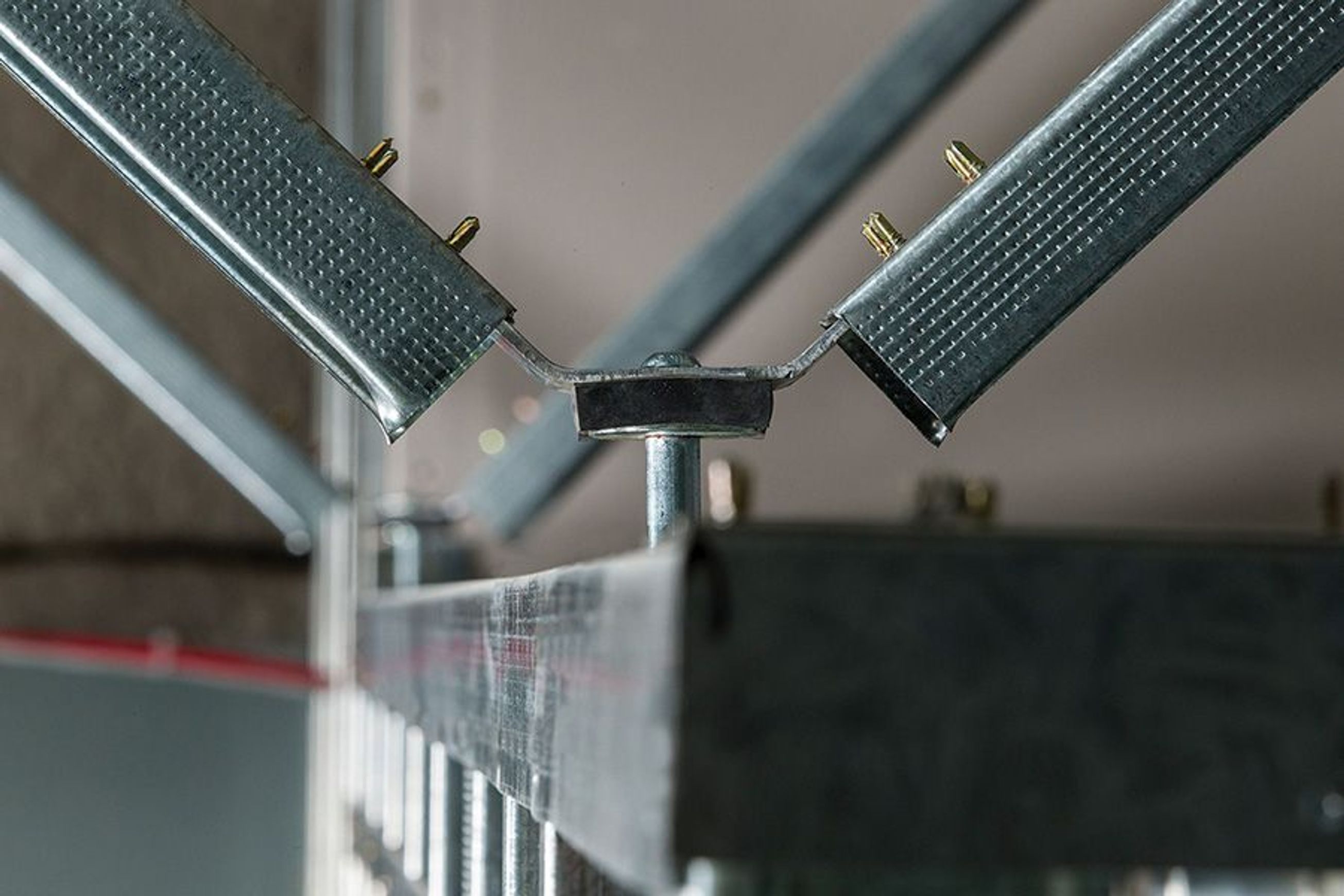

Tracklok Seismic Bracing for new builds, allows you to connect directly through the partition head, separating wall from the ceiling. Tested to provide structural and seismic performance for internal non-structural walls and glazing lines. Utilises steel stud for bracing stock and 10-gauge wafer tech screws to attach the bracing stock to the unit and soffit top connectors. Set out charts provide clear guidance for placement. Utilised in IL2, IL3 and IL4 buildings.
Product Details
- Product
- Tracklok Seismic Bracing
- Category
- Structural Steel
- Sold by
- CSR Potter Interior Systems
CSR Potter Interior Systems is specified by
YokeArchitects
Designgroup Stapleton ElliottArchitects
RTA StudioArchitects
DLA ArchitectsArchitects
Studio Pacific ArchitectureArchitects
Fat Parrot ArchitectureArchitects
T Plus ArchitectsArchitects
Matt Brew ArchitectArchitects
Origin HeritageArchitects
architecture+Architects
Chow:Hill ArchitectsArchitects
CTRL SpaceInterior Designers
AD ArchitectureArchitectural Designers
Metro Commercial InteriorsConstruction
Creative ArchArchitectural Designers
GS Cayless ConstructionBuilders
Elevate Architectural TransportablesBuilders
Arc AtelierArchitectural Designers
Lightforge PhotographyPhotographers
MnM DesignArchitectural Designers
FocusplanInterior Designers
Mark Scowen PhotographyPhotographers
New Zealand Green Building CouncilAssociations
VADAInterior Designers
Bob Burnett ArchitectureArchitectural Designers
Tracklok Seismic Bracing for new builds, allows you to connect directly through the partition head, separating wall from the ceiling.
Tested to provide structural and seismic performance for internal non-structural walls and glazing lines. Utilises steel stud for bracing stock and 10-gauge wafer tech screws to attach the bracing stock to the unit and soffit top connectors. Set out charts provide clear guidance for placement. Utilised in IL2, IL3 and IL4 buildings.
- Specs
Key Features
- Secures partition walls and glazing lines, under ceiling to slab above
- Designed to absorb seismic energy, reducing partition wall failure
- Applicable to all seismic zones and all seismic loads
- Meets or exceeds all national code requirements
- Unique design for variable bracing stock to be utilised, reducing waste
- Low profile allows installation in partition and glazing head tracks
- Engineered to eliminate ceiling grid interaction and to protect warranty
- Designed and tested to mitigate risk to life and property
- Statement of Building Code
Building Code Compliance
- Load testing of the bracket assembly in accordance with AS/NZS1170.0:2002 has been carried out
- Must be installed in compliance with standard industry practices and within the parameters of AS/NS1170.0:2002
