Tectus Concealed hinges are the original and pioneering solution in the industry, crafted to support a vast range of door weights from a standard 80kg right up to a hefty 300kg. Their innovative design allows for fewer hinges to be used, efficiently carrying the weight of the door with ease.

These hinges are perfect for a range of applications, from hidden doors to flush cabinetry doors/walls, providing a seamless look without compromising on quality. The hinges come in a variety of finishes to suit different aesthetics. Designed with a convenient continuous height adjustment of +/- 3mm, these hinges prevent sagging and allow for easy alignment, making the installation process hassle-free. With a full hinge body covering the routing entirely, these hinges ensure a safe and secure fit with minimal gap between the door and jamb to prevent any finger injuries. Explore the optimized load capacities for different hinge models to find the perfect fit for your project.

Details
General
  • Country of origin
    Germany
  • Type of use
    • Commercial
    • Commercial and Residential
    • Residential
  • Package type
    Fragile - handle with care
  • Care and cleaning
    Easy maintenance
  • Installation
    Professional installation required
  • Assembly
    Professional assembly required
Specifications
  • Continuous height adjustment of ±3 mm for precise alignment
    • Full hinge body covers all routing for a secure, clean installation
    • Minimal door-to-jamb gap to reduce finger-pinch risk
    • Suitable for interior applications; selected stainless-steel models for sheltered exterior use
    • Available in multiple architectural finishes, with special-order options available
    • A8 versions available for cladding up to 8 mm (special order)
Scope of use

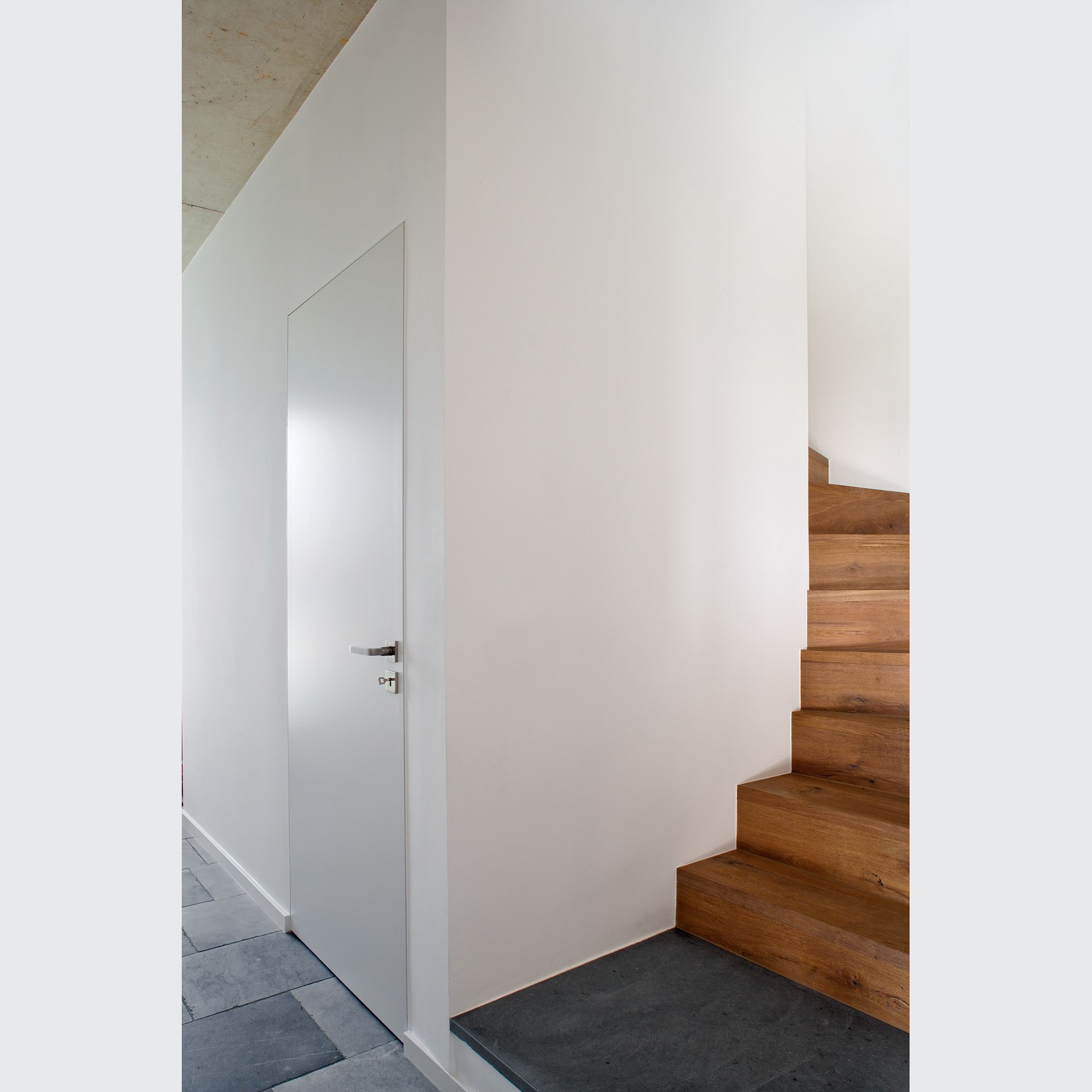

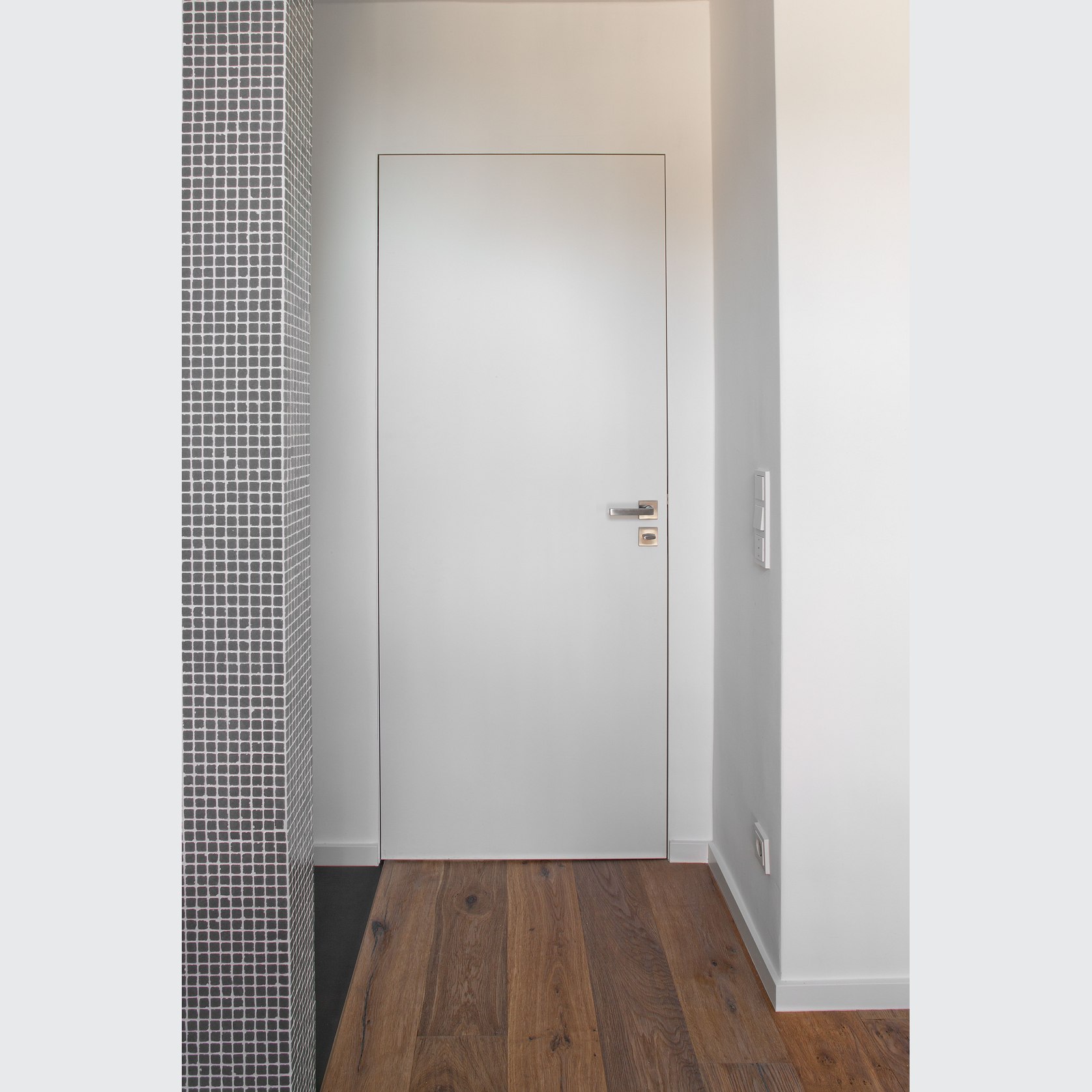

  • Designed for hidden doors, flush cabinetry doors/walls and wherever a seamless look is required.
    • Suitable for interior use; some models (specifically the TE526 in stainless steel) can be used for external sheltered conditions.
    • Load capacities (for 2 hinges) vary by model:
      TE 240 3D: up to 60 kg, minimum door thickness 30 mm
      TE 340 3D: up to 80 kg, minimum door thickness 35 mm
      TE 526 3D: up to 120 kg (die-cast stainless steel), minimum door thickness 35 mm
      TE 540 3D: up to 120 kg, minimum door thickness 45 mm
      TE 640 3D: up to 200 kg, minimum door thickness 45 mm
Features

Tectus are the ORIGINAL and first designers of adjustable hinges for standard doors and now huge doors. Used on Apple Stores and high use entry doors these hinges are the best. Don't fall for the copies!
