SC1500 Fully Recessed Counterweight Balanced Door | Counterweight Doors

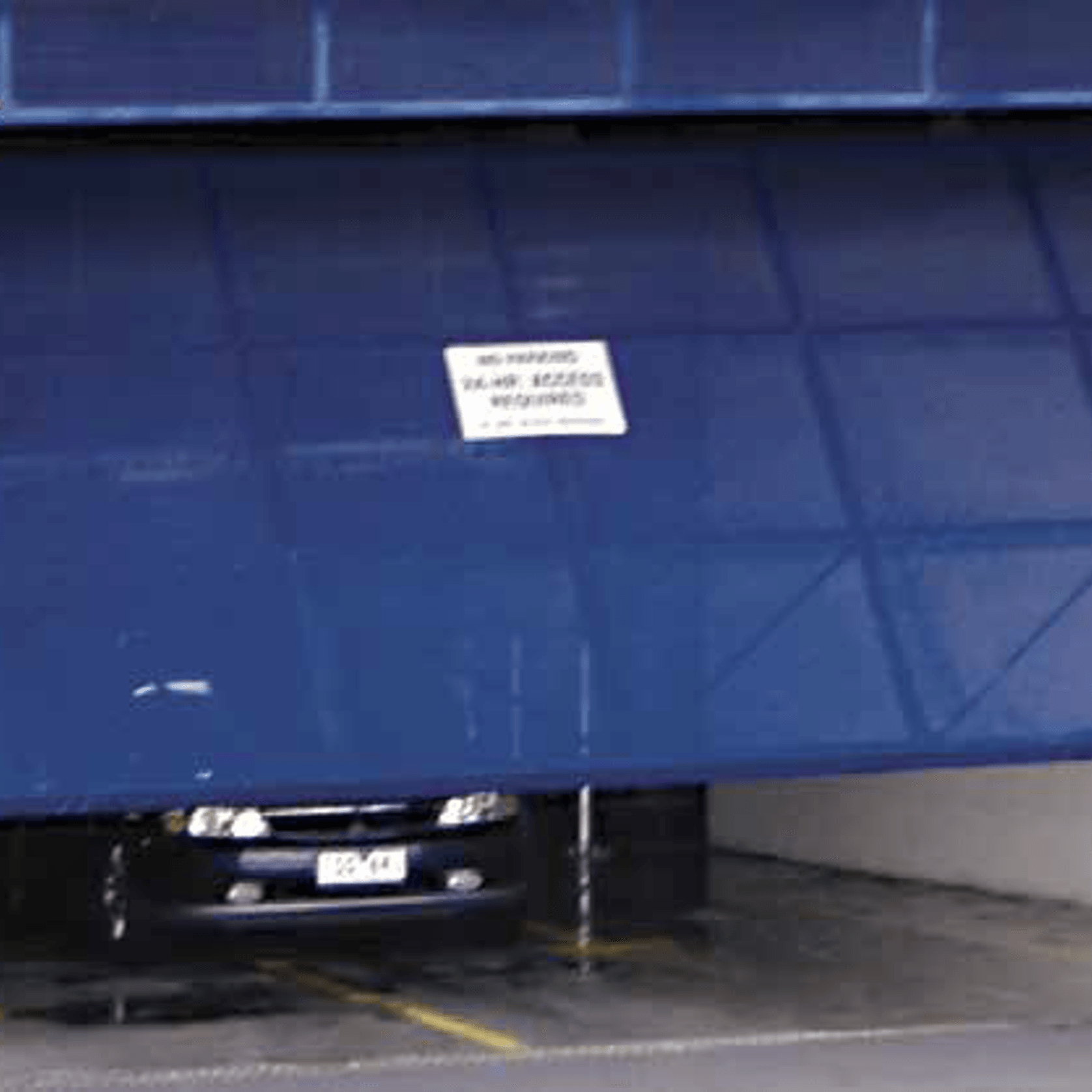

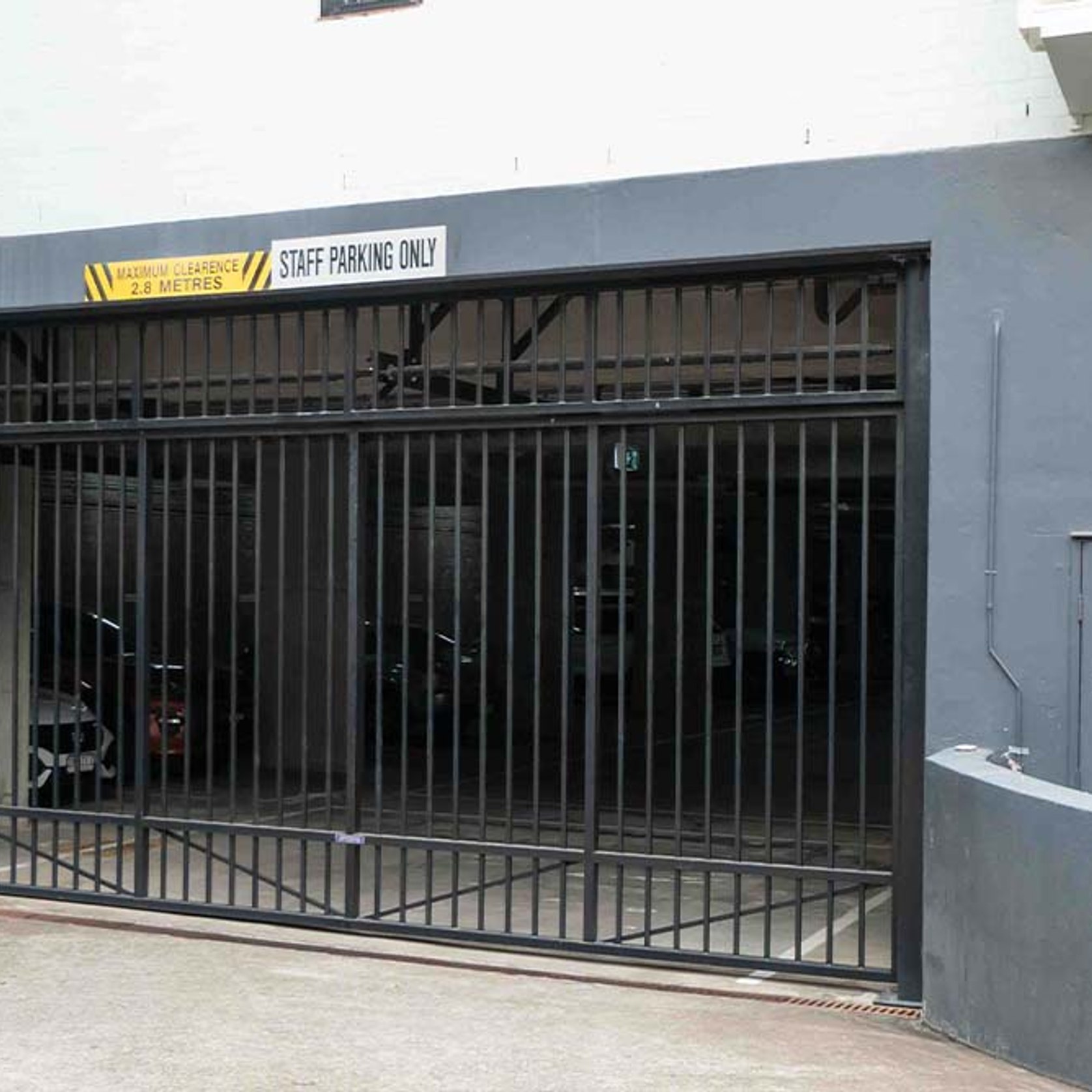

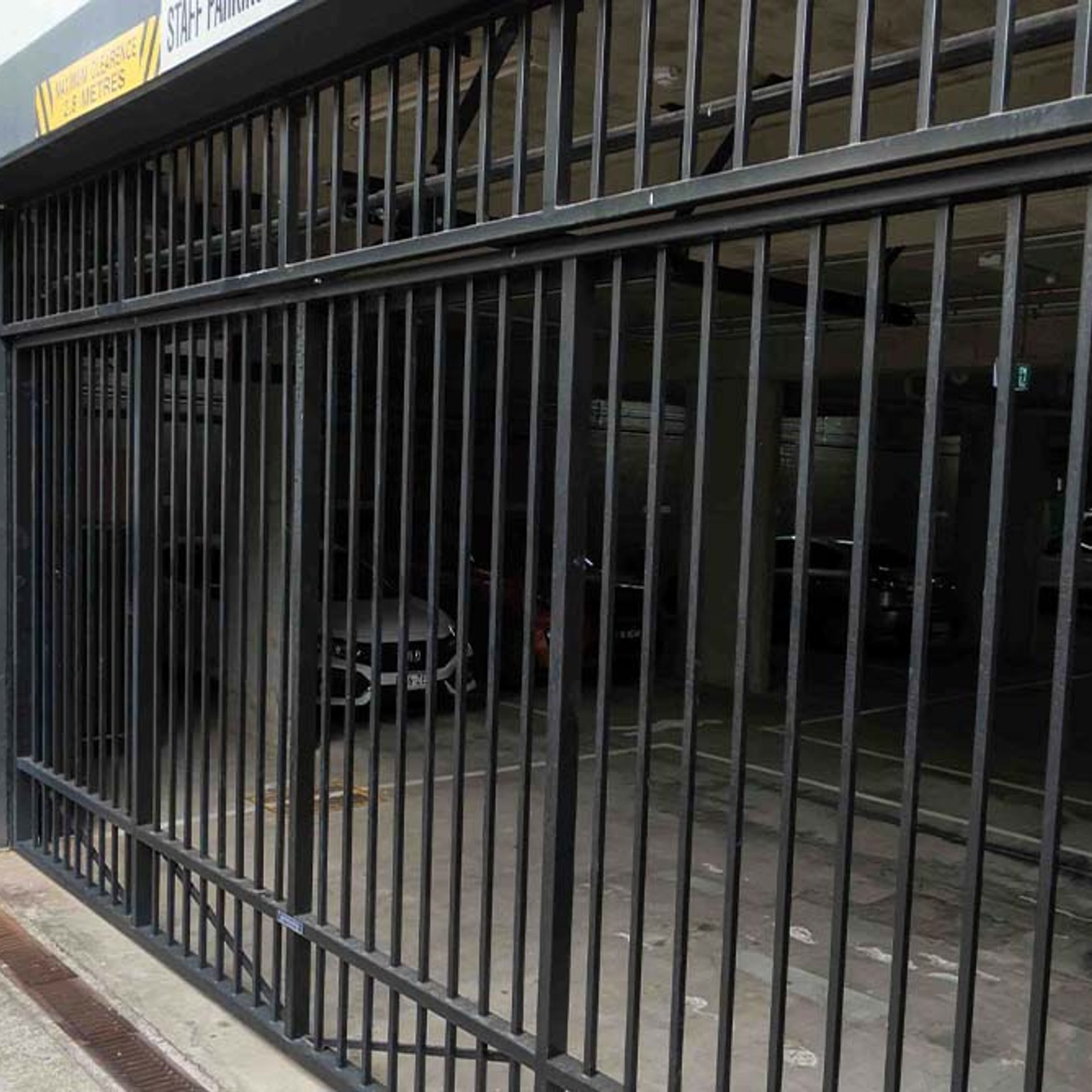

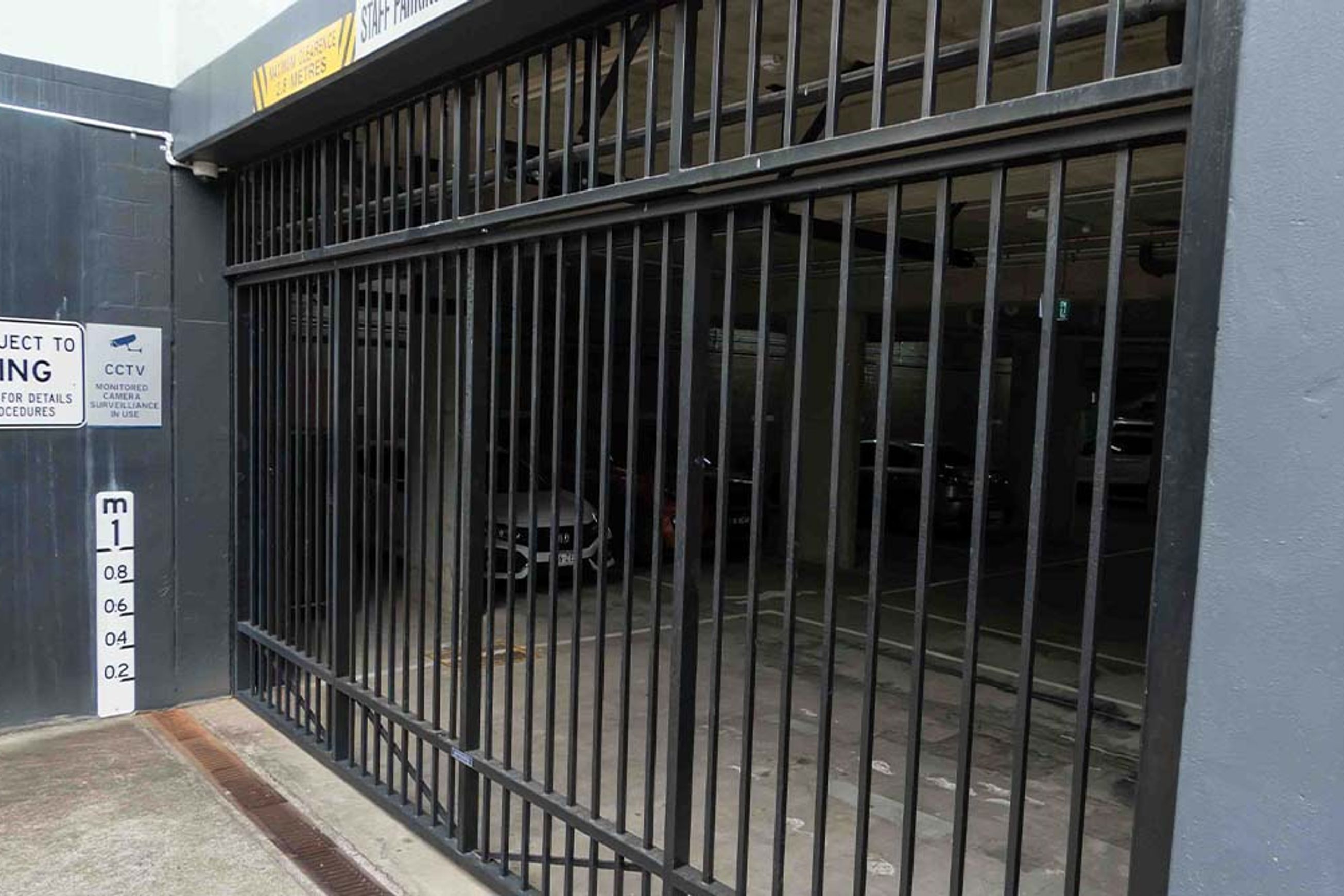

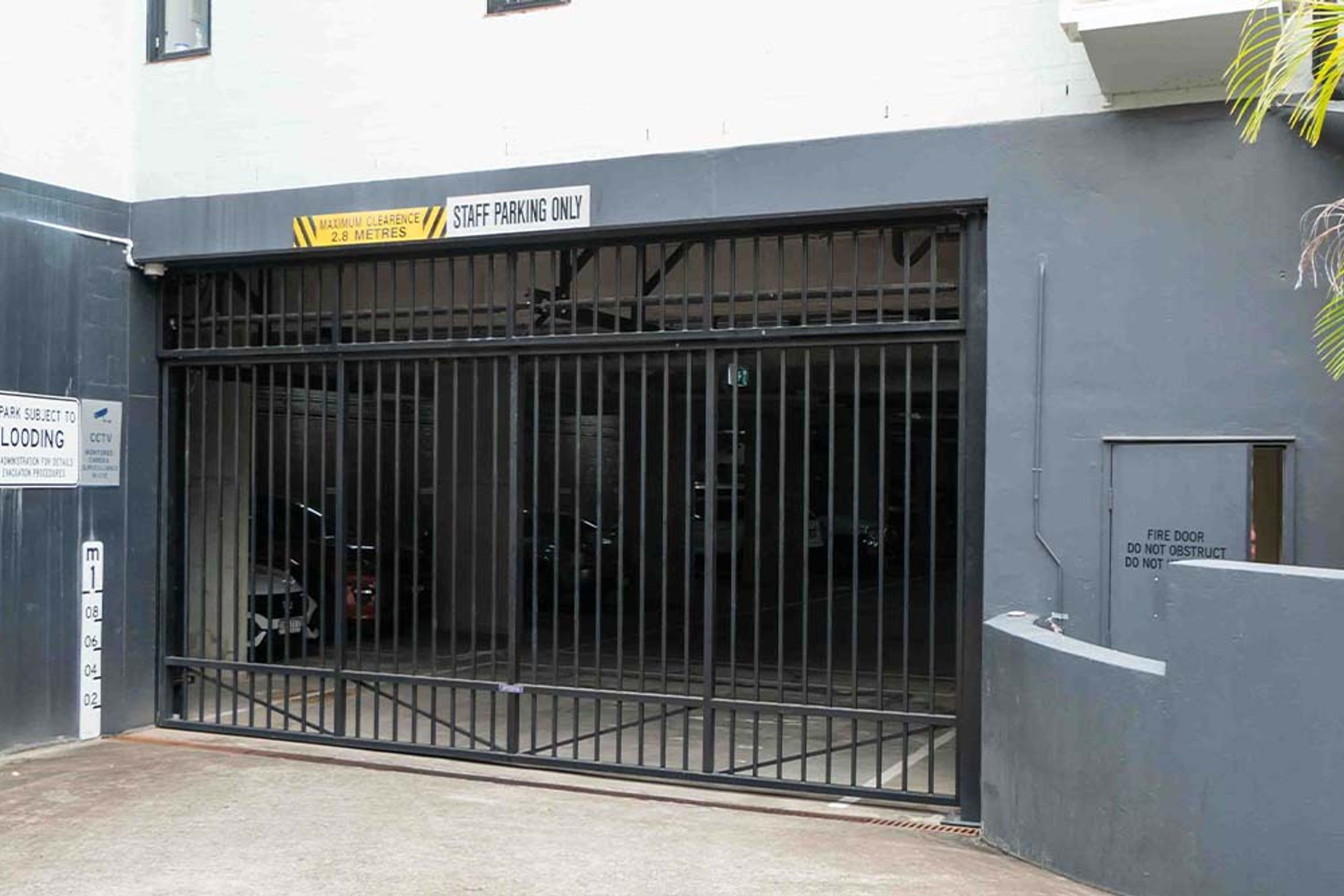

The SC1500 Fully Recessed Counterweight Balanced Door is custom made and designed for all applications where strength and superior appearance is required and openings designed to span as little as 1 metre to as much as 25 metres in width with no external projection (does not protrude past the external face of building) and where the door is to provide full opening height. The main benefits of the SC1500’s Fully Recessed Counterweight Balanced Door is that it achieves the lowest maintenance with the highest operation cycles, able to be designed in a variety of cladding and glazing types. They are commonly used in car park entries and showrooms. In the case of highly corrosive environments such as sea side locations or adjacent to swimming pools, these situations can be addressed to varying degrees through the use of Duragal galvanised steel tubing. With the custom made operating mechanism over 100,000 cycles are easily obtained per year, which is by far the lowest maintenance with the highest operational cycles of any conventional door system in Australia. All Steel-Line’s counterweight doors are designed to withstand site specific wind loading in accordance to AS1170.2-2002. If wind loads are not provided, the standard industry 0.5 Kpa is used.
