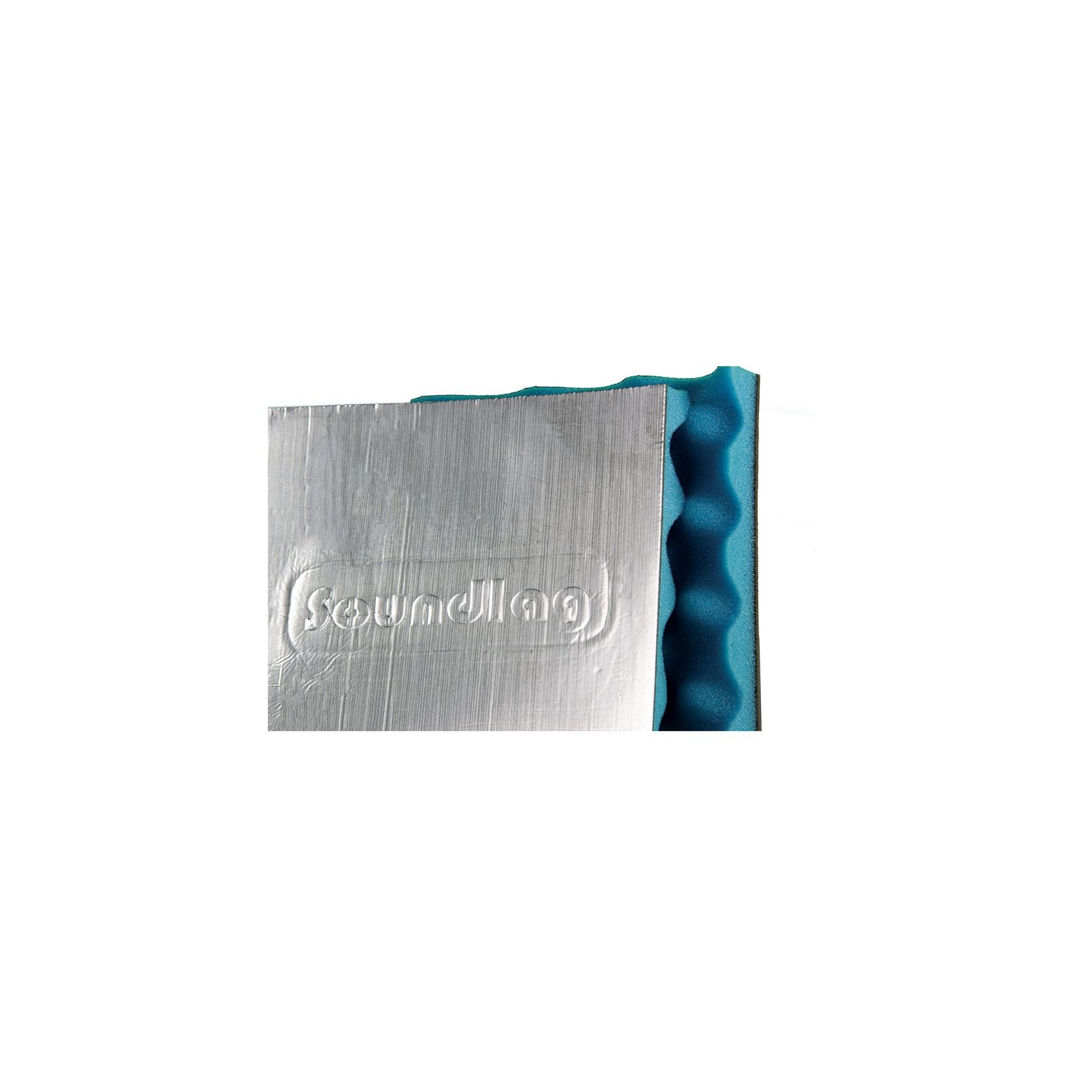

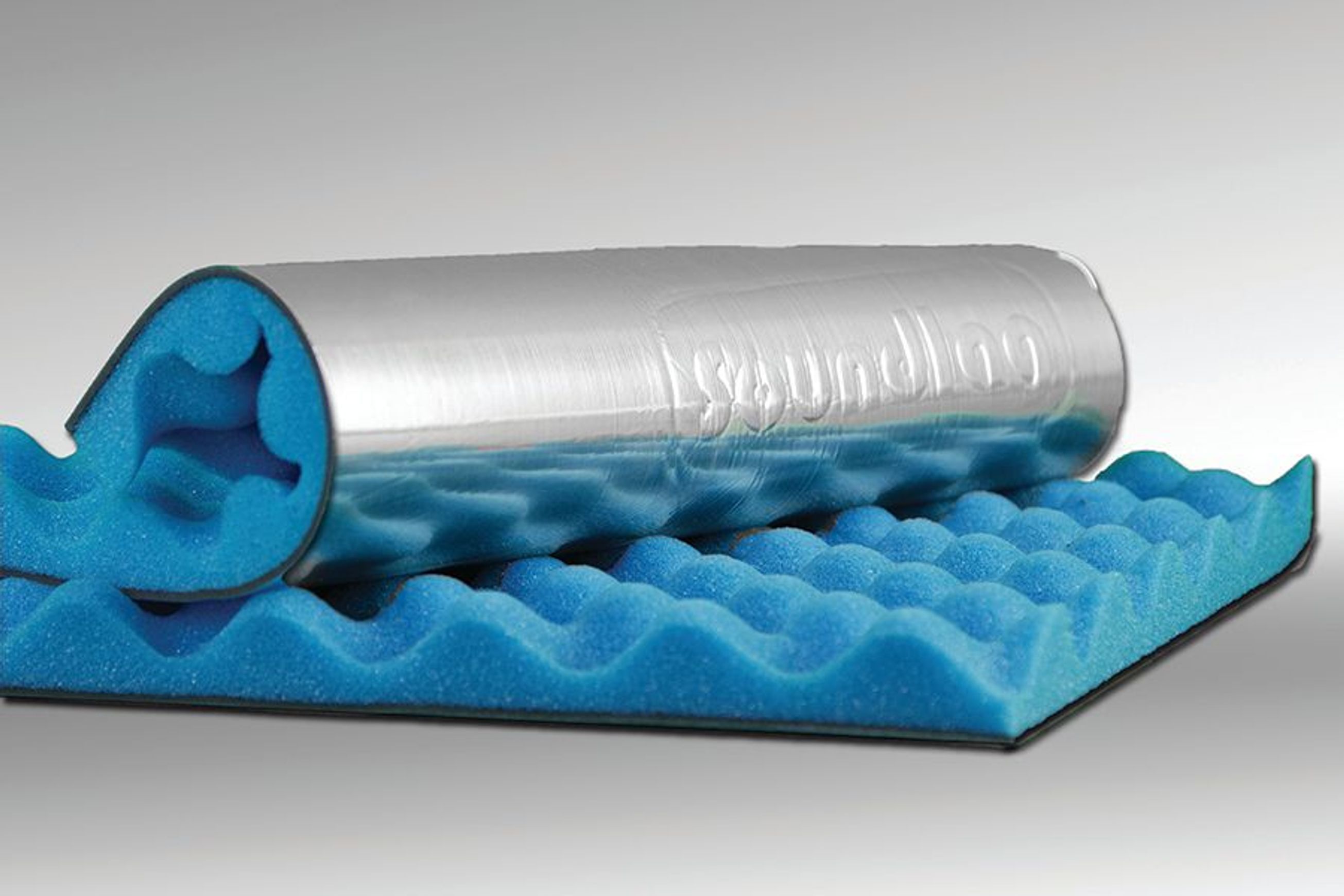

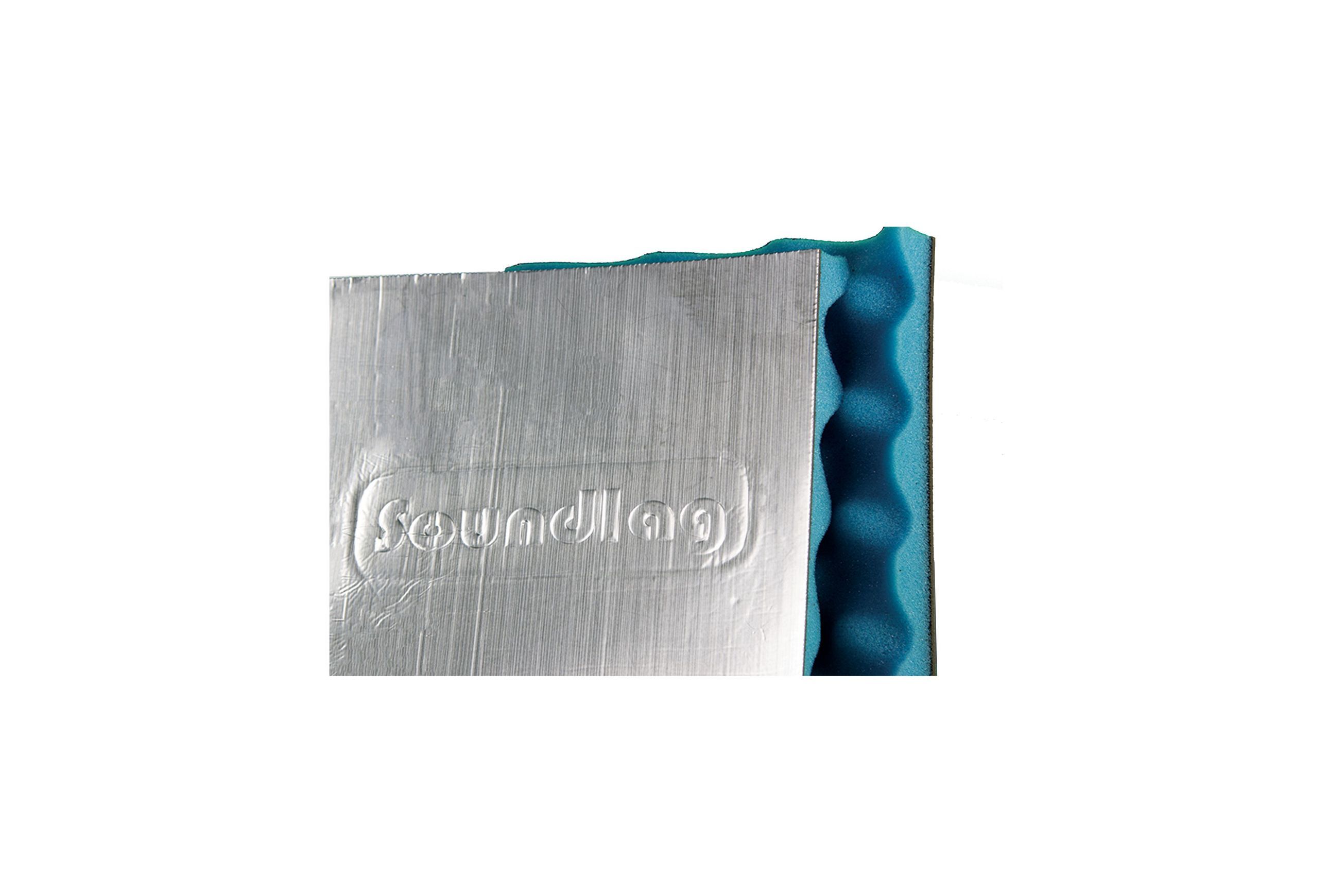

Soundlag is a high-performance composite acoustic lagging product developed to reduce noise from pipes, valves, fan housings, and ductwork in commercial, industrial and domestic buildings. The highly dense and flexible mass layer provides excellent sound reduction properties, whilst the decoupling layer breaks the vibration path between substrate and the mass barrier, allowing the vinyl external wrap to remain flexible; optimising performance. The external foil facing offers a fire resistant covering and an excellent surface to join adjacent sheets.

Pyrotek® offers varying compositions with barrier weights from 3 kg/m² to 8 kg/m² and the decoupling layer with a choice of plain (4512) or convoluted (4525C) foam, polyester, fiberglass, glass wool or quilted glass wool with thicknesses from 6 mm to 50 mm.

Tags

acoustic insulation pipe lagging noise pyrotek

Product Details

Product: Pyrotek Soundlag Acoustic Pipe & Duct Lagging
Category: Acoustic Insulation
Sold by: CSR Potter Interior Systems

Product Variants

Colors

CSR Potter Interior Systems is specified by

Pyrotek Soundlag Acoustic Pipe & Duct Lagging

Visit site

The highly dense and flexible mass layer provides excellent sound reduction properties, whilst the decoupling layer breaks the vibration path between substrate and the mass barrier, allowing the vinyl external wrap to remain flexible; optimising performance. The external foil facing offers a fire resistant covering and an excellent surface to join adjacent sheets. Pyrotek® offers varying compositions with barrier weights from 3 kg/m² to 8 kg/m² and the decoupling layer with a choice of plain (4512) or convoluted (4525C) foam, polyester, fiberglass, glass wool or quilted glass wool with thicknesses from 6 mm to 50 mm.

Soundlag is a high-performance composite acoustic lagging product developed to reduce noise from pipes, valves, fan housings, and ductwork in commercial, industrial and domestic buildings.

Specs: Features

Better performance – up to 5 dB(A) with Soundlag 4525C compared to low noise pipe products without ceiling or areas with penetrations

Free from odour producing oils and bitumen

Contain no ozone depleting substances

Accredited to ISO 9001 Quality Control Standard

Tested to AS 1530.3 with excellent flame resistance

Broad operating temperature range

Reduces noise in hydraulic and waste pipes by up to25.2 dB(A) (4525C)

Varying range of weights and thicknesses

Choice of foam, polyester, fibreglass or glass wool

Can cut to size and simple to install

Easy to bond – matching Tape ALR or equivalent

Endorsed by leading acoustic consultants and engineers
Applications: Hydraulic and waste water pipes

Air-conditioning ducting and shrouds

Compressor wraps

Spa motor wraps
