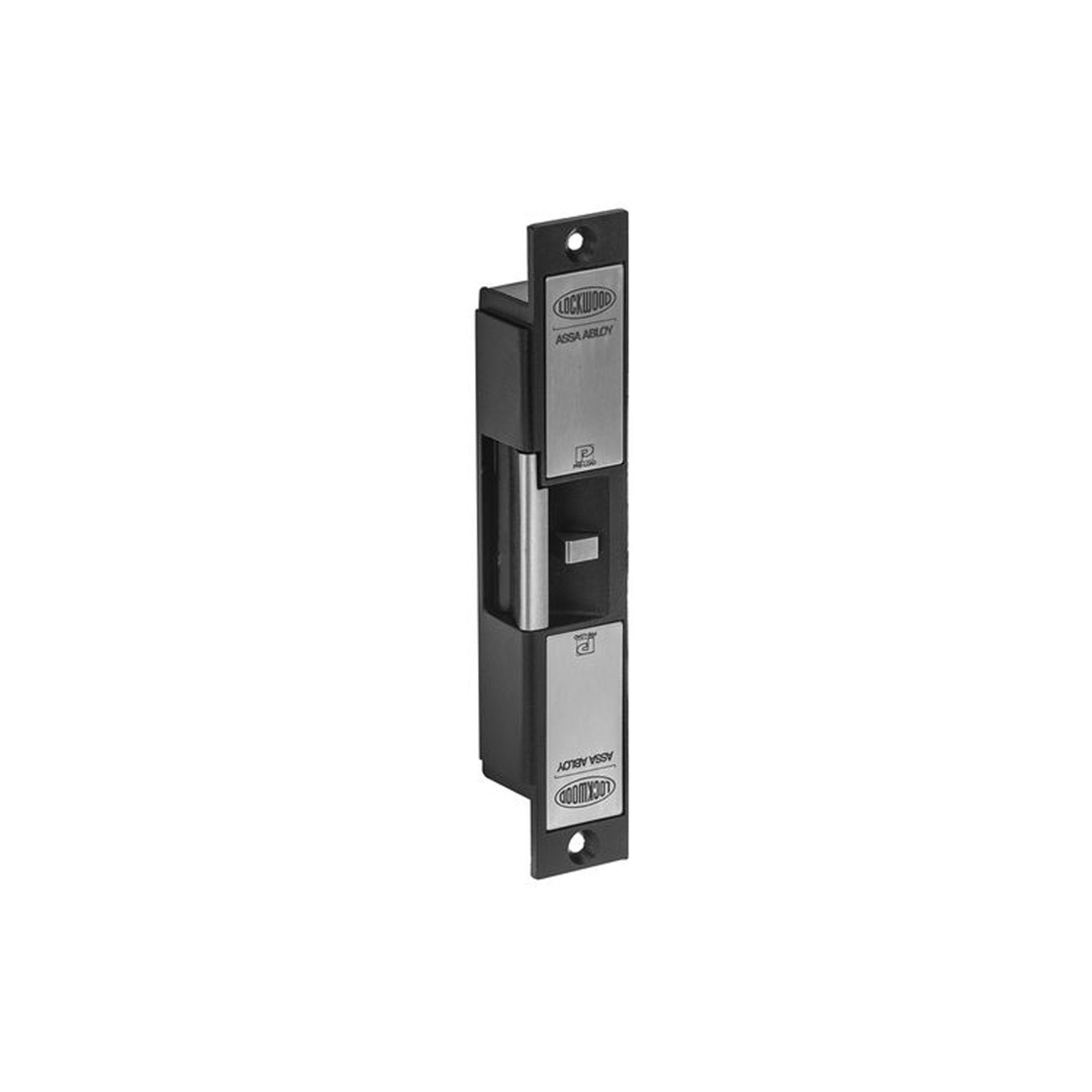

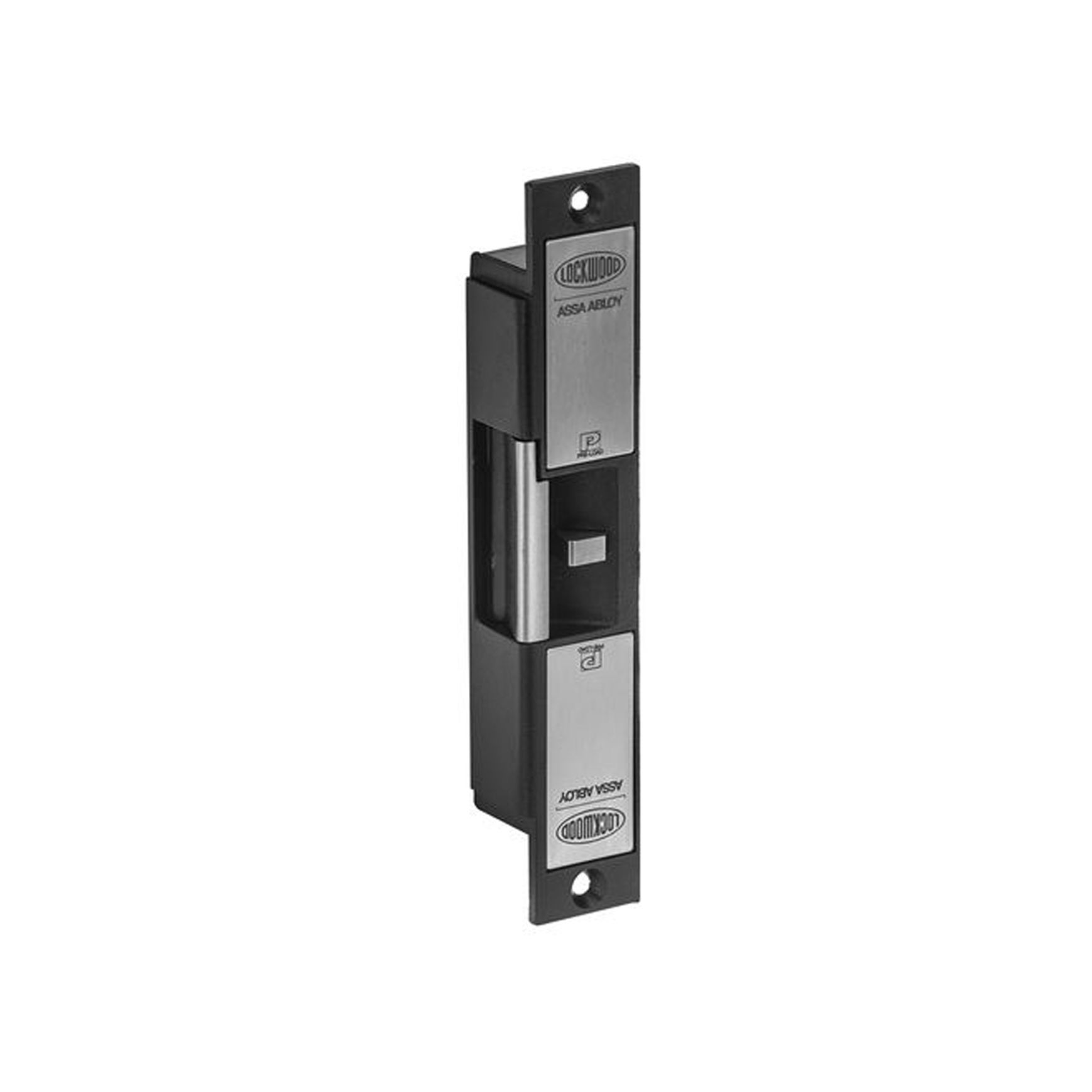

Lockwood Padde Electric Strike 10-30V PA109001060

Padde By Lockwood Series Electric StrikeES9000-060 NOTE: This is a non-stocked item and has a handling time of ten(10) business days after payment has been cleared.

Specs

Specifications:

• Current: 250mA@12V DC - 130mA@24V DC
• Drilled for Lip Extension: Yes
• Field Selectable Fail Safe/Fail Secure: Yes
• Holding Strength: 1300kg
• IP Rating: 54
• Monitored Latch: Yes
• Monitored Solenoid: Yes
• Operates Under Pre-load up to: 25kg
• SCEC Endorsed: Yes
• Working Voltage: 10V~30V DC
• Fire Rated: Yes
• Finish: Black

Scope of use

Electric Strike intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.

• A high security product manufactured from solid stainless steel and designed to be used with most access control systems.
• 4 hour fire rating. And Australian Government listed.
• Designed, developed and manufactured in Melbourne.
• Overcomes the real life issue of side pressure, commonly known as pre-load, easily opening with up to 25kg of pre-load applied to the strike. Pre-load is commonly caused by pulling on a door before it unlocks, by the weight of warped or drooping doors or by differential air pressure created by heating and cooling systems.

Features:

• Includes lip holes
• Operates under pre-load up to 25kg
• 4hrs fire rating when used with an approved door set
• Suitable for use on hinged doors with fire or security requirements
• Field selectable fail safe / fail secure
• Equipped with a silencer pad on the keeper which significantly reduces noise when the strike is operated
• Fully monitored strike locked and door closed status
• Australian designed and made Approvals / Certifications C-Tick & CE compliant.
• Solenoid rated for continuous use
• Built in protection diode.
• Mounting tabs as supplied standard
• Weather resistant (IP54)
• Solenoid monitor - 1 amp NO/NC microswitch
• Door/latch monitor - 1 amp NO/NC microswitch
• Stainless steel striker
• Suitable for 15 mm latch and 3 mm door gap
• 3 hardened locking pins.
• Solenoid can be continuously powered
• Self adhesive installation template
• 1300kg static strength rating
• 1,200,000 cycles endurance rating @ 25kg pre-load
