The JNF 3D invisible hinge closes the door perfectly in line with the wall leaving the hinge concealed. The hinge body is made of die-cast zinc alloy. The final finish is made by an epoxy coating, guaranteeing ultimate resistance to oxidation, a uniform finish and resistance to scratches. The 3D hinge is adjustable in depth, horizontal and vertical. The JNF Coplan Series hinge is tested for 200.000 cycles.
Product Details
- Product
- JNF Coplan 3D Adjustable Concealed Hinge 175
- Category
- Door and Window Hinges
- Sold by
- Mardeco
- Pricing
- $79.98
- Brand
- JNF Architectural Hardware
- Warranty
- 5 years
Mardeco is specified by
Chow:Hill ArchitectsArchitects
Studio FoxArchitects
Dravitzki Brown ArchitectureArchitects
Stephen Jones ArchitectsArchitects
Leuschke Group ArchitectsArchitects
Borrmeister ArchitectsArchitects
SGAArchitects
Kella Design CoInterior Designers
White Wood HomesBuilders
Elizabeth KaramKitchen & Bathroom Designers
Honour CreativeInterior Designers
Bosanac BuildersBuilders
Kitchen LinkKitchen & Bathroom Designers
Paton KitchensKitchen & Bathroom Designers
Faulkner ConstructionBuilders
Boffa MiskellLandscape Architects
Regal KitchensKitchen & Bathroom Designers
Design House ArchitectureArchitectural Designers
CTRL SpaceInterior Designers
Matakana Kitchens & JoineryCarpenters & Cabinetmakers
Wonder.Architectural Designers
Bridget Foley DesignInterior Designers
Michael Murray StudioInterior Designers
DJS CabinetryCarpenters & Cabinetmakers
Kitchen CreatorsKitchen & Bathroom Designers
Ockham ResidentialProperty Developers
Auckland Waterproofing ServicesWaterproofers
JS KitchensKitchen & Bathroom Designers

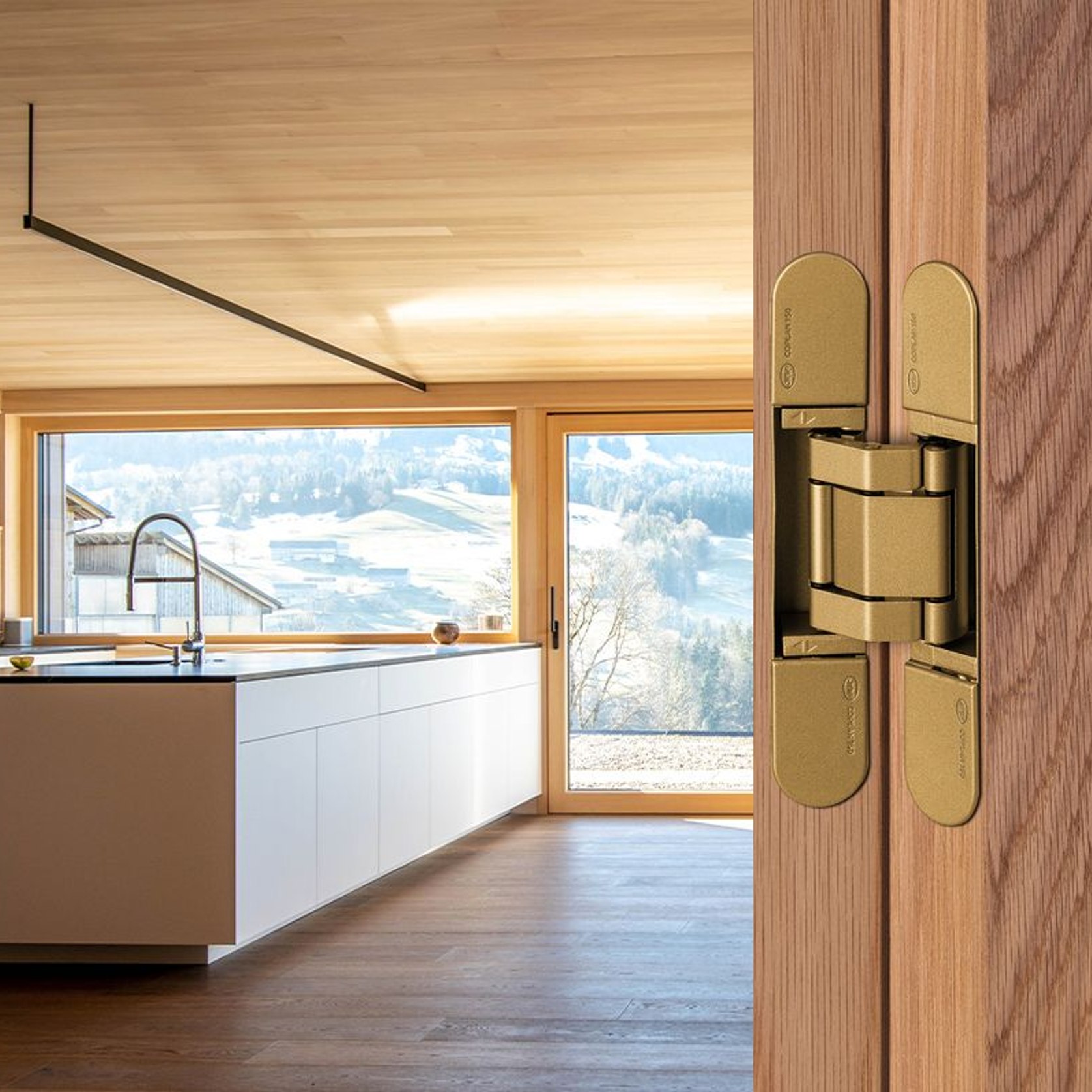

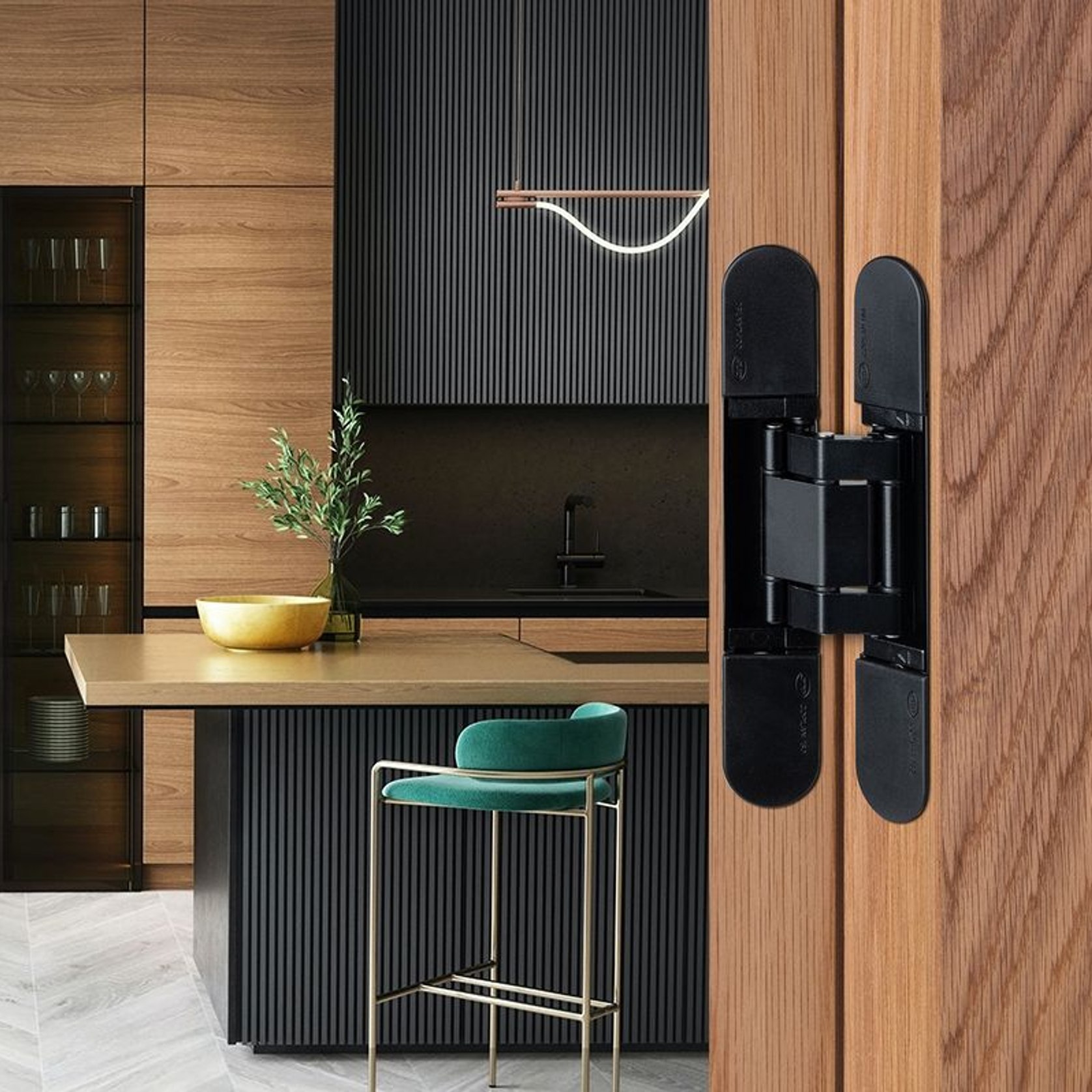

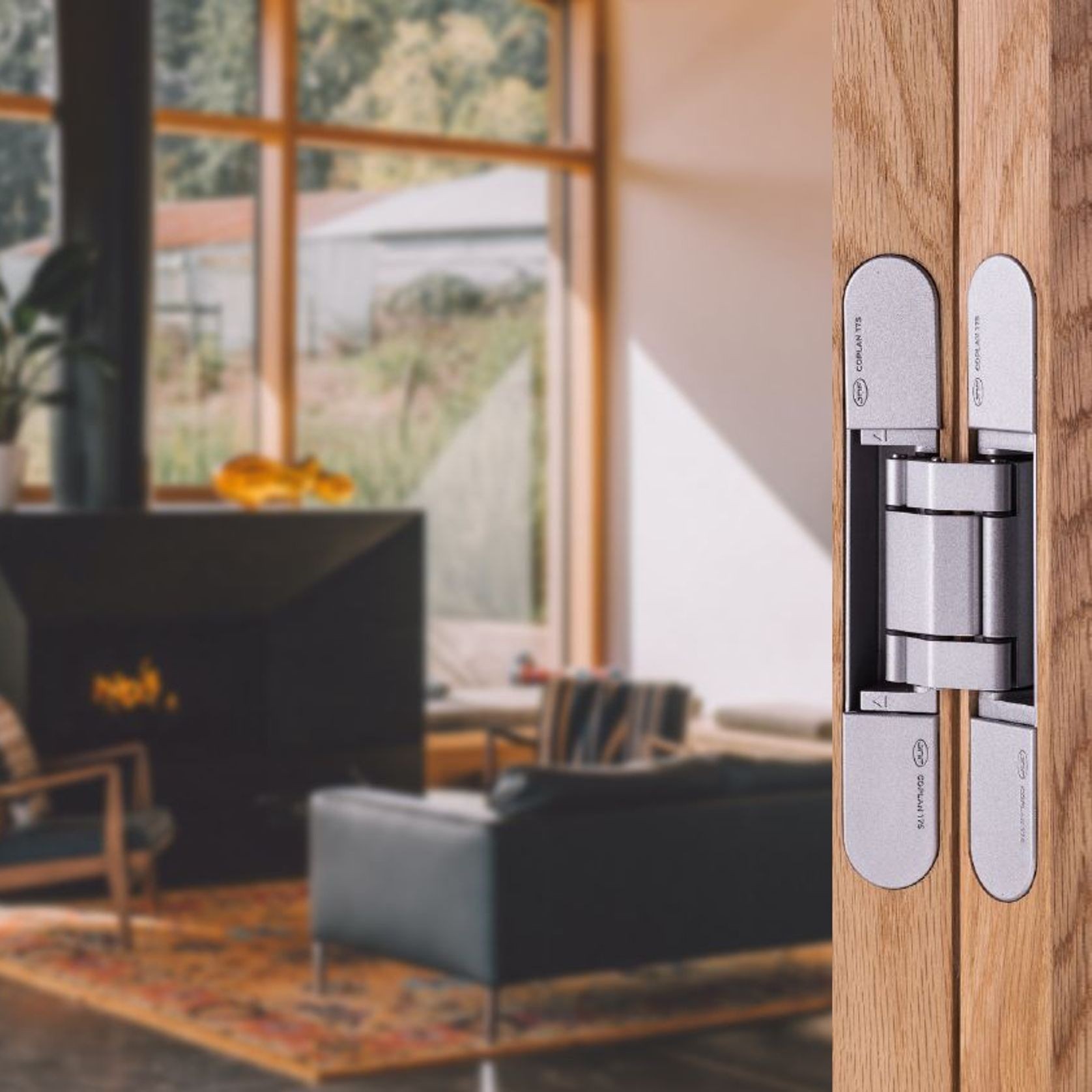

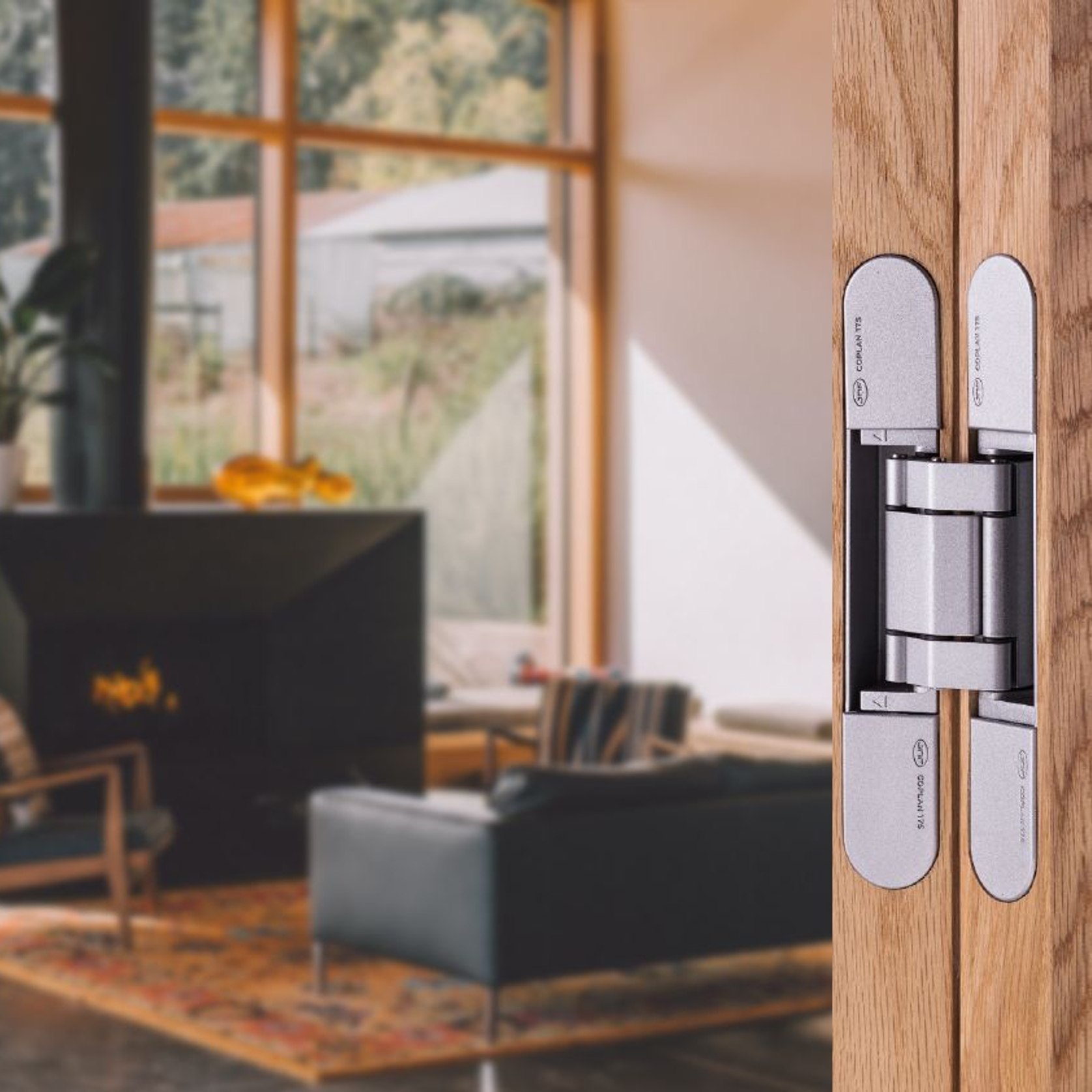

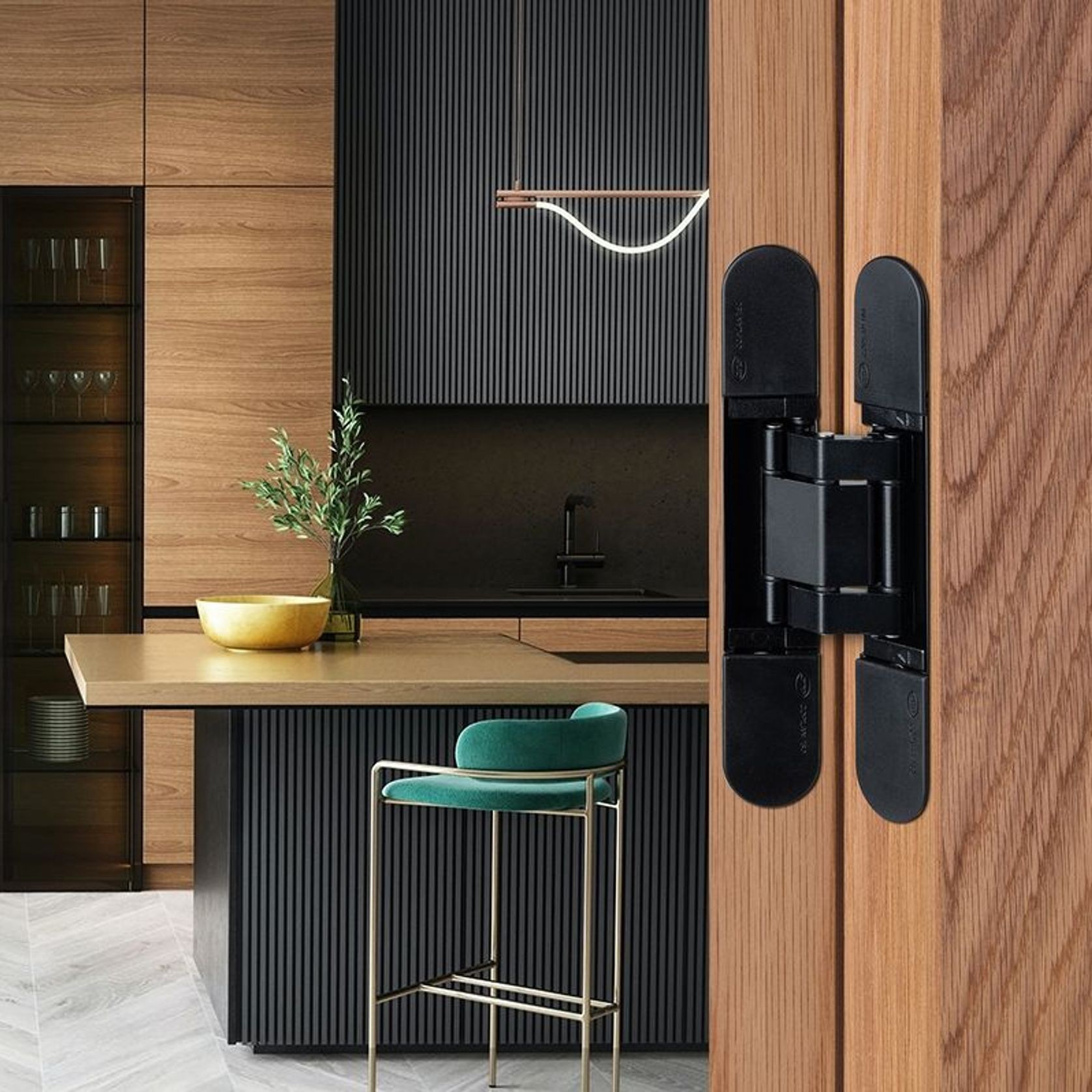

The JNF 3D invisible hinge closes the door perfectly in line with the wall leaving the hinge concealed.
The hinge body is made of die-cast zinc alloy. The final finish is made by an epoxy coating, guaranteeing ultimate resistance to oxidation, a uniform finish and resistance to scratches. The 3D hinge is adjustable in depth, horizontal and vertical. The JNF Coplan Series hinge is tested for 200.000 cycles.
- Features
This hinge allows three-dimensional adjustment. The door can be aligned in three axes making possible the perfect alignment of the door with the wall where there is frameless architecture.
- Maximum opening angle of 180 degrees.
- Hinge reversible for right/left doors
- Self-lubricating anti-friction washers.
- Suitable for doors with thickness of 40 mm or above.
Finishes - Satin Chrome - Matt Black
Manufactured of Zinc
- Specs / Details

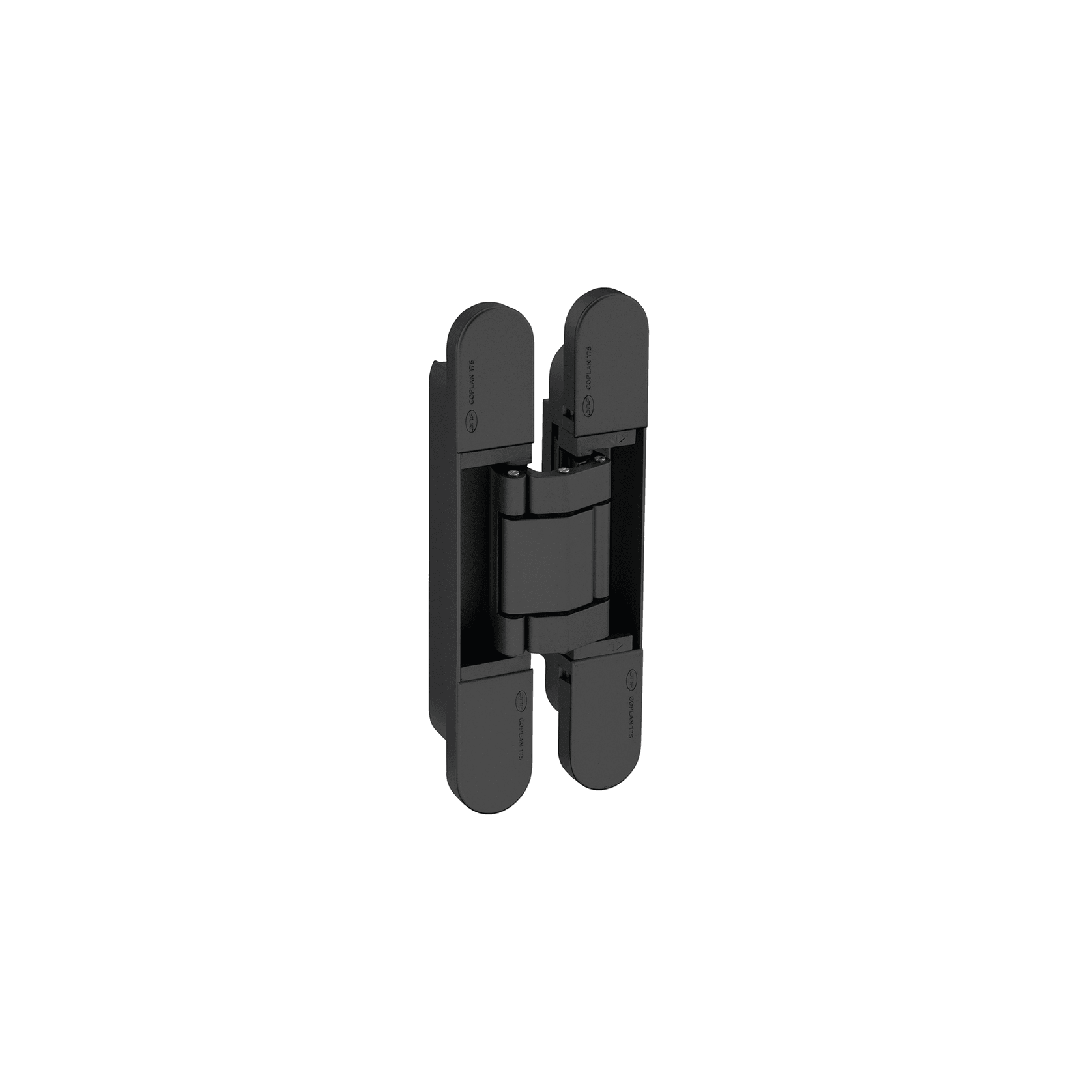

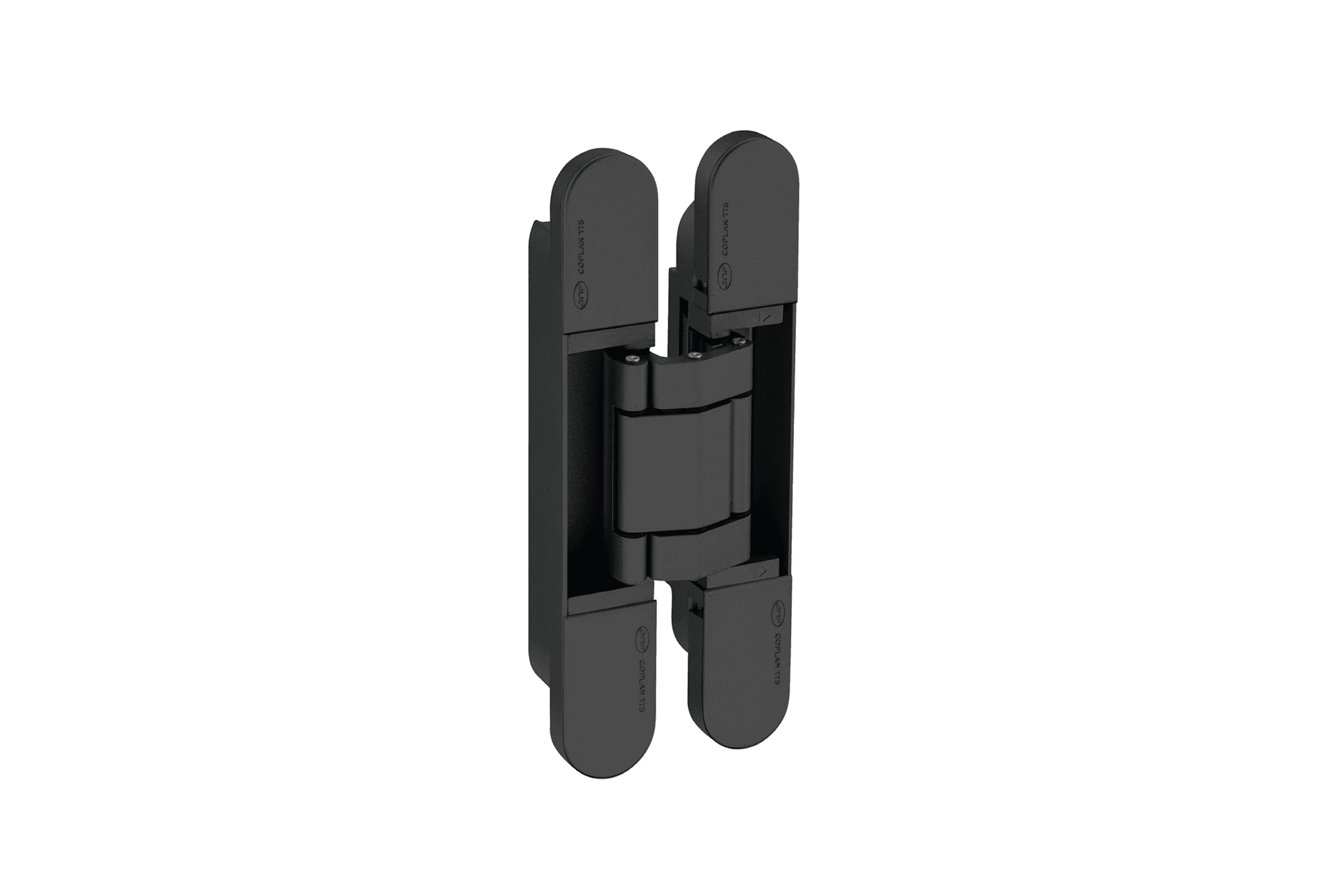

IN.05.062 3D Adjustable Concealed Hinge 175
Material:
- Zinc
Finish:
- Satin
- Black
