Iron Batten Pivot Entry Doors - Galvanised FWA50

Zen Doors & Windows

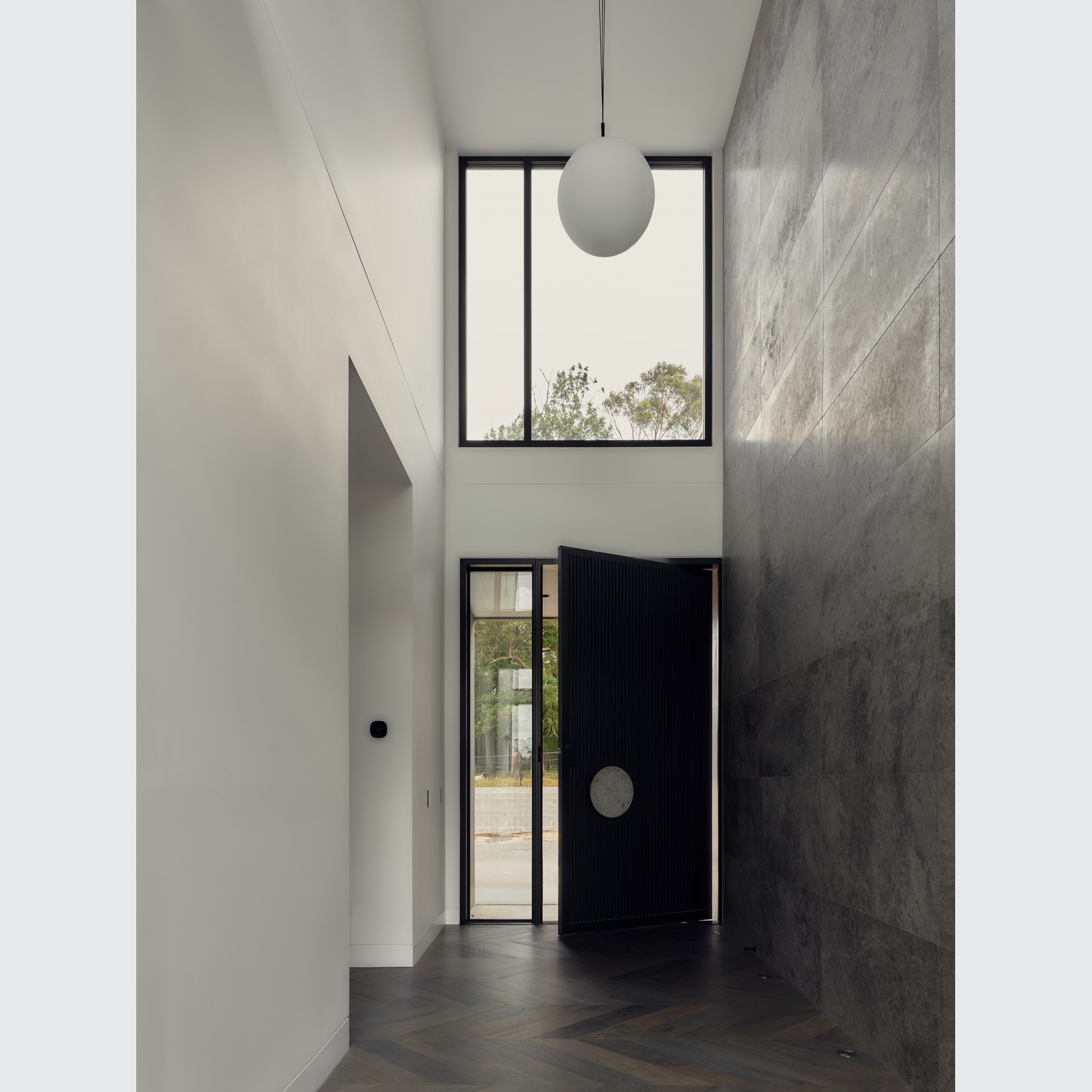

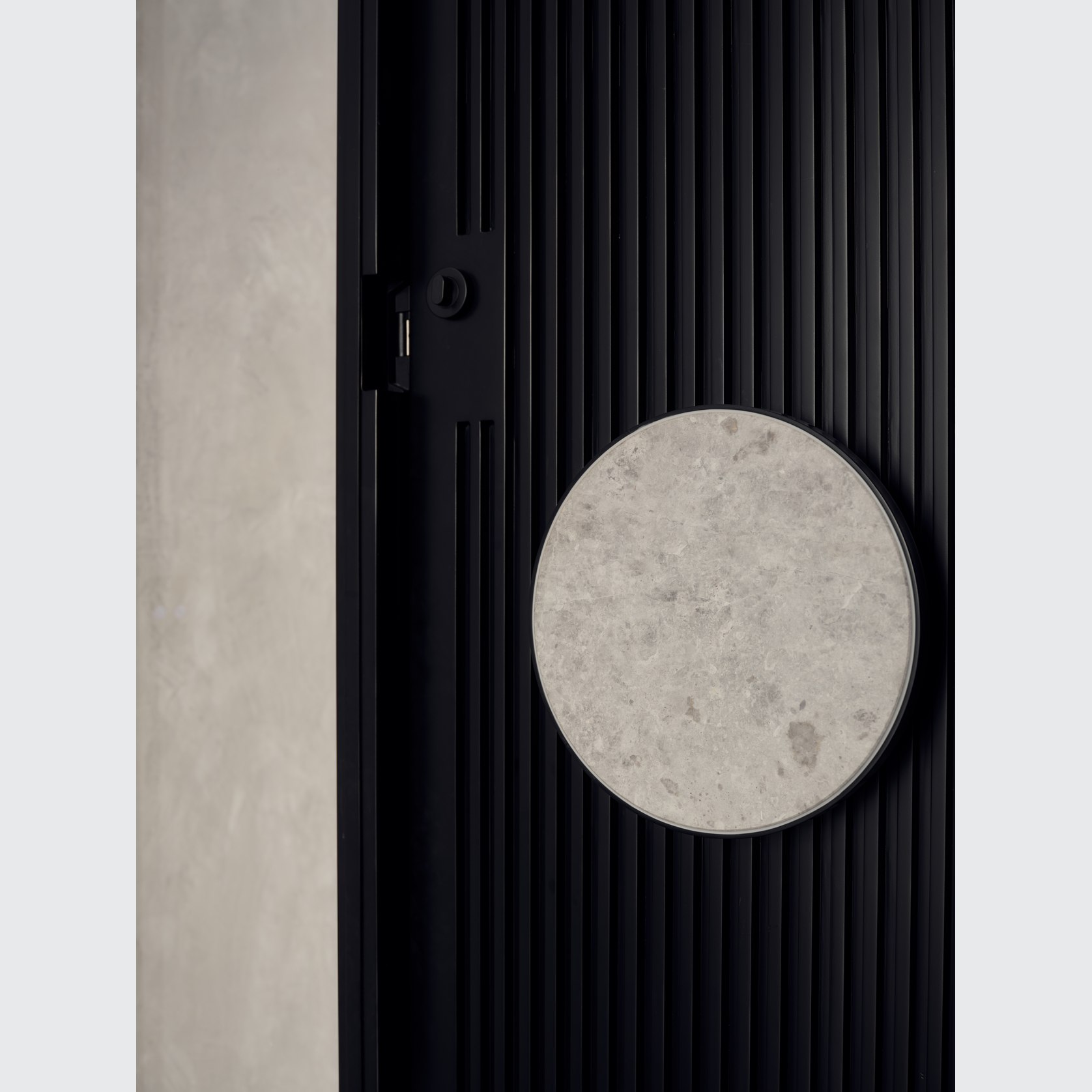

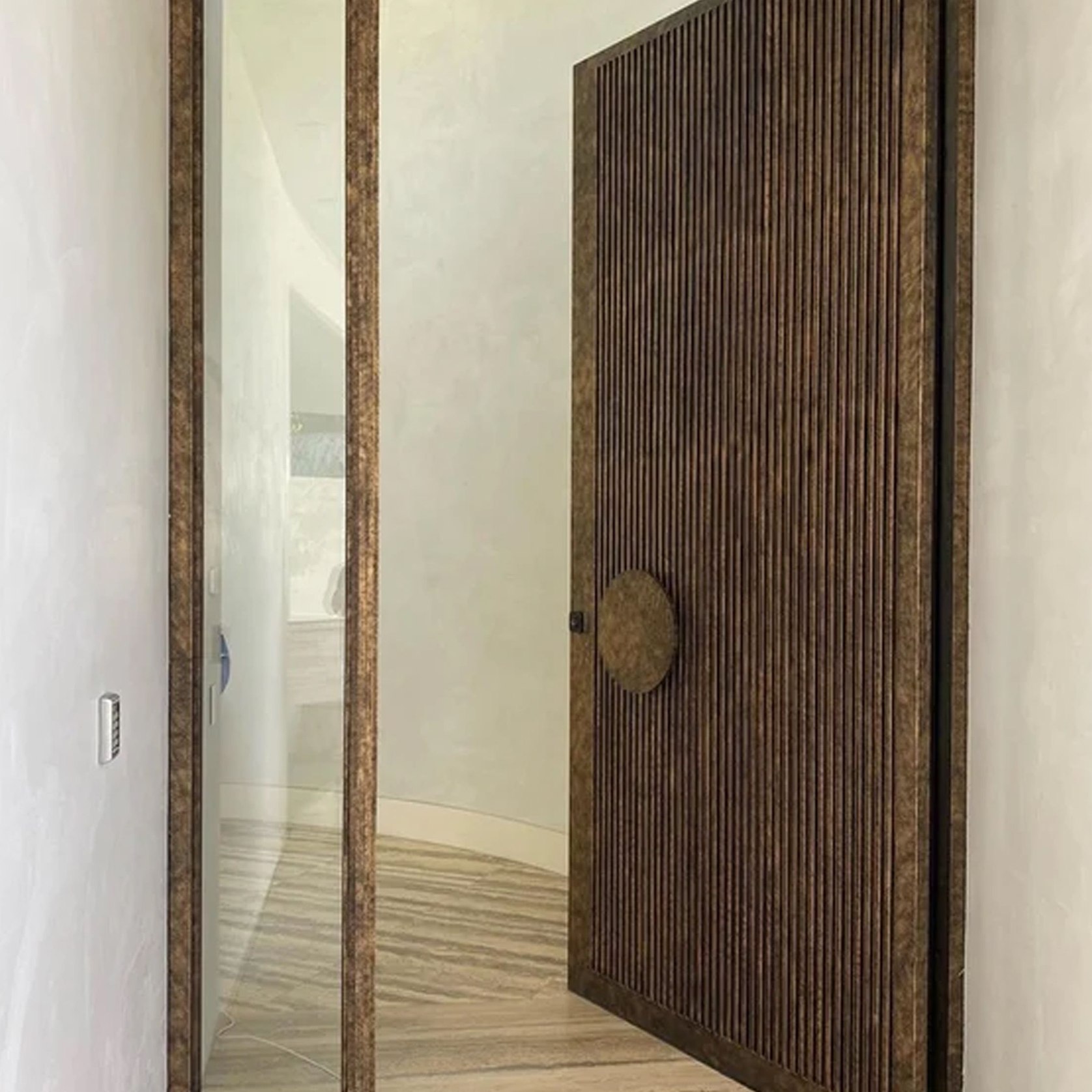

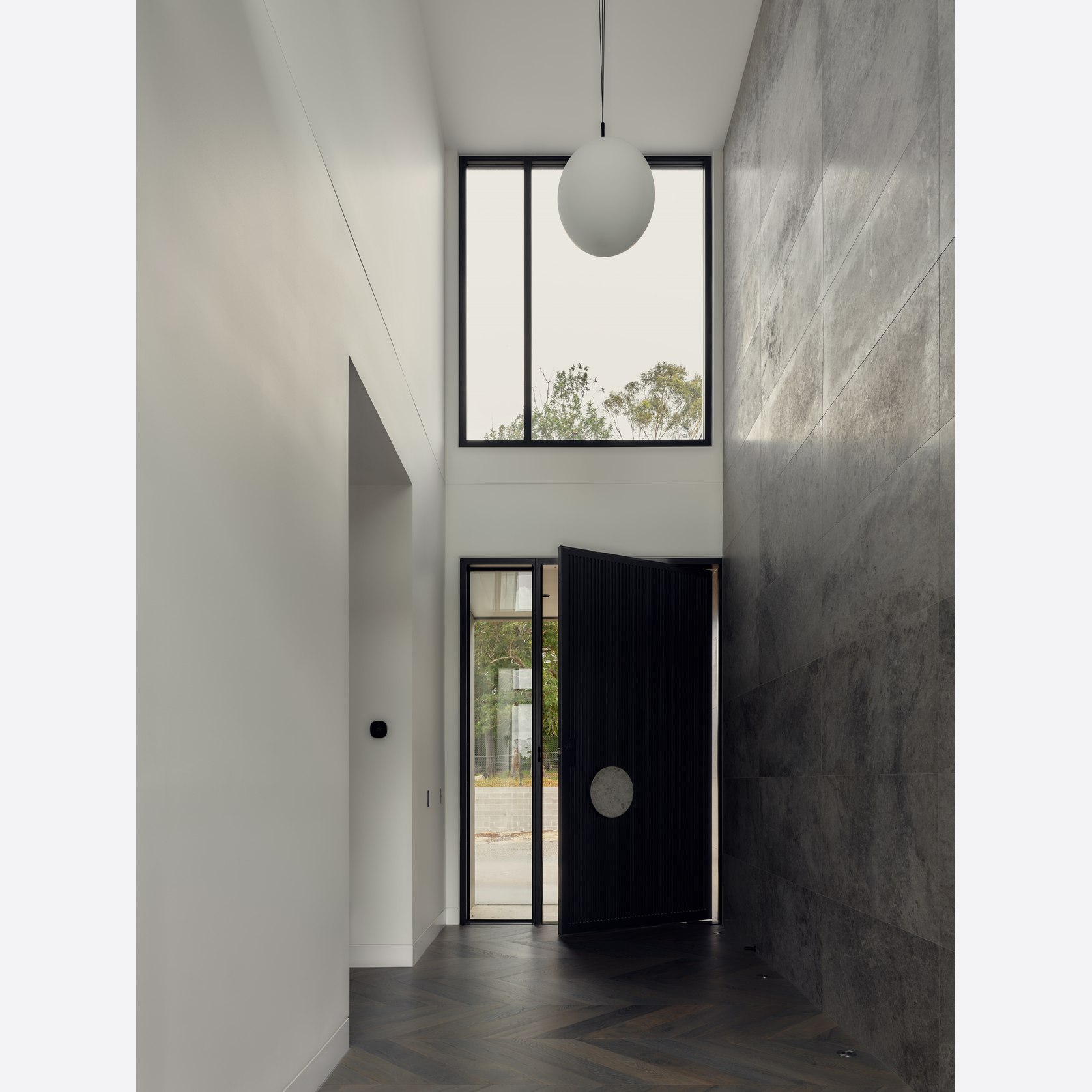

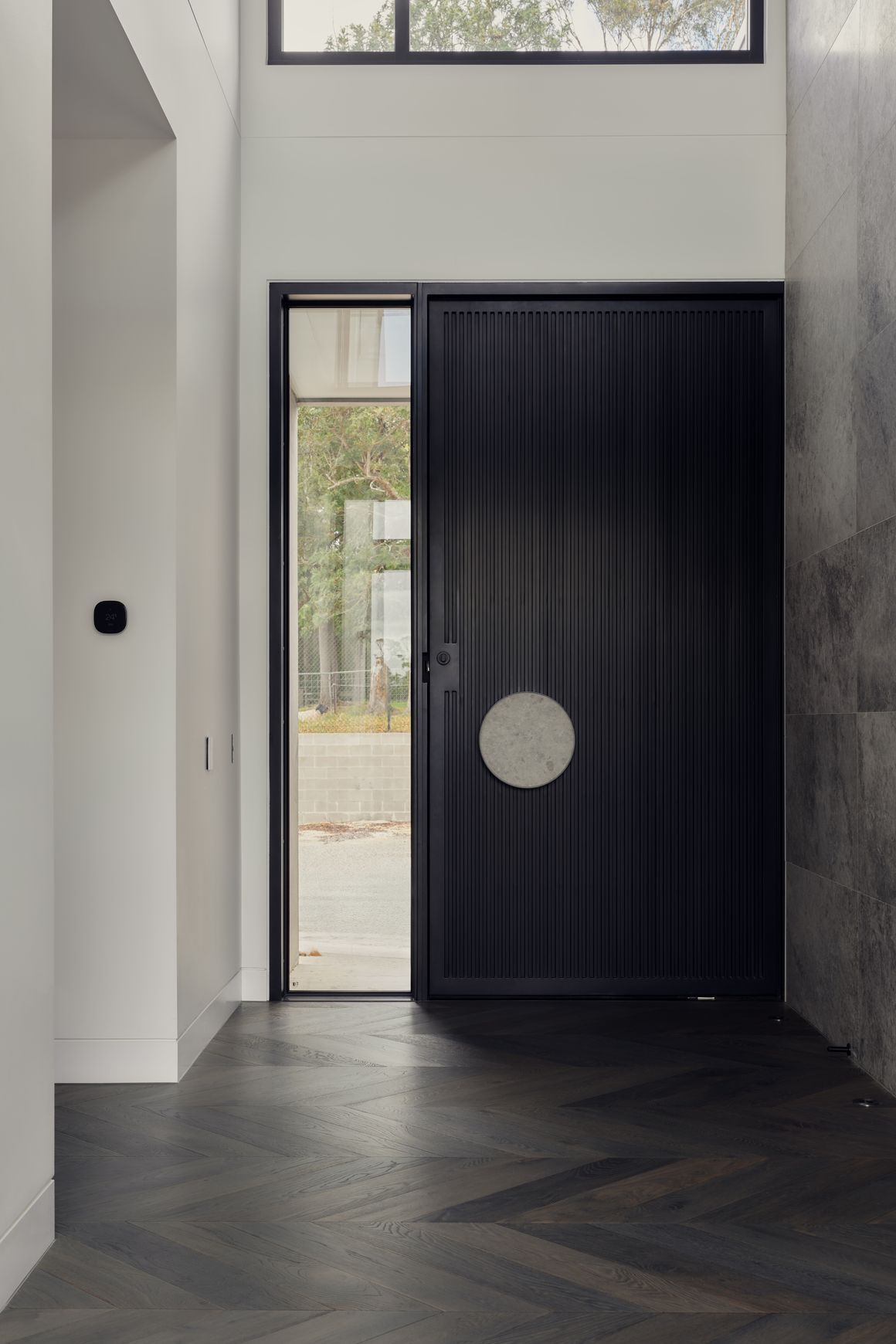

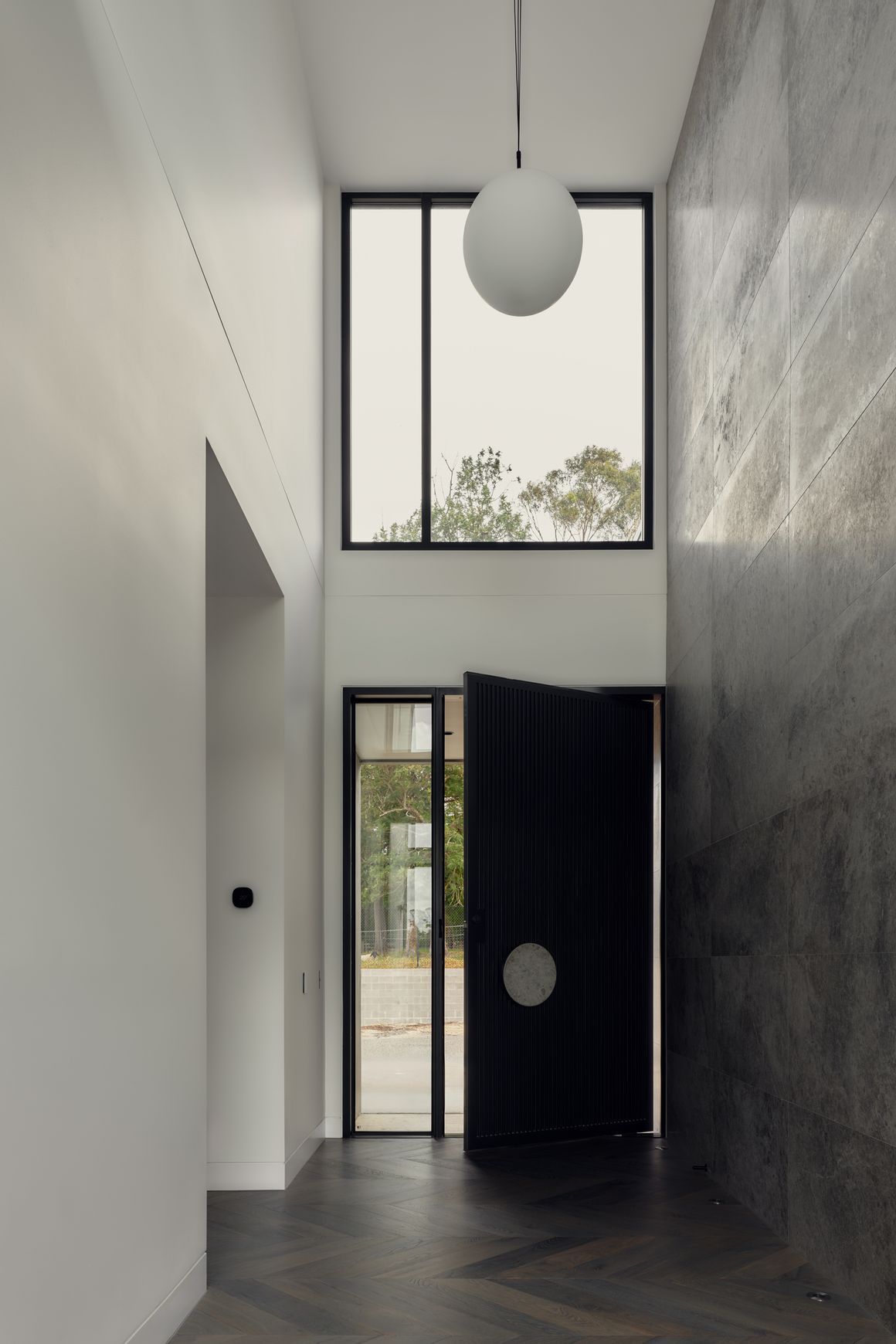

Iron Batten Pivot Entry Doors – Galvanised

Designed for strength, insulation, and visual impact, the FWA50 Solid Iron Panel Profile redefines the standard for premium entry doors. Constructed with a solid iron panel and a 45mm polyurethane core, it offers exceptional thermal and acoustic performance while maintaining a bold architectural presence. The FWA50 system provides unmatched security and is ideal for statement entryways that demand both function and finesse.

Each door panel is sandblasted, galvanised, and finished with a fluorine carbon coating for superior weather resistance and long-term protection.

Not Applicable
Details
Specifications
  • Zen Batten Iron Pivot Entry Doors – Galvanised
  • Door Design: Visit our Iron Door Designs Page
  • Door Type: Pivot Door
  • Location: External
  • Pivot Hardware Model:B.G.T01.0000.049 300kg Rated (YES Adjustable Closing Speed & Hold Open Function)B.G.T01.0000.072 500kg Rated (NO Adjustable Closing Speed or Hold Open Function)Fritsjurgens System M+ 500kg Rated (YES Adjustable Closing Speed & Hold Open Function)
  • Pivot installation: Concealed within door panel and Head/Floor/Sill Mounted Silver Plate/Pin
  • Mounting Type: Tabs Outside of Jamb, Pre-Drilled Mounting Holes Inside of Jamb – visit our Mounting Types page for more options
  • Door Jamb: 50mm x 150mm/200mm
  • Open way (entering): In-Swing or Out-Swing
  • Sill/Threshold: 25mm x 150mm Forward Sloping or Square
  • Door Bottom Rubber Seal or Brush Seal: Optional
  • Roller Catches: Top and Bottom
  • Glass Type: Visit our Glazing options page
  • Glass Thickness: Visit our Glazing options page
  • TDL: 20T or 30T
  • Beads: CTL 10, CTL15, CTM20, CTM30
  • Colour Finish: Visit our Paint Finishes page
  • Lever Handles: Visit our Pittella page
  • Pull Handles: Visit our Custom Pull Handles page
  • Locks: Visit our Pittella page or Lock Options page

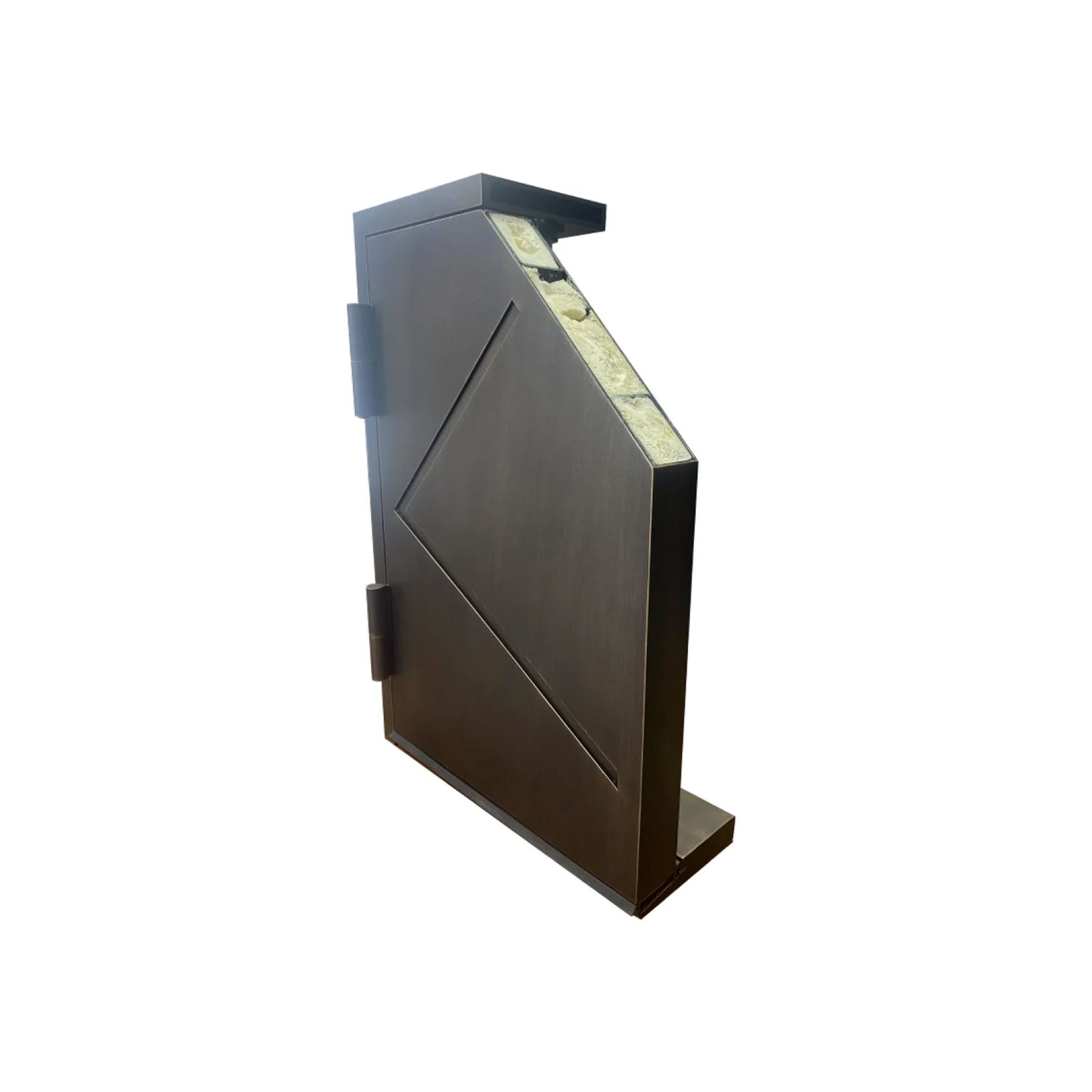

  • Material: 2.5mm iron clad inside/outside, 45mm polyurethane core
  • Surface treatment: Zinc-magnesium pre-coating for corrosion protection
    Gritblasting SA 2.5; The 1st layer is a sealing primer; The 2nd layer is a high-durable top coating; Total thickness is at least 150-180 microns according to VMRG quality requirements.
  • Paint: 4FC (Fluorocarbon) (DAIKIN of Japan)
  • Package: Sealed Wooden Box
  • CAD Design Drawing: Yes
Features
  • Unique Modern Architectural Design, Unlike Anything Else on the Market
  • Hand Made Construction for a Quality High End Finish
  • Built from Iron, Sandblasted, Galvanised, Zinc Primed and Finished with Weatherproof Zinc Paint, Which is Corrosion and Rust Resistant
  • Fluorocarbon Coating, a superior finish to Powder coating
  • Iron Door Jamb Included for Extra Strength and Longevity
  • Designed to Impress, Built to Last and Keep Your family Safe and Secure
  • Heavy Duty Pivot Hardware
  • 5 Year Warranty – Must comply with our installation requirements.
