HB2237 300mm + HB2247 600mm Off-Set D Pull

Halliday + Baillie

Add a touch of timeless elegance to glass, timber, or aluminium doors with the HB2237 300mm and HB2247 600mm offset pull handles, expertly crafted from solid brass.

These pulls can be used as through fix, back to back pairs, and have fittings for use on glass doors. The addition of the HB2260 Knob provides both a finishing detail and can be used similar to a cabinet knob when the pull is required to one side of the door only.

Our D Pulls are fabricated from solid brass, and as such they are heavy. For cabinetry thickness doors (18-25mm) where a pull is required to one side of a door or drawer only, we recommend using shorter lengths, or for longer lengths using the through fix sets for optimum stability. We advise installing the optional flange/rose on all single side fixing, and on installations into soft woods such as cedar and pine.

Satin-Brass-Living-Finish
Details
General
  • Country of origin
    New Zealand
  • Care and cleaning
    Easy maintenance
  • Installation
    Professional installation recommended
  • Assembly
    Professional assembly recommended
Scope of use

Extending the flexibility of the HB2200 Series solid brass D Pulls, the HB2237 and HB2247 Offset D Pulls, allow installation on bi-parting doors and where narrow stiles on a door would leave a straight D Pull too close to the frame. Offset pulls are ideal for allowing extra hand room, and make a design statement in their own right.

Features

Milled in solid brass, Offset D Pulls come in two centre to centre 300mm and 600mm lengths and are available in 4 finishes Aged Brass, Polished Brass, Satin Brass, and Black Chrome. Please note that all brass finishes are unlacquered and will age gracefully over time. Pulls come with a variety of fixing sets as below, along with a matching HB2260 Knob, as an option for single side fixing.

All D Pulls are sold with an additional solid brass rose. Installation of the rose is optional depending on your aesthetic, but it is strongly recommend for use on soft wood timbers such as cedar and pine.

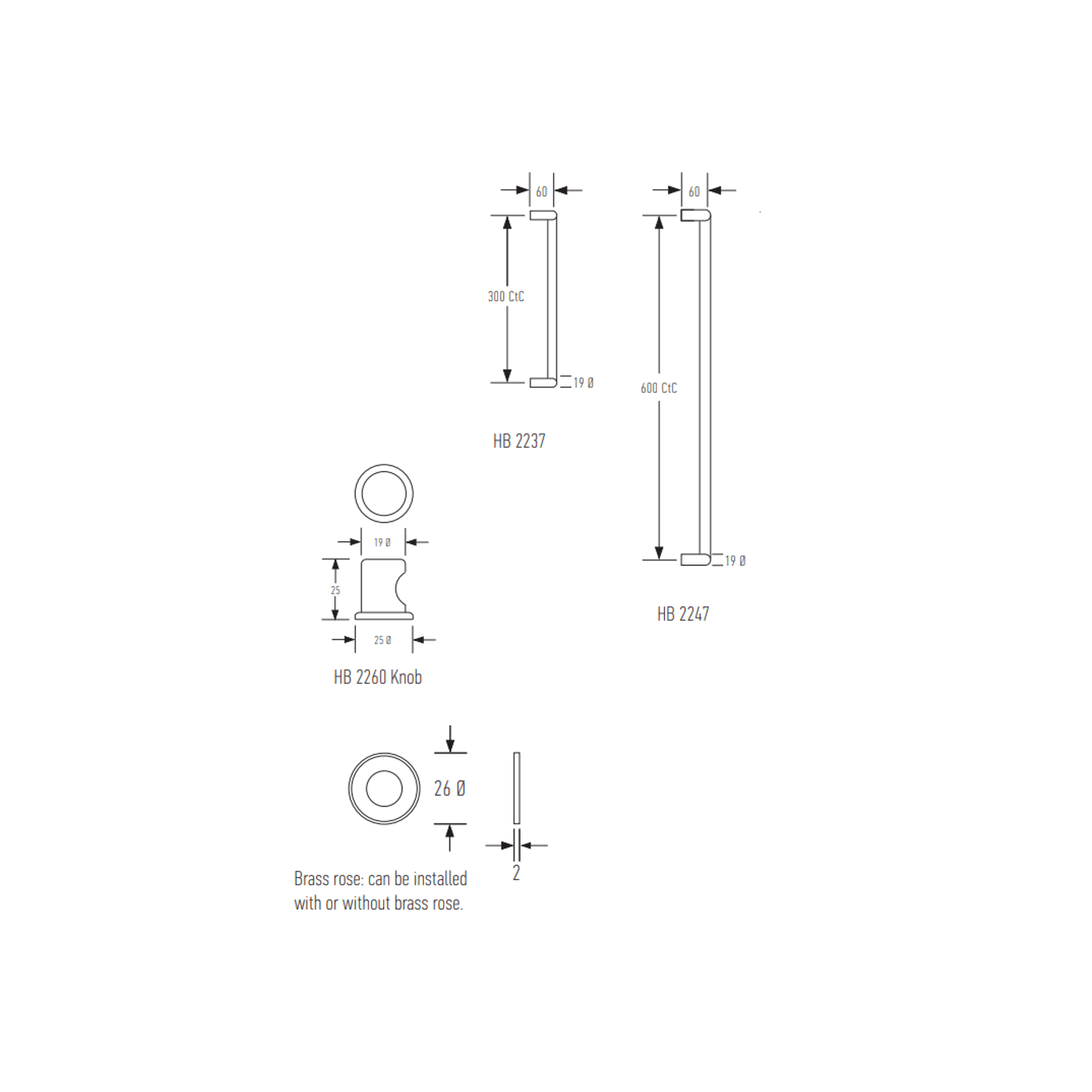

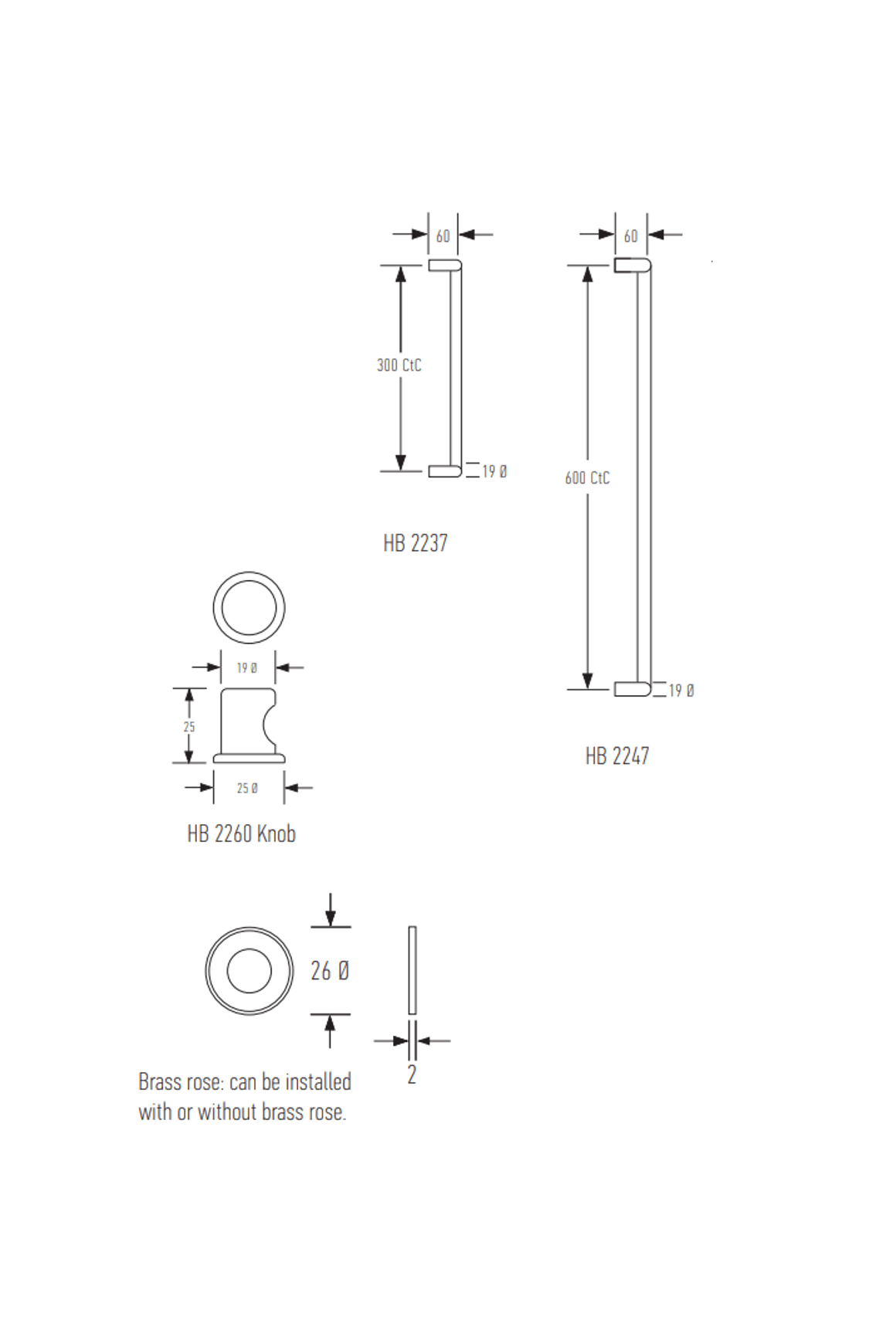

Specs / Details

Material : Solid Brass Rod, Solid Stainless Steel fixings

Dimensions :

HB2237: 19mm Rod, 300mm centre to centre measurement.

HB2247: 19mm Rod, 600mm centre to centre measurement.

Finished in Aged Brass (AB), Polished Brass (PB), Satin Brass (SB) and Black (KC). All brass finishes are unlacquered allowing graceful aging over time. Additional custom finishes by request – please see your local Halliday + Baillie dealer for more information.
