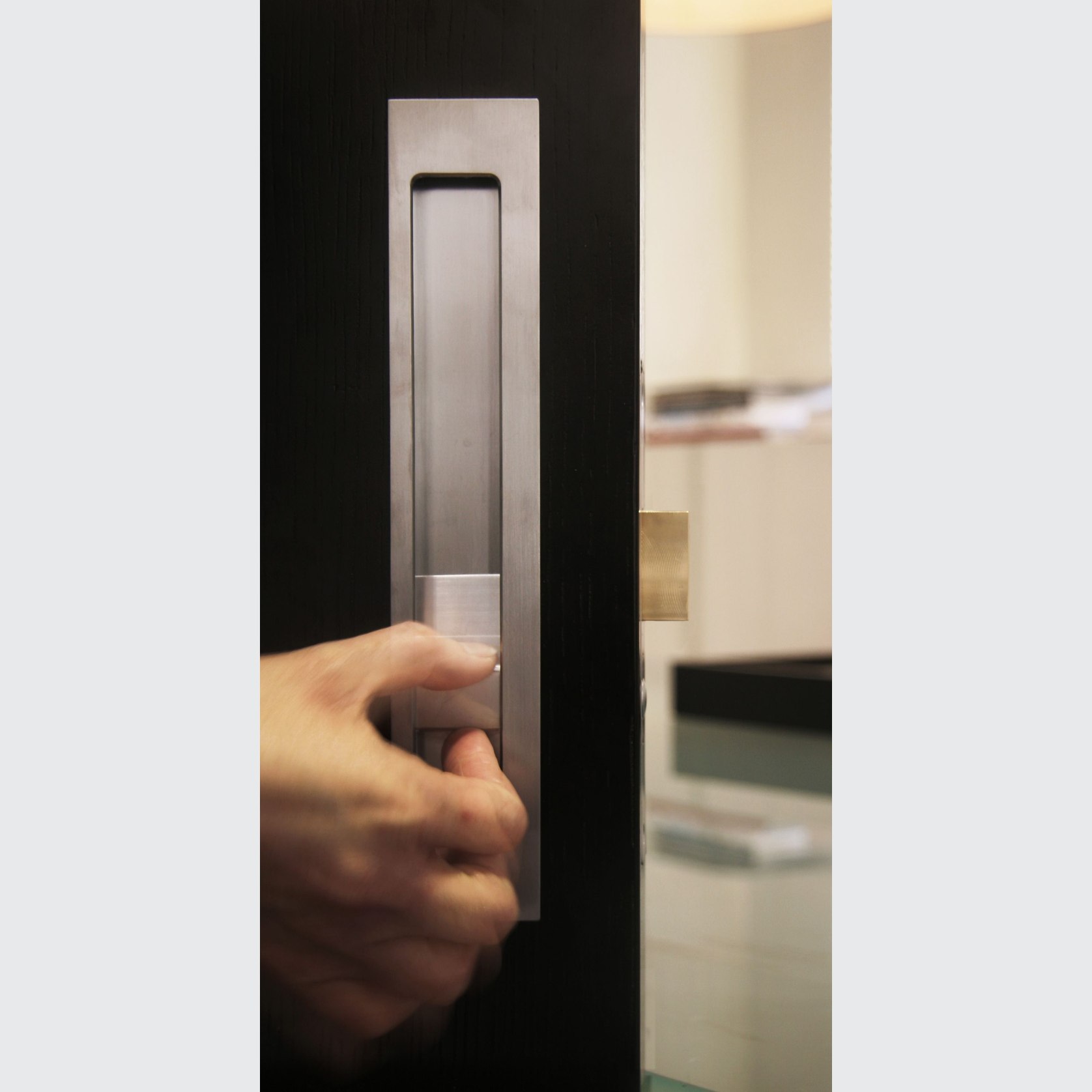

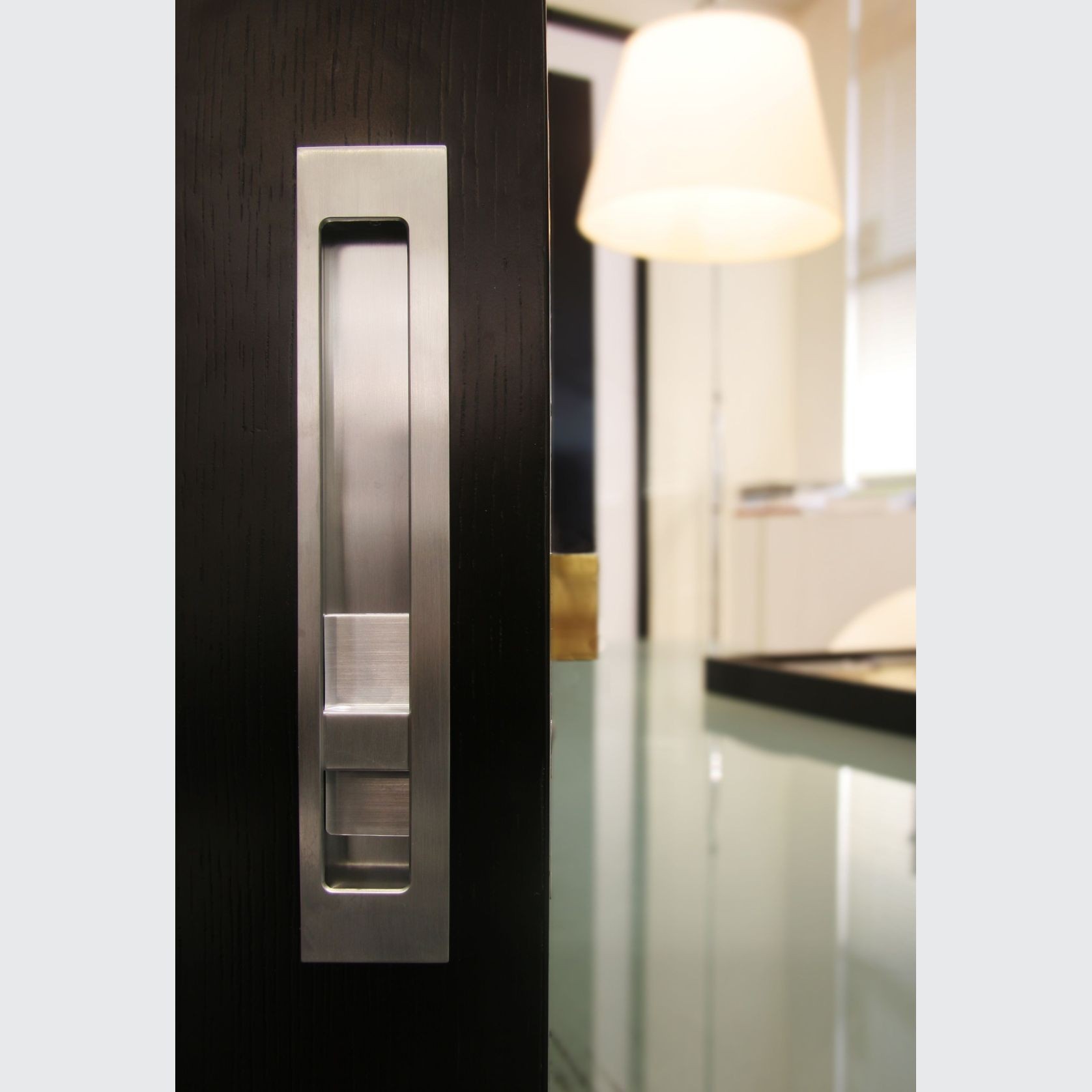

HB1650 D OFFSET FLUSH PULL LOCK FOR HINGE AND PIVOT DOO

The HB1650 D Series has been developed in conjunction with the standard HB1650 Series sets to work on pivot, hinge and bi-fold doors.

The sets with 250mm long flush pulls can also function on sliding doors and in a bi-fold capacity and come as left or right handed sets, with various functions including a privacy option. See below for order code and function details.

Material: Zinc die cast and brass

Backset : 55mm

Minimum door thickness : 46mm

Flush pulls : 250mm x 45mm x 15mm

Suitable for timber or aluminium doors of suitable thickness.

For finish options please see our current Finishes Sheet. Please check with your local Halliday + Baillie representative as not all finishes are available in all regions.

Flush pulls are designed to be mounted with the body within the thickness of the door, and the face surface mounted – total projection is 2mm. Fully recessed mounting is possible on timber doors with the appropriate door thickness. Using glue, epoxy or silicone products etc to secure flush pulls to the door is not required or recommended for installation, and may void warrantee. Glue, epoxy, or silicone products can be used to secure the spindle slide to the back of the snib flush pull for example where sets have a flush pull to one side only.

Configurations:
HB1650 – Deadbolt Privacy Set, Snib In, Emergency Release Out, HB691 Body
HB1656 – Deadbolt Snib Inside, Blank Out, HB691 Body
HB1657 – Deadbolt Snib Inside, Nothing Out, HB691 Body
HB1658 – Deadbolt Snib Both Sides, HB691 Body
