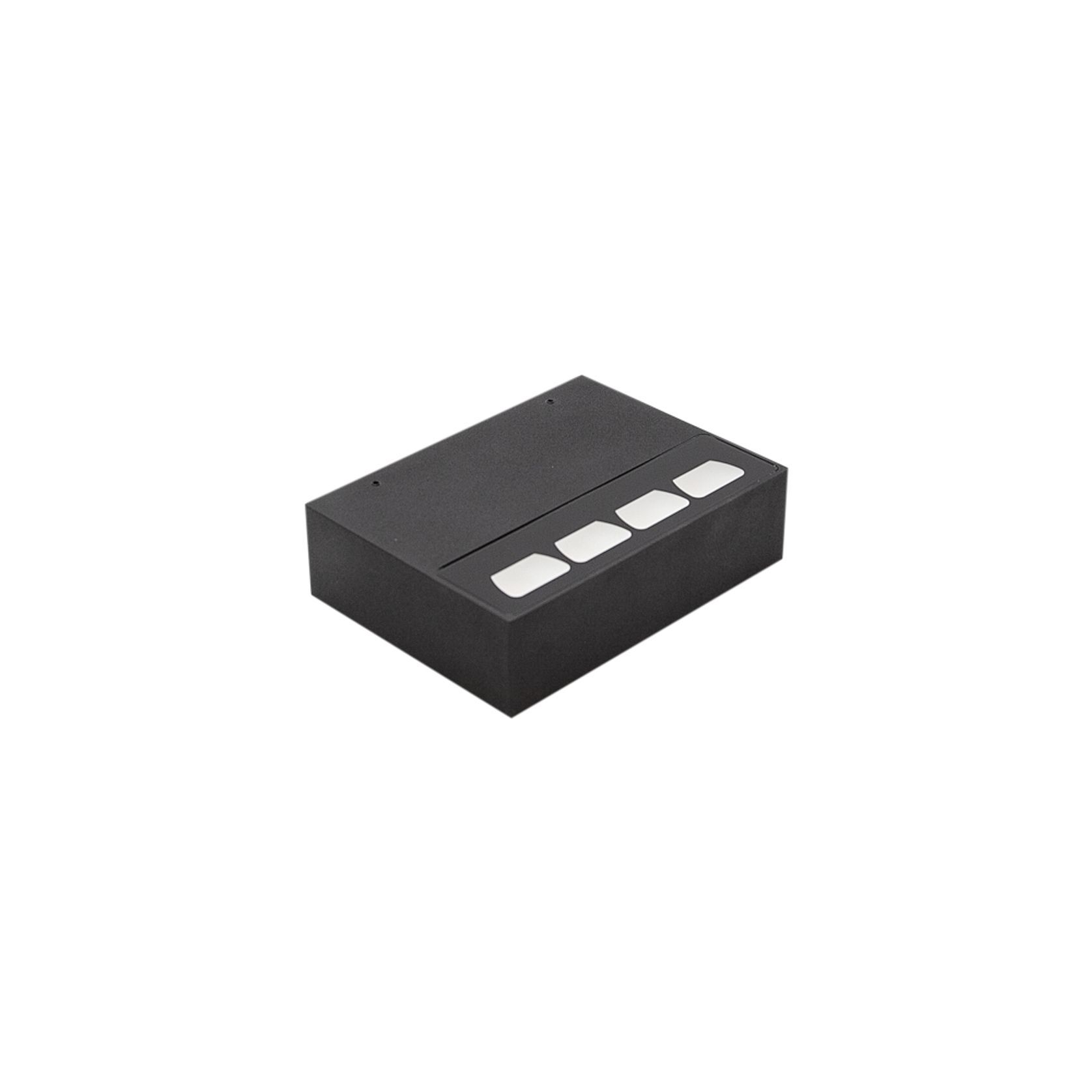

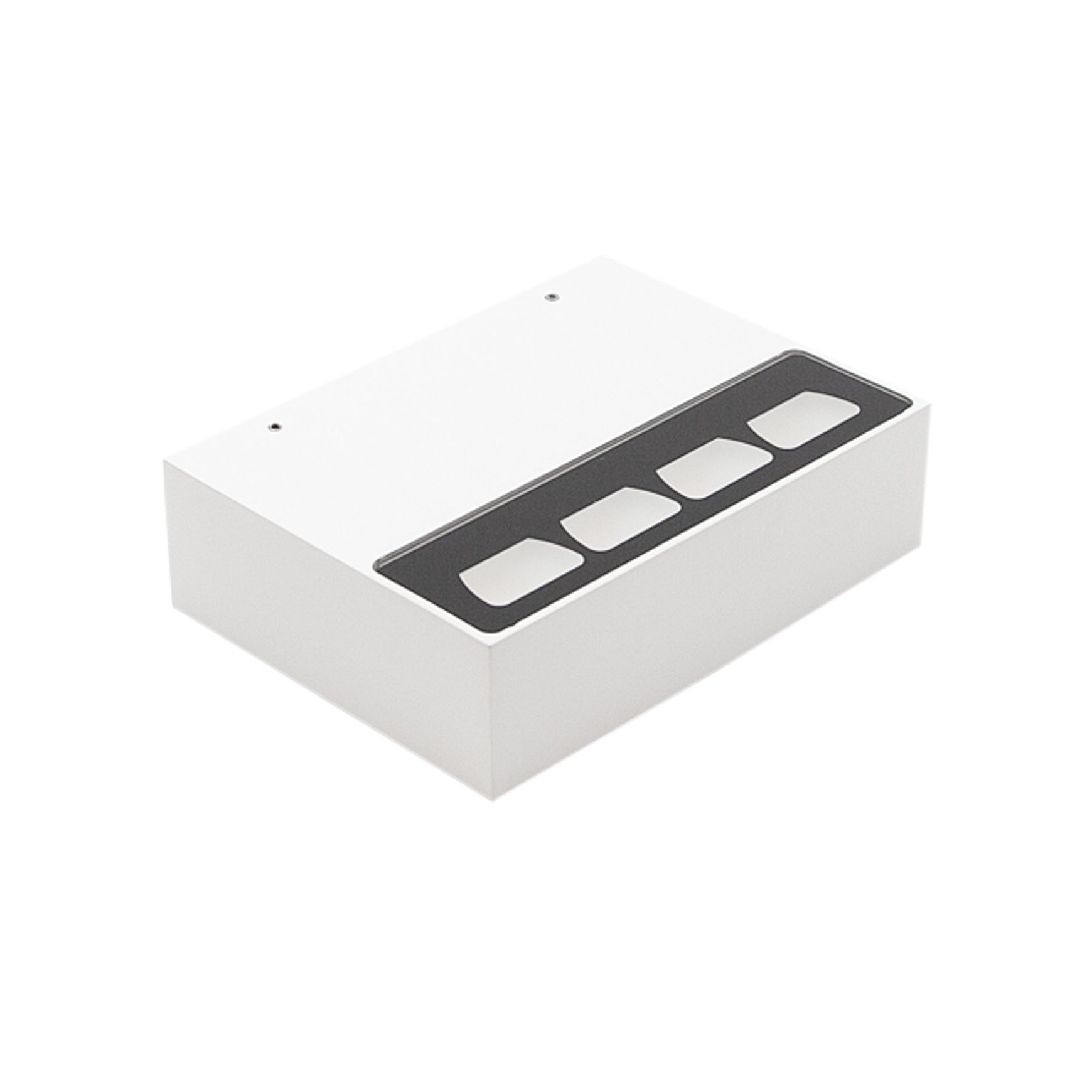

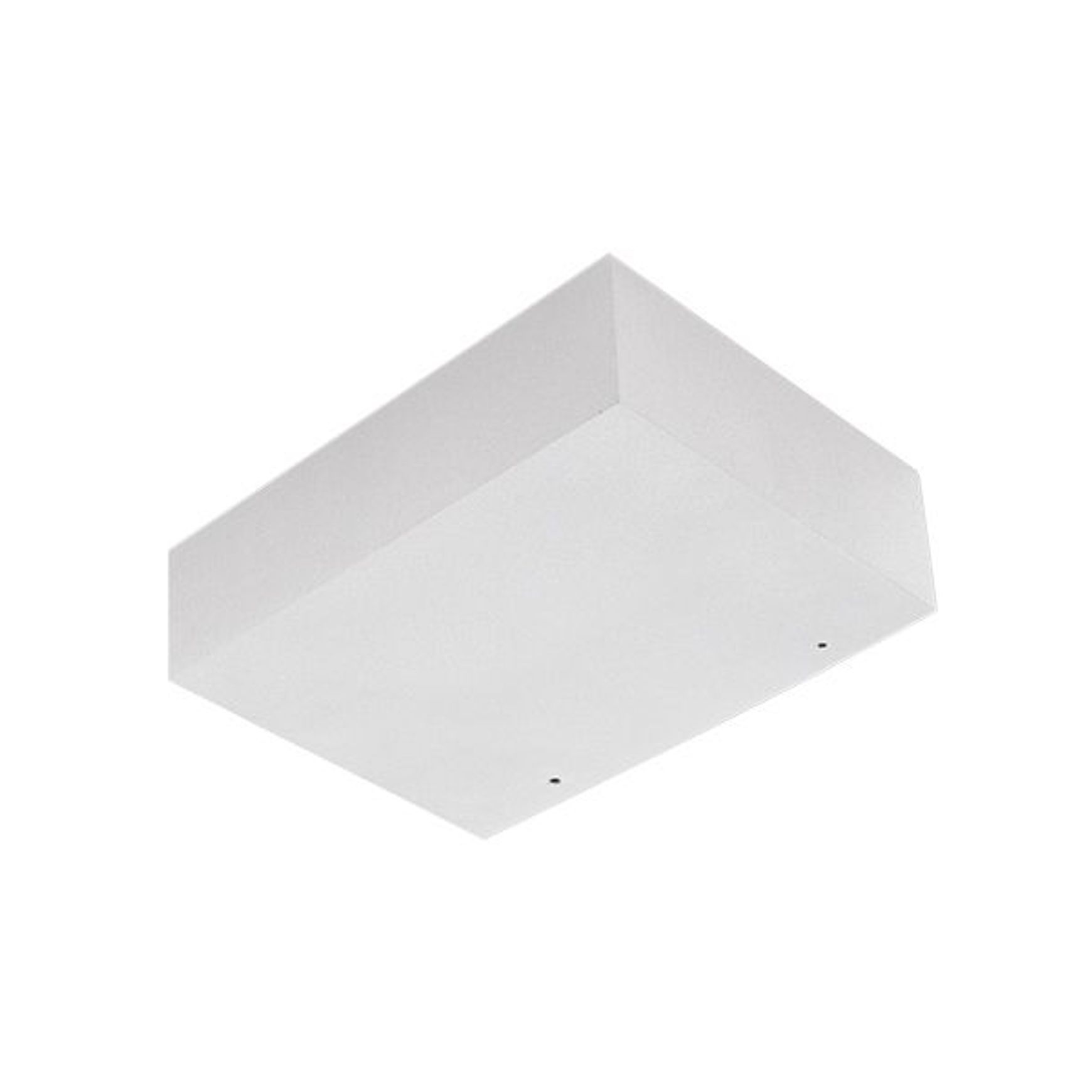

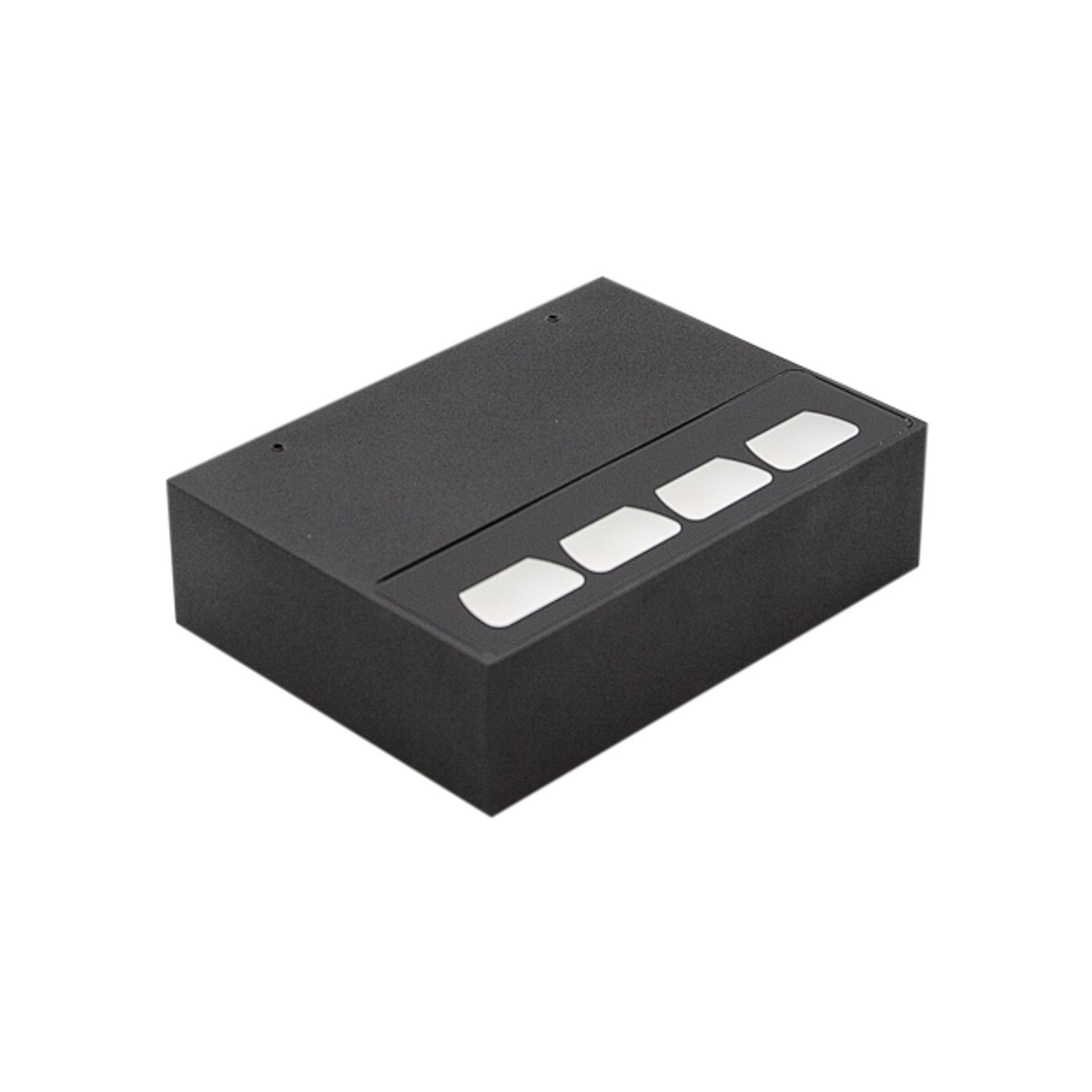

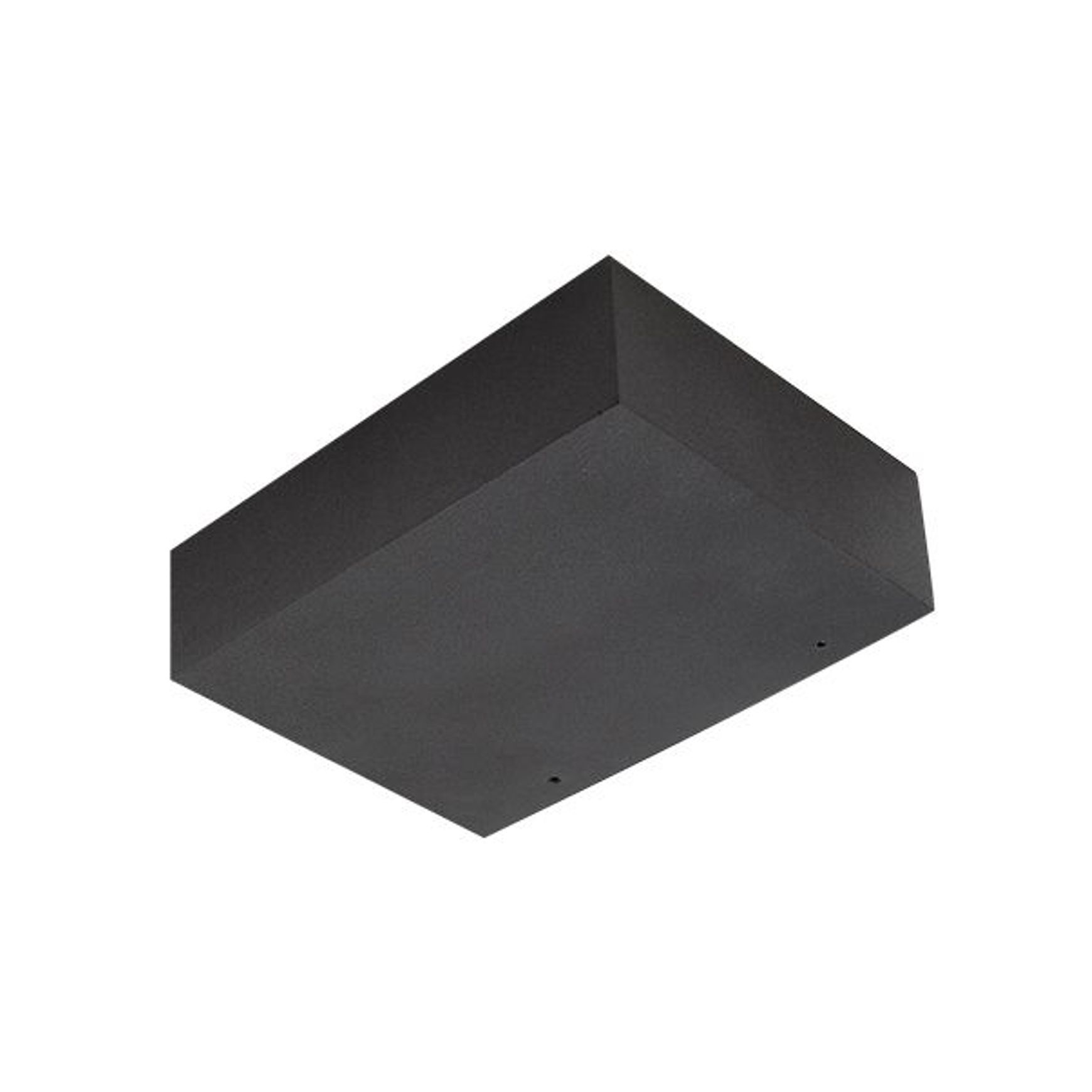

Fixed Slim 160mm Select Asymmetric Uplight
- 1.0M profile views
- 115 saves
The U970 is designed to be used as an uplight and features a special asymmetric lens to achieve an even wash of light on the wall and ceiling. The 180 degree aspect gives it a nice even wash from wall to ceiling. The 25 degree aspect gives it the punch to wash extra high pitched or flat ceilings.
Halcyon recommends installing no closer than 600mm to a flat or pitched ceiling for best results. Always aim to install with the bottom of the fitting above average eye height. The key with uplighting is correct positioning to find the balance between light intensity and light distribution. Too close to the ceiling and you will get a “hot spot” effect, too far and the fitting may be too low on the wall.
In some circumstances it is also suitable to be used as a downlight. However, keep in mind this is the exact opposite of what this luminaire has been designed for so if installed downwards at an incorrect height it will throw light outwards directly into the viewers eye.
Product Details
- Product
- Fixed Slim 160mm Select Asymmetric Uplight
- Category
- Uplights
- Sold by
- Halcyon Lighting
- Light bulb type
- LED
- Fitting type
- Surface-mounted
- Warranty
- 5 years
Halcyon Lighting is specified by
YokeArchitects
Gibbons ArchitectsArchitects
Borrmeister ArchitectsArchitects
Sheppard & Rout ArchitectsArchitects
Condon Scott ArchitectsArchitects
Young ArchitectsArchitects
RTA StudioArchitects
Salmond ArchitectureArchitects
T Plus ArchitectsArchitects
South by Southeast ArchitectsArchitects
RB StudioArchitects
Origin HeritageArchitects
Dorrington Atcheson ArchitectsArchitects
Johnston ArchitectsArchitects
Architect PeopleArchitects
Ground Up StudioArchitects
Dalman ArchitectsArchitects
Fleetwood ConstructionBuilders
Downright ConstructionConstruction
Turton BuildersBuilders
Marina Mathews PhotographyPhotographers
Bagley ConstructionConstruction
Red ArchitectureArchitectural Designers
Inception ElectricalElectricians
Weir ArchitectureArchitectural Designers
DesignwellInterior Designers
Johnston Electrical ServicesElectricians
Pretty Sweet LightingElectricians
Goldsack BuildersBuilders
JD Landscape ArchitectureLandscape Architects
Topmark ElectricalElectricians
Matt Harrison ConstructionConstruction
Parsons ConstructionBuilders
ao architectureArchitectural Designers
Turton Oliver Interior DesignInterior Designers
No Shock ElectricalElectricians
Simon Devitt PhotographerPhotographers
Thomas ElectricalElectricians
Liddington Electrical SouthernElectricians
House of NauticaBuilders
DCDDesign & Build
Chris TateArchitectural Designers
DJ Hewitt BuildersBuilders
Lume DesignInterior Designers
Barry Connor DesignArchitectural Designers
ObjectsArchitectural Designers
PHD BuildingBuilders
Luijten LandscapingLandscape Architects
O'Neil + Shirley ArchitectureArchitectural Designers
Bob Burnett ArchitectureArchitectural Designers
The U970 is designed to be used as an uplight and features a special asymmetric lens to achieve an even wash of light on the wall and ceiling.
The 180 degree aspect gives it a nice even wash from wall to ceiling. The 25 degree aspect gives it the punch to wash extra high pitched or flat ceilings.
Halcyon recommends installing no closer than 600mm to a flat or pitched ceiling for best results. Always aim to install with the bottom of the fitting above average eye height. The key with uplighting is correct positioning to find the balance between light intensity and light distribution. Too close to the ceiling and you will get a “hot spot” effect, too far and the fitting may be too low on the wall.
In some circumstances it is also suitable to be used as a downlight. However, keep in mind this is the exact opposite of what this luminaire has been designed for so if installed downwards at an incorrect height it will throw light outwards directly into the viewers eye.
- Specs
U970
Watts 12W
Dimensions L160 x D120 x H45mm
Cut Out N/A - Surface Mount
Colour Temp Selectable 3000K Warm White or 4000K Natural White
Lumens 3000K Warm White 825lm, 4000K Natural White 940lm
CRI90+
Lifespan >54,000 hours (L90)
Beam Angle 180 x 25 degree beam
Material Aluminium
IP Rating IP65
Driver TRIAC dimmable driver incorporated
Electrical Class Class I luminaire, requires earth
Application Interior & Exterior Wall
Available in Black or White
Warranty 5 Year Warranty- Scope of use
Interior & Exterior Wall Light
- Performance
- CRI90
- IP65
- 54,000 hour (L90) lifespan
- Selectable 3000K or 4000K
- Dimmable
- Available in Black or White
- 5 Year Warranty
