How much does the Double Tee Flooring cost?

Ultimate Engineered Concrete does not publish a price for the Double Tee Flooring on ArchiPro. Send them an enquiry for pricing, or visit their website.

Double Tee Flooring

by Ultimate Engineered Concrete

Taranaki

110.4K profile views
35 saves

Visit Website

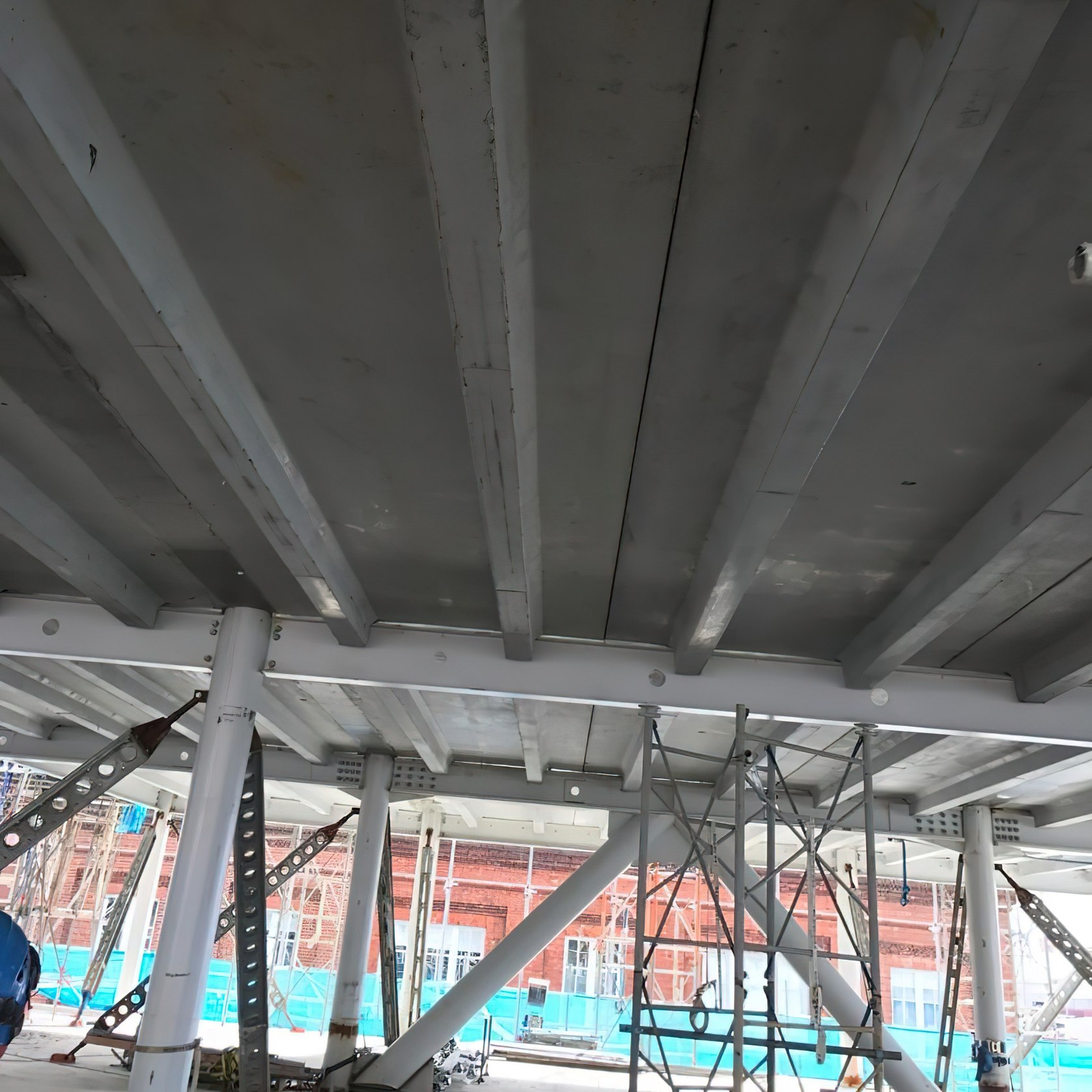

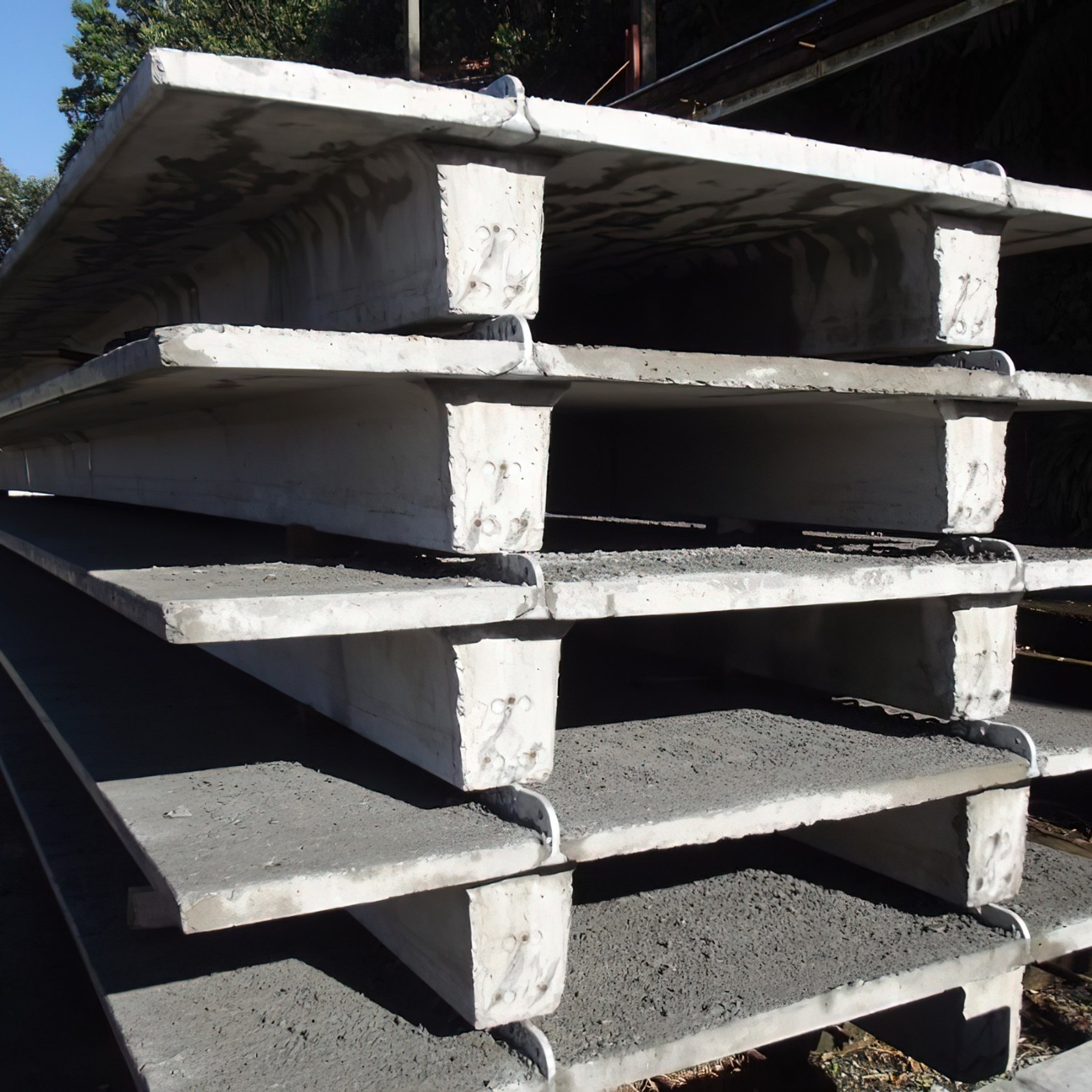

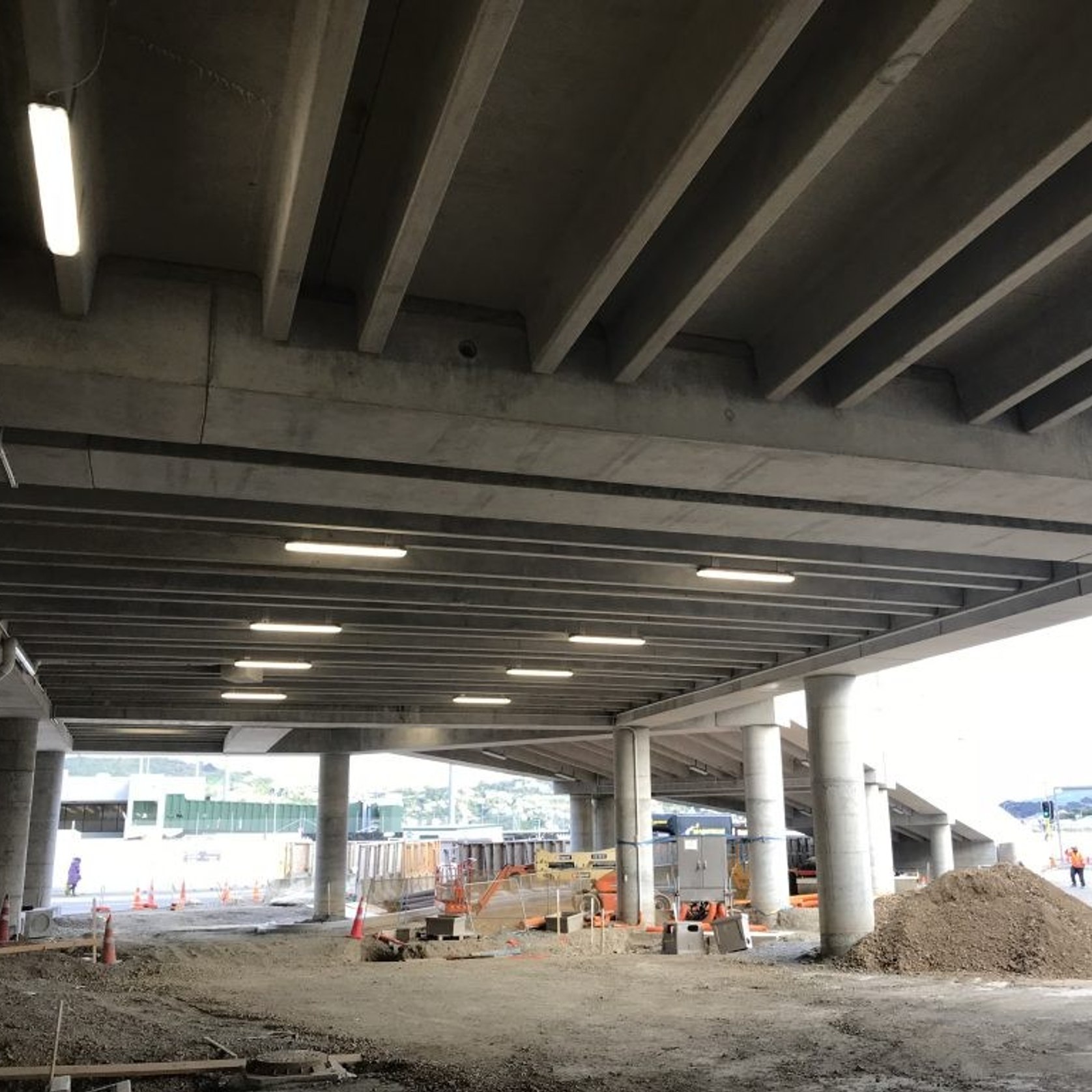

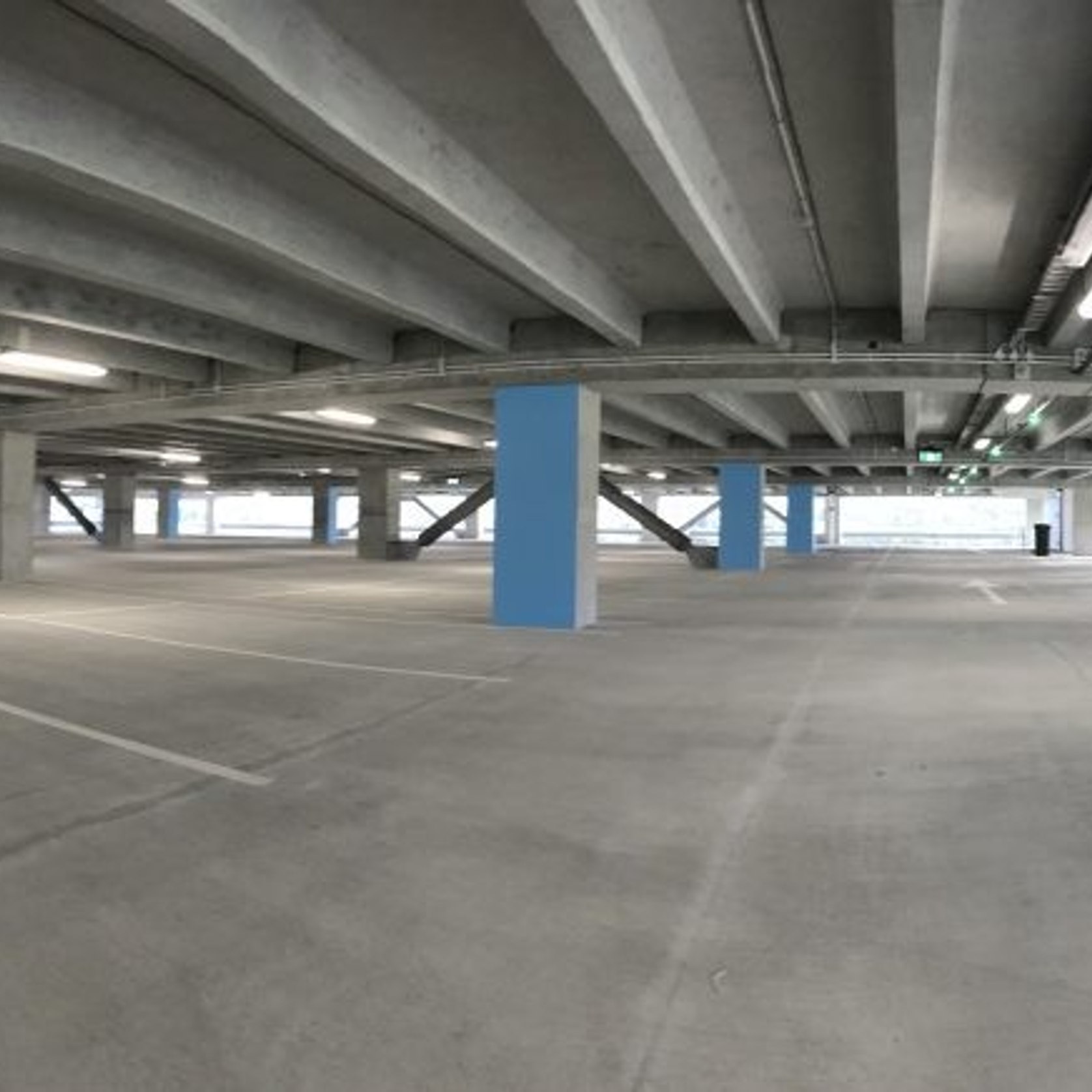

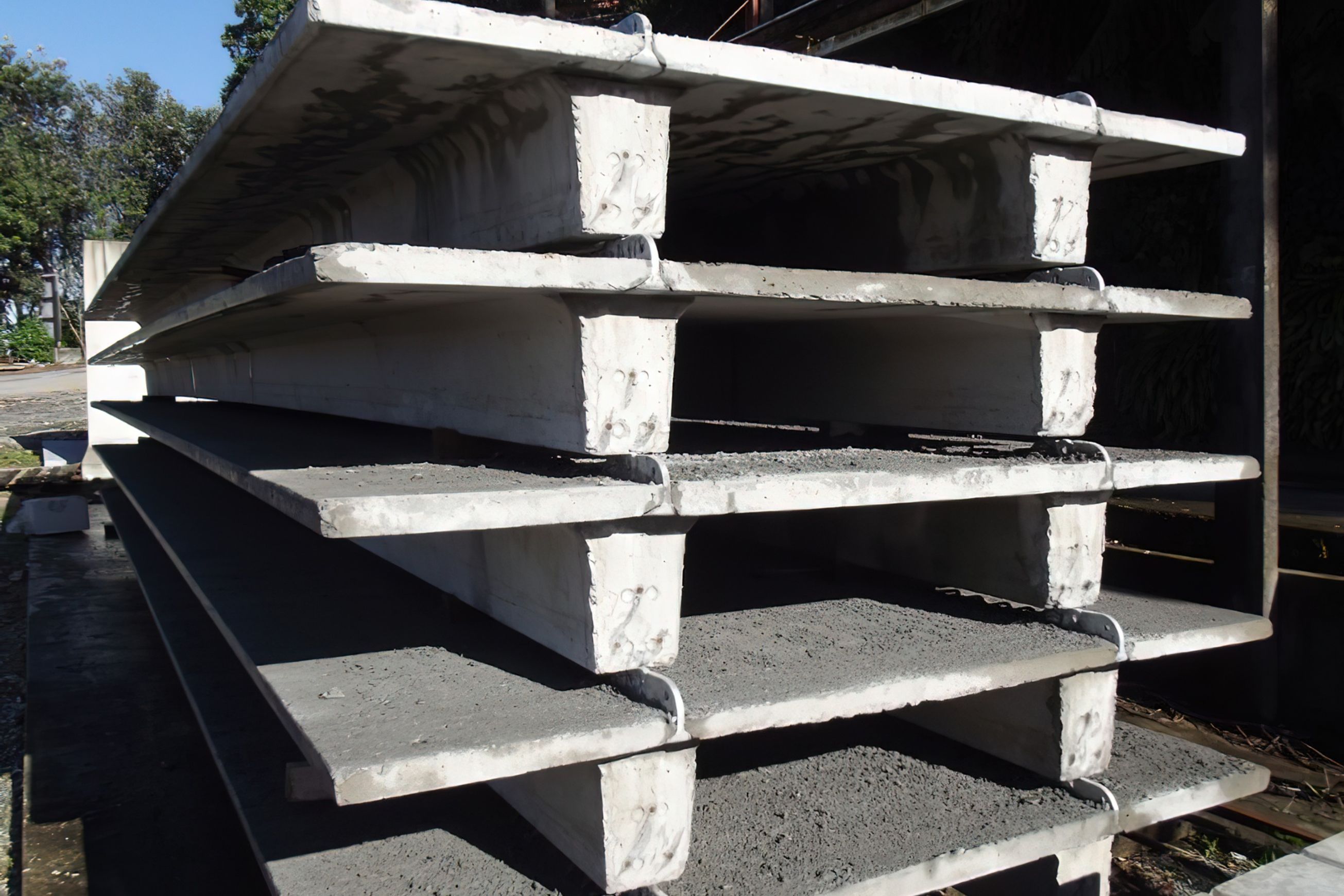

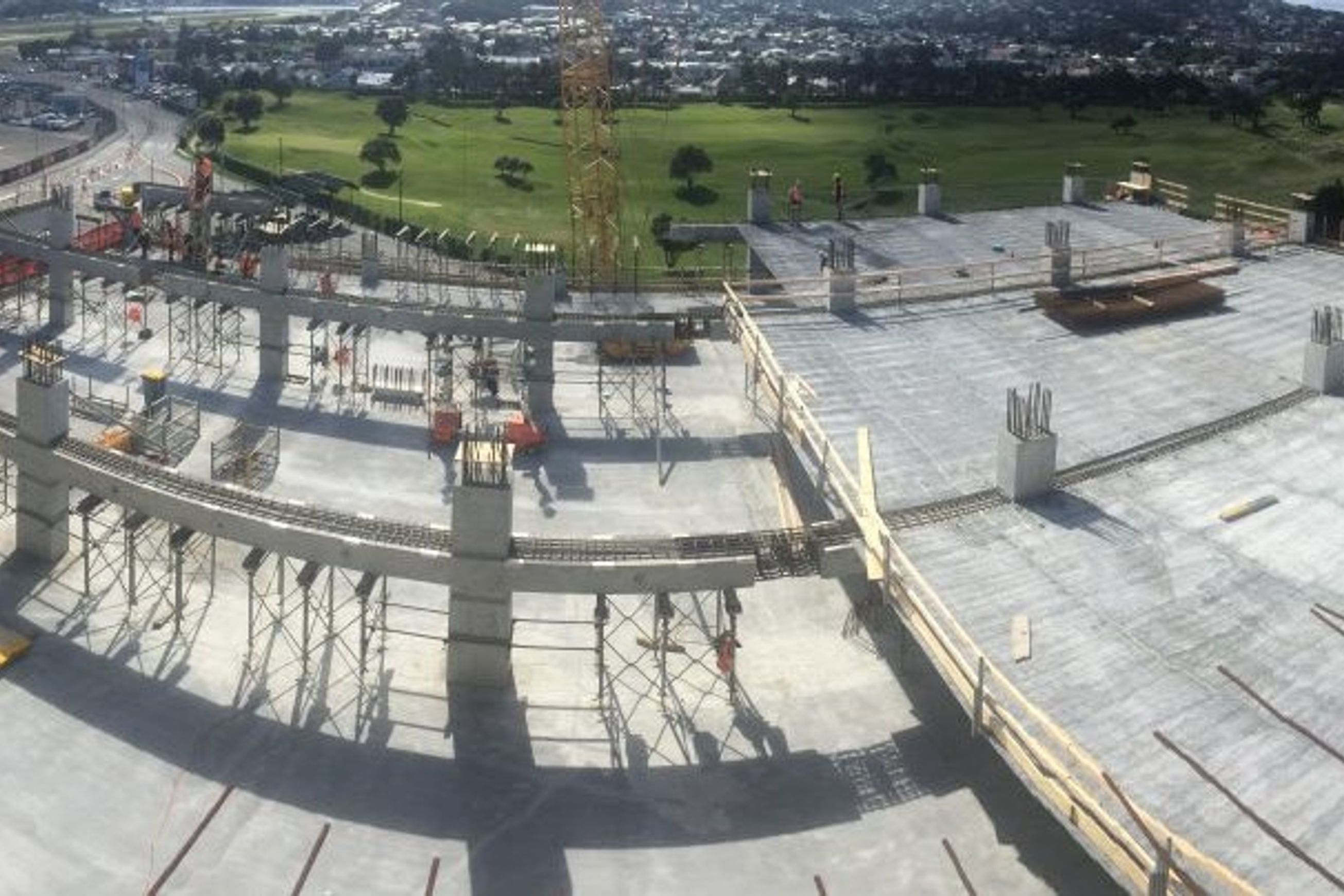

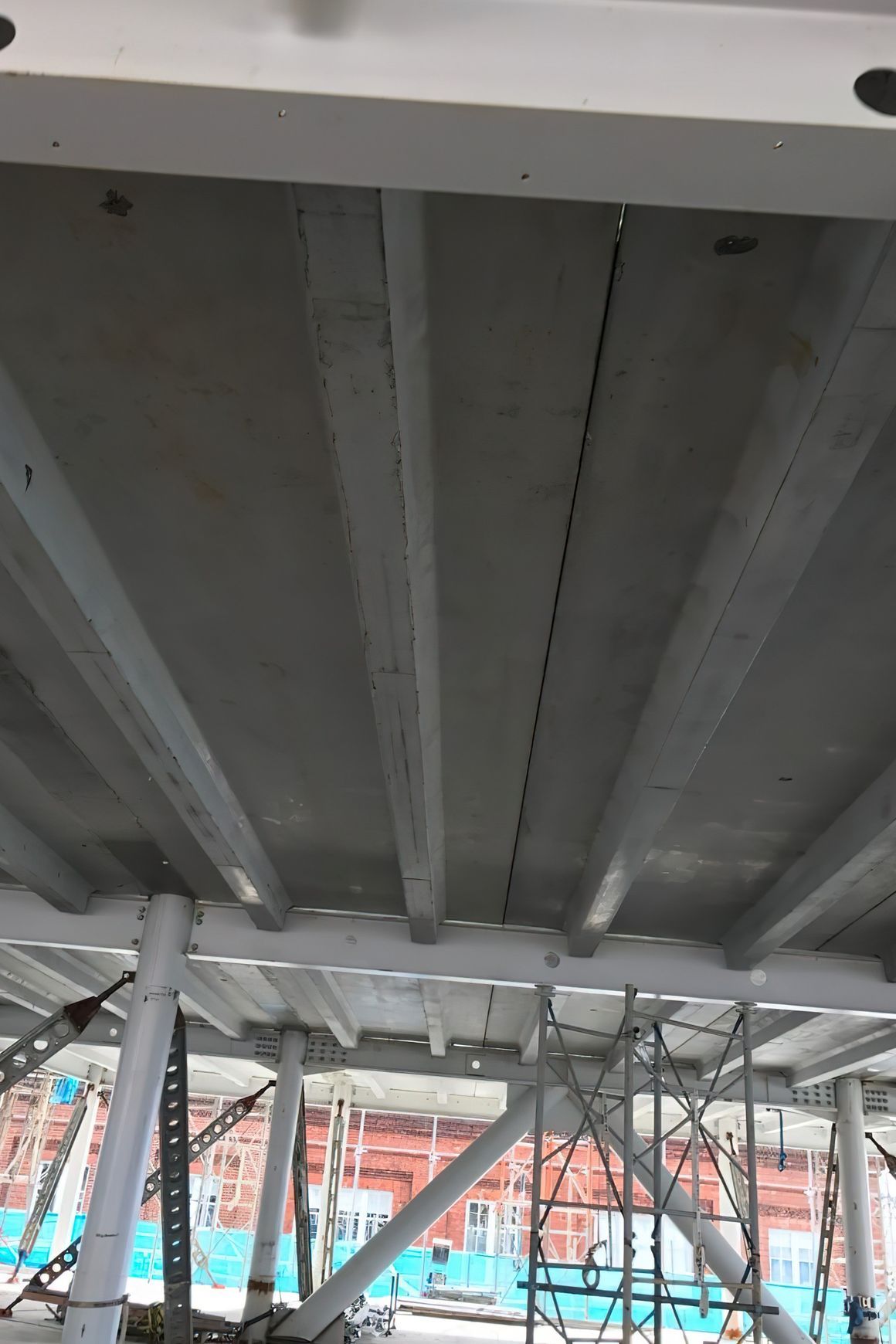

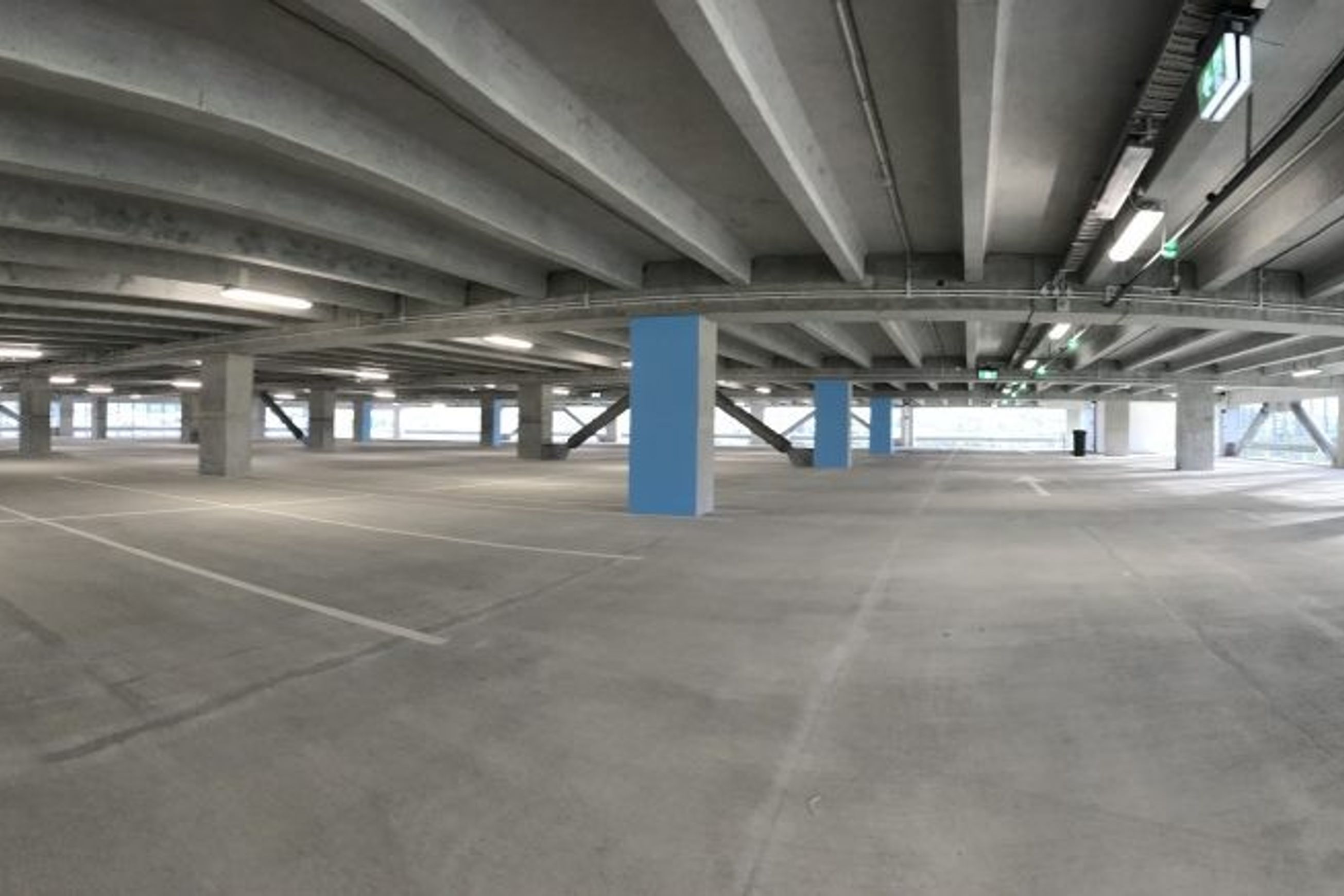

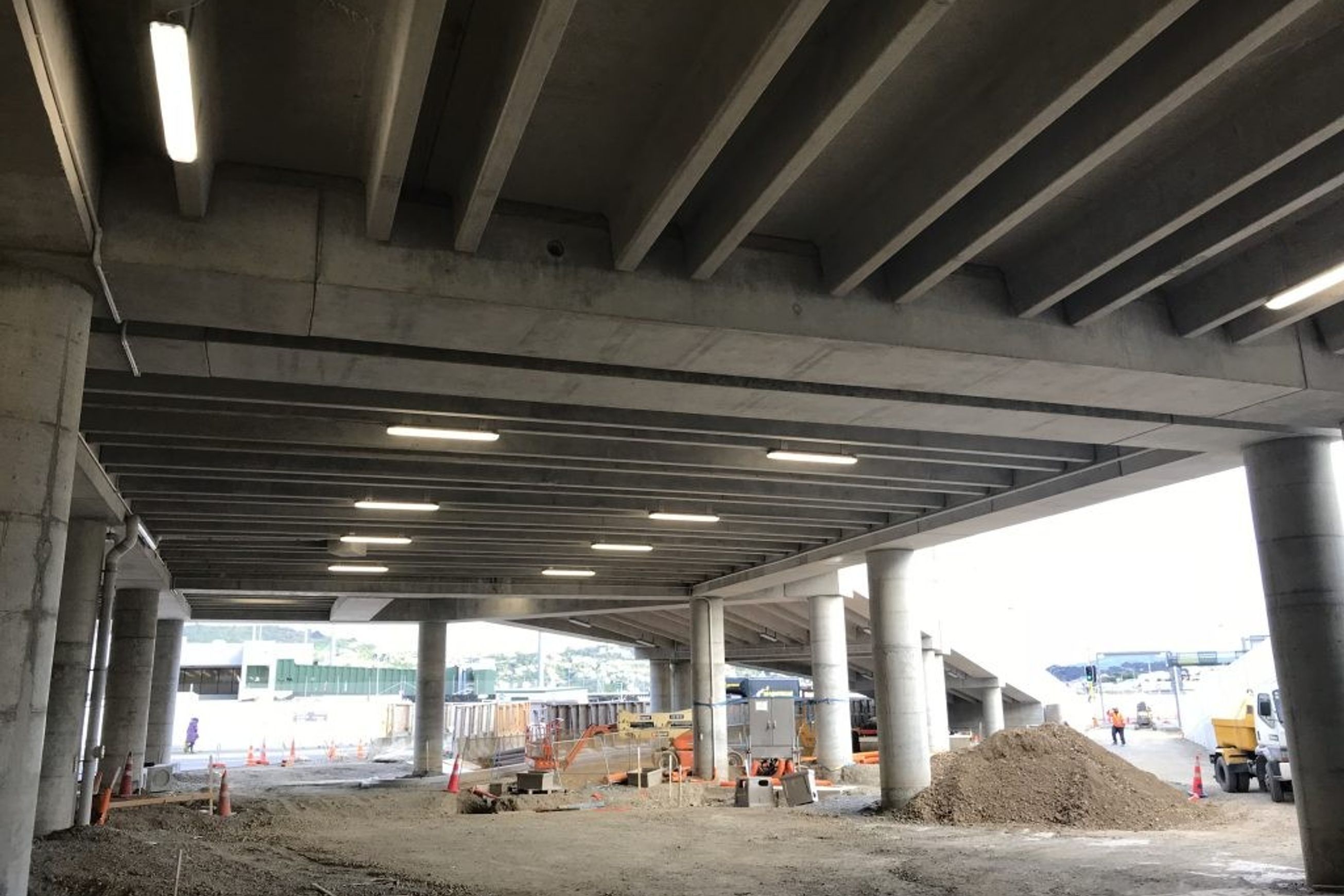

Double Tee flooring units consist of two prestressed ribs and a connecting top slab. The depth of the double Tee can vary from 200 to 550mm. The connecting slab or flange is 2400mm wide x 50mm thick. Double Tees are ideally suited for larger spanning floors with a wide variety of services suspended from the flooring system. Double tees can easily accommodate large floor voids/penetrations through the slab region. The cast insitu topping is a min 65mm thick.

Tags

flooring systems concrete flooring concrete double tee flooring concrete slabs prestressed concrete

Product Details

Product: Double Tee Flooring
Category: Structural & Framing
Sold by: Ultimate Engineered Concrete
Country of origin: New Zealand
Type of use: Commercial and Residential
Installation: Professional installation required

Ultimate Engineered Concrete is specified by

(28) Professionals

Visit site

Double Tee flooring units consist of two prestressed ribs and a connecting top slab.

The depth of the double Tee can vary from 200 to 550mm. The connecting slab or flange is 2400mm wide x 50mm thick. Double Tees are ideally suited for larger spanning floors with a wide variety of services suspended from the flooring system. Double tees can easily accommodate large floor voids/penetrations through the slab region. The cast insitu topping is a min 65mm thick.

Specs

Sound Transmission:
A major practical benefit of a concrete floor is its ability to reduce noise transmission

Fire Resistance Rating:
2400mm wide unit = 90min fire resistance rating. Increased fire ratings can be achieved with specific design.

Materials:

Double Tee strength = 45 MPa at 28 days
Topping strength = 20 MPa at 28 days

For further advice on flooring systems or technical information please contact Ultimate Engineered Concrete. Our experienced and qualified staff will be happy to discuss your flooring design.

Downloads

Downloads (3)3 Direct downloads • 5 Available on request

Get more Specific.

Ultimate Engineered Concrete

ultimateconcrete.co.nz

Visit the Ultimate Engineered Concrete website for the full range, specification detail and where to buy this product.

Visit Website

Frequently asked questions about
Double Tee Flooring

The Double Tee Flooring is supplied by Ultimate Engineered Concrete. It is also on their website, and you can browse every product Ultimate Engineered Concrete lists on ArchiPro.

Ultimate Engineered Concrete does not publish a price for the Double Tee Flooring on ArchiPro. for pricing, or visit their website.

It is listed under Structural & Framing on ArchiPro, where you can compare it with structural & framing from other suppliers.

Yes. It has been specified in projects on ArchiPro, including Tākina Wellington Convention Centre by Ultimate Engineered Concrete. See how it was used in a finished space.

from this page, see their contact details on ArchiPro, or visit their website. The Ultimate Engineered Concrete profile on ArchiPro has the rest of their products.
