Dorma TS93G EN1-5 Door Closer Push Side Silver Fire Rated 43100501

Wetherill Park, Australia

993.7K profile views
51 saves

Dorma Door Closer
43100501

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Tags

door closer fire prevention automatic single door double doors

Product Details

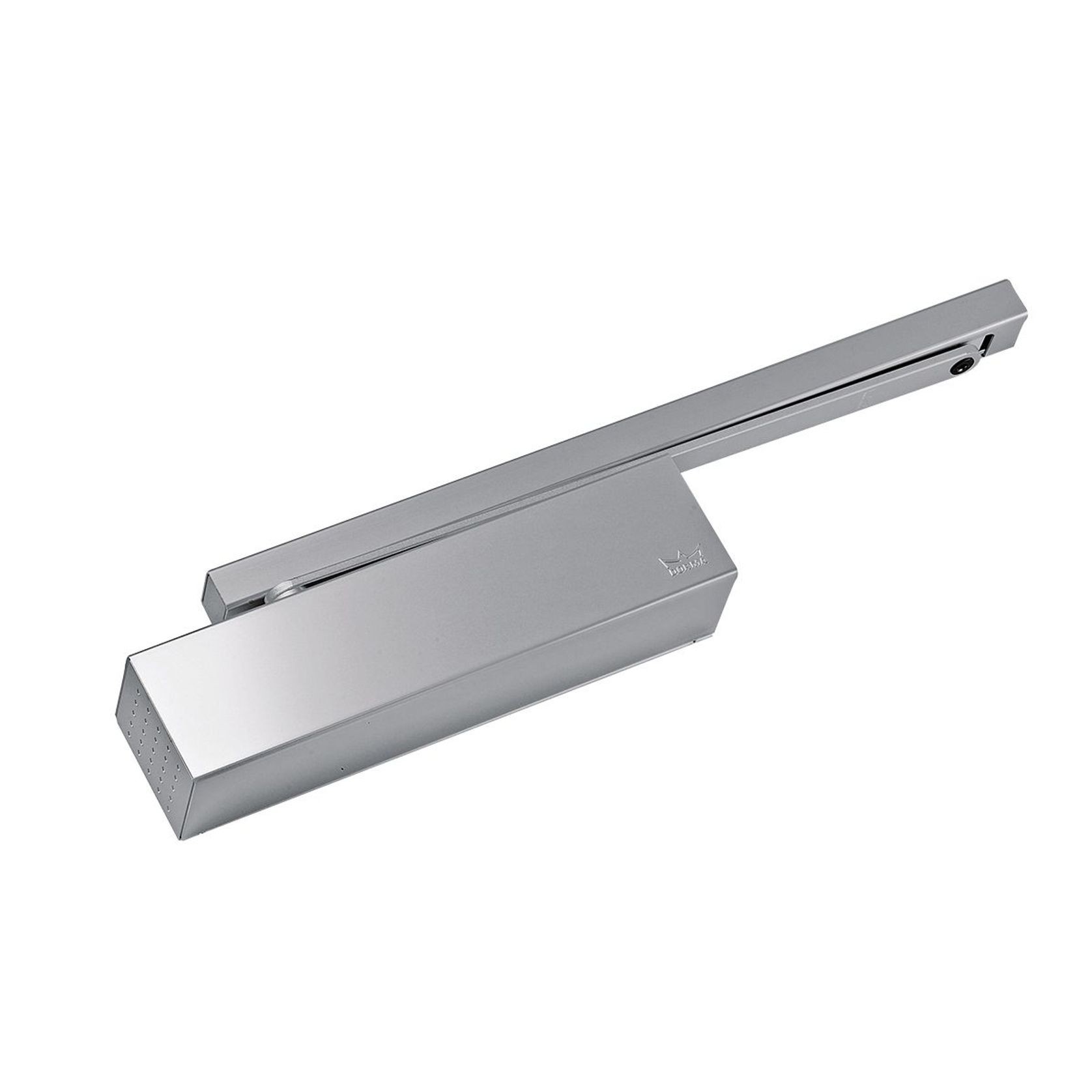

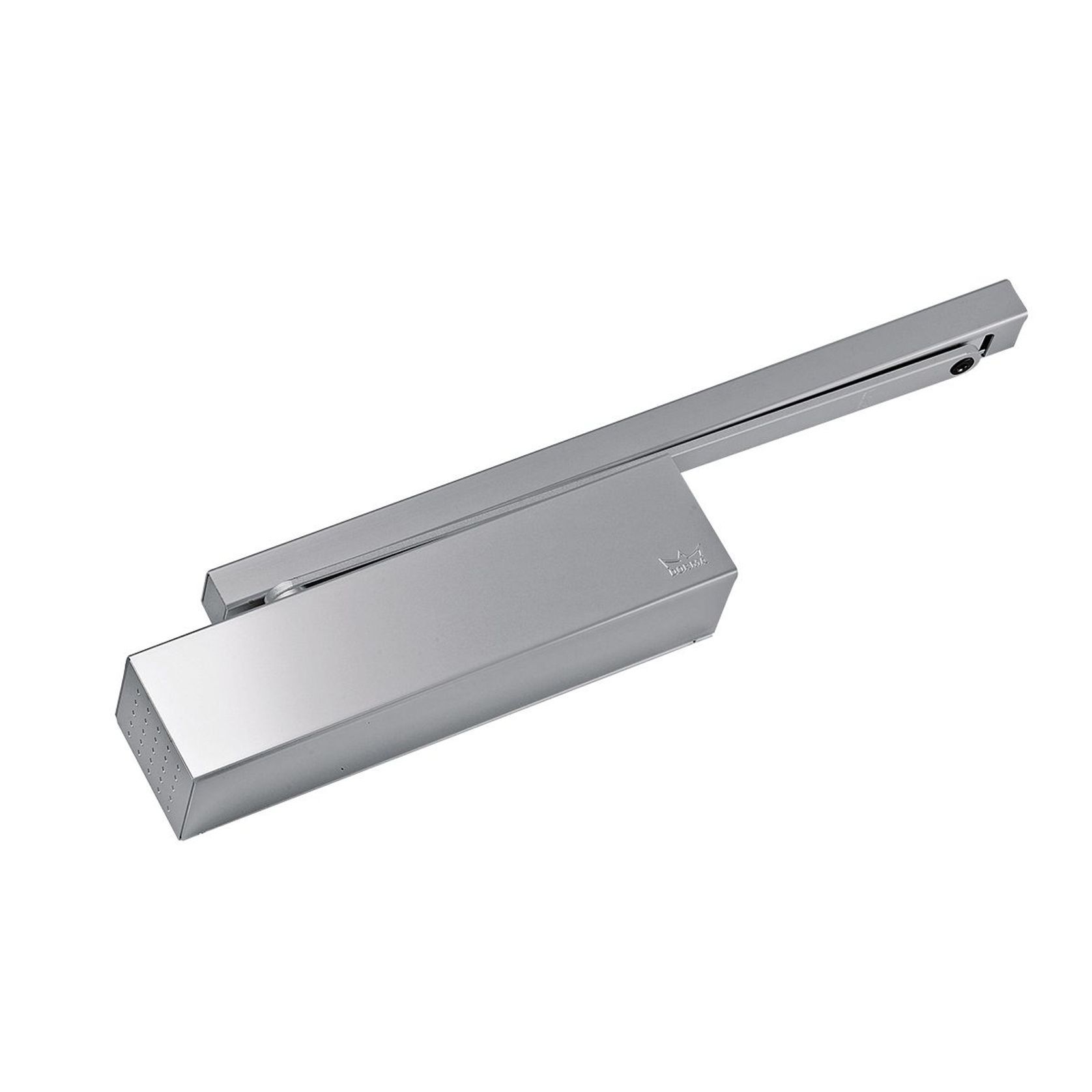

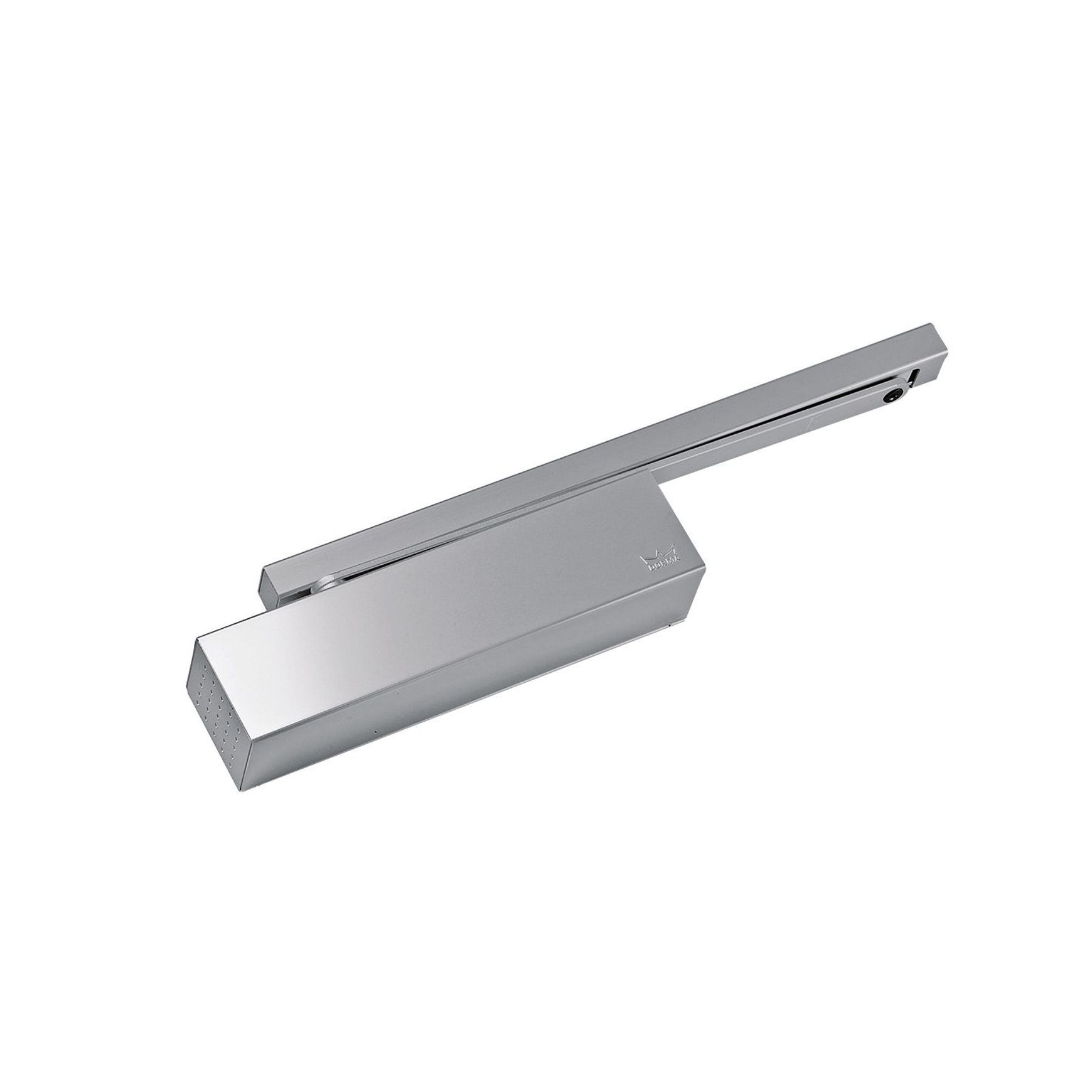

Product: Dorma TS93G EN1-5 Door Closer Push Side Silver Fire Rated 43100501
Category: Door Closers
Sold by: Keeler Hardware
Range: Dorma

Keeler Hardware is specified by

(29) Professionals

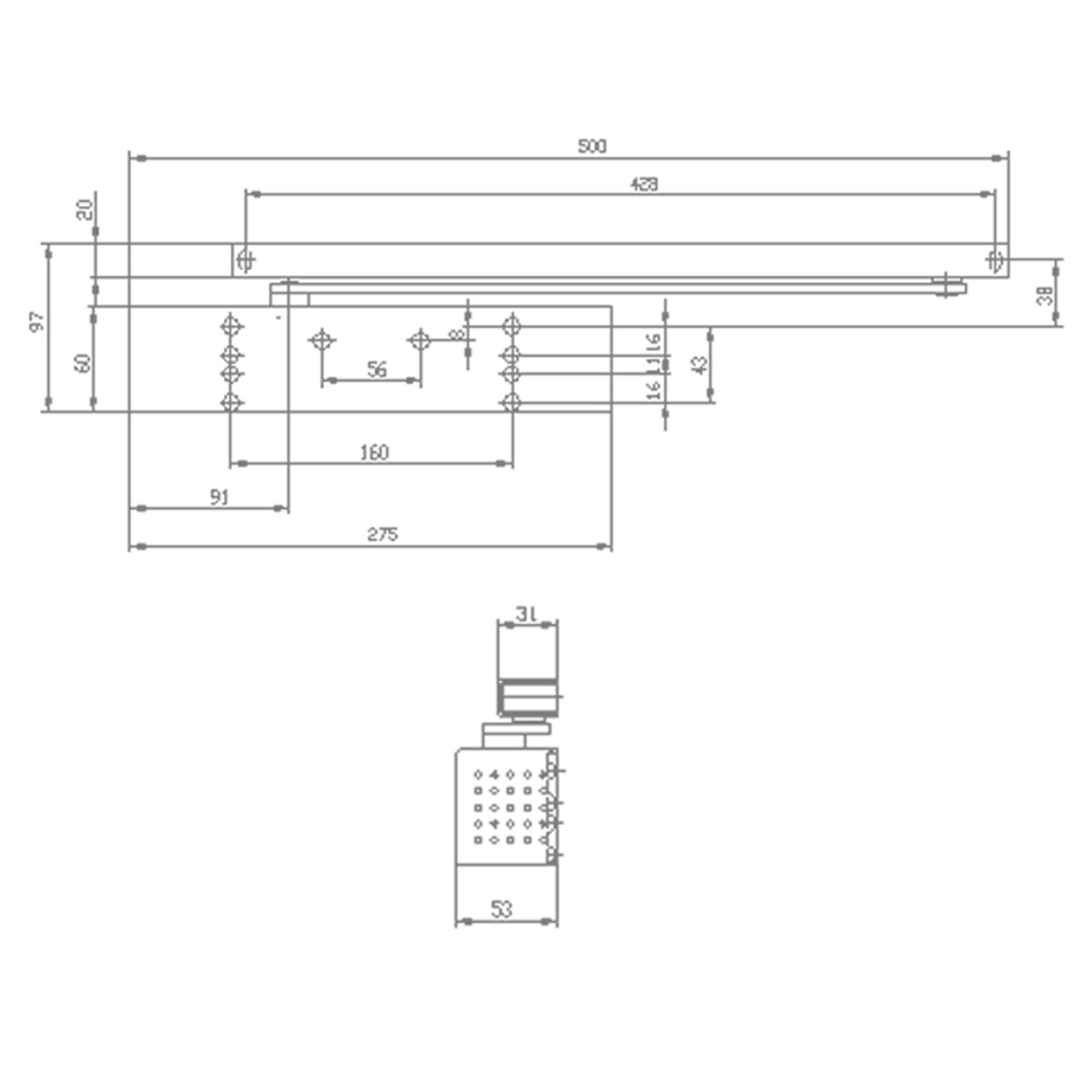

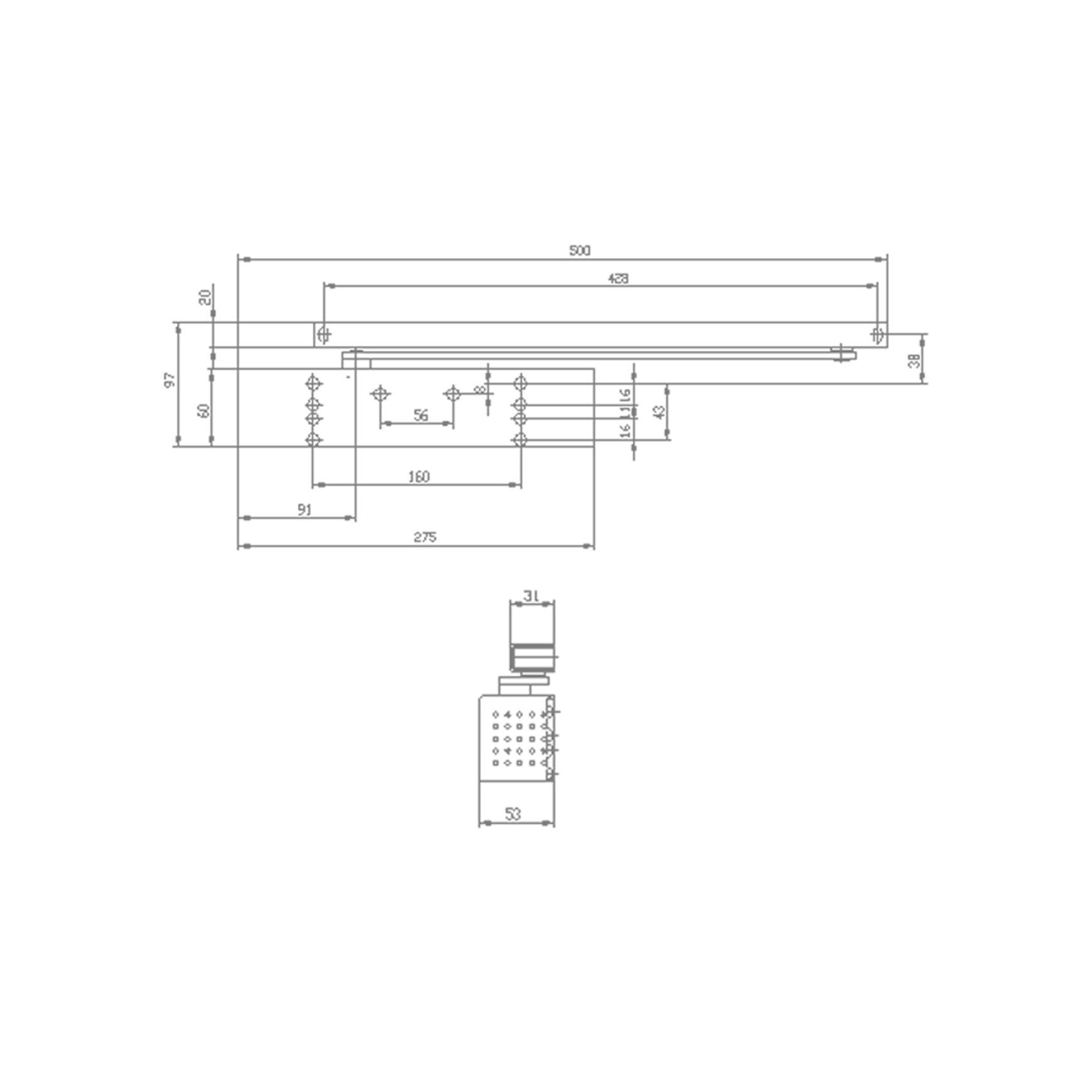

Dorma TS93G EN1-5 Door Closer Push Side Silver Fire Rated 43100501 dimensions

Visit site

Dorma Door Closer 43100501 Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Specs

Includes:

1 x Dorma TS93G EN1-5 Door Closer Push Side Silver
1 x Dorma 93GN 64010001 Slide Arm and Channel Silver

Features:

Special model for push-side door leaf fixing/pull-side transom fixing
Suitable for fire and smoke check doors where the cushioned limit stay is also used
Suitable for single and double doors installation up to 1250mm (W)
Non-handed modular system including a heart-shaped cam suiting a number of door designs & fixing positions
Closing force is adjustable with a screw and closing speed adjustable with a valve
Latching speed, backcheck and delayed action is also adjustable at the valve
Has slide channel arm assembly

Specifications:

Length: 275mm
Width: 53mm
Height: 60mm
Adjustable Closing Speed: Yes
Adjustable Latching Speed: Yes
Has Backcheck: Yes
Has Delay Action: Yes
Has Hold Open: No
Has Slide Arm: Yes
Spring Strength: EN1-5
Suits Push Side Of Door: Yes
Fire Rated: Yes
Finish: Silver

Note: Angle brackets are sold separately.
