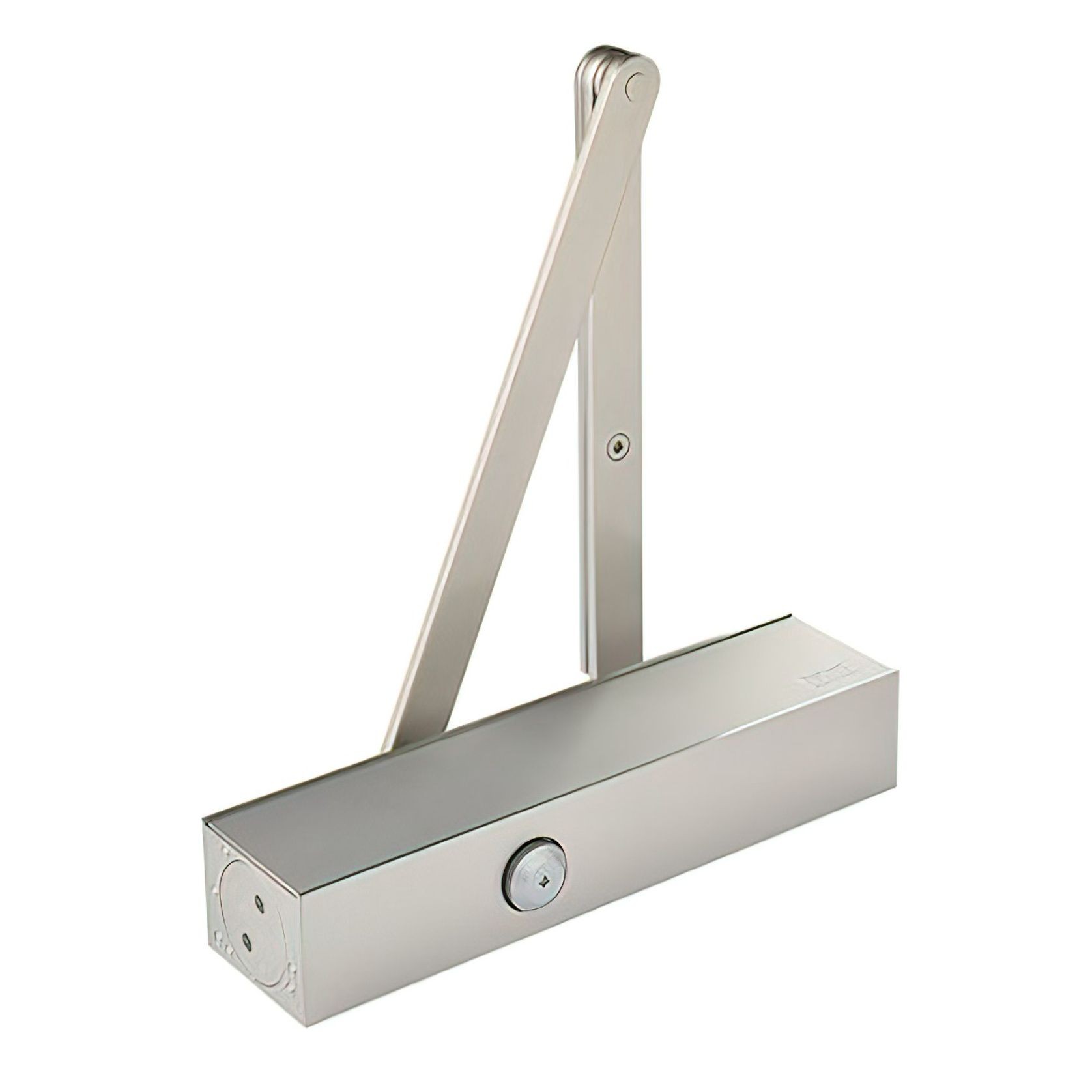

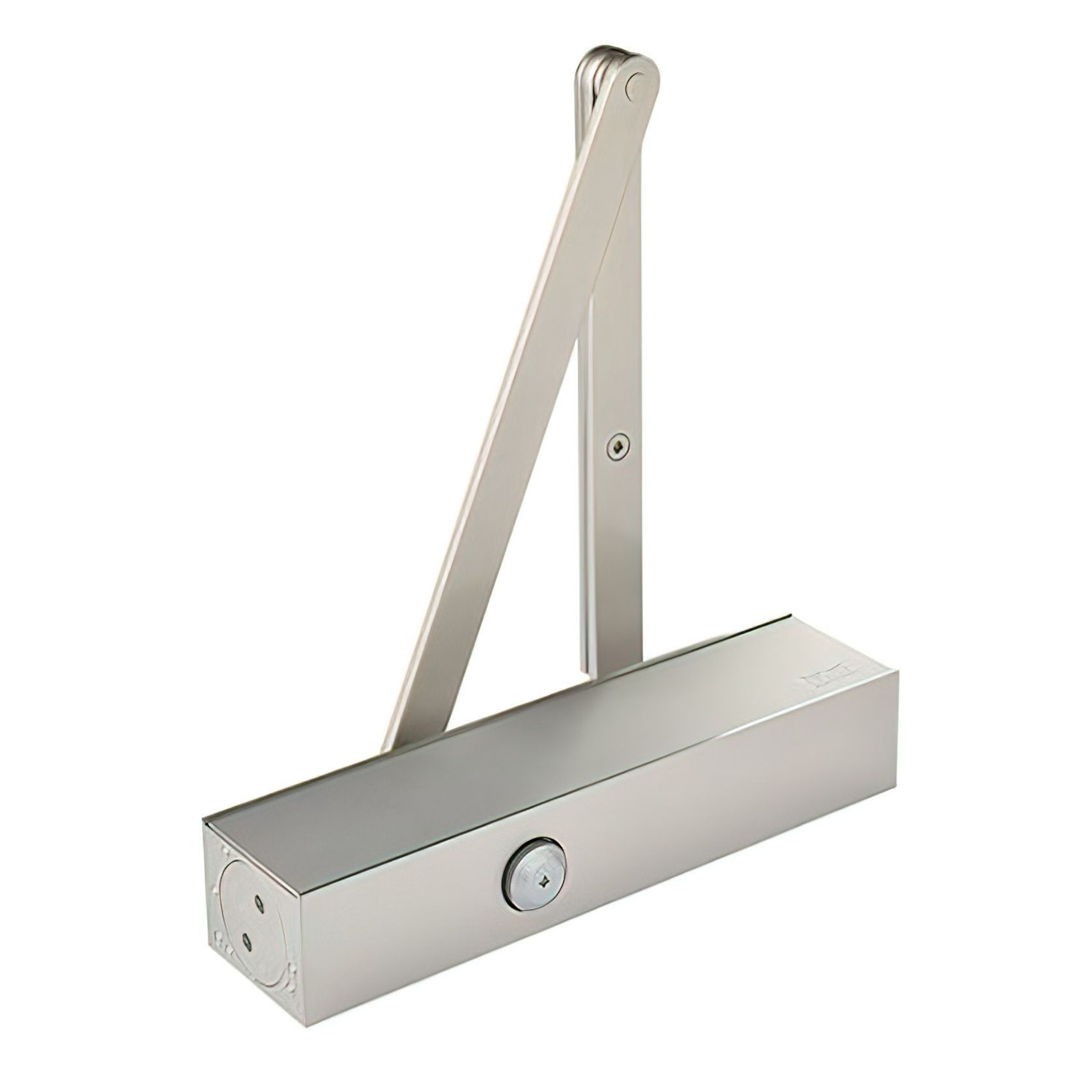

Dorma TS83 EN3-6 Door Closer Silver 38020801

Wetherill Park, Australia

993.7K profile views
51 saves

Dorma TS83 EN3-6 Door Closerisa mechanical device that closes a door in a controlled manner, preventing it from slamming. A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

The non-handed closer is suitable for interior and external (outward and inward opening) doors and can be tailored to a specific door with simple adjustment. It is power adjustable with a screw, closing speed (180° - 15°) and latching speed (15° - 0°) adjustable with separate valves with final adjustment by standard arm. The backcheck is self-regulating or adjustable by valve and delayed action is also adjustable.

Tags

door closer silver fire door hydraulic stianless steel

Product Details

Product: Dorma TS83 EN3-6 Door Closer Silver 38020801
Category: Door Closers
Sold by: Keeler Hardware
Range: Dorma

Keeler Hardware is specified by

(29) Professionals

Dorma TS83 EN3-6 Door Closer Silver 38020801

Visit site

A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts. The non-handed closer is suitable for interior and external (outward and inward opening) doors and can be tailored to a specific door with simple adjustment. It is power adjustable with a screw, closing speed (180° - 15°) and latching speed (15° - 0°) adjustable with separate valves with final adjustment by standard arm. The backcheck is self-regulating or adjustable by valve and delayed action is also adjustable.

Dorma TS83 EN3-6 Door Closerisa mechanical device that closes a door in a controlled manner, preventing it from slamming.

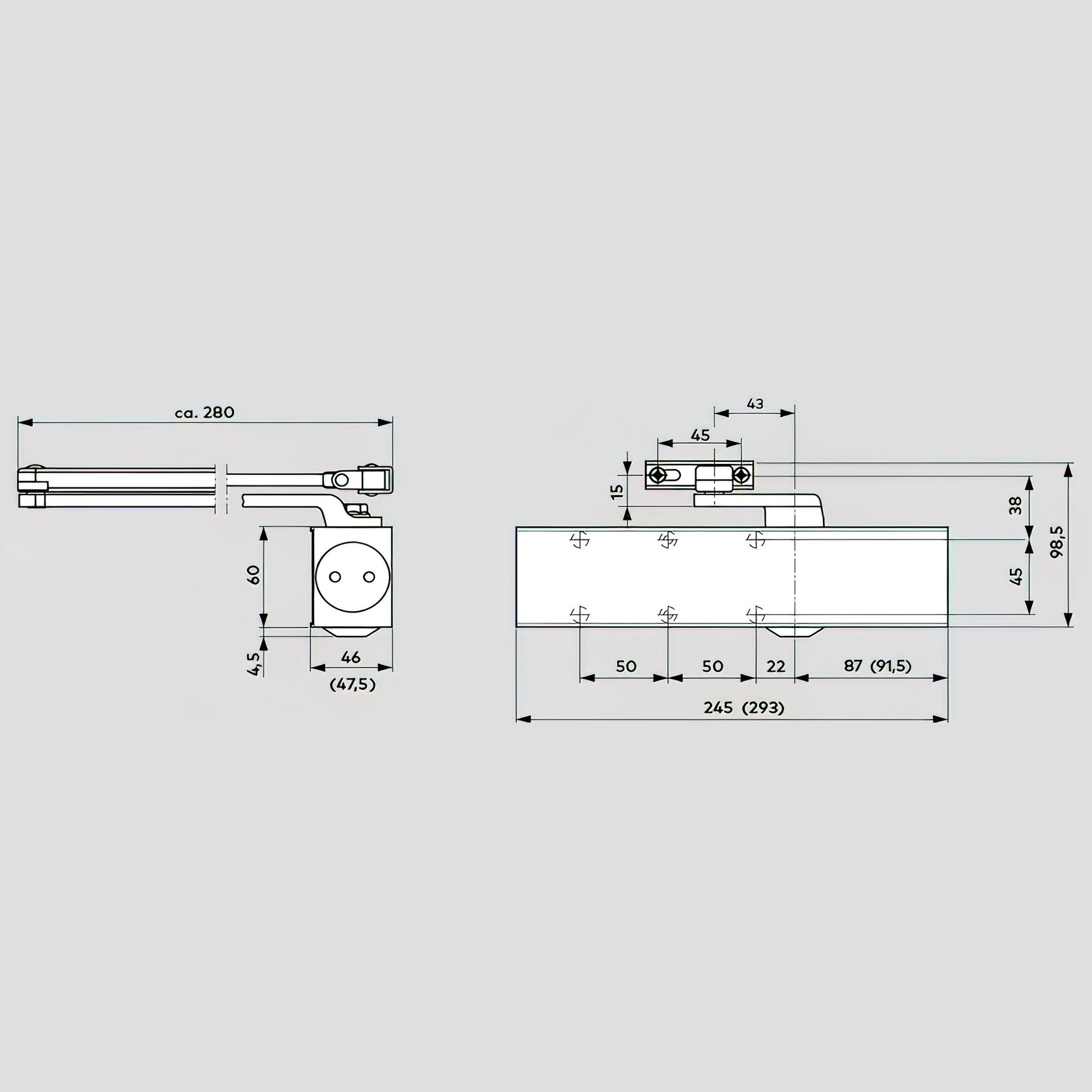

Specs: Length: 245mm

Width: 46mm

Height: 60mm

Adjustable Closing Speed: Yes

Adjustable Latching Speed: Yes

Has Backcheck: Yes

Has Delay Action: Yes

Has Holdopen: No

Has Slide Arm: No

Parallel Arm Bracket Included: Yes

Spring Strength: EN3-6

Fire Rated: Yes

Finish: Silver

Fire Protection: CERTIFIRE approved for fire doors ITT;MM/IMM 240; Ref. CF 118
Feature: Suitable for fire doors

Regular door closer

Ideal for commercial applications

Overhead surface mounted door closer

Adjustable latching action by valve

For standard internal doors up to 1400 mm

Includes parallel arm bracket

Parallel arm mounting doors up to 950 mm

Flat-form arm assembly
