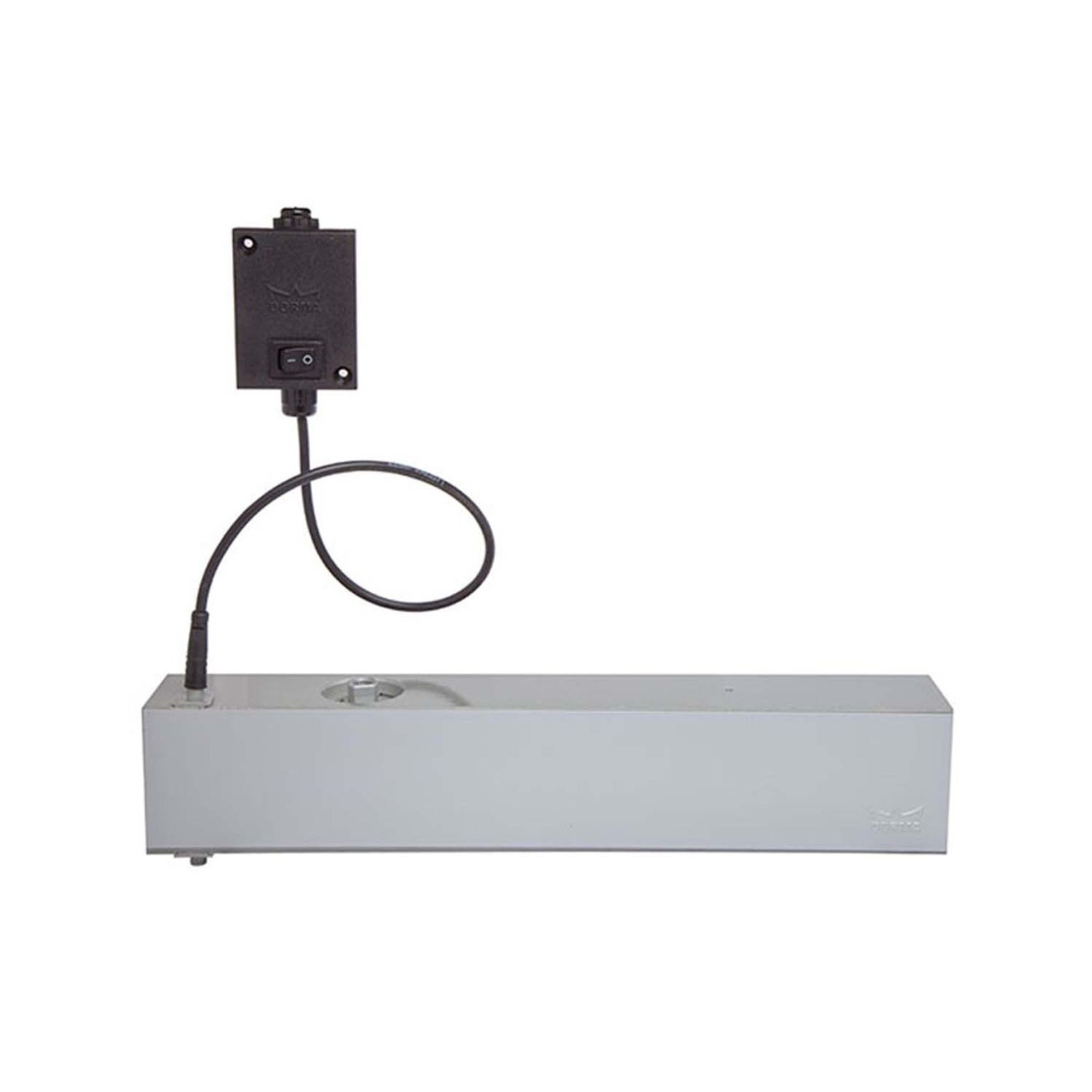

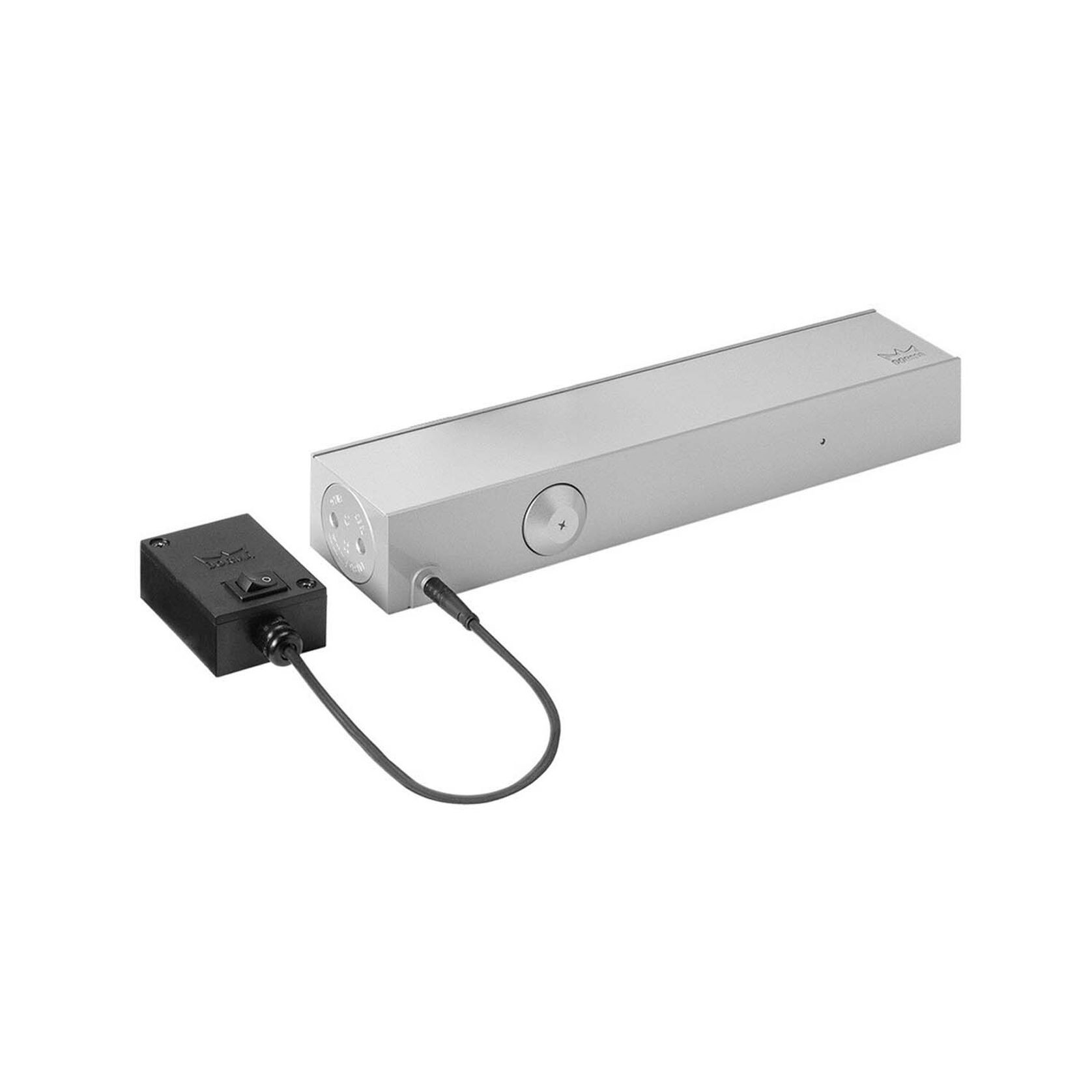

Dorma TS73EMF EN6 Door Closer Electro Magnetic Hold Open Body Only 53070101

Wetherill Park, Australia

993.7K profile views
51 saves

Dorma TS73EMF EN6 Door Closer
53070101

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Combination of hydraulic door closer and electromagnetic hold-open unit.
Hold-open of the door is performed under electromagnetic control.
In the event of a fire, the door is reliably closed by the integral hydraulic closer. Closing cycle is also initiated by manual door operation or automatically in the event of a power failure.

Tags

fire door fire rated automatic modern safety control

Product Details

Product: Dorma TS73EMF EN6 Door Closer Electro Magnetic Hold Open Body Only 53070101
Category: Door Closers
Sold by: Keeler Hardware
Range: Dorma

Keeler Hardware is specified by

(29) Professionals

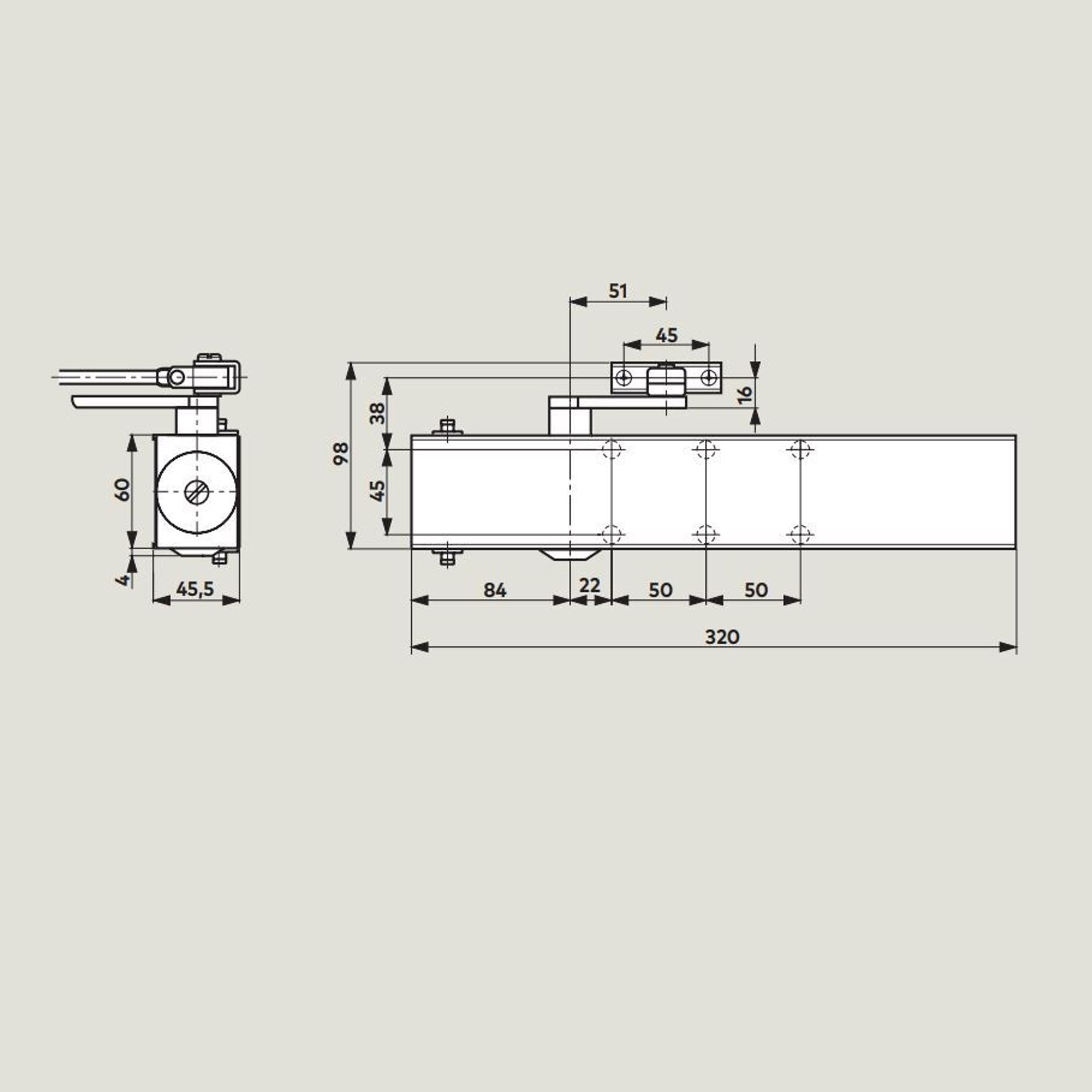

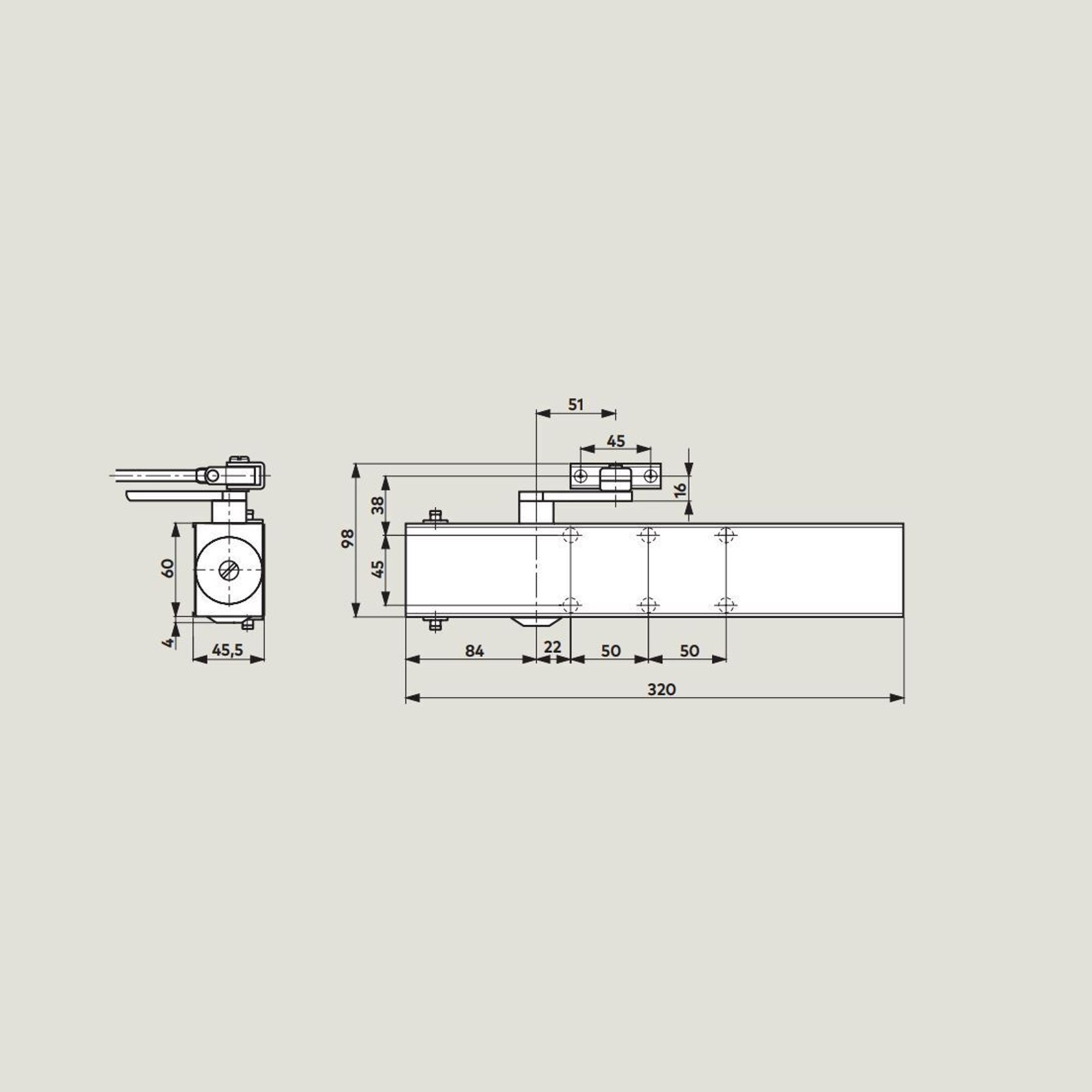

Dorma TS73EMF EN6 Door Closer Electro Magnetic Hold Open Body Only 53070101 dimensions

Visit site

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts. Combination of hydraulic door closer and electromagnetic hold-open unit. Hold-open of the door is performed under electromagnetic control. In the event of a fire, the door is reliably closed by the integral hydraulic closer. Closing cycle is also initiated by manual door operation or automatically in the event of a power failure.

Dorma TS73EMF EN6 Door Closer 53070101 Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Combination of hydraulic door closer and electromagnetic hold-open unit.
Hold-open of the door is performed under electromagnetic control.
In the event of a fire, the door is reliably closed by the integral hydraulic closer. Closing cycle is also initiated by manual door operation or automatically in the event of a power failure.

Specs

Features:

Suitable for fire doors
Input voltage is 24VDC
Power input max is 2 volts
Closing speed adjustable by valve and latching speed is adjustable by arm
Free selection of the hold open point (opening angles over 75Â°) is variable at any time without the need for adjustment of setting controls
Body Only

Specifications:

Spring Strenght: EN6
Max Door Width: 1400mm
Operating Voltage: 24V DC
Type: Standard Fix
Length: 320mm
Width: 45.5mm
Height: 60mm
Finish: Silver

Certification:

CE Marked
CERTIFIRE approved for fire doors: ITT120 MM/IMM240
BSI approved BS EN1155
