Dorma RTS85T EN3 Transom Closer NonHold Open Combi Pack

Name: Dorma RTS85T EN3 Transom Closer NonHold Open Combi Pack
Brand: Dormakaba

Wetherill Park, Australia

993.7K profile views
51 saves

Dorma Transom Door Closer EN3 Non Hold Open Body Only
RTS85

Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.

Features:

Ideal for shopfitting
Suitable for both single and double action doors
With valve adjustable closing speed and closing action, and mechanical controlled backcheck

Dorma 8550 Transom Closer Pivot Timber
65310300

Features:

The Dorma RTS85 floor pivot suits side-load installation
Used on timber doors, floor portion is fitted directly to the floor

Dorma Transom Closer Arm w/ Bracket
85210005

Features:

A standard side load top le allowing lateral adjustment through the hinge style. It also has hole and centre lines in the channel for easy location of the pivot point.

Tags

hardware door hardware door handles door locks handles

Product Details

Product: Dorma RTS85T EN3 Transom Closer NonHold Open Combi Pack
Category: Door Closers
Sold by: Keeler Hardware
Range: Dormakaba
Brand: Dormakaba
Country of origin: Australia
Type of use: Commercial
Package type: Fragile - handle with care
Care and cleaning: Easy maintenance
Installation: Minor installation required
Assembly: Minor assembly required

Keeler Hardware is specified by

(29) Professionals

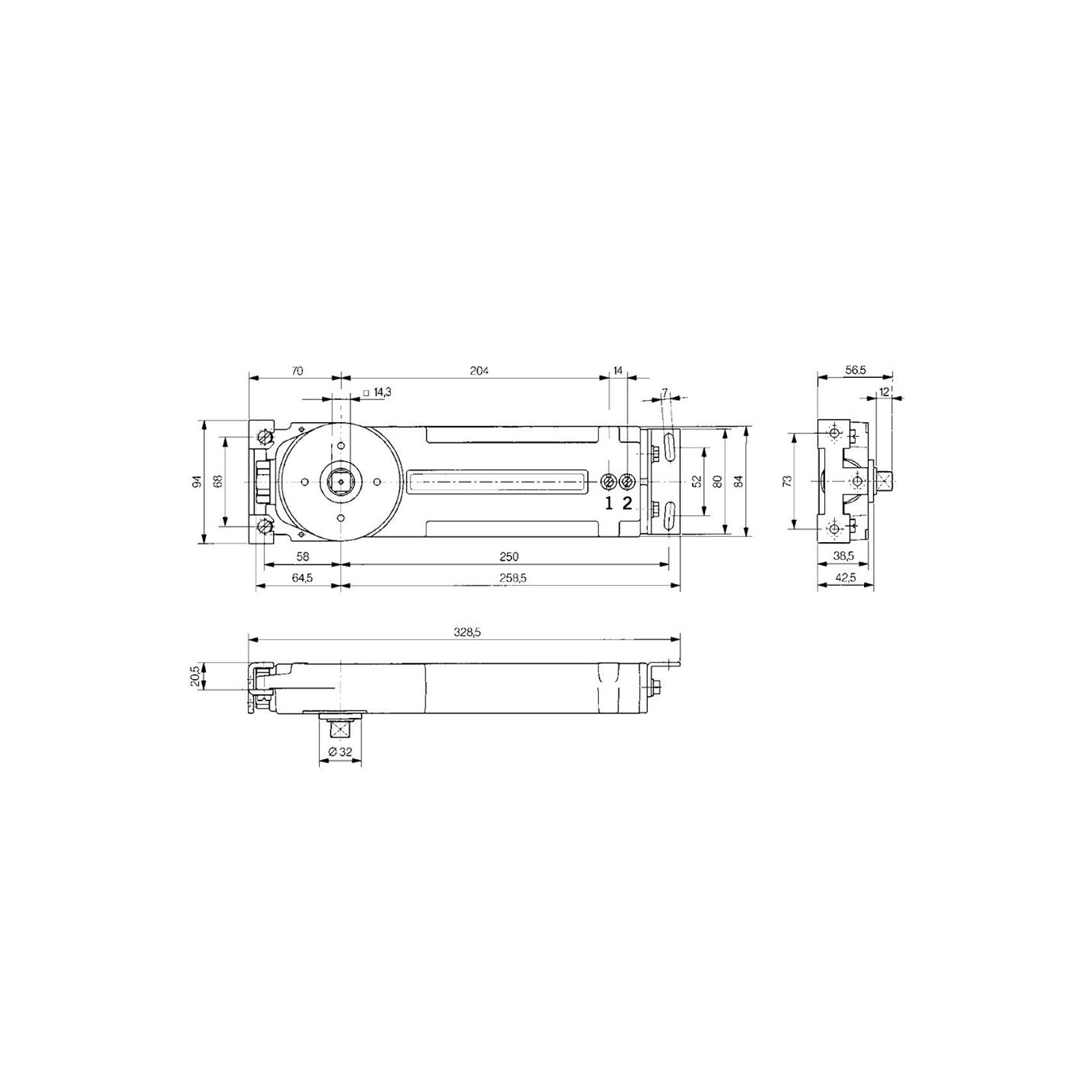

Dorma RTS85T EN3 Transom Closer NonHold Open Combi Pack dimensions

Visit site

Features: Ideal for shopfitting Suitable for both single and double action doors With valve adjustable closing speed and closing action, and mechanical controlled backcheck Dorma 8550 Transom Closer Pivot Timber 65310300 Features: The Dorma RTS85 floor pivot suits side-load installation Used on timber doors, floor portion is fitted directly to the floor Dorma Transom Closer Arm w/ Bracket 85210005 Features: A standard side load top le allowing lateral adjustment through the hinge style. It also has hole and centre lines in the channel for easy location of the pivot point.

Dorma Transom Door Closer EN3 Non Hold Open Body OnlyRTS85 Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.

Features:

Ideal for shopfitting
Suitable for both single and double action doors
With valve adjustable closing speed and closing action, and mechanical controlled backcheck

Dorma 8550 Transom Closer Pivot Timber
65310300

Features:

The Dorma RTS85 floor pivot suits side-load installation
Used on timber doors, floor portion is fitted directly to the floor

Dorma Transom Closer Arm w/ Bracket
85210005

Features:

A standard side load top le allowing lateral adjustment through the hinge style. It also has hole and centre lines in the channel for easy location of the pivot point.

Specs

Dorma Transom Door Closer EN3 Non Hold Open Body Only
RTS85

Specifications:

Length: 323mm
Width: 90mm
Height: 38mm
Weight: 4.7kg
Max. Opening Angle: 130 degrees
Door Width: 950mm
Leaf Weight: 110kg

Dorma RTS85W Transom Coverplate Satin Stainless Steel
10000051A

Specifications:

Satin Stainless Steel Cover plate
Suits Dorma TS85 transom closers
To suit steel and wooden door frames

Dorma 8550 Transom Closer Pivot Timber
65310300

Specifications:

Suits Bottom Rails with Channel Depth: 18-20mm
Height: 27mm

Scope of use

Transom Closer allows a single or double action aluminium door or doors to be closed with precision.

What's in the box

Includes:

1 x Dorma RTS85W Transom Coverplate Satin Stainless Steel (10000051A)
1 x Dorma Transom Door Closer Body RTS 85 EN3 (85311101)
1 x Dorma Transom Closer Arm w/ Bracket (85210005)
1 x Dorma 8550 Transom Closer Pivot Timber (65310300)
