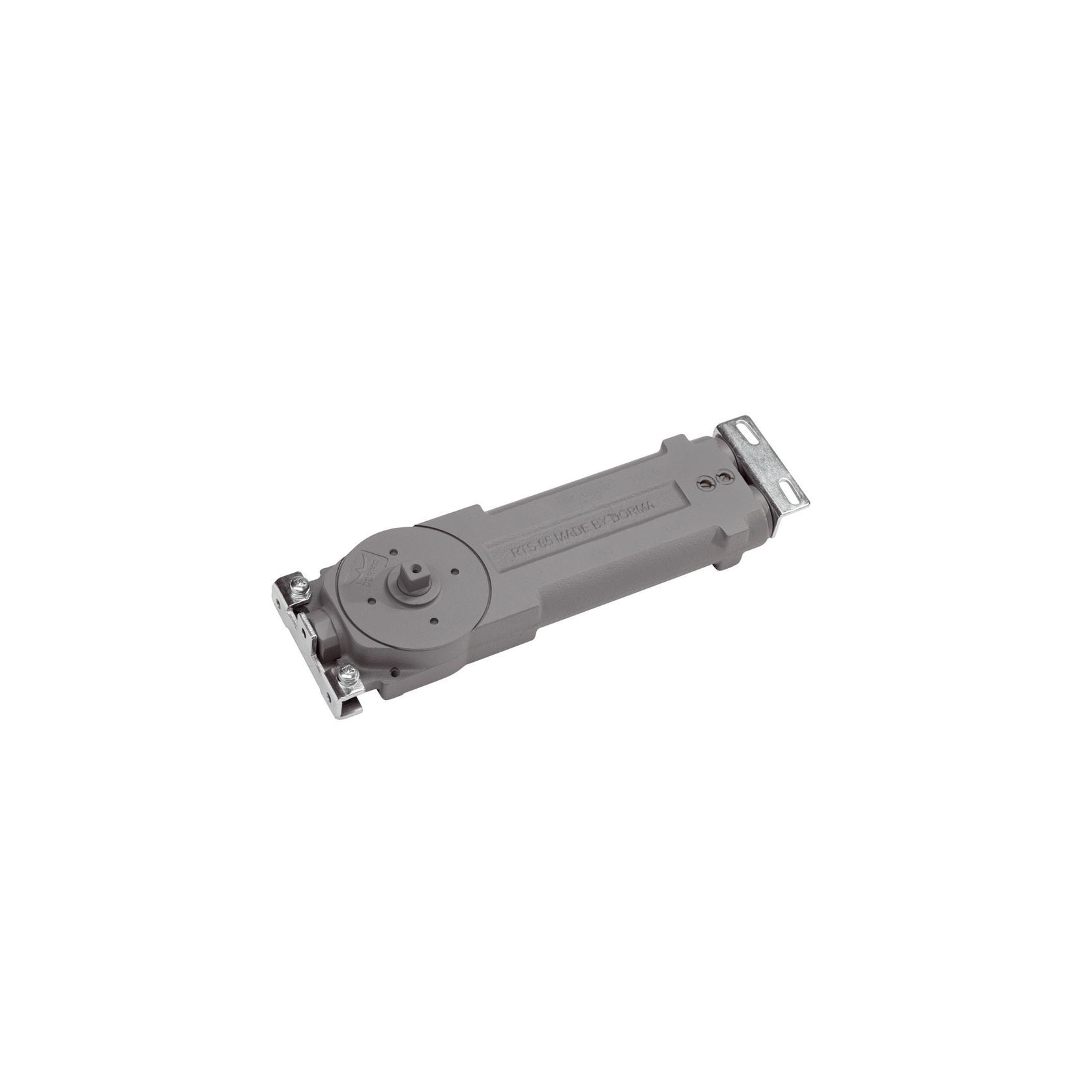

Dorma RTS85T EN3 Transom Closer Hold Open Combi Pack
Wetherill Park, Australia
- 993.7K profile views
- 51 saves
Dorma Transom Closer RTS85T Combi Pack
RTS853T90
Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.
Product Details
- Product
- Dorma RTS85T EN3 Transom Closer Hold Open Combi Pack
- Category
- Door Closers
- Sold by
- Keeler Hardware
- Range
- Dormakaba
- Brand
- Dormakaba
- Country of origin
- Australia
- Type of use
- Commercial
- Package type
- Fragile - handle with care
- Care and cleaning
- Easy maintenance
- Installation
- Minor installation required
- Assembly
- Minor assembly required
Keeler Hardware is specified by
J Mammone ArchitectureArchitects
Bryant Alsop ArchitectsArchitects
Ian Moore ArchitectsArchitects
Hive ArchitectureArchitects
Ha ArchitectureArchitects
Scale ArchitectureArchitects
De Moyer ArchitectureArchitects
Cadence & CoArchitects
TDDP ArchitectsArchitects
Anderson ArchitectureArchitects
Dieppe DesignArchitects
Ironbark ArchitectureArchitects
David Baillie ArchitectArchitects
JOST ArchitectsArchitects
Bones StudioArchitects
Habitat Studio ArchitectsArchitects
Invilla ArchitectureArchitects
mcmahon and nerlichArchitects
R ARCHITECTUREArchitects
Alexander &CO.Architects
Bijl ArchitectureArchitects
STUDIO GAXAInterior Designers
Kate NixonInterior Designers
New SpacesBuilders
Dasch AssociatesInterior Designers
APC BuildBuilders
X + OInterior Designers
TrueBuild HomesDesign & Build
Susie Miles DesignInterior Designers
Schemes & SpacesInterior Designers
Ilm InteriorsJoiners
Jumble & StackInterior Designers
Rise Architectural BuildersBuilders
Dorma Transom Closer RTS85T Combi Pack
RTS853T90
Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.
- Specs
Dorma RTS85 EN4 Transom Closer
85322101Specifications:
- Closing Force: EN3
- Internal doors up to and external doors: up to 1100mm
- Closing speed variable by valve adjustment: Yes
- Final closing speed variable by valve adjustment: Yes
- Backcheck: Yes
- Hold Open: 90 Degrees

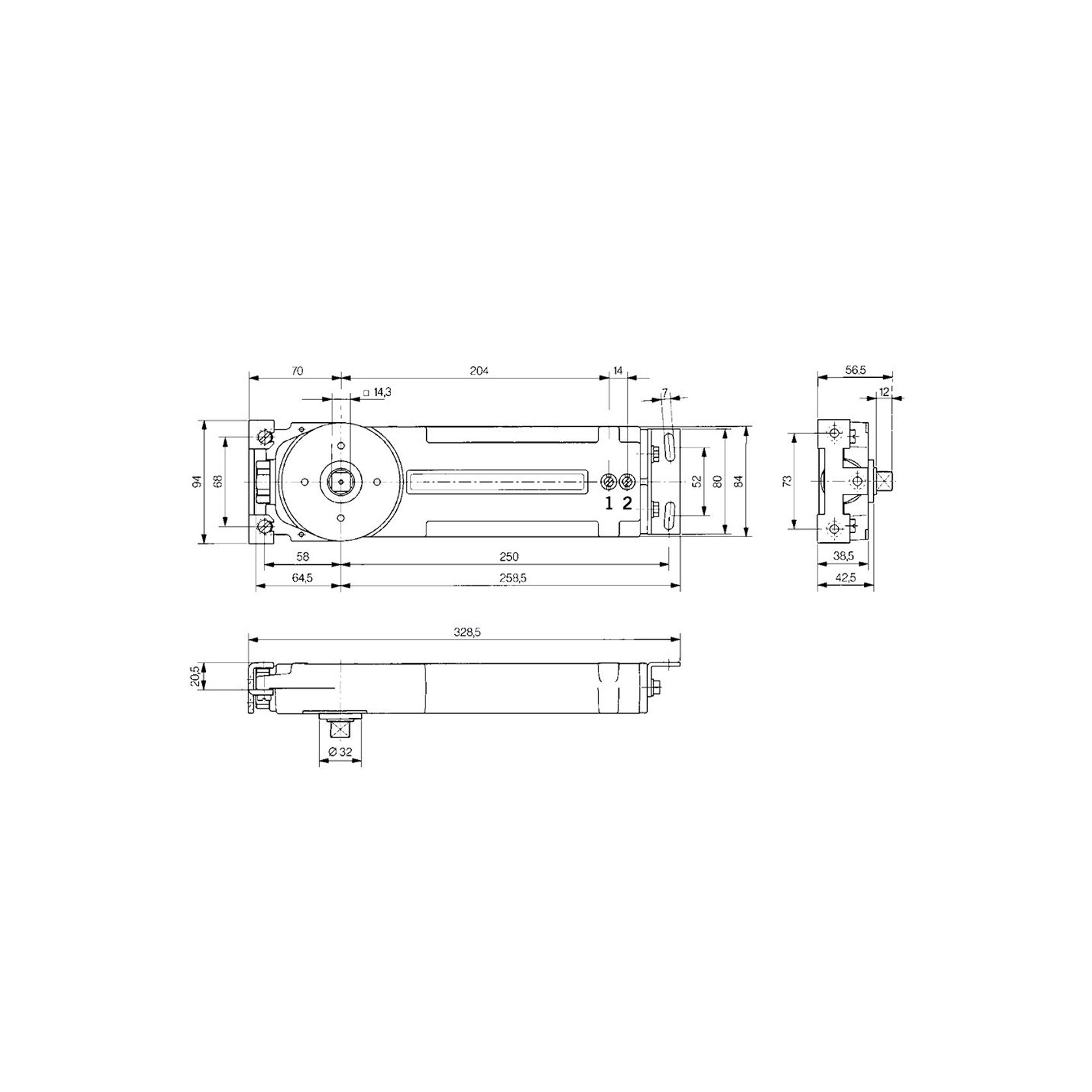

- Length: 323mm
- Width: 90mm
- Height: 38mm
- Weigth: 4.8kg
Dorma RTS85W Transom Coverplate Satin Stainless Steel
10000051ASpecifications:
- Satin Stainless Steel Cover plate
- Suits Dorma TS85 transom closers
- To suit steel and wooden door frames
Dorma 8550 Transom Closer Pivot Timber
65310300Specifications:
- Suits Bottom Rails with Channel:Depth: 18-20mm
Height: 27mm
- Scope of use
Transom Closer allows a single or double action aluminium door or doors to be closed with precision.
The DORMA RTS 85 transom concealed door closer offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door. A complete line of accessories is available to accommodate virtually any door and frame configuration. Certified to ISO 9001.
Dorma RTS85 EN4 Transom Closer
85322101Features:
- For single and double action doors
- Backcheck function as standard
- Wide range of accessories for almost every configuration
- Concealed in the door frame
Dorma 8550 Transom Closer Pivot Timber
65310300Features:
- The Dorma RTS85 floor pivot suits side-load installation
- Used on timber doors, floor portion is fitted directly to the floor
Dorma Transom Closer Arm w/ Bracket
85210005Features:
- A standard side load top arm for use with Dorma concealed transom door closers.
- The arm is fully adjustable allowing lateral adjustment through the hinge style. It also has hole and centre lines in the channel for easy location of the pivot point.
- Wha'ts in the box
Includes:
- 1 x Dorma 85W Cover plate to suit steel and wooden door frames - Satin stainless steel (10000051A)
- 1 x Dorma Transom Door Closer Body RTS 85 EN3 HO (85322101)
- 1 x Dorma Bottom Pivot 8550 (85210005)
- 1 x Dorma Closer Arm (65310300)
