Dorma RTS85 EN4 Transom Concealed Closer Hold-Open for Action Doors 85322101

Wetherill Park, Australia

993.7K profile views
51 saves

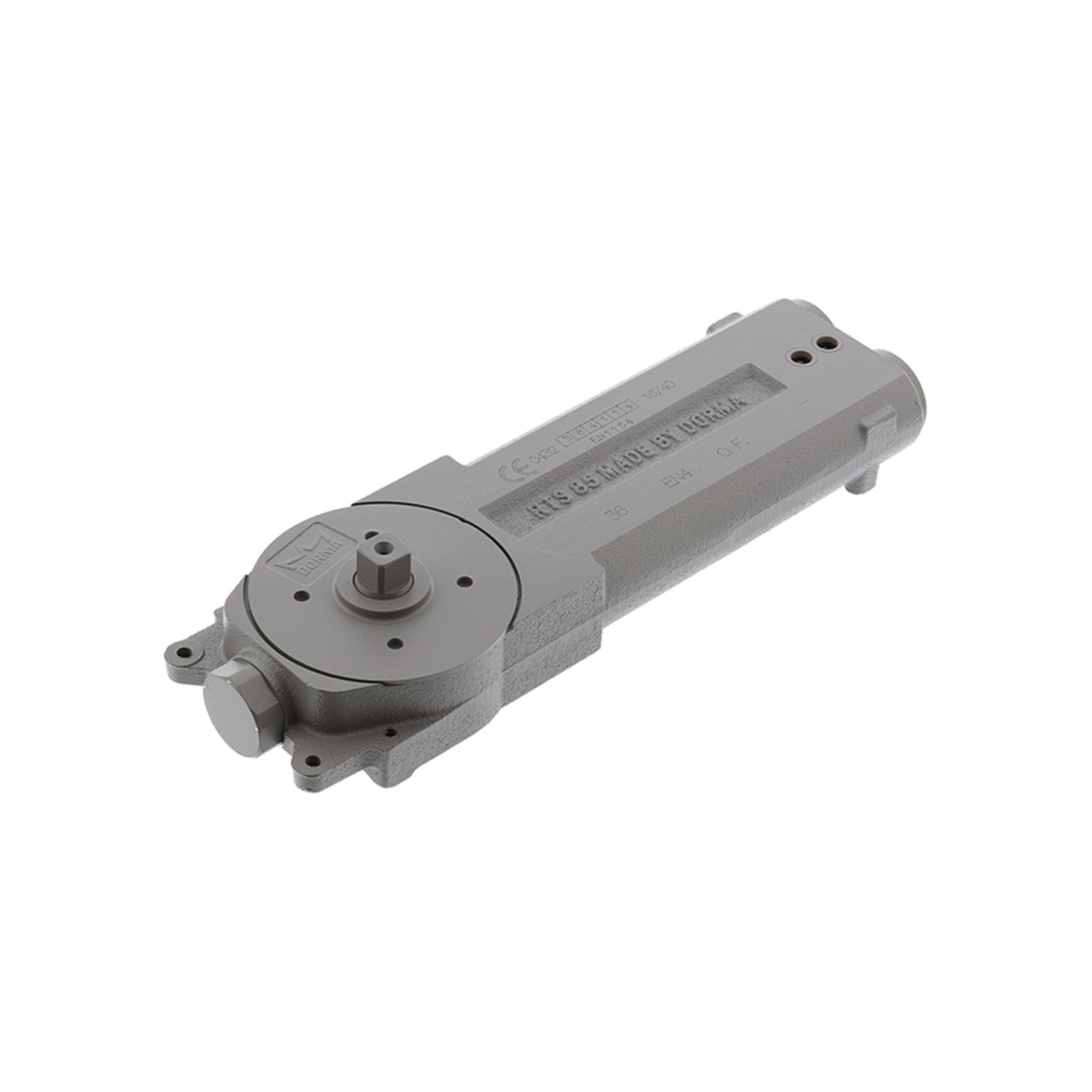

Dorma RTS85 EN4 Transom Closer
85322101

Transom Closer allows a single or double action aluminium door or doors to be closed with precision.

Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.

For single and double action doors RH (ISO 5) and LH (ISO 6)
Offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door.
Certified to ISO 9001.

Tags

single action double action modern aluminium doors concealed

Product Details

Product: Dorma RTS85 EN4 Transom Concealed Closer Hold-Open for Action Doors 85322101
Category: Door Closers
Sold by: Keeler Hardware
Range: Dorma

Keeler Hardware is specified by

(29) Professionals

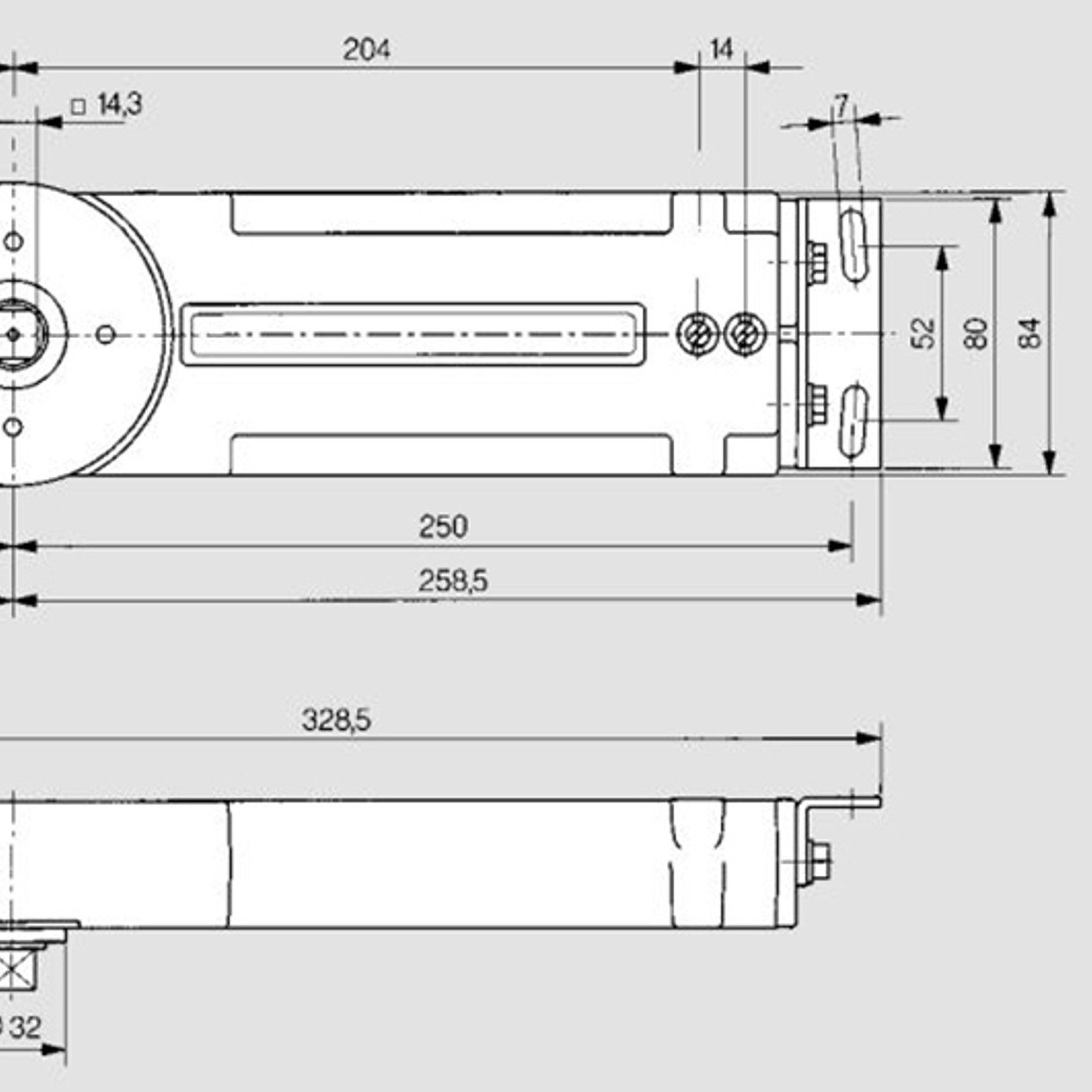

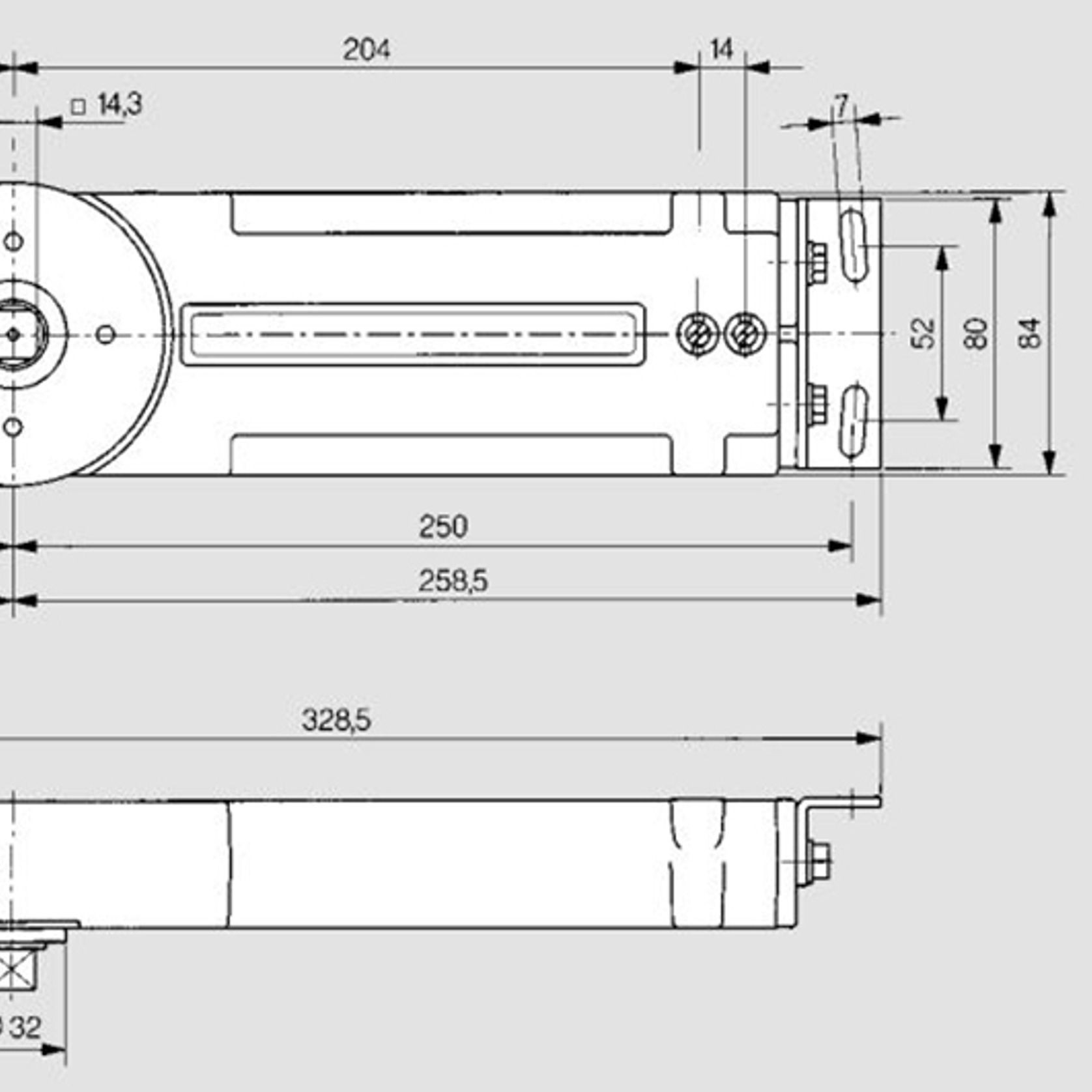

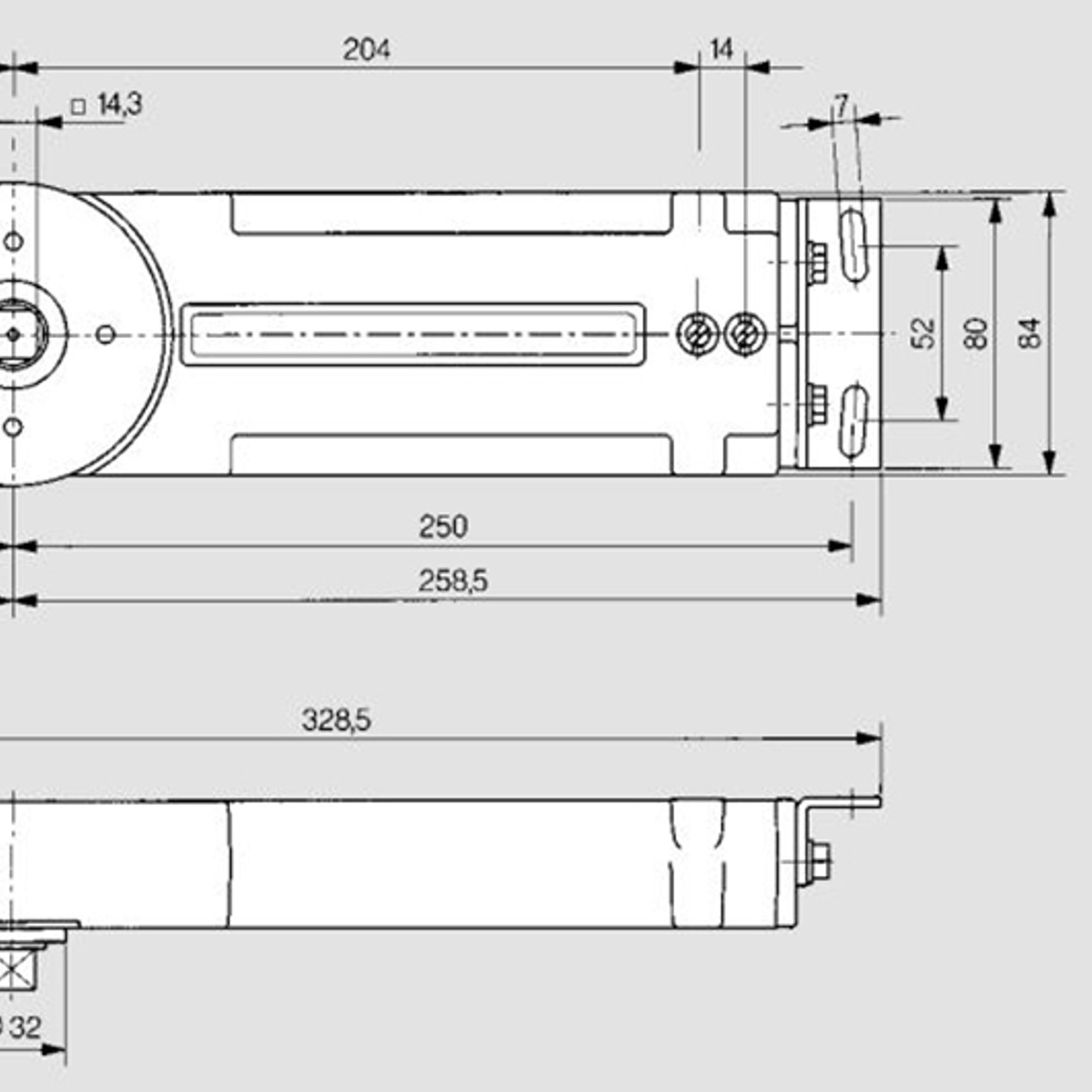

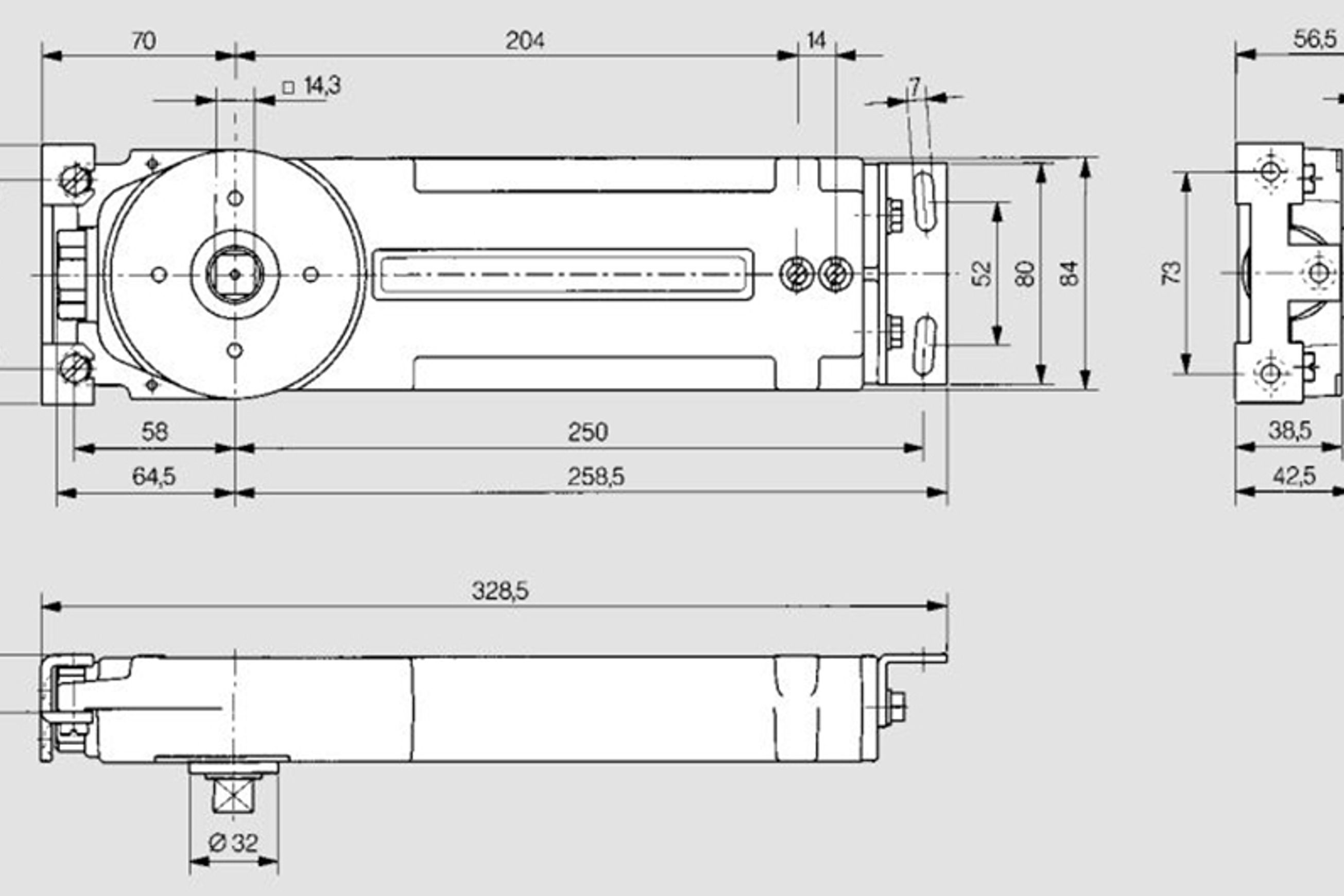

Dorma RTS85 EN4 Transom Concealed Closer Hold-Open for Action Doors 85322101 dimensions

Visit site

Dorma RTS85 EN4 Transom Closer 85322101 Transom Closer allows a single or double action aluminium door or doors to be closed with precision.

Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.

For single and double action doors RH (ISO 5) and LH (ISO 6)
Offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door.
Certified to ISO 9001.

Specs

Features:

For single and double action doors
Backcheck function as standard
Wide range of accessories for almost every configuration
Concealed in the door frame

Specifications:

Closing Force: EN4
Internal doors up to and external doors: up to 1100mm
Closing speed variable by valve adjustment: Yes
Final closing speed variable by valve adjustment: Yes
Backcheck: Yes
Hold Open: 90 Degrees
Length: 323mm
Width: 90mm
Height: 38mm
Weight: 4.8kg

Protection:

Certified manufacture to ISO 9001.
Certification CE marked.
Successful independently tested to BS EN 1154.
