Phonic Direct Fix Acoustic Ceiling Tile
Tauranga, New Zealand
- 180.4K profile views
- 25 saves

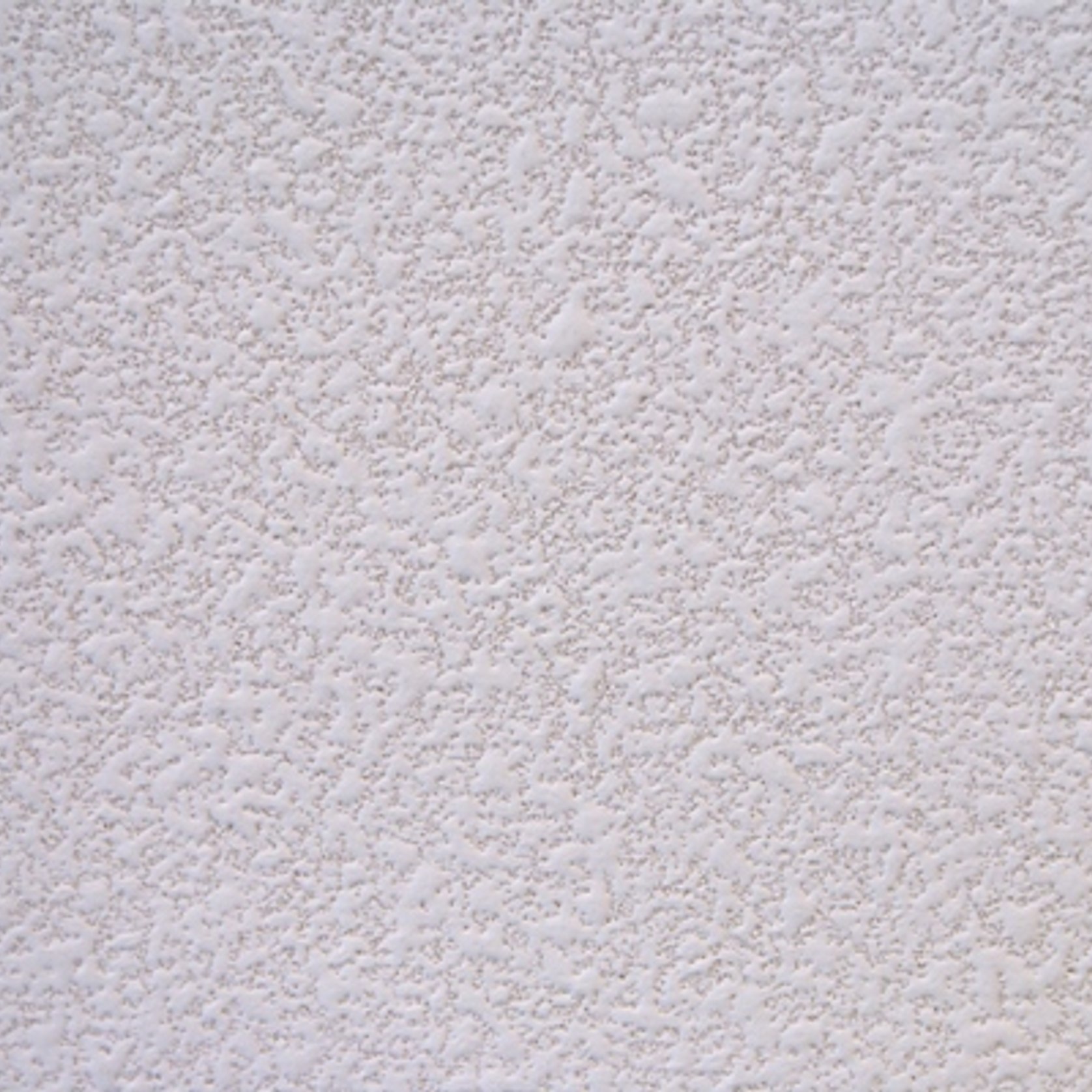

C Max Direct Fix is a white painted, textured glass wool acoustic ceiling tile. Direct fix eliminates the need for an exposed grid and enhances the clean smooth monolithic surface. Designed for direct fix application to new existing gypsum board or other timber/metal battens. This is a high end tile with a high Noise Reduction Coefficient (NRC) to reduce reverberation time.
The construction and design of the compounded, high density glass-wool results in a light weight, high performance ceiling tile which is user friendly and ideal for use in classrooms, offices, medical centres, lobbies and other commercial interiors. The glass-wool component also provides high thermal resistance coupled with low thermal conductivity which is excellent in helping maintain indoor temperature and also reducing energy consumption.
Product Details
- Product
- Phonic Direct Fix Acoustic Ceiling Tile
- Category
- Acoustic Tiles
- Sold by
- T&R Interior Systems
- Range
- Phonic Ceiling Tiles
T&R Interior Systems is specified by
Designgroup Stapleton ElliottArchitects
HB ArchitectureArchitects
BOONArchitects
DLA ArchitectsArchitects
Don Jamieson ArchitectureArchitects
Studio Pacific ArchitectureArchitects
Fat Parrot ArchitectureArchitects
CUSTANCEArchitects
ASC ArchitectsArchitects
Dalgleish ArchitectsArchitects
DLM Architects & Landscape ArchitectsArchitects
Q ConstructionConstruction
TM Consultants LtdStructural Engineers
Honour CreativeInterior Designers
Threefold ArchitectureArchitectural Designers
RM DesignsInterior Designers
Jason Mann PhotographyPhotographers
Lightforge PhotographyPhotographers
FocusplanInterior Designers
Mark Scowen PhotographyPhotographers
C Max Direct Fix is a white painted, textured glass wool acoustic ceiling tile.
Direct fix eliminates the need for an exposed grid and enhances the clean smooth monolithic surface. Designed for direct fix application to new existing gypsum board or other timber/metal battens. This is a high end tile with a high Noise Reduction Coefficient (NRC) to reduce reverberation time.
The construction and design of the compounded, high density glass-wool results in a light weight, high performance ceiling tile which is user friendly and ideal for use in classrooms, offices, medical centres, lobbies and other commercial interiors. The glass-wool component also provides high thermal resistance coupled with low thermal conductivity which is excellent in helping maintain indoor temperature and also reducing energy consumption.
- Specs
Absorption (ISO 354) 20mm direct fix:
- NRC 0.75 (ASTM C423)
- αW 0.55 (ISO 11654)
- SAA 0.94 (ASTM C423)
with 35mm air gap:
- NRC 0.85 (ASTM C423)
- αW 0.85 (ISO 11654)
- SAA 0.92 (ASTM C423)
Attenuation - 20mm
- CAC 23
- Dn,c,w 23
- LR1 87%
- Density 100kg/m³
- Weight 20mm: 2kg/m²
- Fire Test - ISO 5660 Parts 1 & 2 - Group 1-S
- Moisture Content (JC/T 670-2005) – ≥1%
- Thermal Resistance – ≥ 0.4 (m².k/w)
- Est. R-Value (m2k/w) - 20mm: R0.5
Size: 20mm Depth Standard [600x600] *[1200 x 600]
Colour – White
30 year lifetime system warranty to withstand conditions up to 40° and 99% relative humidity without visible sag when used with a T&R brand suspension system.
