Briton Panic Bar Pack Double Door Outside Knob LPED005

Name: Briton Panic Bar Pack Double Door Outside Knob LPED005
Brand: Briton

by Keeler Hardware

Wetherill Park, Australia

993.7K profile views
51 saves

Visit Website

Briton Panic Bolt w/ Knob & Cylinder Lock Pack

The 377E panic bolt is suitable for double door applications.

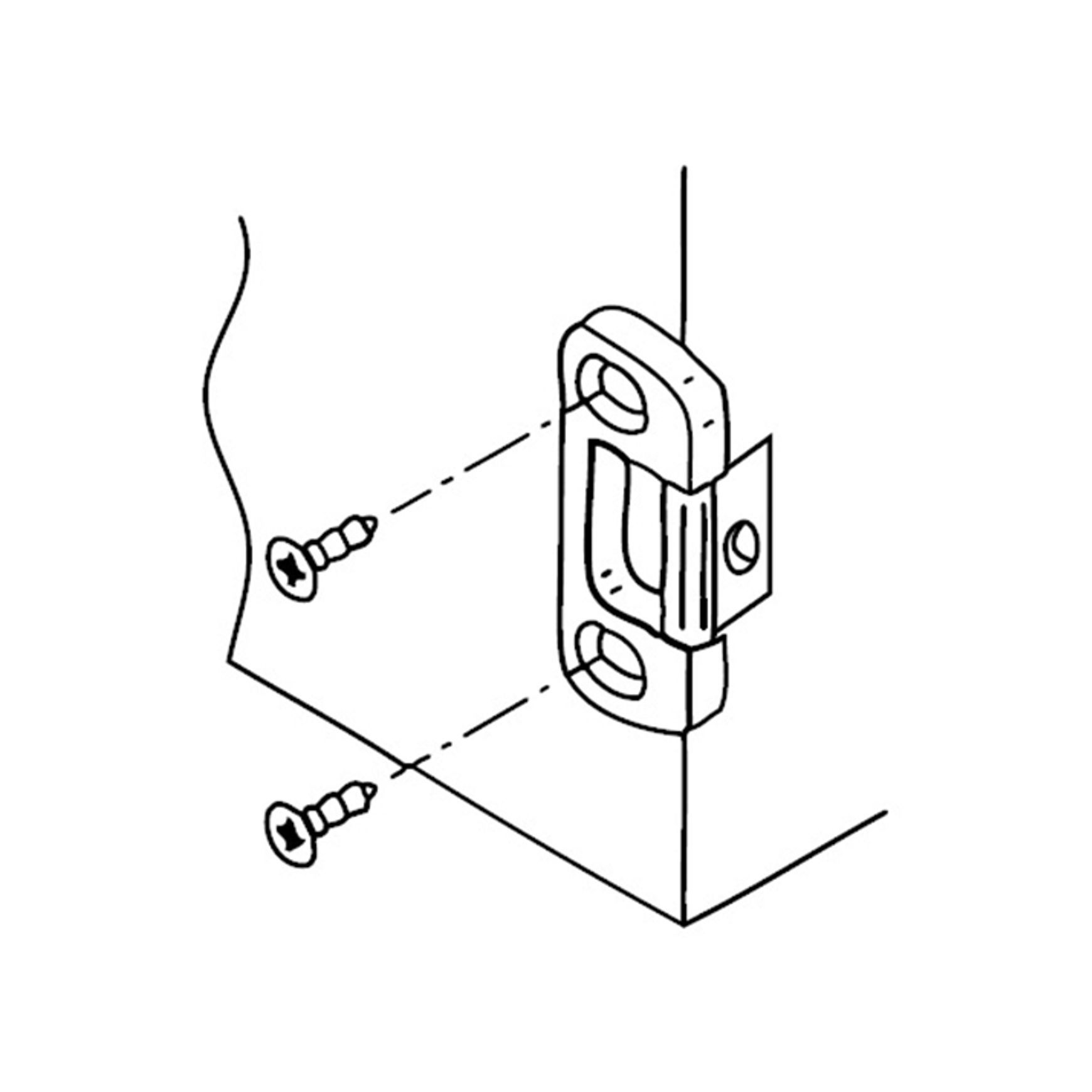

The 377E consists of 376E, 378E and 378DDS strike plate.
Dogging option is available for both 376 and 378 devices.
The 377E is field sizable to accommodate a range of door openings.
376E is non handed - will suit both left and right hand doors.
378E is handed but can be rehanded on site.

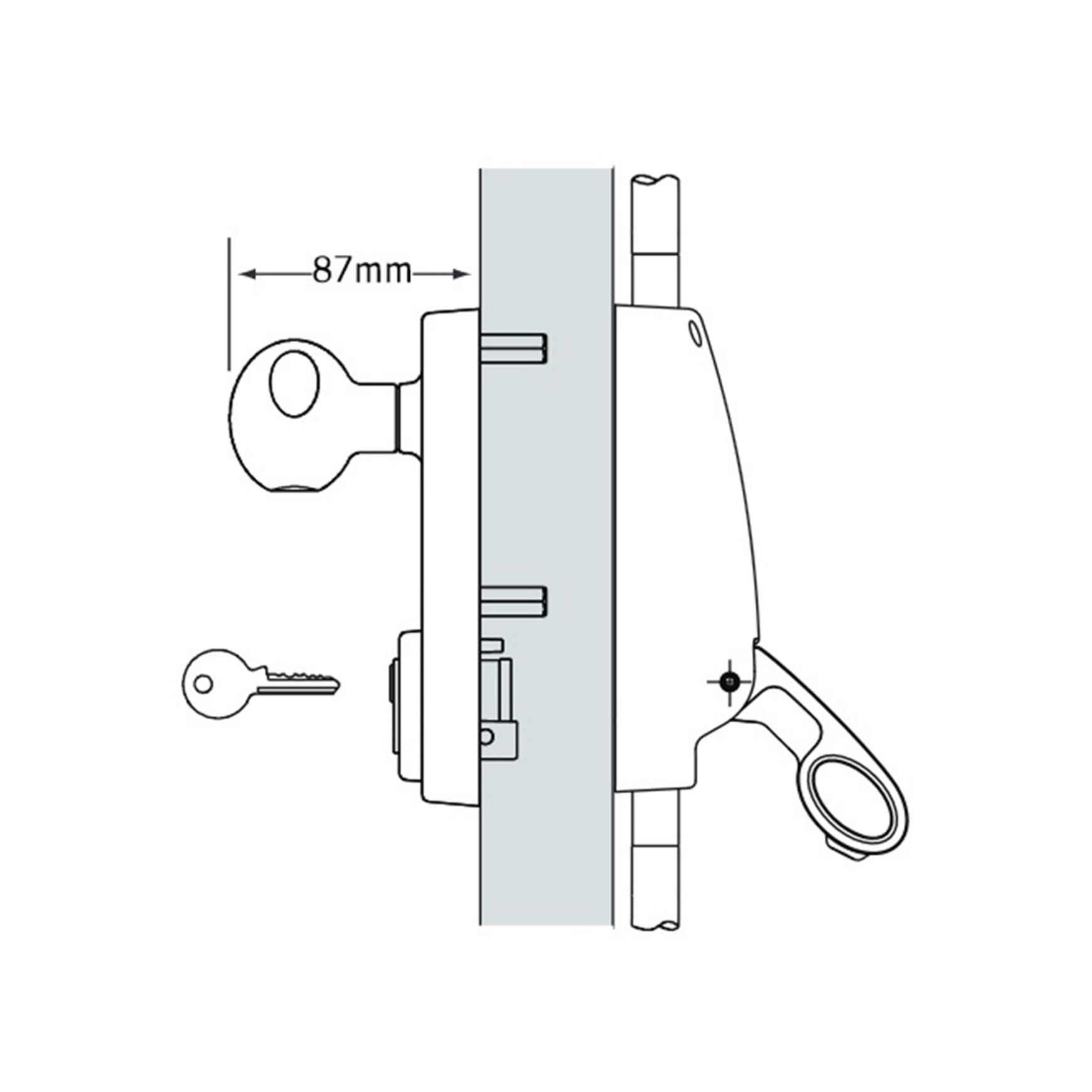

Using a Briton 1413E outside locking device will provide access when the door is locked. When unlocked the door can also be operated from the outside by using the knob or lever.
The 1413E has been designed to suit all exit devices within the Briton 376E series.
The 1413E has been designed to accept 1/2 Euro cylinders for key access.
The 1413E is suitable for doors between 35mm and 70mm thick.
Fixings supplied are suitable for both timber and metal doorsets.
Please note: Not recommended for high use areas.

Tags

hardware door hardware door handles door locks handles

Product Details

Product: Briton Panic Bar Pack Double Door Outside Knob LPED005
Category: Door Knobs
Sold by: Keeler Hardware
Range: Briton
Brand: Briton
Country of origin: Australia
Type of use: Commercial and Residential
Package type: Special packaging required
Care and cleaning: Easy maintenance
Installation: Minor installation required
Assembly: Minor assembly required

Product Variants

Colors
Material
Size

Keeler Hardware is specified by

(29) Professionals

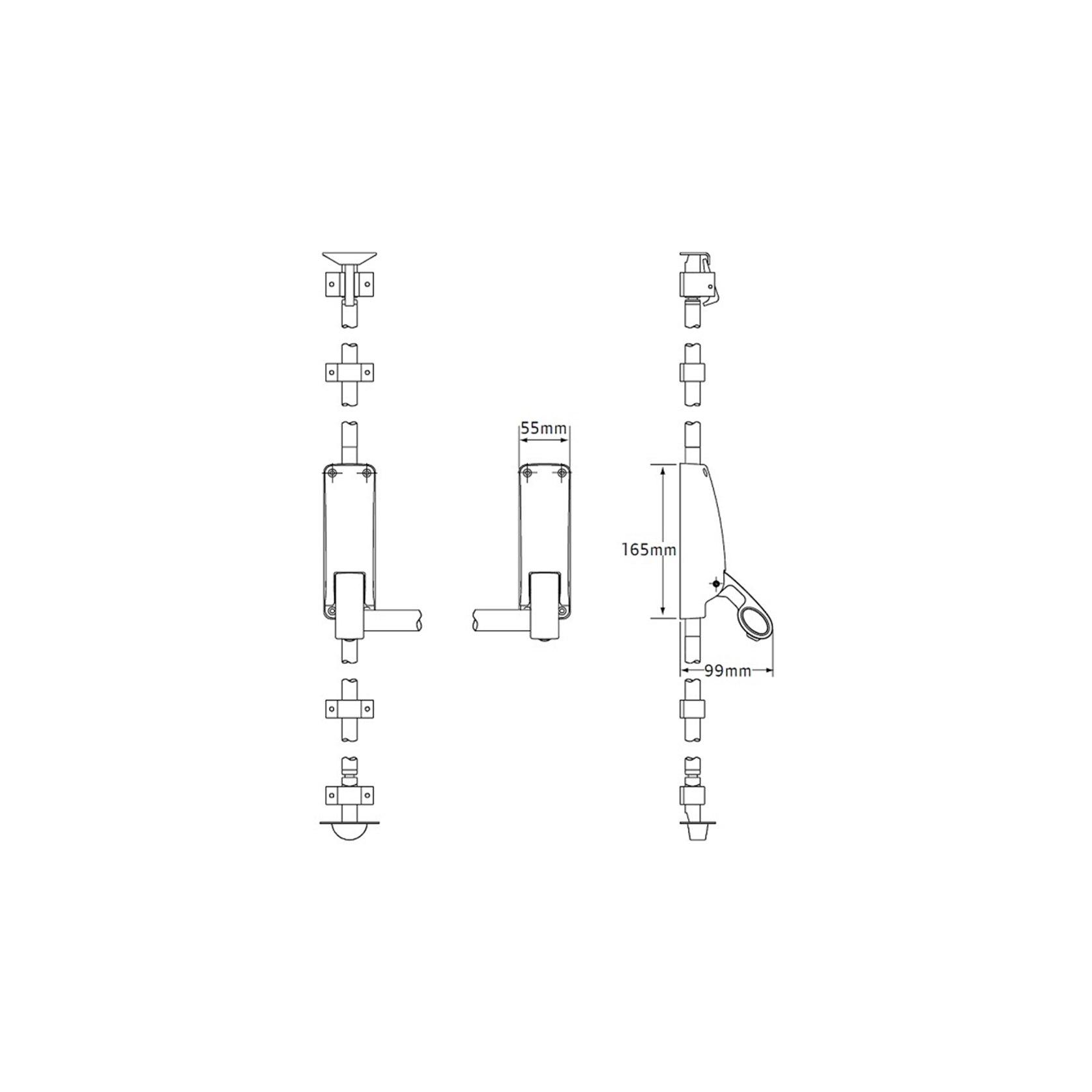

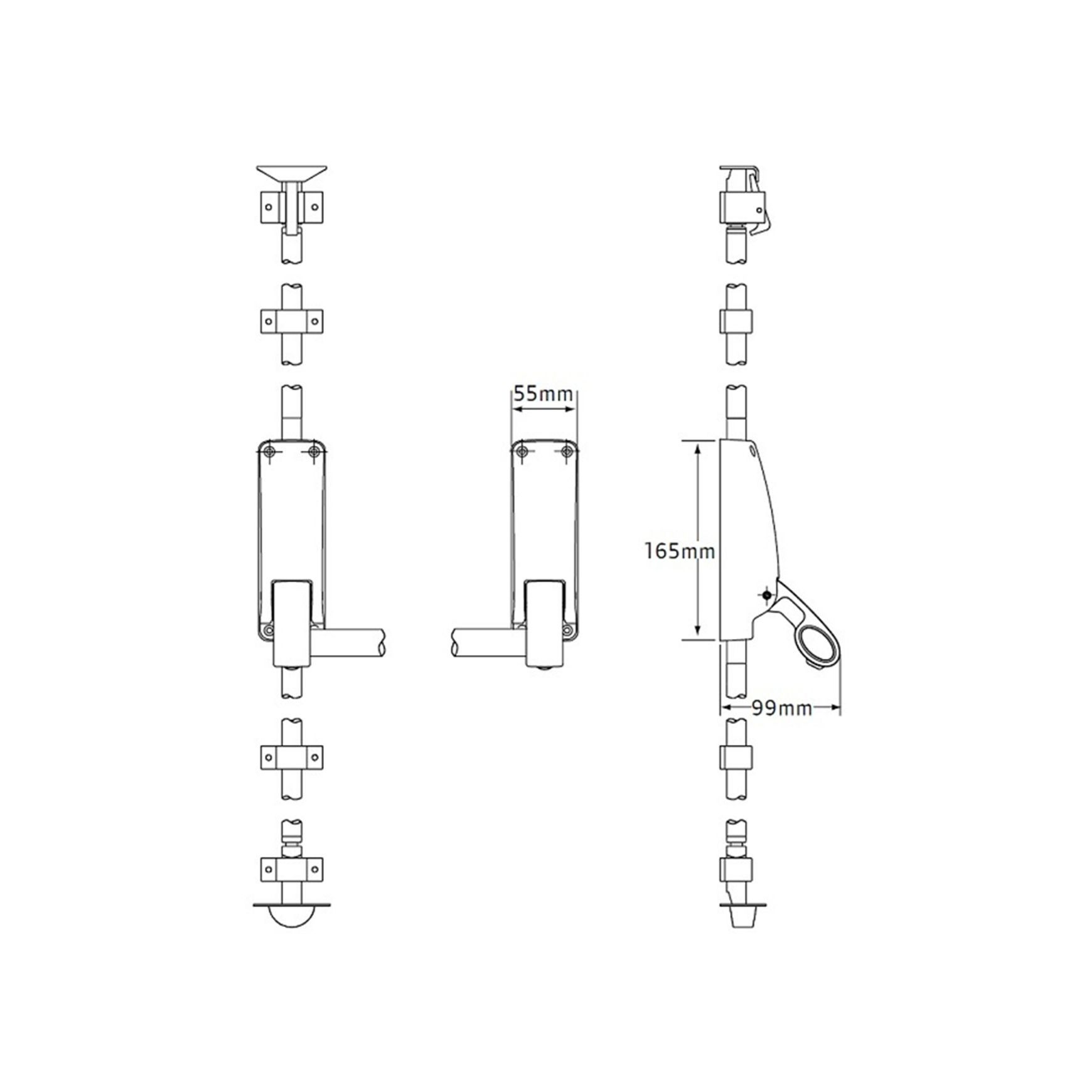

Briton Panic Bar Pack Double Door Outside Knob LPED005 dimensions

Visit site

The 377E consists of 376E, 378E and 378DDS strike plate. Dogging option is available for both 376 and 378 devices. The 377E is field sizable to accommodate a range of door openings. 376E is non handed - will suit both left and right hand doors. 378E is handed but can be rehanded on site. Using a Briton 1413E outside locking device will provide access when the door is locked. When unlocked the door can also be operated from the outside by using the knob or lever. The 1413E has been designed to suit all exit devices within the Briton 376E series. The 1413E has been designed to accept 1/2 Euro cylinders for key access. The 1413E is suitable for doors between 35mm and 70mm thick. Fixings supplied are suitable for both timber and metal doorsets. Please note: Not recommended for high use areas.

Briton Panic Bolt w/ Knob & Cylinder Lock Pack The 377E panic bolt is suitable for double door applications.

The 377E consists of 376E, 378E and 378DDS strike plate.

Dogging option is available for both 376 and 378 devices.

The 377E is field sizable to accommodate a range of door openings.

376E is non handed - will suit both left and right hand doors.

378E is handed but can be rehanded on site.

Using a Briton 1413E outside locking device will provide access when the door is locked. When unlocked the door can also be operated from the outside by using the knob or lever.

The 1413E has been designed to suit all exit devices within the Briton 376E series.

The 1413E has been designed to accept 1/2 Euro cylinders for key access.

The 1413E is suitable for doors between 35mm and 70mm thick.

Fixings supplied are suitable for both timber and metal doorsets.

Please note: Not recommended for high use areas.

Specs

Briton Double Door Vertical Panic Bolt
B377E/SE

Door Type: Timber or Metal
Stile Width: 78mm minimum with 13mm rebates, 90mm minimum with 25mm rebates
Door Width: 665mm to 1300mm per leaf
Door Height: 2500mm standard. Extra long top shoot available for door heights up to 3350mm
Material Zinc: diecast chassis. Steel rods and crossbars
Finish: Silver Enamel
Supplied as Trade pack with all fixing hardware

Briton Outside Trim Knob w/ Cylinder
1413/KE

Door Type: Timber or Metal
Door Thickness: 40mm-100mm
Material: Zinc diecast chassis and knob
Finish: Silver Enamel
Supplied as Trade pack with all fixing hardware

Scope of use

Briton Double Door Vertical Panic Bolt
B377E/SE

Panic Bolt allows for both doors to be locked closed and permits emergency exit from both doors (e.g. where emergency or panic situation could occur).

Briton Outside Trim Knob w/ Cylinder
1413/KE

Door Knob used to open up or shut a door. commonly used on commercial or residential area.

Includes

1 x Briton Double Door Vertical Panic Bolt (B377E/SE)
1 x Briton Outside Trim Knob w/ Cylinder (1413/KE)
