Boilermag Industrial Magnetic Filter - Boilermag XT
Auckland, New Zealand
- 583.8K profile views
- 189 saves

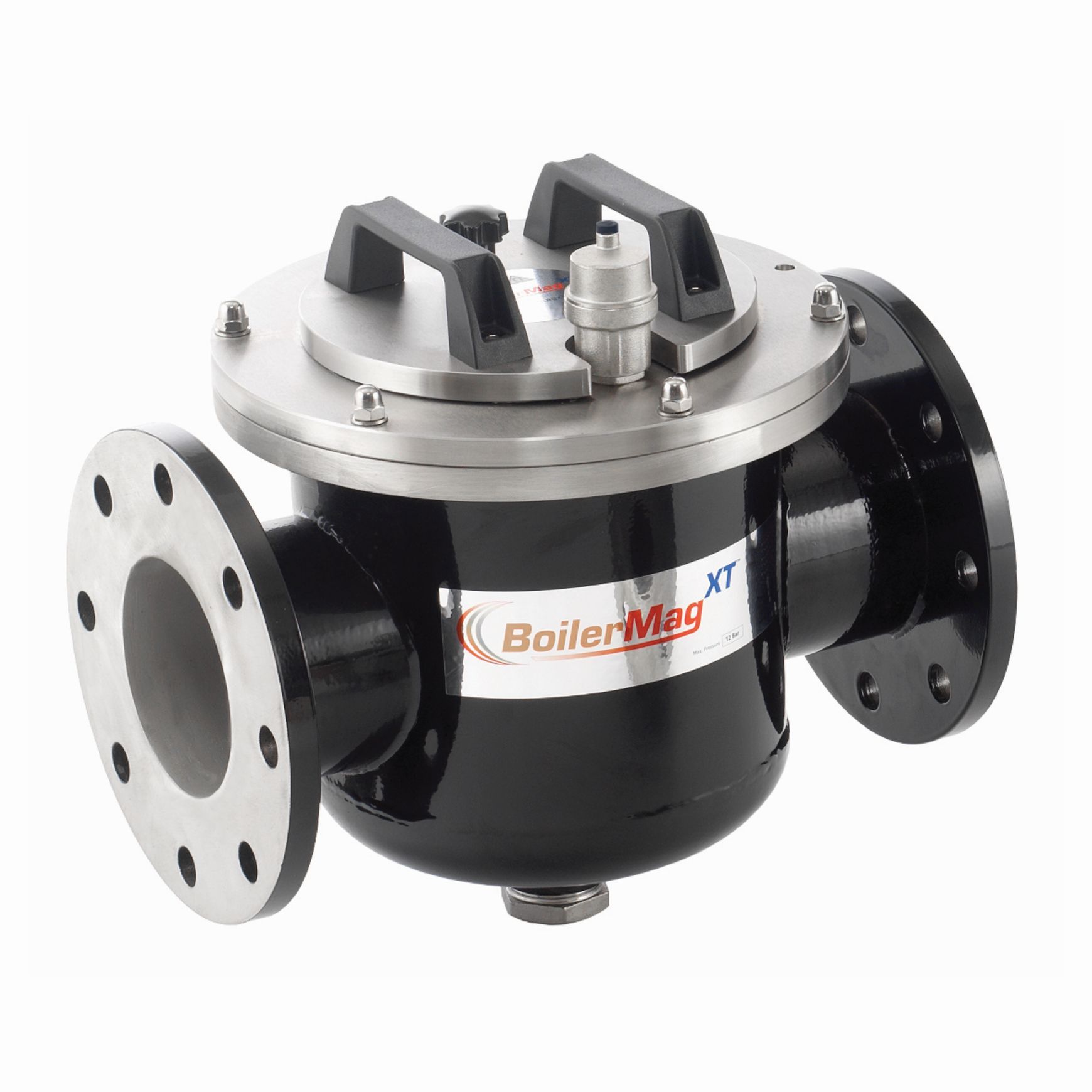

BoilerMagXT is a range of high specification full flow filters for large industrial sized heating and cooling systems.
BoilerMagXT features a robust fabricated stainless steel construction which is ideal for the most demanding of applications.
With model sizes compatible for 2” up to 12” port sizes and PN16 flanges, BoilerMagXT easily handles the efficiency and reliability demands of large industrial heating and cooling systems.
It provides long lasting protection for system components such as heat exchangers, pumps, radiators and fan coil units.
Product Details
- Product
- Boilermag Industrial Magnetic Filter - Boilermag XT
- Category
- Water Filter Systems
- Sold by
- Warm NZ Heating Solutions
- Range
- Boilermag
- Type of use
- Commercial
- Warranty
- 10 years
Warm NZ Heating Solutions is specified by
I Am DeveloperArchitects
Chaplin Crooks ArchitectsArchitects
Charissa Snijders ArchitectArchitects
Christian Anderson ArchitectsArchitects
Stephan Meijer ArchitectureArchitects
Evelyn McNamara ArchitectureArchitects
Brendon Gordon ArchitectsArchitects
Stephen Jones ArchitectsArchitects
Hamish Shaw ArchitectsArchitects
Hulena ArchitectsArchitects
Our ProjectsBuilders
QUATTRO UNOKitchen & Bathroom Designers
Nicola Manning DesignInterior Designers
Wilson ConstructionConstruction
M C Fearnley DesignArchitectural Designers
Emandee HomesBuilders
Stehr Brothers ConstructionBuilders
Harrison LaneBuilders
No Shock ElectricalElectricians
Home ProjectsBuilders
Christopher Hay ConstructionBuilders
PlumbcraftPlumbers & Gas Fitters
Beck BuildingBuilders
Precision ConstructionBuilders
Dash BuildBuilders
BoilerMagXT is a range of high specification full flow filters for large industrial sized heating and cooling systems.
BoilerMagXT features a robust fabricated stainless steel construction which is ideal for the most demanding of applications.
With model sizes compatible for 2” up to 12” port sizes and PN16 flanges, BoilerMagXT easily handles the efficiency and reliability demands of large industrial heating and cooling systems.
It provides long lasting protection for system components such as heat exchangers, pumps, radiators and fan coil units.
- Pricing
- From $9,600 - $50,000 *Price indication
- Benefits
- Easy installation – fits standard PN16 flanged connections
- Extends boiler life

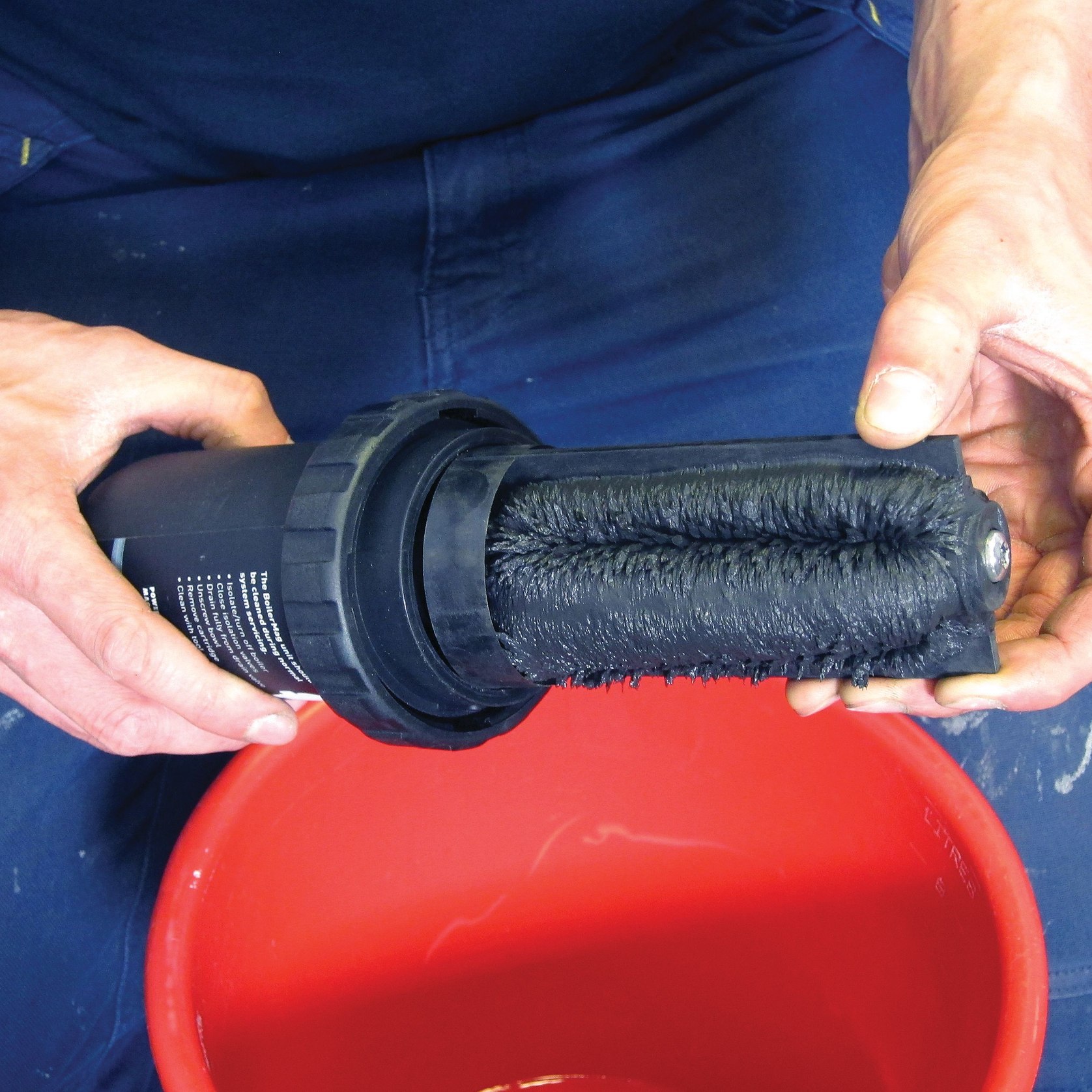

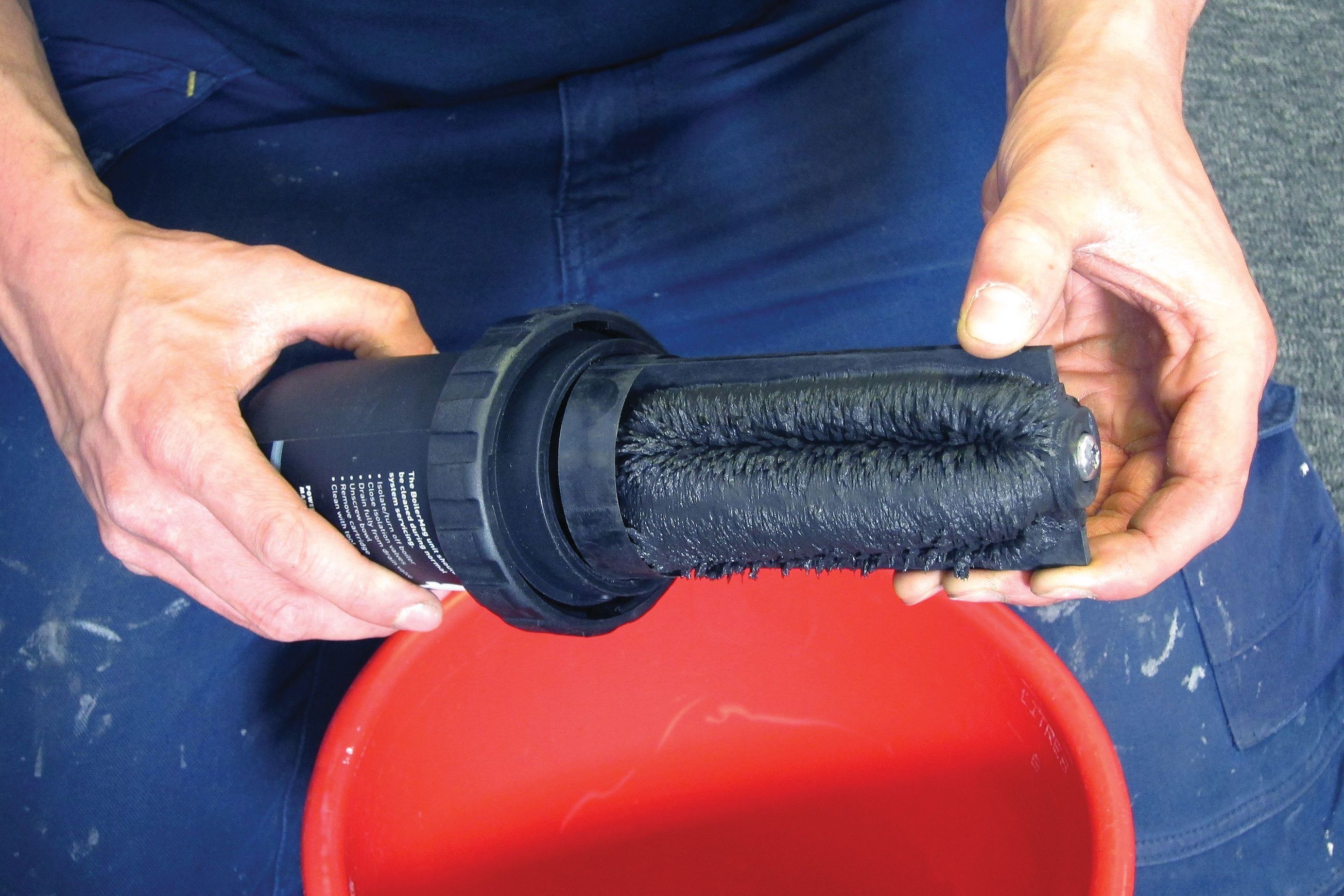

- Simple to service and clean – no need to disconnect
- Operating temperature up to 150˚C*
- Operating pressure up to 12 bar**
- Flow rates up to 310m³/hr
- Automatic Air Vent reduces the risk of air generated corrosion
- Inhibitor dosing can be done at filter
- No on-going running costs
- 10-year warranty
- Minimal pressure reductions
- Easy to service and clean
- Large collection capacity
- Huge dirt collection capacity
- Full flow – filters 100% of fluid
*If using the Automatic Air Vent option, the maximum temperature is 110˚C
**If using the Automatic Air Vent option, the working pressure is 10 bar
