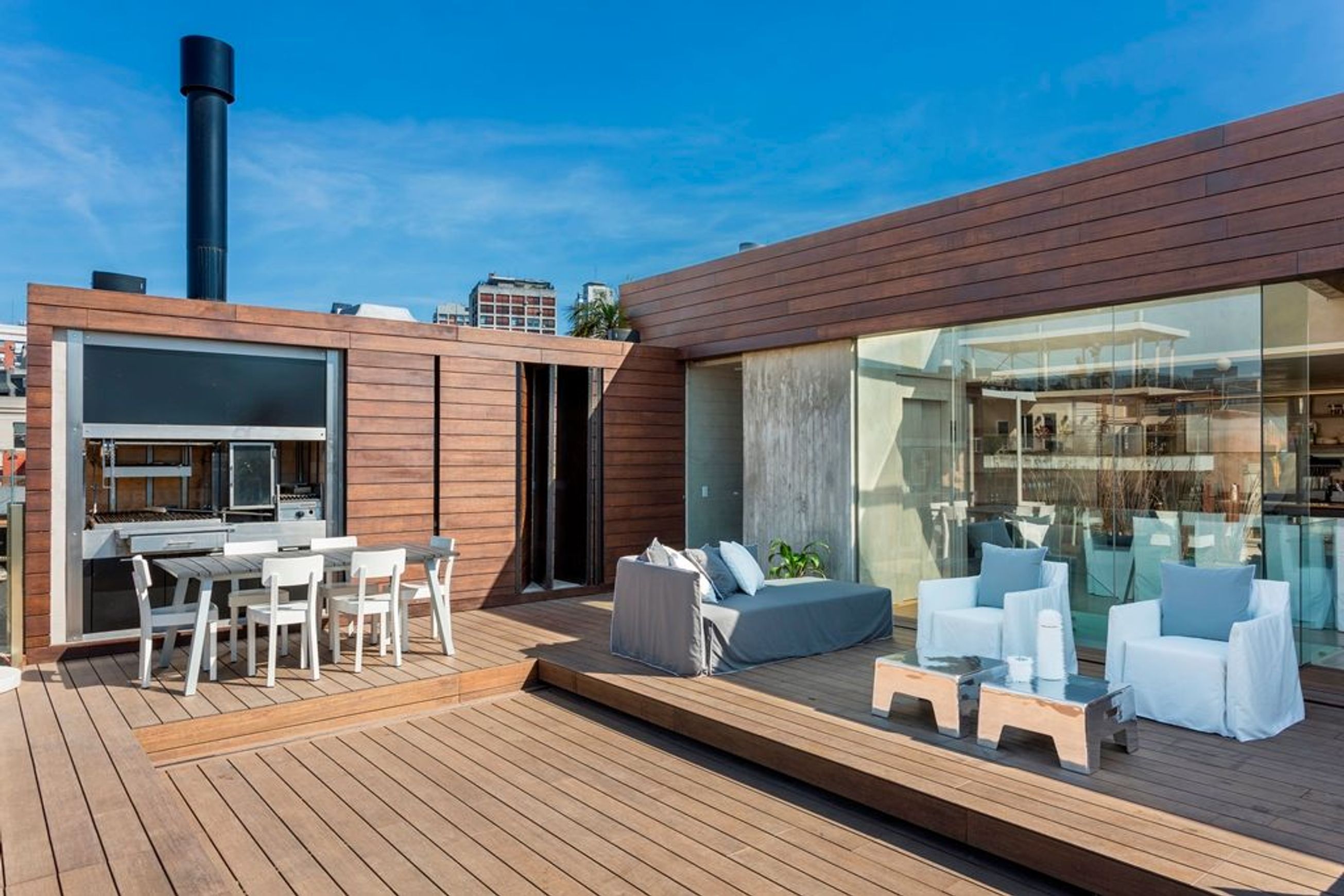

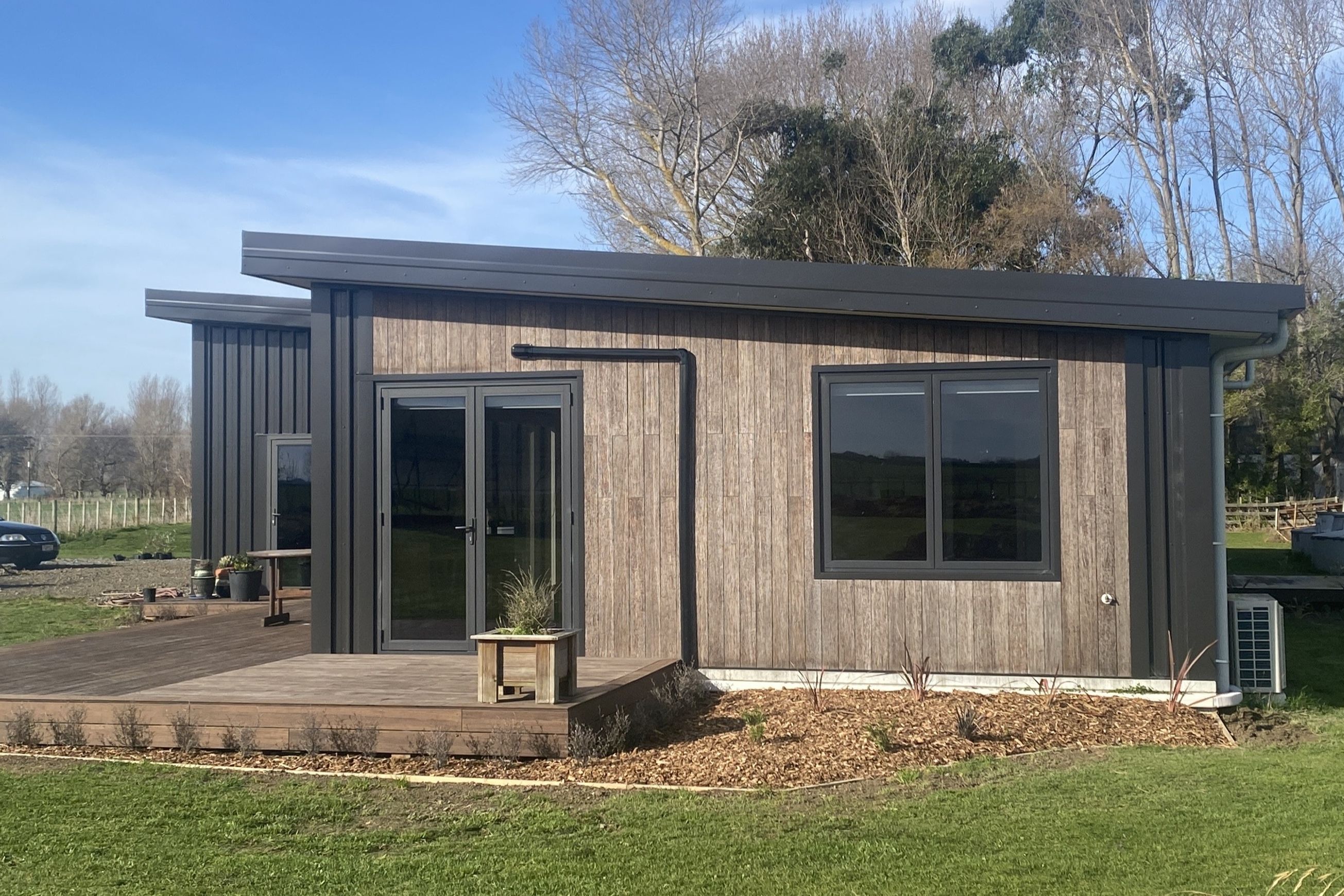

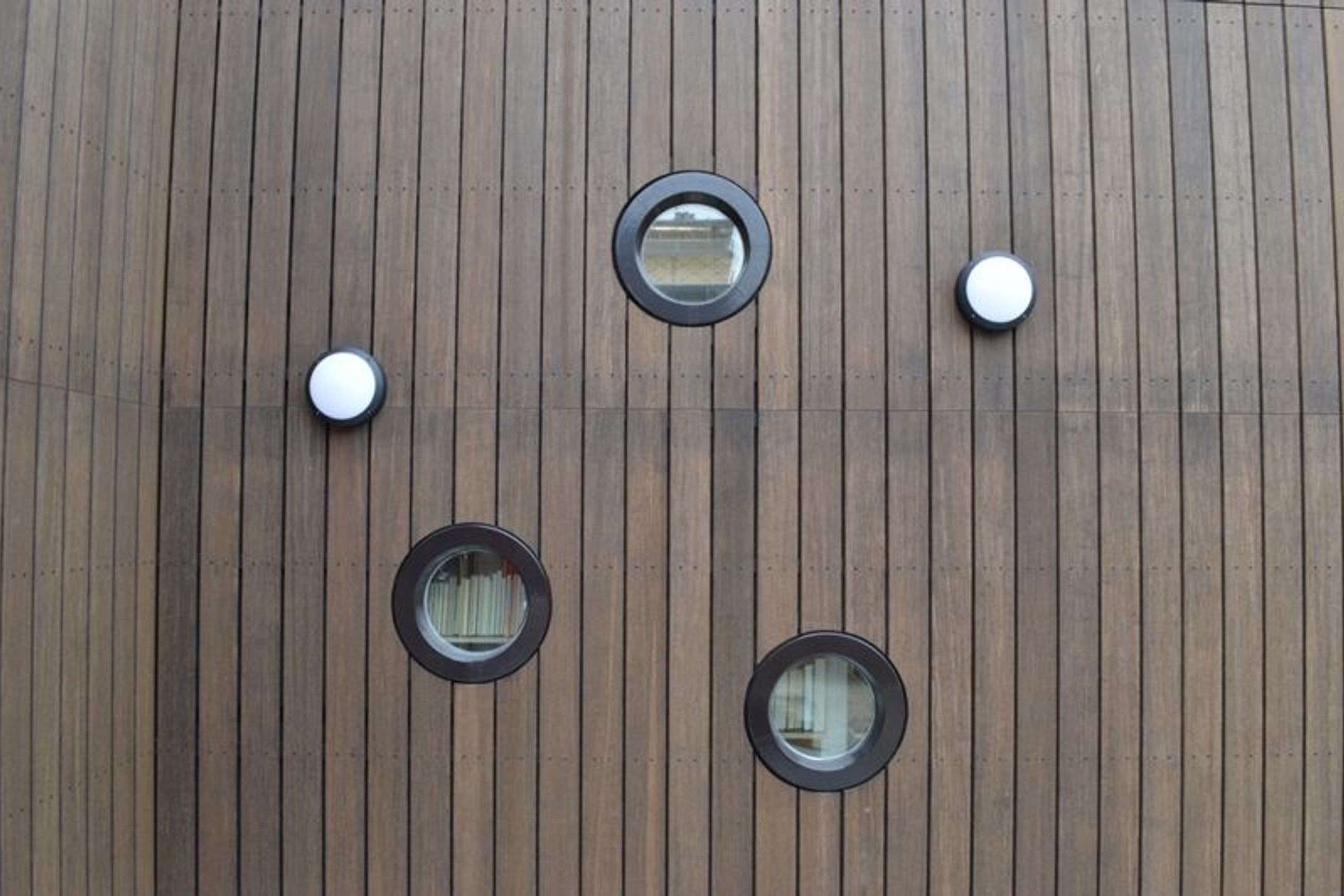

Bamboo X-treme Cladding

Bamboo x-treme cladding boards are 1850mm long, with end-matching tongue-in-groove join. The boards are 137mm wide, but with the profiled overlap the visible face is 128mm (once clipped together and installed), with a small gap provided between the boards for air-flow.

• The cladding is 18mm thick.
• There are 5 boards = 9.25LM per box. A box weighs 27kg.
• Supplied with powder-coated stainless steel clip and screw fixings – for “invisible” fastening.

Technical characteristics and certifications of bamboo x-treme cladding:

• Density: +/- 1150 kg/m3
• Dimensional stability: length: + 0.1 %; width: + 0.9% (24 hours in water 20°C)
• Resistance to Indentation – Brinell Hardness: ≥ 9.5 kg/mm2 (EN 1534)
• Reaction to fire: Class B-s1-d0 (EN 13501-1) 1)
• Flame spread index: Class A (ASTM E84)
• Thermal emittance: 0.81 (ASTM C1371) 2)
• Solar Reflectance (SR): 0.32 (ASTM C1549) 2)
• Solar Reflectance Index (SRI): Low 27, Medium 30, High 33 (ASTM E1980) 2)
• Modulus of Elasticity: 13565 N/mm2 (mean value – EN 408)
• Bending strength: 54.4 N/mm2 (characteristic value – EN 408)
• Biological durability: Class 1 (EN 350 / CEN/TS 15083-2), simulated graveyard test / Class 1
• (EN 350 / CEN/TS 15083-1)
• Effectiveness against Blue Stain: Class 0 (EN 152)
• Use Class: Class 4 (EN 335)
• CO2 neutral: LCA report TU Delft (ISO 14040/44) (www.moso-bamboo.com/lca)
• Environmental Product Declaration – EPD (EN 15804) (www.moso-bamboo.com/epd)
• Contribution LEED BD+C – v4: MR 1, MR 2, MR 3 (FSC®), SS 7
• v2009: MR 6, MR 7 (FSC®)
• Contribution BREEAM: MAT 1, MAT 3 (FSC®), MAT 5 (HD)
• Warranty: 25 years
• Tested on 18 mm thickness, without gaps between boards, with ventilation space behind boards.
• Tested on 3 year-weathered Bamboo X-treme Cladding

Fire Safety

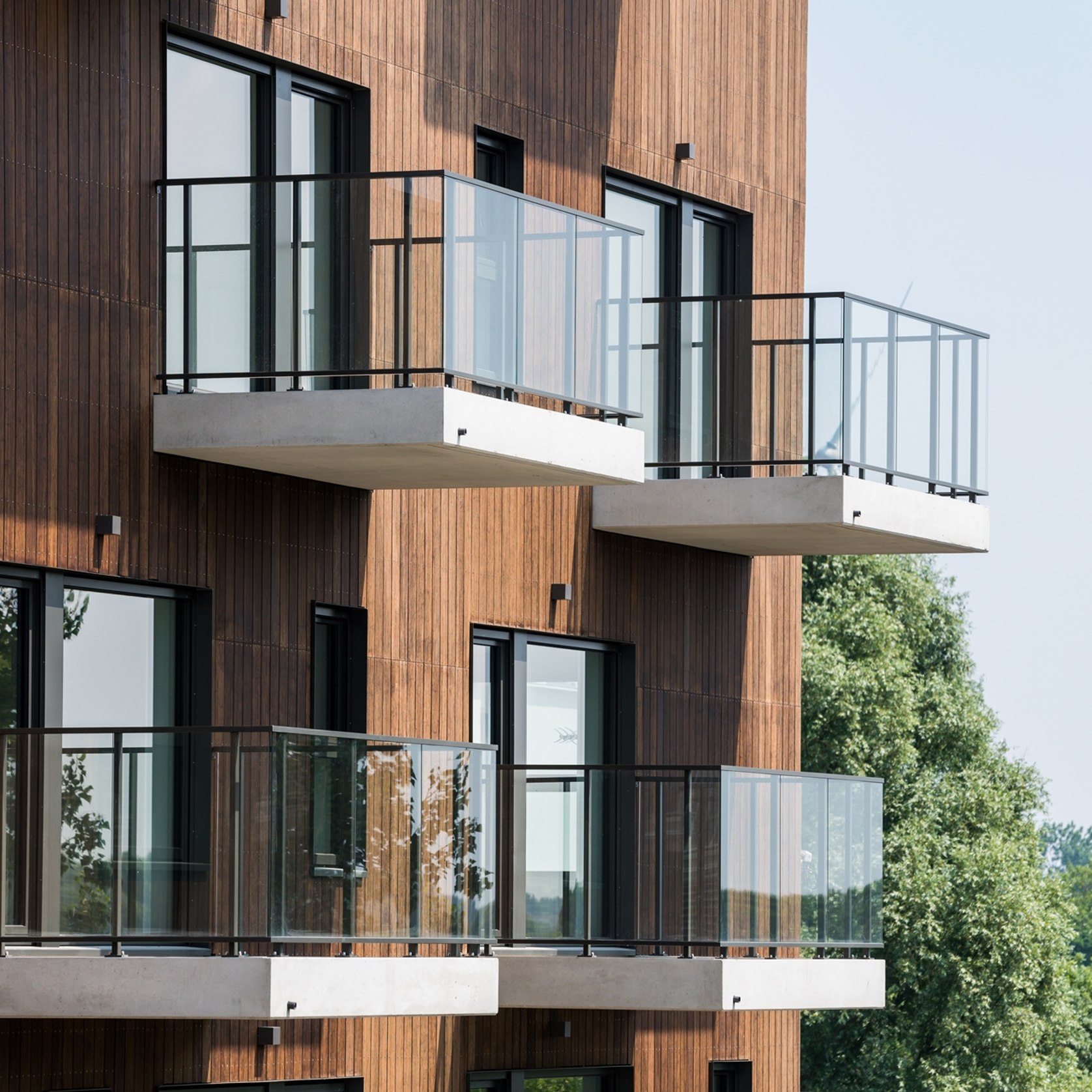

Contrary to many other wood products, bamboo X-treme cladding reaches a fire safety class B-S1-d0 (EN 13501-1) and Class A (ASTM E84). This makes it suitable for commercial buildings, apartments and housing while giving a beautiful natural appearance.

The cladding reaches this exceptional fire safety rating without impregnation of eco-damaging and expensive fire retardants. Therefore, the cladding is safe for the environment and for the installers. Sustainable, safe and beautiful!!

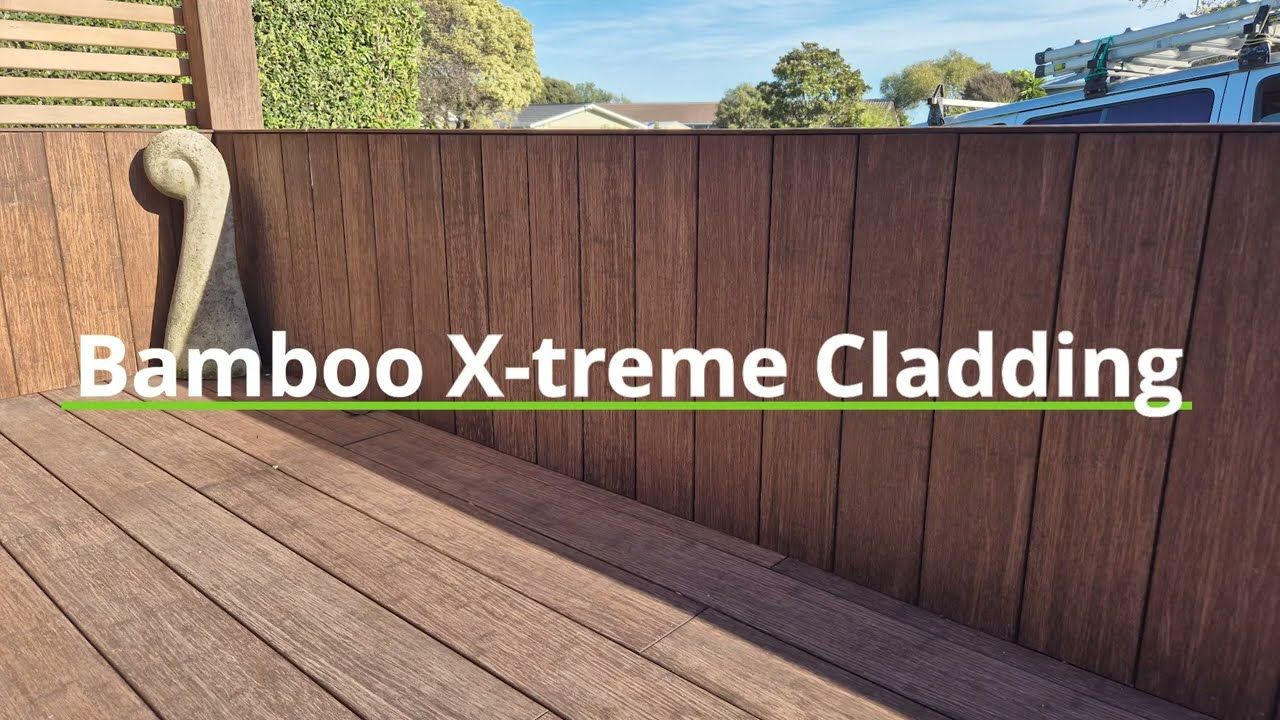

Bamboo X-treme cladding comes with powder-coated stainless-steel clip and screw fixings, which makes installation easier and provides a smarter finished look.

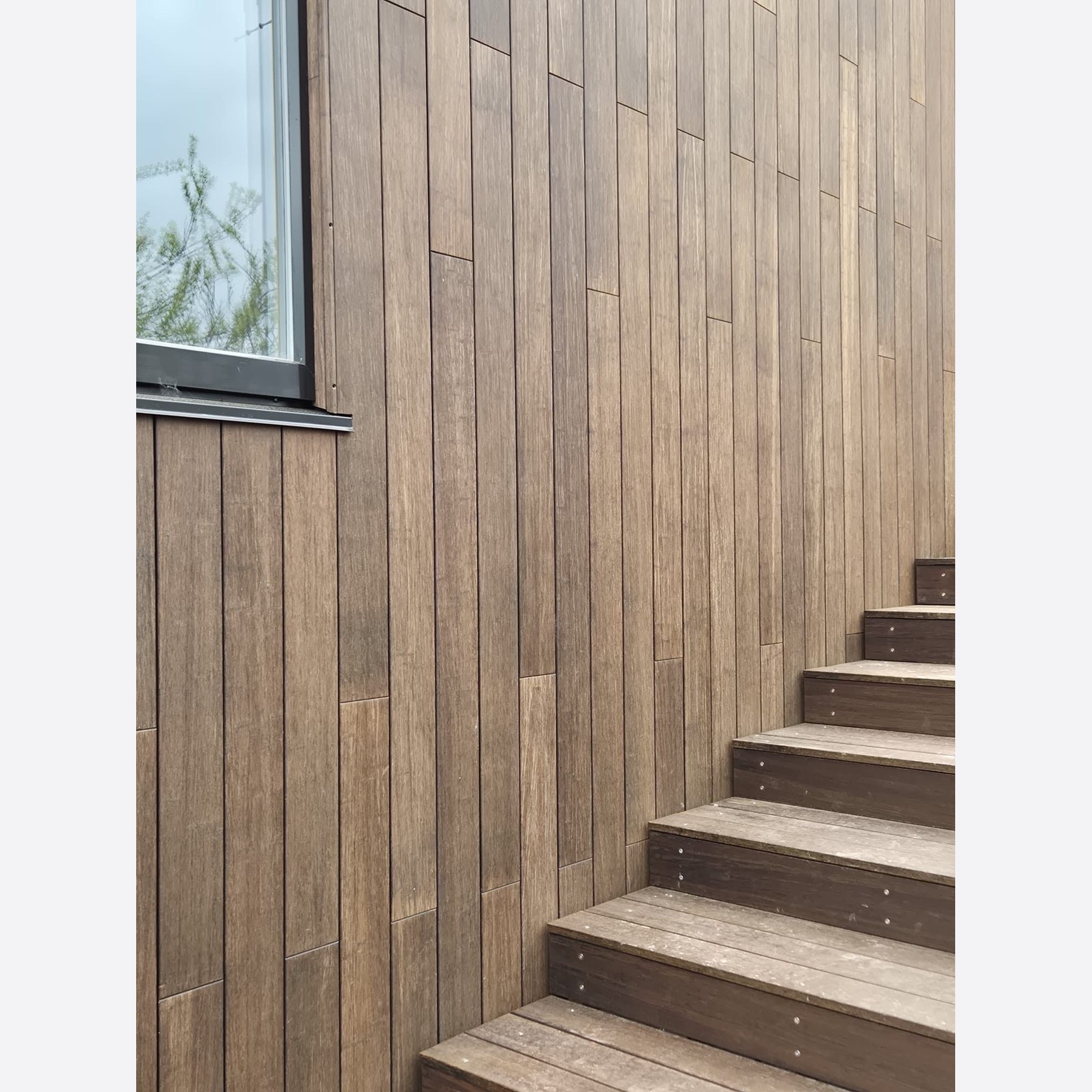

The clips are simply screwed onto battens and the cladding boards clip together with the boards only requiring to be cut at the end of a row (as the ends snugly fit together). See our installation instructions for more information. After installation, the cladding does not require any regular maintenance (unless a darker colour is desired), which can save on time and cost. Due to the “thermo-density” heat treatment process, the cladding is a mid-dark brown colour, but this will gradually change to a silver-grey colour over time as it naturally weathers.

Unlike our bamboo X-treme decking product (which has been pre-oiled as part of the manufacturing process) the cladding boards come unfinished but can be oiled if preferred, depending on the look and feel that is desired.
