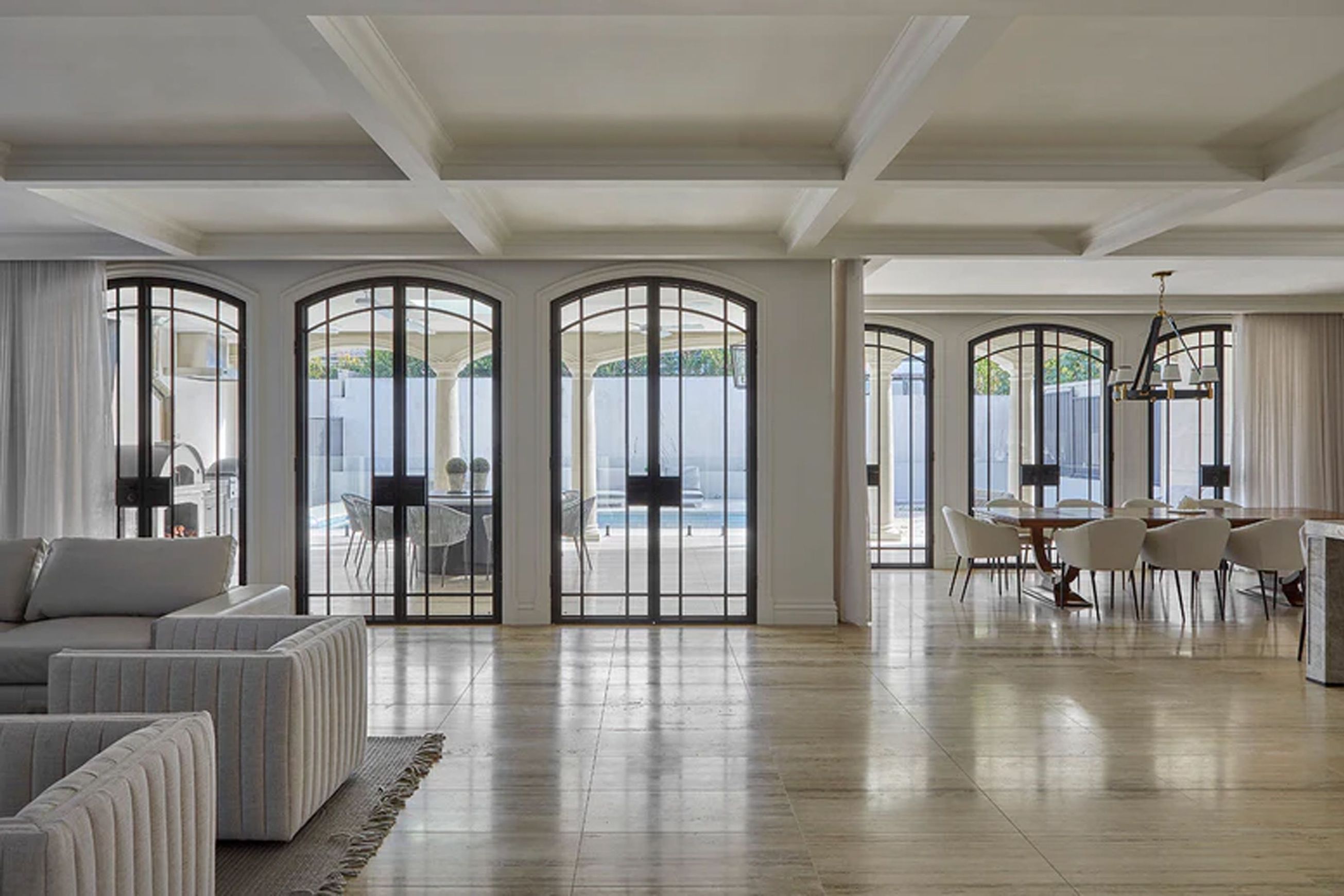

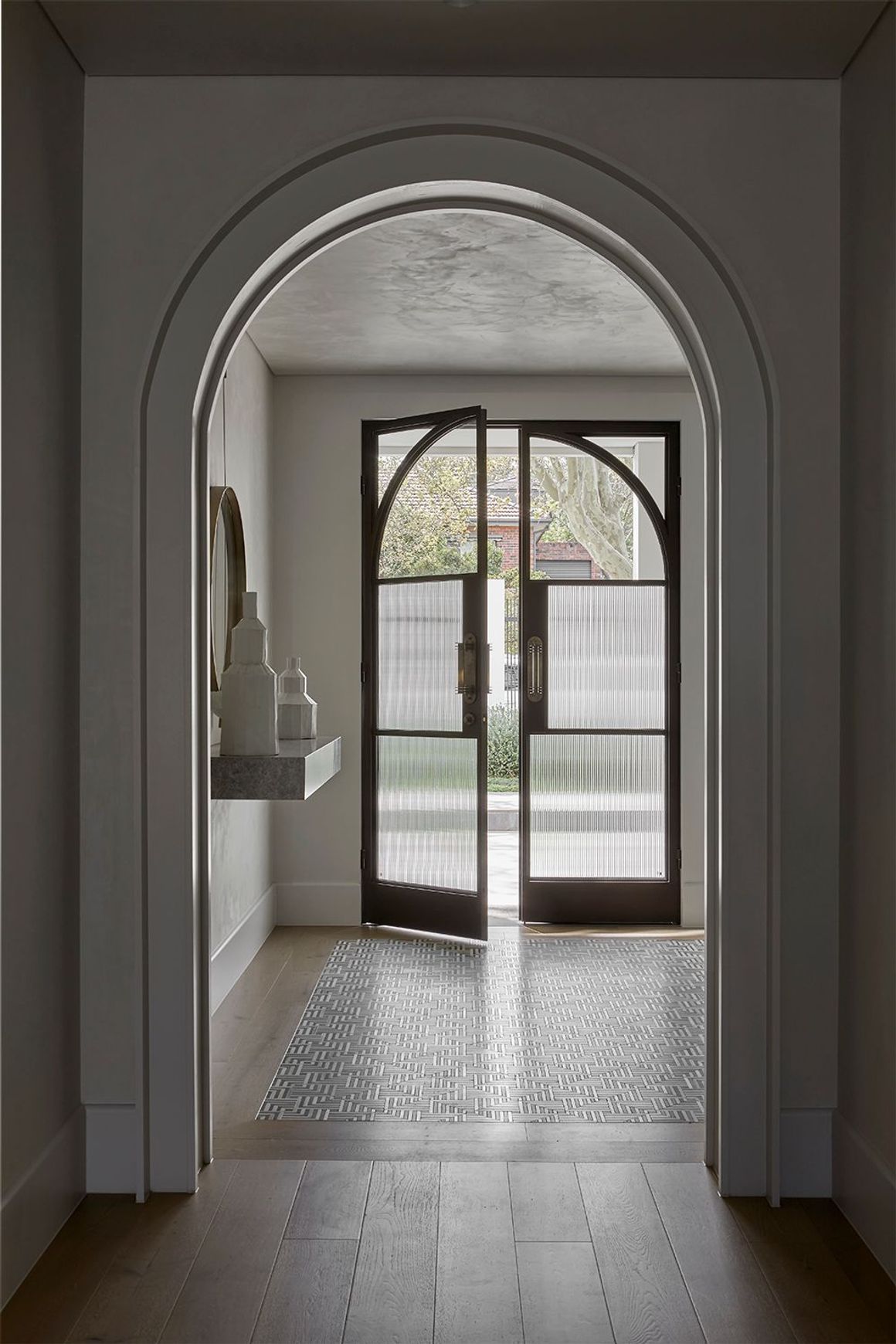

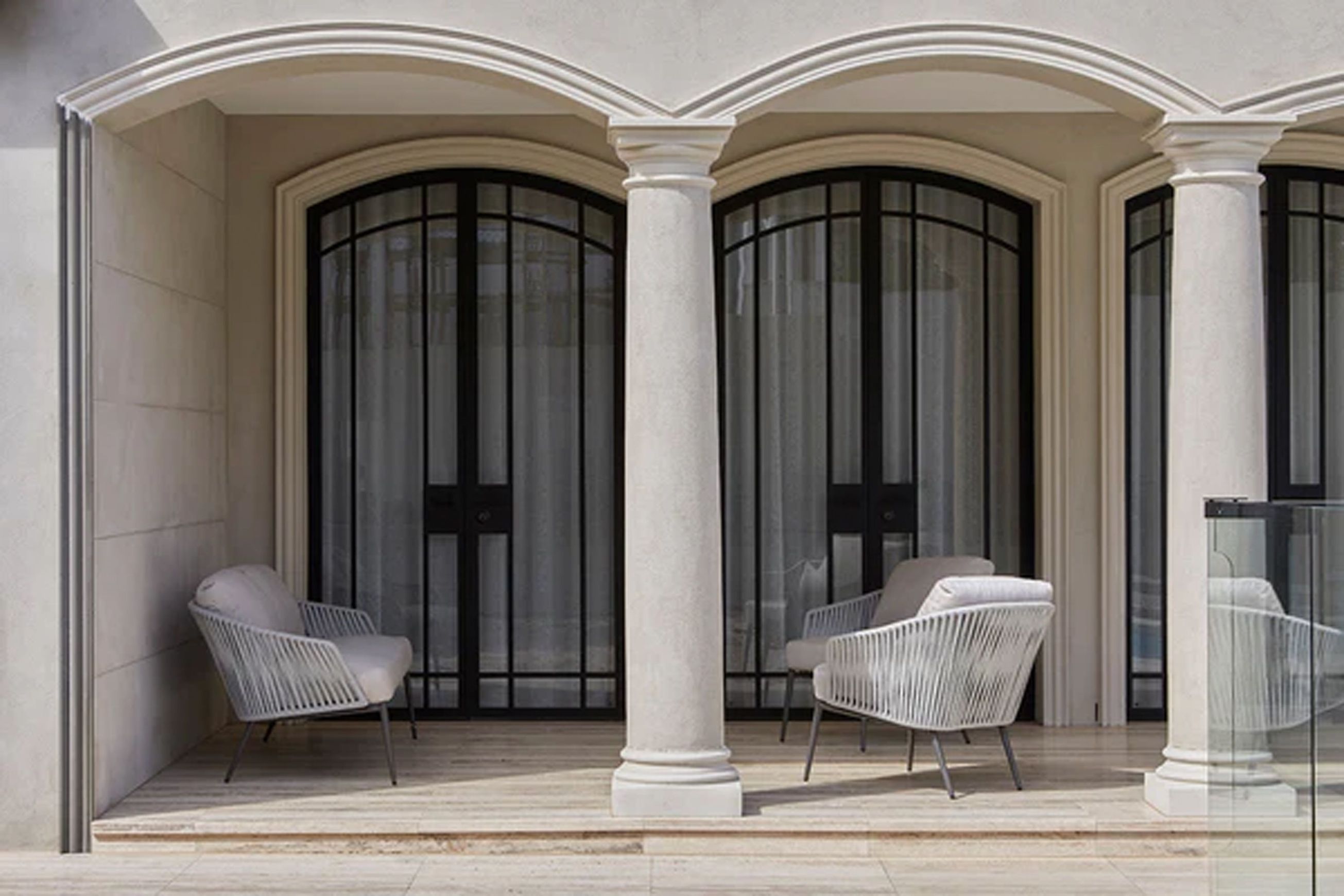

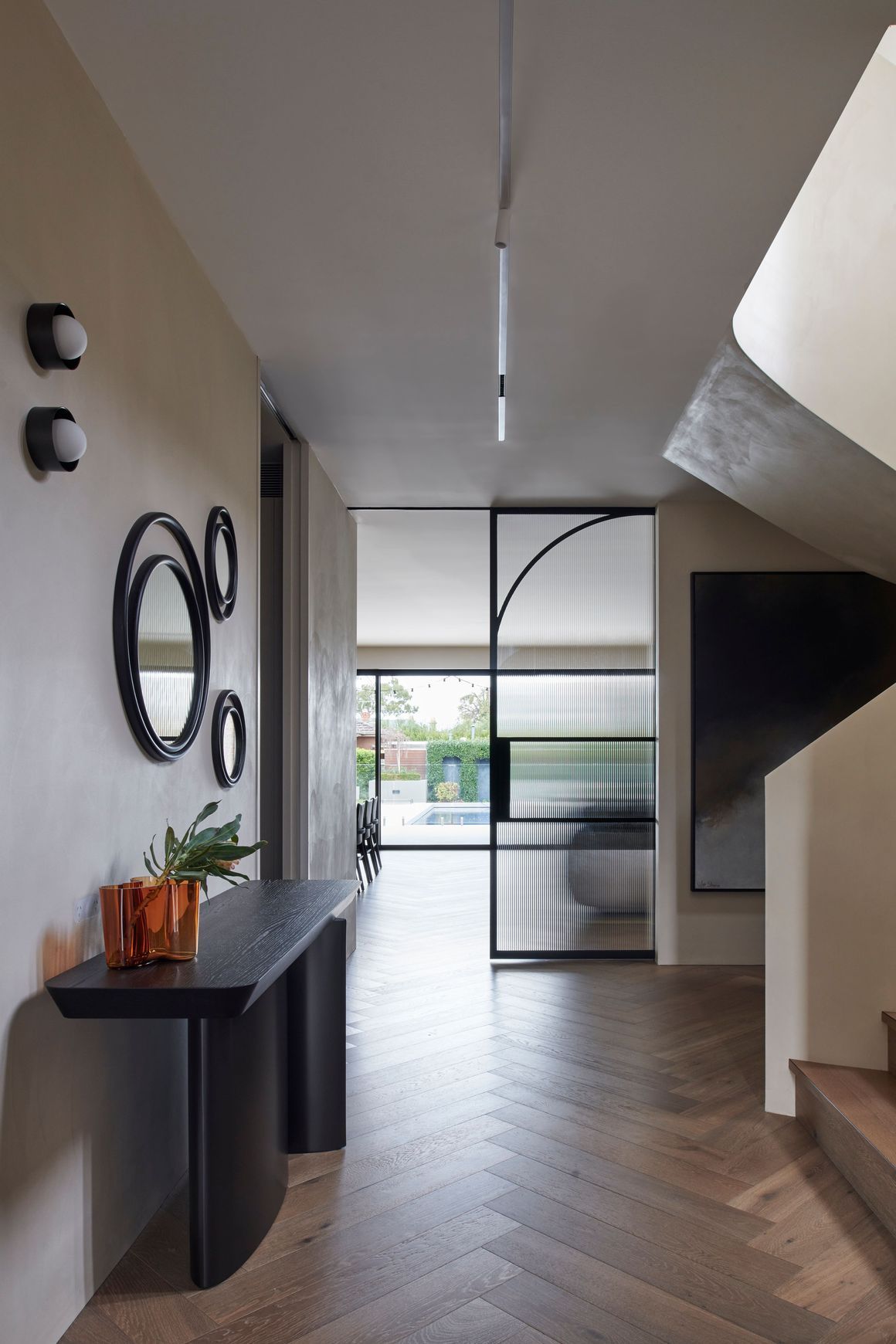

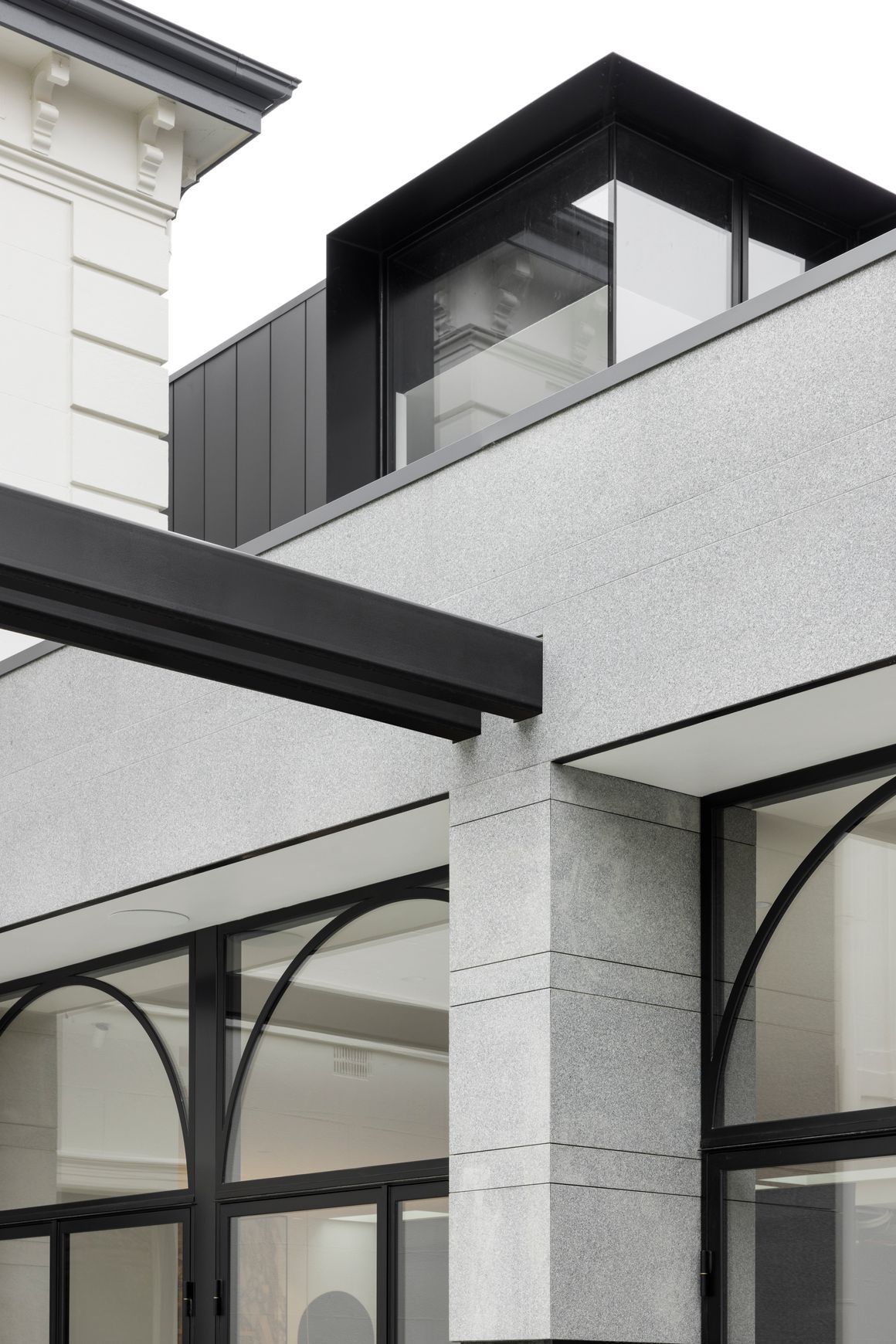

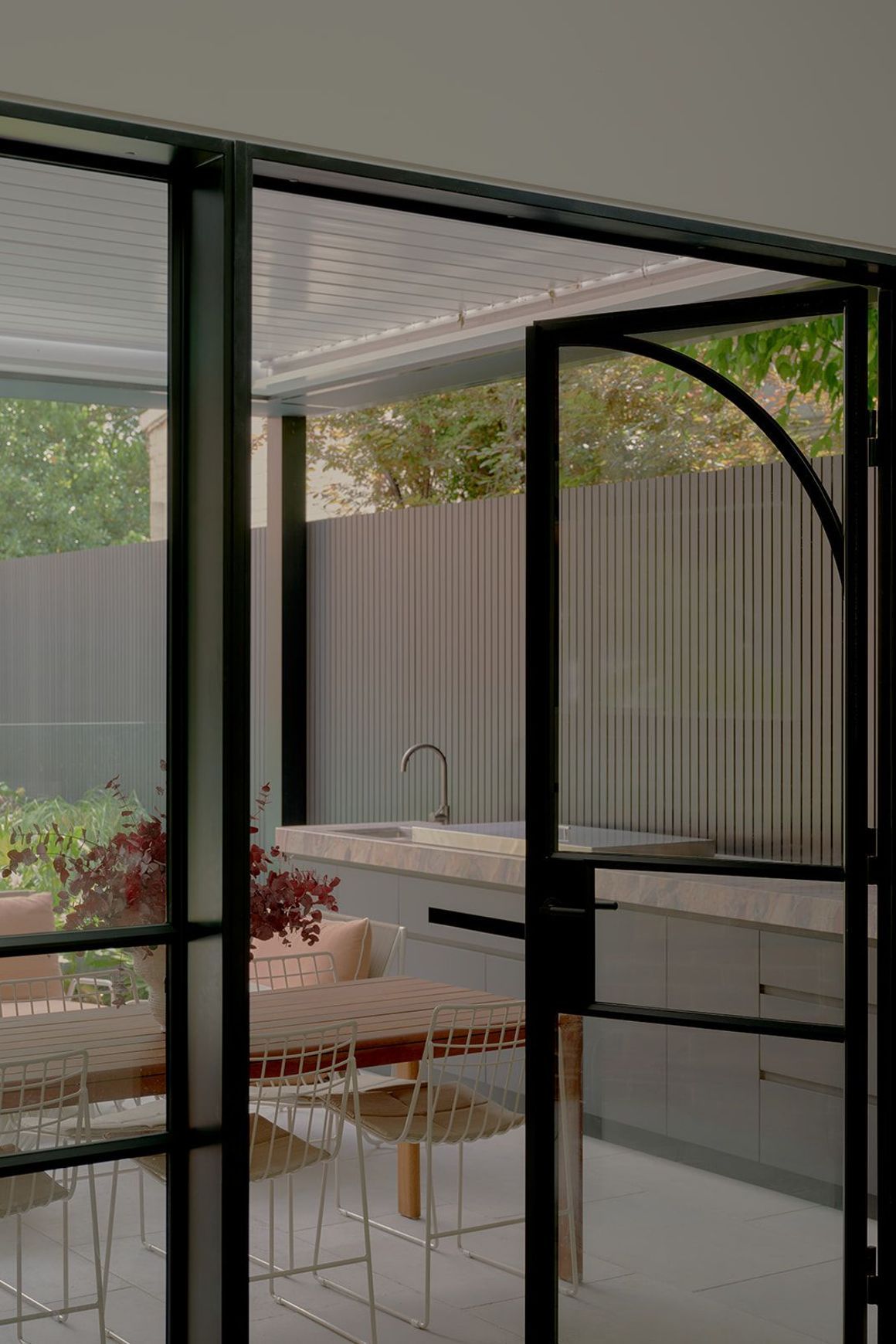

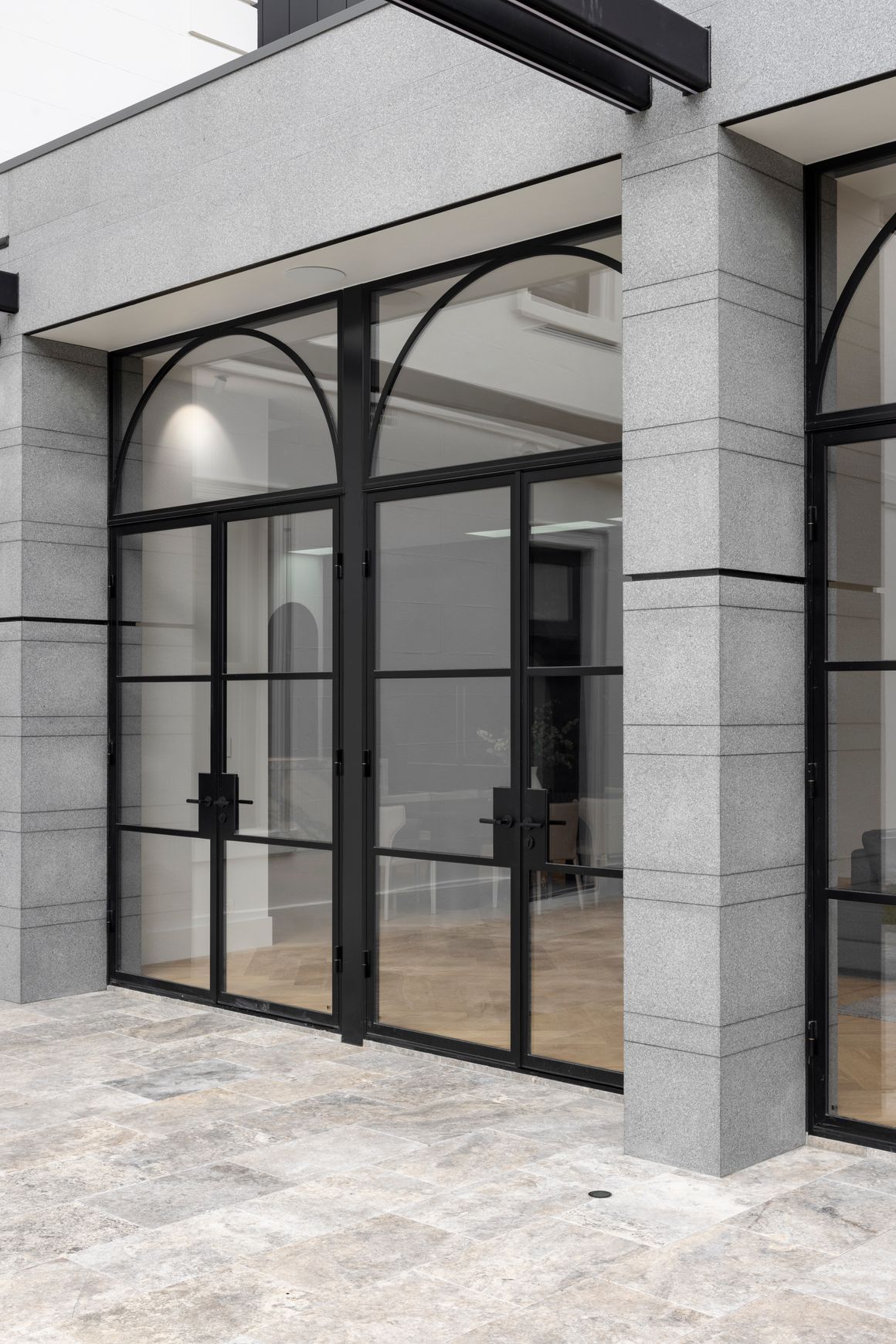

Arch Steel Frame Glass Hinge Doors - Galvanised FPS50

Zen Doors & Windows

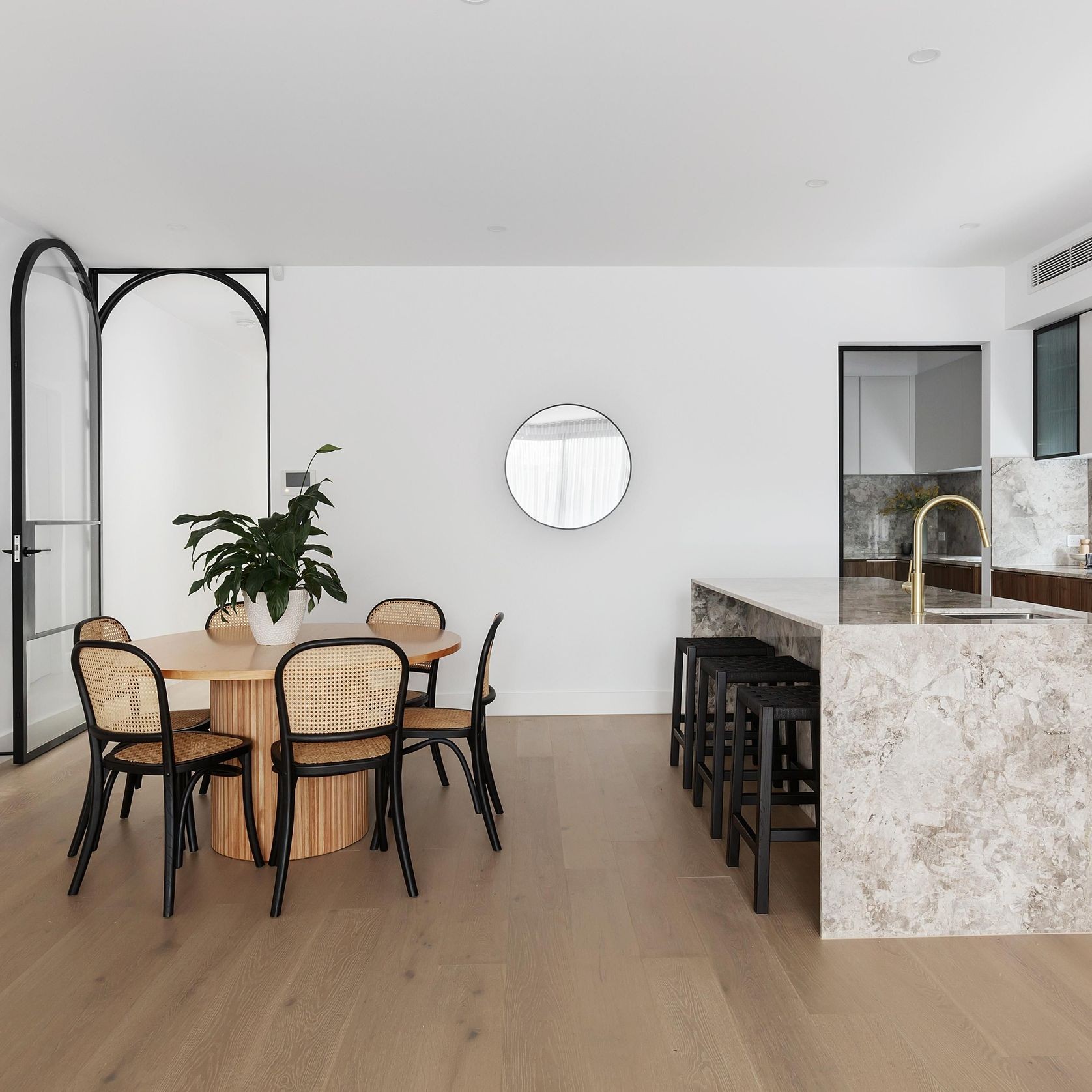

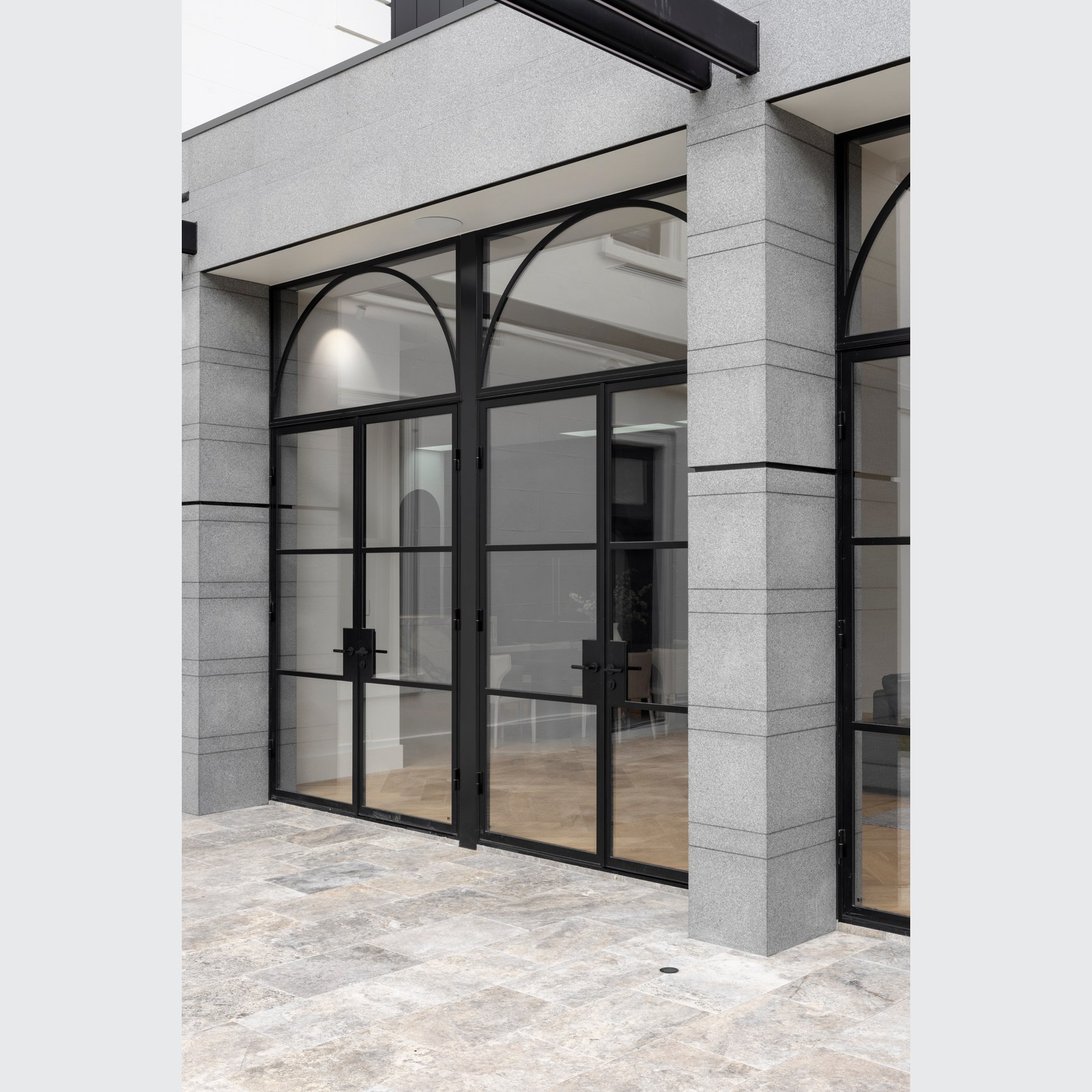

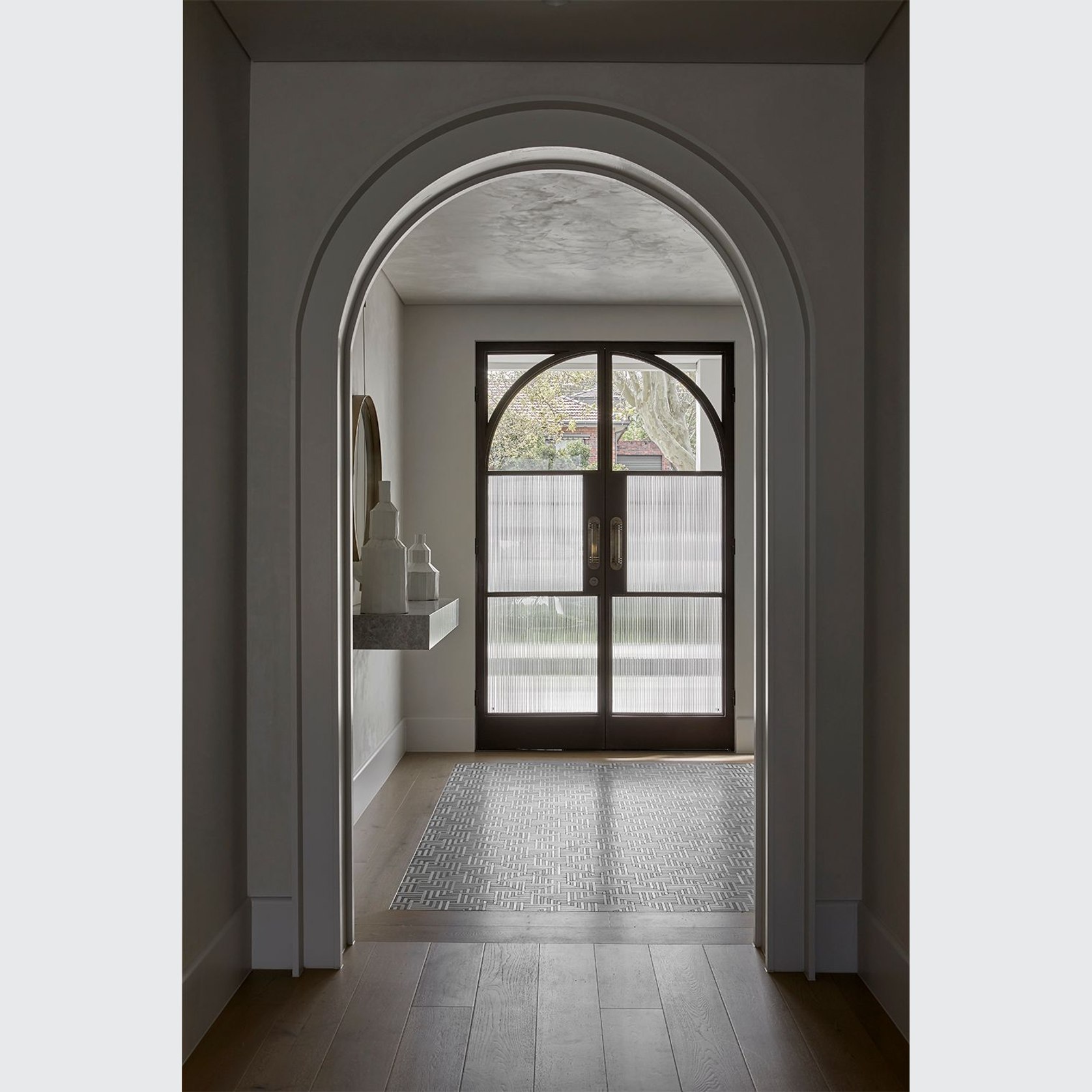

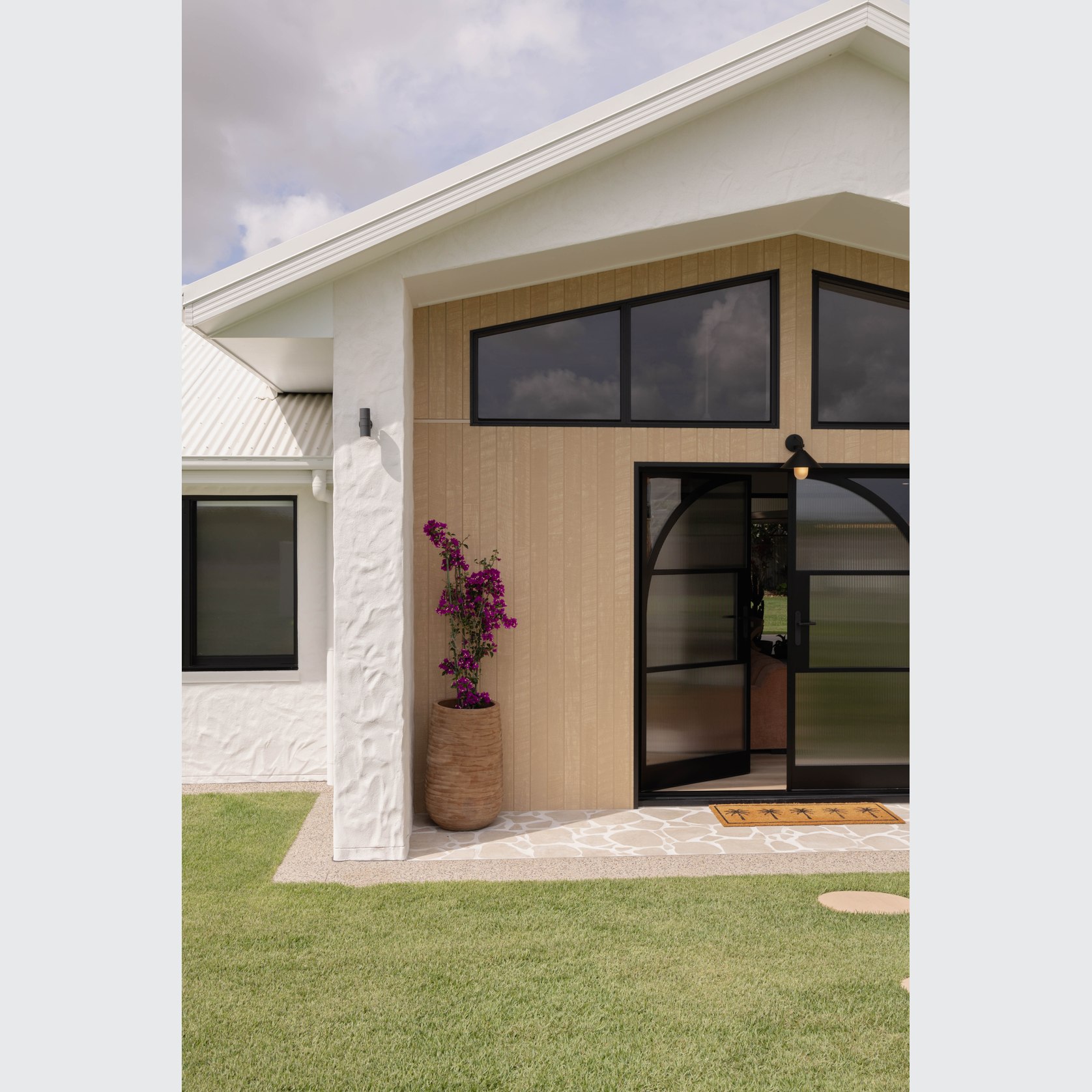

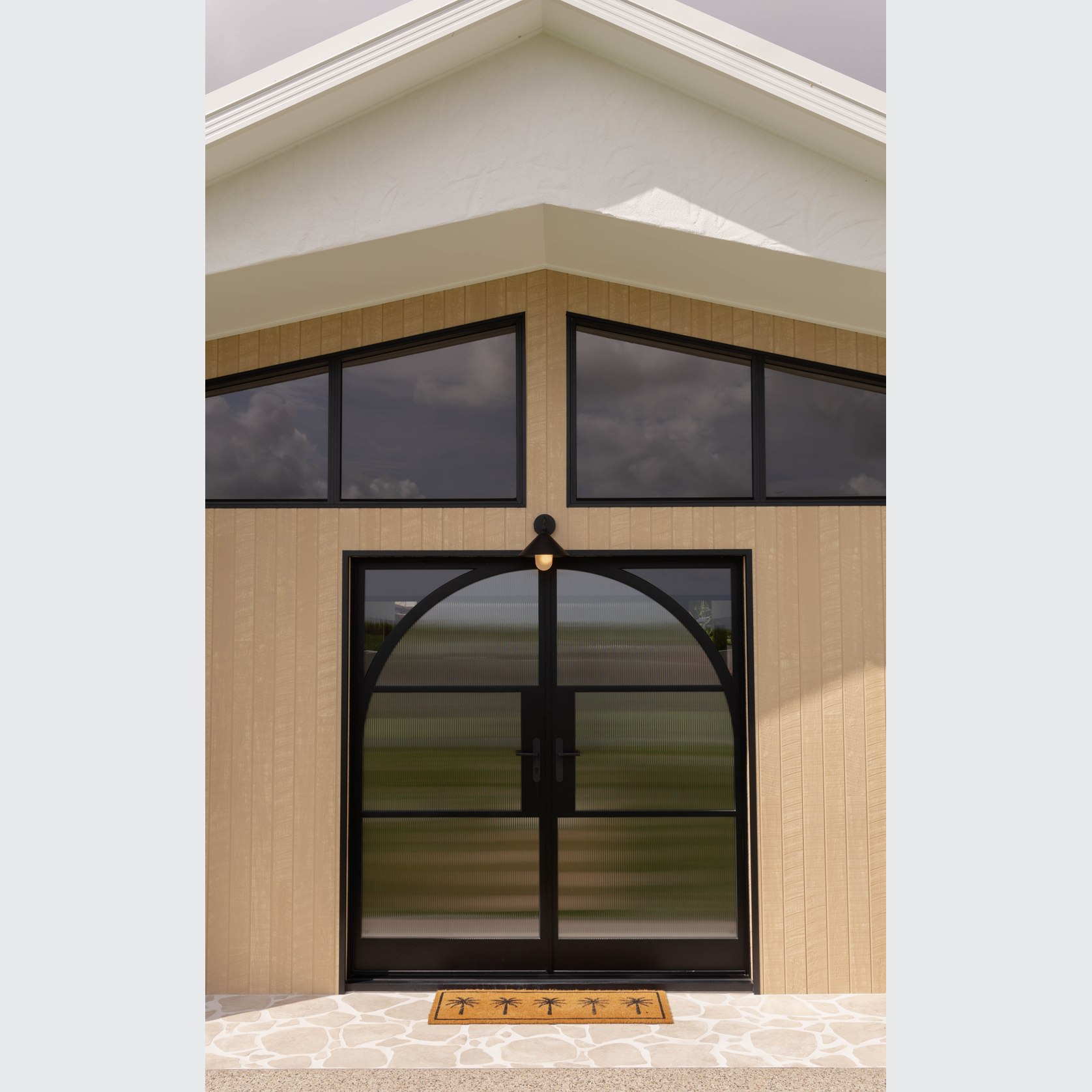

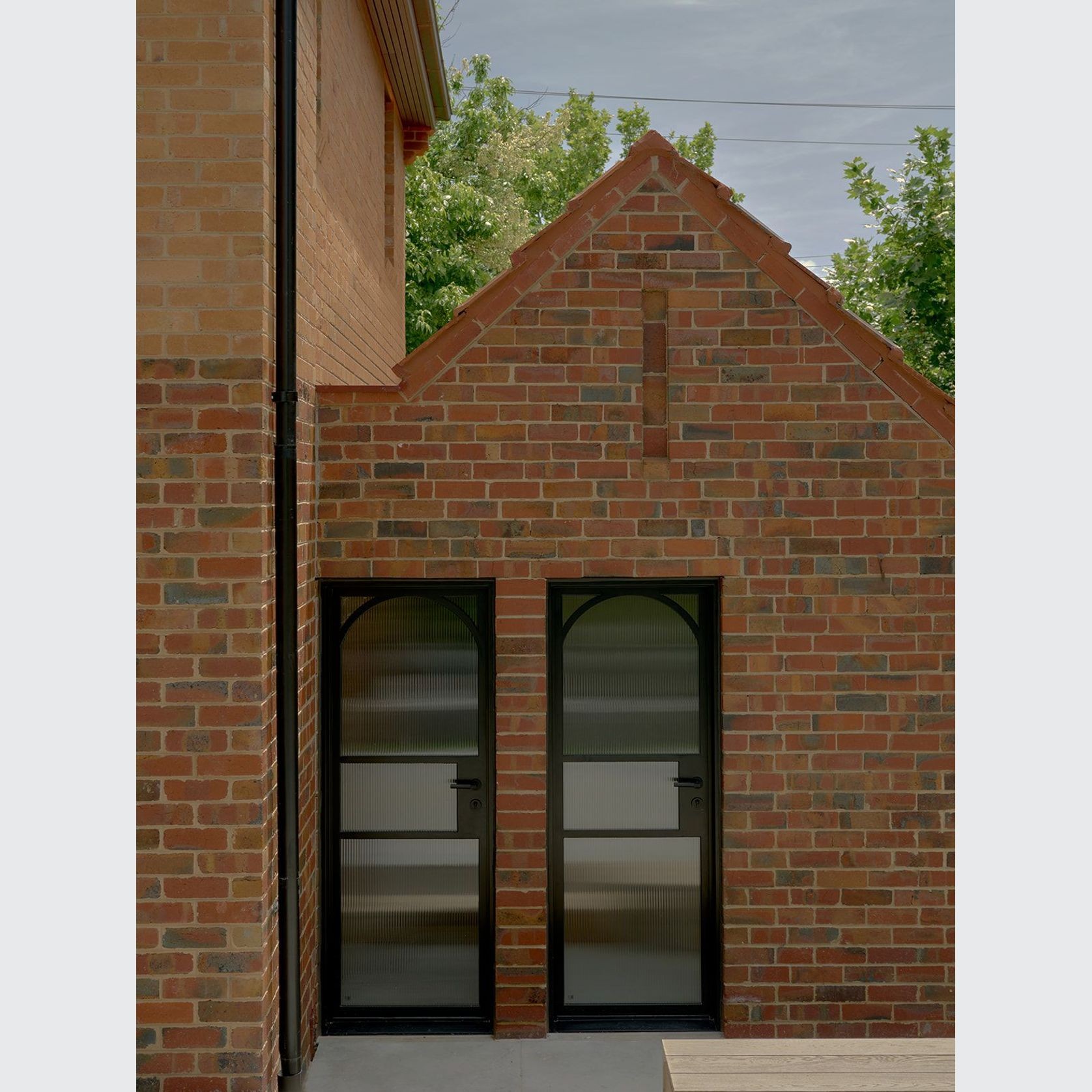

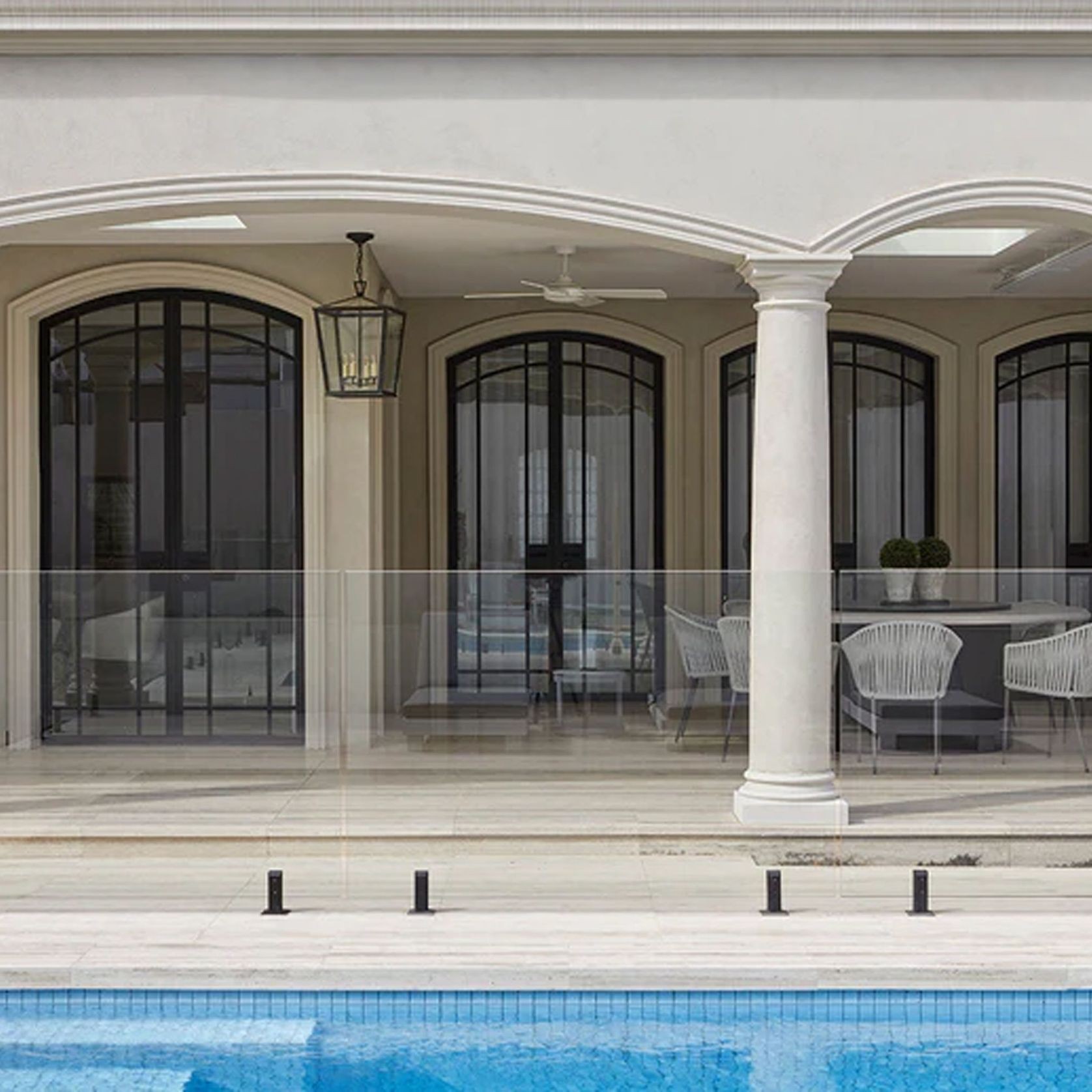

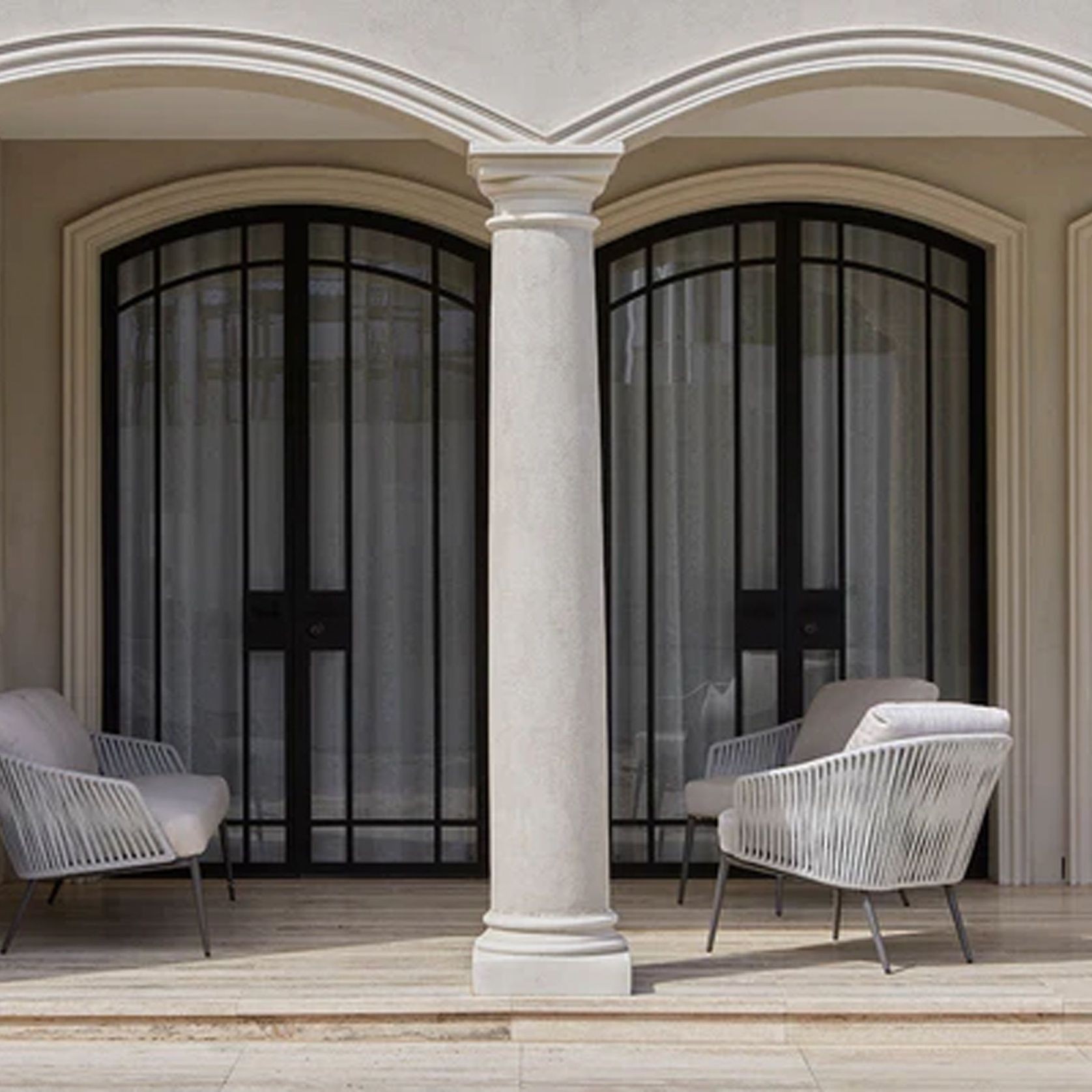

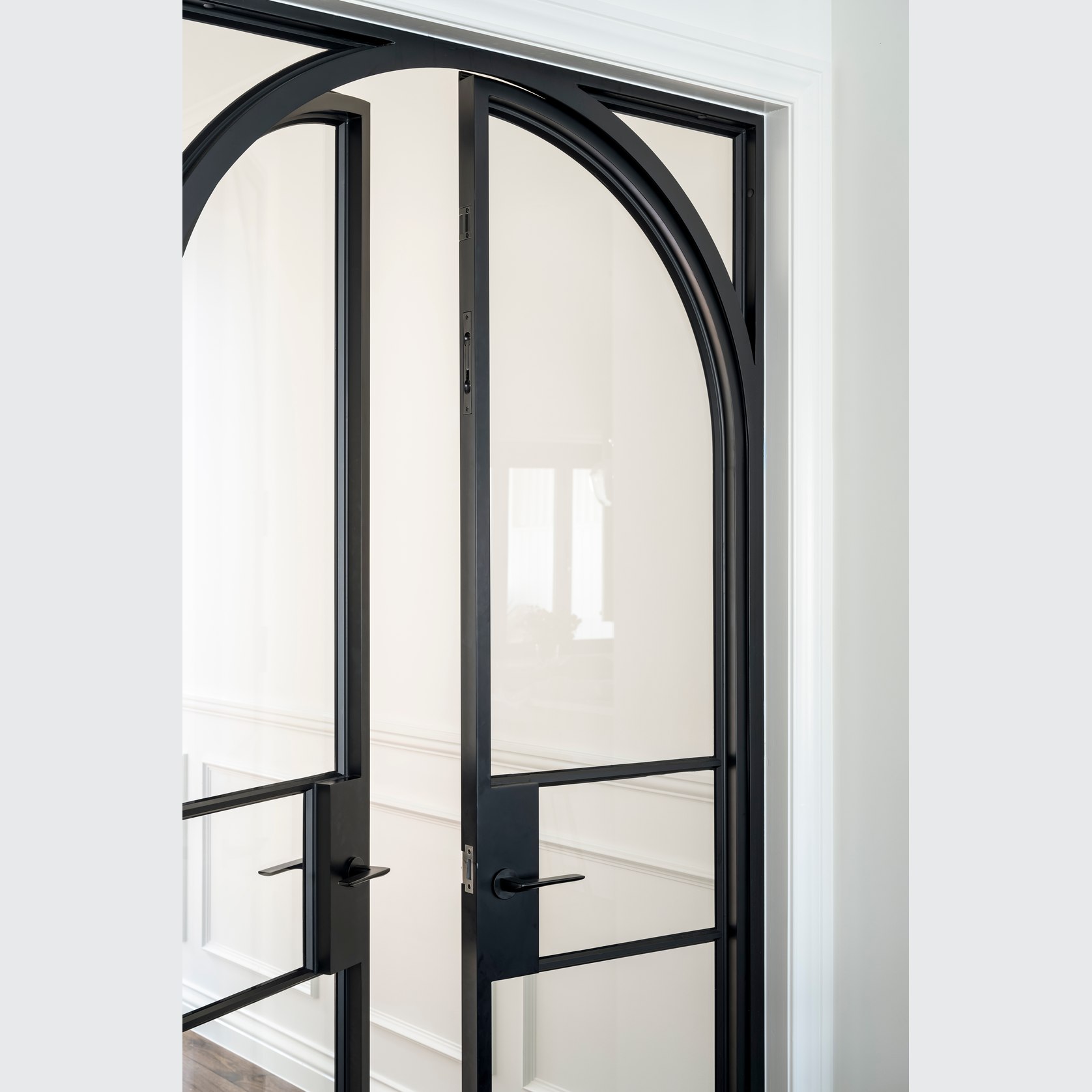

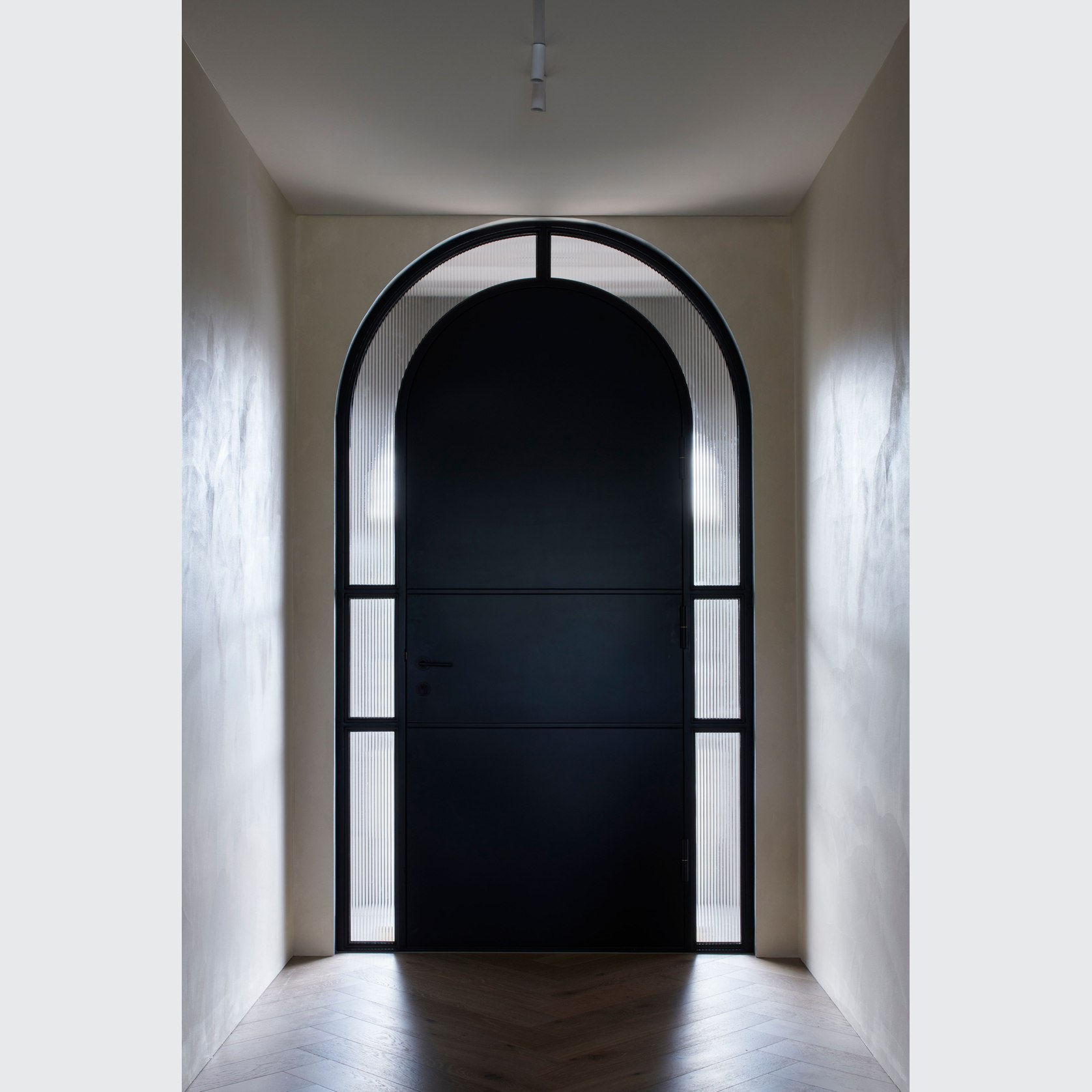

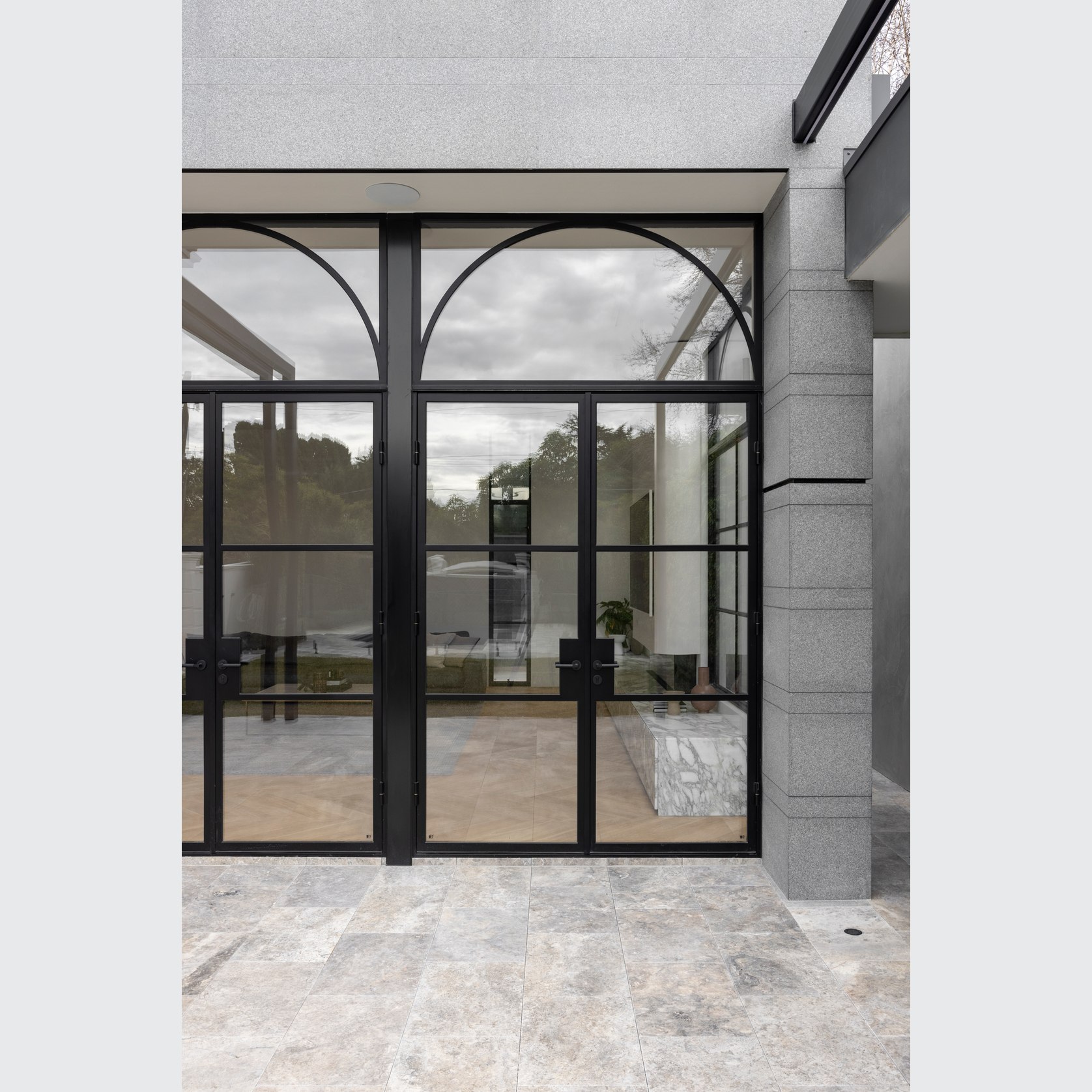

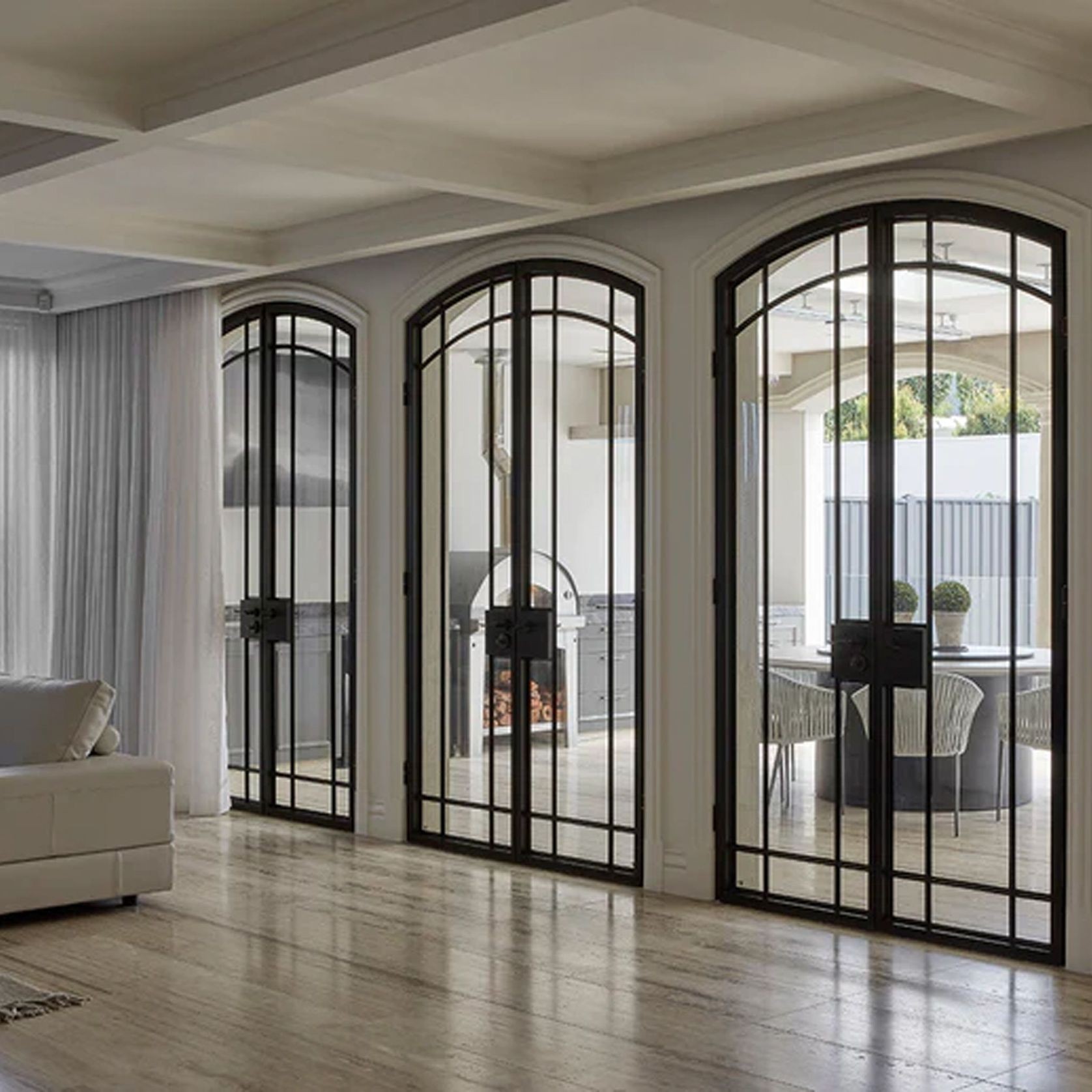

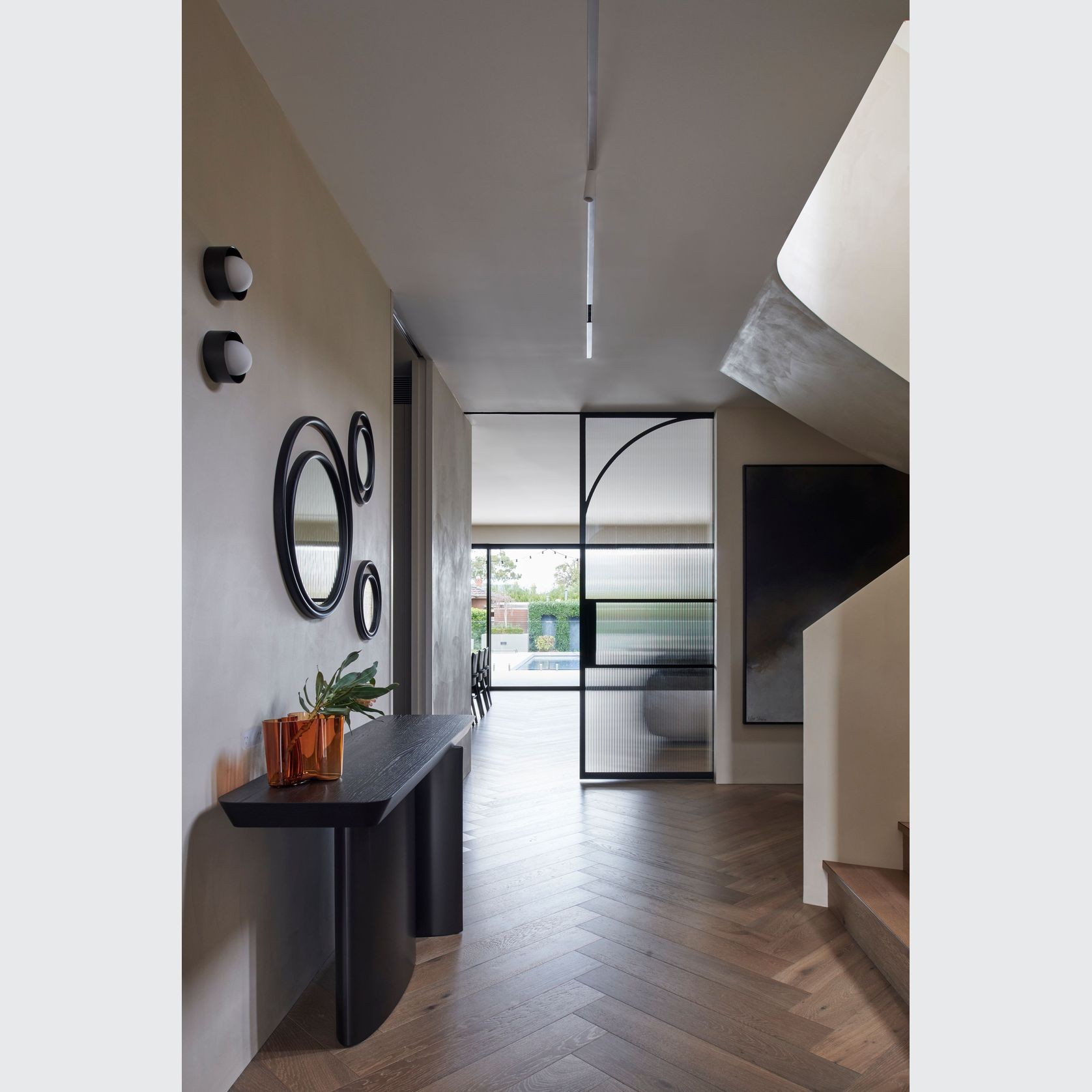

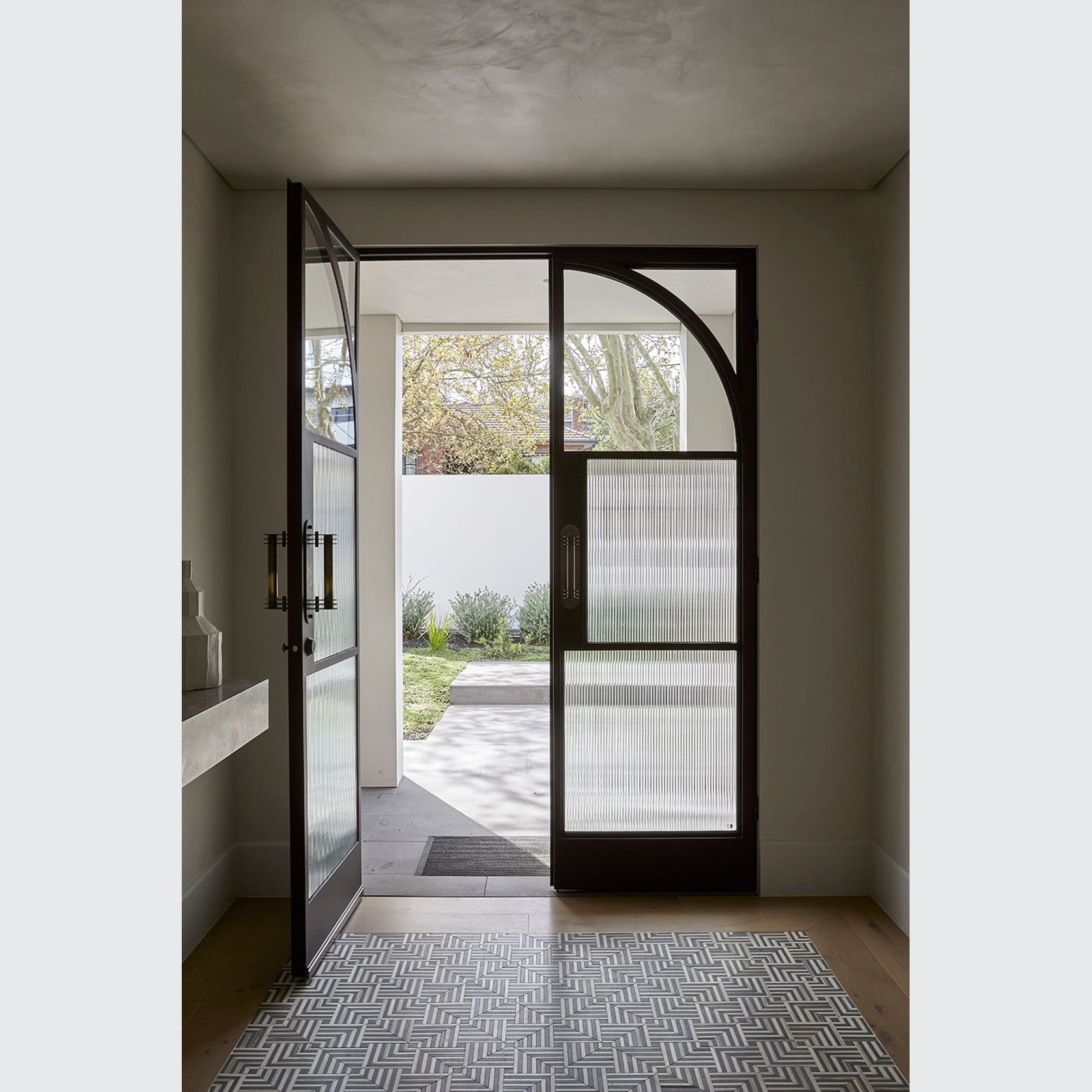

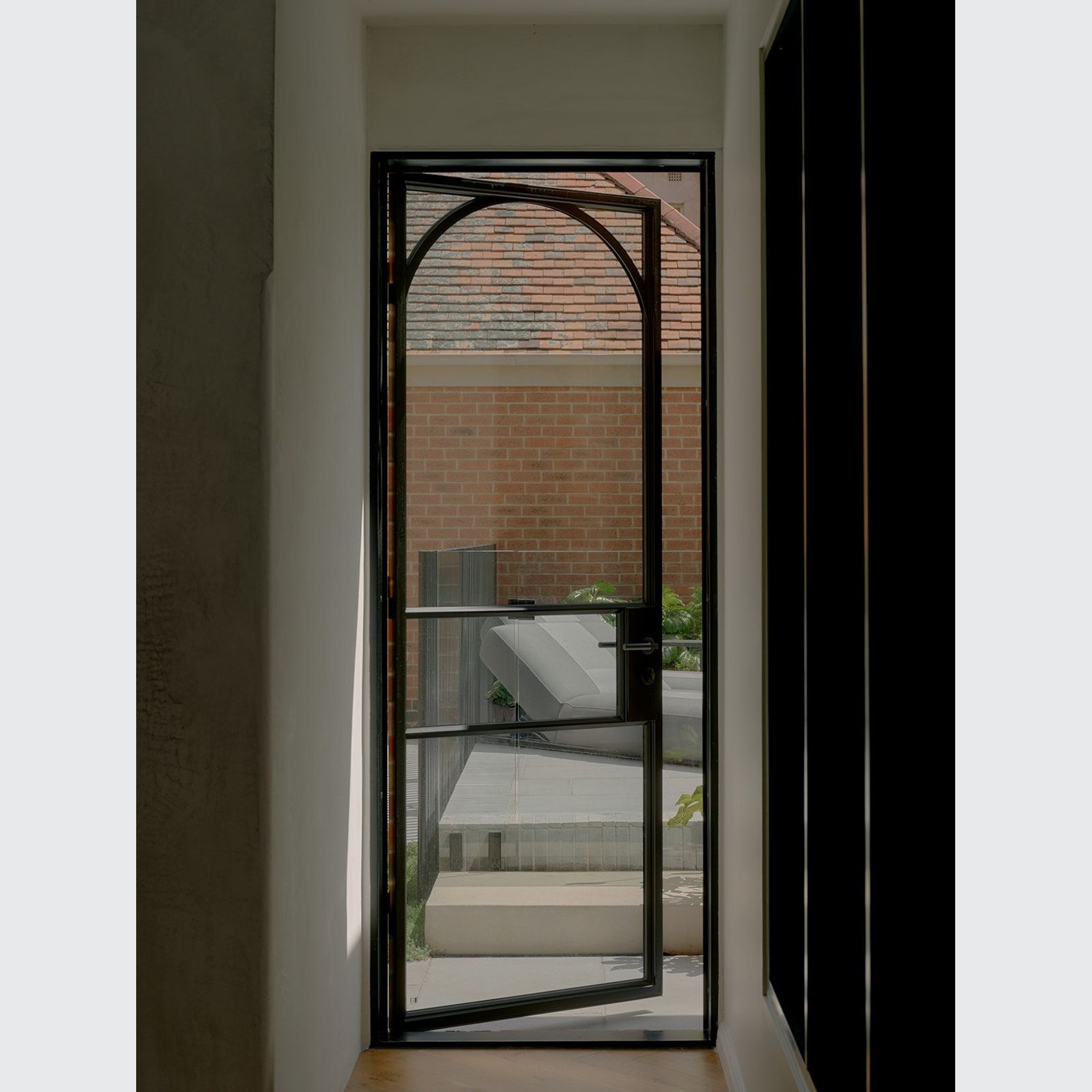

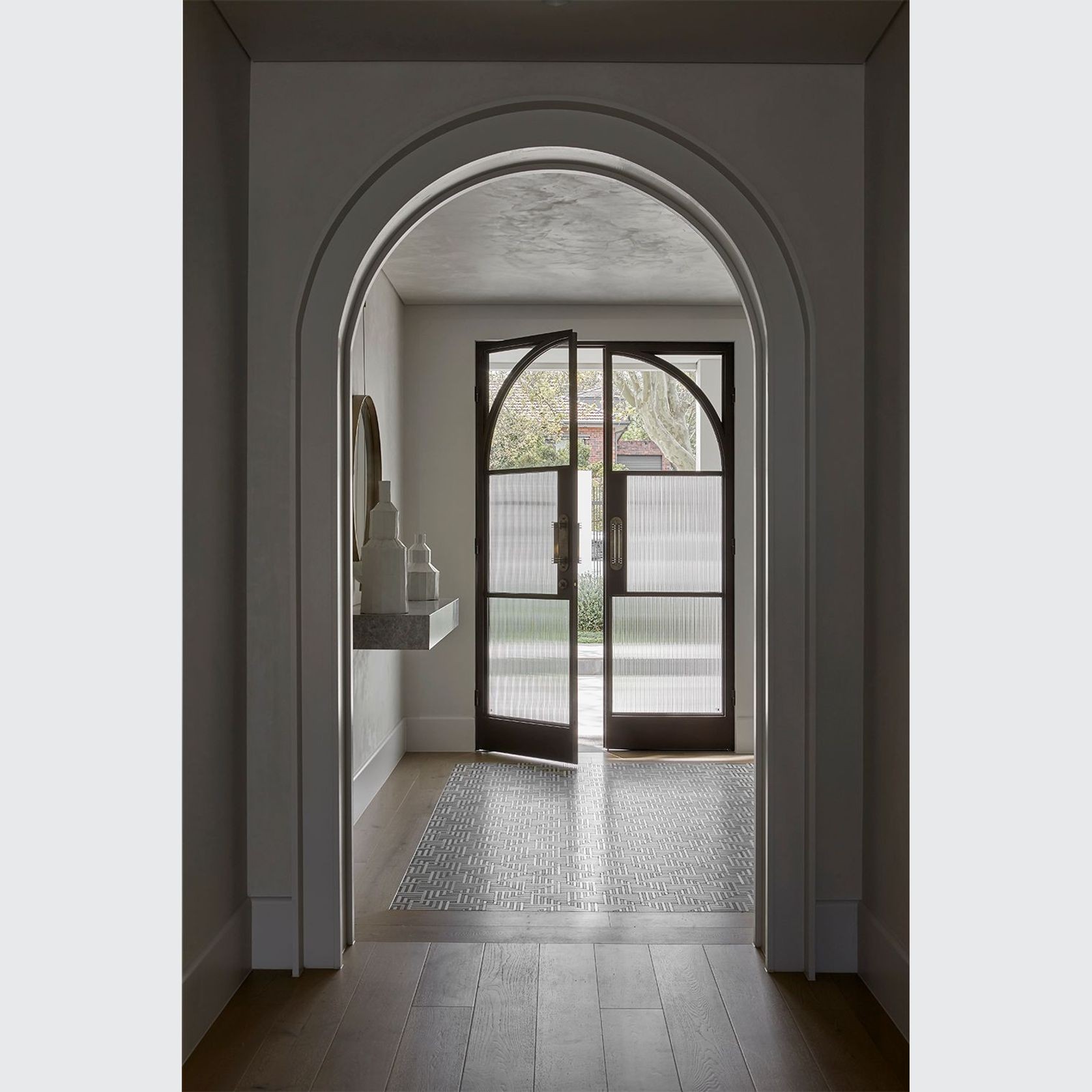

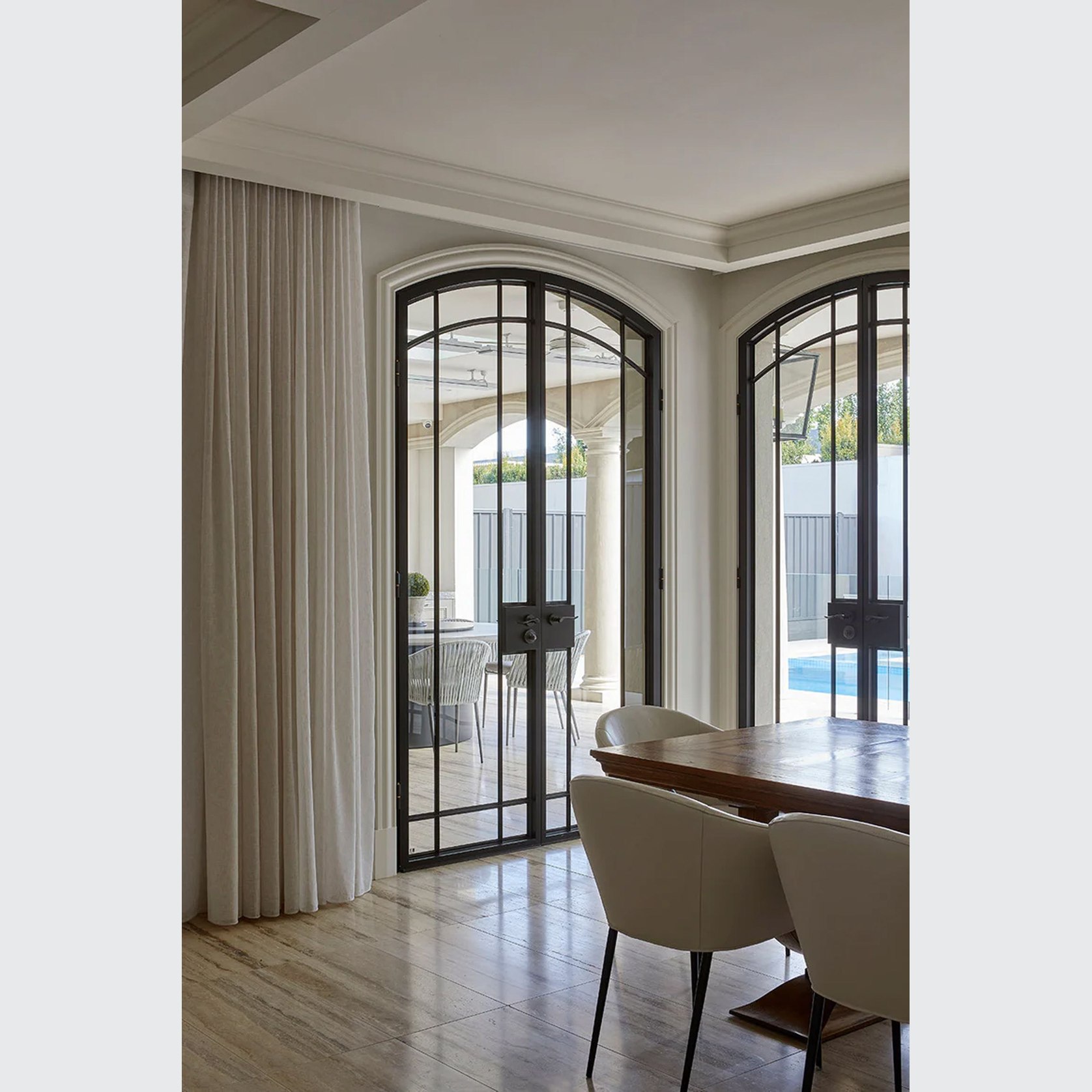

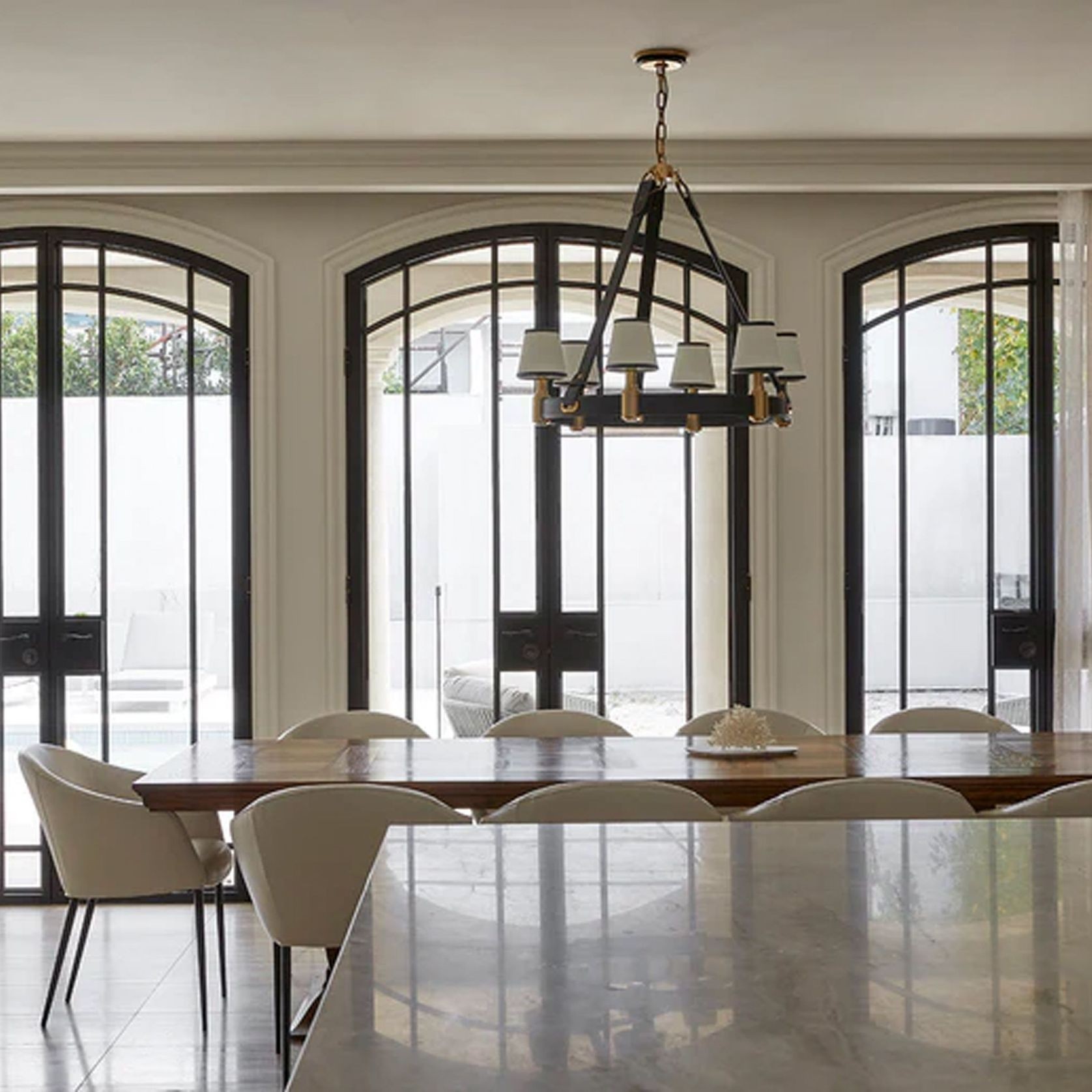

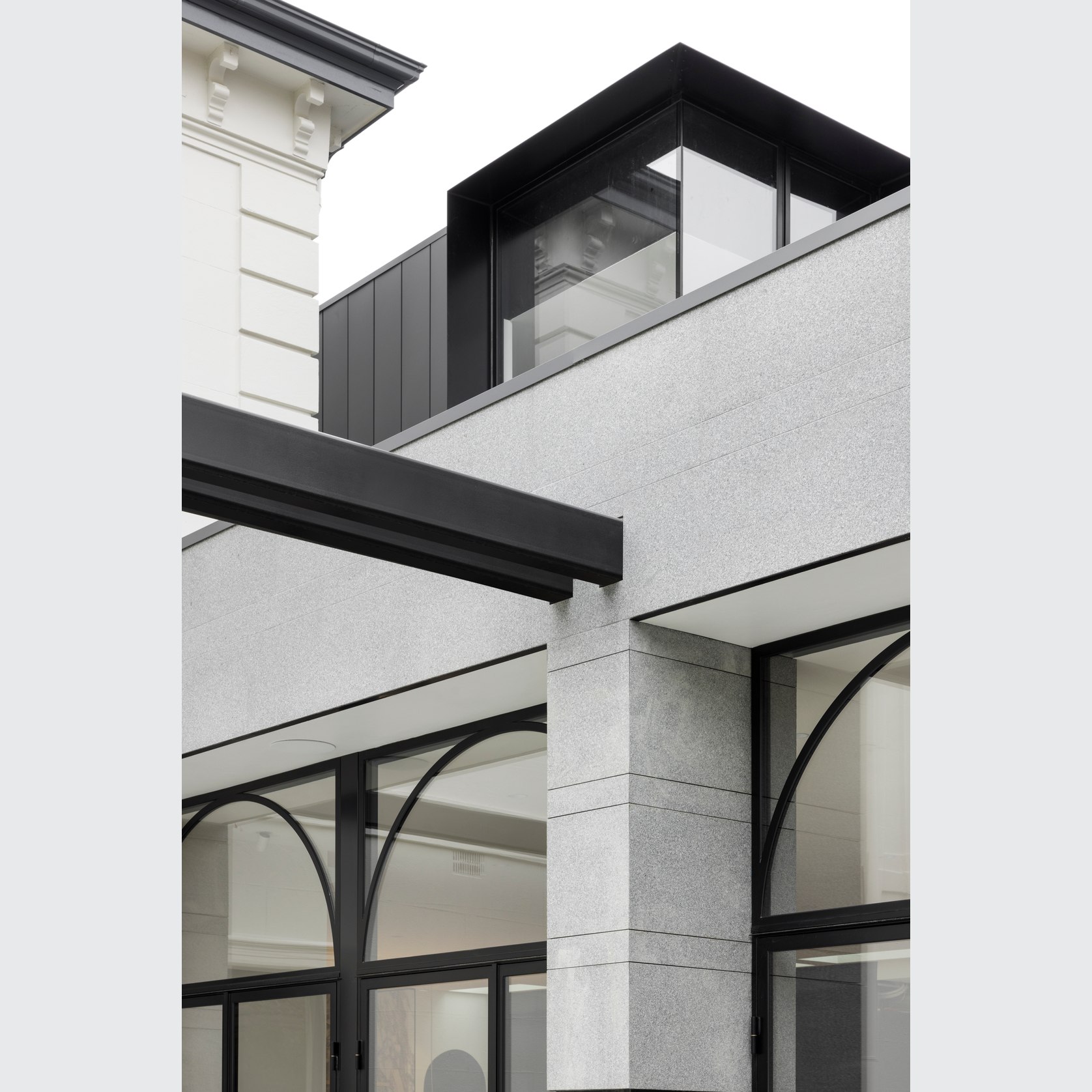

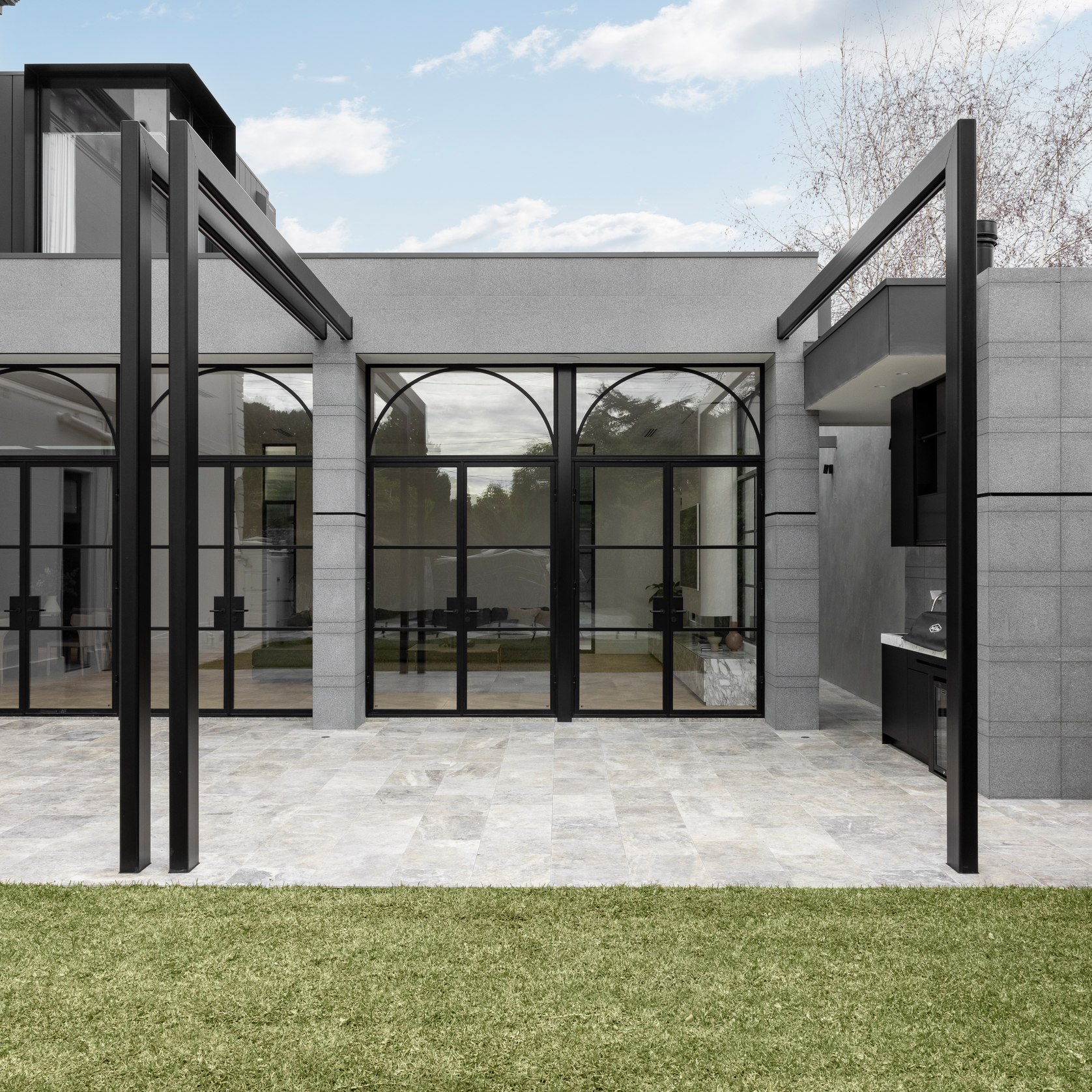

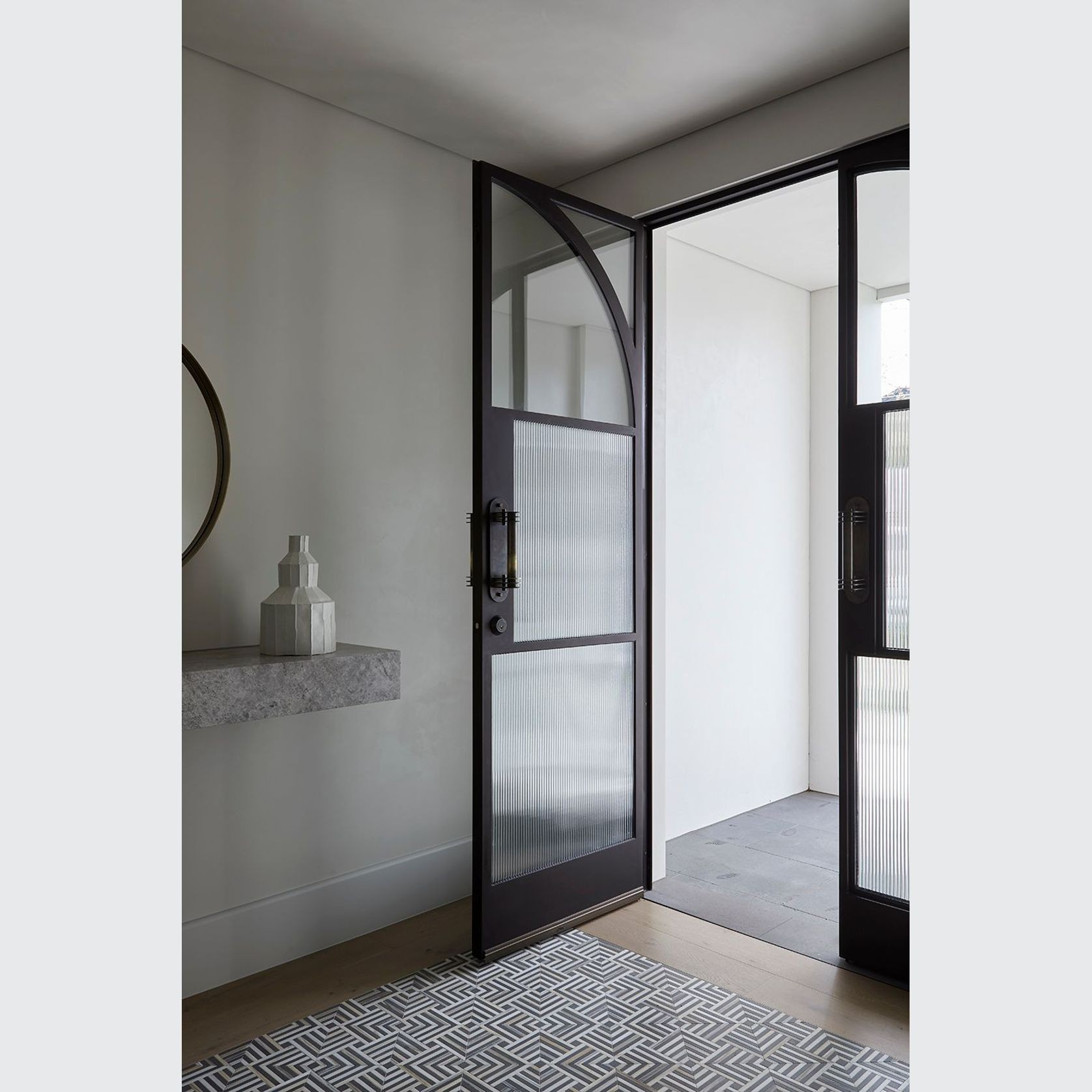

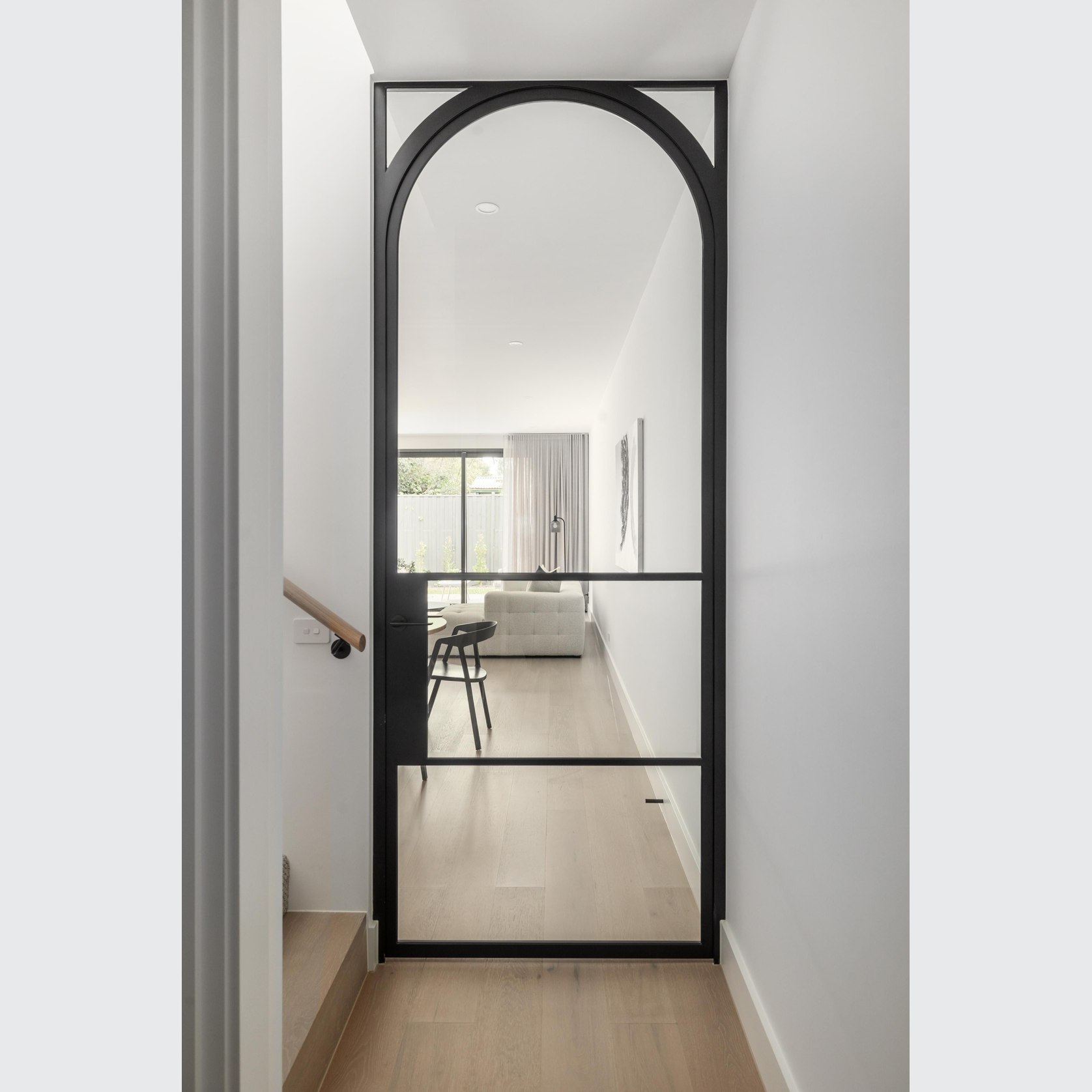

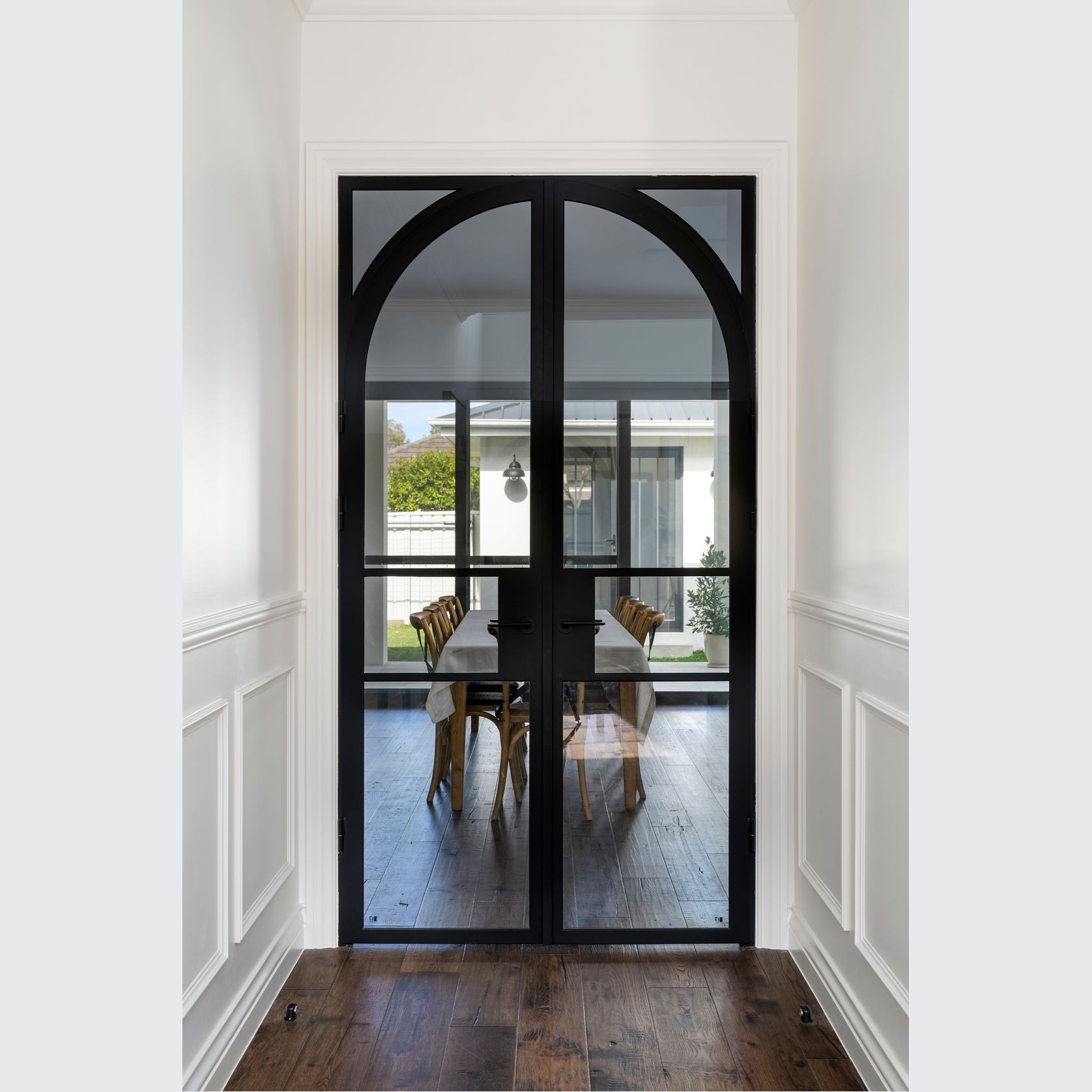

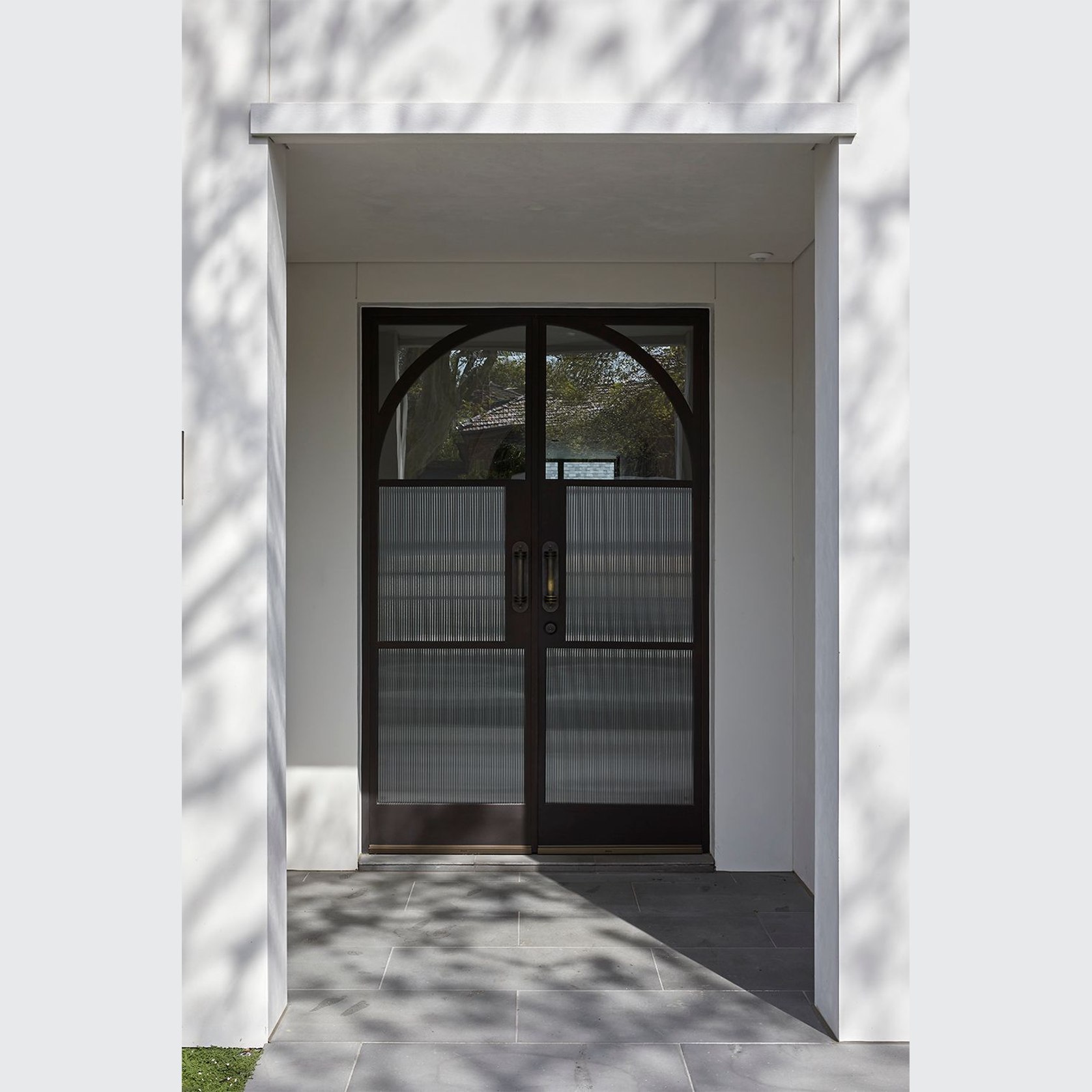

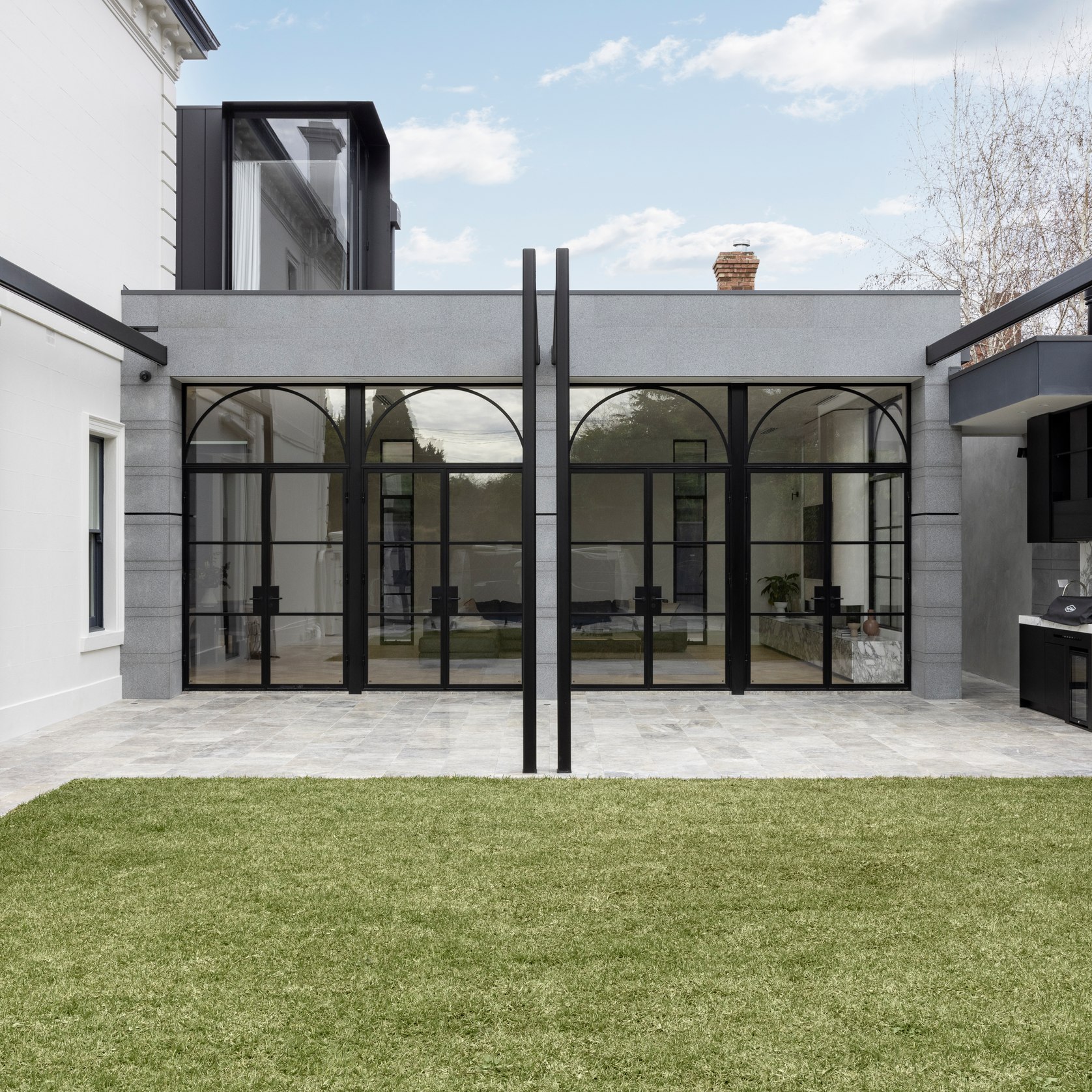

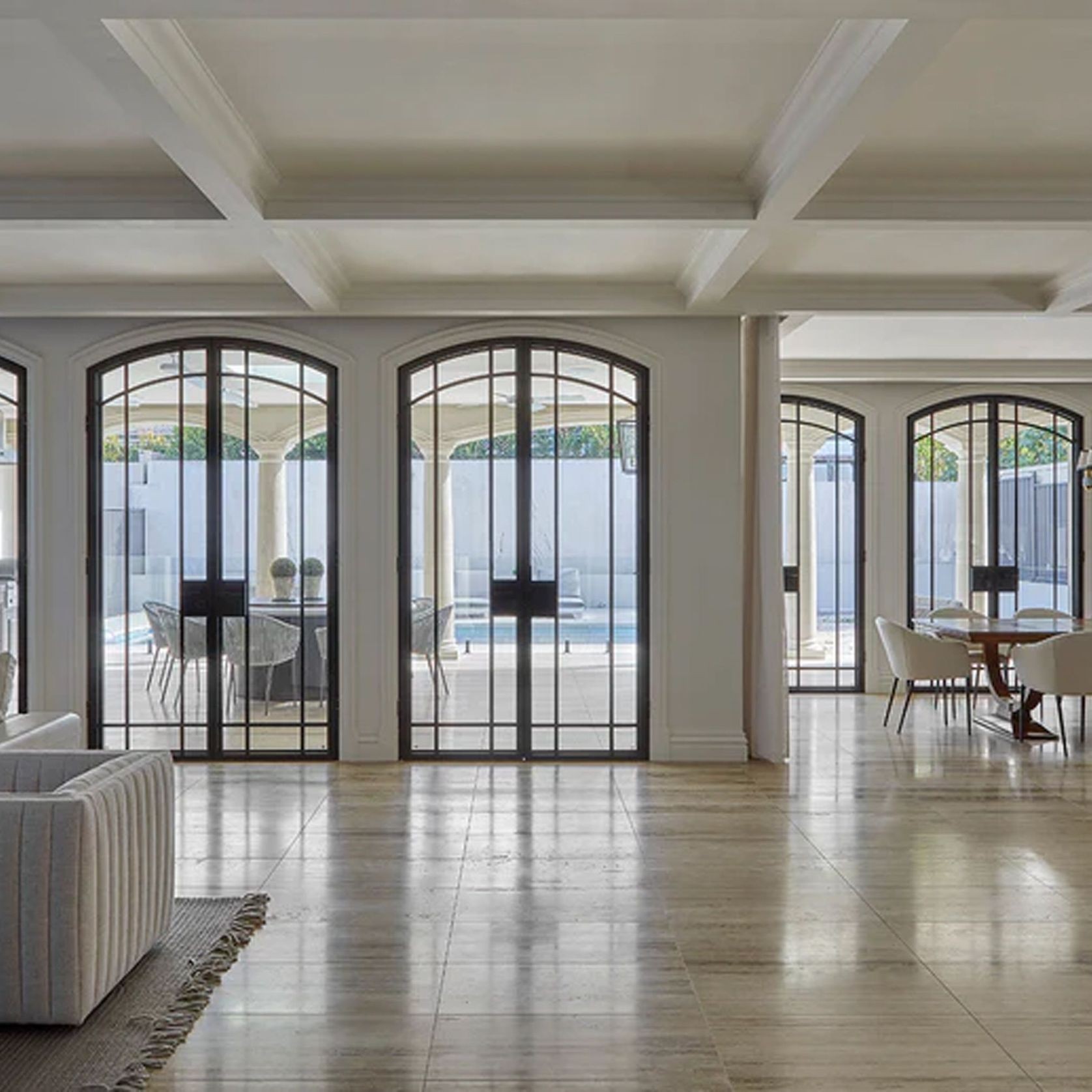

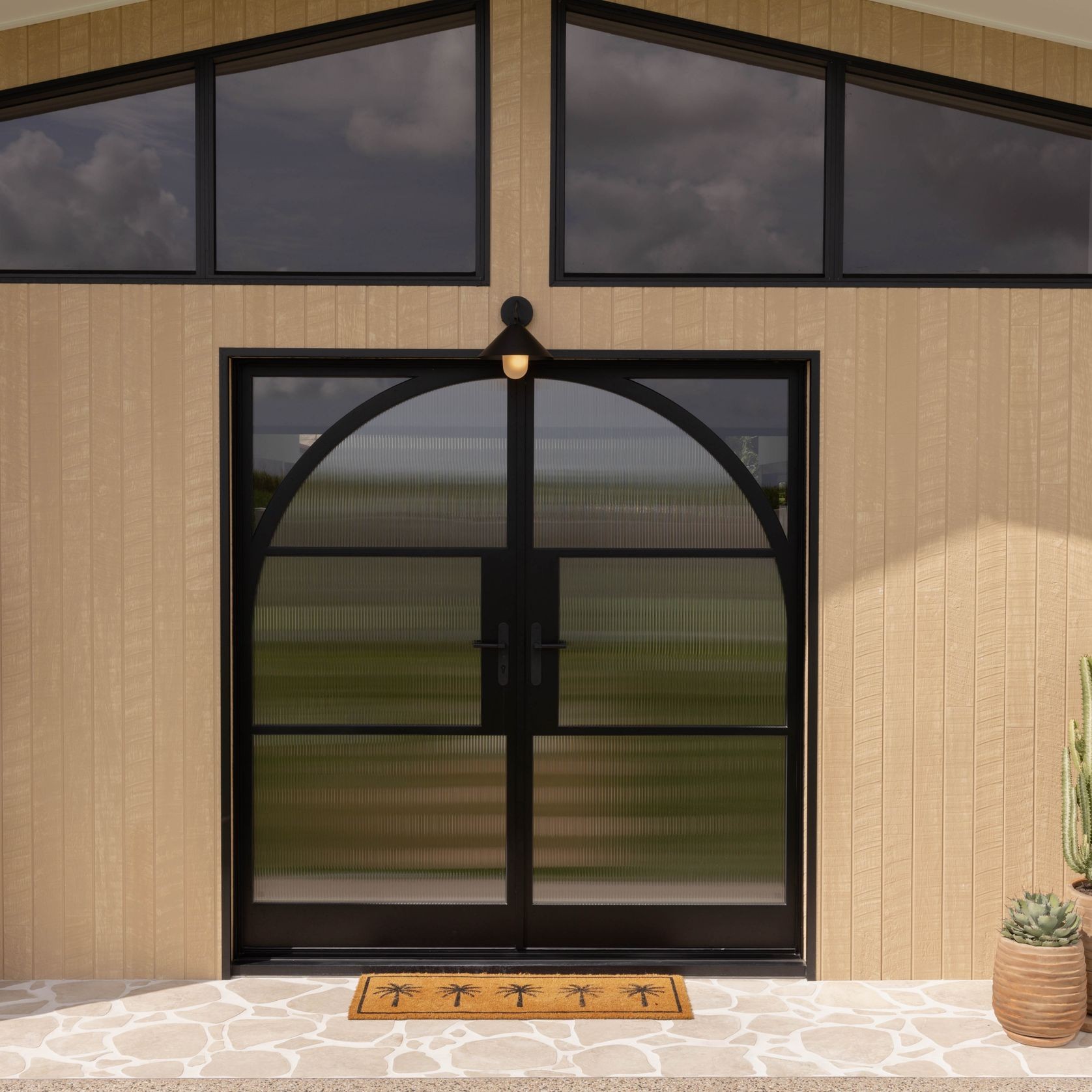

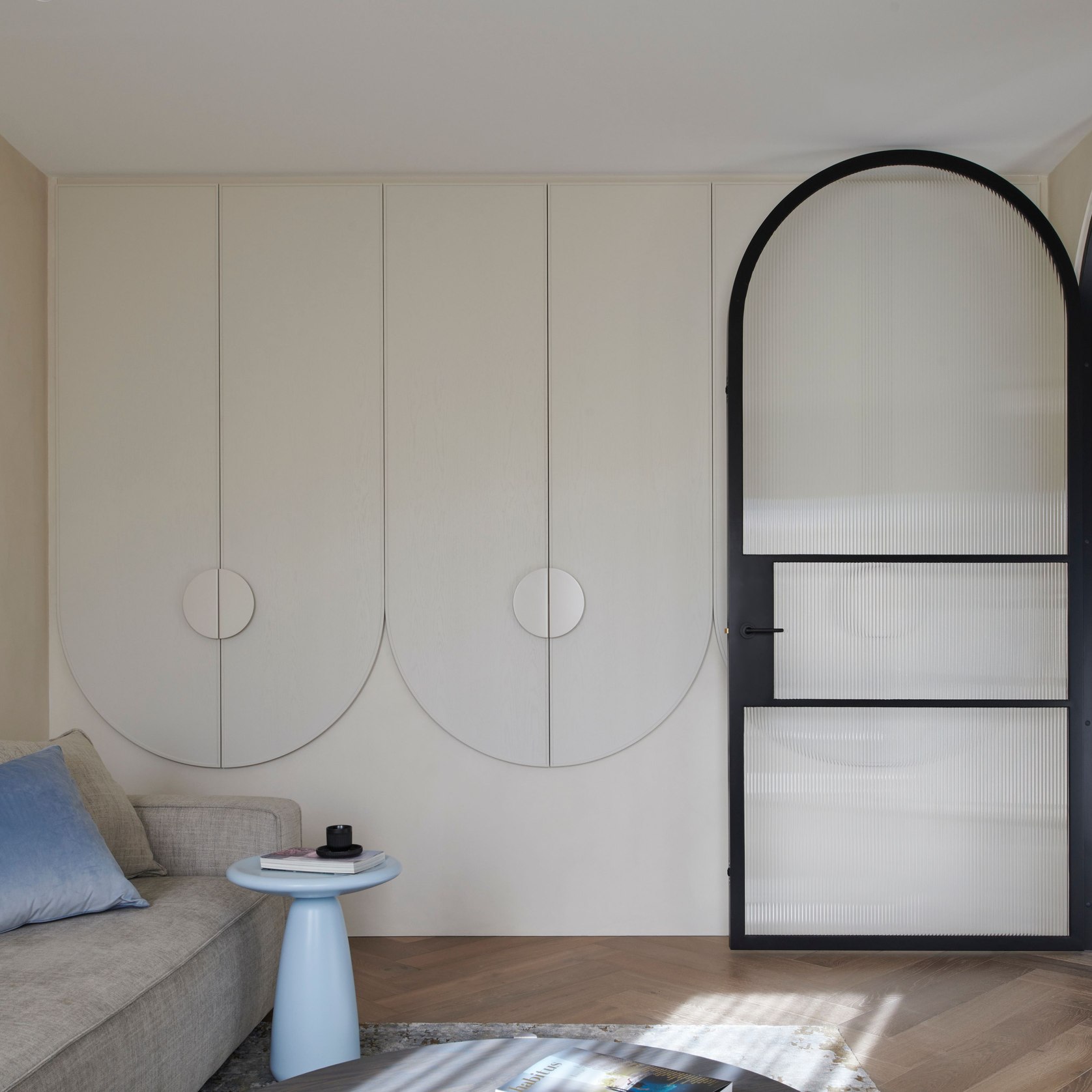

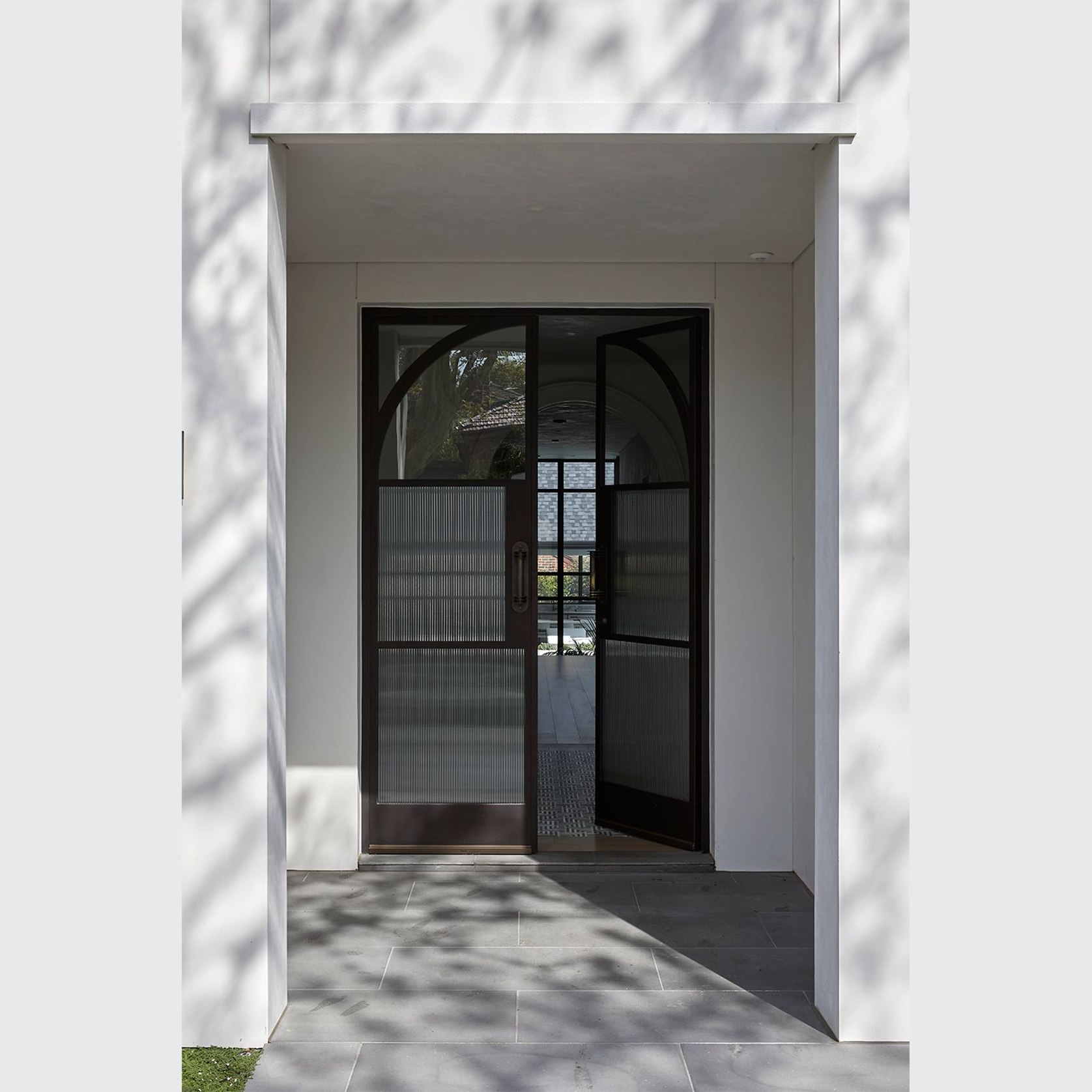

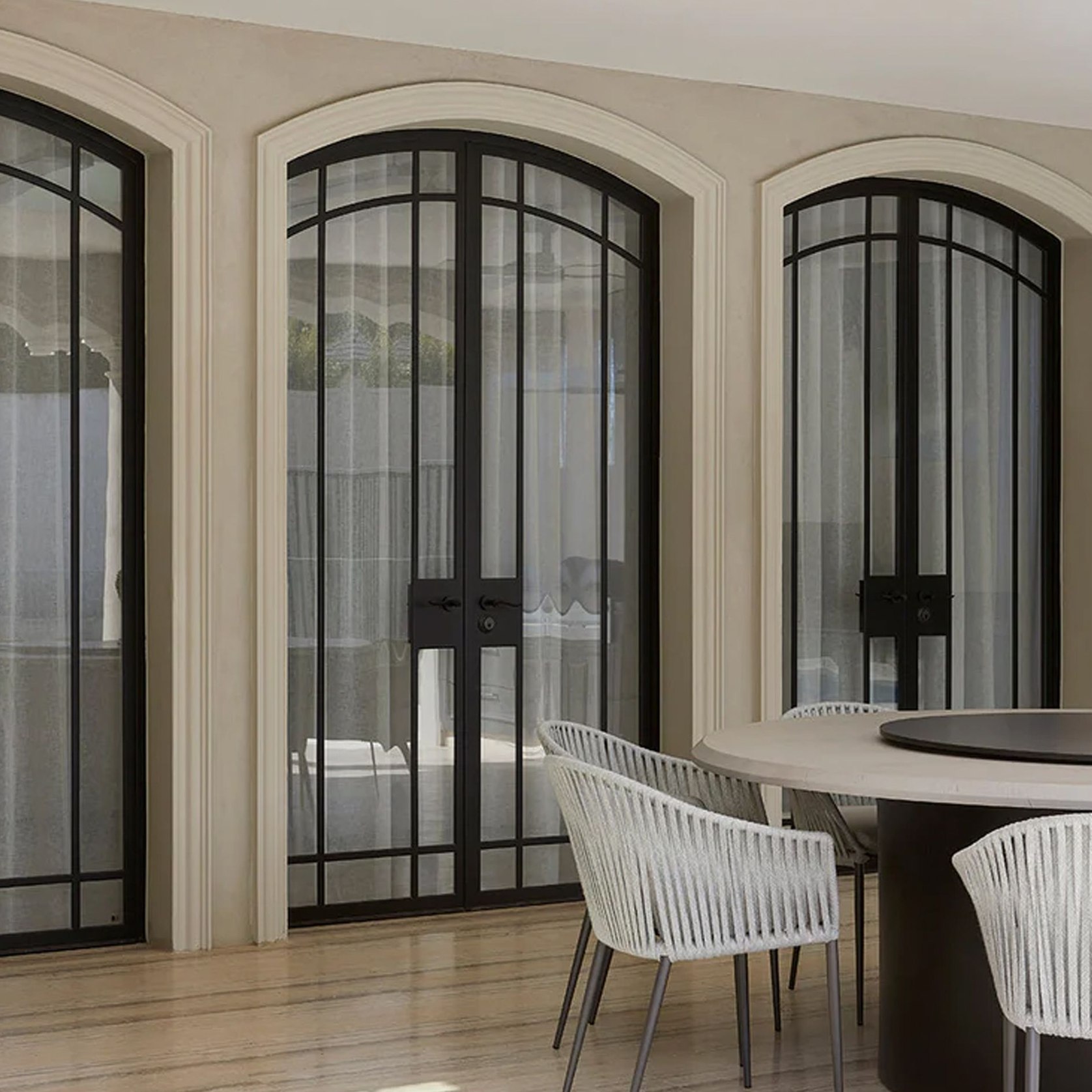

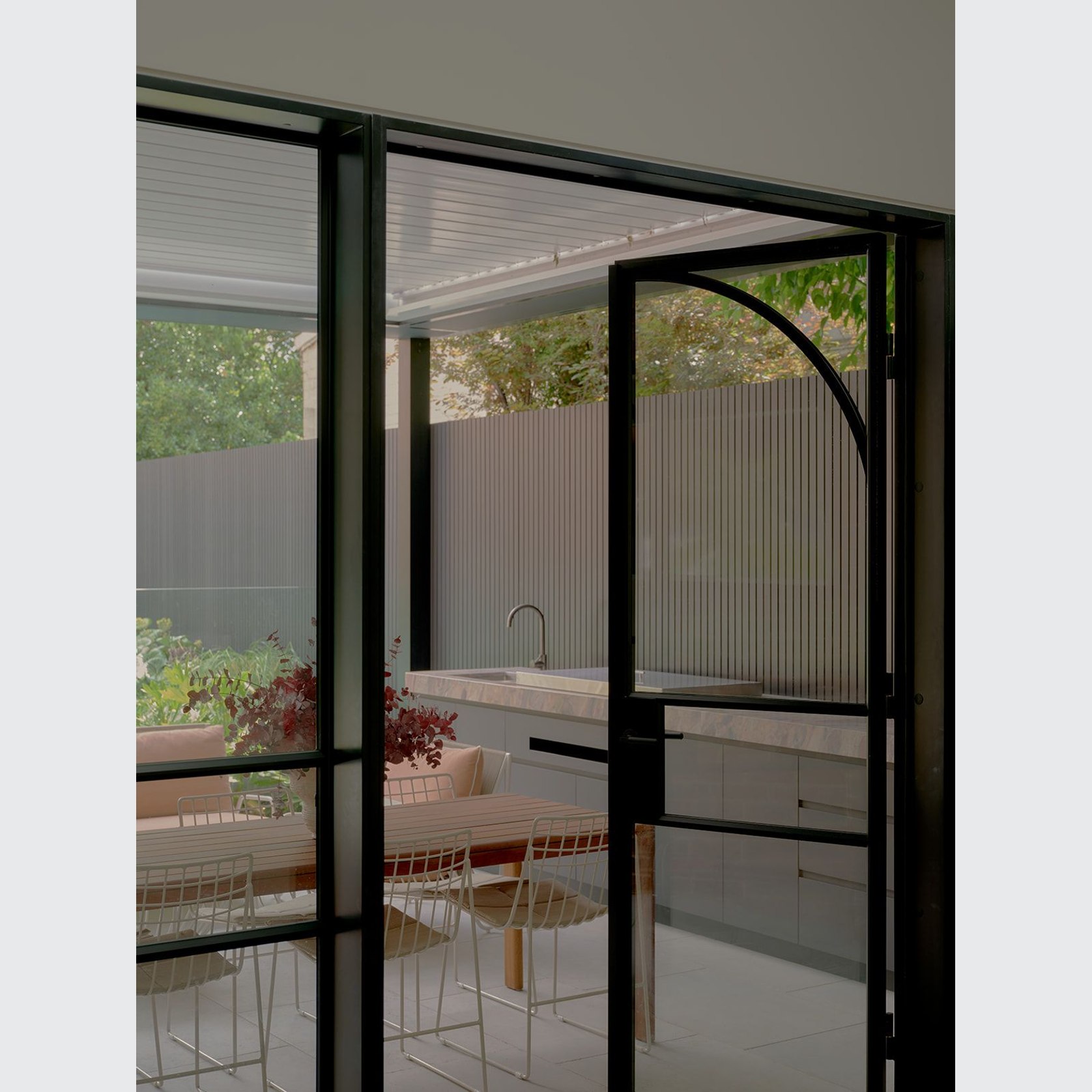

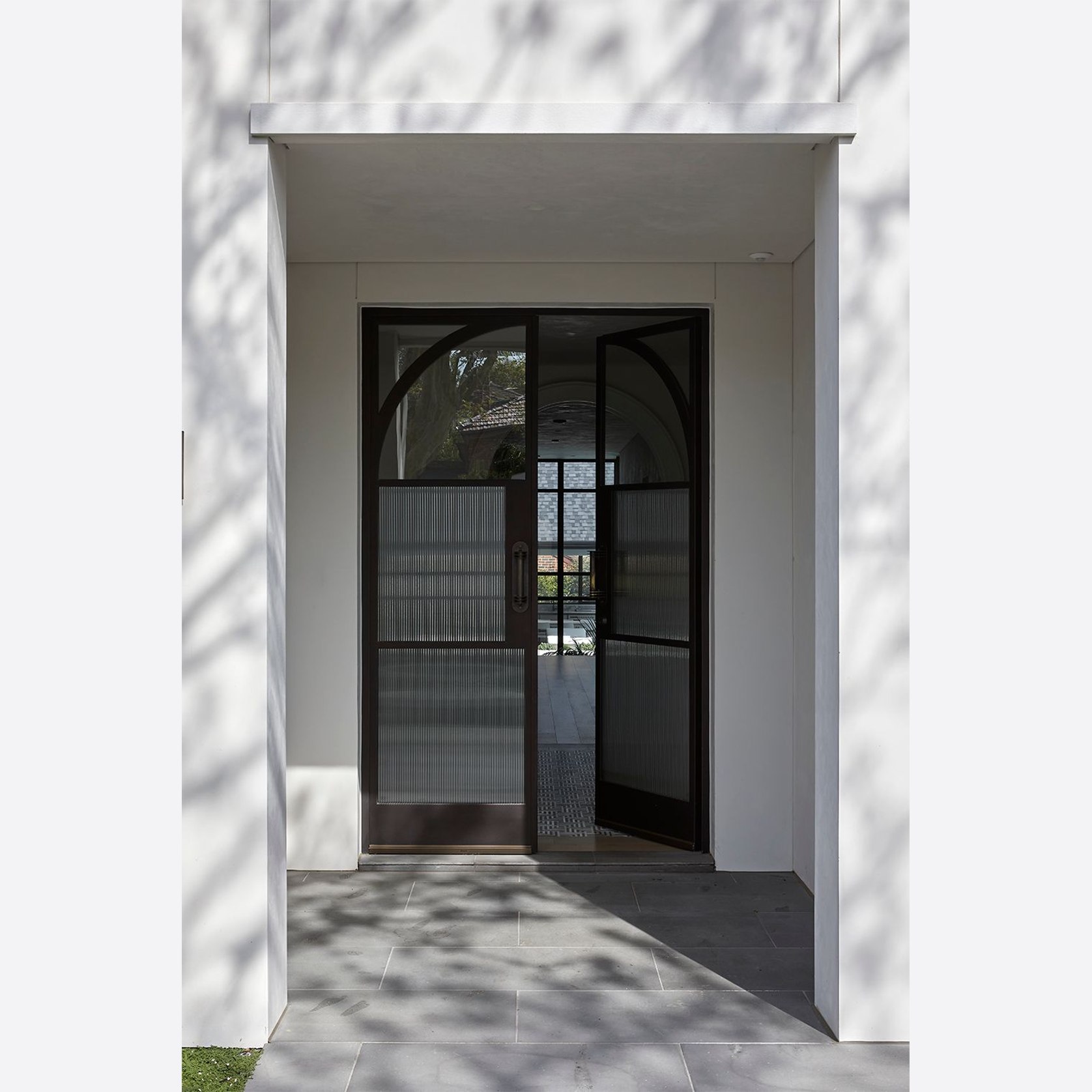

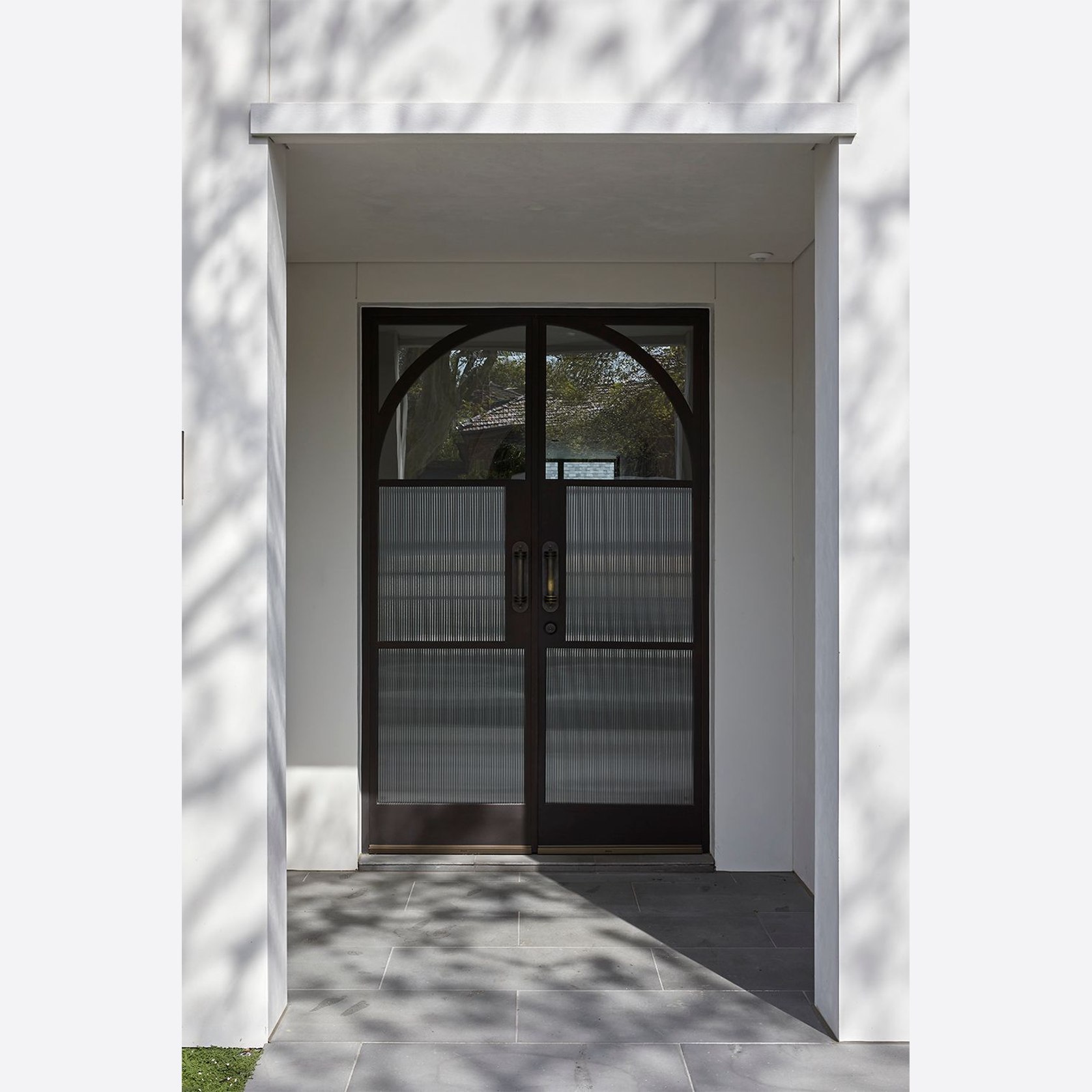

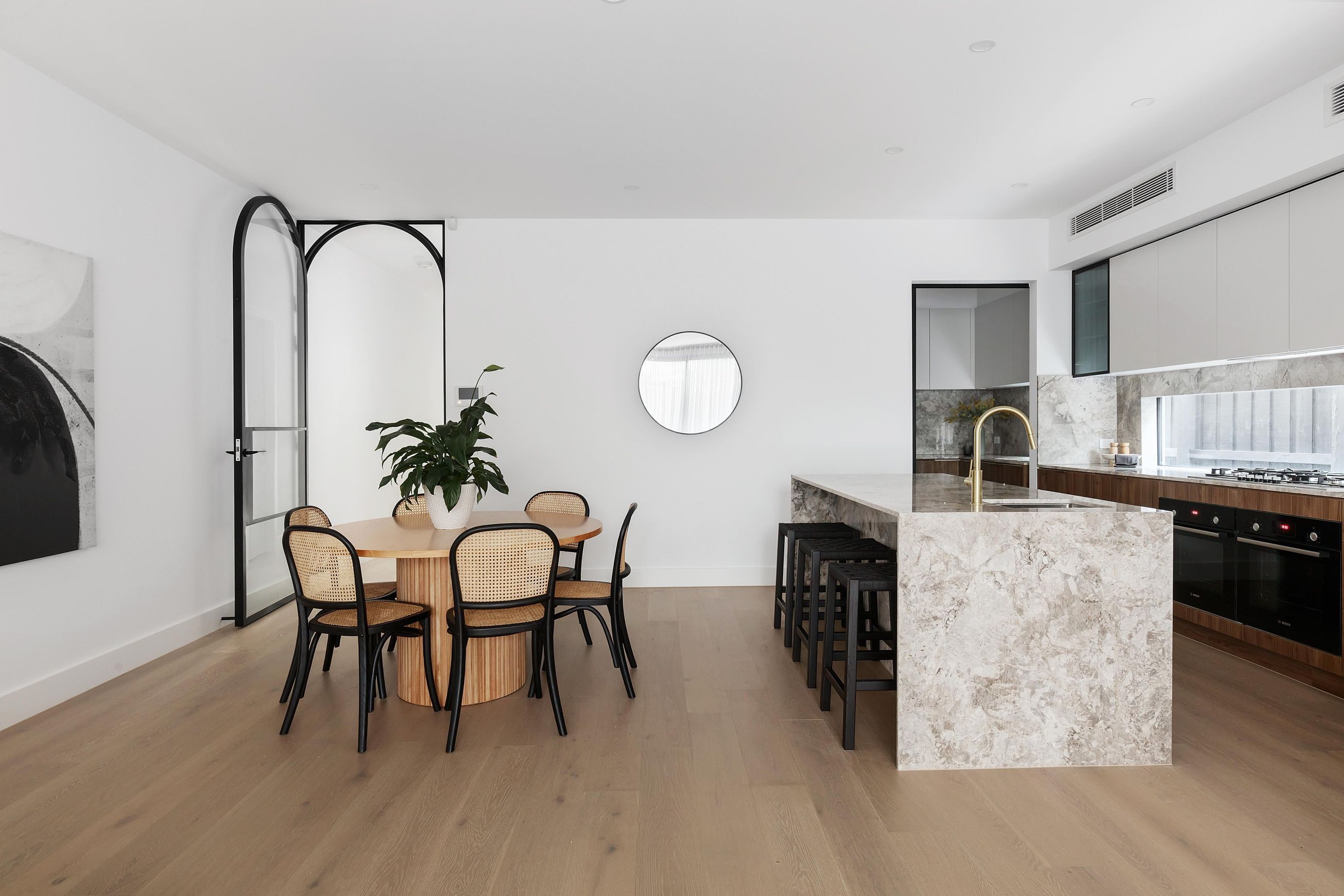

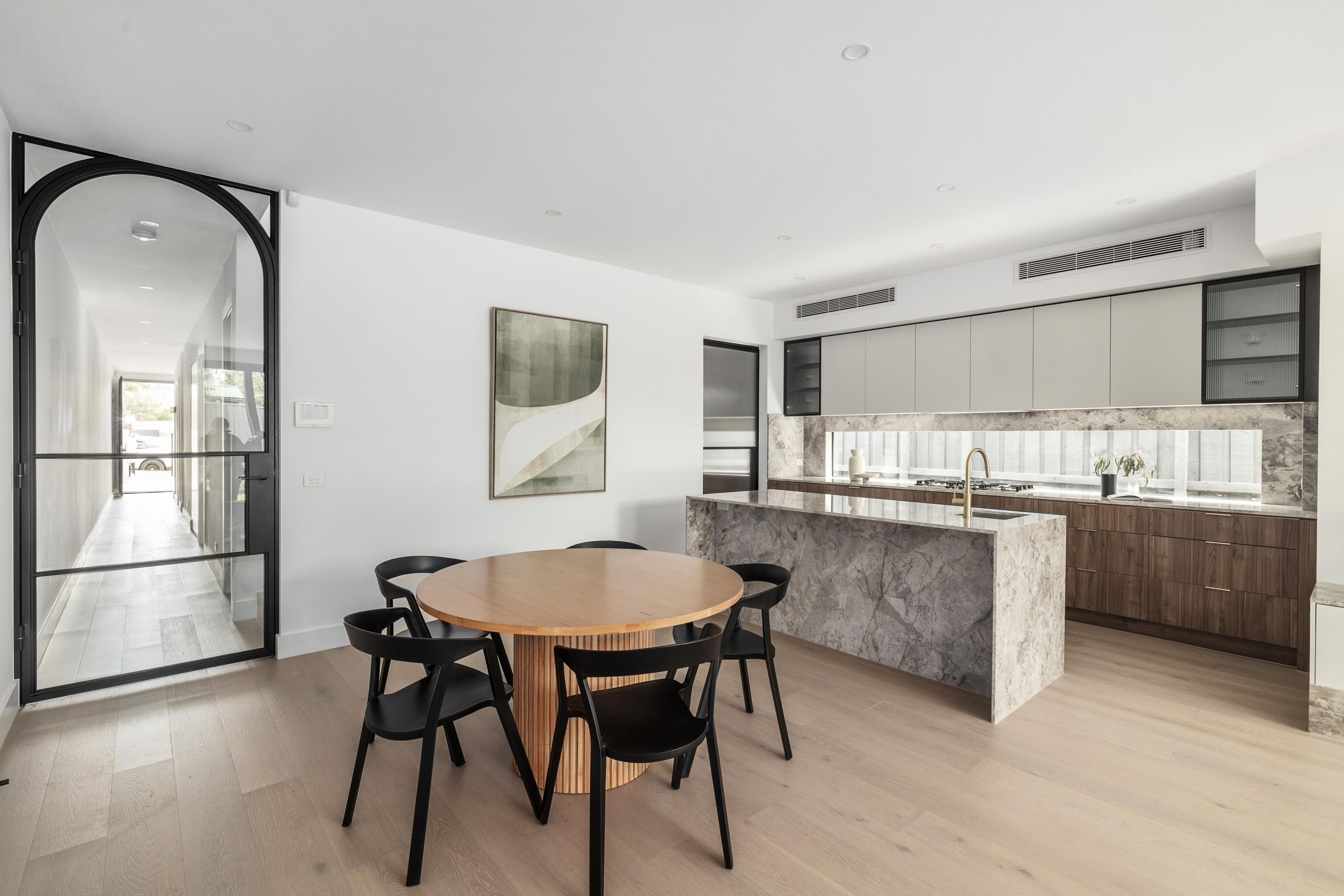

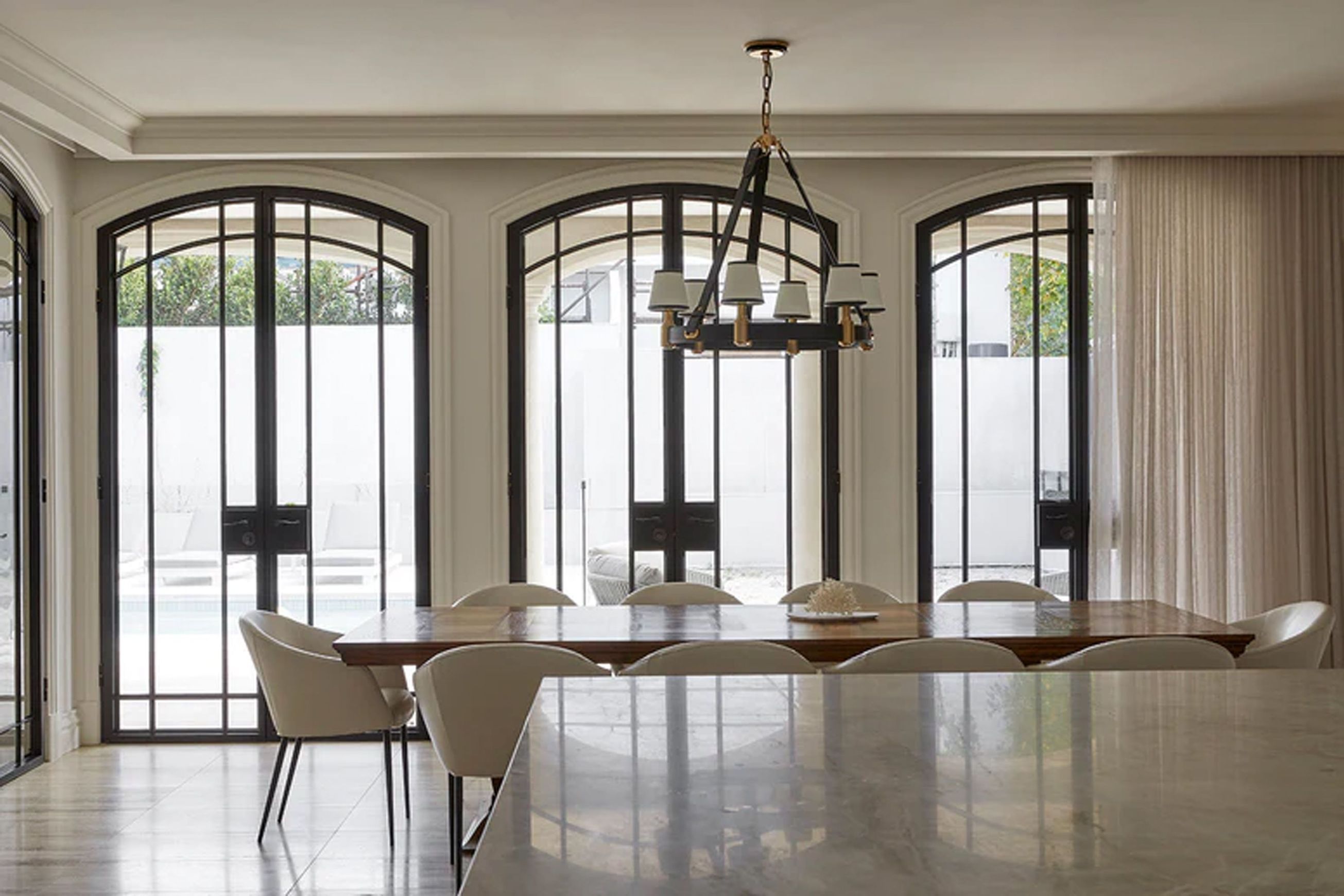

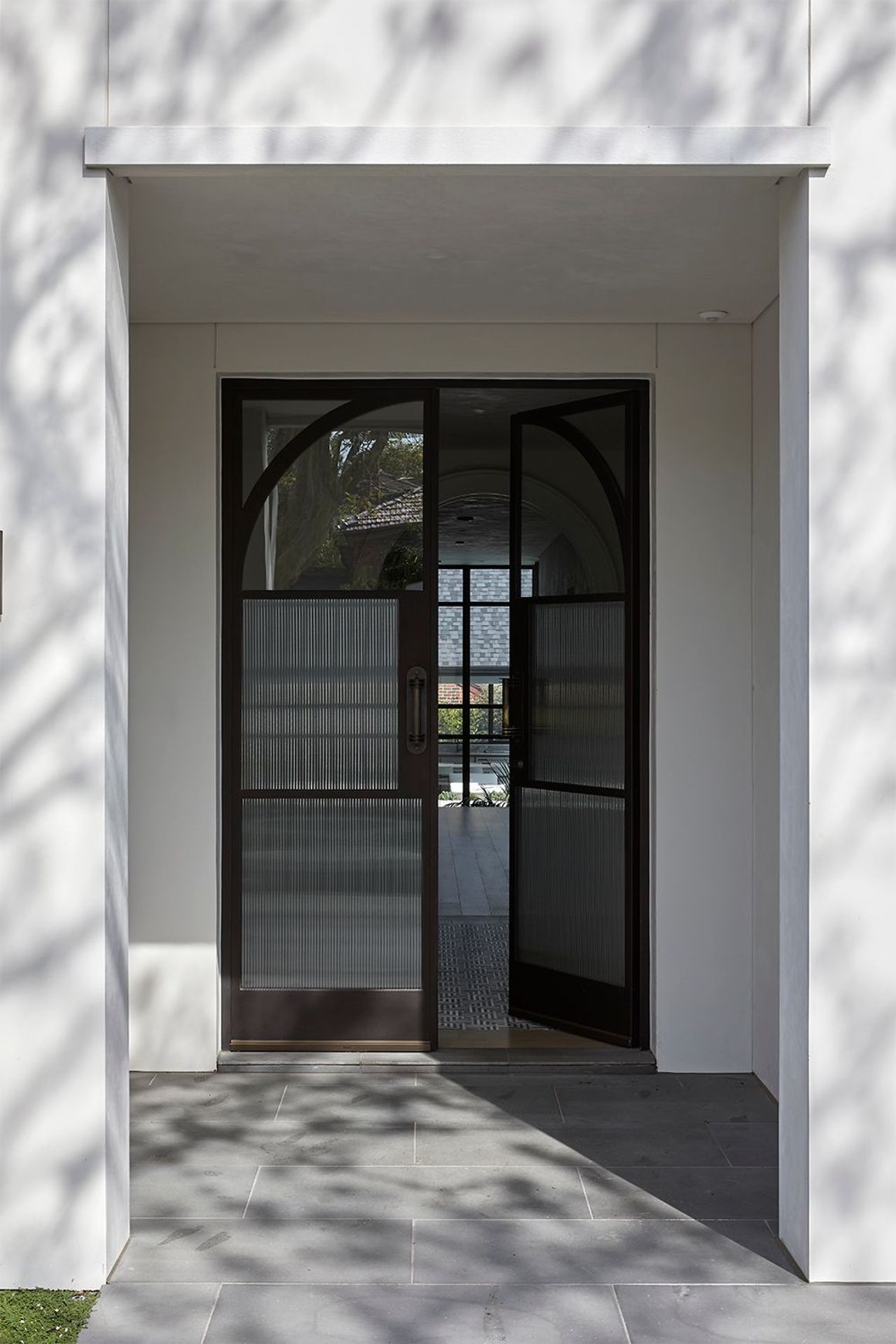

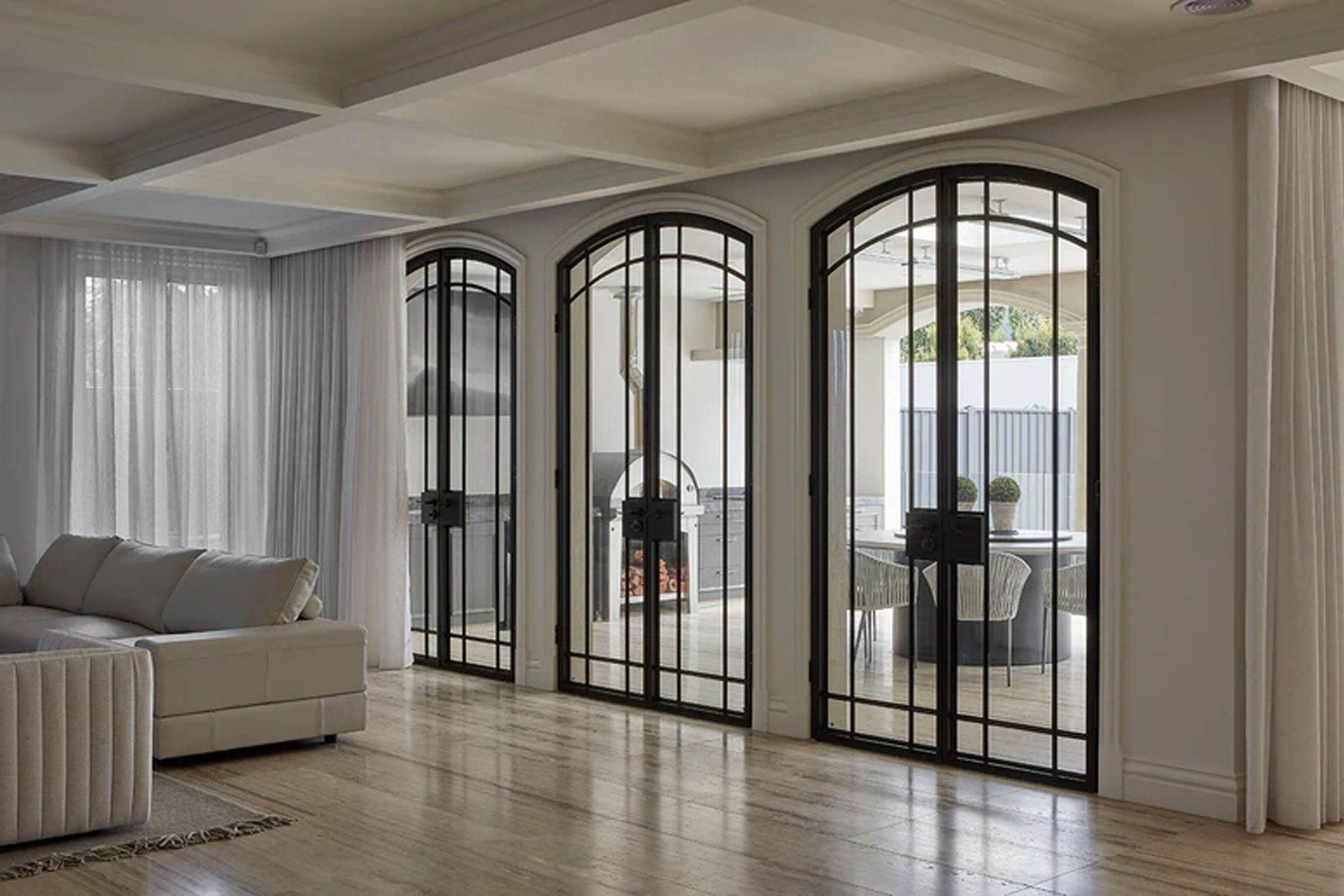

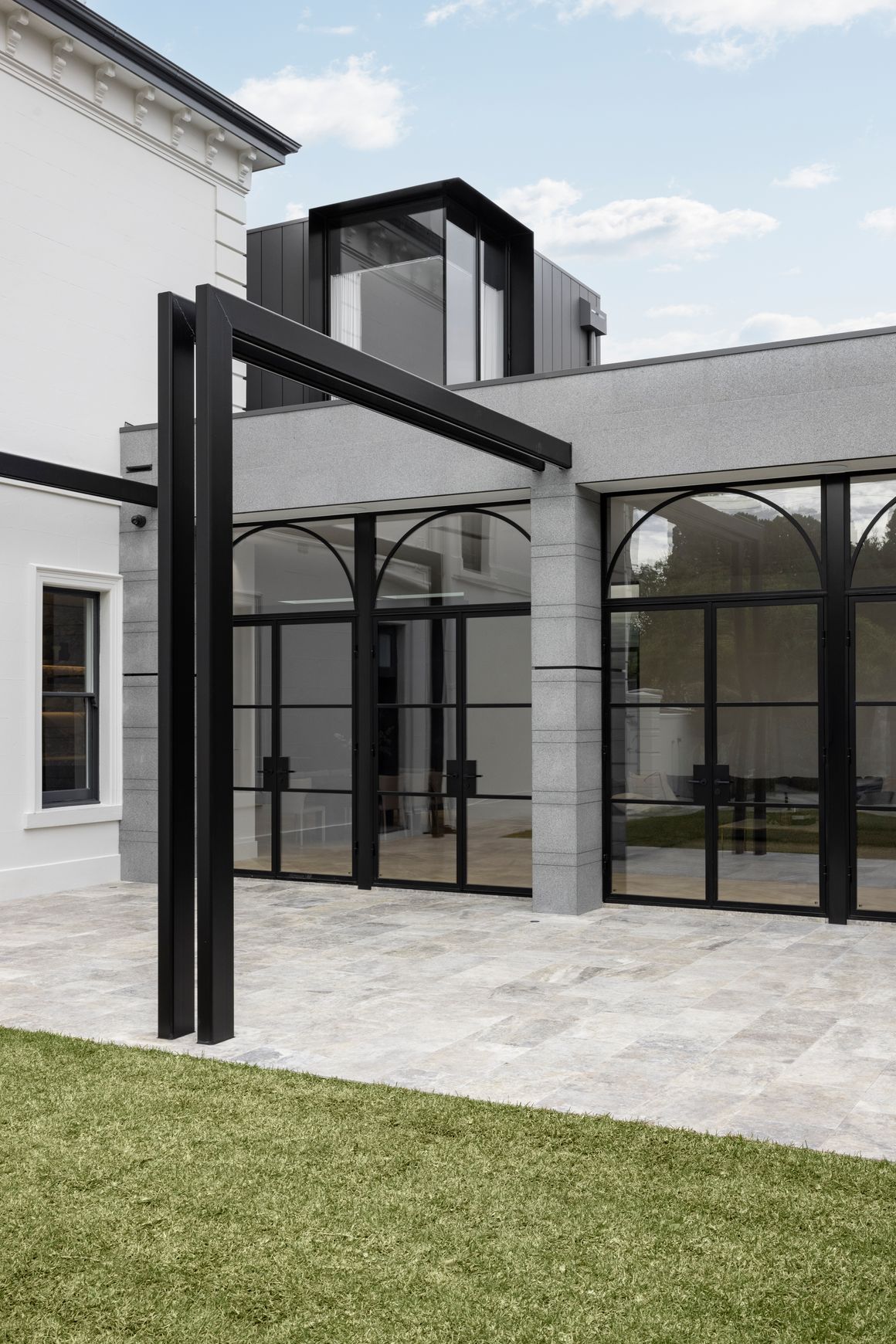

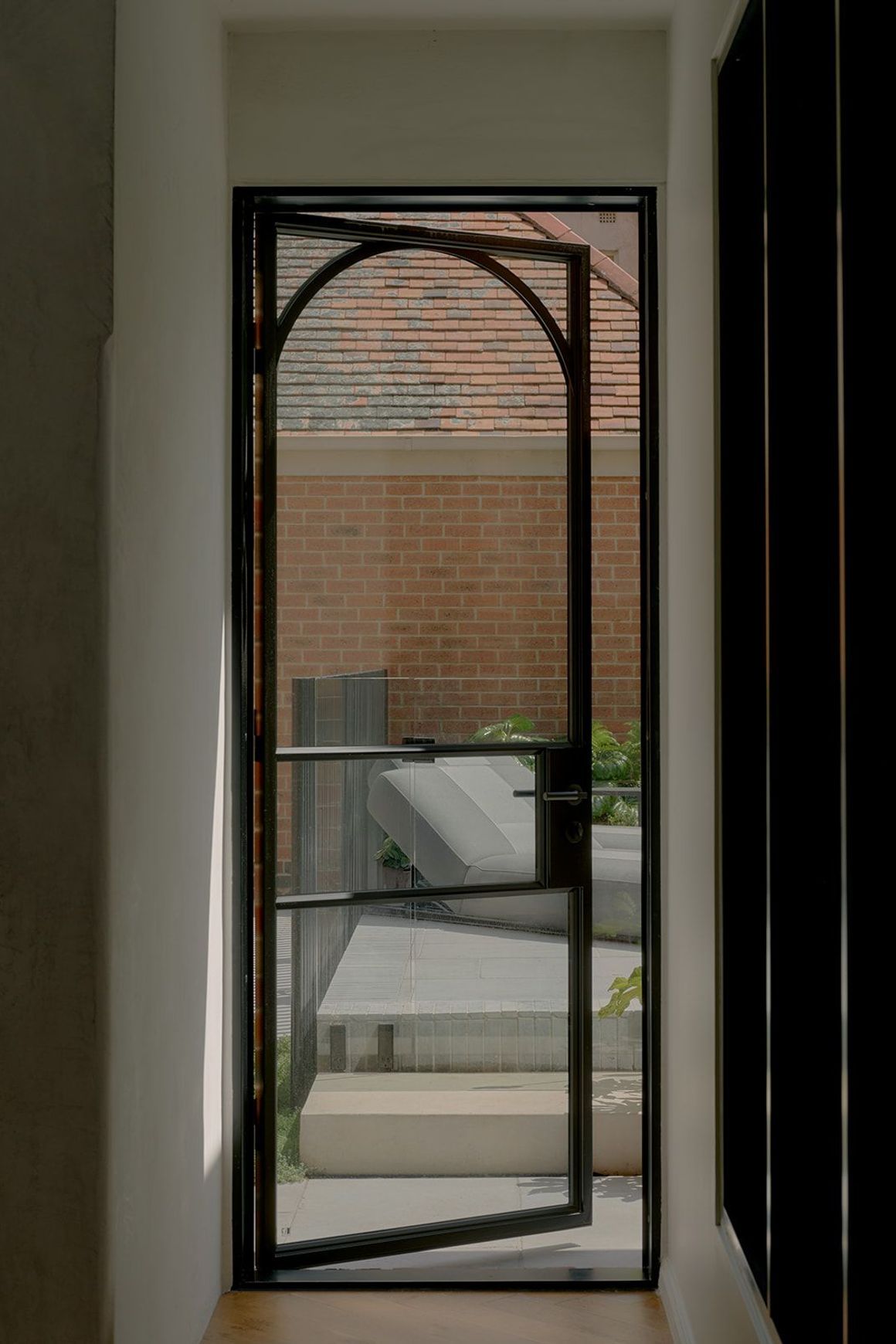

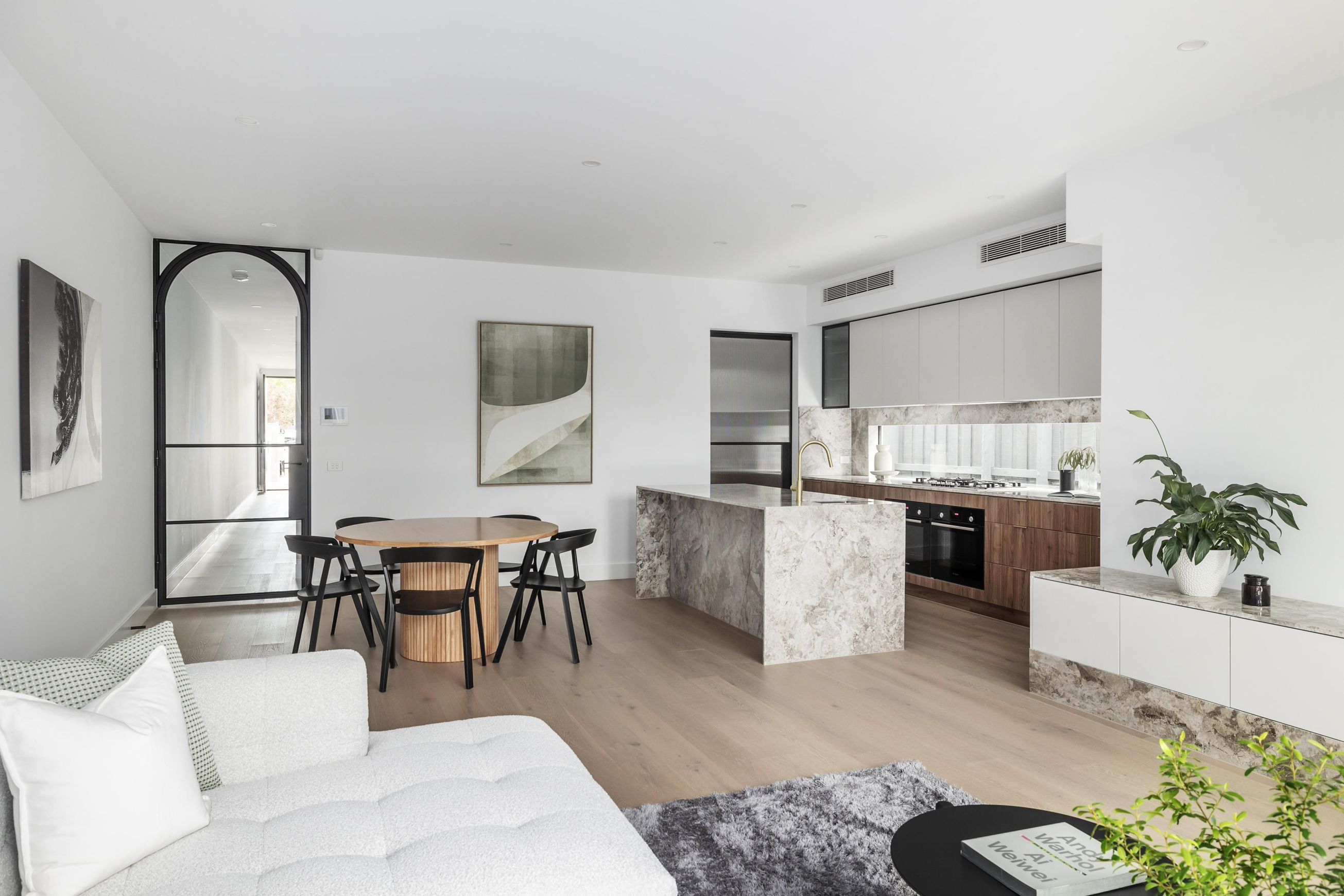

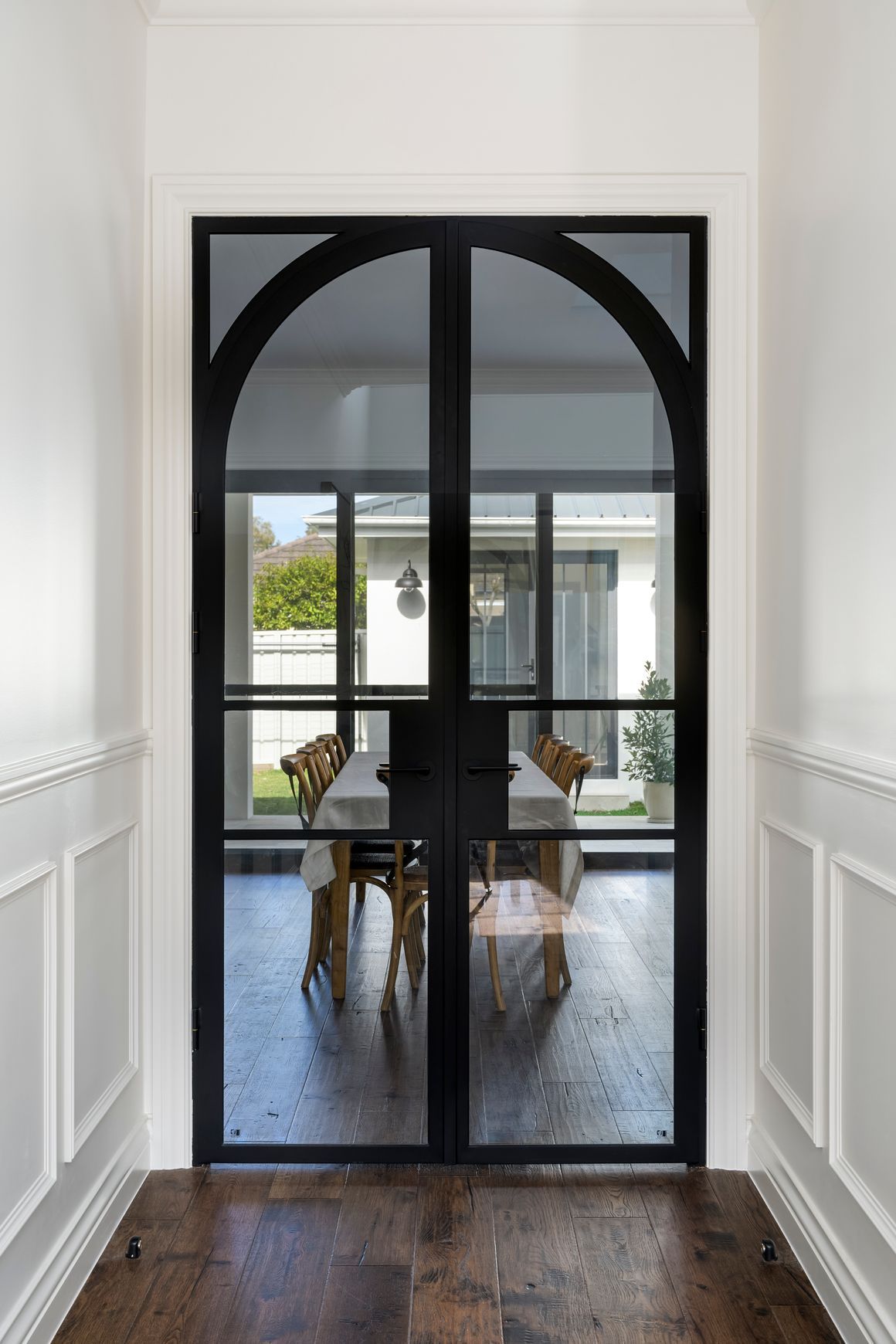

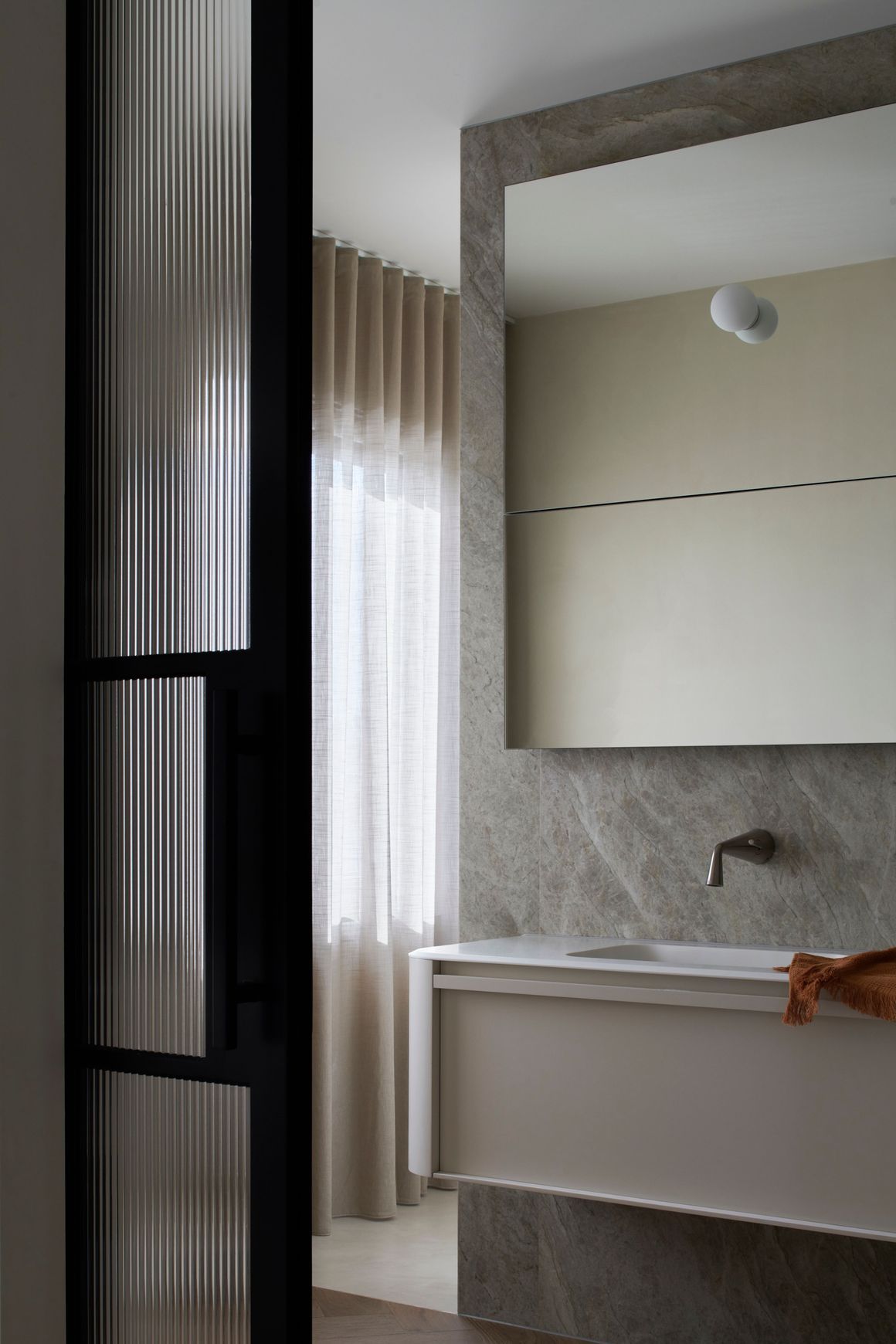

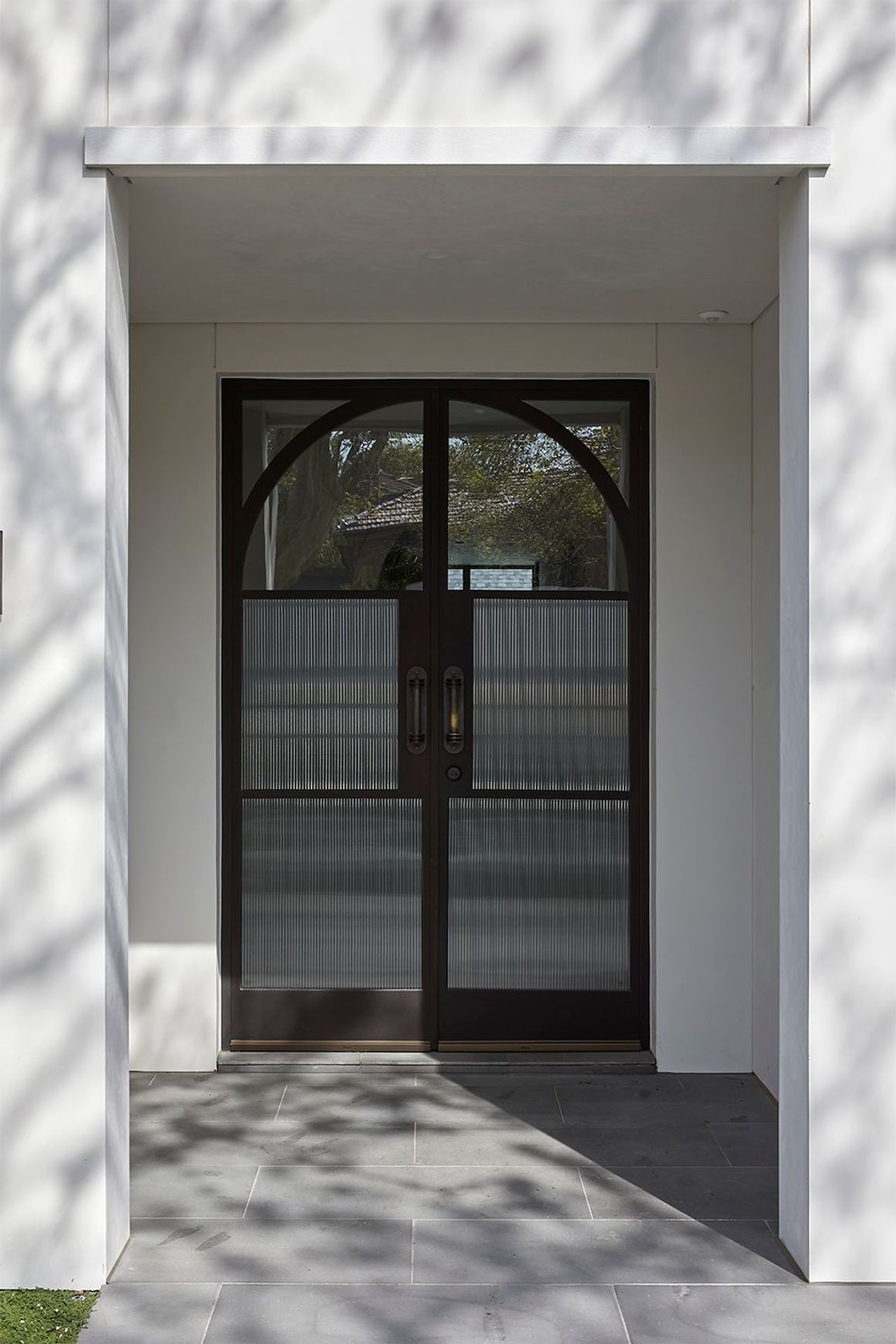

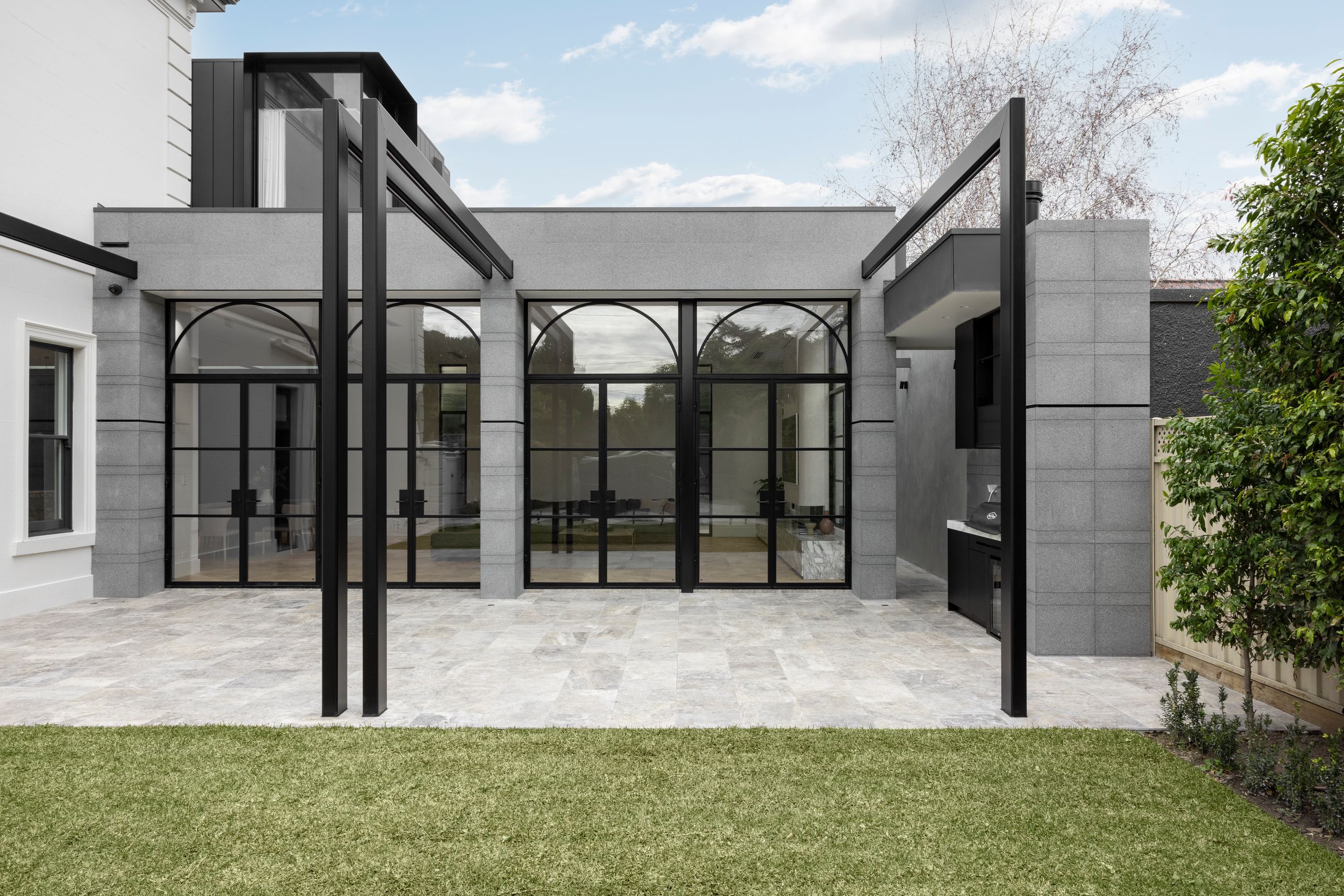

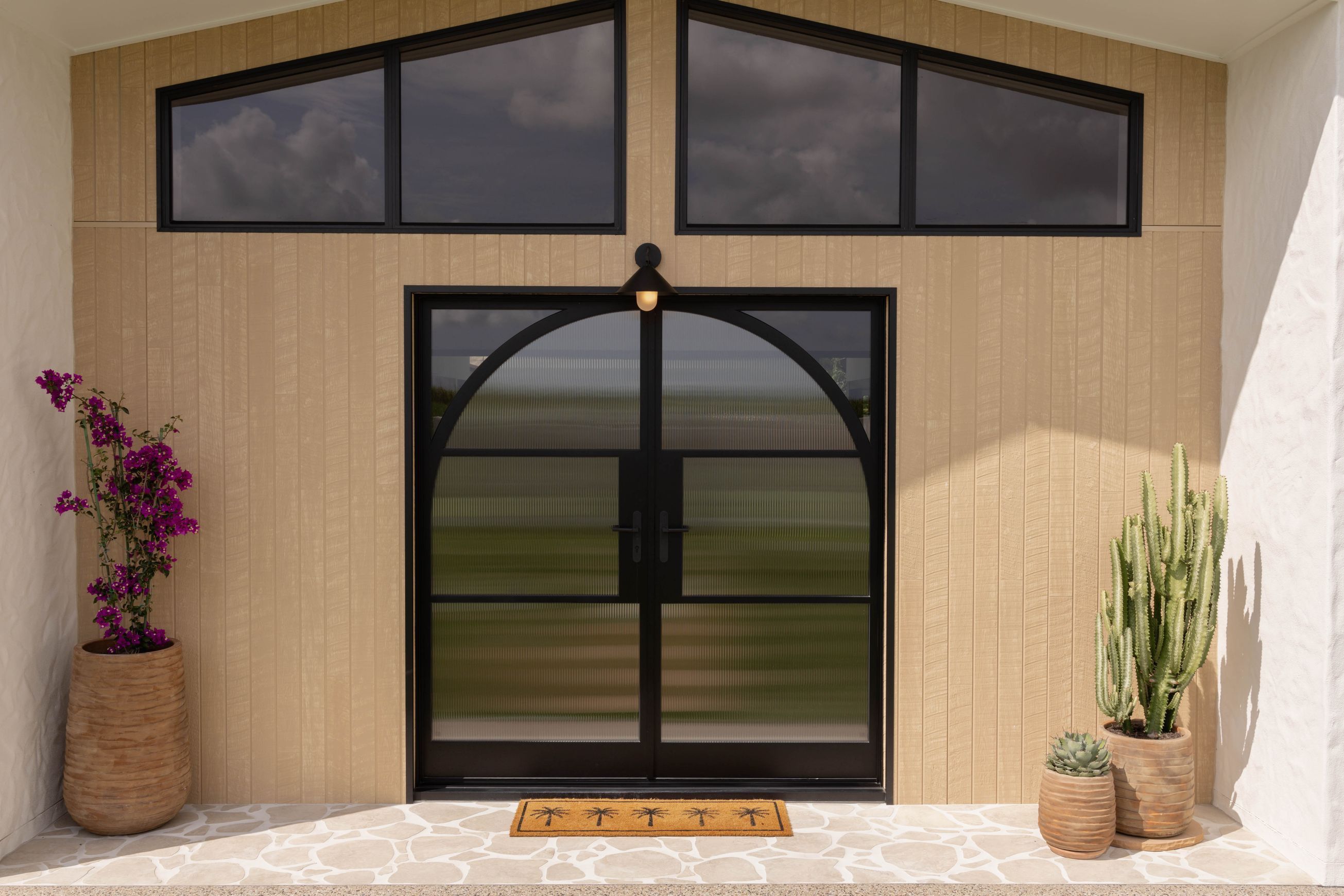

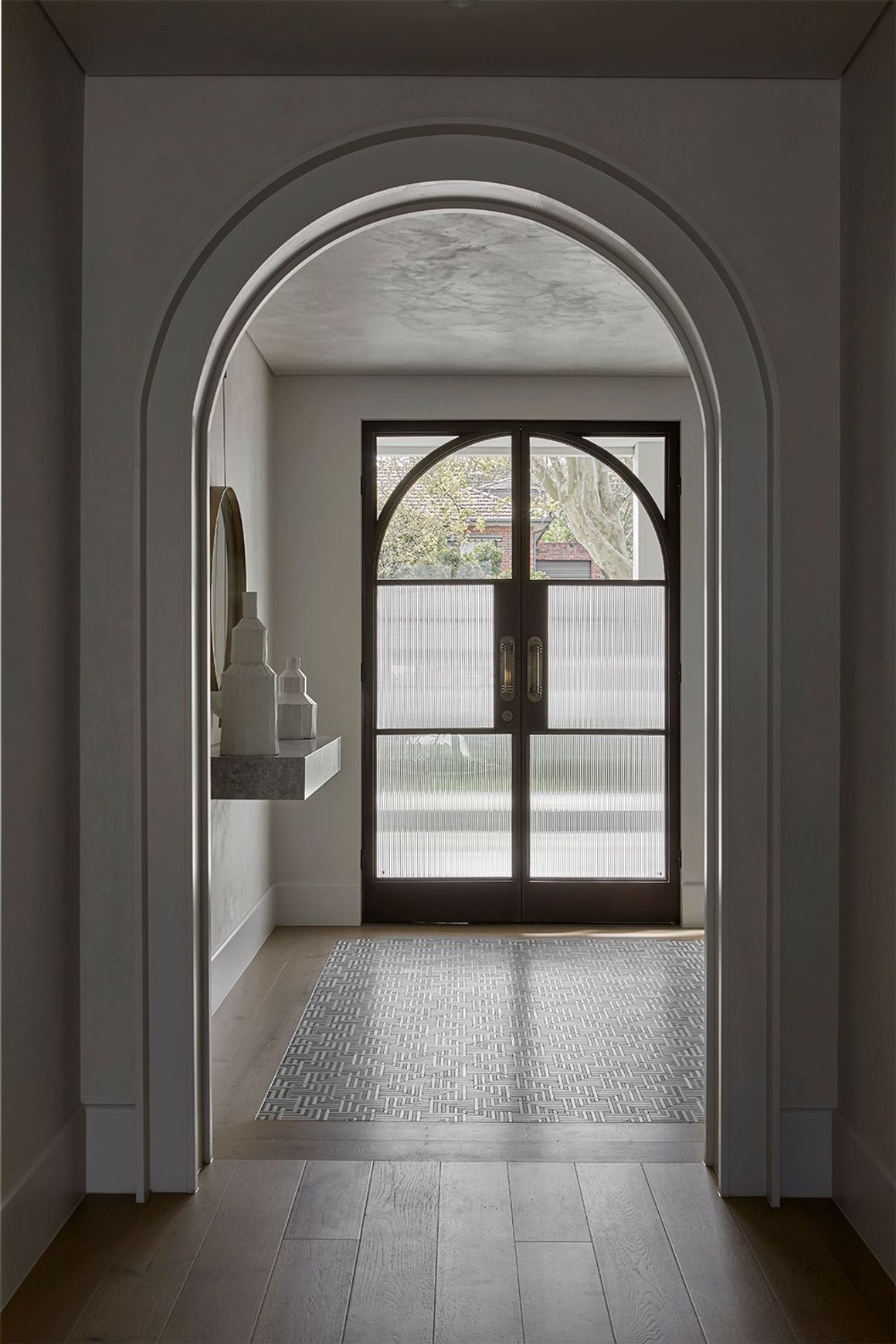

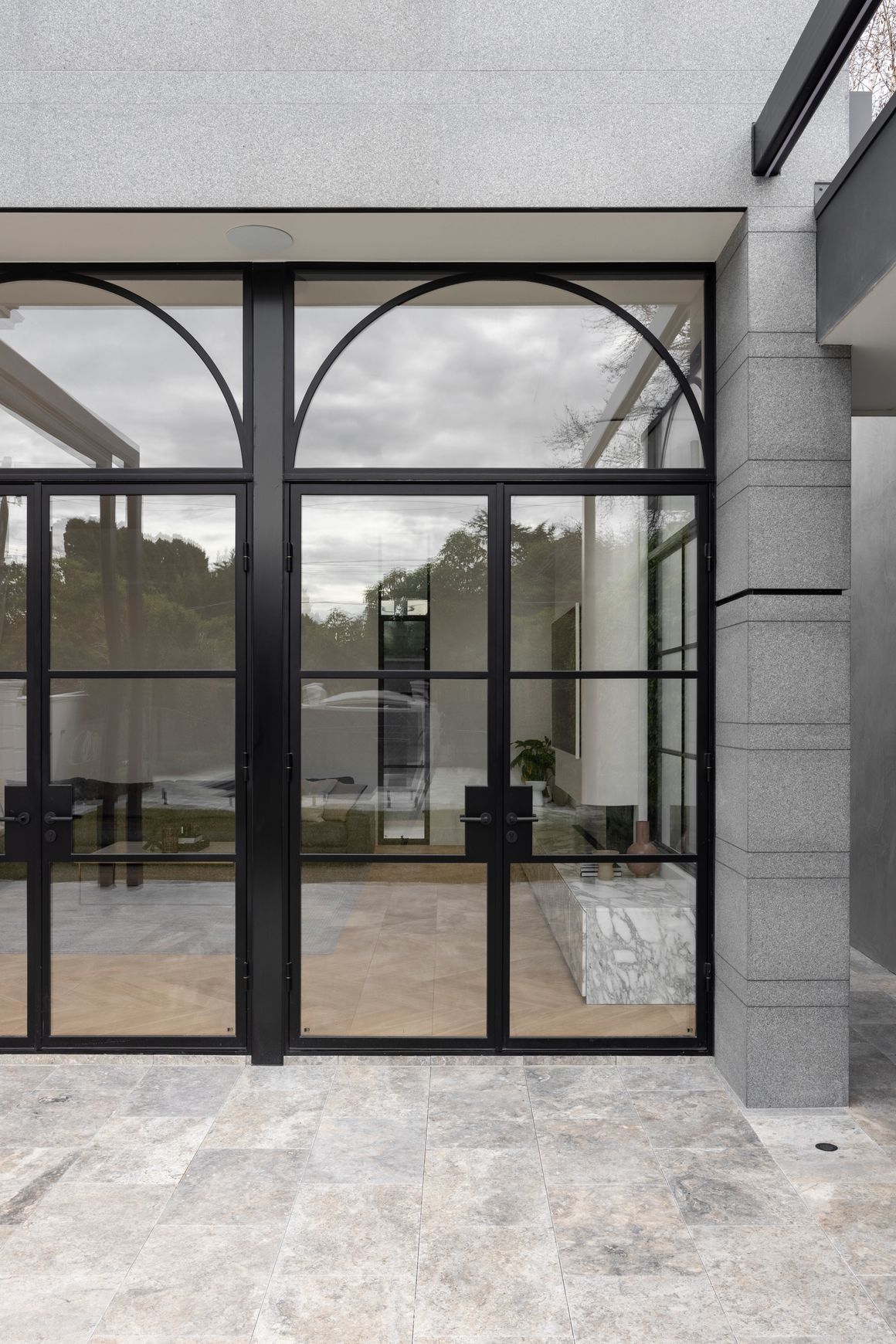

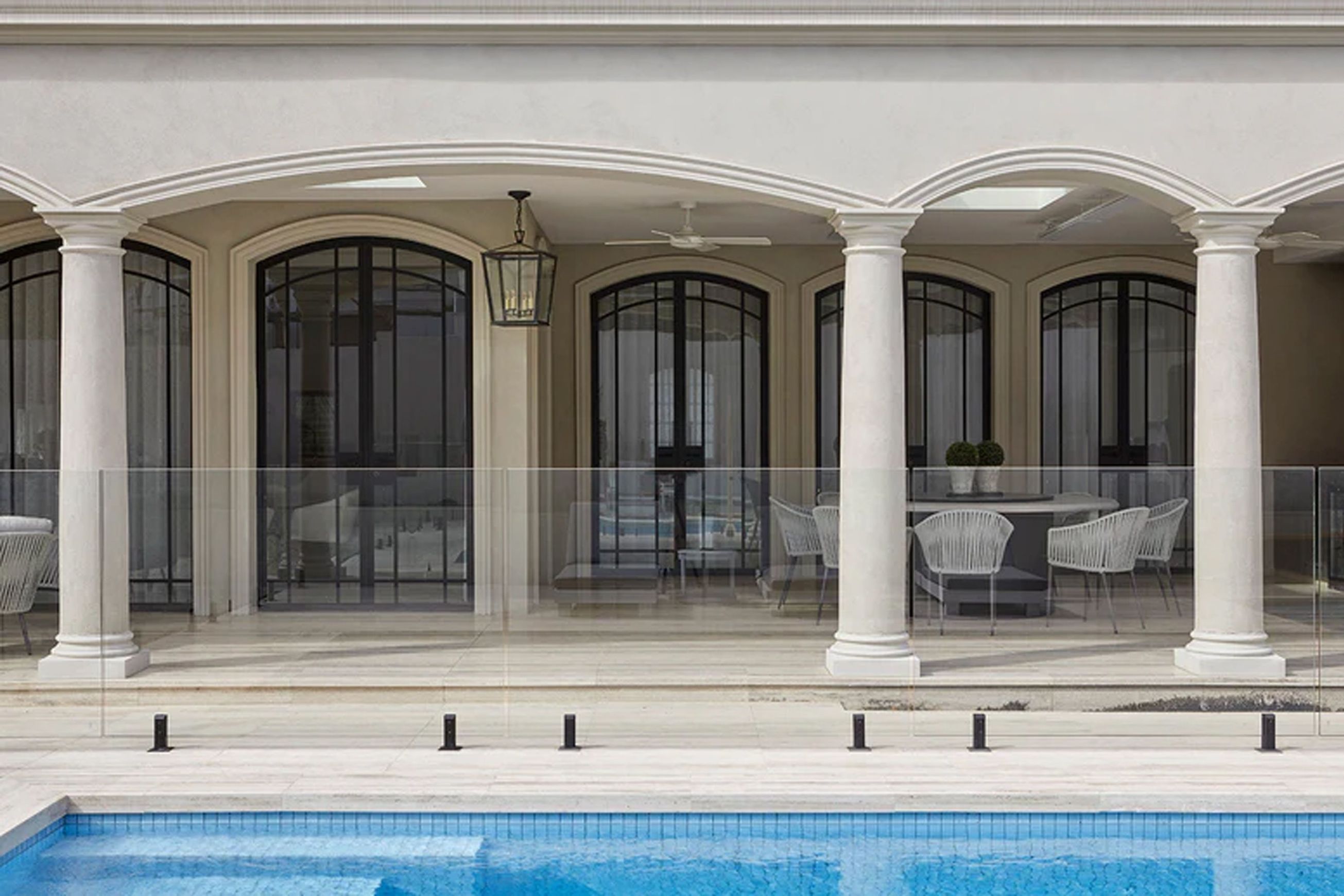

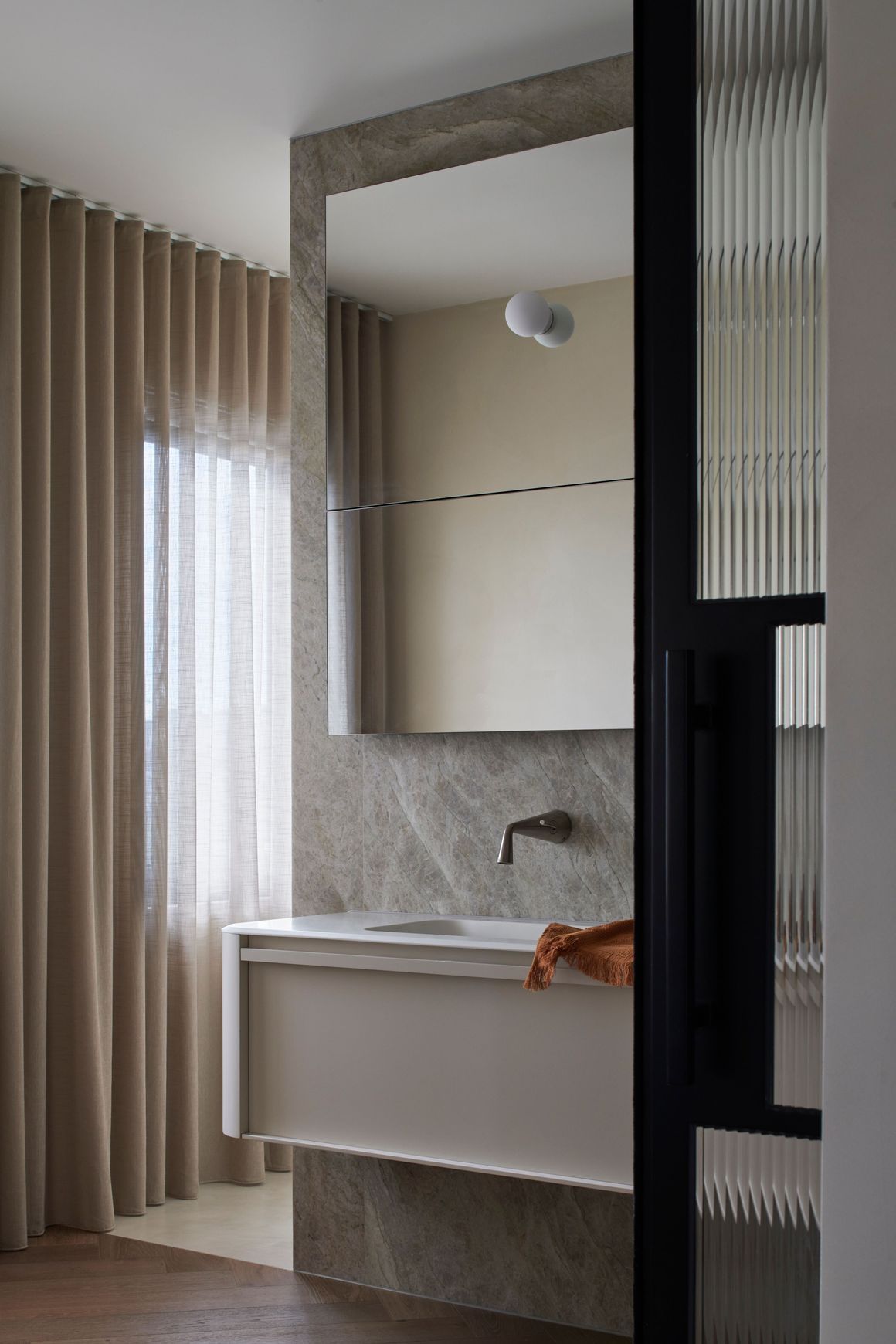

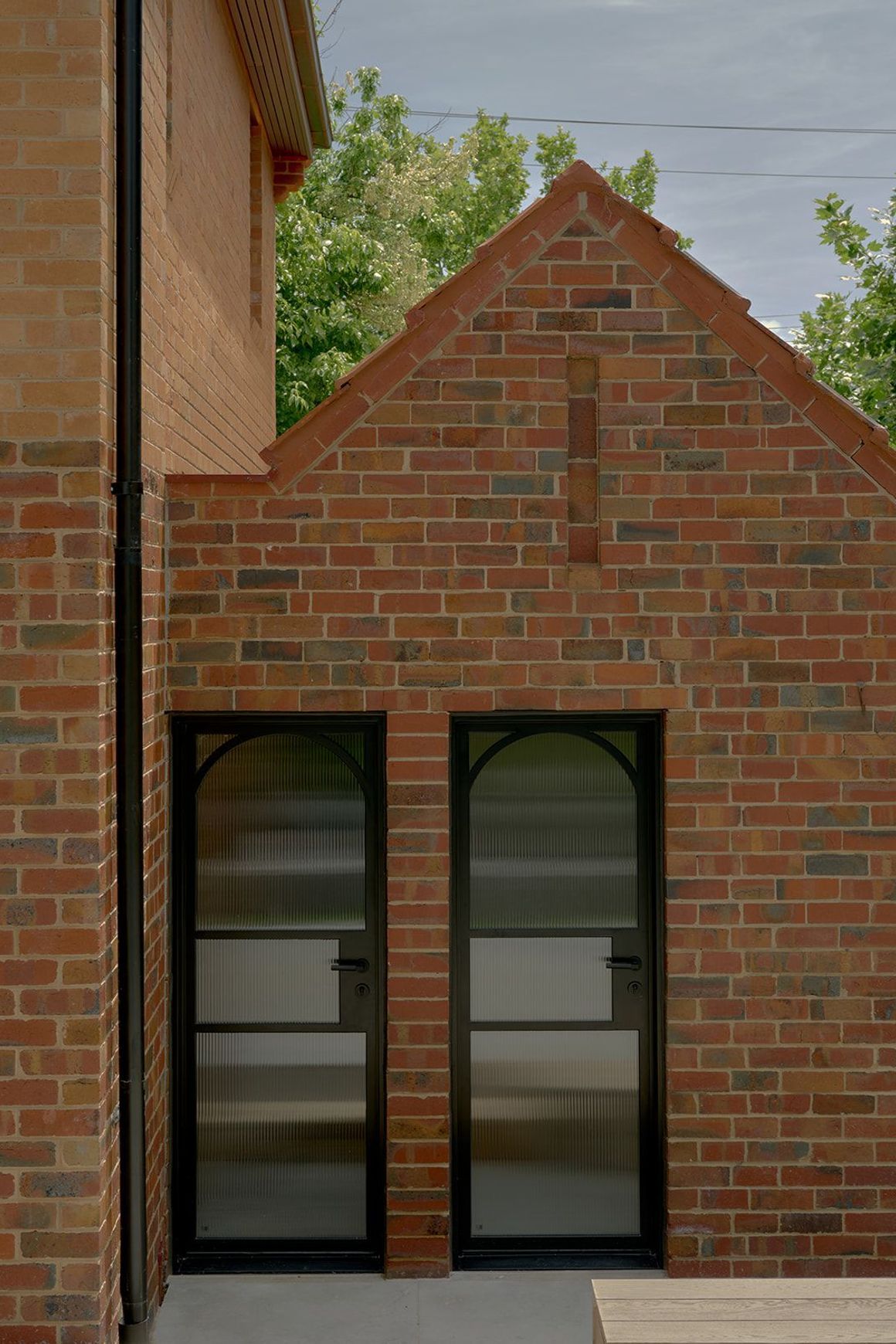

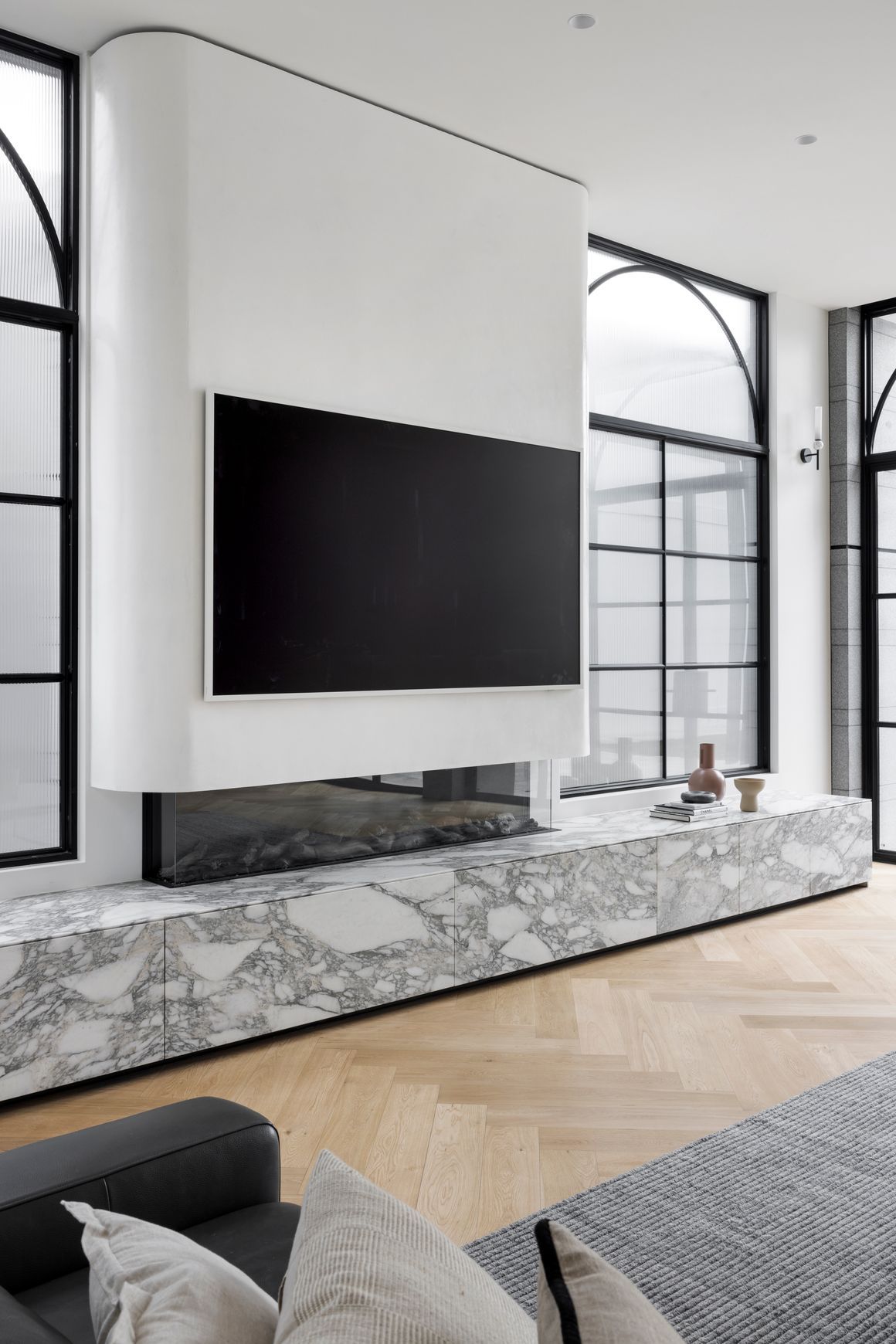

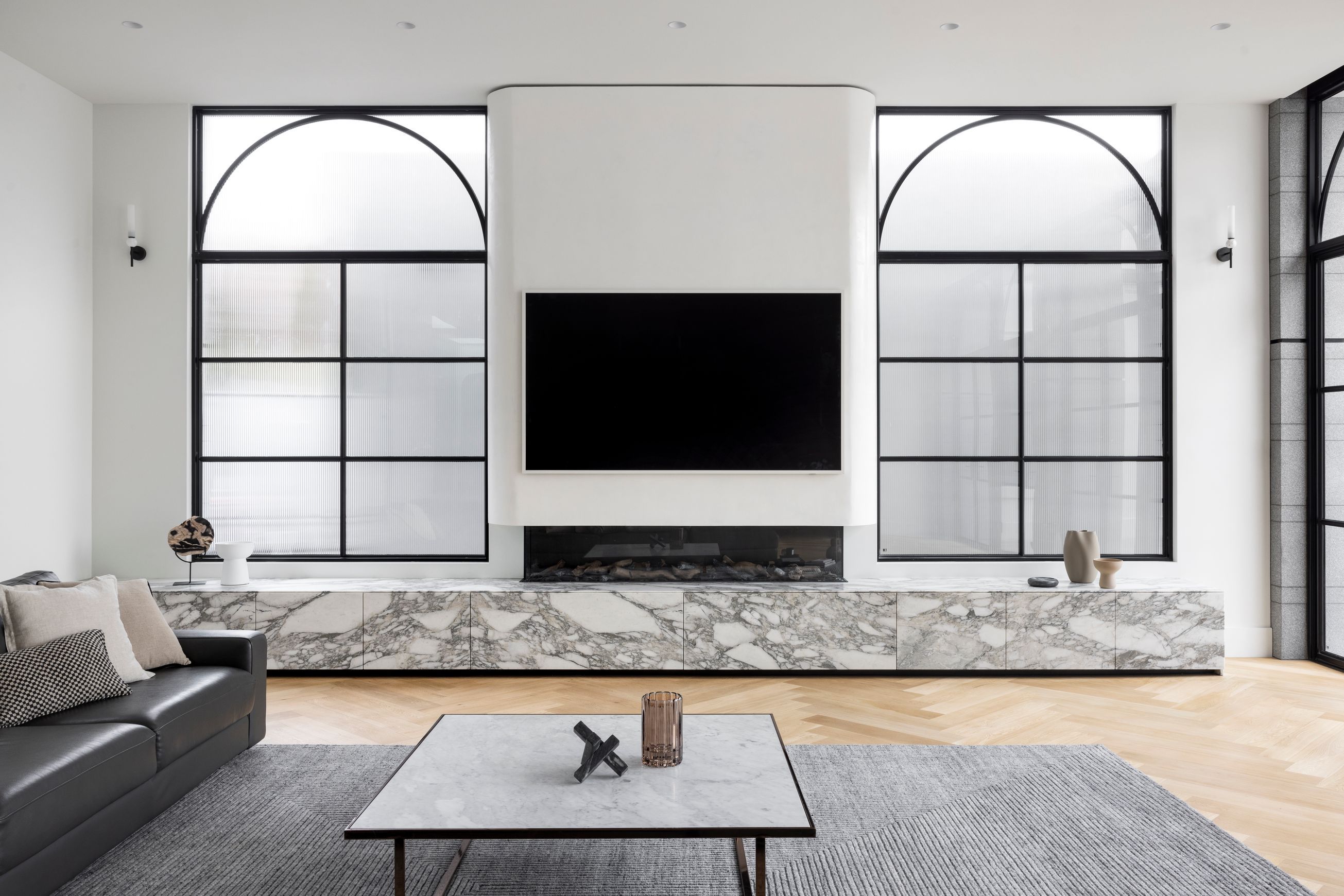

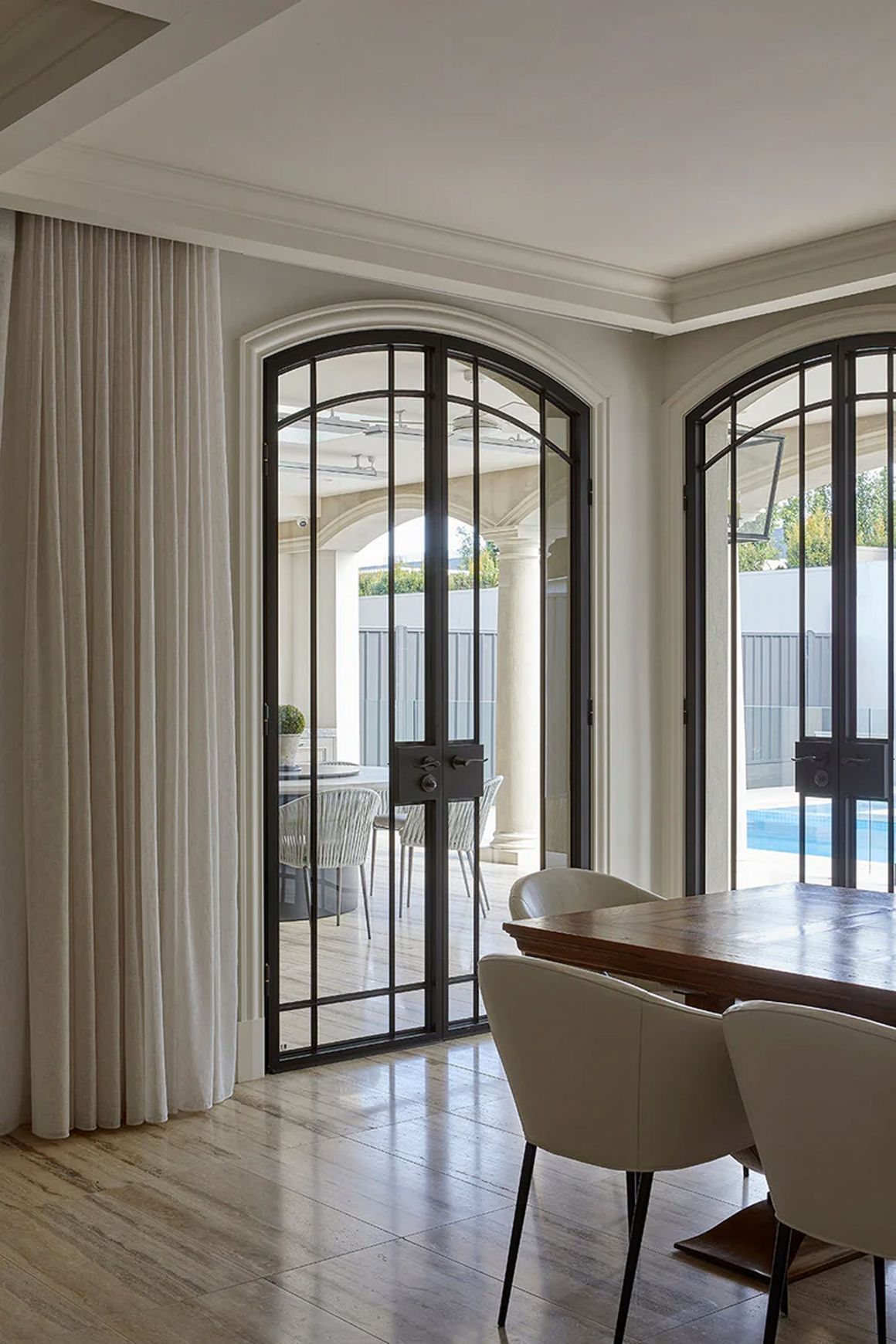

Arch Steel Frame Glass Hinge Doors - Galvanised FPS50 Profile

Engineered with precision and versatility in mind, the FPS50 Slimline Tube Steel Profile delivers a sleek, modern aesthetic with outstanding structural integrity. Its cold-formed tubular steel design offers exceptional strength while maintaining ultra-slim sightlines, perfect for projects demanding both elegance and durability.

Designed to balance form and function, the FPS50 seamlessly integrates into contemporary architecture—offering flexibility in design, superior craftsmanship, and enduring performance for residential and commercial spaces alike.

Not Applicable
Details
Specifications
  • Zen Arch Steel Frame Glass Hinge Doors – Galvanised FPS50 Profile
    • Door Design: Custom
    • Door Type: Hinged Doors
    • Location: External or Internal
    • Hinges: 3 or 4 Heavy Duty Welded, Lift-off, 180-degree hinges with brass washers
    • Mounting Type: Tabs Outside of Jamb, Pre-Drilled Mounting Holes Inside of Jamb – visit our Mounting Typespage for more options
    • Door Jamb: 25/30/40mm x 100mm (larger jamb profiles available at extra cost)
    • Open way (entering): In-Swing or Out-Swing
    • Sill/Threshold: 25mm x 150mm Forward Sloping or Square
    • Door Bottom Rubber Seal: Optional
    • Roller Catches: Included
    • Glass Type: Visit our Glazing options page
    • Glass Thickness: Visit our Glazing options page
    • TDL: 20T or 30T
    • Beads: CTL 10, CTL15, CTM20, CTM30
    • Colour Finish: Visit our Paint Finishes page
    • Lever Handles: Visit our Pittella page

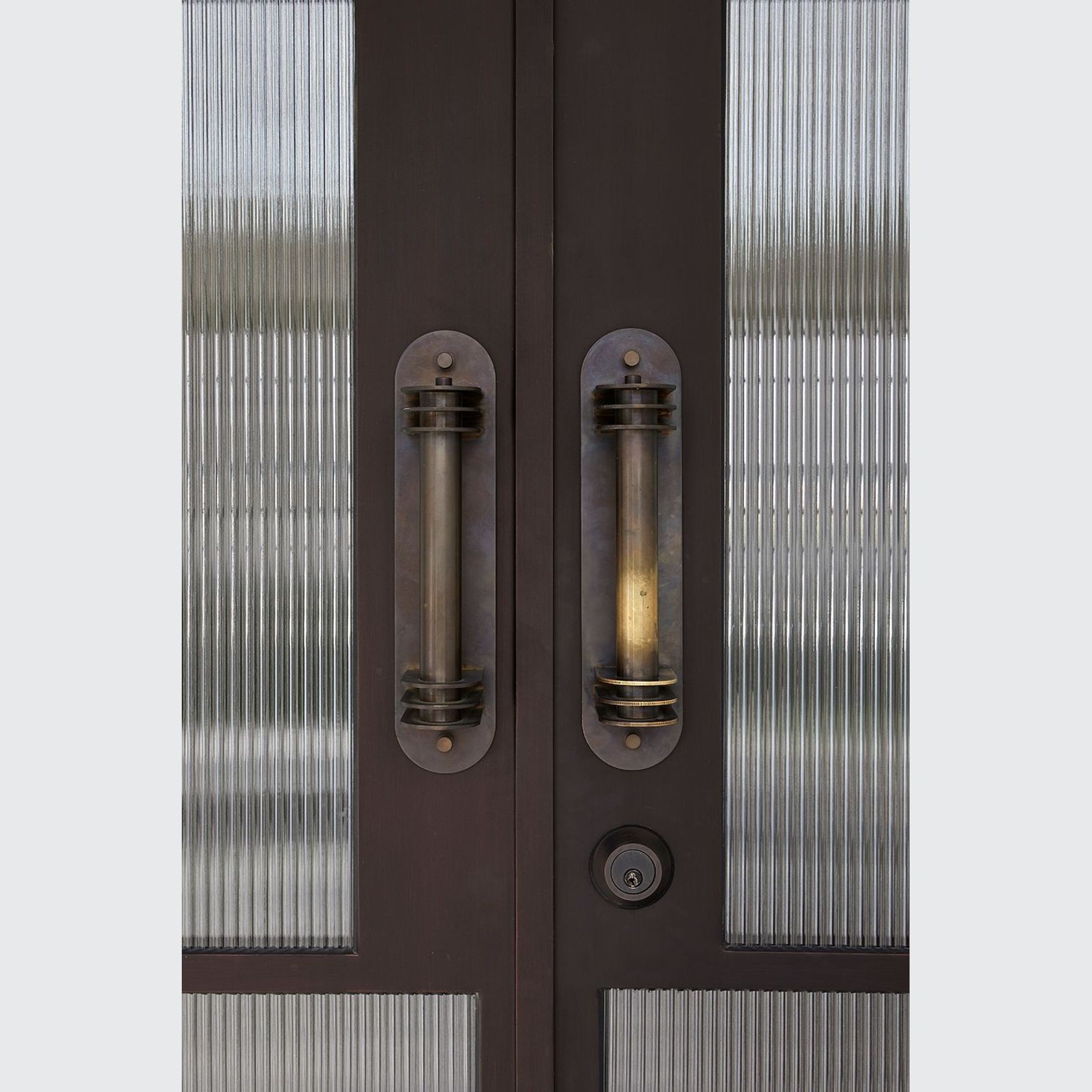

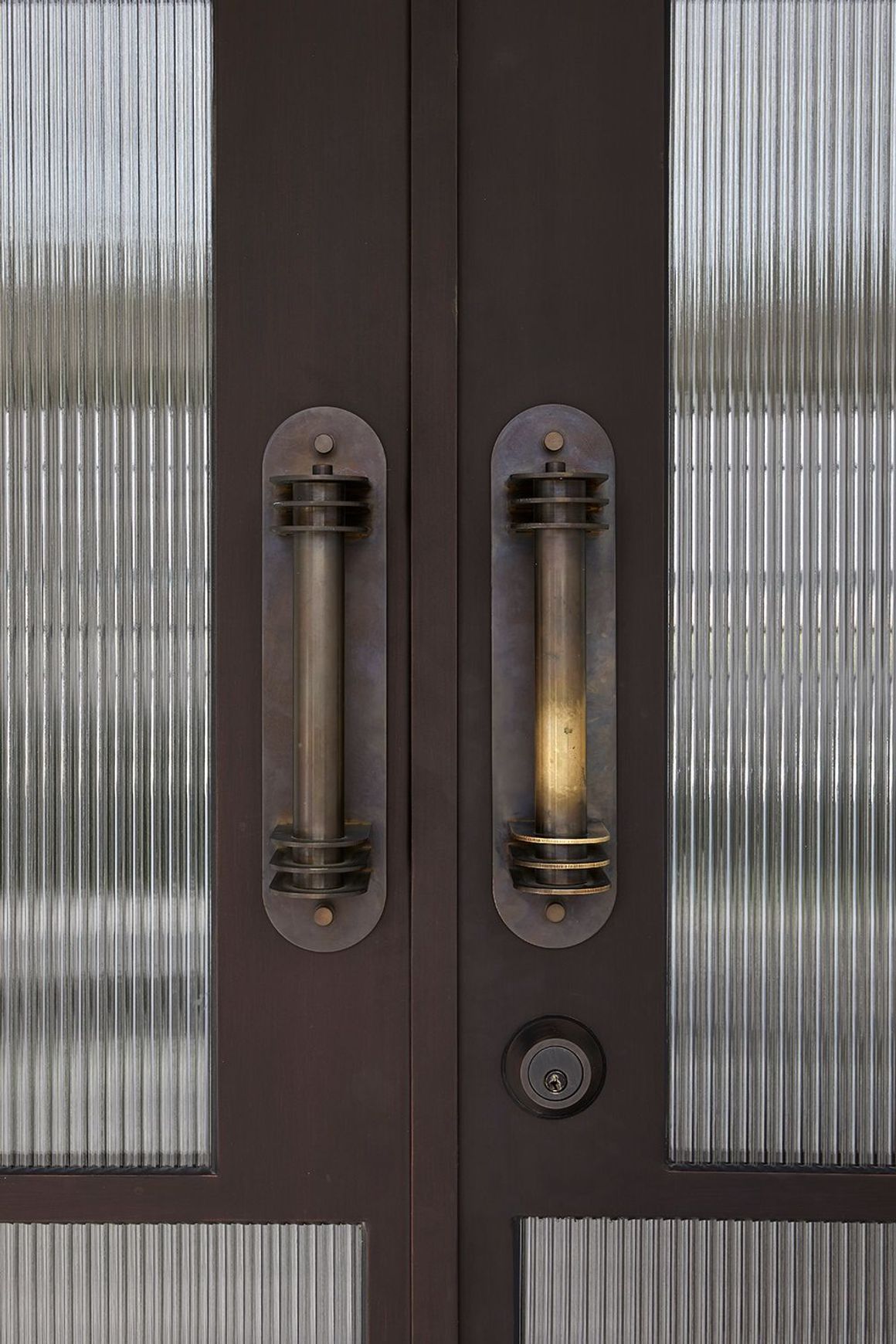

    • Pull Handles: Visit our Custom Pull Handles page
    • Locks: Visit our Pittella page
    • Material: Precision cold formed galvanised FPS50 Slimline Tube Steel Profile – ”P” profile design 1.8mm wall thickness tube with foam injected – Very compact profiles with minimal depth and sight-lines
    • Surface treatment: Zinc-magnesium pre-coating for corrosion protection
      Gritblasting SA 2.5; The 1st layer is a sealing primer; The 2nd layer is a high-durable top coating; Total thickness is at least 150-180 microns according to VMRG quality requirements.
    • Paint: 4FC (Fluorocarbon) (DAIKIN of Japan)
    • Package: Sealed Wooden Box
    • CAD Design Drawing: Yes
Scope of use

Zen Doors Steel Frame Hinge Doors are Tested & Accredited to AS2047-2014 Windows and External Glazed Doors in Buildings. This makes them suitable for installation in both internal and external residential and commercial applications.

Features
  • Tested & Accredited to AS2047-2014 Windows and External Glazed Doors in Buildings, with accompanying Certificate of Compliance to meet Occupancy Permit requirements and BASIX requirements Australia wide.
    • Modern Architectural Design
    • Custom Hand Made Construction for Durable Functionality
    • Built from High Quality Galvanised Solid Hot Rolled W20 Profile
    • Fluorocarbon Coating, a superior finish to Powder coating
    • Single, Double or Triple Glazing Available
    • High Quality Door Hardware
    • Designed to Impress and Built to Last
    • 5 Year Warranty
