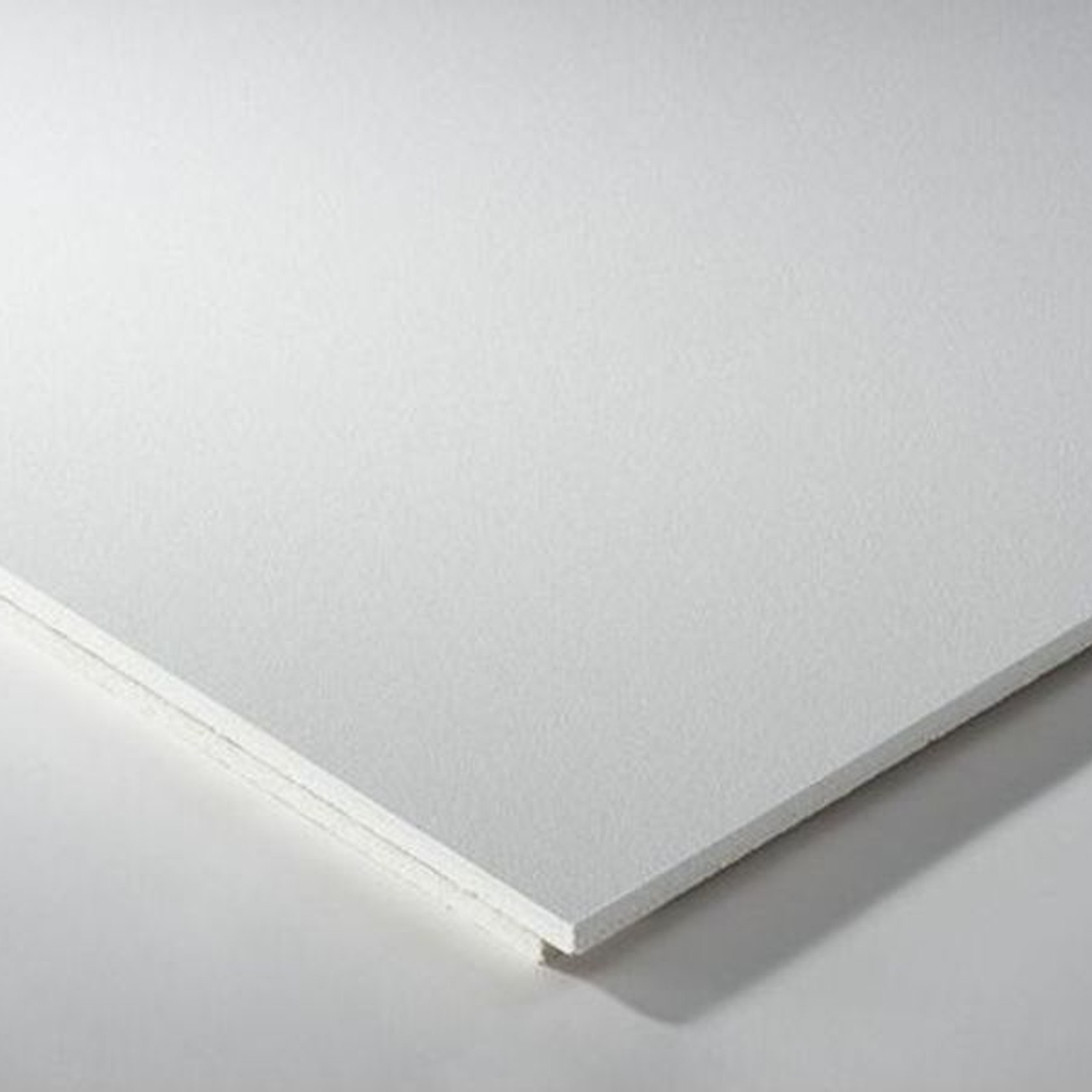

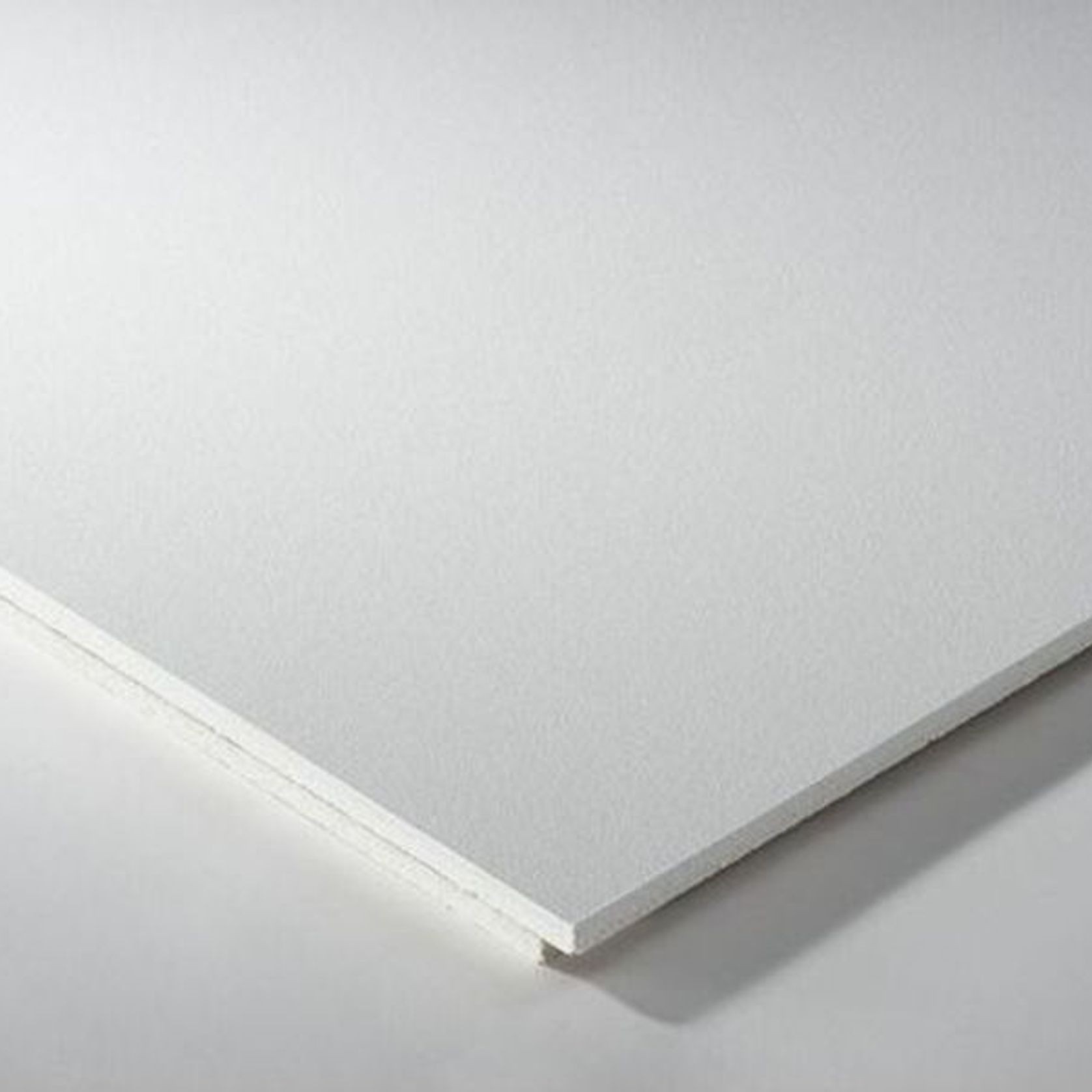

AMF Thermatex Alpha 19, 30, 35 Suspended Ceiling Tile

Auckland

402.9K profile views
52 saves

AMF Thermatex Alpha 19, 30, 35 Suspended Ceiling Tile is the extremely absorbing plank ceiling from the AMF Acoustic Range. The range is suited for New Zealand schools, meeting DQLS requirements. The elegant white acoustic fleece provides a high quality surface. Our AMF Acoustic Range carries the Declare label.

Tags

ceiling tiles suspended ceiling suspended ceiling tile absorbing ceiling tile school ceiling tile

Product Details

Product: AMF Thermatex Alpha 19, 30, 35 Suspended Ceiling Tile
Category: Acoustic Panels
Sold by: CSR Potter Interior Systems
Range: Thermatex Ceilings

Product Variants

Colors

CSR Potter Interior Systems is specified by

Visit site

AMF Thermatex Alpha 19, 30, 35 Suspended Ceiling Tile is the extremely absorbing plank ceiling from the AMF Acoustic Range.

The range is suited for New Zealand schools, meeting DQLS requirements. The elegant white acoustic fleece provides a high quality surface. Our AMF Acoustic Range carries the Declare label.

Specs

System: Two way exposed grid system

Dimensions : 1200 x 600mm (other sizes available on request)

Thickness / Weight :
19 mm (c. 5.2 kg/m²)
30 mm (c. 8.2 kg/m²)
35 mm (c. 9.5 kg/m²)

Colour : White similar to RAL 9010

Edge details : SK (other profiles available on request)

Sound absorption :
NRC = 0.90 as per ASTM C 423 (19mm)
NRC = 0.90 as per ASTM C 423 (30mm)
NRC = 0.85 as per ASTM C 423 (35mm)

Sound attenuation :
CAC = 34 dB as per ASTM E413-10 (19mm)
CAC = 40 dB as per ASTM E413-10 (30mm)
CAC = 42 dB as per ASTM E413-10 (35mm)

Fire resistance :
Group 1-S(as per ISO 5660 Parts 1 and 2)

Light reflectance :
Up to 88%

Thermal conductivity :
λ = 0.052 - 0.057 W/mK as per DIN 52612

Humidity :
Up to 95 % RH

Clean room :
Class 4 as per ISO 14644-1
