AMF Thermatex Acoustic Ceiling Tile
by CSR Potter Interior Systems
Auckland
- 402.9K profile views
- 52 saves

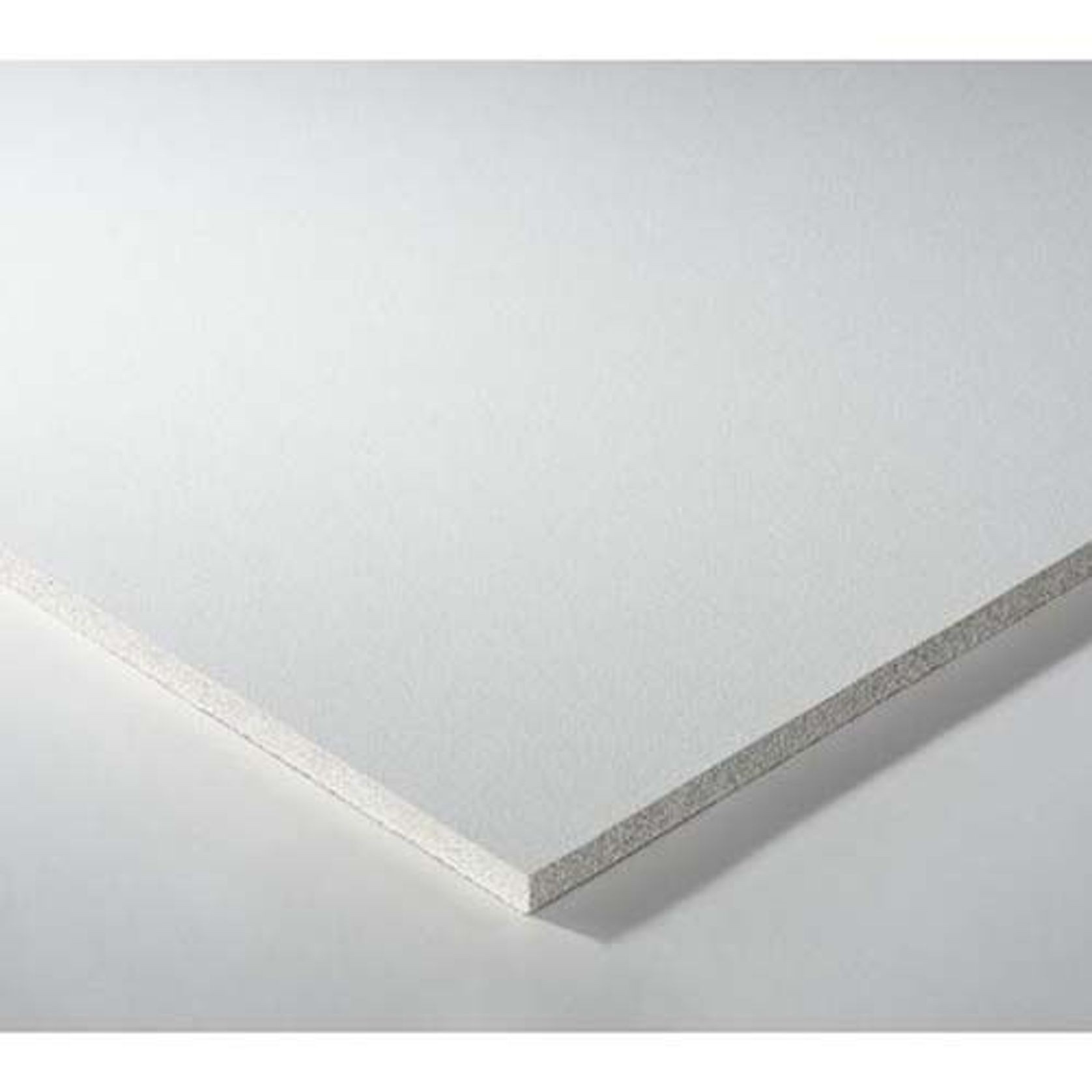

AMF Thermatex Acoustic Ceiling Tile is a 19 mm thick suspended ceiling tile made from a specially perforated mineral board and an acoustic fleece facing. The perforations provide excellent sound absorption while the fleece offers a smooth, elegant surface finish. The combination of high density, bio-soluble mineral wool with clay and starch provides excellent physical characteristics, particularly for acoustic performance. Our AMF Acoustic Range carries the Declare.
Product Details
- Product
- AMF Thermatex Acoustic Ceiling Tile
- Category
- Acoustic Panels
- Sold by
- CSR Potter Interior Systems
CSR Potter Interior Systems is specified by
YokeArchitects
architecture+Architects
Fat Parrot ArchitectureArchitects
Chow:Hill ArchitectsArchitects
T Plus ArchitectsArchitects
Matt Brew ArchitectArchitects
Origin HeritageArchitects
DLA ArchitectsArchitects
RTA StudioArchitects
Designgroup Stapleton ElliottArchitects
Studio Pacific ArchitectureArchitects
GS Cayless ConstructionBuilders
Creative ArchArchitectural Designers
MnM DesignArchitectural Designers
Elevate Architectural TransportablesBuilders
Arc AtelierArchitectural Designers
CTRL SpaceInterior Designers
FocusplanInterior Designers
AD ArchitectureArchitectural Designers
Lightforge PhotographyPhotographers
New Zealand Green Building CouncilAssociations
Metro Commercial InteriorsConstruction
Mark Scowen PhotographyPhotographers
Bob Burnett ArchitectureArchitectural Designers
VADAInterior Designers
AMF Thermatex Acoustic Ceiling Tile is a 19 mm thick suspended ceiling tile made from a specially perforated mineral board and an acoustic fleece facing.
The perforations provide excellent sound absorption while the fleece offers a smooth, elegant surface finish. The combination of high density, bio-soluble mineral wool with clay and starch provides excellent physical characteristics, particularly for acoustic performance. Our AMF Acoustic Range carries the Declare.
- Specs
- System - Exposed Grid System, demountable ceiling | Free span system, with exposed or concealed suspension | Bandraster system, with exposed or concealed suspension
- Dimensions - 600 x 600 mm, 1200 x 300 mm, 1200 x 600mm
- Thickness / Weight - 19 mm (c. 5.0 kg/m²)
- Colour - White similar to RAL 9010
- Edge details - SK, VT 24 (more profiles available on request)
- Sound absorption - NRC = 0.70 as per ASTM C 423
- Sound attenuation - CAC = 39 dB as per ASTM E413-10
- Fire Resistance - Group 1-S (as per ISO 5660 Parts 1 and 2)
- Light reflectance - up to 88%
- Thermal conductivity - λ = 0.052 - 0.057 W/mK as per DIN 52612
- Humidity - up to 95 % RH
- Clean Room - Class 3 as per ISO 14644-1
- Interior Air - Indoor air comfort GOLD status
Downloads
Downloads (3)3 Direct downloads • 6 Available on request
Frequently asked questions about
AMF Thermatex Acoustic Ceiling Tile
The AMF Thermatex Acoustic Ceiling Tile is supplied by CSR Potter Interior Systems. It is also on their website, and you can browse every product CSR Potter Interior Systems lists on ArchiPro.
CSR Potter Interior Systems does not publish a price for the AMF Thermatex Acoustic Ceiling Tile on ArchiPro. for pricing, or visit their website.
Yes. It is part of the Suspended Ceiling Tiles range from CSR Potter Interior Systems, where you can see every product in the range together.

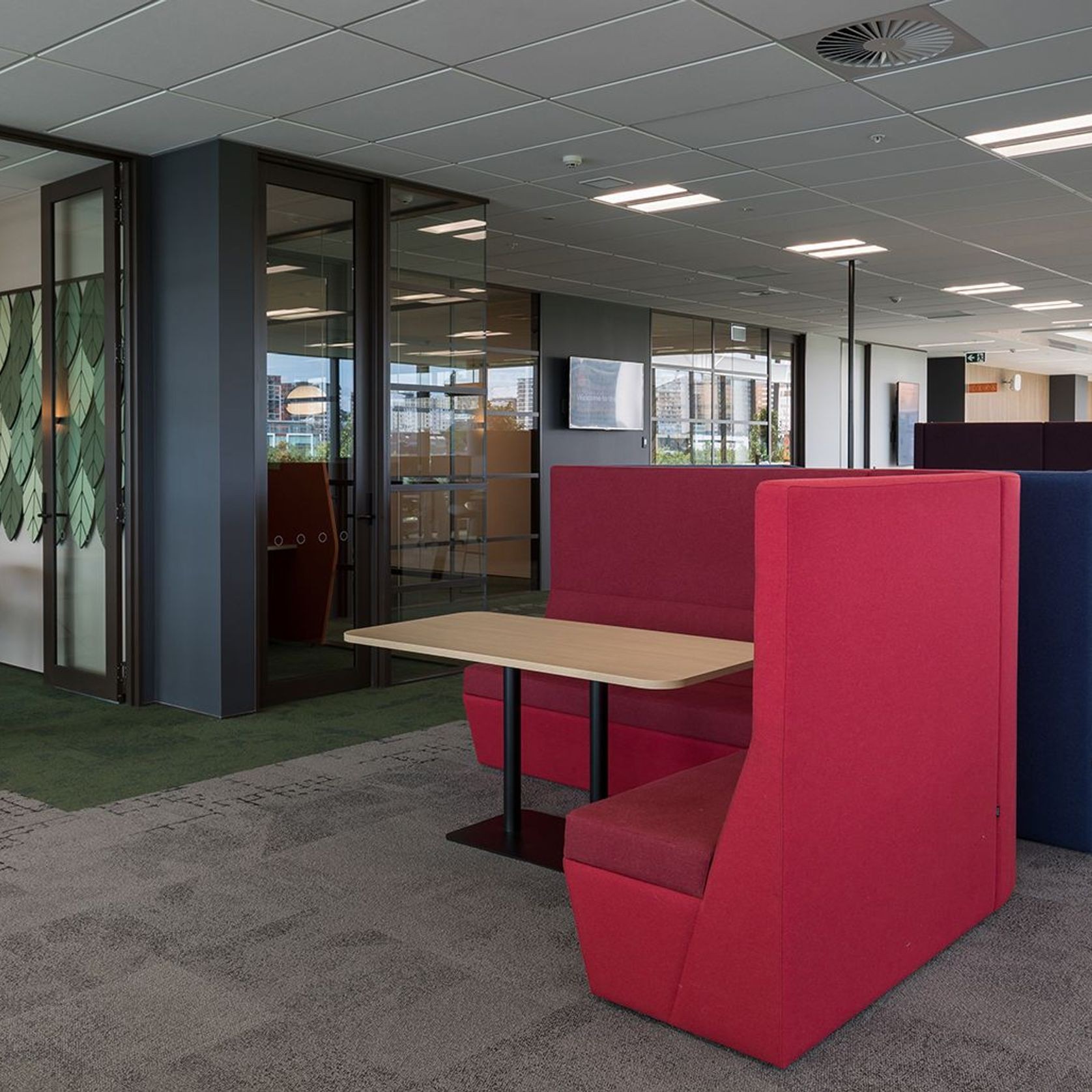

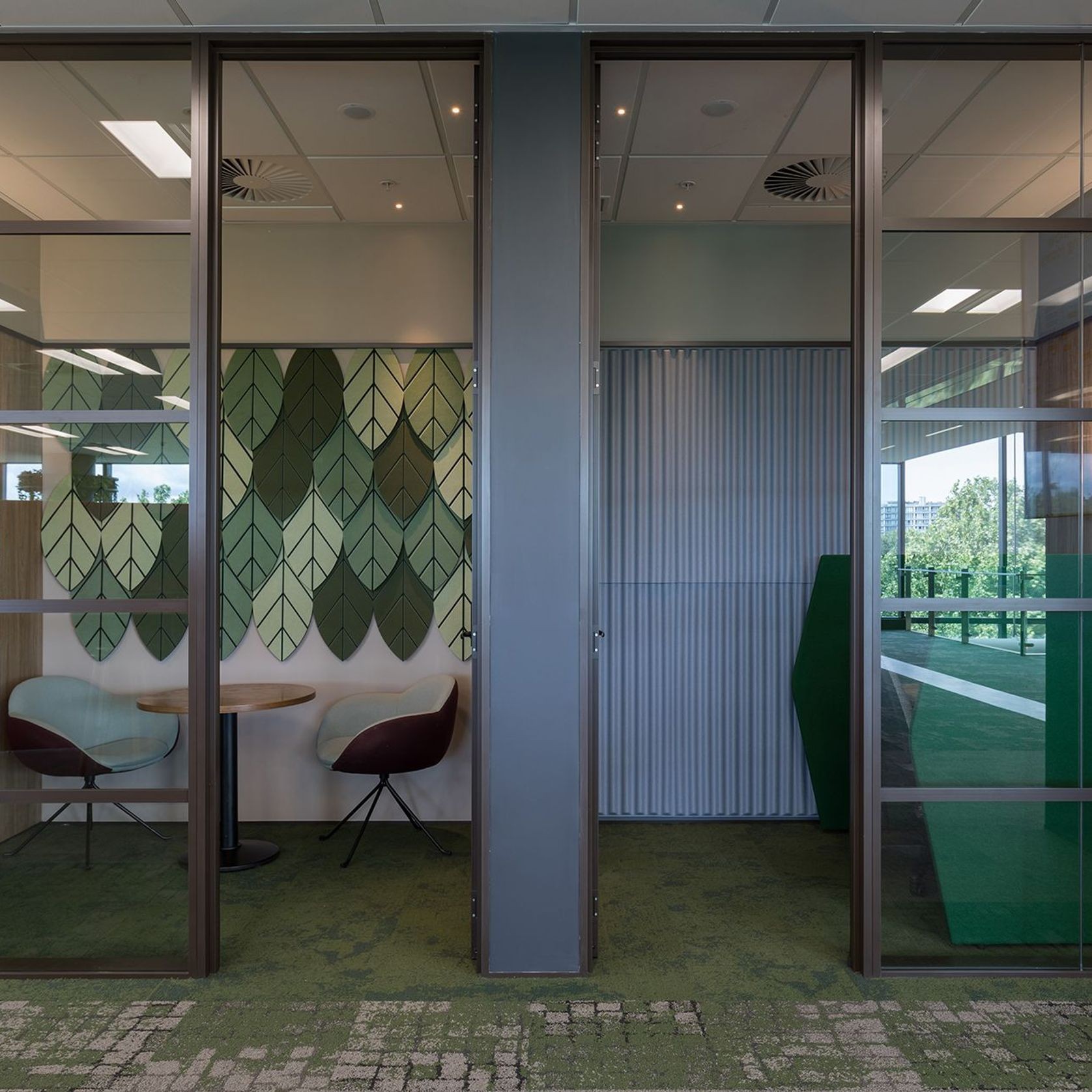

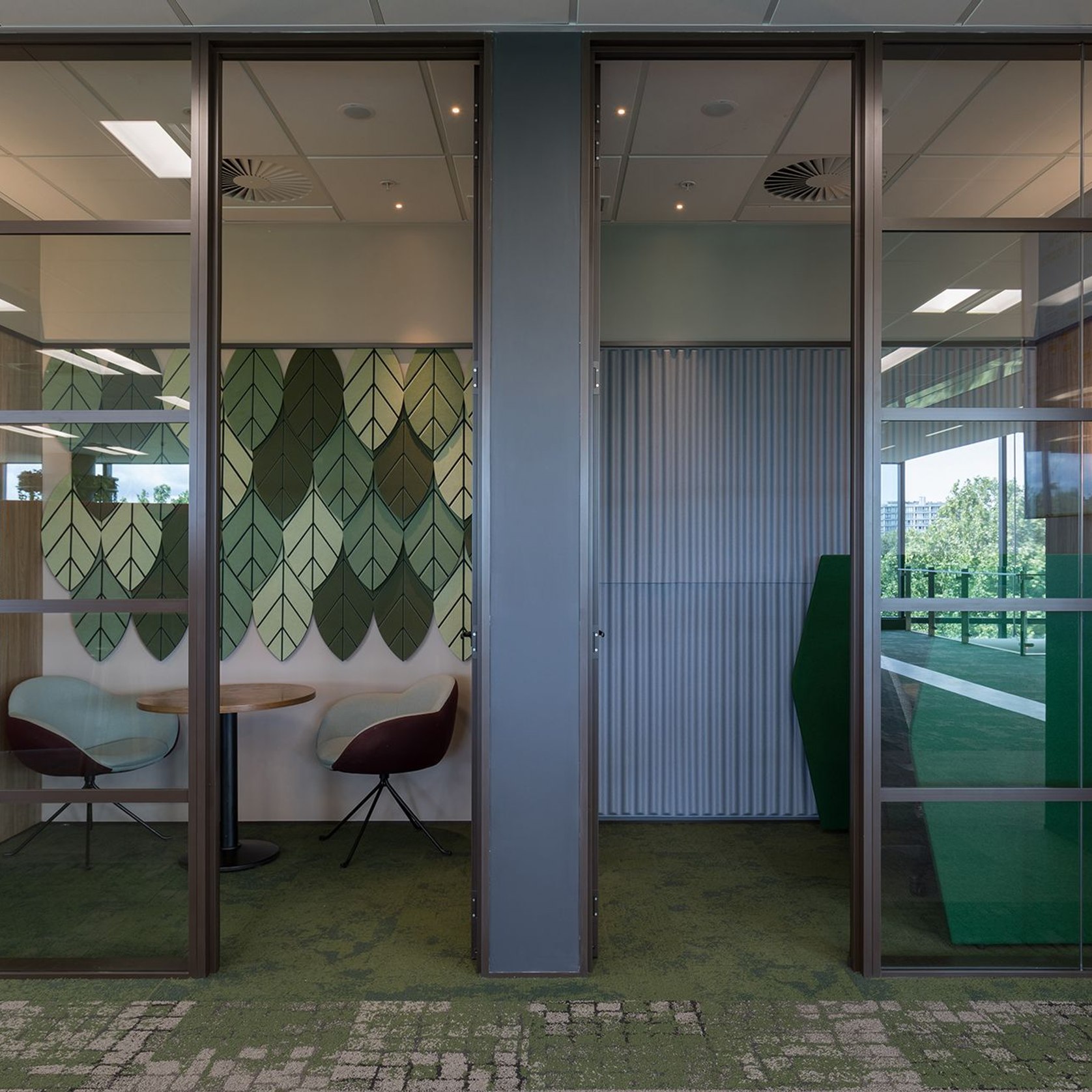

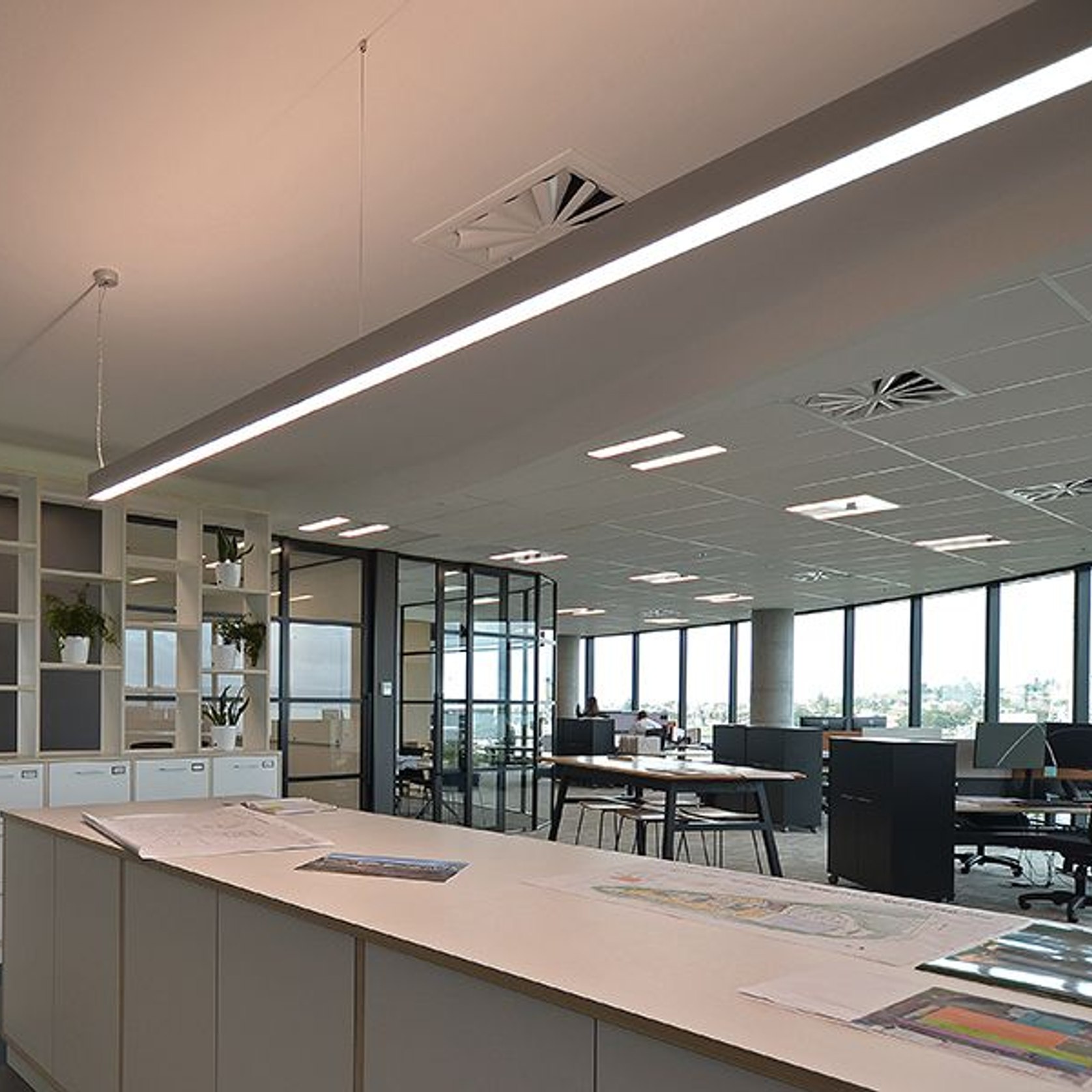

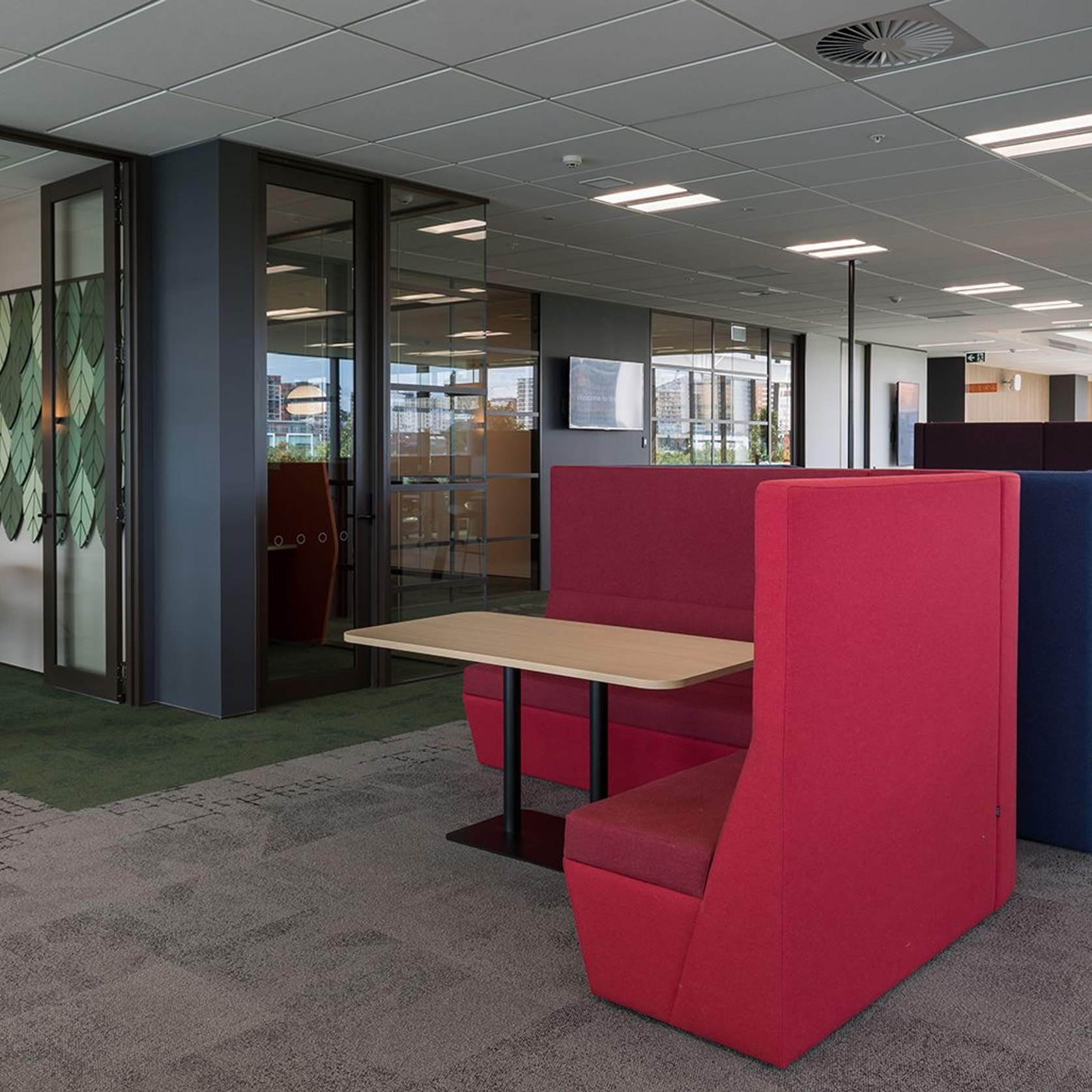

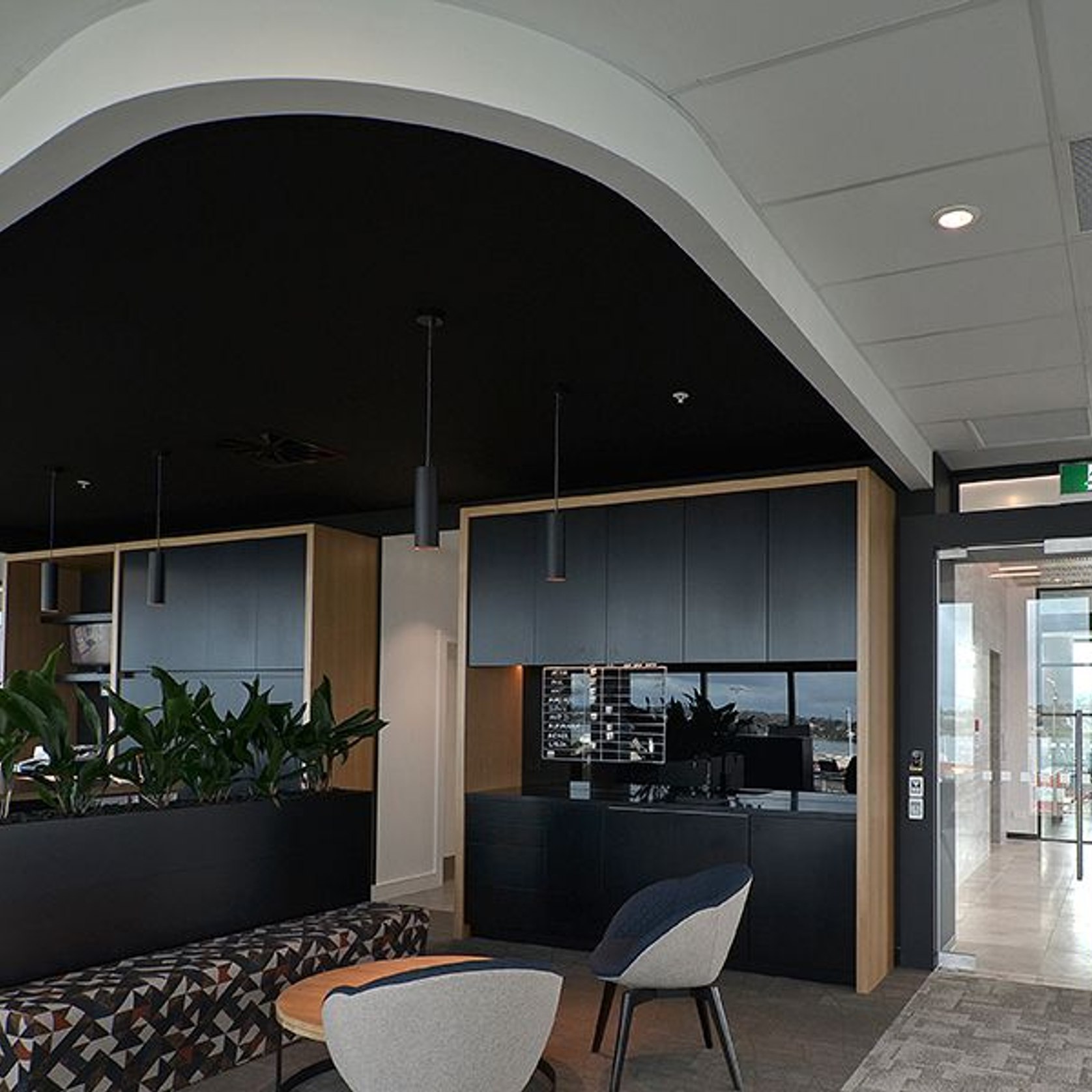

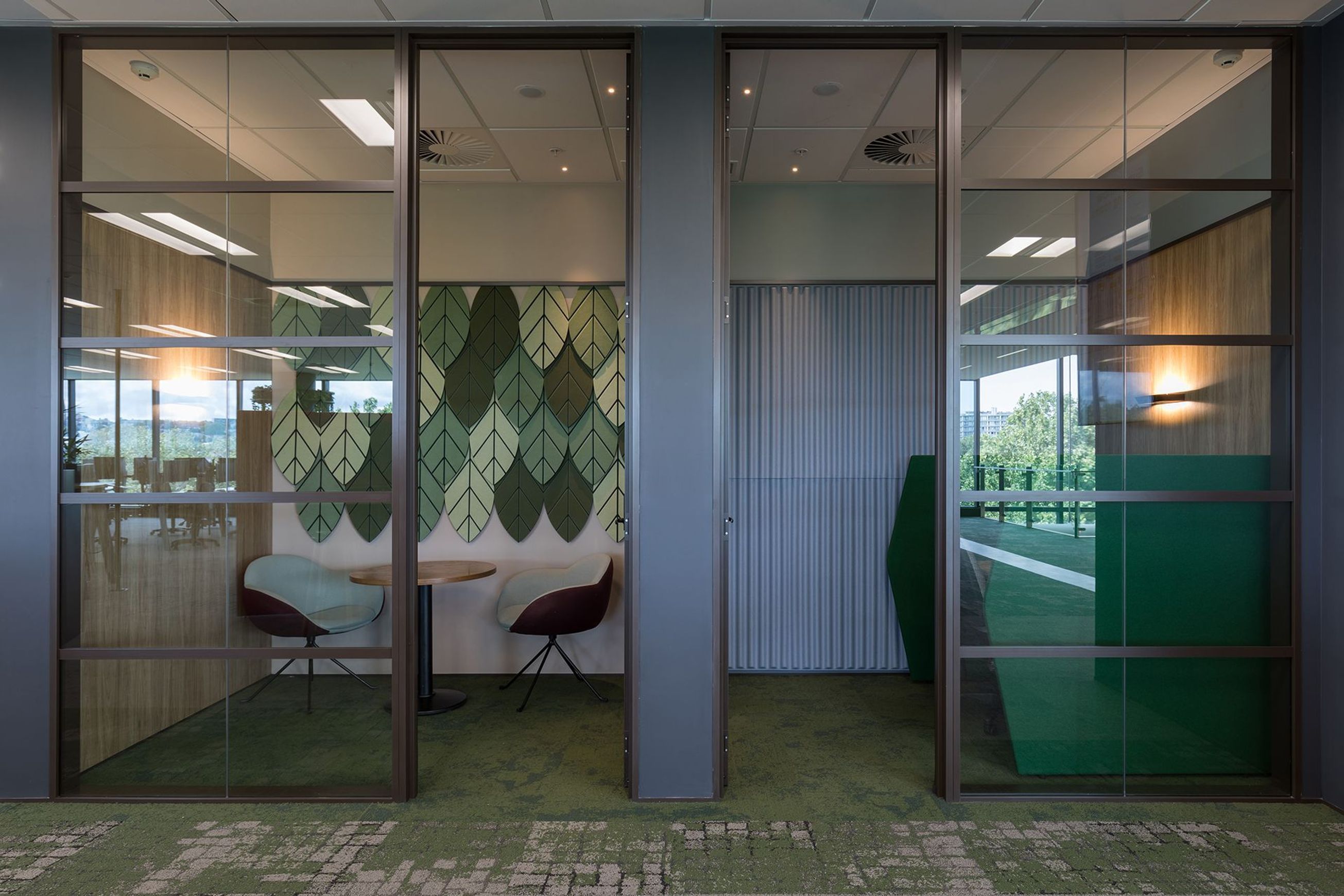

Yes. It has been specified in projects on ArchiPro, including Pacific Radiology Wellington by CSR Potter Interior Systems, Southern Cross Healthcare by CSR Potter Interior Systems and Genesis Auckland by CSR Potter Interior Systems. See how it was used in a finished space.
