The 65ARi40 is a modular drainage kit with stainless steel grate(s), stainless steel drainage channel and fittings. It is size adjustable and will be assembled at the time of installation. All components are manufactured from 316 marine-grade stainless steel.
The 65ARi40 is the original premium architectural grate featuring a 2mm wire/2.5mm gap.
Product Details
- Product
- 65ARi40 Linear Drainage System
- Category
- Surface Drainage
- Sold by
- Stormtech
- Range
- 65
Product Variants
- Size
Stormtech is specified by
Bryant Alsop ArchitectsArchitects
Whisker ArchitectureArchitects
Rama ArchitectsArchitects
Utz Sanby ArchitectsArchitects
DX ArchitectsArchitects
Ian Moore ArchitectsArchitects
djrd architectsArchitects
SJBArchitects
Smyth & SmythArchitects
Taylor KnightsArchitects
Bower ArchitectureArchitects
NTF ArchitectureArchitects
Tham ArchitectsArchitects
Chan ArchitectureArchitects
Greenaway ArchitectsArchitects
J Mammone ArchitectureArchitects
Cadence & CoArchitects
WexhausArchitects
Hive ArchitectureArchitects
Windiate ArchitectsArchitects
ArchierArchitects
Eliza Blair ArchitectureArchitects
Tim Hodges ArchitectArchitects
Create ArchitectureArchitects
Winter ArchitectureArchitects
BVNArchitects
Sici DesignInterior Designers
BeecraftBuilding Designers
Seidler GroupDesign & Build
STUDIO GAXAInterior Designers
Studio ApercuInterior Designers
Hutchinson BuildersBuilders
K.Holland Architectural InteriorsInterior Designers

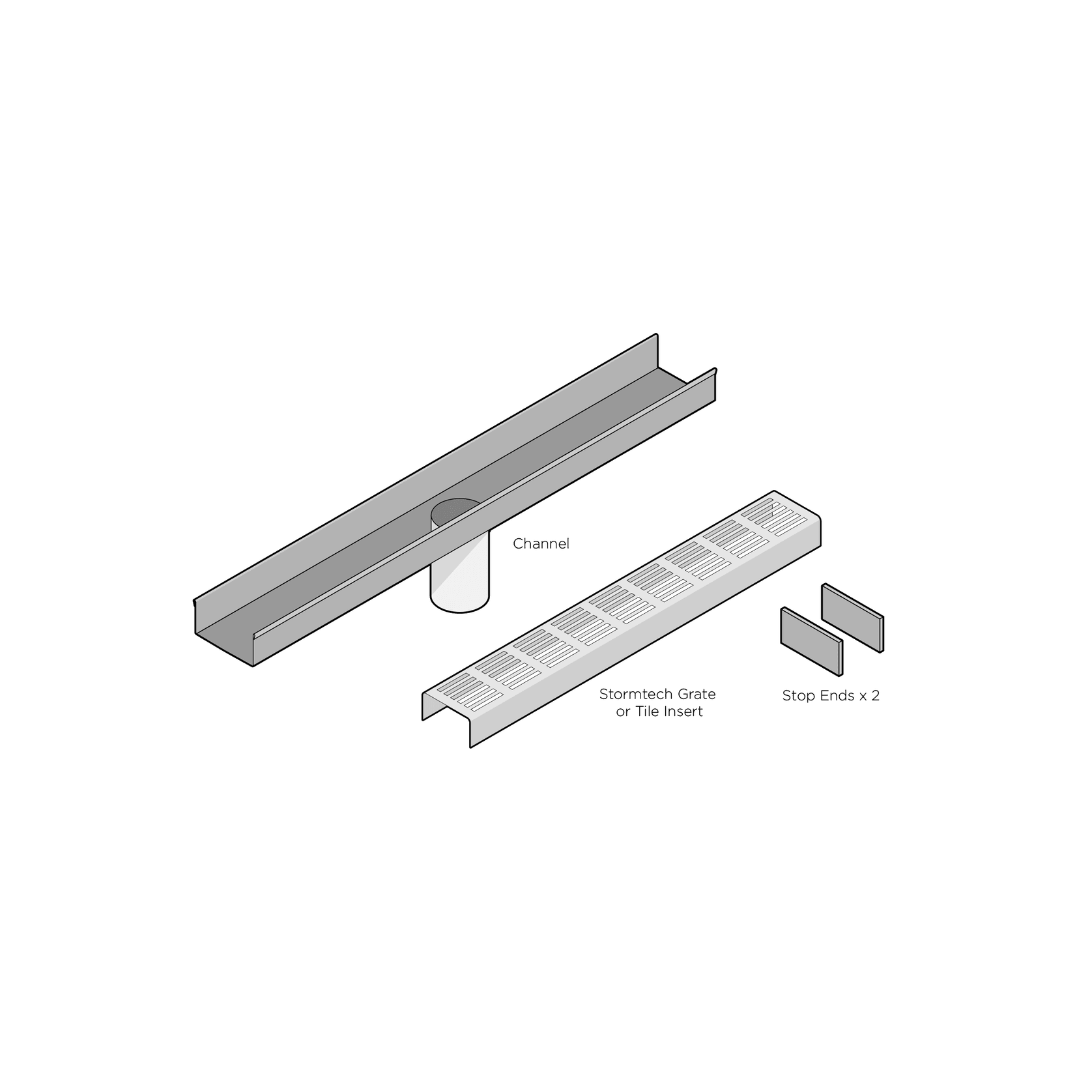

The 65ARi40 is a modular drainage kit with stainless steel grate(s), stainless steel drainage channel and fittings.
It is size adjustable and will be assembled at the time of installation. All components are manufactured from 316 marine-grade stainless steel.
The 65ARi40 is the original premium architectural grate featuring a 2mm wire/2.5mm gap.
- Specs
- Channel Width: 72mm
- Channel Depth: 42mm
- Length(s): 900mm, 1000mm, 1200mm, 1500mm, 1800mm, 1900mm, 2000mm
- Outlet Size: DN50
- Features
- Lengths over 3000mm available on request.
- Please be aware that depending on the installation environment, for a pool installation or close to a surf beach, you may need to have your stainless steel grates electropolished.
